902-120-188 High-Speed Coolant Rotary Joint: Complete Guide for Industrial Automation Applications
902-120-188 High-Speed Coolant Rotary Joint
Professional-grade coolant rotary joint designed for industrial automation and CNC applications
Article Summary
The 902-120-188 High-Speed Coolant Rotary Joint represents a critical component in modern industrial automation systems, particularly in CNC machining and manufacturing applications. This comprehensive guide explores the technical specifications, applications, and benefits of this specialized rotary joint designed for efficient coolant delivery in high-speed rotating machinery.
Product Overview
The 902-120-188 is a precision-engineered high-speed coolant rotary joint specifically designed for industrial automation applications. This component plays a vital role in CNC machines, allowing for continuous coolant flow to rotating tools while maintaining optimal performance and preventing overheating during high-speed operations.
For detailed specifications and purchasing information, visit our official product page: https://koeed.com/products/new-1pcs-902-120-188-high-speed-coolant-rotary-joint-suitable

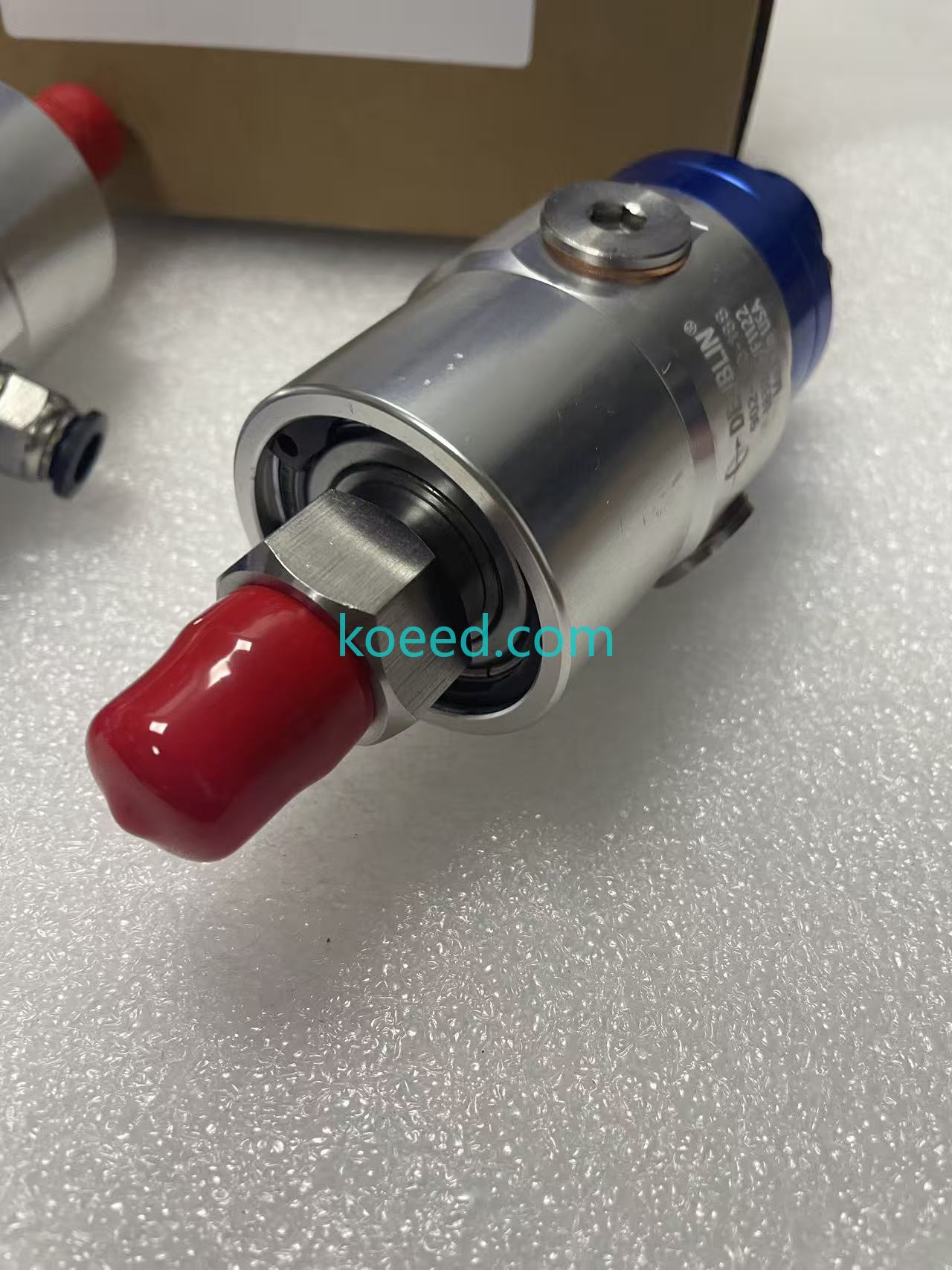

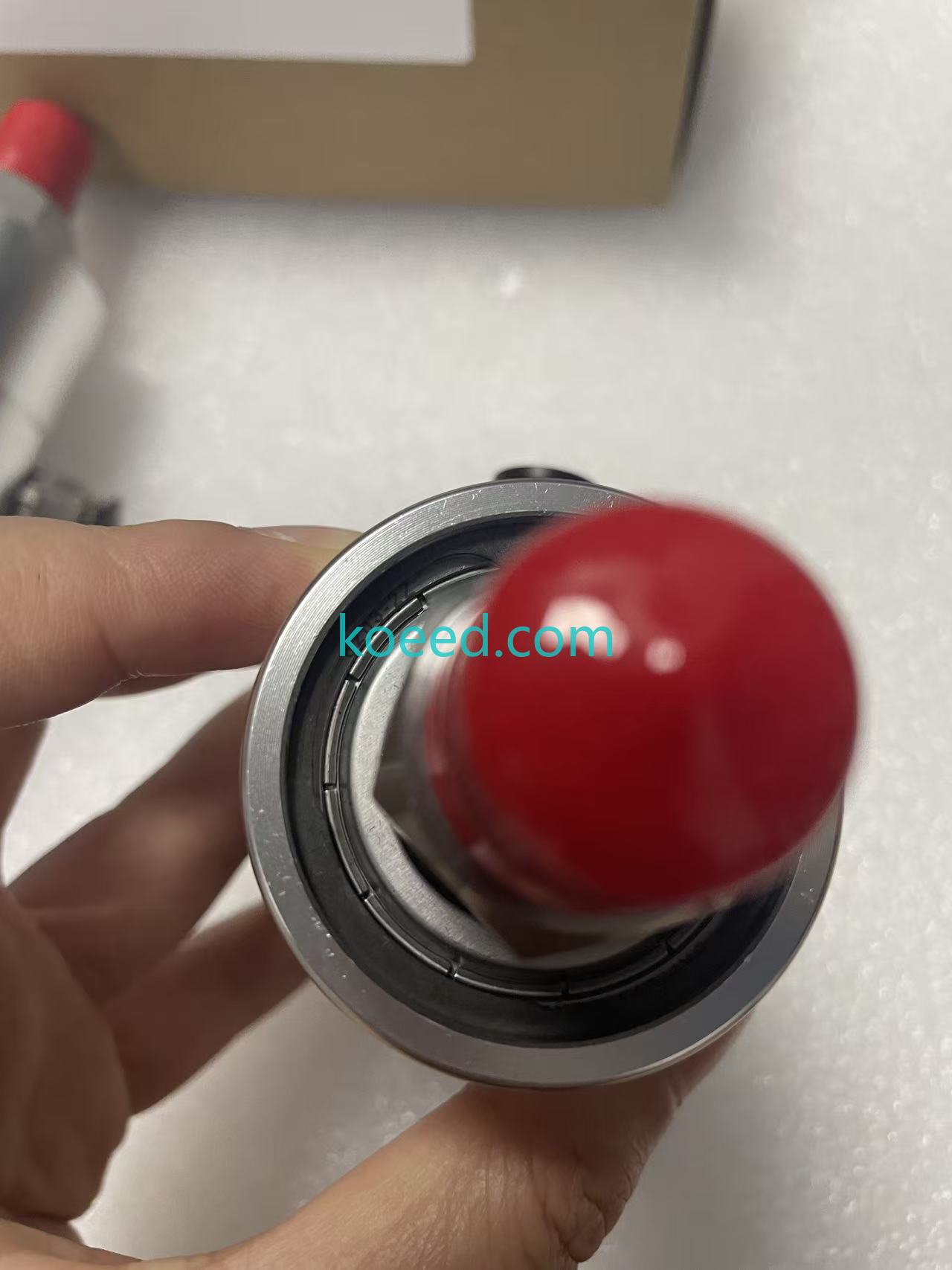

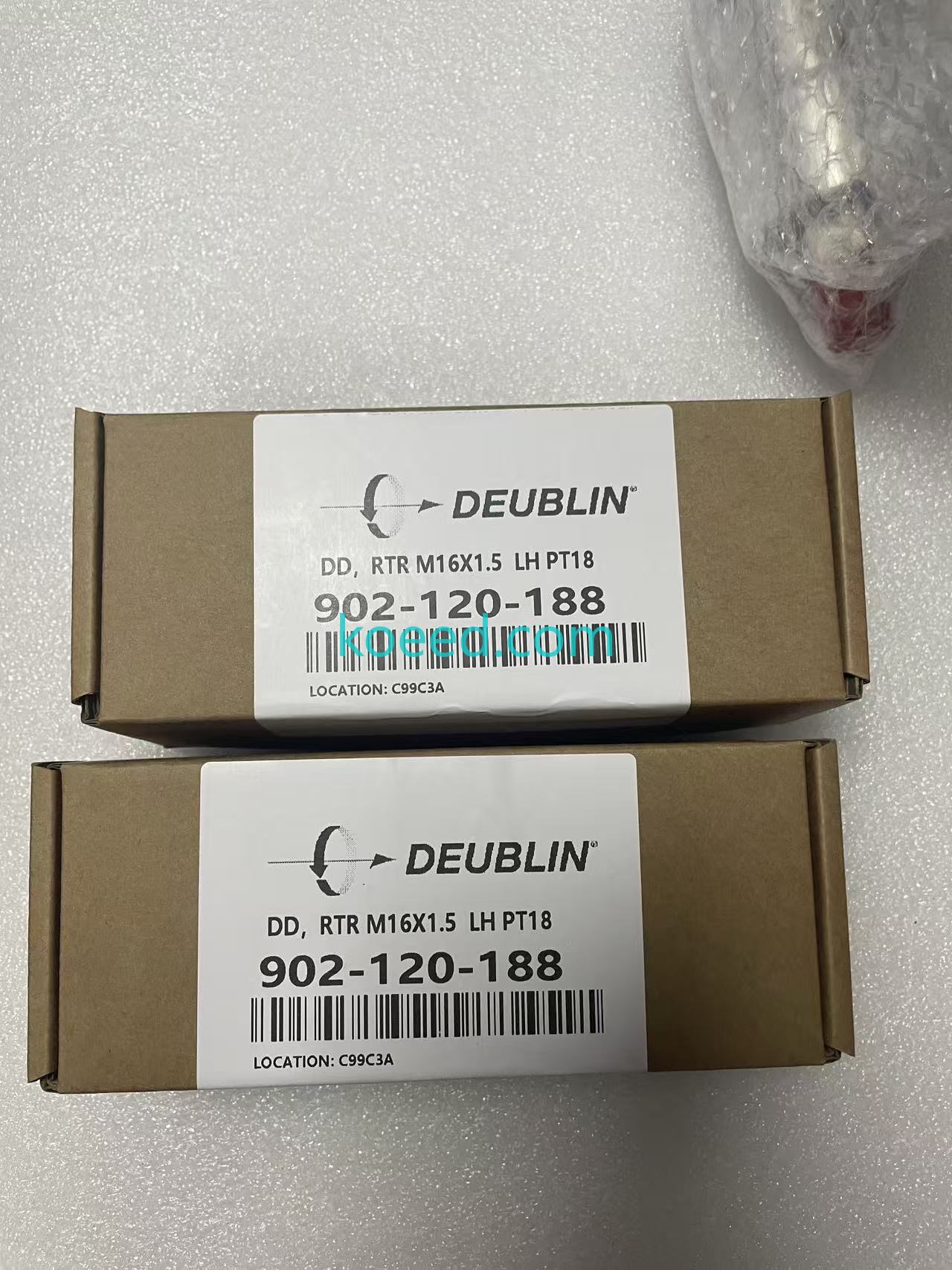

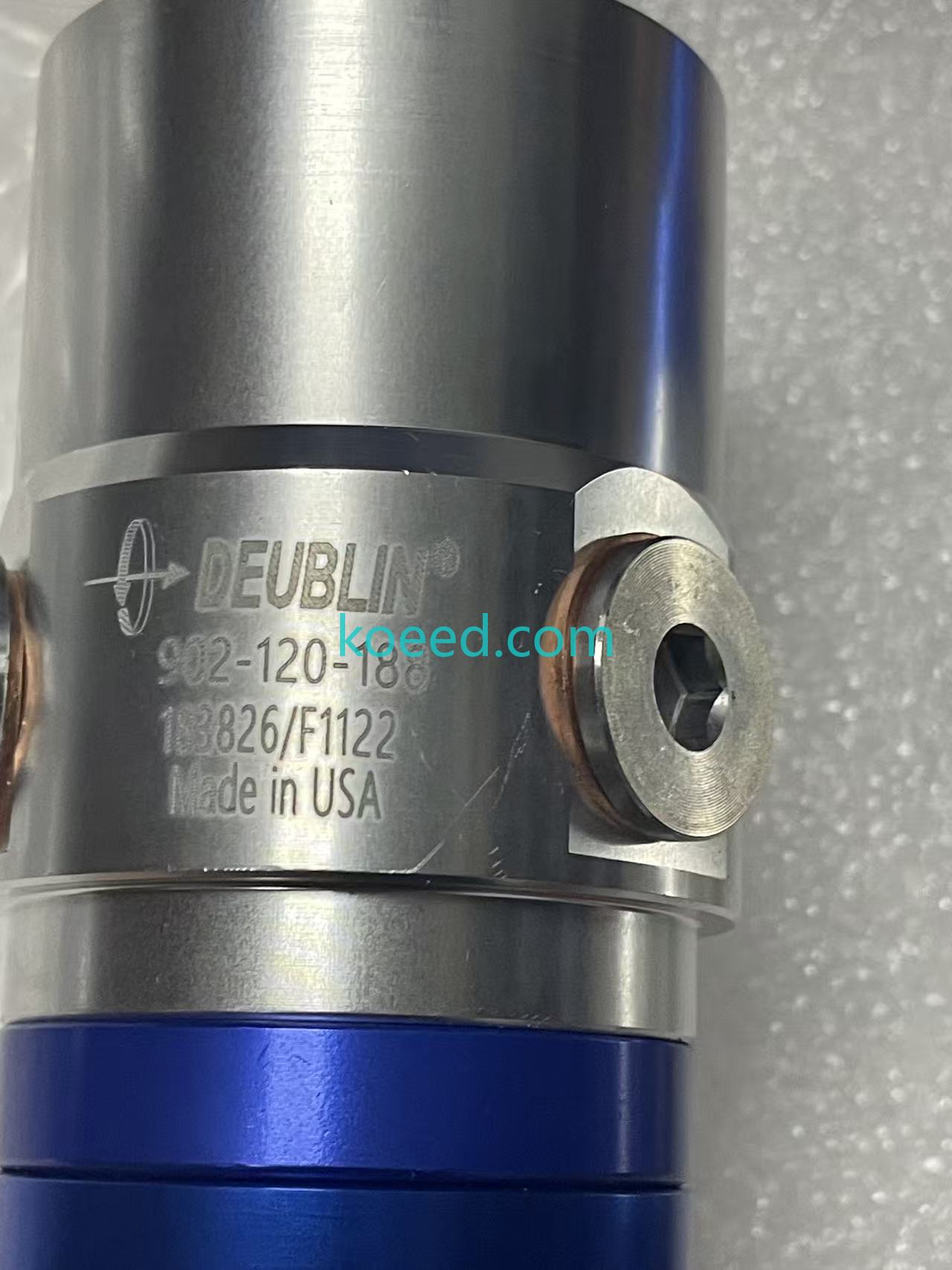

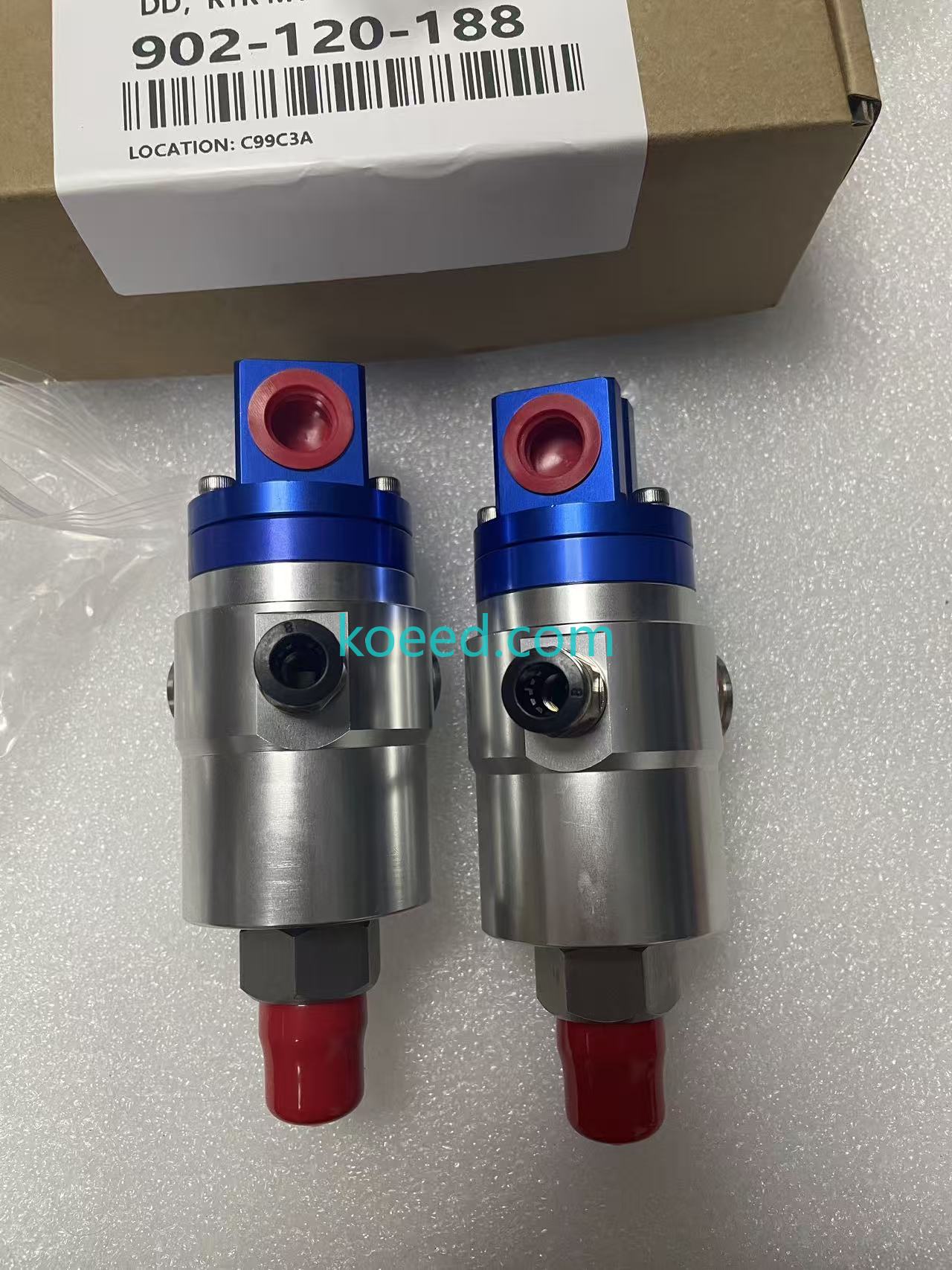

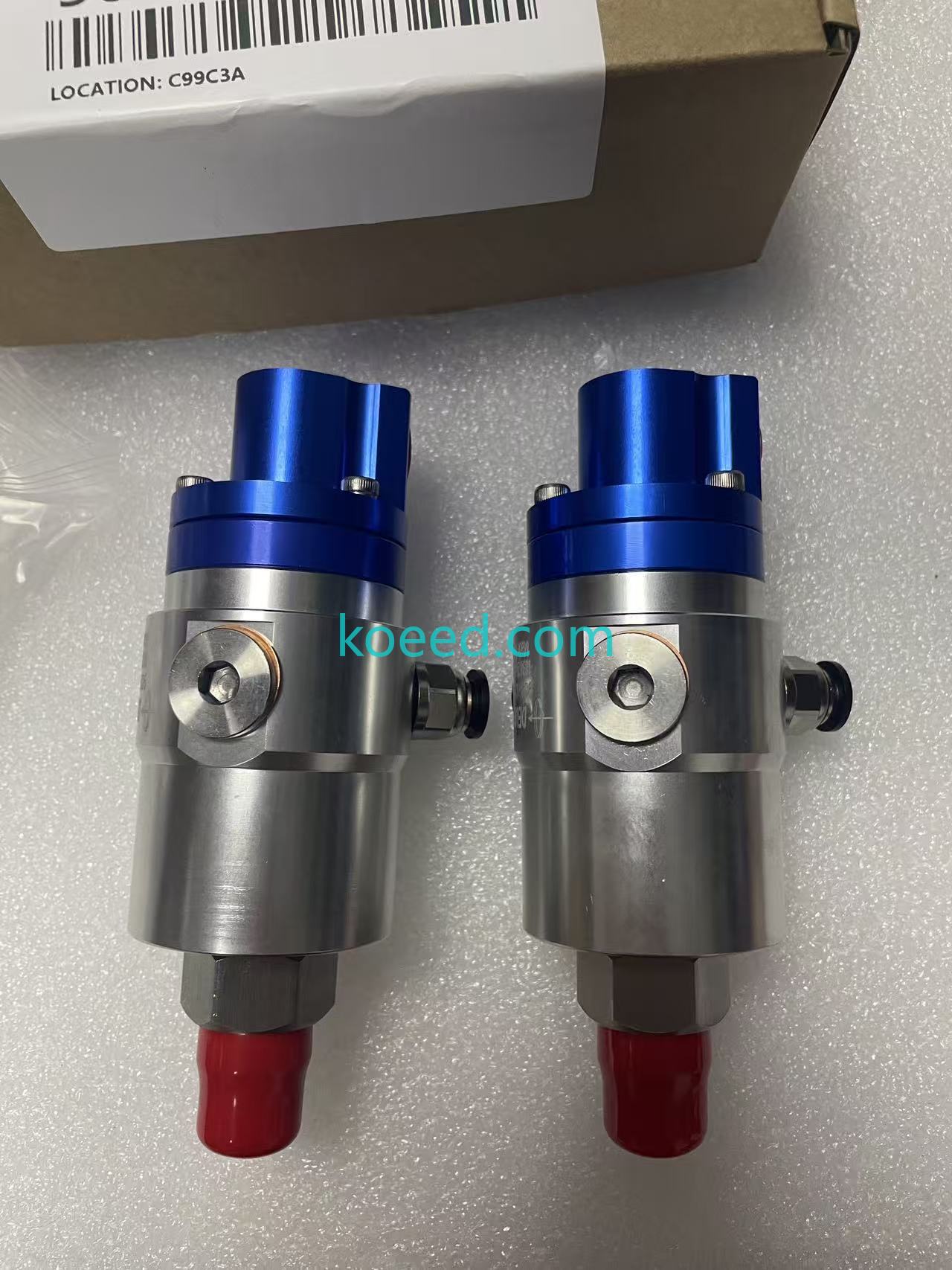

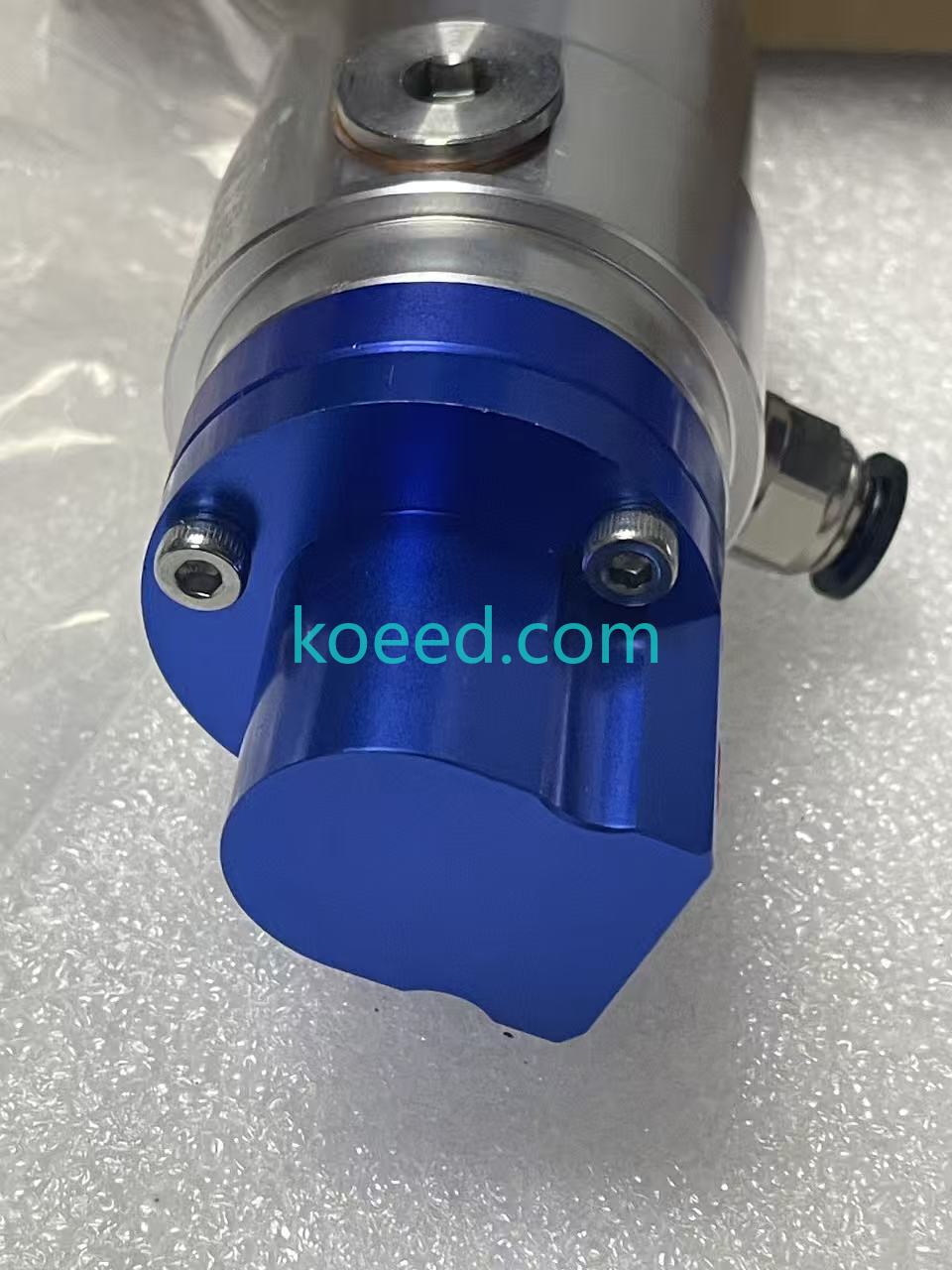

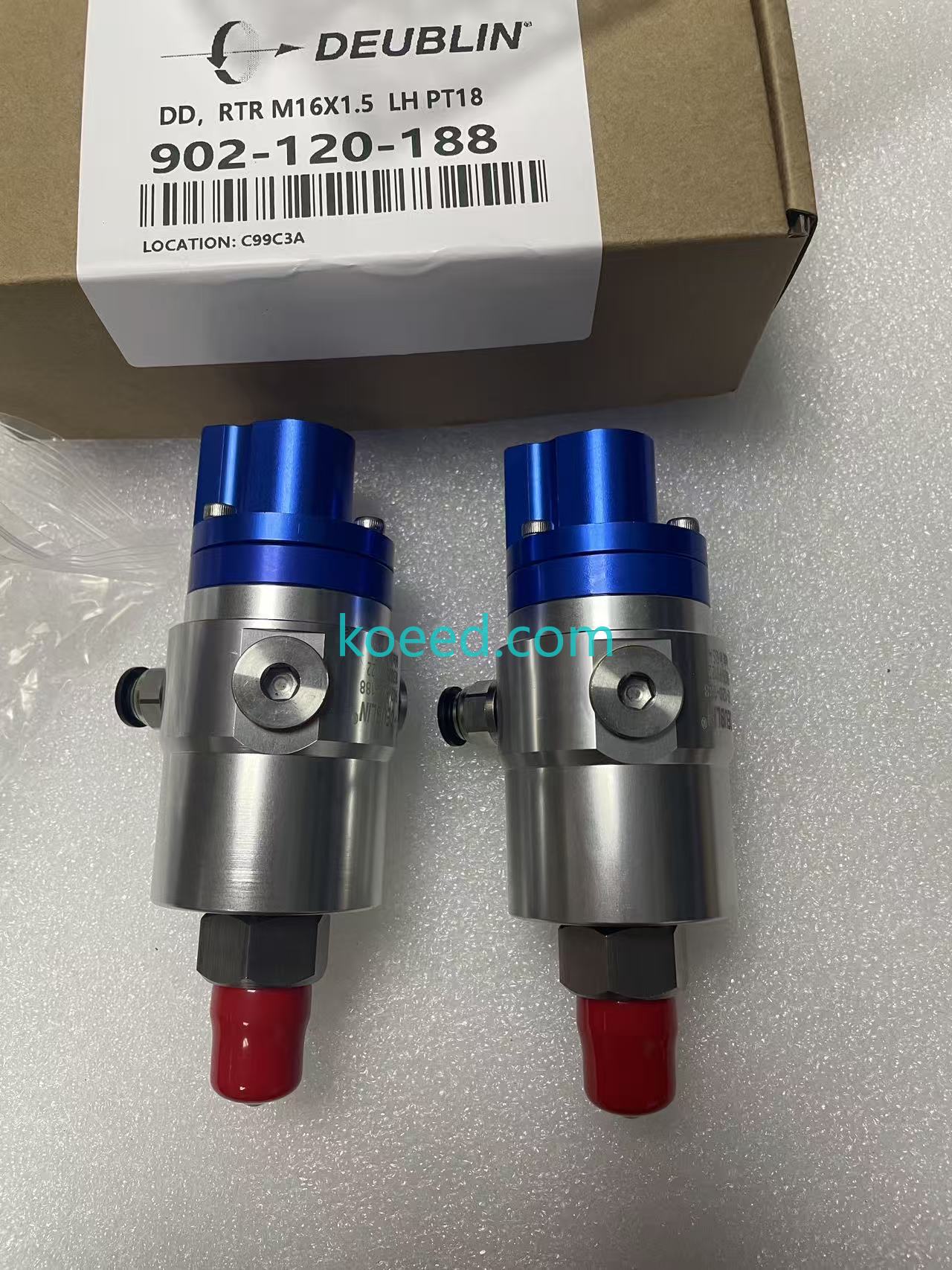

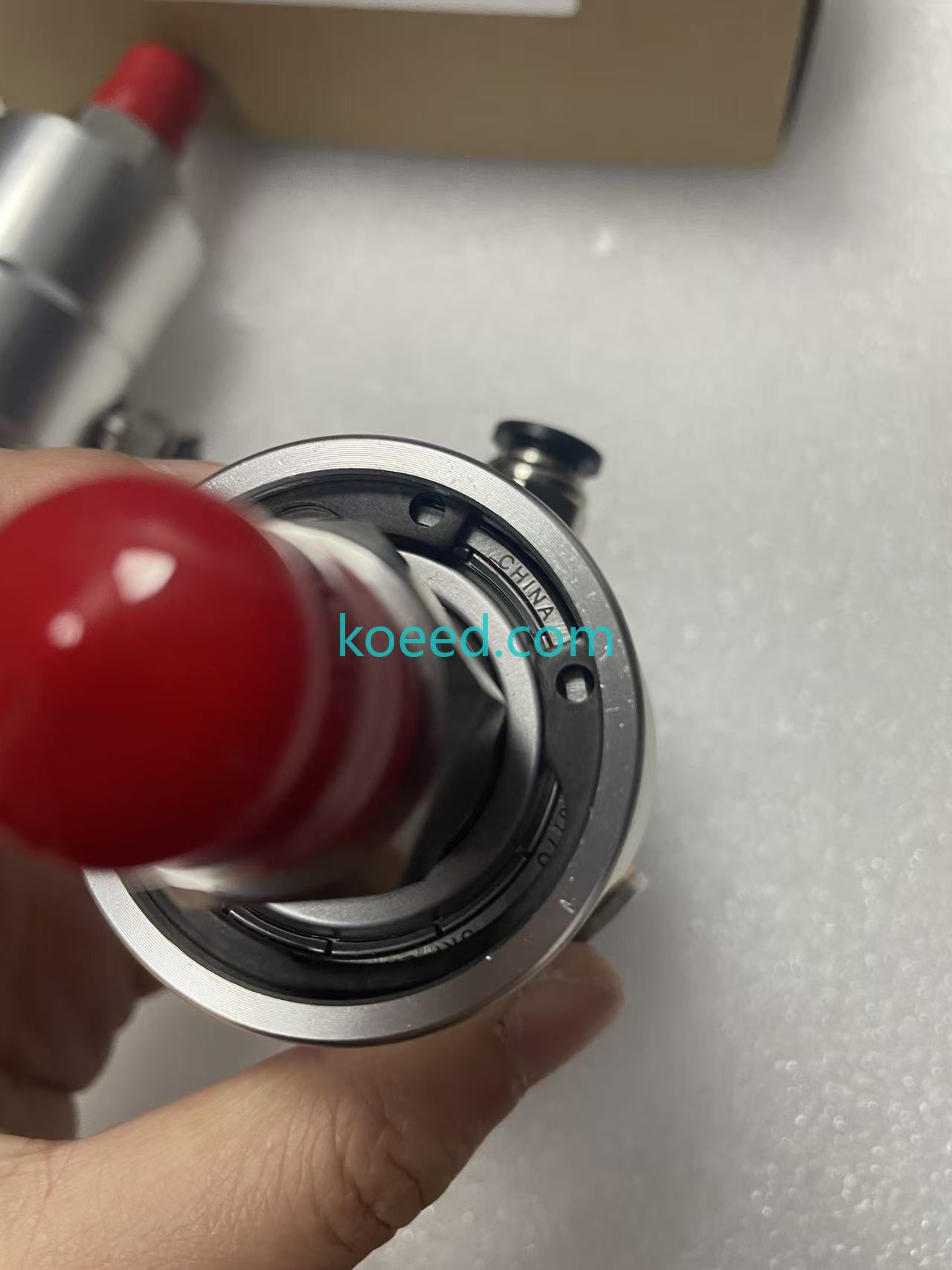

Product Images Gallery
Product Demonstration Video
Watch the 902-120-188 Coolant Rotary Joint in action
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Model Number | 902-120-188 | High-Speed Coolant Rotary Joint |
| Maximum Speed | Up to 10,000 RPM | Designed for high-speed CNC applications |
| Pressure Rating | Up to 1000 PSI | High-pressure coolant delivery capability |
| Connection Type | Standard Industrial Threads | Compatible with most CNC machine interfaces |
| Material Construction | Stainless Steel & Ceramic | Corrosion-resistant and durable |
| Temperature Range | -20Ā°C to 120Ā°C | Suitable for various industrial environments |
| Seal Type | Mechanical Seal | Leak-proof design for reliable operation |
| Application | CNC Machines, Milling Centers | Industrial automation and manufacturing |
Key Features and Benefits
High-Speed Performance
The 902-120-188 is engineered to operate at rotational speeds up to 10,000 RPM, making it ideal for modern high-speed CNC machining centers. This capability ensures efficient coolant delivery even during the most demanding cutting operations.
Reliable Leak Prevention
Featuring advanced mechanical seals and precision engineering, this rotary joint provides leak-proof operation, protecting sensitive machine components from coolant damage and ensuring consistent performance.
Durability and Longevity
Constructed from high-grade stainless steel and ceramic components, the 902-120-188 offers exceptional resistance to corrosion and wear, resulting in extended service life and reduced maintenance requirements.
Easy Installation and Maintenance
Designed with standard industrial interfaces, this rotary joint can be easily integrated into existing CNC systems. The modular design allows for straightforward maintenance and replacement when necessary.
Industrial Applications
The 902-120-188 High-Speed Coolant Rotary Joint finds applications across various industrial sectors:
- CNC Machining Centers: Essential for high-speed milling, drilling, and turning operations
- Automotive Manufacturing: Used in engine block machining and component production
- Aerospace Industry: Critical for precision machining of aircraft components
- Mold and Die Making: Provides consistent coolant flow during complex machining operations
- General Manufacturing: Suitable for any application requiring rotating coolant delivery
For industrial automation professionals seeking reliable coolant delivery solutions, the 902-120-188 High-Speed Coolant Rotary Joint offers exceptional performance and durability.
Comparison with Alternative Solutions
| Feature | 902-120-188 Rotary Joint | Standard Rotary Joints | Direct Coolant Systems |
|---|---|---|---|
| Maximum Speed | 10,000 RPM | 5,000-7,000 RPM | N/A (Stationary) |
| Pressure Rating | 1000 PSI | 500-800 PSI | Variable |
| Leak Prevention | Advanced Mechanical Seal | Basic Seals | Not Required |
| Maintenance Interval | Extended (6-12 months) | 3-6 months | Continuous |
| Compatibility | Universal Industrial Standard | Machine-Specific | Custom Installation |
Frequently Asked Questions (FAQ)
The 902-120-188 is compatible with most industrial coolants including water-soluble oils, synthetic coolants, and straight oils. The stainless steel and ceramic construction provides excellent chemical resistance.
Installation requires standard industrial tools and follows manufacturer guidelines. The joint features standard thread interfaces compatible with most CNC machine coolant systems. Always refer to the installation manual for specific instructions.
Regular inspection of seals and bearings is recommended every 6 months. The joint should be cleaned periodically to prevent coolant residue buildup. Seal replacement may be necessary after extended use depending on operating conditions.
Yes, the 902-120-188 is rated for pressures up to 1000 PSI, making it suitable for high-pressure coolant applications common in modern CNC machining operations.
Absolutely. The 902-120-188 is designed to integrate seamlessly with PLC-controlled industrial automation systems. It functions as a passive component in the coolant delivery system, compatible with various control architectures.
Trust and Quality Assurance
ISO Certified
Manufactured under ISO 9001 quality standards
Industrial Grade
Designed for 24/7 industrial operation
Warranty Protected
12-month manufacturer warranty
Technical Support
Expert support available
External References and Industry Standards
The 902-120-188 High-Speed Coolant Rotary Joint complies with several industry standards:
- ISO 10791: Test conditions for machining centers
- ANSI B5.54: Methods for performance evaluation of CNC machining centers
- DIN 55027: Rotary feedthroughs for fluids
- Industrial Coolant System Standards: Compatible with standard industrial coolant delivery systems
Conclusion
The 902-120-188 High-Speed Coolant Rotary Joint represents a sophisticated solution for industrial automation applications requiring reliable coolant delivery to rotating tools. With its high-speed capability, robust construction, and leak-proof design, this component enhances CNC machining performance while reducing maintenance requirements.
For industrial automation professionals and CNC machine operators, investing in quality components like the 902-120-188 High-Speed Coolant Rotary Joint ensures optimal machine performance, extended tool life, and improved manufacturing efficiency.
