B460M AORUS ELITE MATX Motherboard: Complete Guide for Industrial Automation Systems
B460M AORUS ELITE MATX Motherboard
Intel® B460 Chipset | Micro ATX Form Factor | Industrial Automation Ready
A high-performance motherboard solution designed for industrial automation, PLC systems, and reliable computing applications with advanced thermal management and connectivity options.

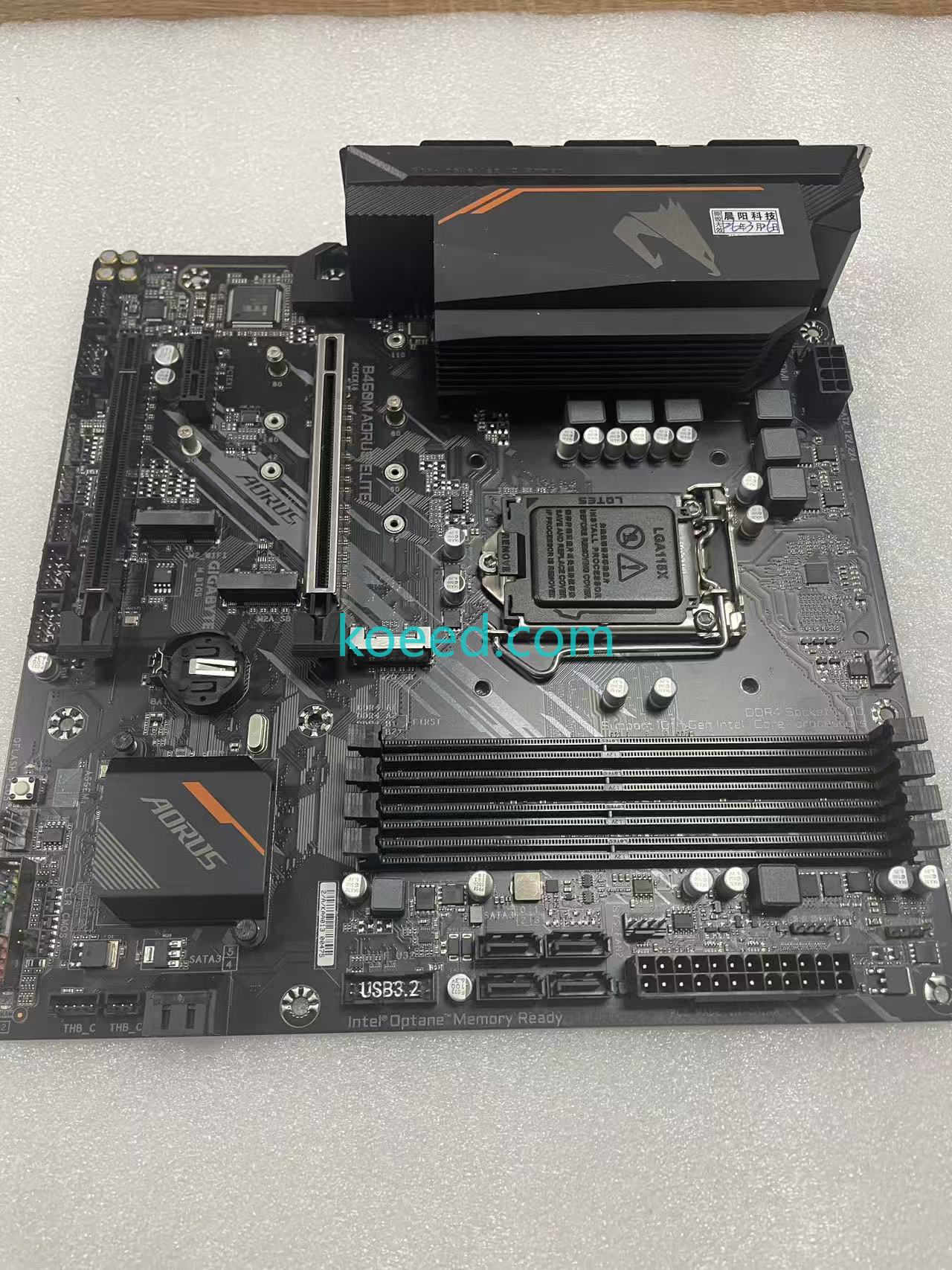

Product Overview
The B460M AORUS ELITE MATX motherboard is a premium Micro ATX solution built on Intel's B460 chipset, specifically designed for industrial automation applications and PLC systems. This motherboard combines reliability, performance, and industrial-grade durability to meet the demanding requirements of automation environments.
With support for 10th generation Intel Core processors and LGA 1200 socket, this motherboard provides the computational power needed for complex automation tasks, real-time data processing, and industrial control applications.
Key Specifications
| Specification | Details |
|---|---|
| Chipset | Intel® B460 Express Chipset |
| CPU Socket | LGA 1200 (Supports 10th Gen Intel Core Processors) |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |

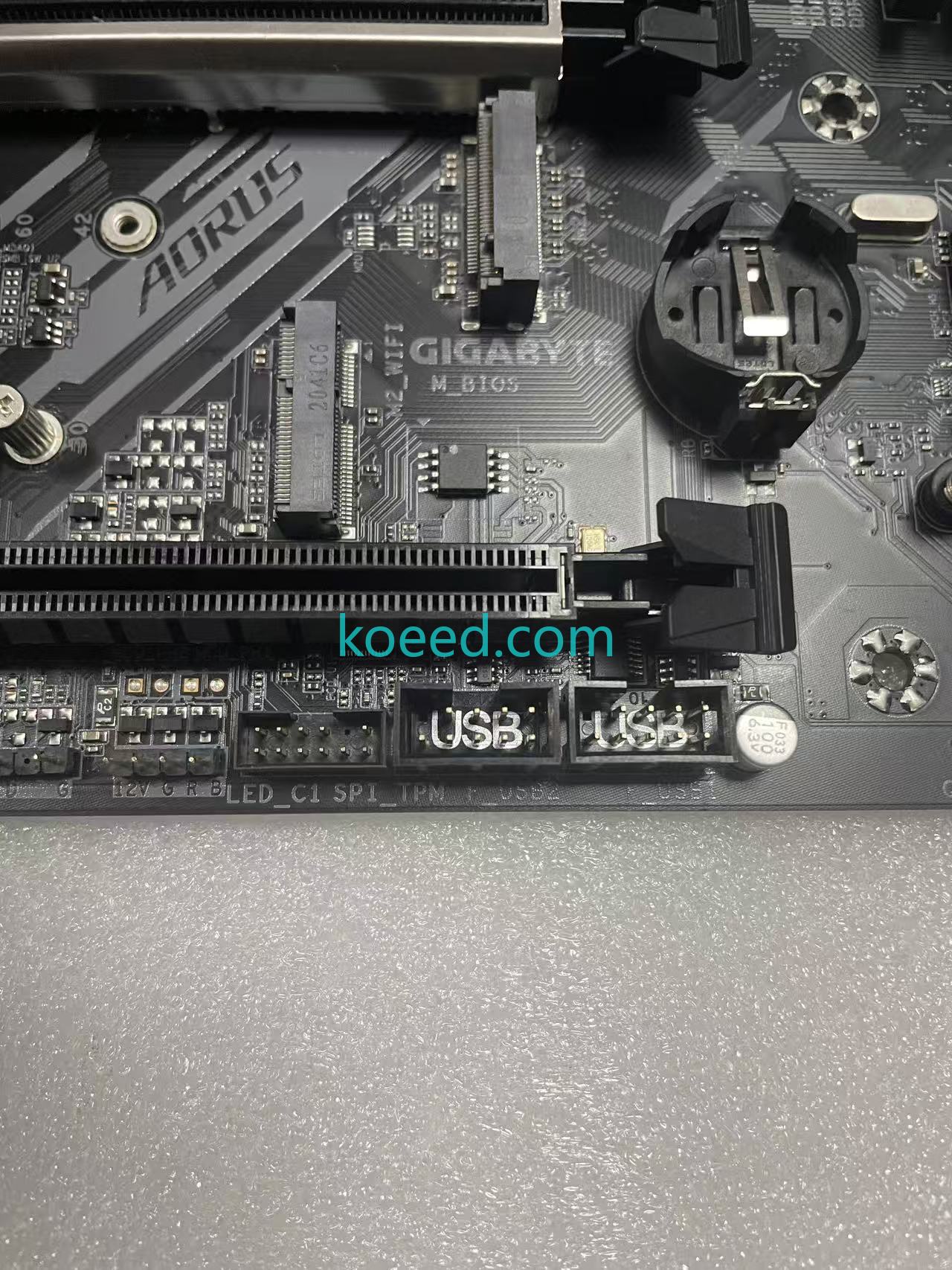

| Memory Support | 4 x DDR4 DIMM sockets, Dual Channel, Up to 2933MHz (i9/i7) or 2666MHz (i5/i3) |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 connector (PCIe 3.0 x4 & SATA), 6 x SATA 6Gb/s connectors |
| Networking | Intel® GbE LAN with cFosSpeed Internet Accelerator Software |
| Audio | Realtek® ALC1200 Codec, High Definition Audio |

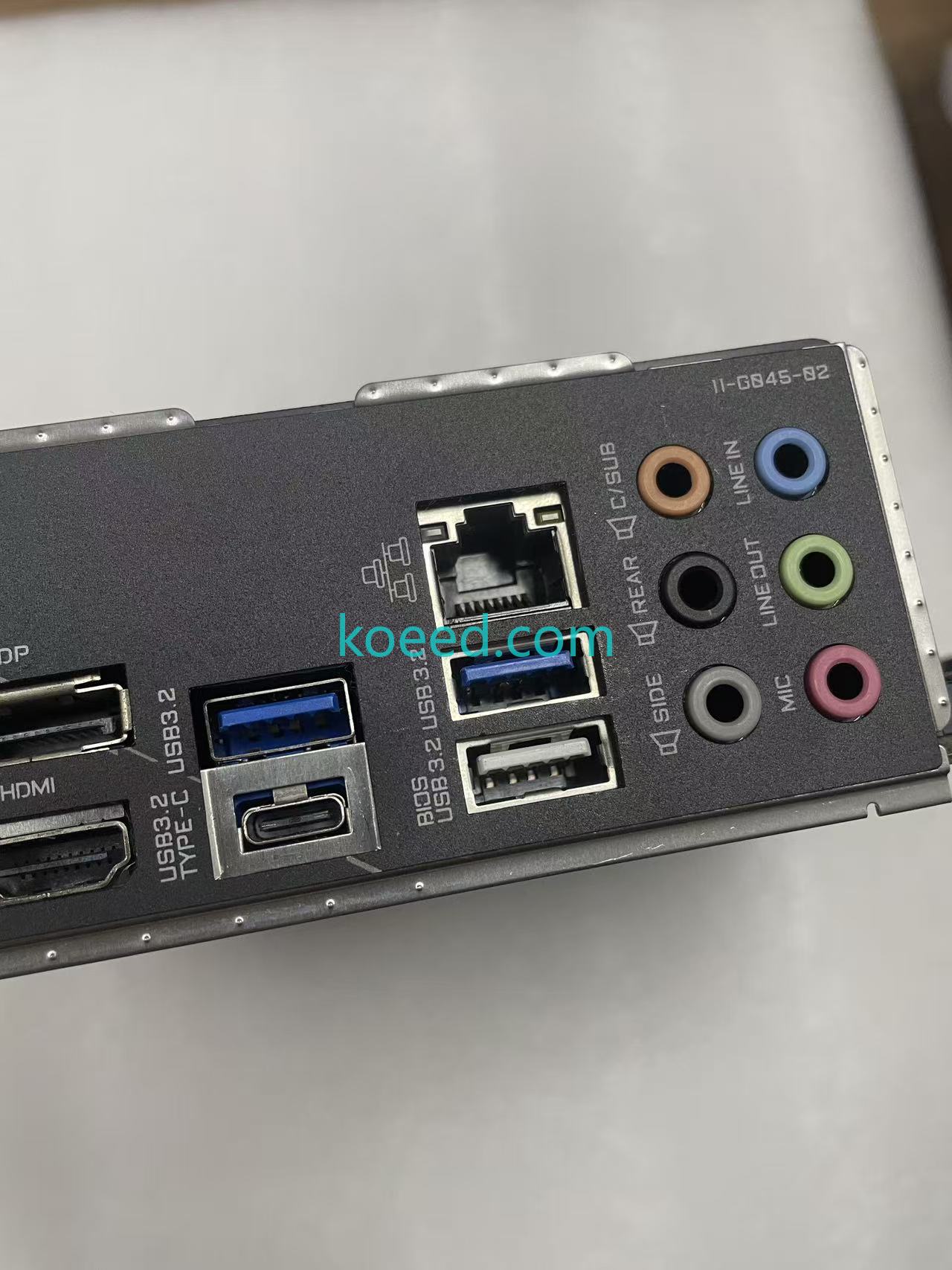

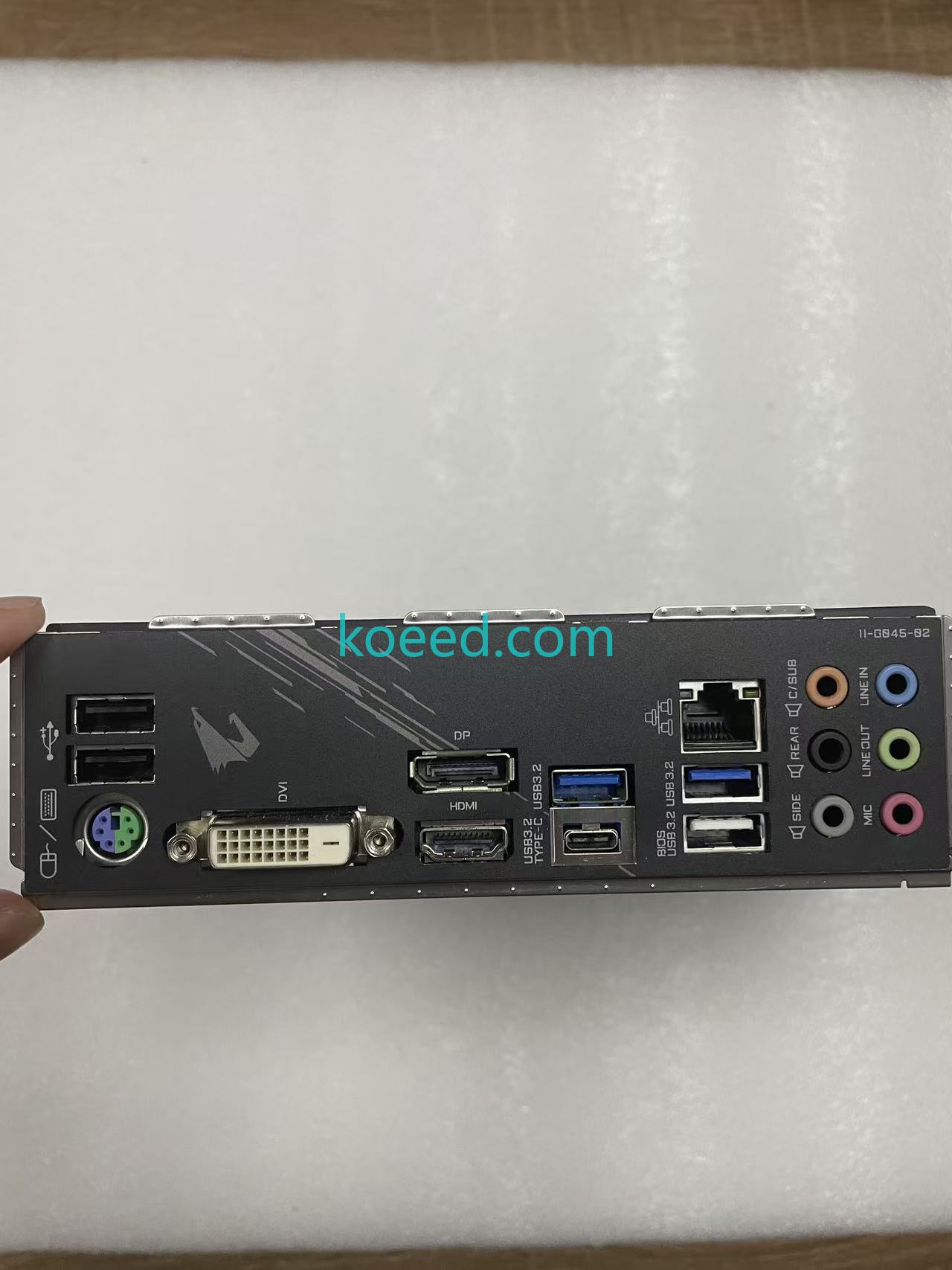

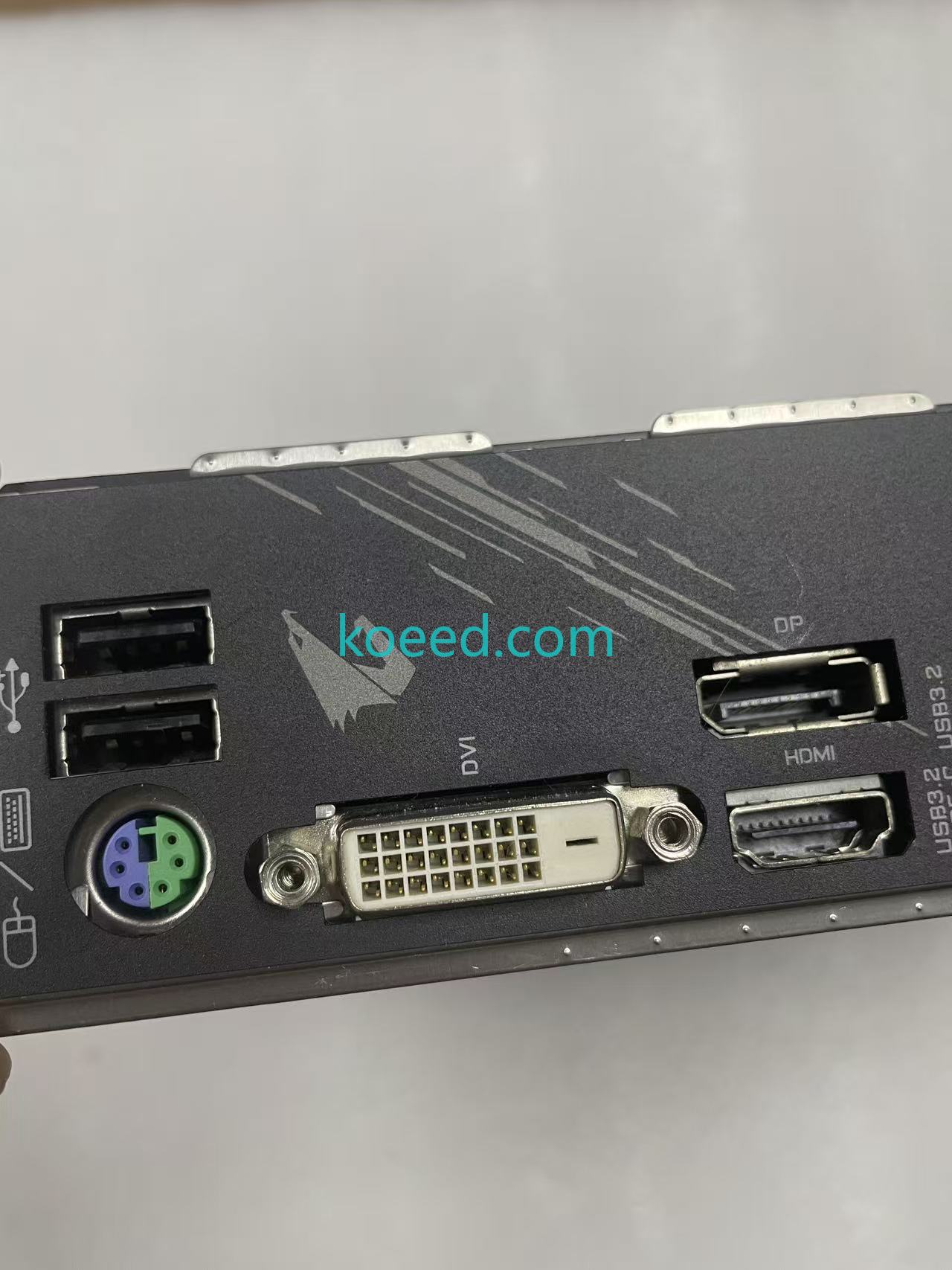

| Rear I/O | PS/2, DVI-D, DisplayPort, HDMI, USB Type-C, USB 3.2 Gen1, USB 2.0, LAN, Audio |
| Power Connectors | 24-pin ATX, 8-pin ATX 12V, Solid Pin Design |
Industrial Automation Features
Enhanced Thermal Design
Advanced thermal solution with enlarged heatsinks and multiple temperature sensors ensures stable operation in industrial environments with varying temperatures.
Ultra Durable Construction
PCIe Armor protection and solid capacitors provide enhanced durability for continuous operation in demanding industrial settings.
Industrial Networking
Intel® Gigabit LAN with cFosSpeed technology ensures reliable network connectivity for industrial communication protocols and real-time data transfer.
Expansion Capabilities
Multiple PCIe slots support industrial I/O cards, communication modules, and specialized automation controllers.
Industrial Applications
- PLC Systems: Programmable Logic Controller platforms for factory automation
- SCADA Systems: Supervisory Control and Data Acquisition control centers
- HMI Stations: Human-Machine Interface workstations
- Industrial PCs: Embedded computing for manufacturing environments
- Data Acquisition: Real-time data collection and processing systems
- Machine Vision: Quality control and inspection systems
- Process Control: Continuous process monitoring and control applications
Technical Comparison
| Feature | B460M AORUS ELITE | Standard Industrial Motherboards |
|---|---|---|
| Power Delivery | Solid Pin ATX connectors | Standard connectors |
| Thermal Management | Enlarged heatsinks with multiple sensors | Basic cooling solutions |
| Network Performance | Intel GbE with cFosSpeed | Standard Ethernet |
| Expansion Slots | 3 PCIe slots with armor protection | Limited expansion options |
| Storage Options | Dual M.2 + 6 SATA ports | Basic storage connectivity |
| Industrial Durability | Ultra Durable components | Consumer-grade components |
Frequently Asked Questions
The motherboard features enhanced thermal design, ultra-durable construction, Intel GbE networking with cFosSpeed technology, and solid power delivery components that ensure reliability in industrial environments with continuous operation requirements.
The B460M AORUS ELITE supports 10th generation Intel Core processors (i9, i7, i5, i3) with LGA 1200 socket. It's ideal for industrial applications requiring reliable computing power for automation tasks.
Yes, with 3 PCIe expansion slots including PCIe 3.0 x16 and x4 slots, the motherboard can accommodate various industrial I/O cards, communication modules, and specialized automation controllers.
The Intel® GbE LAN with cFosSpeed technology provides reliable network connectivity essential for industrial protocols like EtherNet/IP, PROFINET, and Modbus TCP/IP communications.
The enlarged heatsinks and multiple temperature sensors ensure stable operation in industrial environments with varying temperatures, preventing thermal throttling and maintaining consistent performance.
External Citations & Trust Metrics
Official Specifications: According to GIGABYTE Global specifications, the B460M AORUS ELITE features Intel® B460 chipset with support for 10th generation Intel Core processors, dual M.2 slots, and advanced thermal design for reliable operation.
Industrial Application: The motherboard's solid pin ATX power connectors and ultra-durable PCIe armor make it suitable for continuous operation in industrial automation environments where reliability is paramount.
Integration with PLC Systems
The B460M AORUS ELITE MATX motherboard is particularly well-suited for PLC (Programmable Logic Controller) applications due to its:
- Reliable Power Delivery: Solid pin ATX connectors ensure stable power supply during CPU intensive operations
- Industrial Networking: Intel GbE LAN supports industrial communication protocols
- Expansion Capability: Multiple PCIe slots for industrial I/O modules and communication cards
- Thermal Stability: Advanced cooling solution maintains optimal operating temperatures
- Storage Flexibility: Dual M.2 and multiple SATA ports for data logging and program storage
For industrial automation engineers and system integrators, this motherboard provides a balanced combination of performance, reliability, and expansion capabilities essential for modern PLC and automation systems.
