Balluff BES 516-3005-G-E4-C-S49-00,3 Inductive Proximity Sensor: Complete Technical Guide
On this page
What is the Balluff BES 516-3005-G-E4-C-S49-00,3?
The BES 516-3005-G-E4-C-S49-00,3 (catalogue family BES00HC) is a Balluff precision inductive proximity sensor on an M8 stainless thread: 1.5 mm rated sensing distance, 10...30 V DC supply at up to 100 mA, a PNP normally-open output, -25 to 70 °C operation, and a short 0.3 m lead ending in a 4-pin M12 connector. The bag print carries the full electrical set plus CE, EAC and cULus listing, and marks the country of origin as Hungary — Balluff's own European plant. The record covers 5 sensors, new in sealed Balluff bags. All 5 photos and 1 video below show these exact units.
Part details
| Field | Value |
|---|---|
| Model | BES 516-3005-G-E4-C-S49-00,3 (BES00HC) |
| Brand | Balluff, Neuhausen a.d.F., Germany |
| Type | Precision inductive proximity sensor, M8 thread |
| Rated distance | Sn = 1.5 mm |
| Supply | 10...30 V DC, max 100 mA |
| Output | PNP, normally open |
| Temperature | -25 °C ... 70 °C |
| Connection | 0.3 m lead to 4-pin M12 connector (pins 1+, 3−, 4 output) |
| Approvals | CE, EAC, cULus Listed (IND.CONT.EQ 81U2, Class 2 Type 1) |
| Origin | Hungary (1724HU batch mark) |
| Hardware | Stainless M8 body, lock nut and washer included |
| Quantity | 5 sensors, new in sealed bags |
| Shipping weight | 0.5 kg total |

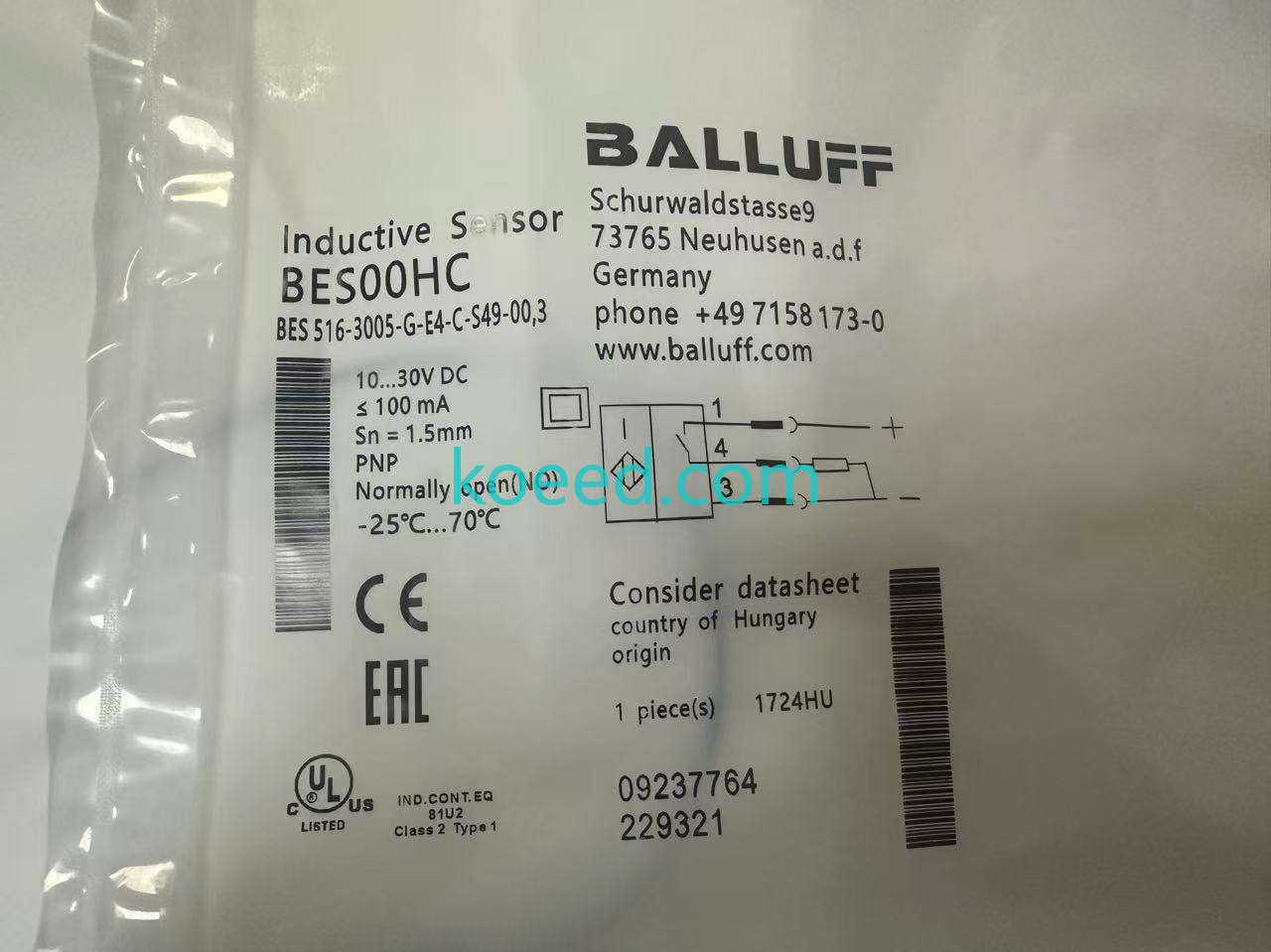

Every value is read from the Balluff bag print in photo 2; the hardware detail comes from the unpacked unit.
Reading the long ordering code
Balluff's part numbers are a spec sheet in themselves, and this one decodes cleanly: BES 516 is the M8-thread precision family, 3005 the size step, G the stainless housing, E4 the electrical variant, C the connector output, S49 the active-face geometry, and 00,3 the 0.3-metre stub lead to the M12 plug. The short pigtail matters in tight machines — the sensor screws in with its lock nut and the M12 plug lands on a standard cordset, so panel wiring never has to reach into the machine. At 1.5 mm rated distance this is a precision position switch rather than a presence sensor: it picks up targets fractions of a millimetre apart, which is what tool-change confirmation, end-stop and reference-point duty in machine tools demand. Wiring is the standard M12 4-pin arrangement printed on the bag — pin 1 positive, pin 3 negative, pin 4 the PNP switching output. KOEED lists sibling sensors from the same family, such as the BES 516-3005-E4-C-PU-05, and other Balluff M8 switches like the BES M08EH-POC15B-S04G.
