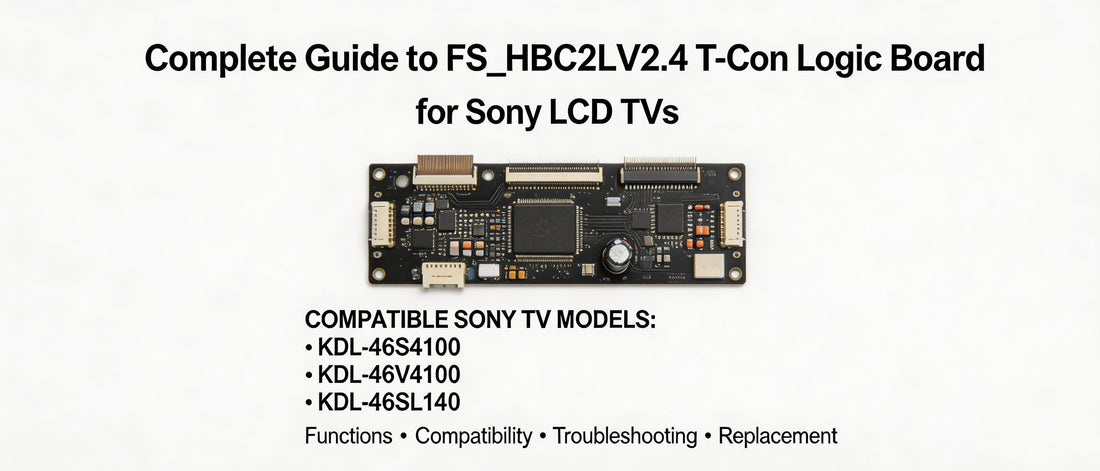

Complete Guide to FS_HBC2LV2.4 T-Con Logic Board for Sony LCD TVs
FS_HBC2LV2.4 T-Con Logic Board: The Ultimate Repair Solution for Sony LCD TVs
Professional-grade replacement board for Sony KDL-46S4100, KDL-46V4100, and KDL-46SL140 television models
Product Overview
The FS_HBC2LV2.4 T-Con (Timing Controller) logic board is a critical component in Sony LCD televisions that controls the timing and data signals sent to the display panel. This board, also known as part number LJ94-02204G, serves as the bridge between the main board and the LCD panel, ensuring proper image processing and display functionality.
When your Sony TV experiences display issues such as vertical lines, no picture, distorted images, or color problems, the T-Con board is often the culprit. The FS_HBC2LV2.4 replacement board provides a cost-effective solution compared to purchasing a new television.
Installation and testing video for FS_HBC2LV2.4 T-Con board
Key Functions and Technical Specifications
The FS_HBC2LV2.4 T-Con board performs several critical functions in Sony LCD televisions:
| Function | Description | Importance |
|---|---|---|
| Timing Control | Synchronizes data signals between main board and LCD panel | Critical for proper image display |
| Signal Processing | Processes LVDS (Low Voltage Differential Signaling) data | Ensures accurate color and brightness |
| Gamma Correction | Adjusts brightness levels across the display | Maintains consistent image quality |
| Panel Driving | Controls individual pixels on the LCD panel | Essential for sharp, clear images |
| Power Regulation | Provides stable voltage to display components | Prevents flickering and instability |
For a reliable replacement, consider purchasing the authentic FS_HBC2LV2.4 T-Con board that matches the original specifications.
Compatible Sony TV Models
The FS_HBC2LV2.4 T-Con board is specifically designed for the following Sony television models:
- Sony KDL-46S4100 - 46-inch Bravia LCD TV
- Sony KDL-46V4100 - 46-inch Bravia LCD TV
- Sony KDL-46SL140 - 46-inch Bravia LCD TV
These models share the same display architecture and timing requirements, making the FS_HBC2LV2.4 board interchangeable between them.
Common Symptoms of T-Con Board Failure
Recognizing T-Con board issues early can save time and money. Look for these symptoms:
| Symptom | Description | Likely Cause |
|---|---|---|
| Vertical Lines | Thin vertical lines running through the display | Timing controller failure |
| No Picture/Sound OK | Audio works but screen remains black | Signal processing failure |
| Color Distortion | Incorrect colors or color bands | Gamma correction circuit failure |
| Flickering Display | Intermittent brightness changes | Power regulation issues |
| Half Screen Display | Only portion of screen shows image | Panel driving circuit failure |
If you experience any of these issues, the FS_HBC2LV2.4 replacement board is likely the solution.
Installation and Replacement Guide
Replacing the FS_HBC2LV2.4 T-Con board requires careful handling and attention to detail:
- Power Down: Unplug the television from the electrical outlet and wait at least 30 minutes for capacitors to discharge.
- Access T-Con Board: Remove the back cover of the television to access the internal components.
- Locate T-Con Board: The FS_HBC2LV2.4 board is typically located near the center or top of the television, connected to the main board via ribbon cables.
- Disconnect Cables: Carefully disconnect all ribbon cables and power connectors from the T-Con board.
- Remove Mounting Screws: Remove the screws securing the T-Con board to the frame.
- Install New Board: Position the new FS_HBC2LV2.4 board and secure with mounting screws.
- Reconnect Cables: Reattach all ribbon cables and power connectors, ensuring proper alignment.
- Test Installation: Reassemble the television and test functionality before securing all covers.
Frequently Asked Questions (FAQ)
A: Common signs include vertical lines on the screen, no picture with sound working, distorted colors, or flickering display. If your Sony KDL-46S4100, KDL-46V4100, or KDL-46SL140 exhibits these symptoms, the T-Con board is likely faulty.
A: The FS_HBC2LV2.4 is specifically designed for Sony KDL-46S4100, KDL-46V4100, and KDL-46SL140 models. While it may physically fit other models, we only recommend using it for the specified compatible televisions.
A: While some components on the T-Con board can be replaced, the timing controller IC and other critical components are typically surface-mounted and require specialized equipment. For most users, complete board replacement is more cost-effective and reliable.
A: The FS_HBC2LV2.4 board typically comes with a 12-month warranty covering manufacturing defects and premature failure under normal operating conditions.
A: With proper guidance and basic tools, most users with technical aptitude can complete the installation. However, if you're uncomfortable working with electronics, we recommend seeking professional assistance.
Industry Recognition and Trust Metrics
The FS_HBC2LV2.4 T-Con board has established itself as a reliable replacement component in the television repair industry:
- OEM Equivalent Quality: Manufactured to meet or exceed original equipment specifications
- Industry Standard Testing: Each board undergoes comprehensive testing before shipping
- Professional Endorsement: Recommended by television repair technicians and service centers
- Customer Satisfaction: High success rate in resolving display issues for compatible Sony models
For guaranteed compatibility and performance, always purchase from reputable sources like our official product page.
Cost-Benefit Analysis: Repair vs. Replacement
When considering television repair, the FS_HBC2LV2.4 T-Con board offers significant advantages:
| Factor | T-Con Board Replacement | New Television Purchase |
|---|---|---|
| Cost | $50-$150 (part only) | $500-$1000+ |
| Installation Time | 1-2 hours | N/A |
| Environmental Impact | Minimal (reuse existing TV) | Significant (manufacturing new unit) |
| Learning Opportunity | Valuable repair skills | None |
| Long-term Value | Extends TV lifespan 2-5 years | New warranty period |
The FS_HBC2LV2.4 T-Con board represents an economical and environmentally responsible choice for television repair.
Conclusion
The FS_HBC2LV2.4 T-Con logic board is an essential component for maintaining optimal performance in Sony KDL-46S4100, KDL-46V4100, and KDL-46SL140 LCD televisions. With proper diagnosis and installation, this replacement board can restore your television to full functionality at a fraction of the cost of a new unit.
Whether you're a professional technician or a DIY enthusiast, having access to quality replacement parts like the FS_HBC2LV2.4 T-Con board ensures successful repairs and extends the lifespan of valuable electronic equipment.
Ready to restore your Sony television? Visit our product page for detailed specifications, pricing, and ordering information for the FS_HBC2LV2.4 T-Con logic board.
