Danfoss KP2 060-112066 Pressure Switch: Comprehensive Guide for Industrial Automation Applications

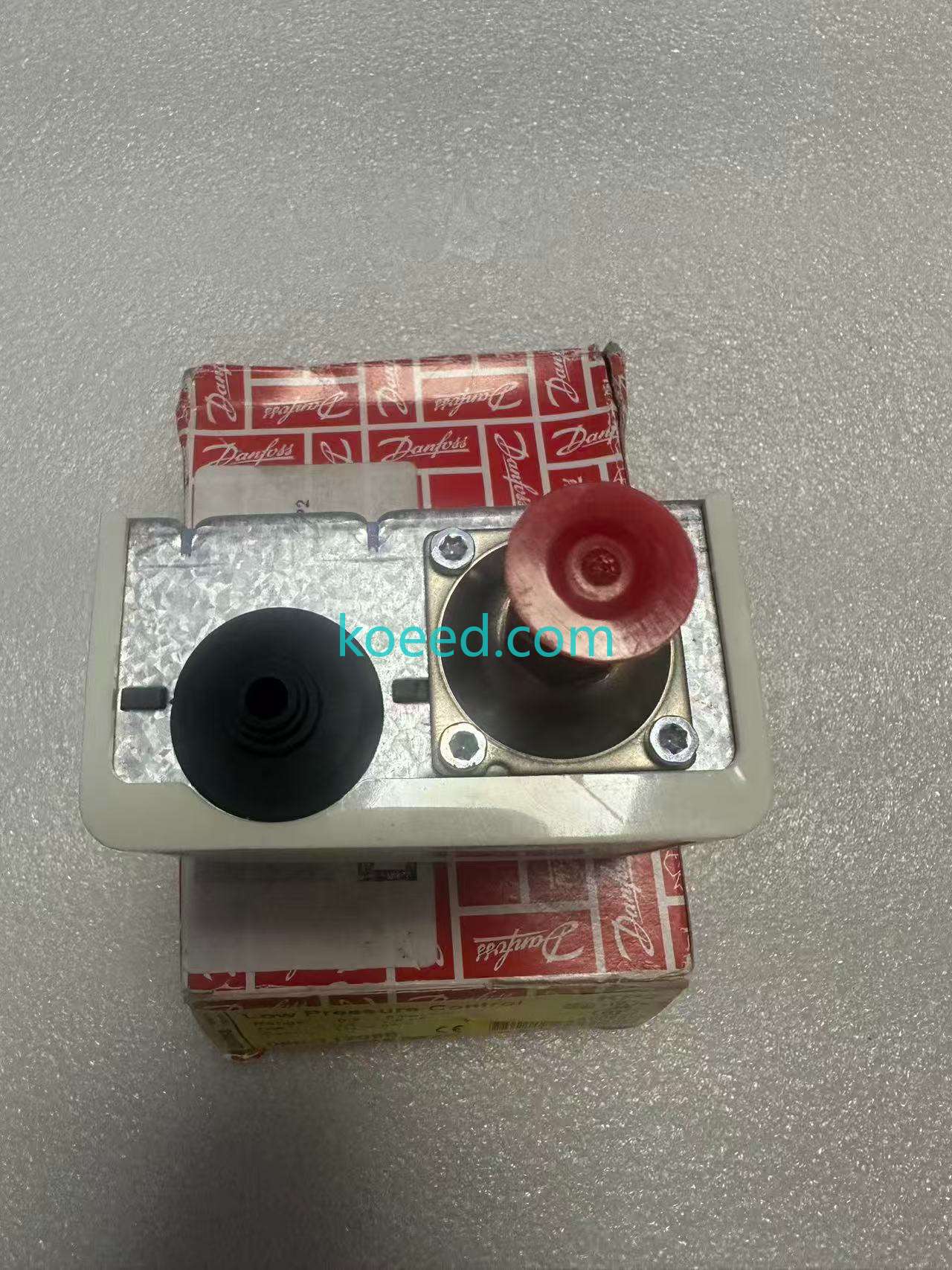

Danfoss KP2 060-112066 Pressure Switch
Professional Grade Pressure Control Solution for Industrial Automation Systems
Introduction
The Danfoss KP2 060-112066 pressure switch represents a cornerstone component in modern industrial automation and PLC control systems. As a critical interface between physical pressure conditions and electronic control systems, this pressure switch enables precise monitoring and control of pressure parameters across diverse industrial applications. Designed by Danfoss, a global leader in engineering solutions, the KP2 series offers reliability, accuracy, and durability essential for demanding industrial environments.
Product Overview
The KP2 060-112066 is a compact, high-performance pressure switch specifically engineered for industrial automation applications. Its robust construction and precise pressure regulation capabilities make it ideal for integration with PLC systems in HVAC, refrigeration, water treatment, and manufacturing processes. The switch features a single pole double-throw (SPDT) contact configuration with automatic reset functionality, providing versatile control options for system designers.

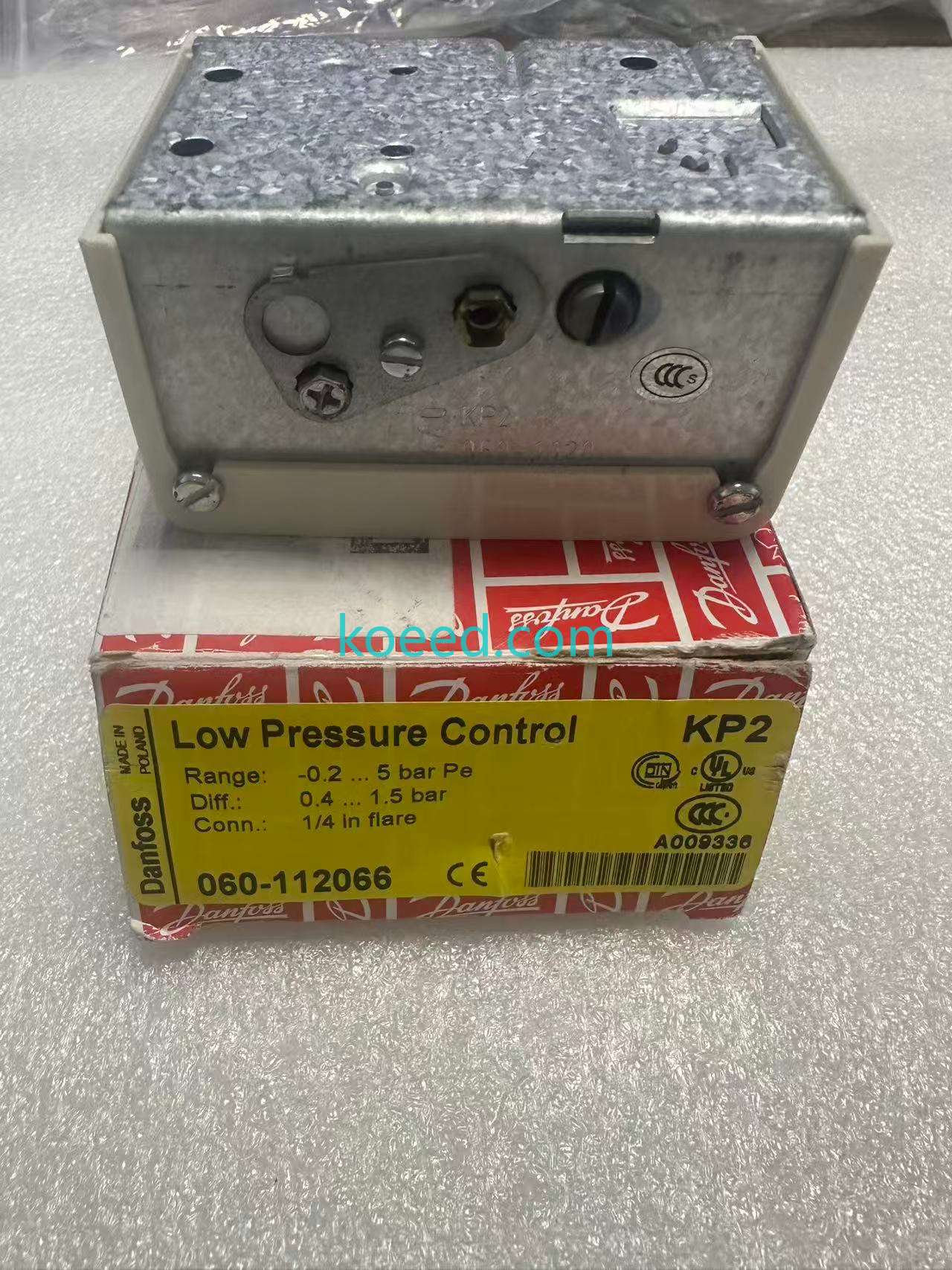

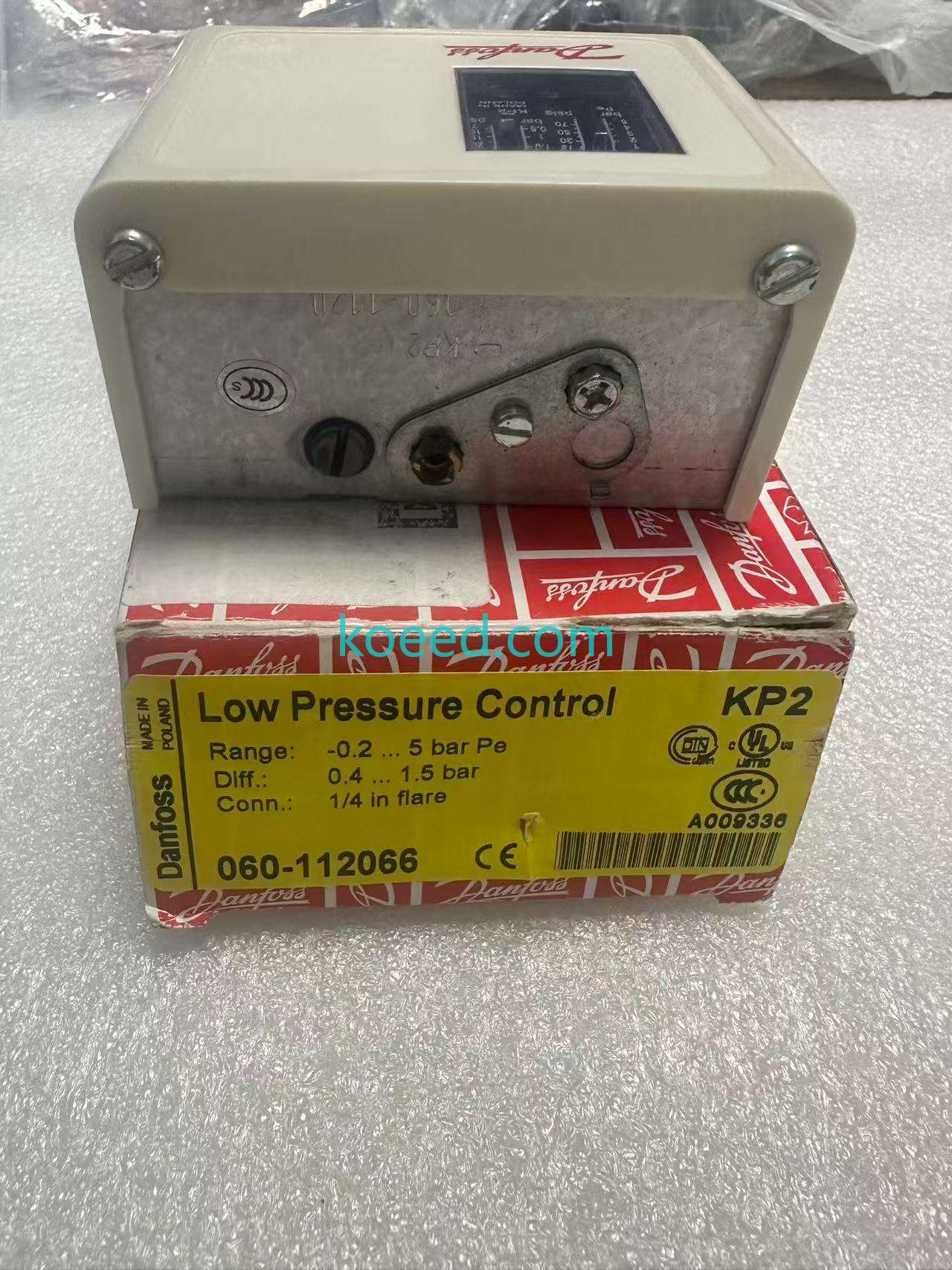

Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model Number | KP2 060-112066 | - |
| Regulation Range (Pe) | -0.2 to 5 | bar |
| Differential Range | 0.4 to 1.5 | bar |
| Contact Function | SPDT (Single Pole Double Throw) | - |
| Reset Function | Auto | - |
| Pressure Connection Type | Flare | - |
| Maximum Test Pressure | 20.0 | bar |
| Ambient Temperature Range | -25°C to +65°C | °C |
| Electrical Rating | Standard industrial control voltage | - |
| Lubricants Compatibility | Oil-free applications | - |
Key Features and Benefits
Advanced Control Capabilities
- Precise Pressure Regulation: Offers adjustable regulation range from -0.2 to 5 bar with differential settings from 0.4 to 1.5 bar
- SPDT Contact Configuration: Provides versatile switching options for complex control scenarios
- Automatic Reset Function: Ensures continuous operation without manual intervention
- Anti-Vibration Design: Maintains stable operation in industrial environments with mechanical vibrations
Industrial Durability
- Robust Construction: Built to withstand harsh industrial conditions
- Wide Temperature Range: Operates reliably from -25°C to +65°C
- High Pressure Tolerance: Tested up to 20 bar for safety margin
- Compact Design: Space-efficient installation in control panels and equipment
Industrial Applications
HVAC Systems
Pressure monitoring and control in heating, ventilation, and air conditioning systems for optimal temperature regulation and energy efficiency.
Refrigeration Systems
Critical pressure control in commercial and industrial refrigeration units, ensuring proper refrigerant pressure levels and system protection.
Water Treatment Plants
Monitoring and controlling water pressure in filtration systems, pumps, and distribution networks for consistent water quality.
Manufacturing Processes
Integration with PLC systems for pressure monitoring in pneumatic systems, hydraulic presses, and production equipment.
Marine Applications
Pressure control in shipboard systems including cooling, bilge pumping, and hydraulic steering systems.
Air Compressor Systems
Automatic control of air compressor operation based on system pressure requirements, preventing over-pressurization.
Integration with PLC Systems
The Danfoss KP2 060-112066 pressure switch is designed for seamless integration with Programmable Logic Controller (PLC) systems in industrial automation. Its SPDT contact configuration allows direct connection to PLC digital input modules, providing real-time pressure status monitoring. The switch can be configured to trigger specific PLC routines based on pressure thresholds, enabling automated system responses.
PLC Integration Benefits:
- Direct Digital Input: Simple connection to PLC input modules without additional signal conditioning
- Programmable Logic: Enables complex control algorithms based on pressure conditions
- System Diagnostics: Integration with SCADA systems for comprehensive monitoring and alarm management
- Energy Optimization: Automated control of pumps and compressors based on actual pressure requirements
Installation and Configuration Guidelines
Installation Steps:
- Pressure Connection: Connect to system using appropriate flare fittings
- Electrical Wiring: Connect SPDT contacts to control circuit or PLC input module
- Pressure Setting: Adjust regulation range using calibration tools
- Differential Adjustment: Set appropriate differential for system requirements
- Testing: Verify operation across entire pressure range
Configuration Parameters:
- Cut-In Pressure: Minimum pressure at which switch activates
- Cut-Out Pressure: Maximum pressure at which switch deactivates
- Differential Setting: Pressure difference between activation and deactivation
- Contact Configuration: Normally open or normally closed based on system requirements
Frequently Asked Questions (FAQ)
Industry Standards and Certifications
The Danfoss KP2 series pressure switches are manufactured in compliance with international industrial standards. While specific certifications may vary by region and application, Danfoss products typically meet:
- CE marking for European market compliance
- UL/CSA standards for North American applications
- ISO 9001 quality management system certification
- Industry-specific standards for HVAC, refrigeration, and industrial automation
Conclusion
The Danfoss KP2 060-112066 pressure switch represents a reliable, precise, and versatile solution for industrial pressure monitoring and control applications. Its robust design, precise regulation capabilities, and seamless PLC integration make it an essential component in modern industrial automation systems. Whether used in HVAC, refrigeration, water treatment, or manufacturing processes, this pressure switch delivers consistent performance and contributes to system efficiency, safety, and reliability.
For industrial automation professionals and system integrators, the KP2 060-112066 offers a proven solution backed by Danfoss' engineering expertise and global support network. Its compatibility with PLC systems and industrial control architectures ensures easy integration into both new installations and retrofit projects.
