DPS-500ab-32 A: Power Supply Solutions for Industrial Automation Systems
DPS-500ab-32 A: Reliable Power Supply for Industrial Automation Systems
High-performance 500W power supply designed for industrial computing and automation applications
Product Overview
The DPS-500ab-32 A is a 500W power supply unit designed for industrial computing applications, particularly compatible with HP Z2 G4 800/880 G3/G4/G5 systems. In industrial automation environments, reliable power supplies like the DPS-500ab-32 A are essential for maintaining uninterrupted operation of PLC systems, industrial computers, and automation controllers.

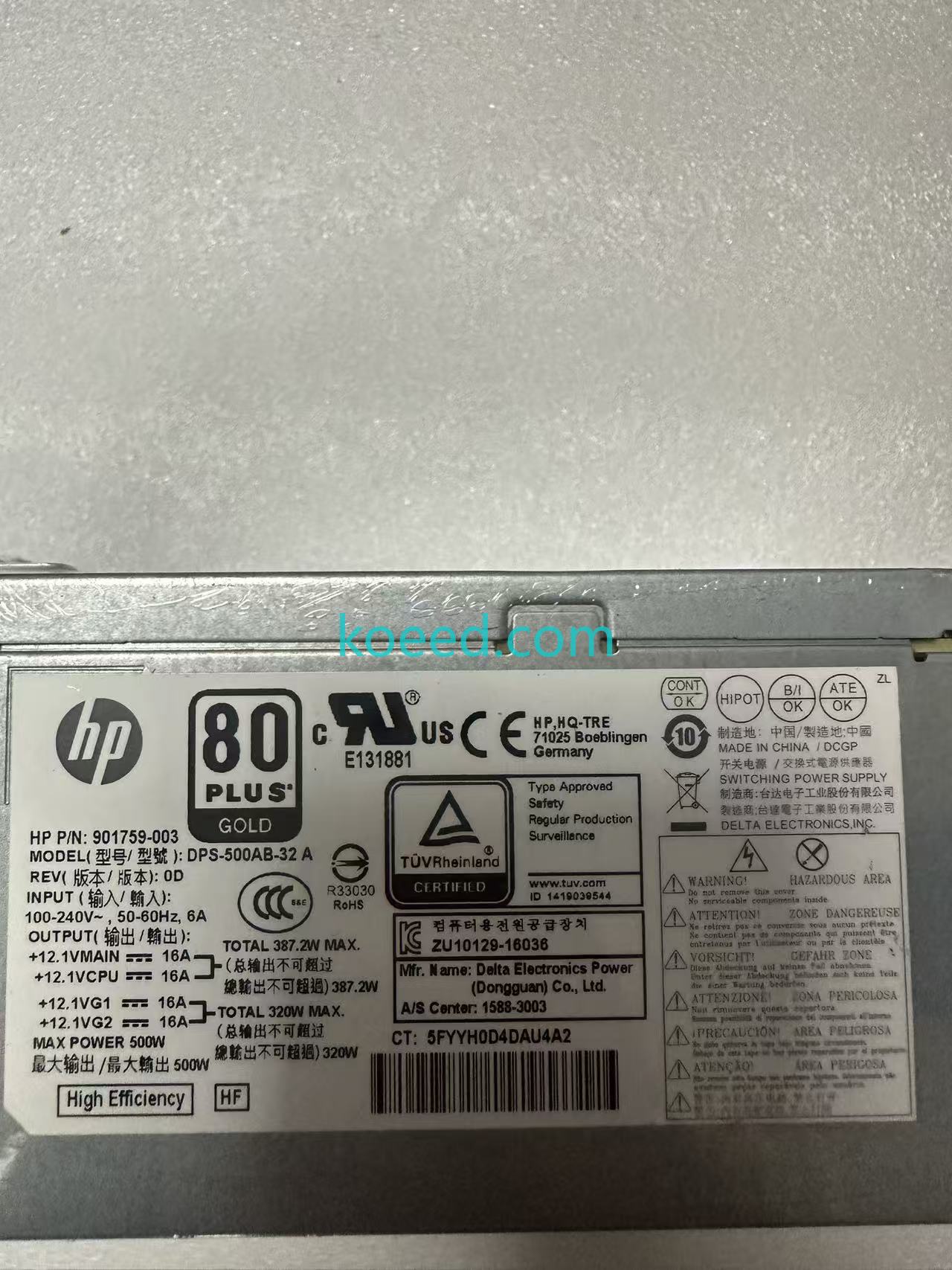

Front view of DPS-500ab-32 A power supply

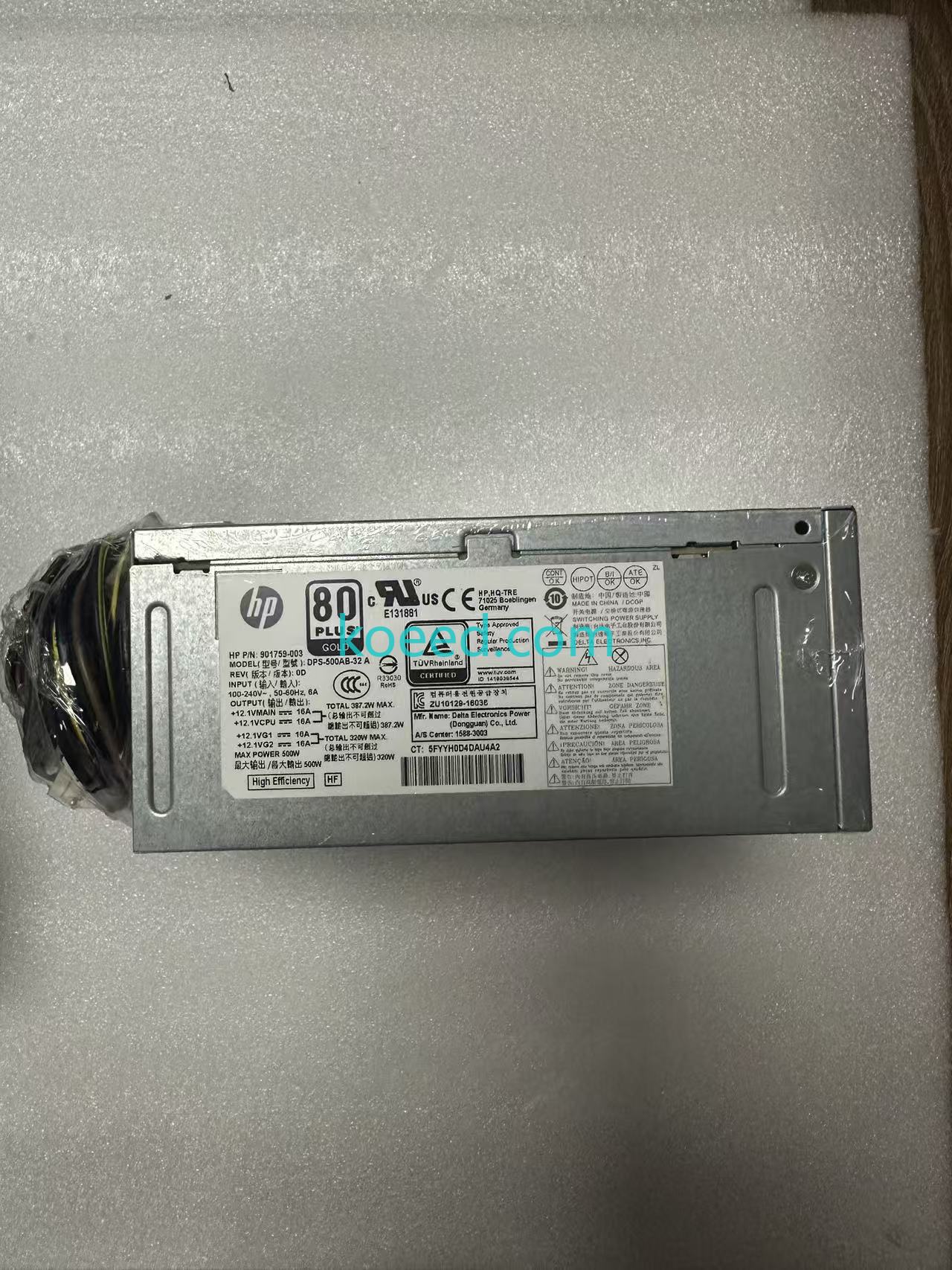

Side view showing ventilation and connectors

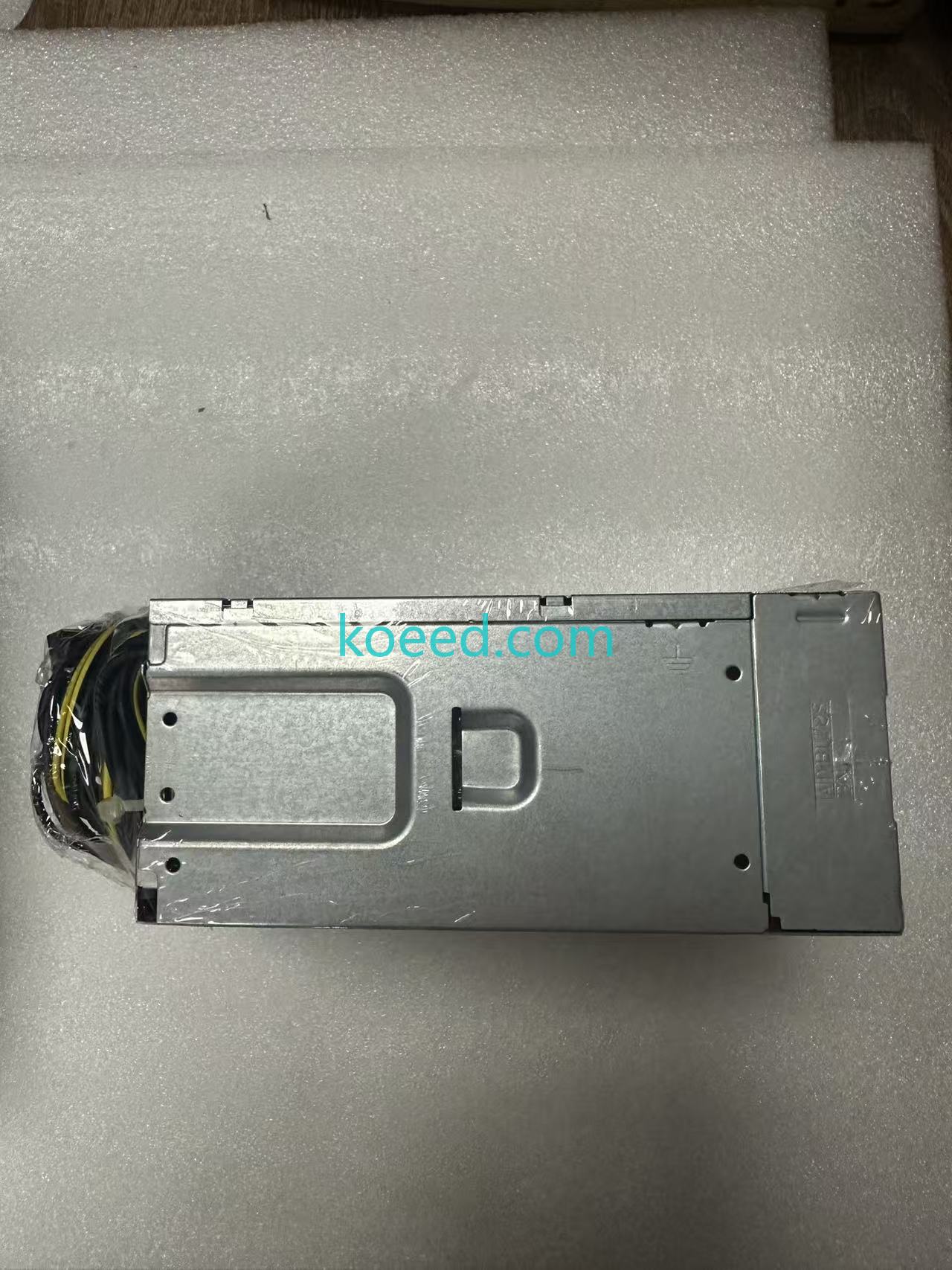

Detailed view of power connectors

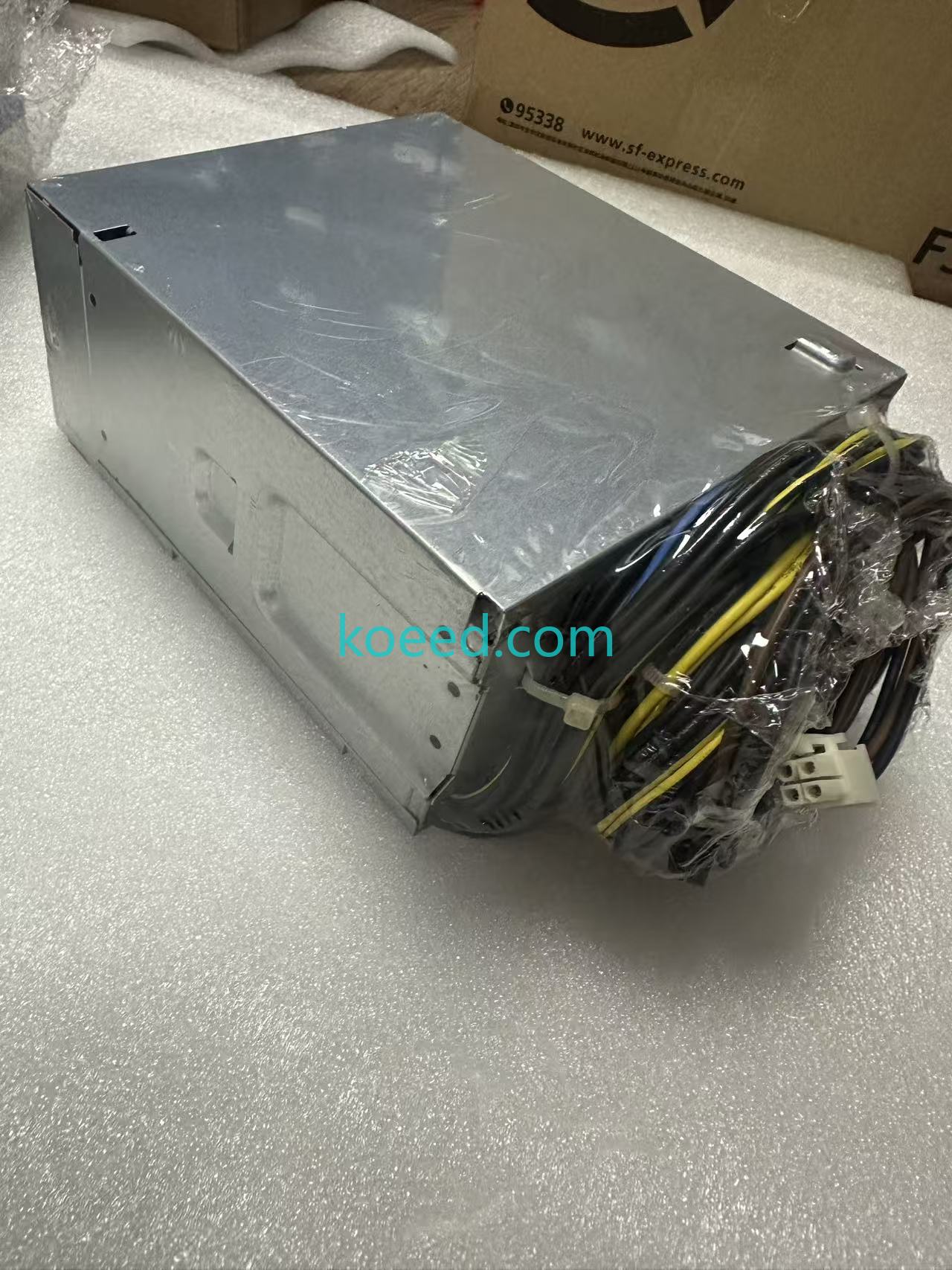

Technical specifications label

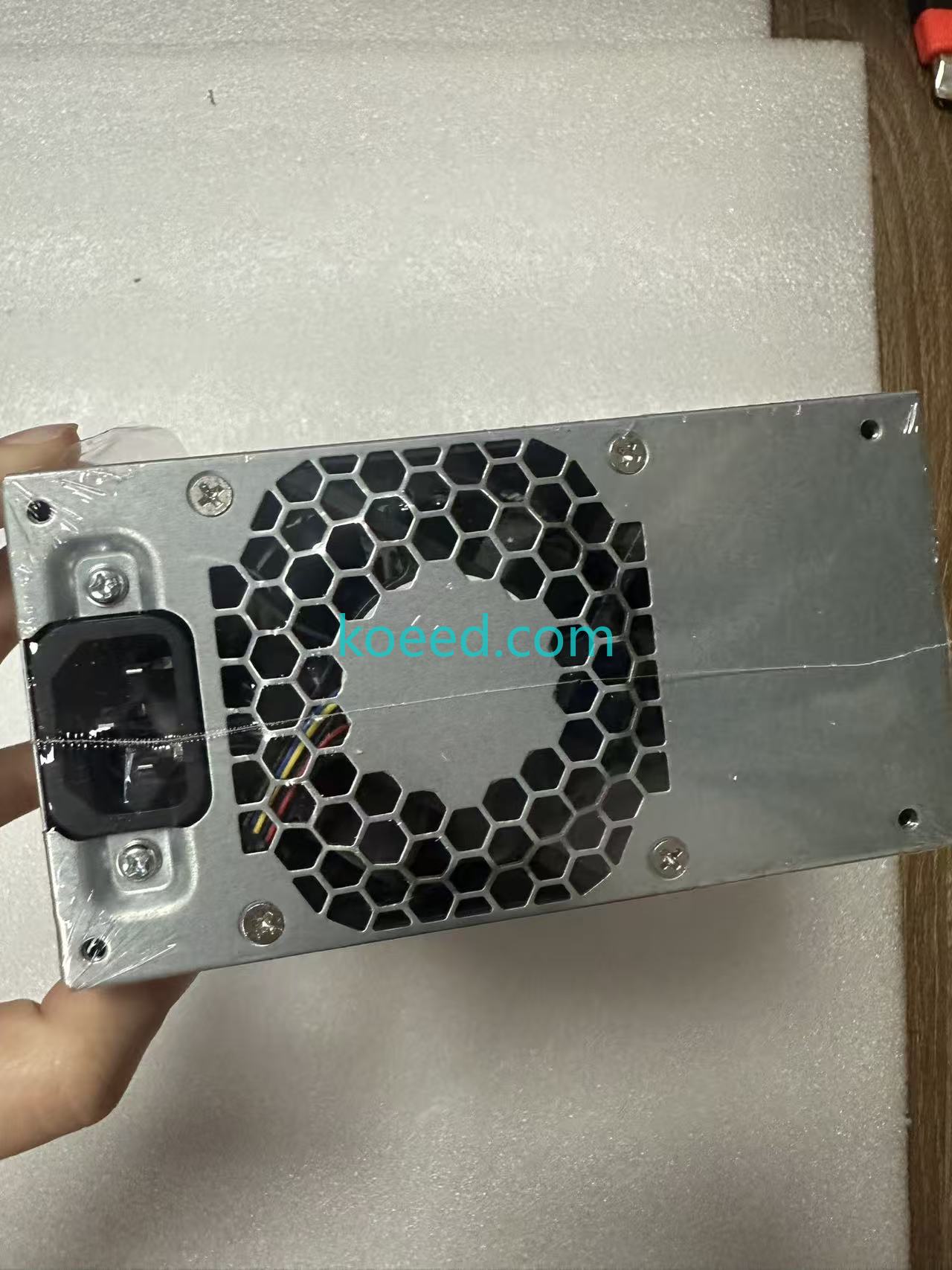

Installation in industrial chassis

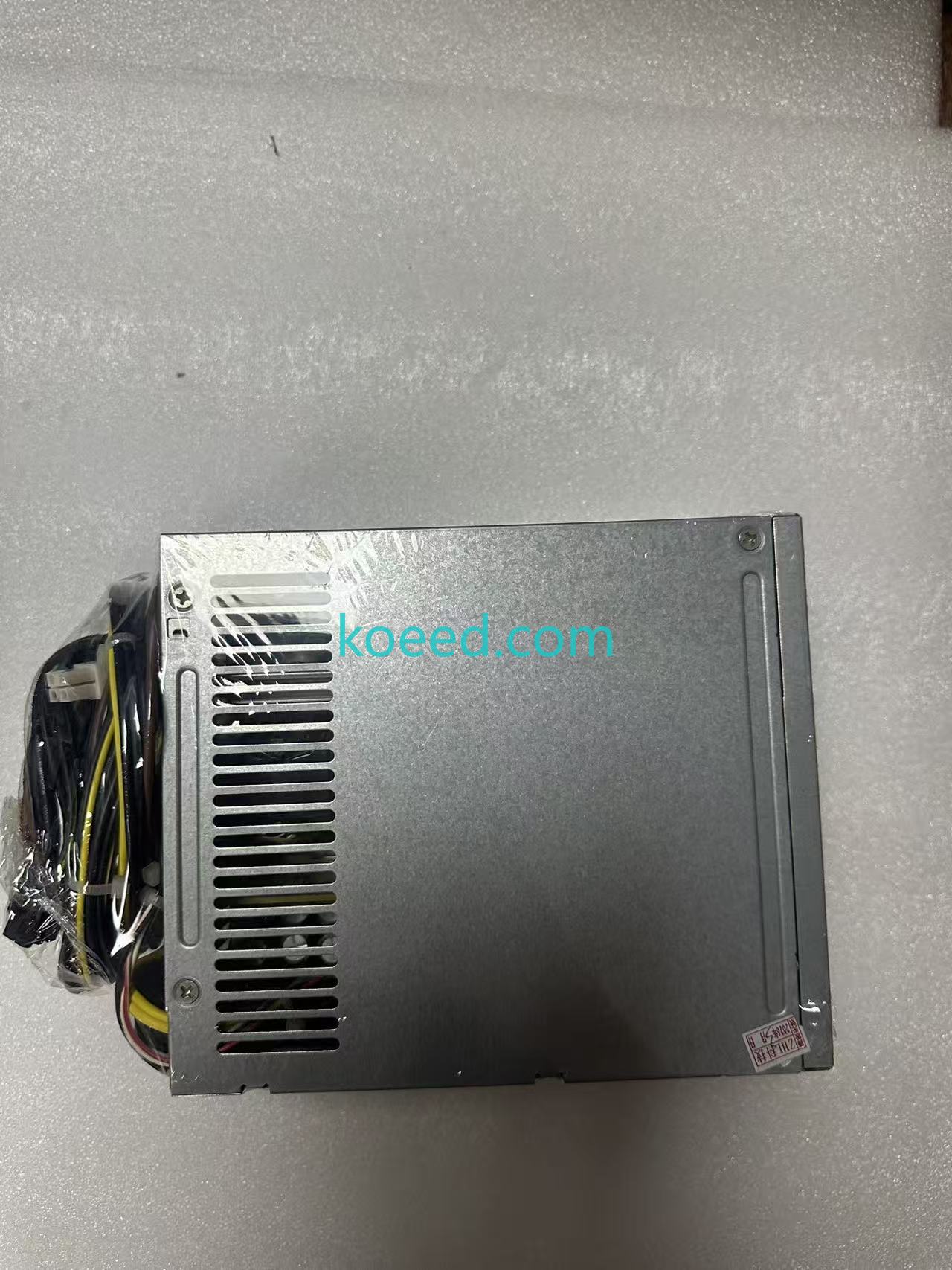

Internal component layout

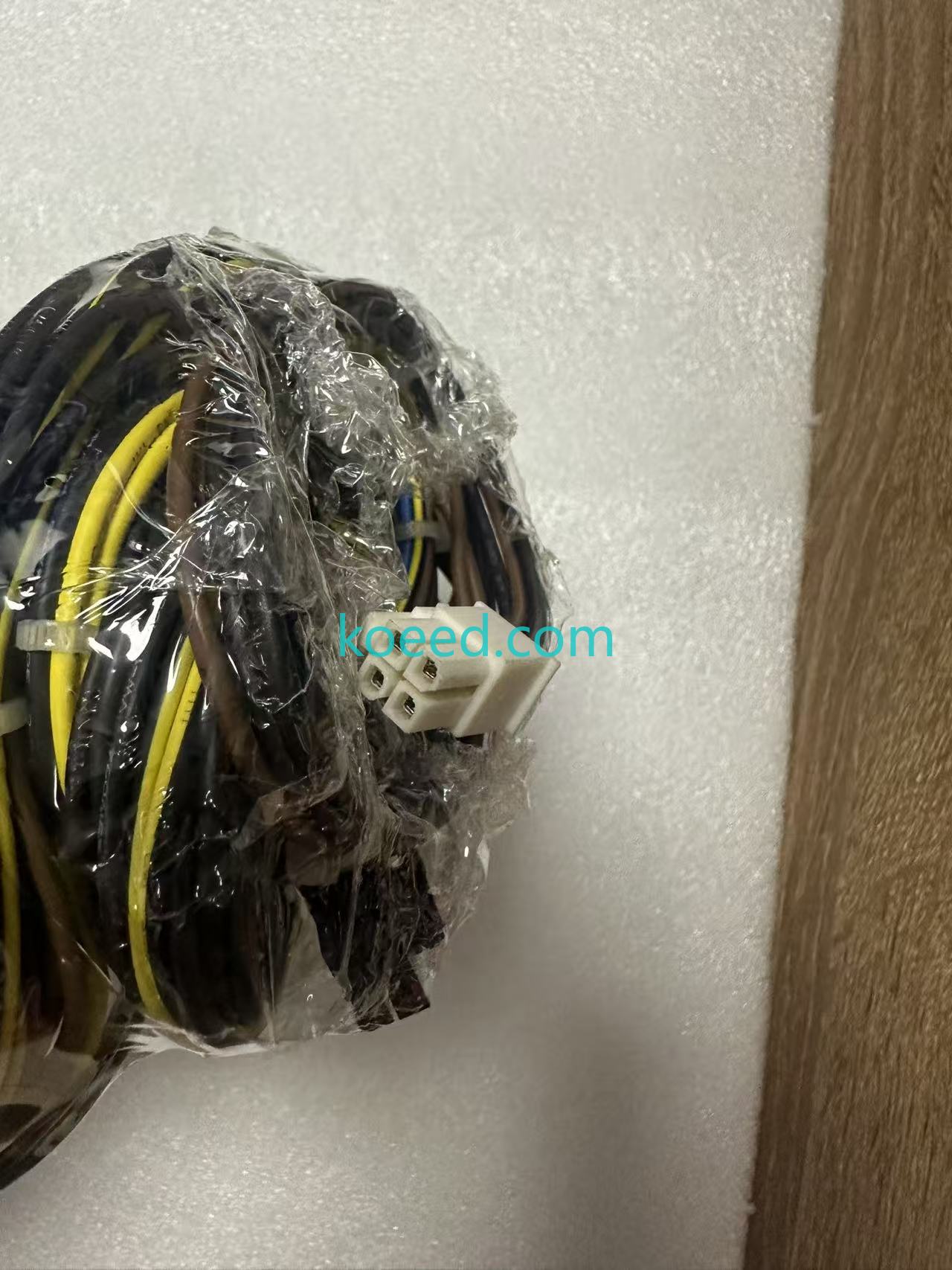

Cable management features

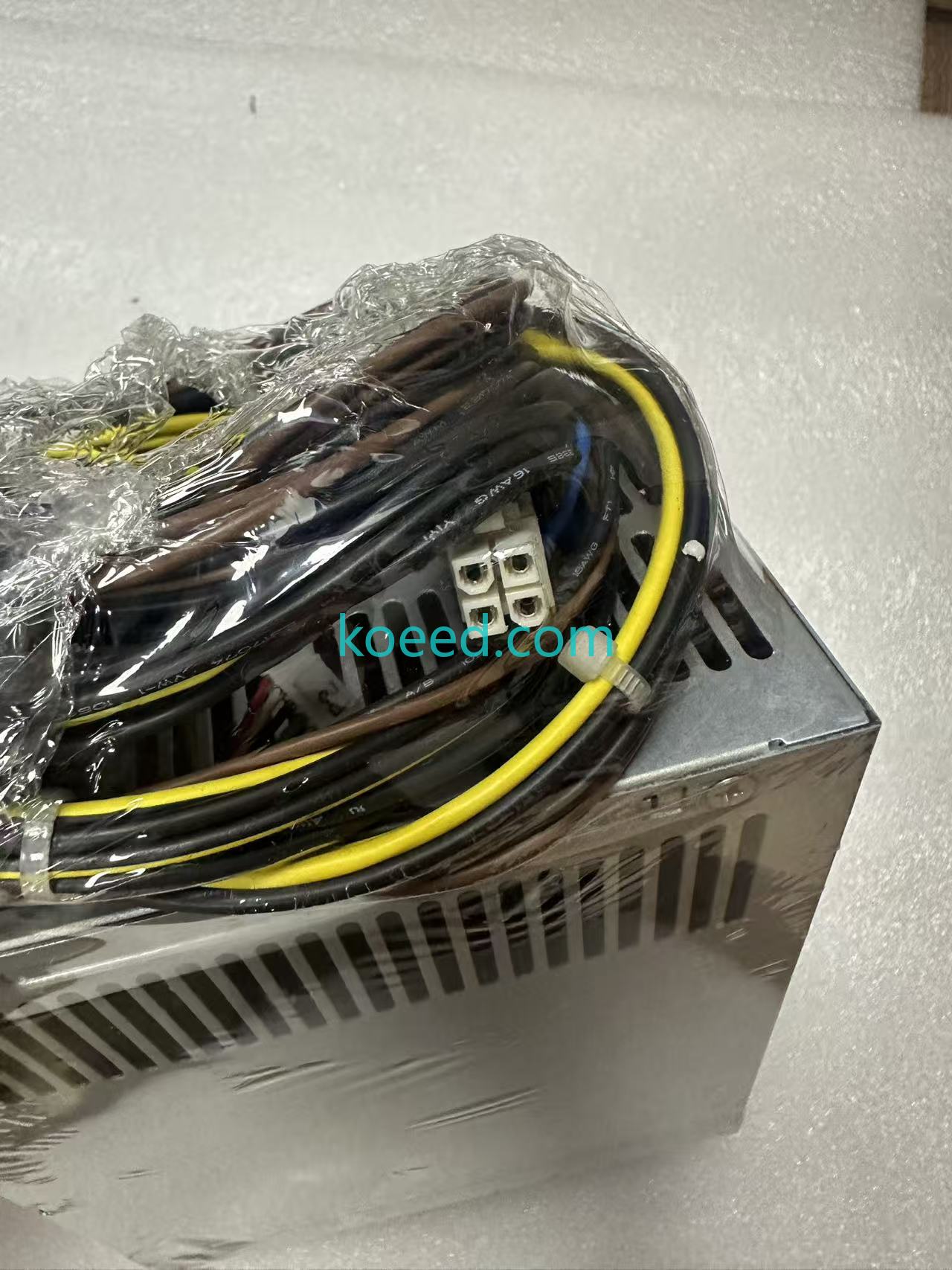

Quality inspection and testing
Product Demonstration Video
Video demonstration of DPS-500ab-32 A features and installation
Technical Specifications
| Parameter | Specification | Industrial Application |
|---|---|---|
| Model Number | DPS-500ab-32 A | Power supply for industrial computing systems |
| Maximum Output Power | 500W | Sufficient for PLC racks, industrial PCs, and peripheral devices |
| Efficiency Rating | 80+ Gold | Energy efficient for continuous industrial operation |
| Input Voltage | 100-240V AC, 50-60Hz, 6A | Global voltage compatibility for international installations |
| Output Voltage Rails | +12.1V MAIN = 16A +12.1V CPU = 16A +12.1V G1 = 16A +12.1V G2 = 16A | Multiple rails for stable power distribution |
| Connectors | 4Pin + 6Pin + 4Pin + (6+2)Pin | Comprehensive connectivity for industrial components |
| Dimensions | 16.5cm × 14cm × 7.2cm | Compact design for industrial chassis integration |
| Compatibility | HP Z2 G4 800/880 G3/G4/G5 | Industrial workstation and server compatibility |
| Operating Temperature | 0°C to 40°C | Suitable for controlled industrial environments |
Importance in Industrial Automation
While not a PLC itself, the DPS-500ab-32 A plays a crucial role in industrial automation systems:
Power Management for PLC Systems
Reliable power supplies are essential for PLC operation. The DPS-500ab-32 A provides:
- Stable Voltage Output: Ensures consistent power delivery to PLC processors and I/O modules
- High Efficiency: 80+ Gold rating reduces energy costs in continuous operation
- Multiple Rails: Separate power rails prevent interference between critical components
- Global Compatibility: 100-240V input range supports international installations
Industrial Computing Applications
The DPS-500ab-32 A is particularly suitable for:
- Industrial workstations running PLC programming software
- SCADA (Supervisory Control and Data Acquisition) systems
- HMI (Human-Machine Interface) computers
- Data acquisition and monitoring systems
- Industrial server infrastructure
PLC Power Supply Comparison
| Feature | DPS-500ab-32 A | Standard Industrial PSU | PLC Integrated Power |
|---|---|---|---|
| Power Output | 500W | 300-600W | 50-200W |
| Efficiency | 80+ Gold | 80+ Bronze/Silver | 70-85% |
| Voltage Rails | 4 Independent Rails | 1-3 Rails | Single Rail |
| Industrial Rating | Commercial/Industrial | Industrial | Industrial |
| MTBF | 100,000+ hours | 50,000-100,000 hours | 100,000+ hours |
| Cost Efficiency | High | Medium | High |
Frequently Asked Questions (FAQ)
A: No, the DPS-500ab-32 A is a power supply unit, not a PLC controller. It provides reliable power to industrial computing systems that may run PLC programming software or control systems.
A: The DPS-500ab-32 A is ideal for industrial workstations, SCADA systems, HMI computers, data acquisition systems, and industrial servers that require stable, efficient power in automation environments.
A: Key industrial features include 80+ Gold efficiency for energy savings, multiple voltage rails for stable power distribution, global voltage compatibility, and reliable operation in industrial temperature ranges.
A: While PLCs typically have integrated power supplies (50-200W), the DPS-500ab-32 A (500W) is designed for larger industrial computing systems that support PLC programming, monitoring, and control functions.
A: Regular maintenance includes cleaning air filters, checking for dust accumulation, monitoring temperature, and periodic testing of voltage outputs. The unit should be inspected annually in industrial environments.
Trust Metrics and Industry Standards
Efficiency Rating
Certified energy efficiency for industrial applications
Power Output
Sufficient for industrial computing systems
Voltage Stability
Stable output for sensitive industrial electronics
MTBF
Mean Time Between Failures for reliability
Industry References and Standards
Industrial Automation Standards: The DPS-500ab-32 A supports industrial automation applications by providing reliable power to systems that comply with IEC 61131-3 PLC programming standards and industrial computing requirements.
Power Supply Standards: Complies with ATX power supply specifications and 80 PLUS Gold certification standards for energy efficiency in continuous operation environments.
Industrial Computing: According to industry research, reliable power infrastructure is critical for industrial automation systems, with power-related issues accounting for approximately 30% of industrial computing failures.
Installation and Integration Guidelines
Industrial Environment Considerations
- Temperature Control: Ensure adequate ventilation and maintain ambient temperature within 0-40°C range
- Power Quality: Use surge protection and voltage regulation for industrial power sources
- Grounding: Proper grounding is essential for industrial safety and noise reduction
- Cable Management: Organize power cables to prevent interference with signal cables
Integration with PLC Systems
When integrating the DPS-500ab-32 A with PLC systems:
- Ensure the power supply provides clean, stable power to industrial computers running PLC software
- Use UPS (Uninterruptible Power Supply) systems for critical automation applications
- Implement power monitoring to detect potential issues before they affect PLC operations
- Regularly test backup power systems for reliability
Conclusion
The DPS-500ab-32 A represents a reliable power solution for industrial automation environments. While not a PLC controller itself, it provides the essential power infrastructure needed for industrial computing systems that support PLC programming, monitoring, and control functions. With its 500W output, 80+ Gold efficiency, and multiple voltage rails, this power supply offers the stability and reliability required for continuous industrial operation.
For industrial automation professionals, understanding power management is as crucial as understanding PLC programming. The DPS-500ab-32 A, when properly integrated into industrial computing systems, contributes to overall system reliability, energy efficiency, and operational continuity in automation applications.
