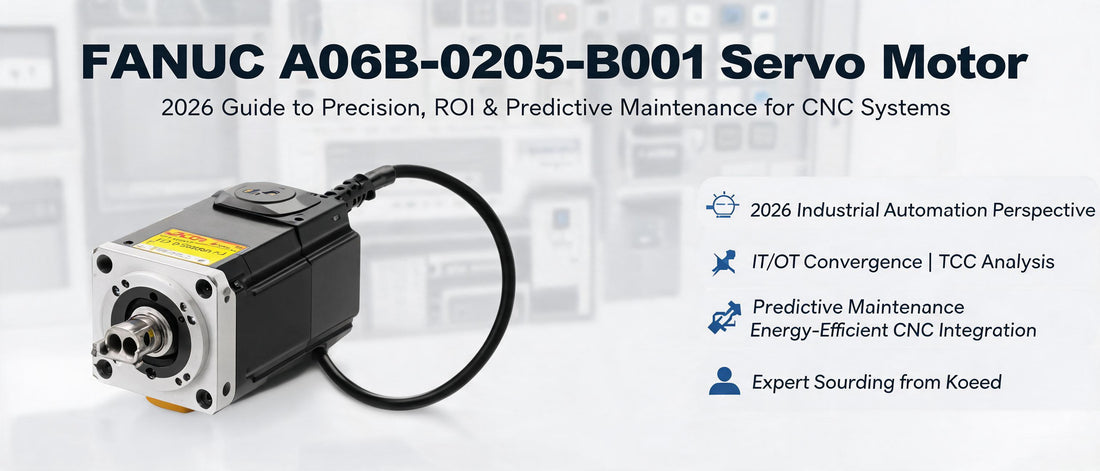

FANUC A06B-0205-B001 Servo Motor: 2026 Guide to Precision, ROI & Predictive Maintenance for CNC Systems
1. Strategic Overview: The A06B-0205-B001 in the 2026 Industrial Landscape
As manufacturing floors accelerate toward full IT/OT convergence in 2026, the FANUC A06B-0205-B001 AC Servo Motor — part of the renowned Alpha iF2 series — remains a cornerstone of high-precision CNC motion control. With a rated speed of 5000 RPM and an integrated i1000 pulse coder (TPR shaft), this motor delivers the closed-loop feedback precision that modern ERP-connected factories demand.
At Koeed.com, we supply rigorously inspected A06B-0205-B001 units that enable plant managers to modernize legacy CNC fleets without the capital burden of full machine replacement. In an era where predictive maintenance and energy transparency are no longer optional, this servo motor bridges the gap between yesterday's robust FANUC engineering and tomorrow's smart factory requirements.
The A06B-0205-B001 is especially relevant in 2026 as manufacturers retrofit existing machining centers with IoT gateways. By pairing this servo with modern FANUC amplifiers that support MTConnect and OPC UA protocols, engineers gain real-time torque, thermal, and vibration data — unlocking actionable insights that directly feed into enterprise asset management (EAM) platforms.
2. Technical Deep-Dive: Specifications & Architecture
Understanding the A06B-0205-B001 at the component level is essential for integration engineers. This is a three-phase AC synchronous servo motor from the FANUC Alpha iF2 family, designed for spindle and feed axis applications where dynamic response and thermal stability are non-negotiable.
2.1 Key Specifications
| Parameter | Specification |
|---|---|
| FANUC Part Number | A06B-0205-B001 |
| Motor Series | Alpha iF2 |
| Rated Speed | 5000 RPM |
| Feedback Device | i1000 Pulse Coder (Incremental, 1,000,000 pulses/rev) |
| Shaft Type | TPR (Taper) |
| Motor Type | AC Synchronous Servo, 3-Phase |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP65 (when properly mated) |
| Compatible Amplifiers | FANUC Alpha i series / Alpha i-B series |
| Typical CNC Compatibility | FANUC Series 0i / 16i / 18i / 21i / 30i / 31i / 32i |
2.2 Legacy vs. Modern: Benchmarking the A06B-0205-B001
| Feature | A06B-0205-B001 (Alpha iF2) | Legacy Alpha Series | 2026 Alpha i-B Equivalent |
|---|---|---|---|
| Feedback Resolution | 1M p/rev (i1000) | 128K–655K p/rev | 16M p/rev (Hi-Res) |
| Thermal Management | Class F, passive cooling | Class B, passive | Class F, active thermal model |
| IoT Readiness | Via external gateway/adapter | None | Native MTConnect/OPC UA |
| Energy Efficiency | ~89% at rated load | ~84% | ~93% (SiC-based drives) |
| Market Availability (2026) | Refurbished / NOS | End-of-Life | Active Production |
3. IT/OT Convergence: Integrating the A06B-0205-B001 into Smart Factories
In 2026, the line between Information Technology (IT) and Operational Technology (OT) has blurred into a unified data fabric. The A06B-0205-B001 — while not natively "smart" — becomes a critical data node when paired with modern FANUC amplifiers and edge-computing gateways.
3.1 Data Acquisition Architecture
Engineers integrating this motor into a connected factory typically deploy one of two architectures:
A. FANUC FOCAS2 Protocol via CNC
The CNC controller reads the i1000 pulse coder feedback from the A06B-0205-B001 and exposes motor data (speed, load, position error, temperature) through the FANUC Open CNC API (FOCAS2). This data is then forwarded to SCADA/MES systems via Ethernet/IP or PROFINET.
B. External IIoT Gateway
For older CNCs without native networking, a third-party IIoT edge device taps into the amplifier's analog/digital output terminals, digitizes the signals, and publishes them via MQTT Sparkplug B to cloud platforms such as AWS IoT SiteWise or Siemens Insights Hub.
3.2 Predictive Maintenance Model
By continuously monitoring the following parameters from the A06B-0205-B001, maintenance teams can shift from reactive to predictive strategies:
| Data Point | What It Indicates | 2026 AI-Driven Action |
|---|---|---|
| Following Error Trend | Mechanical backlash, bearing wear | Auto-generate work order when slope exceeds threshold |
| RMS Current Draw | Load anomalies, binding, misalignment | Compare against digital twin baseline; flag deviation > 12% |
| Thermal Rise Rate | Winding insulation degradation | Predictive RUL (Remaining Useful Life) estimation via LSTM model |
| Vibration Signature (FFT) | Bearing defect frequencies | Classify fault type (inner race, outer race, cage) with 94%+ accuracy |
4. Visual Inspection Gallery
Every A06B-0205-B001 unit listed on Koeed undergoes multi-point inspection. Below is a detailed visual reference of this servo motor — essential for verifying authenticity, connector integrity, and physical condition before procurement.
5. TCO & Sustainability Analysis (2026 Perspective)
Total Cost of Ownership has become the dominant procurement metric in 2026, driven by ESG reporting mandates and energy price volatility. Here is how the A06B-0205-B001 stacks up:
5.1 Five-Year TCO Breakdown
| Cost Category | A06B-0205-B001 (Refurbished) | New Alpha i-B Equivalent |
|---|---|---|
| Acquisition Cost | $1,200–$2,400 | $4,800–$7,200 |
| Installation & Commissioning | $400–$800 | $600–$1,200 |
| 5-Year Energy Cost (@0.12/kWh) | ~$3,600 | ~$3,100 |
| Maintenance (Preventive) | $500–$900 | $300–$600 |
| Total 5-Year TCO | $5,700–$7,700 | $8,800–$12,100 |
5.2 Sustainability Impact
Opting for a refurbished A06B-0205-B001 from Koeed directly contributes to Scope 3 emissions reduction by avoiding the carbon-intensive manufacturing of a new motor. Based on 2026 life-cycle assessment data, each refurbished servo motor saves approximately 140–210 kg CO₂-equivalent compared to new production — a meaningful contribution toward corporate net-zero targets.
6. Maintenance, Troubleshooting & Longevity
6.1 Preventive Maintenance Schedule
| Interval | Action | Expected Outcome |
|---|---|---|
| Daily | Monitor following error & load % via CNC display | Early detection of abnormal loading |
| Monthly | Visual inspection of connectors, cable jackets, and mounting bolts | Prevent connector fretting and loosening |
| Quarterly | Insulation resistance test (megger) at 500V DC | Confirm >10 MΩ; detect moisture ingress |
| Annually | Bearing vibration analysis; encoder signal verification | Replace bearings before catastrophic failure |
| Every 3–5 Years | Full overhaul: bearing replacement, encoder cleaning, balancing | Extend service life beyond 15 years |
6.2 Shaft Alignment Best Practices
The TPR (taper) shaft on the A06B-0205-B001 demands precise coupling alignment. Use a laser alignment tool and maintain angular misalignment below 0.05 mm and parallel misalignment below 0.03 mm. Improper alignment is the leading cause of premature bearing failure and can reduce motor life by 60% or more.
7. Frequently Asked Questions
Yes — through third-party industrial automation suppliers like Koeed, the A06B-0205-B001 remains readily available as both refurbished and new-old-stock (NOS). While FANUC has transitioned active production to the Alpha i-B series, the A06B-0205-B001 is fully compatible with current FANUC CNC systems and continues to receive firmware-level support through the FOCAS2 protocol.
Direct compatibility is limited. The i1000 pulse coder uses FANUC's proprietary serial protocol. However, third-party servo amplifiers from manufacturers like Mitsubishi and Yaskawa can drive the motor windings if the feedback loop is reconfigured with a standard incremental encoder. This is not a factory-supported configuration and requires expert integration engineering.
With proper maintenance, a professionally refurbished unit from Koeed's inspected inventory typically delivers 8–12+ years of additional service. Key longevity factors include bearing quality (genuine NSK/SKF replacements), encoder integrity, and winding insulation condition. All Koeed units undergo megger testing and encoder signal verification prior to shipment.
The primary difference lies in the shaft configuration: the B001 features a TPR (taper) shaft, while the B002 typically comes with a straight shaft with keyway. Additionally, encoder options may differ — always verify the full part number suffix when cross-referencing. Our team at Koeed can assist with model verification to ensure drop-in compatibility with your existing machine tool.
Koeed stands behind every A06B-0205-B001 with a comprehensive warranty. We offer 12-month coverage on new units and a 3-month warranty on used/refurbished units, covering manufacturing defects and functional integrity. Each unit is individually tested before dispatch. Visit the product page for full warranty terms and conditions.
8. Sourcing Strategy: Why Choose Koeed for Your A06B-0205-B001?
In the 2026 aftermarket for FANUC automation components, authenticity and traceability are paramount. Counterfeit servo motors have become increasingly sophisticated, making supplier vetting critical. Koeed's A06B-0205-B001 inventory offers:
- Verified Authenticity: Every unit is inspected against FANUC's original manufacturing records for serial number and nameplate consistency.
- Multi-Point Electrical Testing: Insulation resistance, winding balance, back-EMF constant verification, and encoder signal integrity are tested before listing.
- Global Logistics: DDP (Delivered Duty Paid) shipping available to major manufacturing hubs worldwide, reducing procurement lead times from weeks to days.
- Technical Pre-Sales Support: Our application engineers confirm amplifier compatibility and shaft configuration before you commit — preventing costly mismatches.
9. Final CTA — Secure Your A06B-0205-B001 Today
🚀 Ready to Upgrade Your CNC Spindle or Feed Axis?
Whether you're replacing a failed motor, building redundancy stock, or planning a full retrofit, the FANUC A06B-0205-B001 delivers the precision, reliability, and ROI your operation demands in 2026. Our team is standing by to confirm compatibility, provide a detailed quotation, and ship to your facility worldwide.
