Festo LR-1/4-D-O-I-MINI Pressure Regulator: 2026 Technical Guide for Smart Pneumatic Control
Strategic Overview: The LR-1/4-D-O-I-MINI in the 2026 Industrial Landscape
As manufacturing facilities accelerate toward full IT/OT convergence in 2026, the humble pressure regulator has evolved from a passive pneumatic component into a critical node within smart factory architectures. The Festo LR-1/4-D-O-I-MINI — part of Festo's globally trusted MINI regulator family — exemplifies this transformation. Designed for compact machine footprints where precision and reliability are non-negotiable, this G 1/4" directly actuated diaphragm regulator delivers consistent output pressure control across a regulation range of 0.5 to 7 bar, with a nominal flow rate approaching 1,600 L/min.
In 2026, the LR-1/4-D-O-I-MINI sits at the intersection of cost efficiency and operational intelligence. Its integrated pressure gauge (designated by the "I" in the model code) provides local visual feedback, while the "O" designation indicates a configuration optimized for applications where secondary venting is not required — simplifying manifold integration and reducing potential leak paths. For procurement teams and plant engineers evaluating pneumatic infrastructure, this regulator represents a low-TCO solution with a typical service life exceeding 10 years under rated operating conditions.
Technical Specifications & Benchmarking
Understanding where the LR-1/4-D-O-I-MINI fits within Festo's broader LR series — and how it compares to legacy alternatives — is essential for informed procurement. The MINI form factor bridges the gap between the ultra-compact MICRO series and the higher-flow MIDI/MANI regulators, making it ideal for valve terminals, small actuator banks, and pilot pressure circuits.
Core Specifications
| Parameter | LR-1/4-D-O-I-MINI |
|---|---|
| Series | Festo LR (MINI) |
| Connection | G 1/4" (BSPP) |
| Regulation Range | 0.5 – 7 bar |
| Nominal Flow Rate | ~1,600 L/min |
| Actuation Type | Directly actuated diaphragm |
| Pressure Gauge | Integrated (model suffix "I") |
| Secondary Venting | Without (model suffix "O") |
| Housing Material | Zinc die-cast |
| Media Temperature Range | -10°C to +60°C |
| Ambient Temperature Range | -10°C to +60°C |
| Mounting Orientation | Vertical (±5°) |
| Weight | ~0.35 kg (approx.) |
| Service Life (Typical) | >10 years under rated conditions |
Legacy vs. Modern: Why Upgrade in 2026?
| Feature | Legacy Pneumatic Regulators (Pre-2018) | Festo LR-1/4-D-O-I-MINI |
|---|---|---|
| Regulation Accuracy | ±0.3 – 0.5 bar typical | ±0.1 bar (direct diaphragm) |
| Response Time | Slower, spring-fatigue prone | Fast-acting diaphragm; minimal hysteresis |
| Pressure Gauge Integration | Often external / aftermarket | Factory-integrated; two gauge port options |
| Material Durability | Aluminum (corrosion risk) | Zinc die-cast; superior corrosion resistance |
| IoT Readiness | None | Compatible with Festo MSE6 / CPX digital monitoring add-ons |
| Energy Efficiency | Unregulated bleed common | Optimized diaphragm geometry reduces bleed losses |
| Sustainability Compliance | Pre-ISO 50015 era | Aligns with ISO 50001 / 50015 energy audit frameworks |
Visual Product Gallery

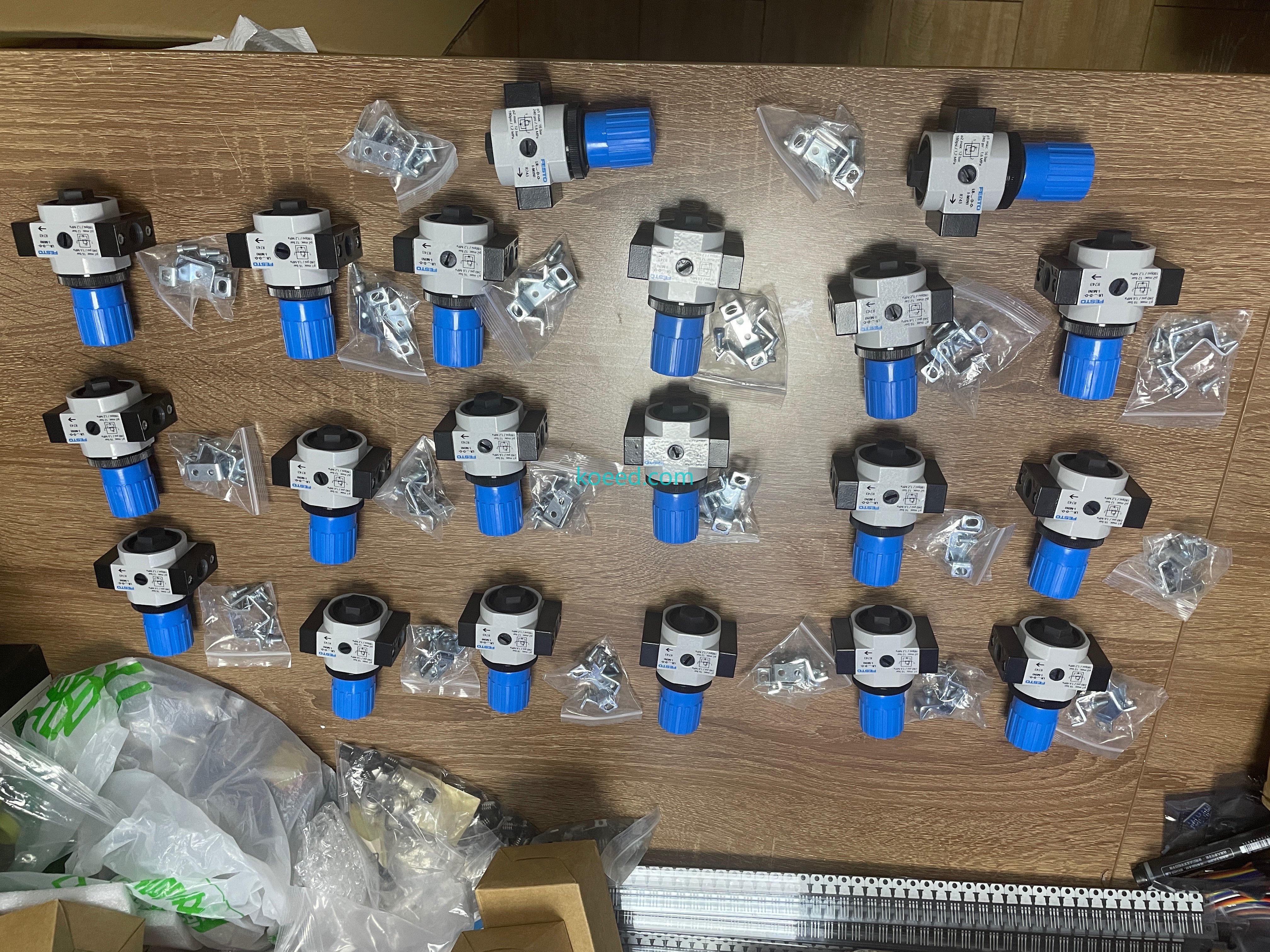

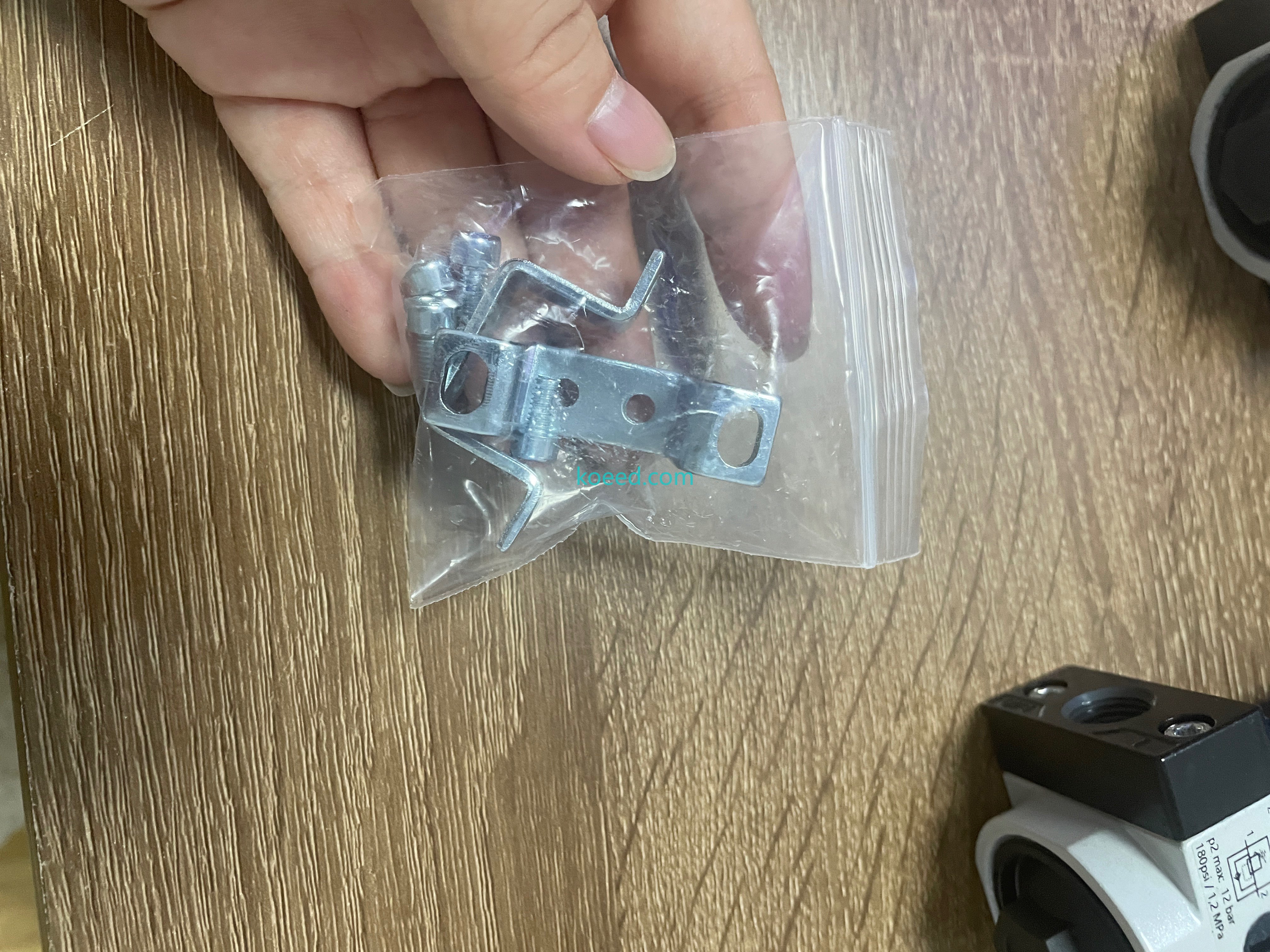

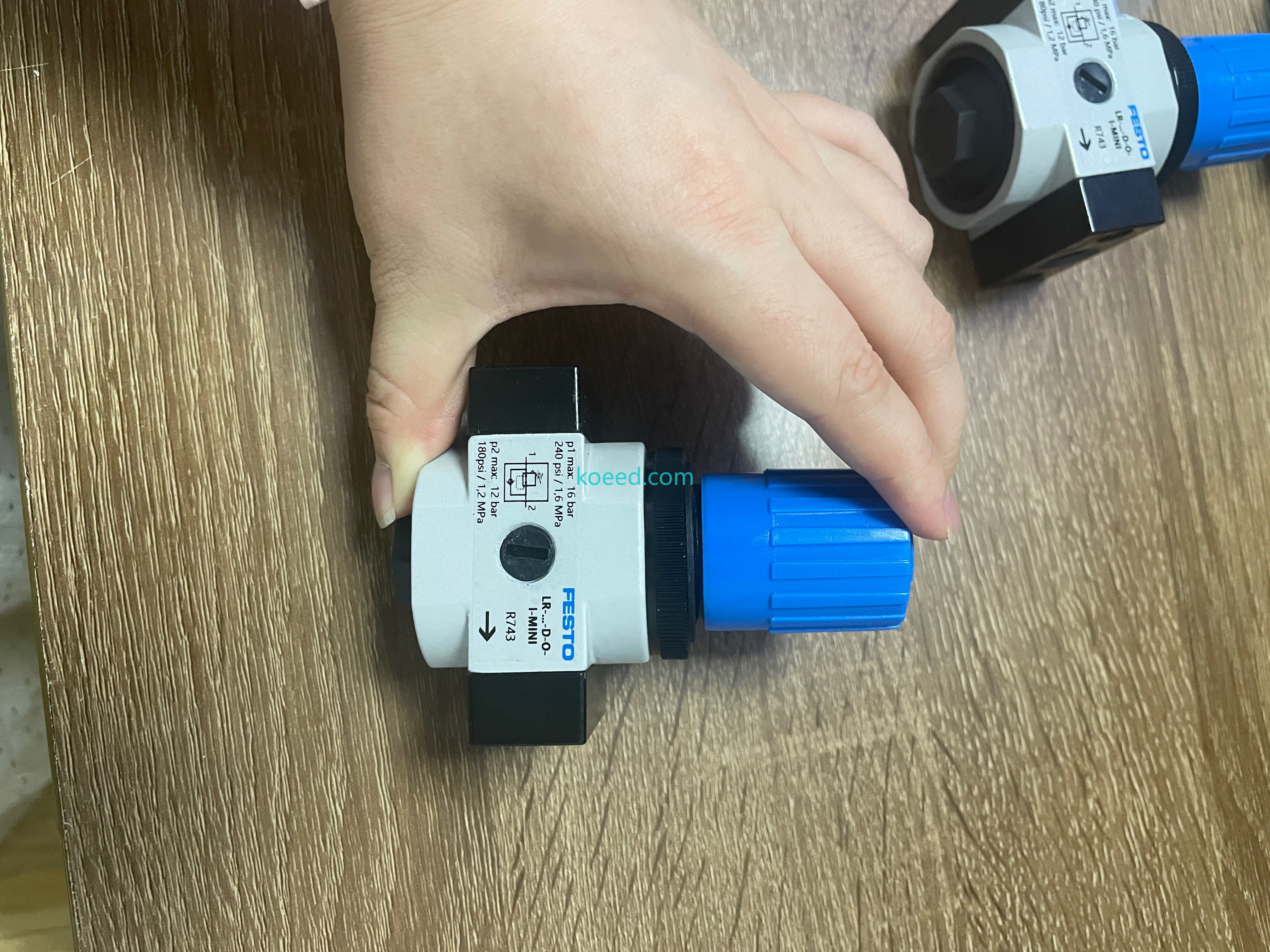

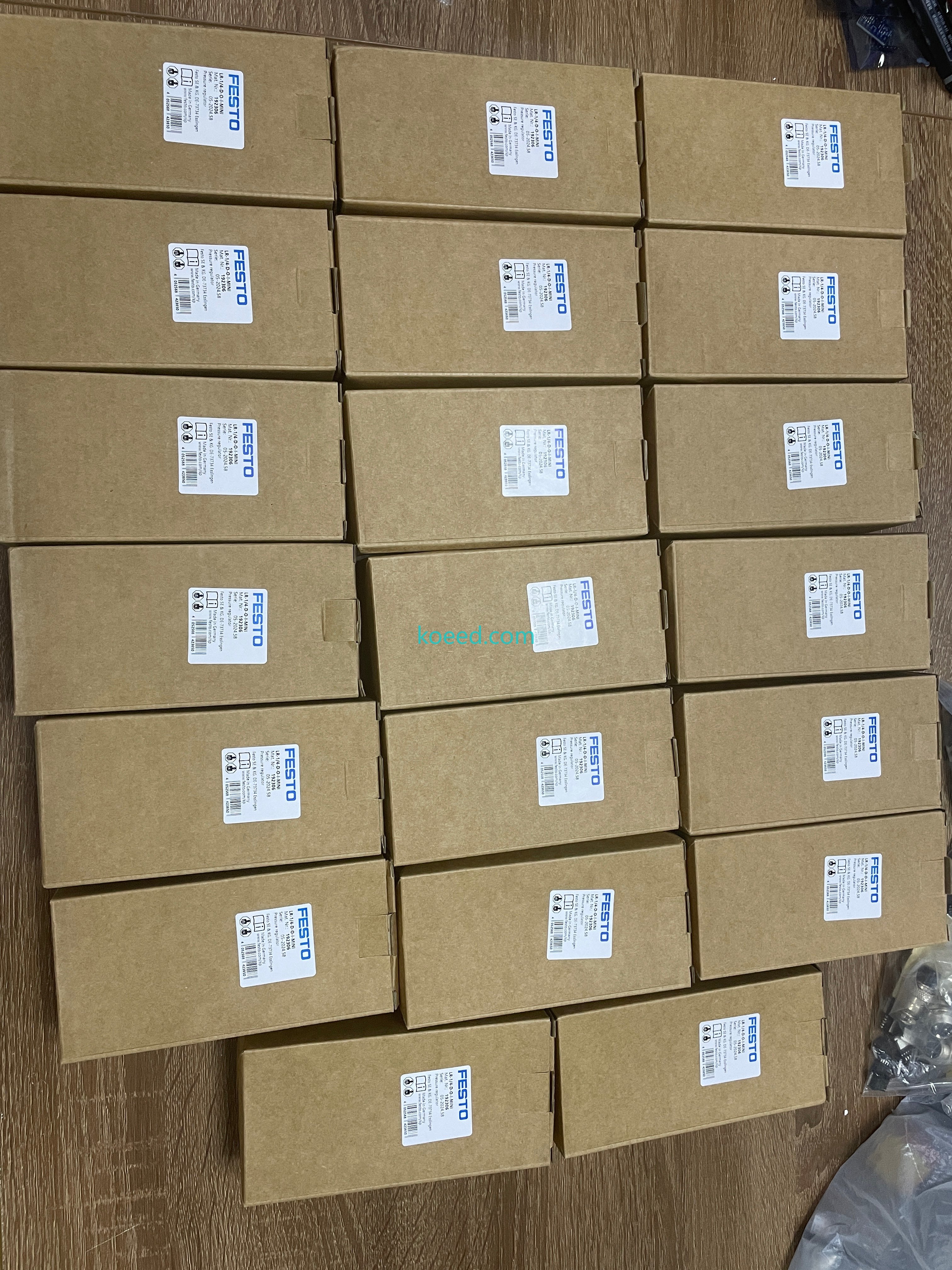

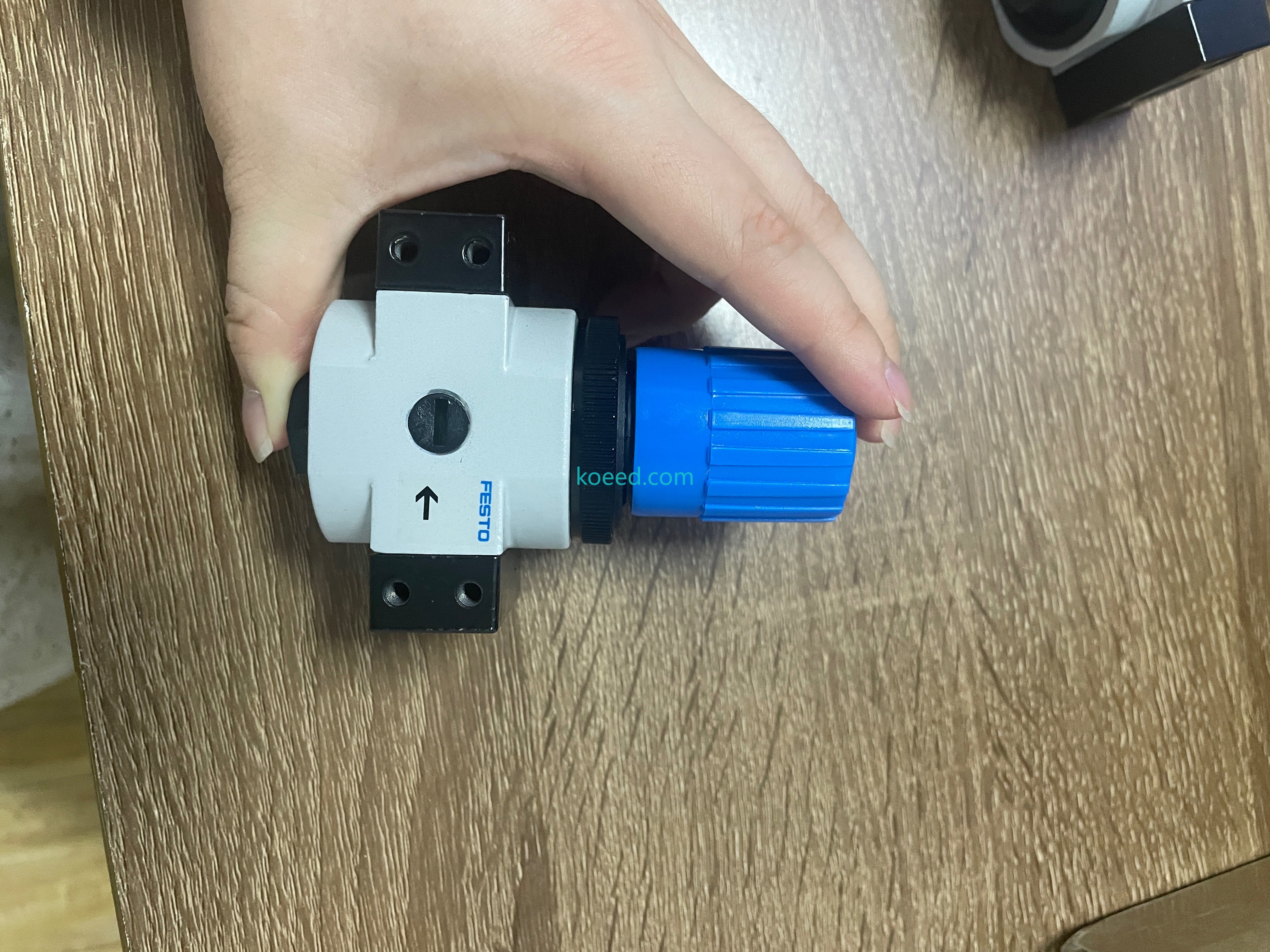

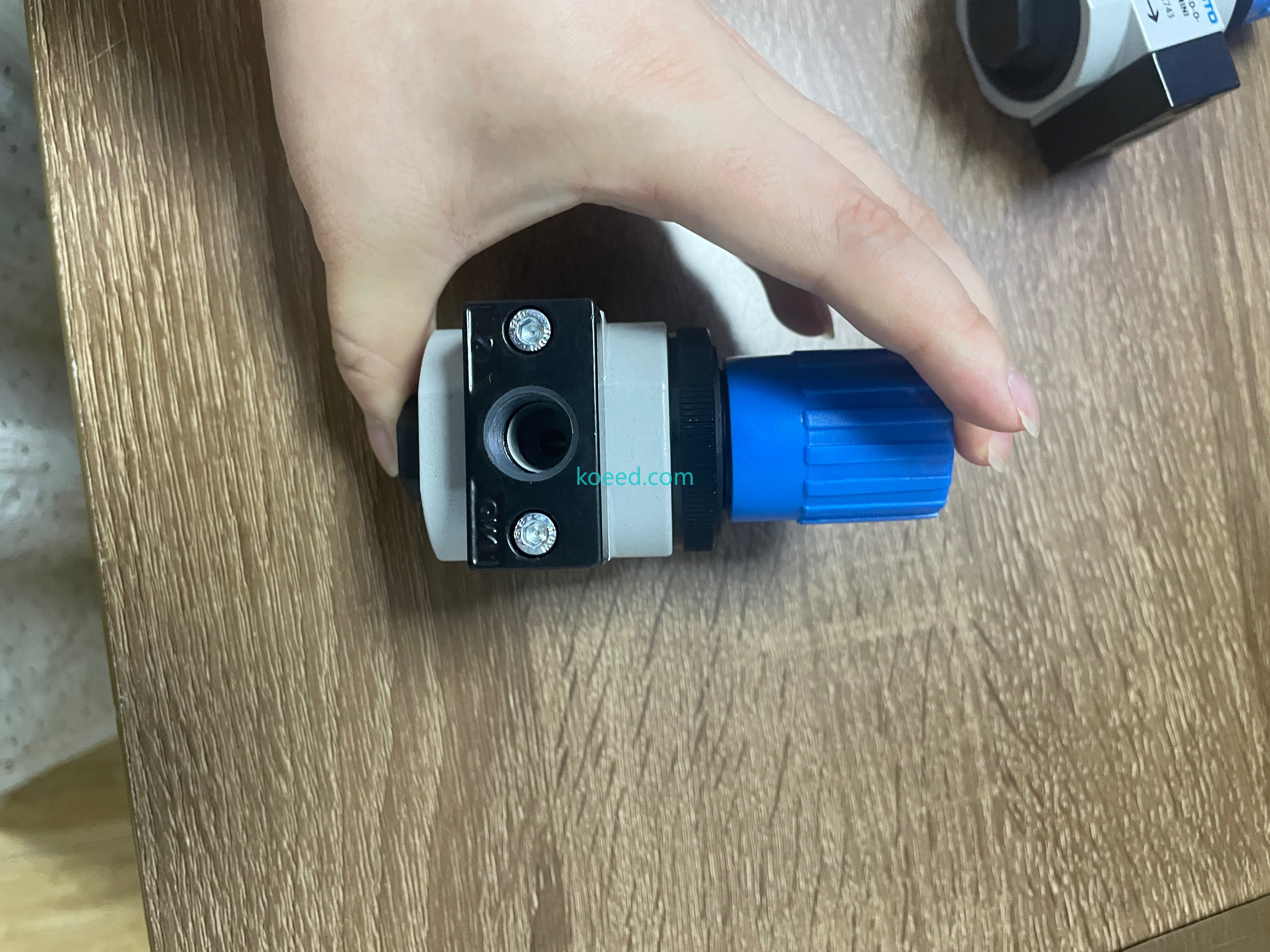

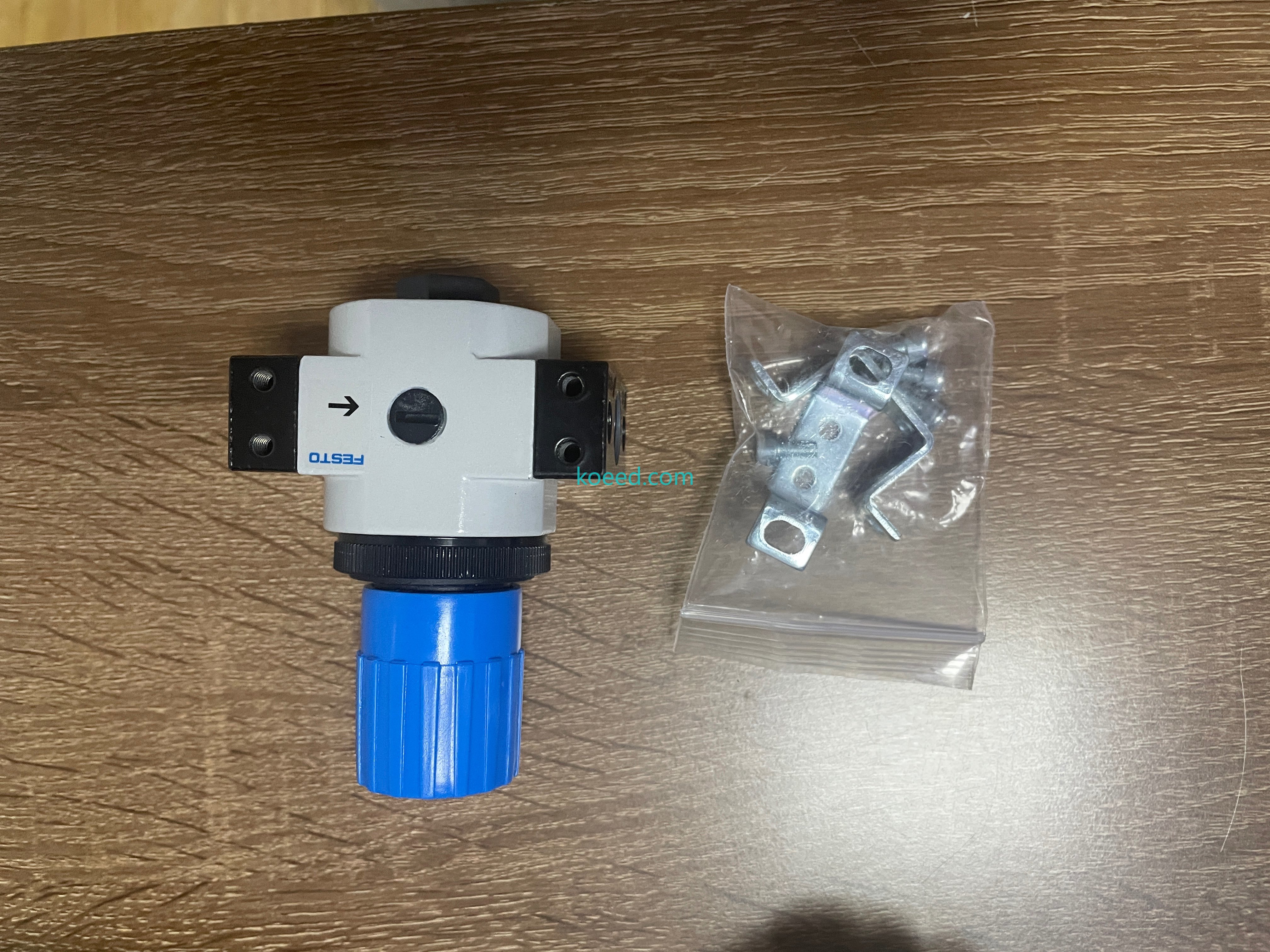

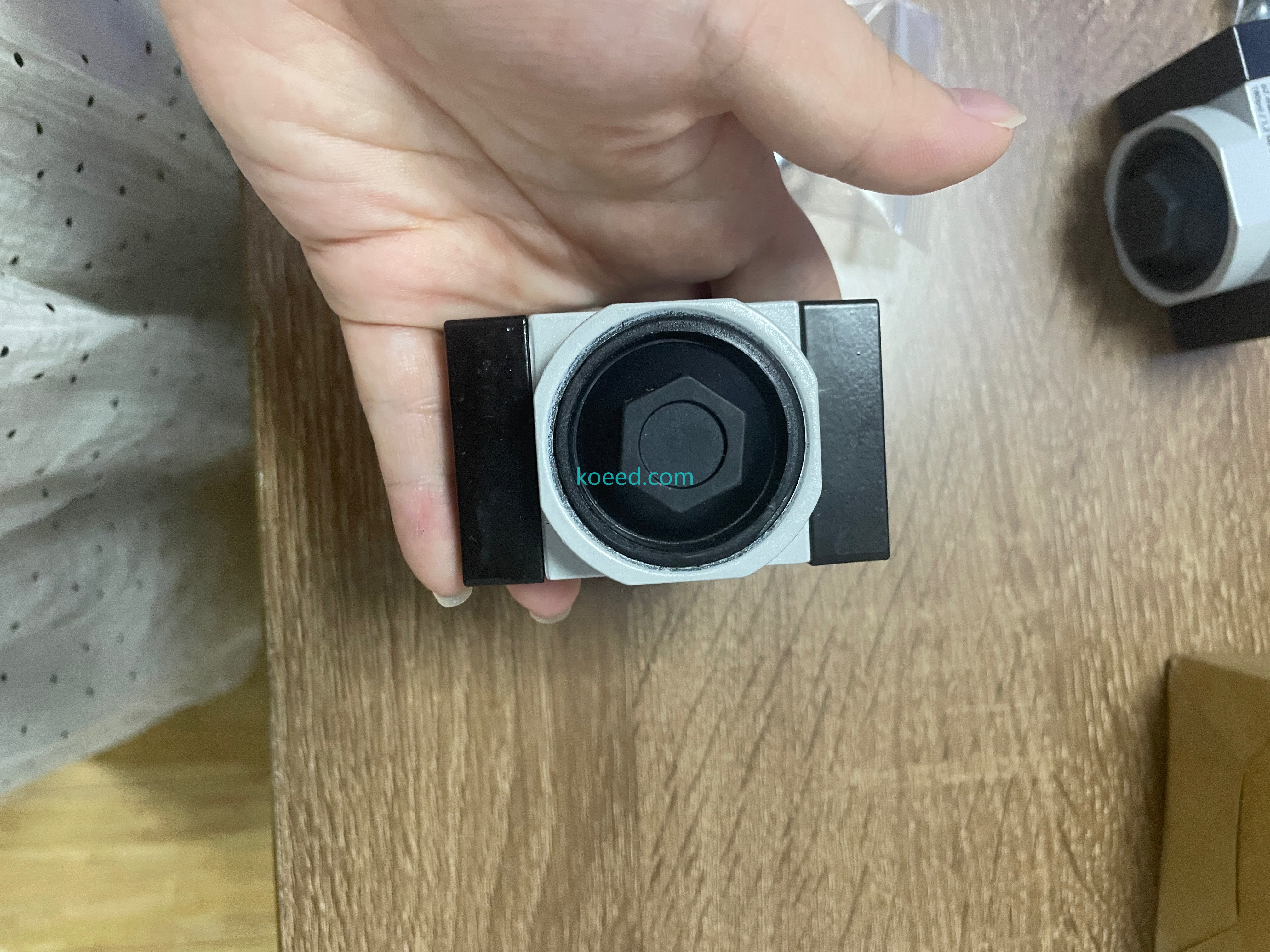

Below is a comprehensive visual inspection gallery of the Festo LR-1/4-D-O-I-MINI. These photographs detail the build quality, labeling, port configuration, and integrated gauge mounting that define this industrial-grade pressure regulator.
Product Walkthrough Video
Close-up walkthrough of the LR-1/4-D-O-I-MINI — inspect ports, adjustment knob, and gauge alignment before ordering.
All images shown correspond to the exact unit available at Koeed's Festo LR-1/4-D-O-I-MINI product page. Each regulator is individually inspected before dispatch to ensure conformance with Festo OEM specifications.
Installation & Commissioning Best Practices
Proper installation of the LR-1/4-D-O-I-MINI is critical to achieving its rated flow and regulation accuracy. The following guidelines align with Festo's 2026 commissioning standards and ISO 4414 (Pneumatic fluid power — General rules and safety requirements).
Mounting Orientation
The MINI diaphragm regulator must be installed vertically with a maximum deviation of ±5° from the vertical axis. The adjustment knob should face upward. Incorrect orientation introduces diaphragm pre-load asymmetry and degrades regulation accuracy by up to 0.3 bar.
Upstream Filtration
For optimal service life, a 40 μm (or finer) filter element must be installed upstream. In 2026 smart factories, many engineers pair the LR-1/4-D-O-I-MINI with Festo's MS series filter-regulator-lubricator (FRL) combinations or the LF Mini filter. Contaminated compressed air is the #1 cause of premature diaphragm failure.
Pressure Gauge Orientation
The "I" suffix model provides two pressure gauge connection ports, allowing gauge mounting on either side of the regulator body for flexible panel integration. The unused port must be sealed with the supplied G 1/8" blanking plug — never leave it open to atmosphere.
Maintenance & Troubleshooting Guide
While the LR-1/4-D-O-I-MINI is designed for minimal maintenance, 2026's focus on predictive maintenance means that even passive pneumatic components should be monitored as part of a broader condition-based maintenance (CBM) strategy.
Predictive Maintenance Indicators (2026 Approach)
| Symptom | Likely Cause | Corrective Action |
|---|---|---|
| Output pressure drift (creeping upward) | Diaphragm wear or contamination on the valve seat | Inspect and replace diaphragm cartridge; verify upstream filtration quality |
| Slow pressure recovery after load change | Partially blocked inlet strainer or undersized upstream piping | Clean or replace inlet strainer; verify pipe diameter ≥ G 1/4" equivalent |
| Gauge reading inconsistent with downstream sensor | Gauge calibration drift or internal gauge damage | Replace gauge assembly; cross-reference with calibrated digital manometer |
| Audible air leak from adjustment knob area | Worn O-ring on adjustment spindle | Replace spindle O-ring (Festo spare part kit available) |
| Unable to achieve rated flow | Inlet pressure too low or regulator undersized for application | Verify inlet ≥ 8 bar; confirm flow demand within 1,600 L/min envelope |
IT/OT Convergence & Smart Factory Integration
In 2026, even "dumb" pneumatic components are being drawn into the Industrial IoT (IIoT) ecosystem. While the LR-1/4-D-O-I-MINI is fundamentally a mechanical regulator, its role within a digitally monitored compressed air system is increasingly strategic.
Integration Pathways
Path 1 — Upstream Flow & Pressure Monitoring: Pair the LR-1/4-D-O-I-MINI with a Festo SFAW or SPAU smart pressure sensor installed on the same manifold. These IO-Link-enabled sensors stream real-time pressure data to the plant's SCADA or MES layer, enabling anomaly detection algorithms to flag pressure deviations before they manifest as production defects.
Path 2 — Energy Management Systems: Under ISO 50001 frameworks, compressed air is a measured utility. By combining the LR-1/4-D-O-I-MINI's precise regulation with an upstream thermal mass flow meter (e.g., Festo SFAB), facilities can attribute air consumption to specific machine cells — a requirement for 2026 carbon-accounting mandates in EU and North American markets.
Path 3 — Digital Twin Integration: The LR-1/4-D-O-I-MINI's consistent pressure-flow characteristic curve can be modeled within Siemens NX MCD or Festo's own FluidDraw® digital twin environment, allowing system-level simulation before physical commissioning.
Sustainability Impact
Compressed air systems account for approximately 10% of industrial electricity consumption globally. Precise pressure regulation — delivering exactly the pressure required and no more — directly reduces compressor energy draw. A 1 bar reduction in regulated pressure translates to approximately 7% energy savings at the compressor. For a mid-size plant running 50+ regulator points, upgrading to the LR-1/4-D-O-I-MINI across all stations can contribute meaningfully to Scope 2 emissions reduction targets.
Frequently Asked Questions
What does the "D-O-I" suffix mean in LR-1/4-D-O-I-MINI?
D: Directly actuated diaphragm regulator — the most common and reliable configuration for MINI-size units. O: Without secondary venting — the output pressure is exhausted only via the output port, not through a separate vent. This is ideal for closed pneumatic circuits and manifold mounting. I: Integrated pressure gauge — factory-fitted gauge for immediate visual pressure verification.
Is the LR-1/4-D-O-I-MINI compatible with lubricated compressed air?
Yes, but with a caveat. The LR-1/4-D-O-I-MINI can operate with lubricated air; however, once lubricated air is introduced, the system should remain lubricated consistently. Switching between lubricated and unlubricated air can cause diaphragm material degradation. For most modern 2026 automation applications, clean, dry, unlubricated air is the recommended standard per ISO 8573-1 Class 5.4.4 or better.
Can I use this regulator in a vacuum application?
No. The LR-1/4-D-O-I-MINI is designed exclusively for positive pressure regulation (0.5–7 bar output). For vacuum regulation, Festo offers the LR series with vacuum-specific configurations or the VAD/VAS vacuum regulator families.
What is the difference between the LR-1/4-D-O-I-MINI and LR-1/4-D-7-MINI?
The LR-1/4-D-7-MINI is the base variant with a 0.5–7 bar regulation range and standard diaphragm configuration. The LR-1/4-D-O-I-MINI adds the "O" (without secondary venting) and "I" (integrated gauge) options. The core regulation performance is identical; the differences are in the venting configuration and gauge inclusion. For standard standalone applications, both perform equivalently. For manifold integration, the "O" variant is preferred.
What is the expected lead time for the LR-1/4-D-O-I-MINI in 2026?
As of 2026, Festo has largely normalized its
