HT291 DME Die Electronic Switch: 2026 Guide to Precision Mold Position Sensing & Predictive Maintenance Integration
1. Strategic Overview: The HT291 in 2026’s Smart Mold Ecosystem
In 2026, injection molding demands zero-unplanned-downtime. The DME HT291 Die Electronic Switch (HT-291) is a precision position sensor that provides deterministic mold state feedback for advanced IT/OT convergence. Sourced by Koeed as genuine OEM-grade replacement, the HT291 switch ensures core, ejector, and slide positions are reported every cycle—critical for OEE targets above 85%.
2. Technical Benchmarking: HT291 vs. Legacy Mechanical Switches
| Parameter | DME HT291 Electronic | Legacy Mechanical Roller-Lever |
|---|---|---|
| Sensing Technology | Solid‑state electronic / proximity | Physical roller‑lever with contacts |
| Cycle Life | 10⁷–10⁸ operations (no contact wear) | 10⁵–10⁶ operations (erosion limited) |
| Response Time | < 1 ms (electronic switching) | 5–15 ms (mechanical bounce) |
| Repeatability | ±0.01 mm | ±0.1–0.3 mm |
| Vibration Immunity | Excellent (no moving mass) | Moderate (roller chatter) |
| Contamination Resistance | Sealed housing; spray-tolerant | Debris ingress can jam roller |
| Predictive Maintenance Ready | ✅ Yes — cycle logging & drift analysis | ❌ No — binary output only |
| 5‑Year TCO | Lower — fewer replacements, less troubleshooting | Higher — recurring mechanical failures |
The business case is clear: while the HT291 may have a slightly higher initial cost, Total Cost of Ownership over a mold’s lifecycle delivers a projected ROI of 3:1 or greater for high-cavitation, high-cycle tools.
3. Sustainability & Energy Impact
The HT291 supports sustainability KPIs by reducing scrap and enabling energy-aware cycle optimization. With sub-millimeter repeatability, it eliminates the gray zone that causes short shots and wasted resin. Integrated with modern PLCs, the switch’s timestamped data lets the system detect a sticking ejector plate that keeps the mold open 0.3 seconds longer than baseline—automatically flagging maintenance before energy waste compounds.
4. Visual Inspection Gallery

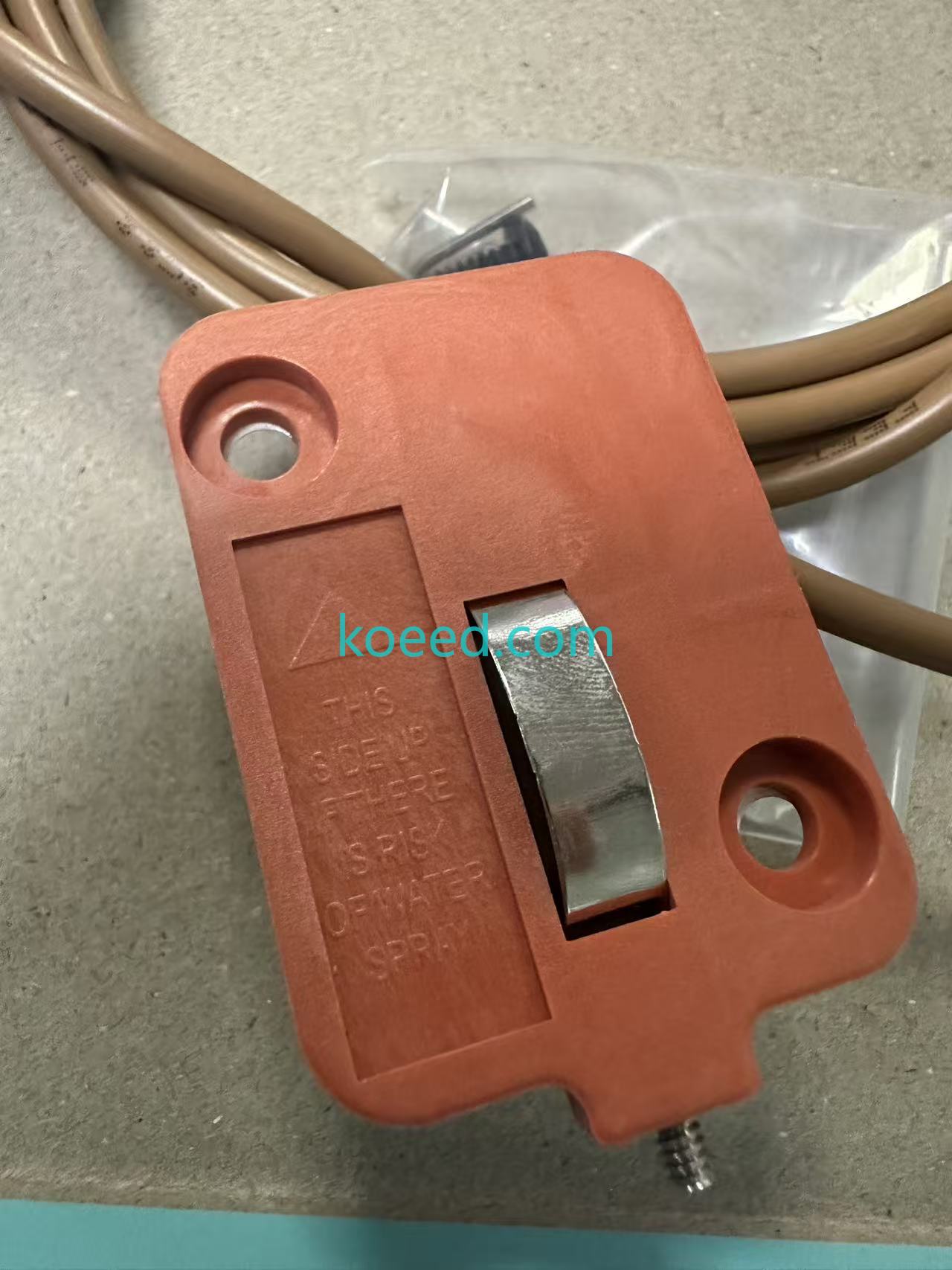

Below is a visual reference of the DME HT291 Die Electronic Switch to assist with installation planning.
5. Installation & Wiring
- Mechanical Mounting: Use M3/M4 screws with recommended torque; maintain the specified actuation gap to avoid missed detection or collision.
- Cable Strain Relief: Route cable through flexible conduit and secure with a strain-relief clamp at the mold’s junction box.
- Electrical Integration: Confirm dry-contact/NPN/PNP output polarity with PLC input module. Use shielded cable grounded at the cabinet end when VFDs are nearby.
- Power Supply: If auxiliary 24V DC is needed, source from a clean, regulated rail shared with the sensor bus.
6. Predictive Maintenance & Troubleshooting
| Interval | Action | Owner |
|---|---|---|
| Daily | Verify switch LED illuminates on mold-open; confirm signal at HMI. | Operator |
| Weekly | Clean switch face with lint‑free cloth and isopropyl alcohol. | Maintenance Tech |
| Monthly | Inspect cable jacket and strain relief. | Maintenance Tech |
| Quarterly | Export cycle‑count log; check for ±2% drift. | Automation Engineer |
| Annually | Functional test during mold PM; replace if cycle limit nears. | Toolroom Lead |
⚠️ No Signal on Mold‑Open
Check sensing gap, cable continuity, and terminal connections. If signal fails with continuity intact, replace the switch with a genuine HT291 from Koeed.
⚠️ Intermittent / Flickering Signal
Verify cable shielding, tighten mounting screws, and adjust gap to mid‑range. Enable 2‑5 ms PLC input filter if noise persists.
⚠️ Signal Always HIGH (Stuck Closed)
Inspect for cable crush, clean sensing face, and test output. If output transistor is shorted, immediate replacement is required to avoid mold crash.
7. Frequently Asked Questions
Is the HT291 a direct drop-in for the original DME HT-291?
Yes. It matches the original footprint, sensing gap, and electrical specification—no mold base modification needed.
What PLC platforms are compatible?
Any digital input module: Siemens S7-1200/1500, Allen‑Bradley CompactLogix, Mitsubishi FX, Omron, Beckhoff, B&R, etc.
How does it perform in high‑temperature molds?
Rated for typical injection mold ambient; for PEEK/LCP, mount with adequate air gap and consider a thermal shield.
Can it be used on vertical or rotary machines?
Absolutely. Solid‑state sensing is orientation‑agnostic. Ensure cable routing accounts for rotation to avoid twisting fatigue.
What’s the typical lead time?
Lead times vary by region; Koeed maintains ready stock of the HT291 for fast delivery. Contact for current availability.
Ready to Upgrade Your Mold Position Sensing?
Talk to Koeed’s industrial automation specialists for a personalized quote on the DME HT291 Die Electronic Switch. Fast, genuine OEM‑grade sourcing with global support.
