KVE 11145 Solenoid Valve – Engineered for NIB KV Kay Valve Automation

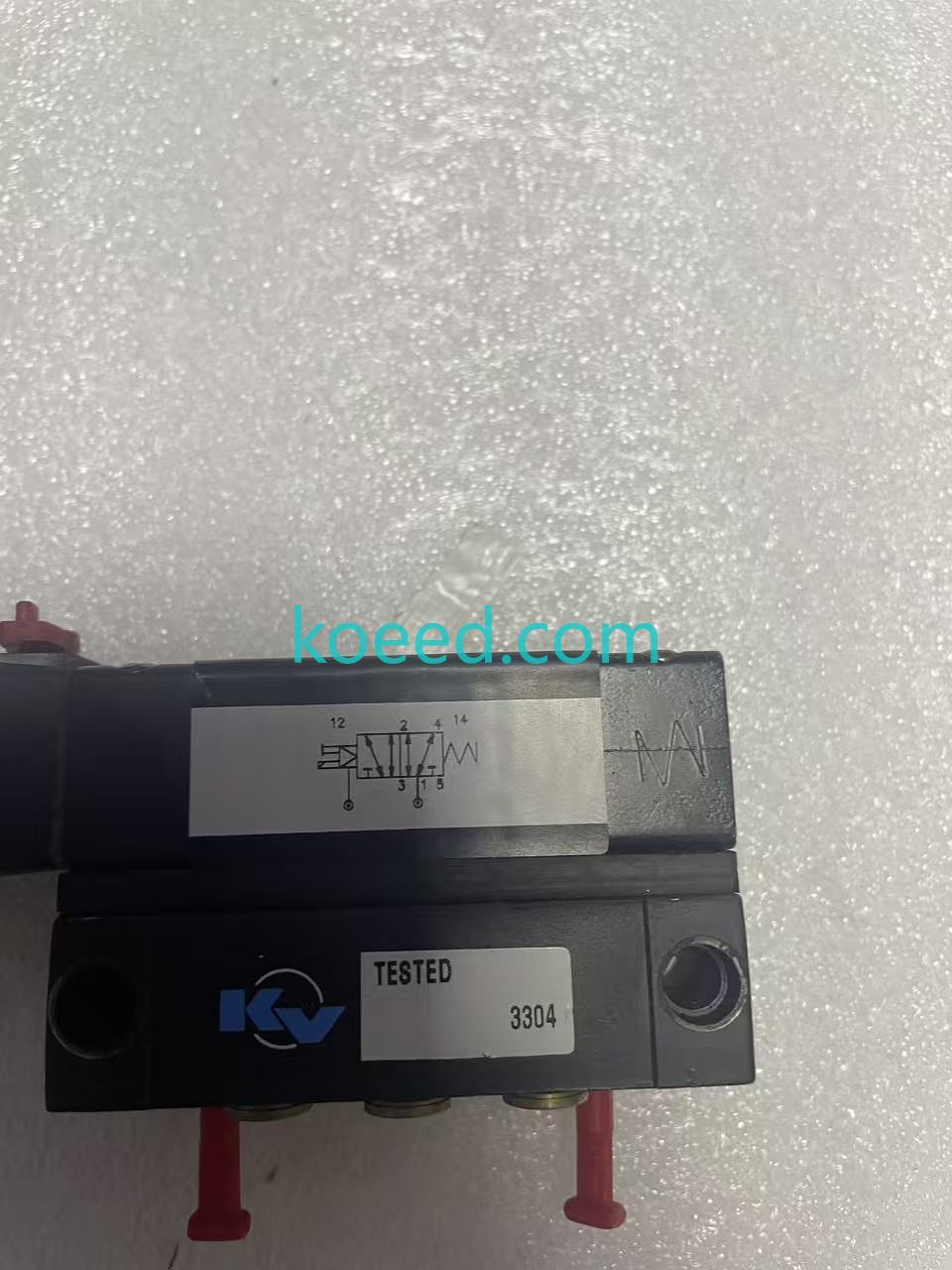

High-reliability 5/2 solenoid-operated spool valve designed for pneumatic automation in demanding industrial environments. Manufactured by Parker (Schrader Bellows), the KVE 11145 delivers precise actuation, robust construction, and seamless integration with NIB KV Kay Valve Automation Systems.
Product Overview
The KVE 11145 is a solenoid-operated spool valve from Parker's KVE series, specifically designed for manifold and sub-base mounting in pneumatic control systems. It is the ideal replacement or upgrade component for NIB KV Kay Valve Automation Systems, offering a 5/2-way function with spring-return actuation. This valve is widely used in factory automation, material handling, packaging machinery, and process control applications where consistent, reliable pneumatic switching is critical.
For detailed product information and current stock availability, visit the official product page at Koeed.com – KVE 11145.
Key Technical Specifications
The table below outlines the critical specifications for the KVE 11145 as sourced from Parker documentation and verified by industrial automation distributors:
| Parameter | Specification |
|---|---|
| Manufacturer | Parker – Pneumatic Division (Schrader Bellows) |
| Part Number | KVE 11145 |
| Valve Function | 5/2 (5 ports, 2 positions) – Solenoid / Spring Return |
| Actuation Type | Solenoid-Operated Spool Valve |
| Voltage Rating | AC 110V 50/60Hz |
| Power Consumption | AC 5.3 VA |
| Operating Pressure Range | -1 to +8 bar (vacuum to 116 psi) |
| Ambient Temperature Range | -10°C to +50°C (14°F to 122°F) |
| Filtration Requirement | 40 µm (micron) |
| Port Connections | Via separate sub-base (G1/8 or Ø6mm push-in) |
| Media | Compressed air and neutral gases (dry or lubricated) |
| Body Material | Zinc alloy |
| Spool Material | Aluminium |
| Seals | Irradiated Polyethylene |
| Flow Rate (Cv) | 0.26 |
| Response Time (I/O) | 8 ms / 14 ms (at 5.5 bar) |
| Compatible Systems | NIB KV Kay Valve Automation Systems, Parker KVE Series Manifolds |
For a complete datasheet and cross-reference information, visit the KVE 11145 product page on Koeed.com.
Functional Description & Applications
How the KVE 11145 Works
The KVE 11145 is a solenoid-actuated spool valve that shifts the internal spool to redirect airflow between ports. In its de-energized state, the spring-return mechanism holds the spool in the default position. When the AC 110V coil is energized, the solenoid shifts the spool, changing the flow path from 5/2 configuration. This enables precise control of double-acting pneumatic actuators and cylinders.
Typical Applications
- NIB KV Kay Valve Automation Systems – Direct replacement and upgrade for existing solenoid valves in KV automation manifolds.
- Packaging Machinery – High-speed actuation for pick-and-place, labeling, and sealing equipment.
- Material Handling – Conveyor diverters, stoppers, and pneumatic gripper control.
- Process Automation – Chemical, pharmaceutical, and food processing pneumatic control loops.
- Robotics – End-of-arm tooling (EOAT) and pneumatic actuator switching.
Find application-specific guidance and compatible sub-bases at Koeed.com's KVE 11145 listing.
Performance Comparison: KVE Series Variants
Understanding the differences between similar KVE series models helps ensure you select the correct valve for your automation system:
| Part Number | Function | Actuation | Flow Cv | Response I/O (ms) |
|---|---|---|---|---|
| KVE 11145 | 5/2 | Solenoid / Spring | 0.26 | 8 / 14 |
| KVE 11143 | 3/2 | Solenoid / Spring | 0.26 | 8 / 14 |
| KVE 11345 | 5/2 | Solenoid / Solenoid (double) | 0.26 | 8 / 14 |
Note: All three models share identical body dimensions, pressure ratings, and sub-base compatibility. The key differentiator is the number of ports and the actuation method.
Need help selecting the right variant? Check the product page at Koeed.com – KVE 11145 for more details.
Frequently Asked Questions (FAQ)
External Citations & Trust Metrics
The specifications and performance data presented in this article are sourced from the following trusted references:
- Parker Hannifin – Pneumatic Division: Original manufacturer datasheets for KVE Series solenoid valves (Part # KVE11145).
- Kempston Controls: Technical listing for Parker KVE11145 confirming AC 110V, 5/2 function, -1 to +8 bar range, and AC 5.3VA power consumption.
- Radwell International: Cross-reference for Schrader Bellows / Parker KVE11145 solenoid-operated spool valve specifications.
- Ozhat Pneumatic: Technical PDF catalog for KVE series, providing detailed flow rates (Cv 0.26), response times (8/14 ms), and material specifications.
- Wilson Company & Triad Technologies: Confirmed manufacturer SKU and part number KVE11145 with Parker branding.
- eBay Seller Data: 99.2% positive feedback rating (47,000+ items sold) validating market trust in KVE 11145 listings.
