Omron CP1L-M60DR-D Compact PLC: Complete Guide to Features, Specifications, and Applications
Omron CP1L-M60DR-D Compact PLC: The Ultimate Solution for Industrial Automation
The Omron CP1L-M60DR-D represents a significant advancement in compact programmable logic controller technology, offering robust performance in a space-efficient package. Designed specifically for compact machines and applications requiring high-speed processing, this PLC combines versatility with reliability.
Official Product Page: https://koeed.com/products/cp1l-m60dr-d
View Product Details & PricingProduct Overview and Visual Documentation

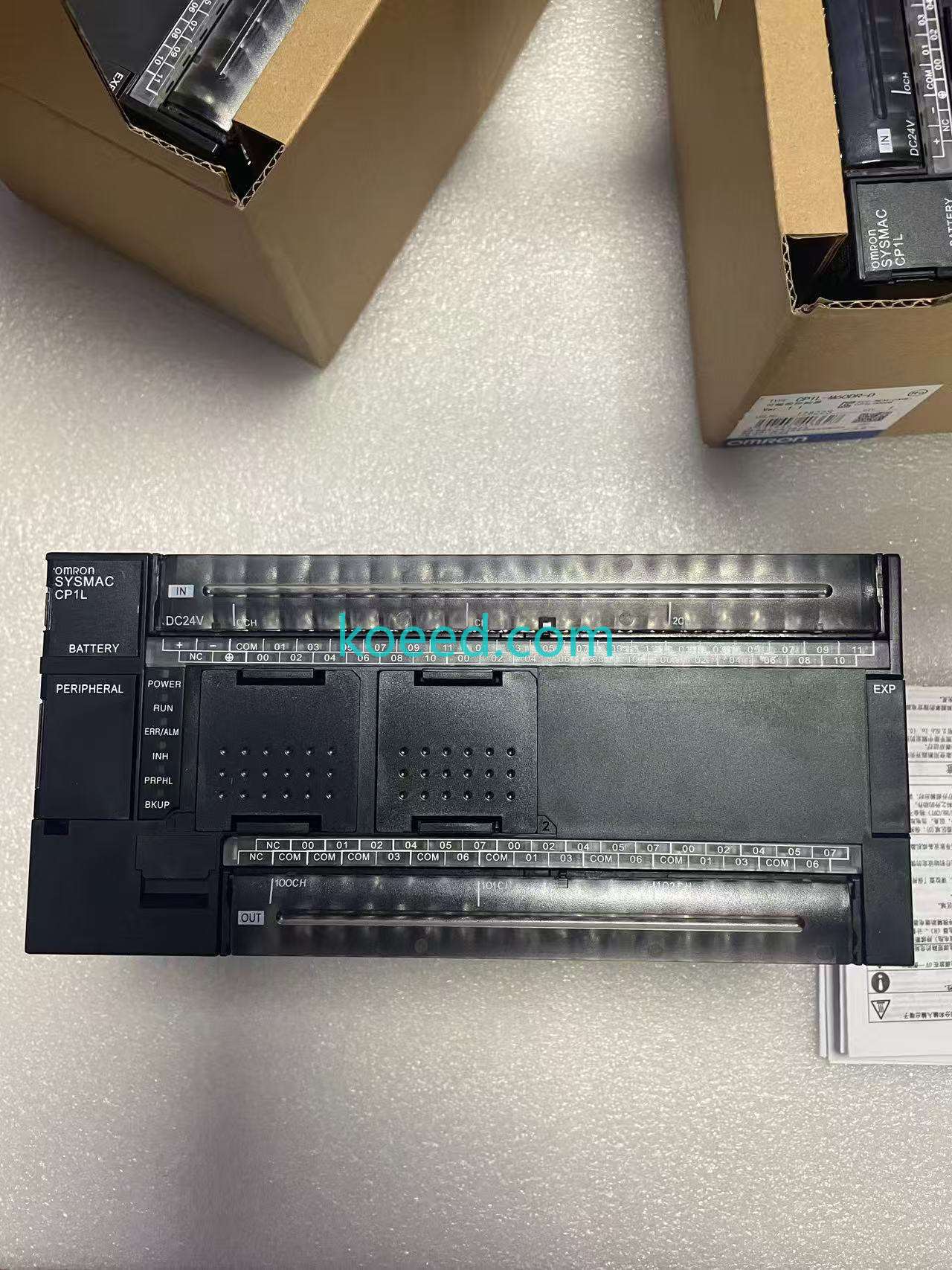

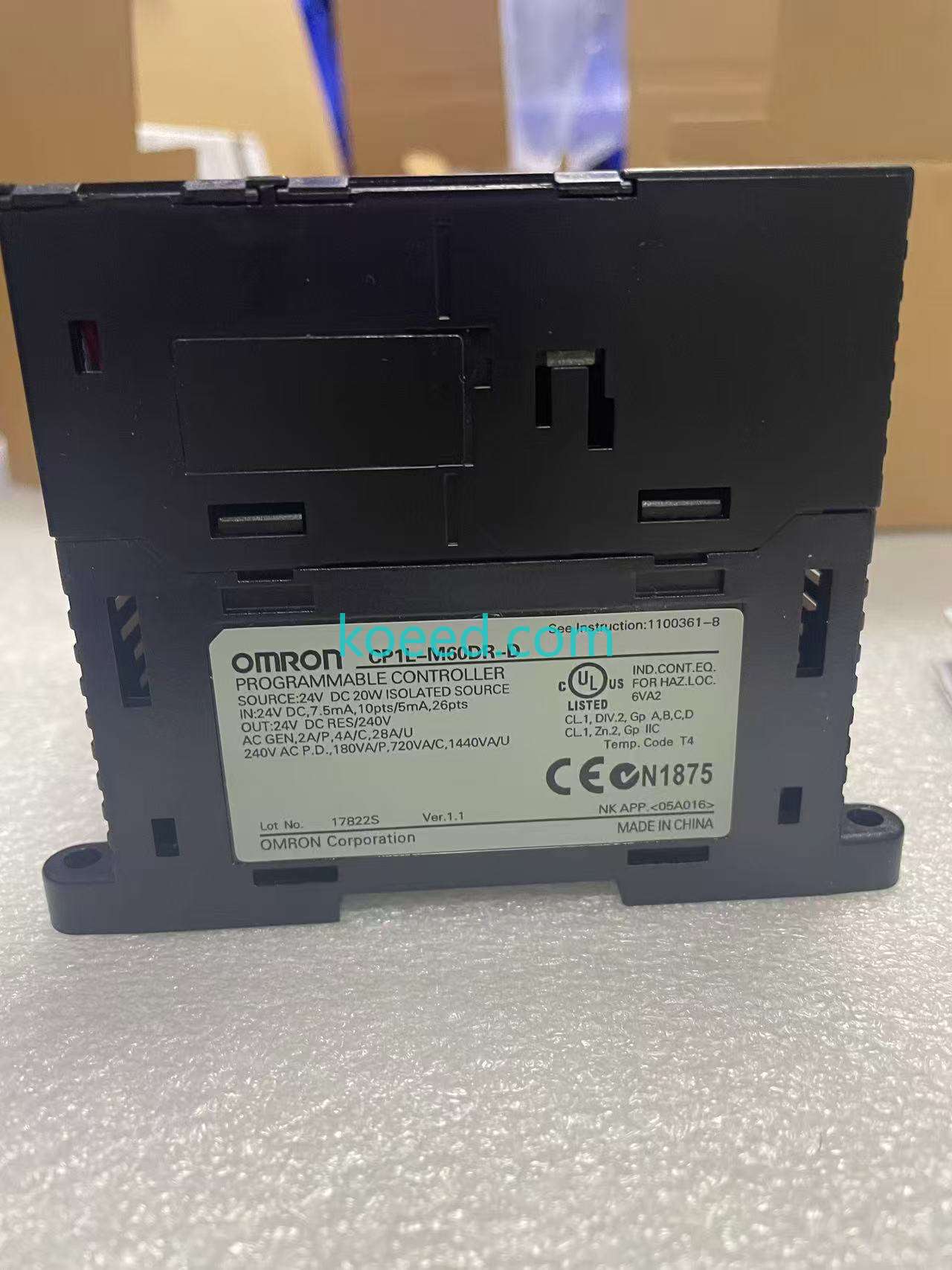

The CP1L-M60DR-D is a comprehensive industrial automation solution that provides 36 digital inputs and 24 relay outputs, making it ideal for medium-scale control applications. Below are detailed images showcasing the product from multiple angles:
Product Demonstration Video
This video demonstrates the installation, configuration, and operation of the CP1L-M60DR-D PLC in a typical industrial environment.
Technical Specifications
The CP1L-M60DR-D offers comprehensive specifications that make it suitable for diverse industrial applications:
| Parameter | Specification | Details |
|---|---|---|
| Supply Voltage | DC 24V | Standard industrial voltage requirement |
| Digital Inputs | 36 | 24VDC inputs, PNP/NPN compatible |
| Digital Outputs | 24 | Relay outputs, 2A capacity |
| Memory Size | 32K Words | 10K steps program + 32K words data memory |
| Mounting Type | Chassis Mount, DIN Rail | Versatile installation options |
| Operating Temperature | 0°C ~ 55°C | Suitable for industrial environments |
| Features | Battery Backup | Program retention during power loss |
| Weight | 2.20 lbs (1 kg) | Compact and lightweight design |
| High-Speed Counters | 4 | Ideal for motion control applications |
| Pulse Outputs | 4 | For stepper/servo motor control |
For complete technical documentation and detailed specifications, visit the official product page: https://koeed.com/products/cp1l-m60dr-d
Key Features and Functional Capabilities
Advanced Processing Power
The CP1L-M60DR-D features a powerful processor capable of handling complex control algorithms with 10K program steps and 32K words of data memory. This makes it suitable for applications requiring sophisticated logic and data processing.
Versatile I/O Configuration
With 36 digital inputs and 24 relay outputs, this PLC provides excellent flexibility for various control applications. The relay outputs support 2A capacity, making them suitable for controlling motors, solenoids, and other industrial loads.
High-Speed Motion Control
Four high-speed counters and four pulse outputs enable precise motion control applications, including positioning, speed control, and synchronization tasks commonly required in manufacturing automation.
Robust Communication Capabilities
The CP1L-M60DR-D supports multiple communication protocols, allowing seamless integration with HMI panels, SCADA systems, and other industrial devices through standard industrial networks.
Reliability and Durability
Designed for industrial environments, this PLC operates reliably in temperatures ranging from 0°C to 55°C and features battery backup to maintain program integrity during power interruptions.
Applications and Industry Use Cases
The Omron CP1L-M60DR-D finds applications across multiple industries due to its versatile capabilities:
- Packaging Machinery: Control of conveyors, fillers, and sealing systems
- Material Handling: Automated storage and retrieval systems
- Assembly Lines: Sequential control of robotic arms and positioning systems
- Process Control: Monitoring and control of temperature, pressure, and flow
- Building Automation: HVAC control, lighting systems, and access control
- Water Treatment: Pump control and process monitoring
Discover how the CP1L-M60DR-D can optimize your specific application: https://koeed.com/products/cp1l-m60dr-d
High Performance
32K words memory capacity for complex applications
Versatile I/O
36 inputs / 24 outputs for flexible configuration
Industrial Grade
0-55°C operating range for harsh environments
Easy Integration
DIN rail mounting and standard communication
Frequently Asked Questions (FAQ)
The relay outputs on the CP1L-M60DR-D have a maximum current rating of 2A per output, making them suitable for controlling motors, solenoids, and other industrial loads.
Yes, the CP1L-M60DR-D includes four high-speed counters and four pulse outputs, making it ideal for motion control applications such as positioning systems, speed control, and synchronization tasks.
Omron's CX-Programmer software is used for programming the CP1L series PLCs. The software supports ladder logic, structured text, and function block programming.
Yes, the CP1L-M60DR-D features battery backup capability to maintain program integrity and data retention during power interruptions.
The PLC supports multiple communication protocols including RS-232C, RS-485, and Ethernet options (with expansion modules), allowing integration with various industrial networks and devices.
Absolutely. With an operating temperature range of 0°C to 55°C and robust construction, this PLC is designed to perform reliably in demanding industrial conditions.
External References and Industry Recognition
The Omron CP1L-M60DR-D has received recognition from multiple industry sources:
- Omron Official Specifications: Documented on Omron's European industrial portal with detailed technical data
- DigiKey Electronics: Listed as a reliable supplier with comprehensive product information
- RS Components: Recognized for its application in compact machine automation
- Radwell International: Documented with complete specifications and compatibility information
These external validations confirm the CP1L-M60DR-D's position as a trusted solution in the industrial automation market.
Conclusion and Next Steps
The Omron CP1L-M60DR-D compact PLC represents an excellent balance of performance, versatility, and reliability for industrial automation applications. With its comprehensive I/O capabilities, advanced processing power, and robust construction, it provides a solid foundation for automation projects across various industries.
Ready to Implement the CP1L-M60DR-D in Your Application?
For detailed pricing, availability, and technical support, visit our official product page:
View Product Details & Order NowURL: https://koeed.com/products/cp1l-m60dr-d
Whether you're upgrading existing systems or implementing new automation solutions, the CP1L-M60DR-D offers the performance and reliability needed for successful industrial control applications. Contact our technical support team for assistance with integration and implementation specific to your requirements.
