Panasonic DK1a-24V-F General Purpose Relay: Comprehensive Technical Guide for Industrial Automation

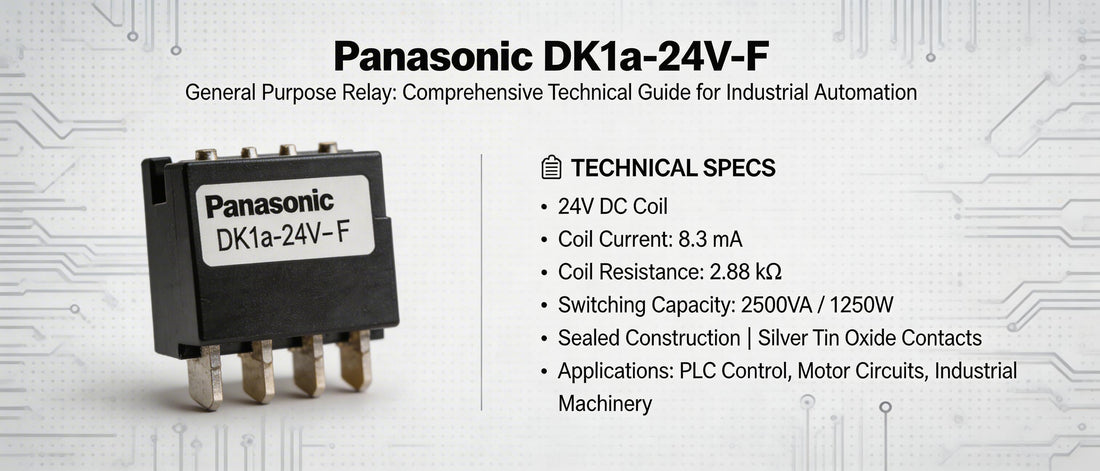

Panasonic DK1a-24V-F General Purpose Relay
Industry Standard for Reliable Switching in Industrial Automation Systems
Part Number: DK1a-24V-F | Manufacturer: Panasonic Industrial Devices
Product Overview
The Panasonic DK1a-24V-F is a high-performance general purpose relay designed specifically for industrial automation applications. This compact yet powerful relay offers exceptional reliability and switching capacity, making it an ideal choice for PLC control systems, machinery automation, and various industrial control applications.
Key Features & Benefits
- Compact Design with High Capacity: Despite its small footprint, the DK1a-24V-F delivers impressive switching performance
- High Sensitivity Operation: Requires only 200 mW nominal operating power for efficient energy consumption
- Excellent Electrical Performance: High breakdown voltage ensures reliable operation in demanding environments
- Sealed Construction: Protective sealed design provides enhanced durability and resistance to environmental factors
- Silver Tin Oxide Contacts: AgSnO contact material offers superior electrical conductivity and longevity
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Rated Coil Voltage | 24 V DC | Standard industrial control voltage |
| Coil Type | Non-Latching | Single side stable operation |
| Coil Resistance | 2.88 kΩ | Provides optimal current characteristics |
| Coil Current | 8.3 mA | Low power consumption design |
| Contact Arrangement | 1 Form A (SPST-NO) | Single pole, single throw normally open |
| Contact Material | Silver Tin Oxide (AgSnO) | Superior arc resistance and conductivity |
| Switching Voltage | 250VAC, 125VDC (Max) | Wide voltage range capability |
| Maximum Switching Load | 2500VA, 1250W | High capacity switching performance |
| Operating Function | Single Side Stable | Standard relay operation mode |
| Protective Construction | Sealed | Enhanced environmental protection |
Industrial Applications
Frequently Asked Questions
The DK1a-24V-F is a non-latching (single side stable) relay, which means it returns to its default position when power is removed. Latching relays maintain their position even after power is removed, requiring a separate pulse to change states.
No, the DK1a-24V-F is specifically designed for 24V DC coil operation. Using AC voltage could damage the coil and affect relay performance.
Under normal operating conditions, the DK1a-24V-F can achieve over 10 million mechanical operations and 100,000 electrical operations at rated load.
While the DK1a-24V-F offers excellent performance, it's primarily designed for standard industrial switching applications. For high-frequency switching, consider specialized relays designed for such applications.
The relay features sealed construction for protection against dust and moisture, and the silver tin oxide contacts provide excellent arc resistance and contact reliability.
Installation & Wiring Guidelines
Proper Installation Steps:
- Ensure power is disconnected before installation
- Mount the relay on a DIN rail or suitable mounting surface
- Connect the coil terminals to the 24V DC control circuit
- Connect the load to the contact terminals
- Verify proper insulation and secure all connections
- Test operation with reduced load before full operation
Safety Considerations:
- Always follow local electrical codes and regulations
- Use appropriate wire gauges for the expected current
- Install proper overcurrent protection devices
- Consider environmental factors (temperature, humidity, vibration)
Technical References & Documentation
For complete technical specifications and detailed application notes, refer to the following resources:
- Official Datasheet: DK1A-24V-F Datasheet (PDF)
- Manufacturer Product Page: Panasonic Official Specifications
- Distributor Information: Mouser Electronics Product Page
- Alternative Supplier: Digi-Key Product Listing
Industry Recognition & Compliance
The Panasonic DK1a-24V-F relay meets or exceeds the following industry standards:
- UL 508 Industrial Control Equipment Standard
- CSA C22.2 No. 14 Industrial Control Equipment
- IEC 61810-1 Electromechanical Elementary Relays
- RoHS Compliance for environmental safety
- REACH Compliance for chemical safety
