Phoenix Contact 3046090 UT-4-HESILED 24.5x20 Fuse Terminal Block: Comprehensive Guide for Industrial Automation
Phoenix Contact 3046090 UT-4-HESILED 24.5x20 Fuse Terminal Block
Professional-grade fuse terminal block for industrial automation and control systems
Product Overview
The Phoenix Contact 3046090 UT-4-HESILED 24.5x20 fuse terminal block represents a premium solution for industrial automation applications requiring reliable circuit protection. This terminal block combines fuse protection with LED status indication in a compact, DIN-rail mountable design, making it ideal for PLC control panels, industrial machinery, and automation systems.
For immediate procurement of this essential industrial component, visit our official product page: Phoenix Contact 3046090 UT-4-HESILED 24.5x20 Fuse Terminal Block.

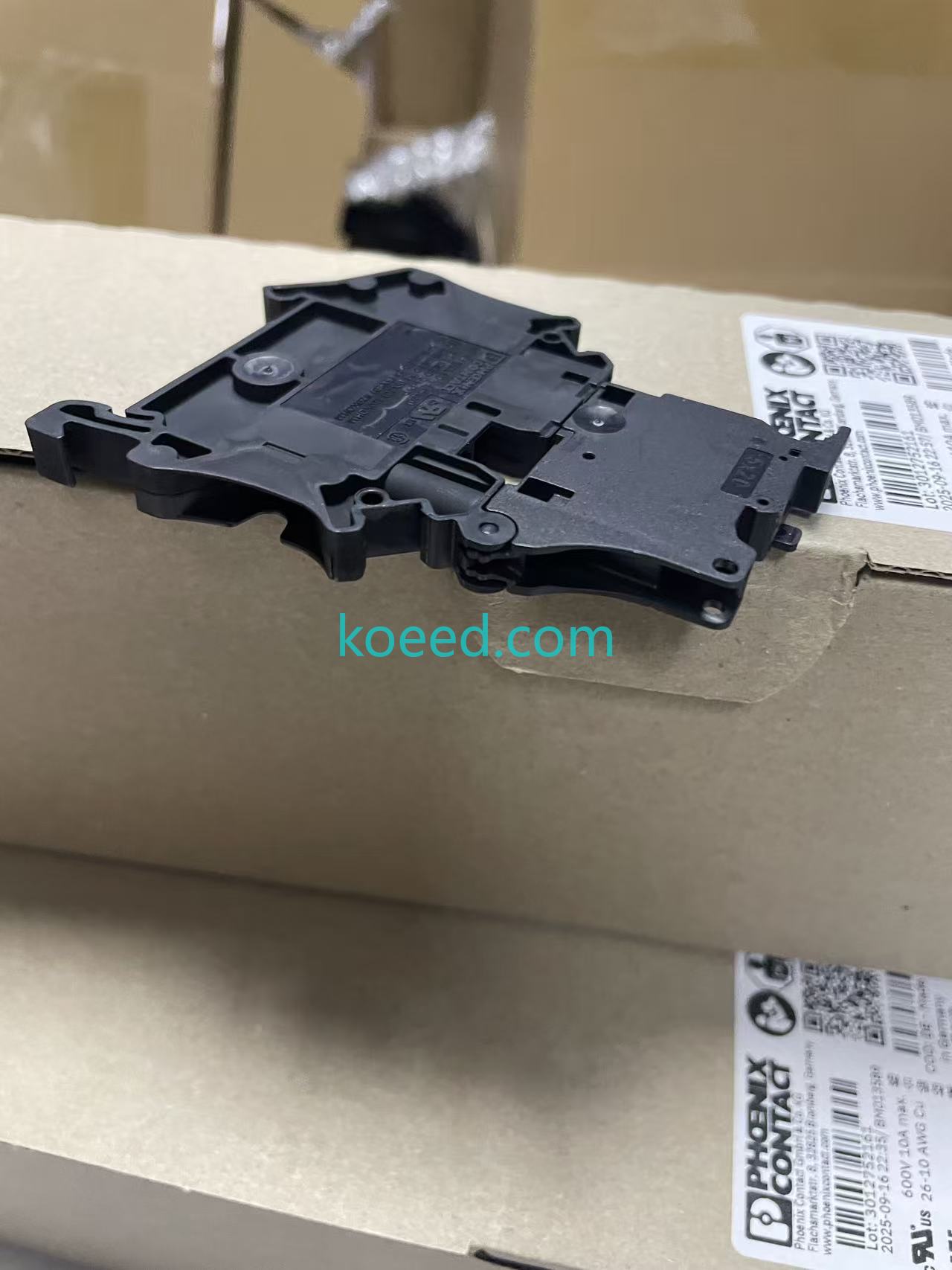

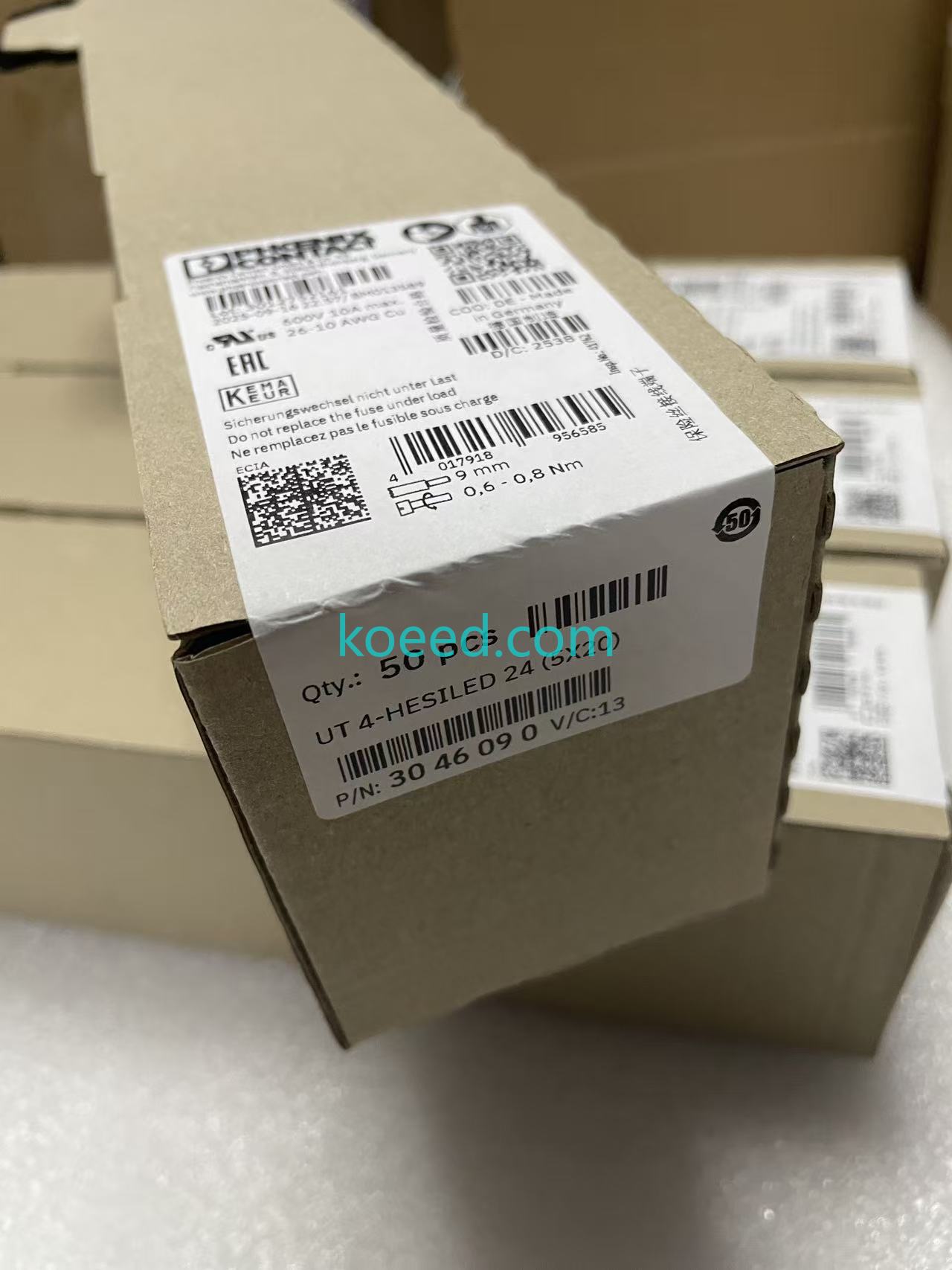

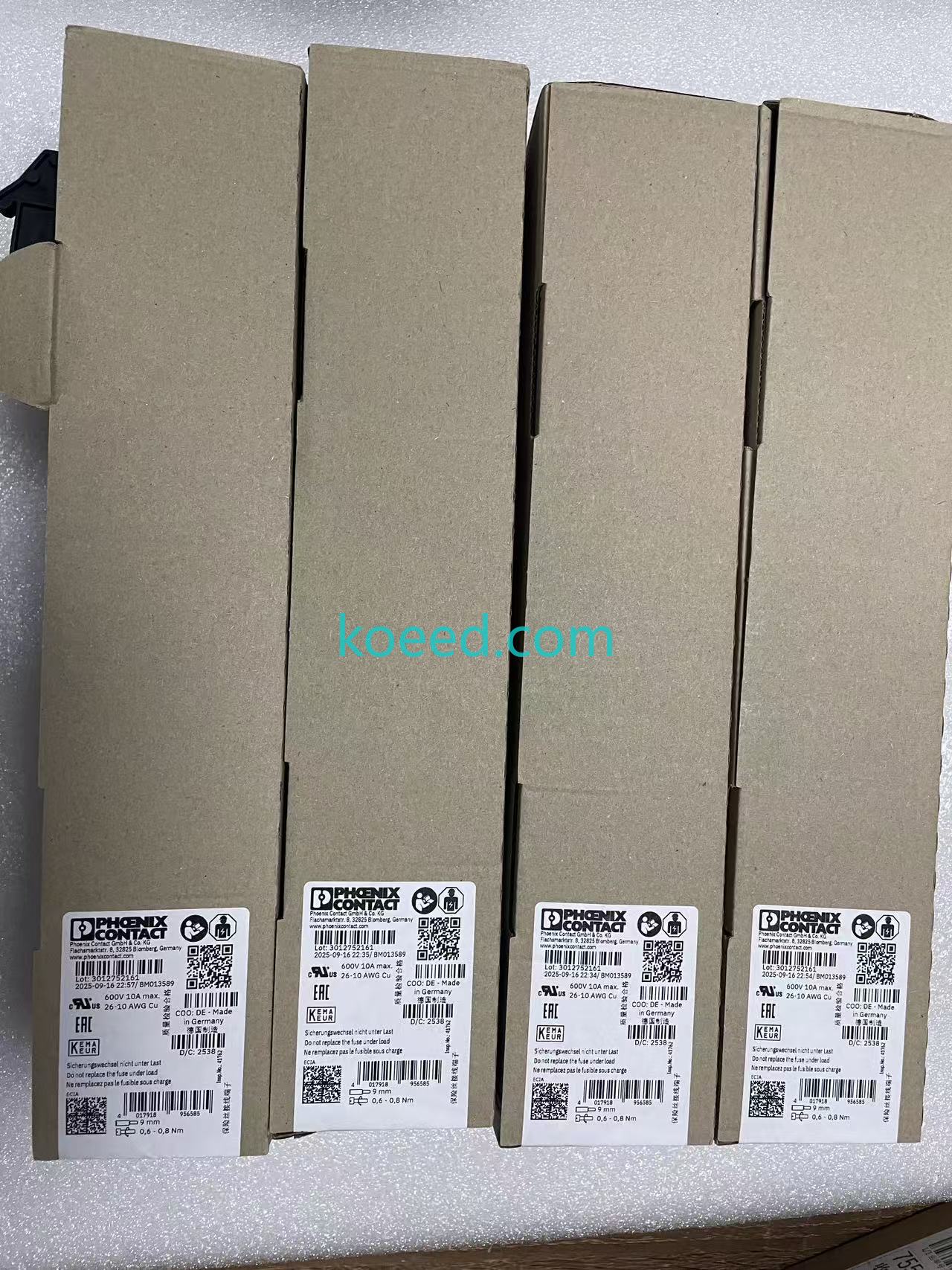

Visual Documentation
Key Features and Technical Specifications
Core Features
- Integrated Fuse Protection: Built-in fuse holder for 24.5x20mm fuses providing reliable circuit protection
- LED Status Indication: HESILED technology provides clear visual status of fuse condition
- DIN-Rail Mountable: Standard 35mm DIN-rail mounting for easy installation in control panels
- High-Quality Construction: Durable materials designed for industrial environments
- Space-Efficient Design: Compact footprint maximizes panel space utilization
- Easy Maintenance: Tool-less fuse replacement capability
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Number | 3046090 |
| Type Designation | UT-4-HESILED |
| Fuse Size | 24.5 x 20 mm |
| Rated Voltage | Up to 690V AC/DC |
| Rated Current | Up to 20A (depending on fuse rating) |
| Connection Technology | Screw connection |
| Cross-Section Area | 0.5 - 4 mmĀ² / AWG 20-12 |
| Mounting Type | 35 mm DIN-rail |
| Operating Temperature | -40Ā°C to +100Ā°C |
| Protection Class | IP20 |
| Material | Polyamide (PA) housing |
| LED Indicator | Integrated HESILED technology |
For detailed specifications and to purchase the Phoenix Contact 3046090, visit: Official Product Page.
Applications in Industrial Automation
PLC Systems Integration
The Phoenix Contact 3046090 fuse terminal block is specifically designed for integration with Programmable Logic Controller (PLC) systems. Its compact design allows for efficient space utilization in control cabinets, while the LED status indication provides immediate visual feedback on circuit status.
Industrial Control Panels
Ideal for motor control centers, distribution panels, and industrial machinery control systems. The fuse protection ensures equipment safety, while the DIN-rail mounting simplifies installation and maintenance.
Building Automation
Suitable for HVAC control systems, lighting control panels, and building management systems where reliable circuit protection and status indication are essential.
Manufacturing Equipment
Perfect for CNC machines, robotic systems, assembly lines, and other manufacturing equipment requiring robust electrical protection solutions.
Installation and Wiring Guidelines
Mounting Procedure
- Mount the terminal block on a standard 35mm DIN-rail
- Ensure proper spacing between terminal blocks for heat dissipation
- Verify the DIN-rail is securely mounted to the panel
Wiring Instructions
- Strip the wire insulation to appropriate length (typically 10-12mm)
- Insert the wire into the terminal opening
- Tighten the screw connection to specified torque (usually 0.5-0.6 Nm)
- Insert the appropriate 24.5x20mm fuse into the fuse holder
- Verify LED indication functionality
Safety Considerations
- Always de-energize circuits before installation or maintenance
- Use fuses with appropriate current ratings for the application
- Ensure proper wire sizing according to current requirements
- Follow local electrical codes and regulations
Frequently Asked Questions (FAQ)
Comparison with Alternative Solutions
| Feature | Phoenix Contact 3046090 | Standard Fuse Holders | Basic Terminal Blocks |
|---|---|---|---|
| LED Status Indication | ā Integrated HESILED | ā Usually not included | ā Not available |
| Space Efficiency | ā Compact design | ā Moderate | ā Good |
| Installation Ease | ā DIN-rail mountable | ā Various mounting options | ā DIN-rail mountable |
| Maintenance | ā Tool-less fuse replacement | ā Usually tool-less | ā Not applicable |
| Industrial Durability | ā High-quality materials | ā Varies by manufacturer | ā Standard industrial grade |
| Cost Efficiency | ā Long-term value | ā Moderate | ā Low initial cost |
Why Choose Phoenix Contact 3046090?
Reliability and Safety
Phoenix Contact is renowned for manufacturing high-quality industrial components that meet rigorous safety standards. The 3046090 fuse terminal block provides reliable circuit protection with clear visual status indication, reducing downtime and improving maintenance efficiency.
Time and Cost Savings
The integrated LED status indication eliminates the need for separate status indicators, saving panel space and reducing wiring complexity. The tool-less fuse replacement feature minimizes maintenance time, resulting in lower operational costs.
Industry Standard Compatibility
Designed to work seamlessly with standard 24.5x20mm fuses and mount on 35mm DIN-rails, the Phoenix Contact 3046090 integrates easily into existing industrial control systems without requiring special tools or components.
Technical Support and Availability
As an authorized distributor, we provide comprehensive technical support and ensure product availability. For immediate procurement, visit: Phoenix Contact 3046090 Product Page.
Ordering Information
The Phoenix Contact 3046090 UT-4-HESILED 24.5x20 fuse terminal block is available for immediate order through our official website. We offer competitive pricing, bulk discounts for large orders, and reliable shipping options to meet your project timelines.
Product Link: https://koeed.com/products/new-50-piece-phoenix-contact-3046090-ut-4-hesiled-24-5x20-fuse-terminal-xr
For technical specifications, installation guidance, or volume pricing inquiries, please contact our technical support team. We're committed to providing the highest quality industrial automation components and support for your projects.
Order Phoenix Contact 3046090 Now
