This source records two PK566-NB motors in a used condition grade. The background motor's photographed label identifies VEXTA/Oriental Motor PK566-NB and five-phase operation. A foreground motor is shown from other sides, including a view with shafts projecting from both ends; its own label is not readable in these reviewed views.
Identification and delivery details
The first photograph shows the foreground motor's black body, metal mounting flange and projecting shaft. The motor behind it carries the readable PK566-NB model label. Keeping those views separate avoids assigning one motor's label to another without checking both.

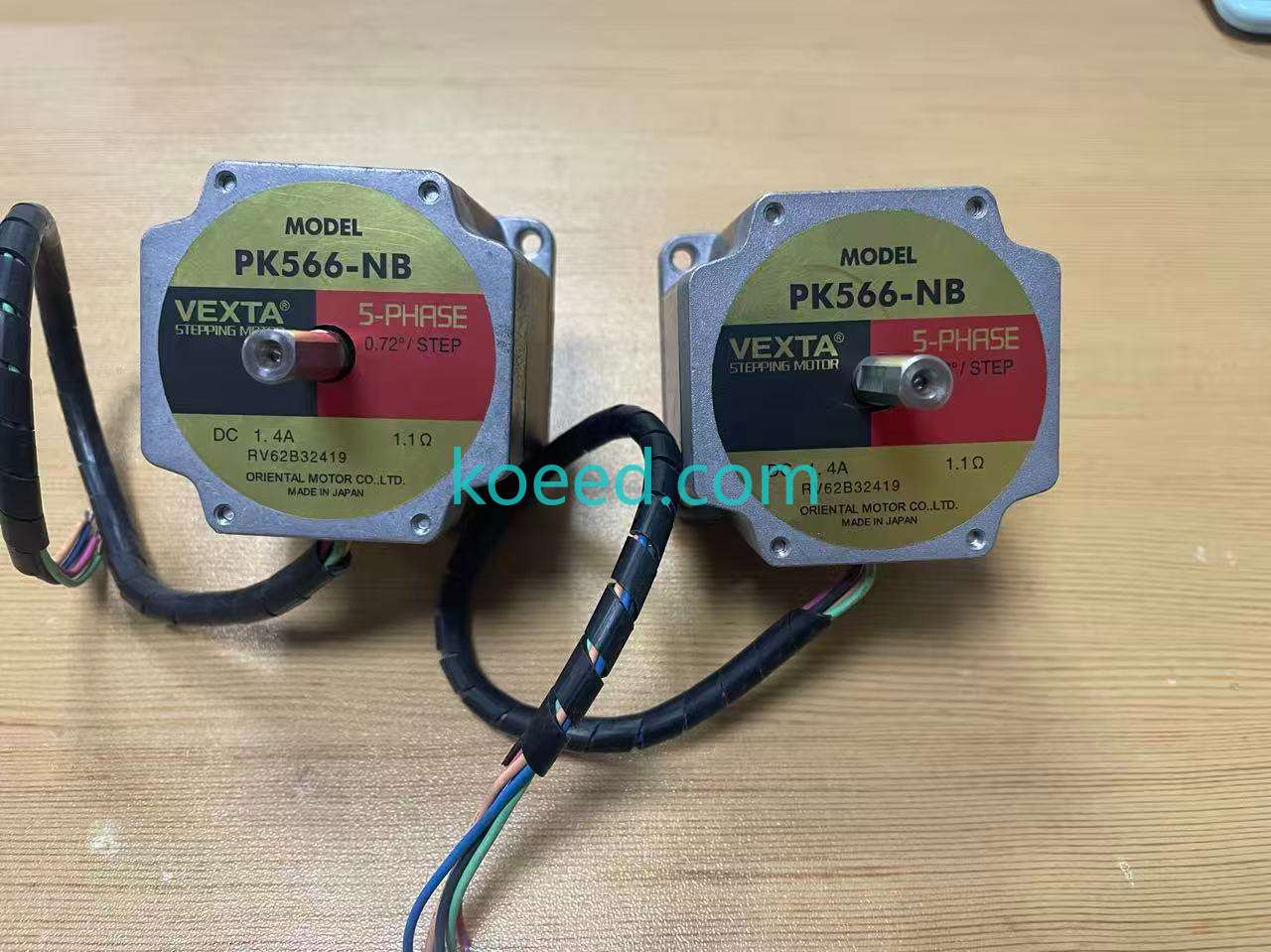

The second view makes the background label clearer: VEXTA, PK566-NB, 5-PHASE, 0.72°/STEP, DC1.4A and 1.1Ω, with ORIENTAL MOTOR CO.,LTD. and MADE IN JAPAN. These are printed ratings for the labelled motor, without measured current, resistance or step-accuracy results.

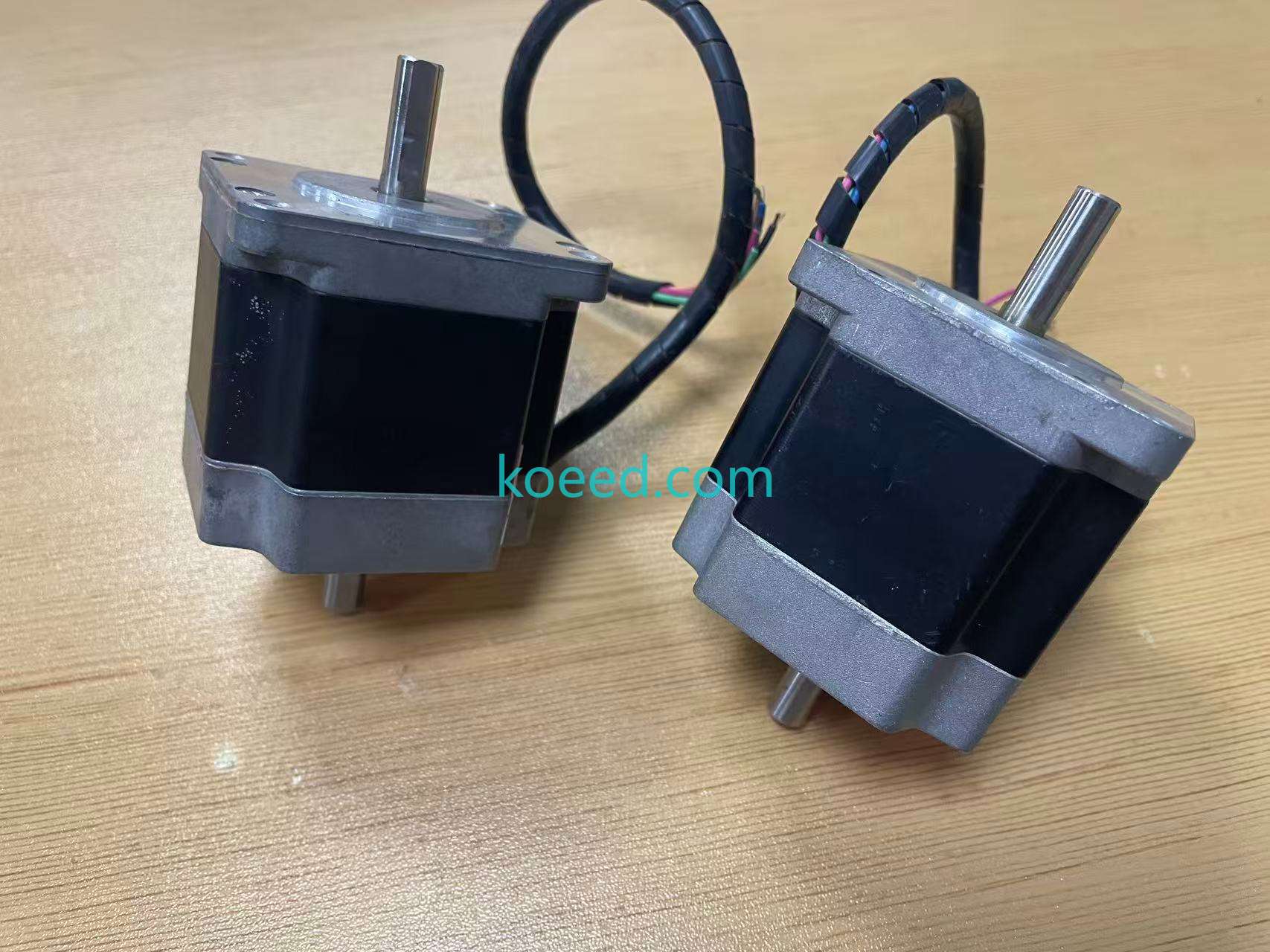

The foreground motor in the second view has shafts at both ends and a loose bundle of coloured leads with exposed wire ends. No lead functions or phase sequence are assigned from their colours. The shaft dimensions, lead condition and complete model of that individual motor still need confirmation.
The source note dated 21 October 2025 records two units, Japanese origin, a qualitative used grade described as roughly 80–90% new, and a one-month warranty. The percentage describes the source's cosmetic grading; it is not a measurement of remaining life or operating performance.
The recorded 2 kg has no defined weighing scope. Seven photographs and one clip are retained, without using their number to infer extra motors. No reviewed run test establishes torque, positioning accuracy, bearing condition or compatibility with a particular driver.
| Item | Evidence |
|---|---|
| Readable model / manufacturer | PK566-NB / VEXTA, Oriental Motor |
| Labelled phase / step | 5-PHASE / 0.72° per step |
| Labelled electrical values | DC1.4A; 1.1Ω; not measured results |
| Origin marking | MADE IN JAPAN on background motor |
| Foreground configuration | Shafts visible at both ends; loose exposed lead ends |
| Source condition / quantity | Used, qualitative 80–90% cosmetic grade; two units |
| Source warranty / weight | One month; 2 kg, scope unspecified |
| Record date | 21 October 2025 |
Swipe or scroll horizontally to read the full table.
Ratings belong to the background motor's readable label. The foreground motor's full identity must be checked separately. The historical two-unit quantity and used grade come from the dated note, without a current stock or tested-performance claim.
Matching this part
Provide the installed and offered motors' full PK566-NB labels, required shaft configuration, flange dimensions and driver identification. Keep the NB suffix; do not substitute PK566-NBC or PK566H-NAA without documented compatibility.
Request shaft and lead measurements, lead-identification documentation, winding and bearing checks, an agreed run test, current used condition and warranty. Confirm whether the quotation covers one motor or the required two.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
Send each motor's label and shaft requirements through the contact page.
Request this part
Request PK566-NB motors after confirming each complete label, shaft configuration, lead condition and used-grade acceptance requirements.
