Schneider Electric ATV61 W814857810111A01 Variable Speed Drive: Complete Industrial Motor Control Solution
Schneider Electric ATV61 W814857810111A01 Variable Speed Drive
Professional-grade industrial motor control solution for precision applications
Product Overview
The Schneider Electric ATV61 W814857810111A01 is a high-performance variable speed drive designed for industrial motor control applications. This Altivar 61 series drive offers advanced features for precise motor control, energy efficiency, and reliable operation in demanding industrial environments.
For those seeking a reliable used unit, we offer the ATV61 W814857810111A01 with shipping options available. This particular unit provides excellent value for industrial applications requiring professional-grade motor control solutions.

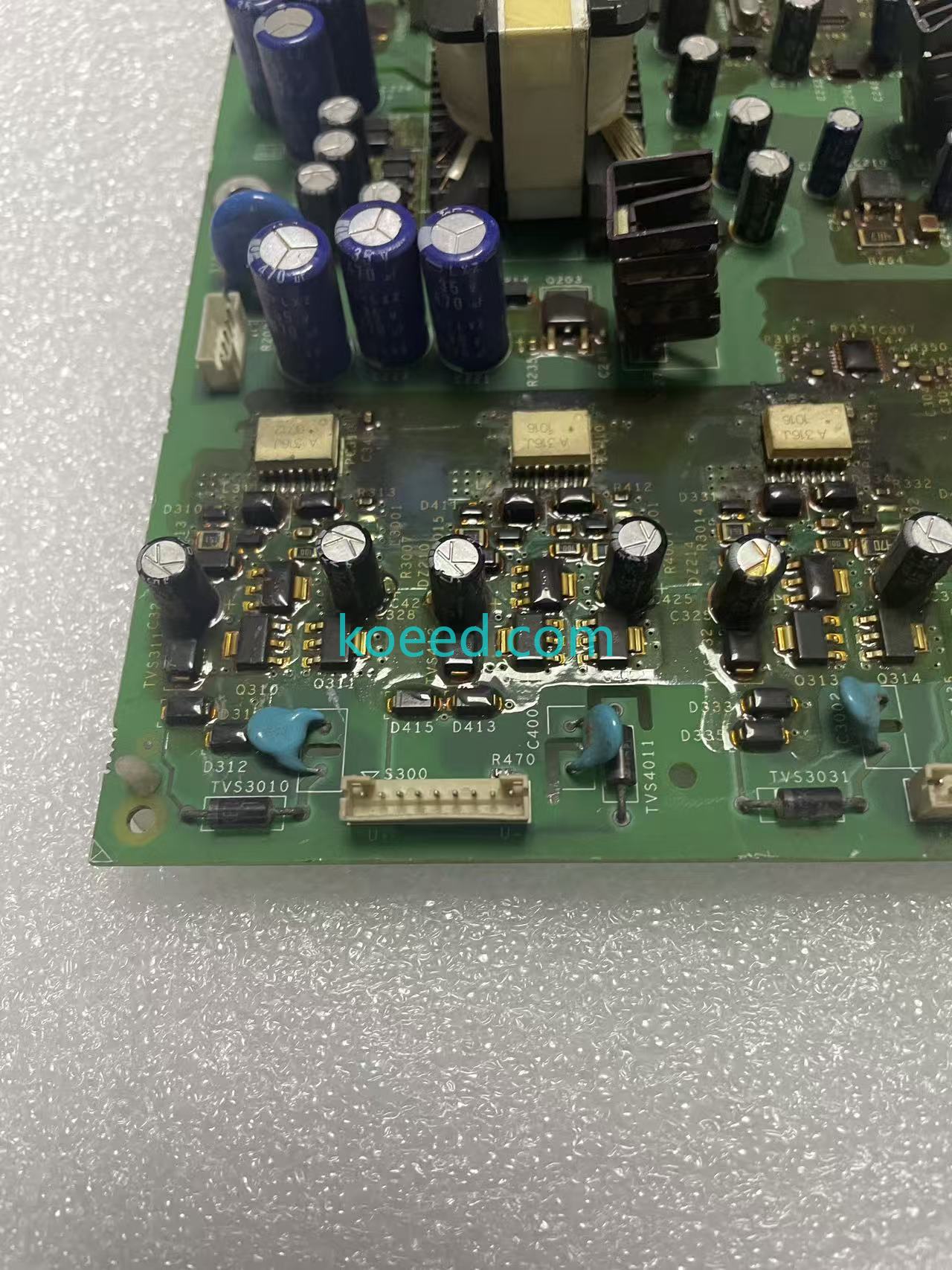

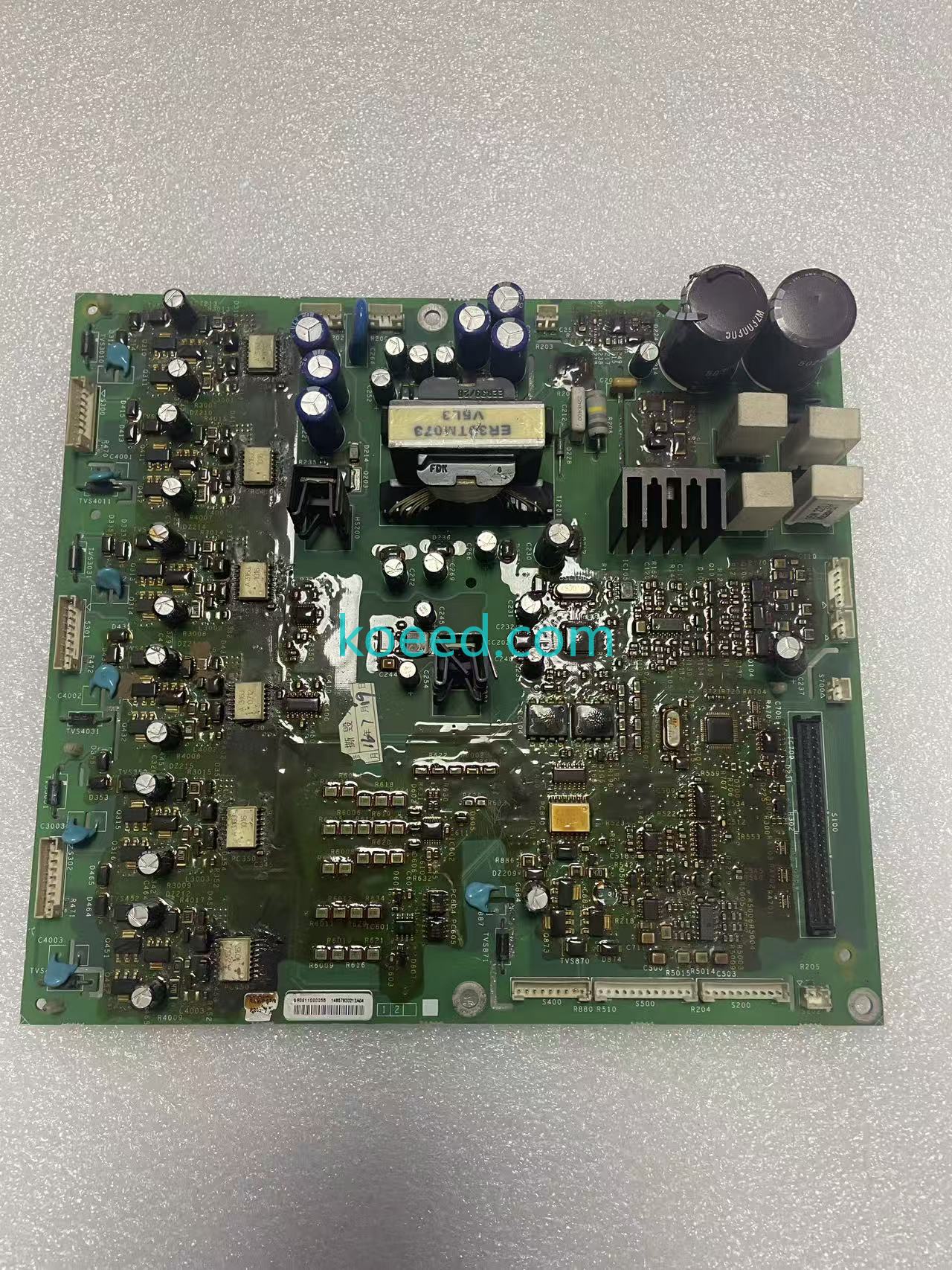

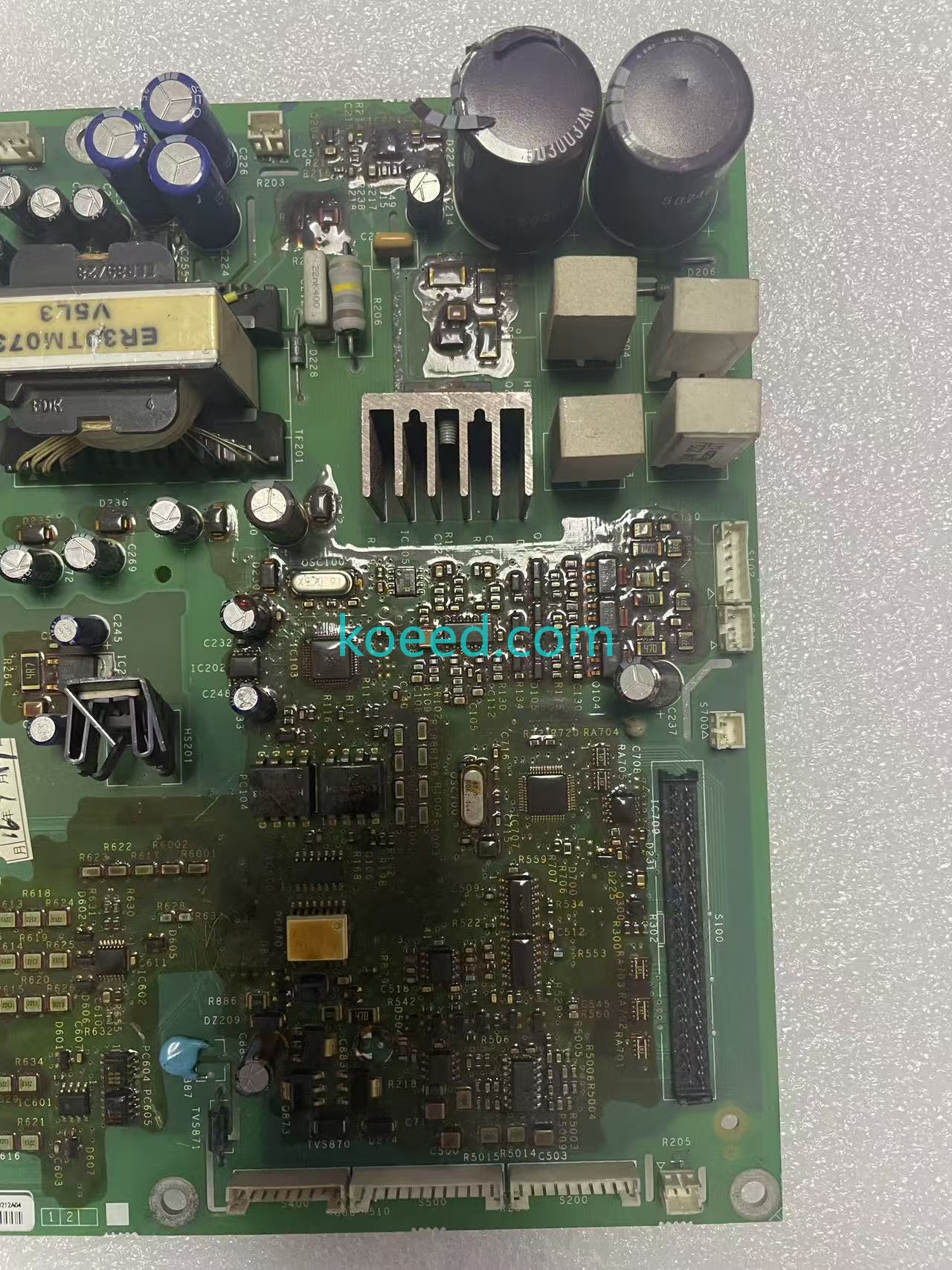

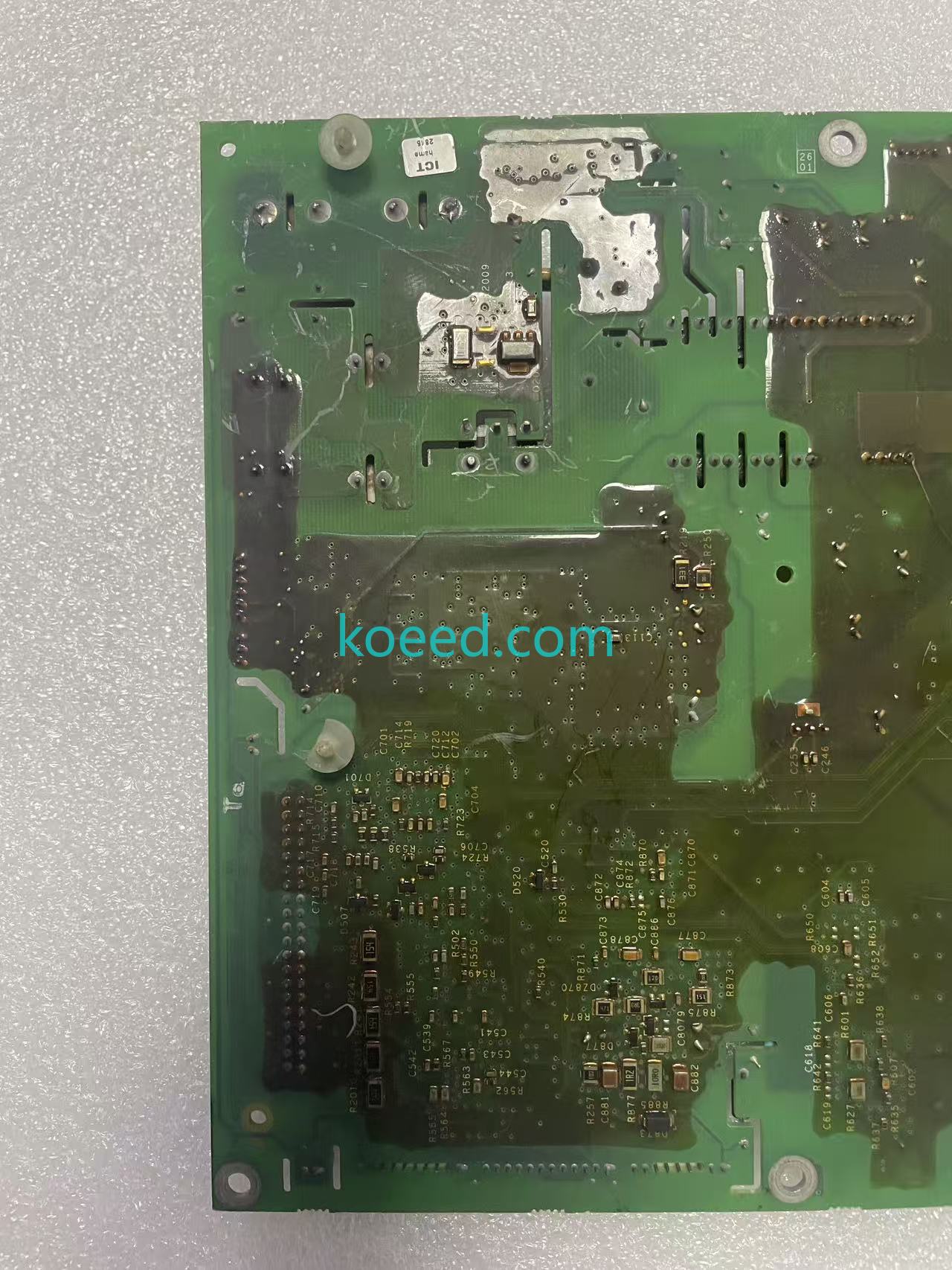

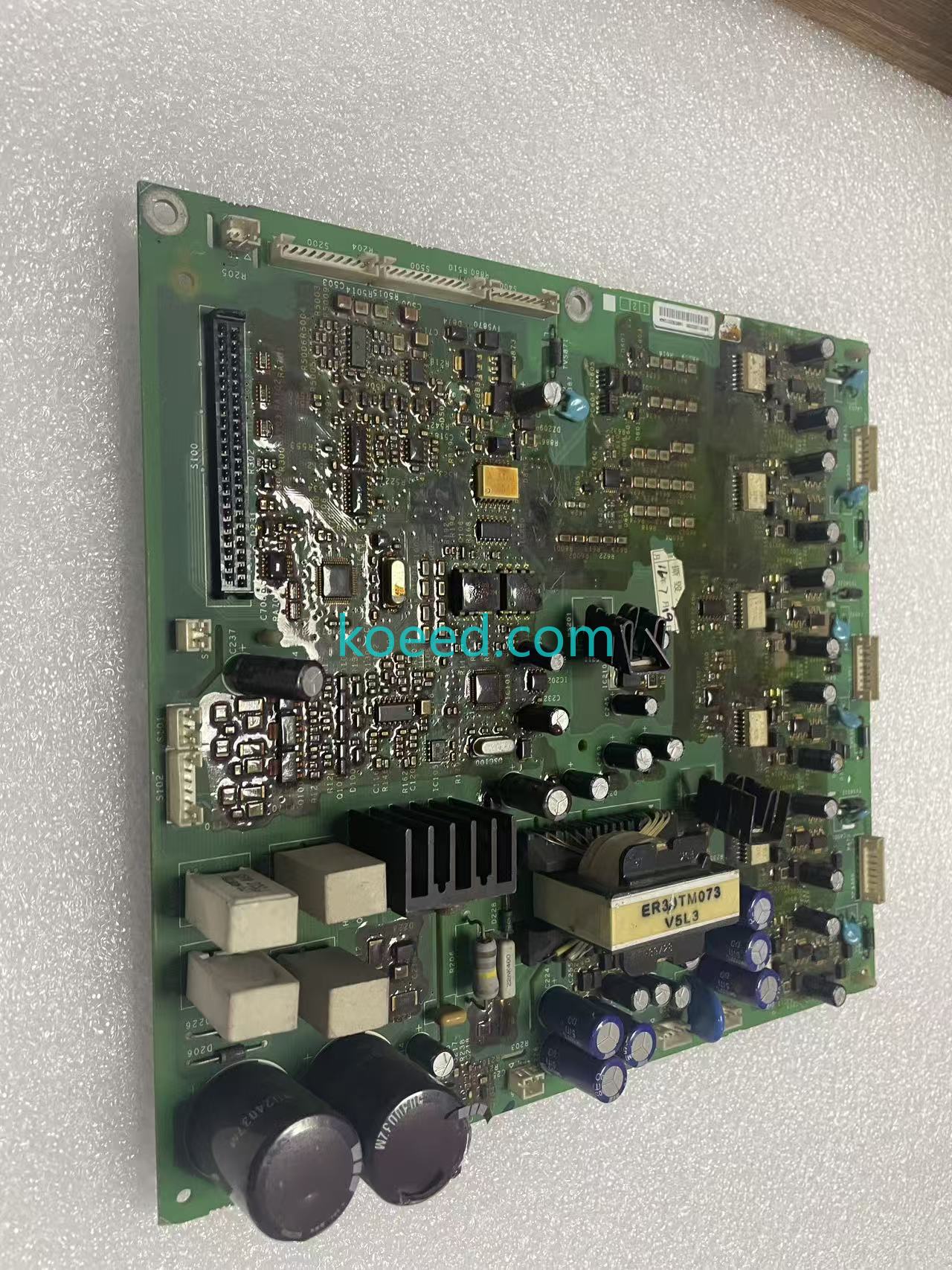

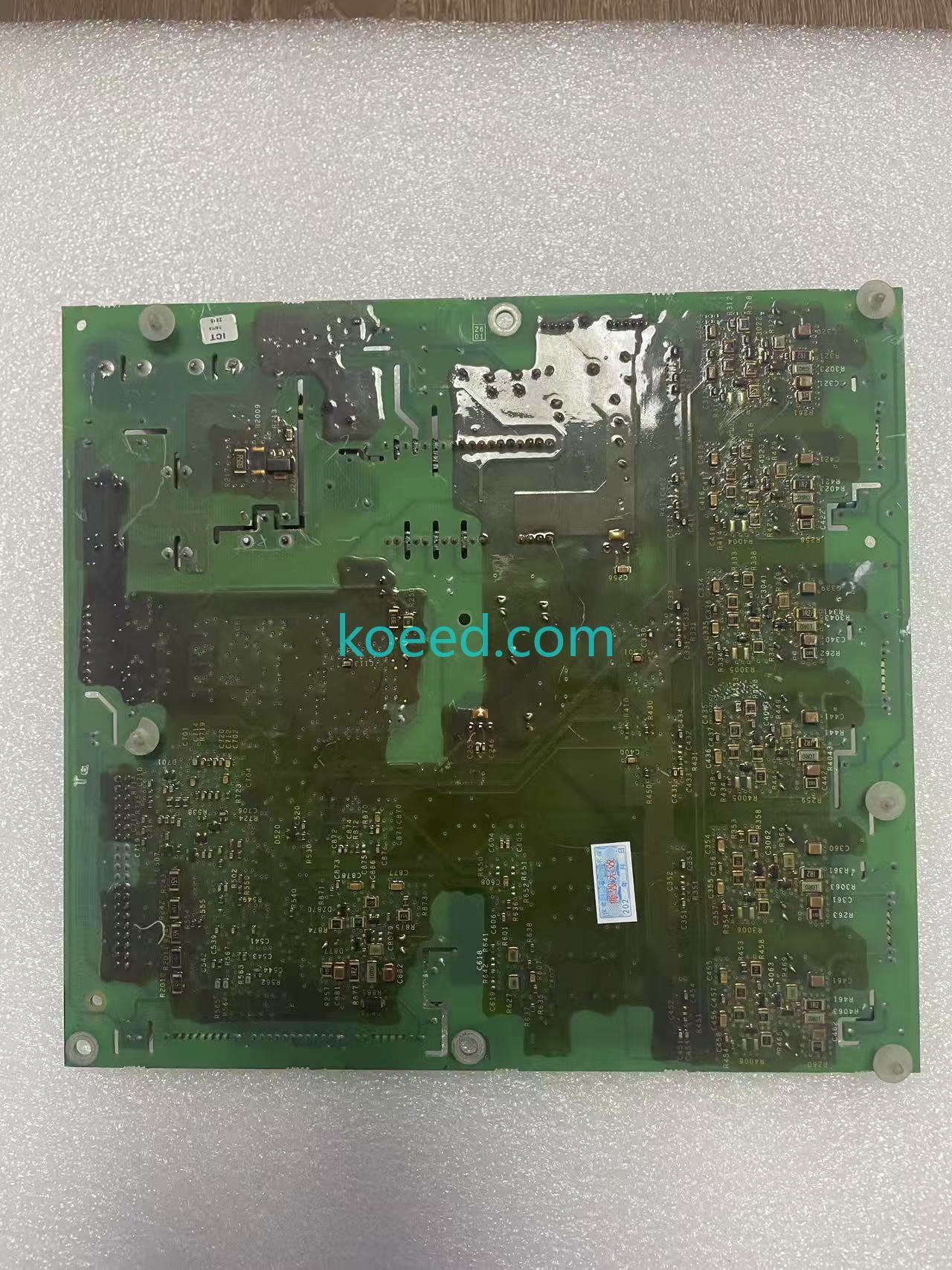

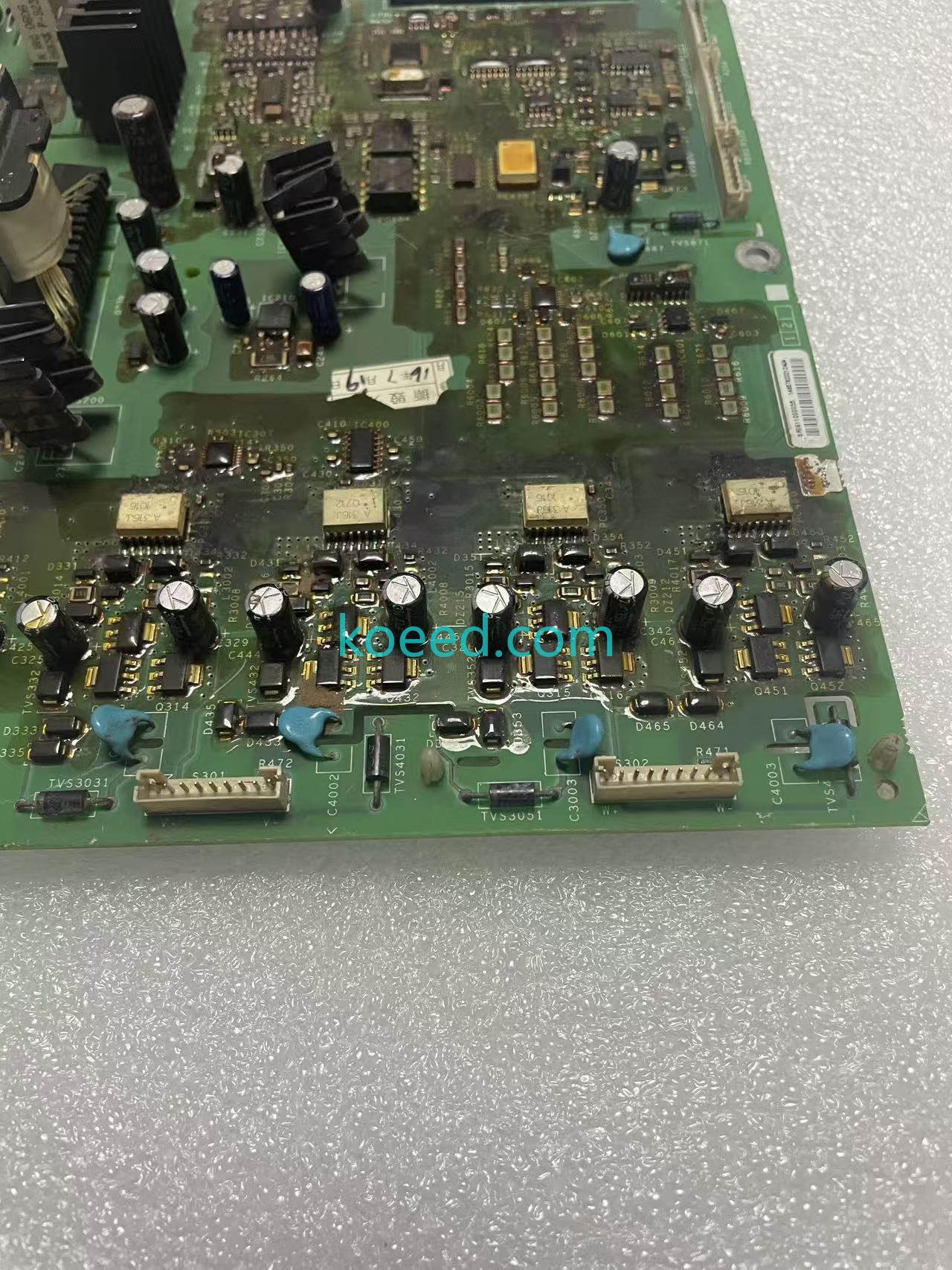

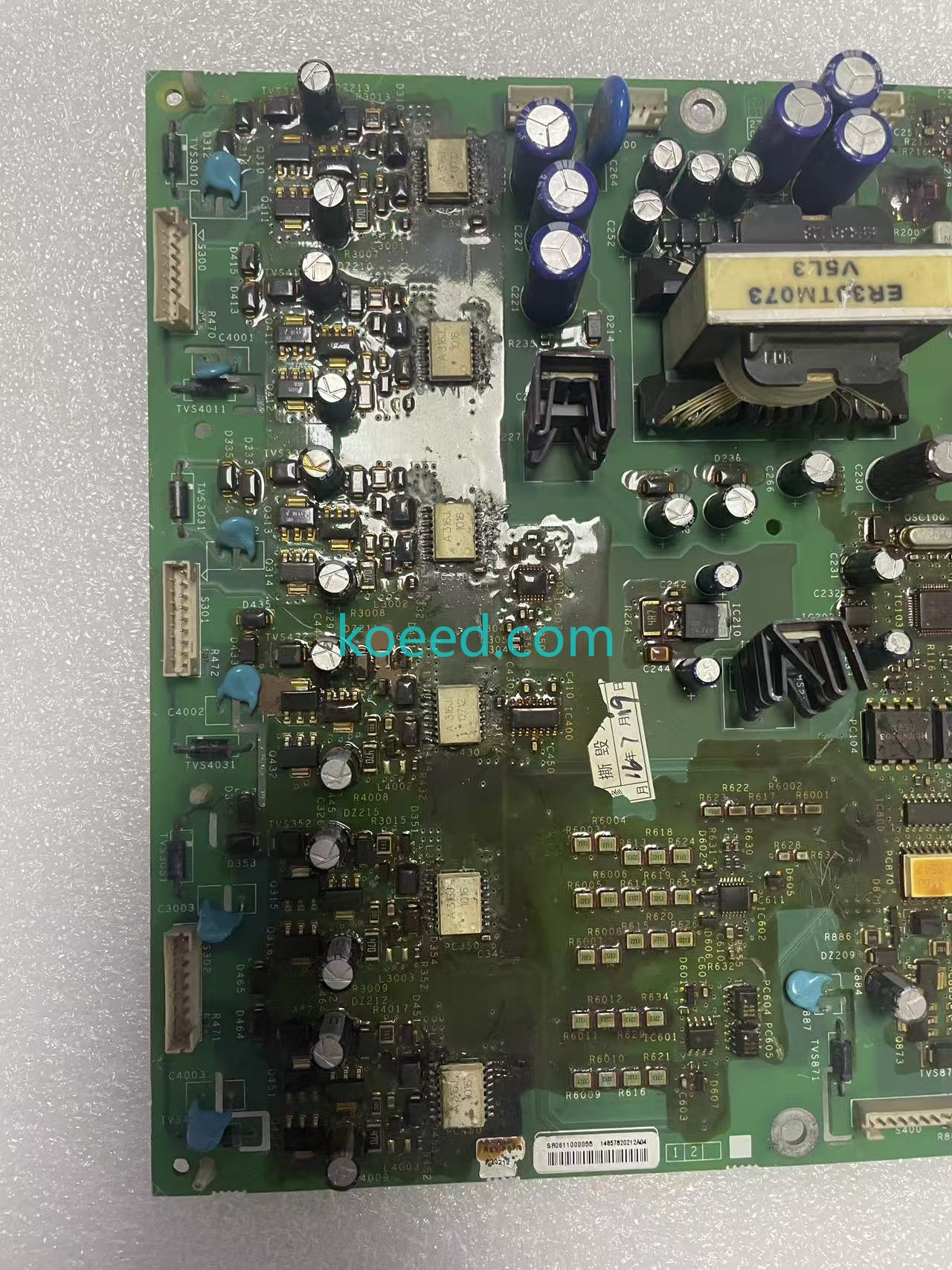

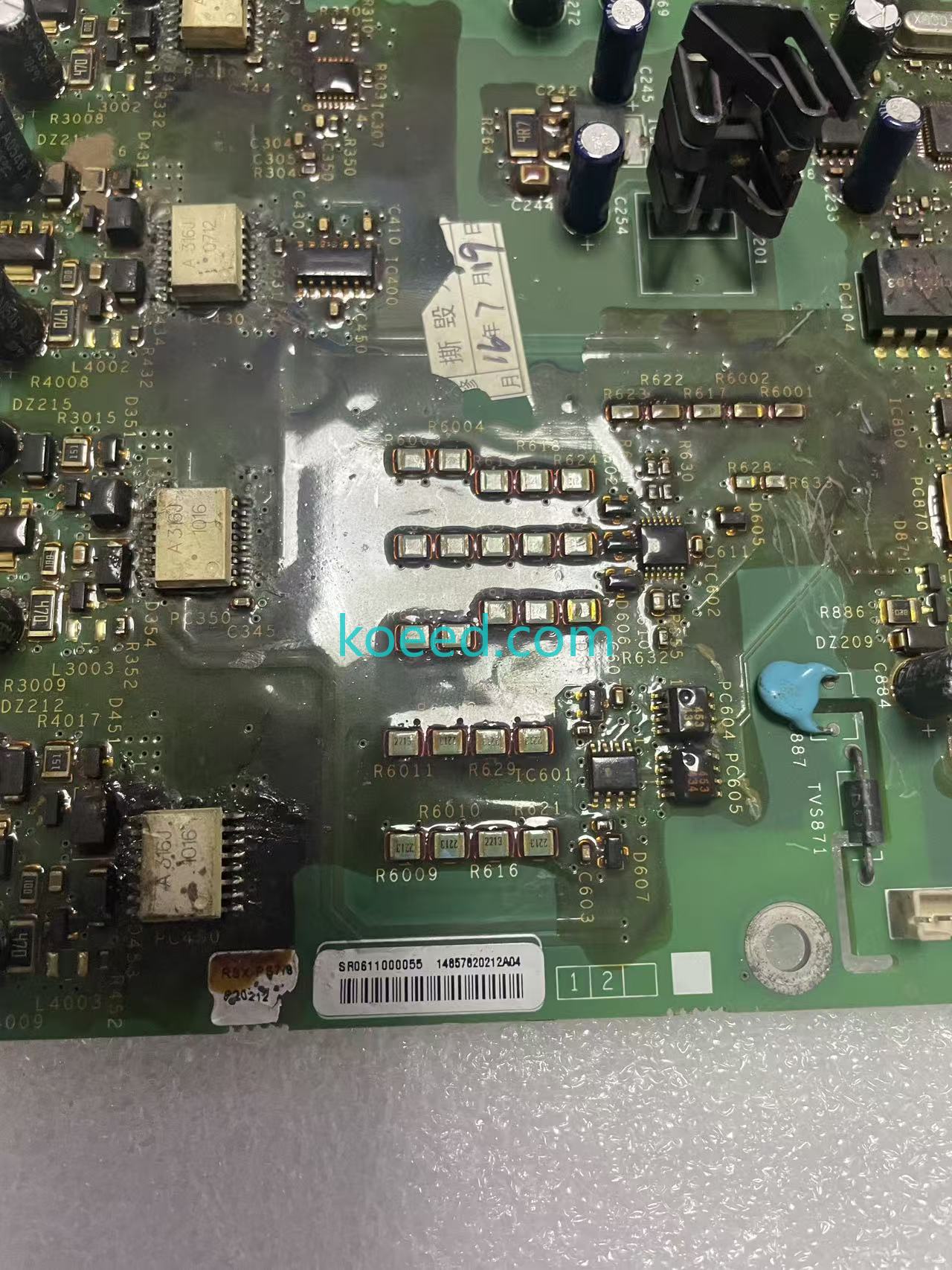

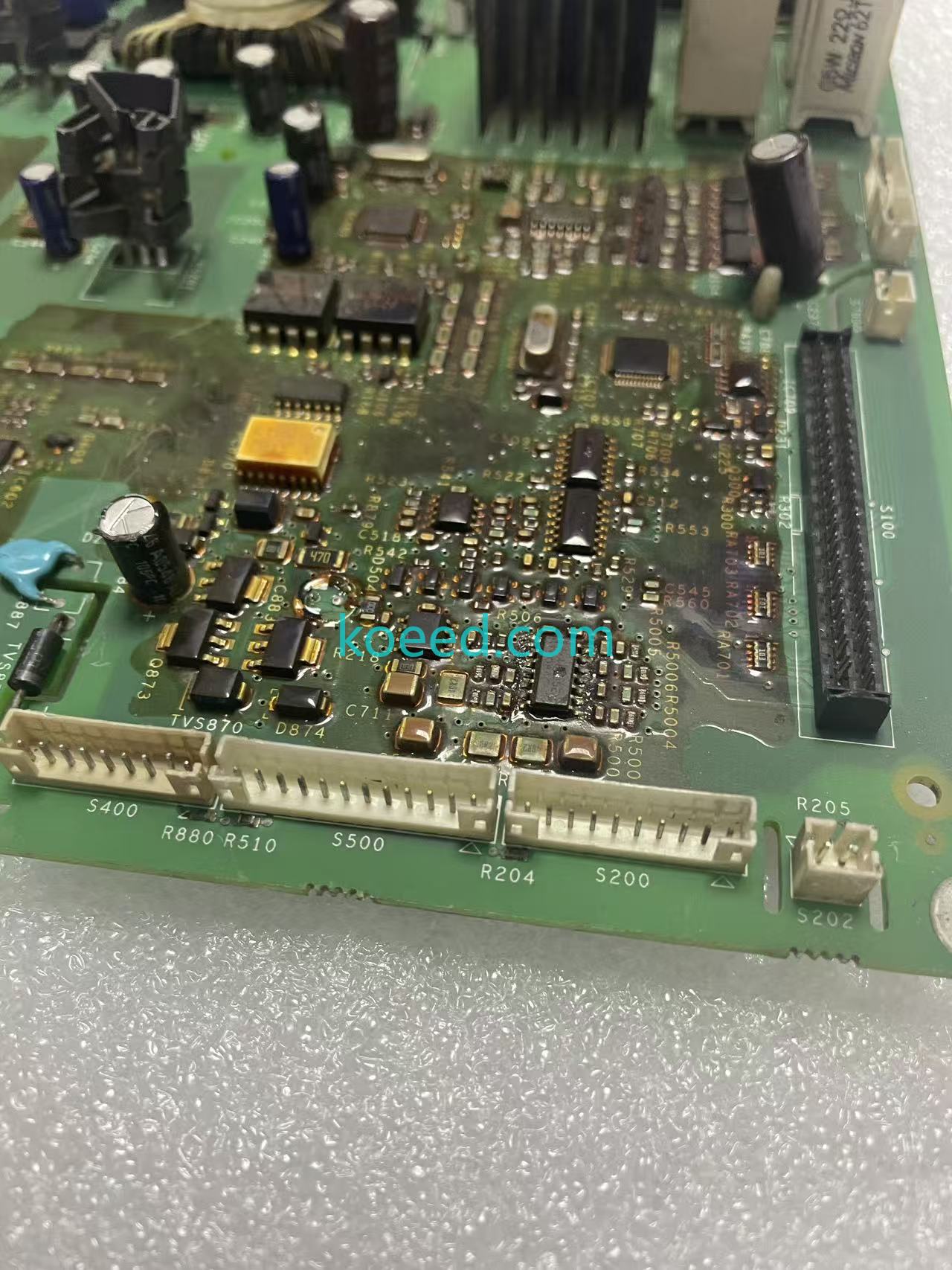

Product Images
Product Demonstration Video
This demonstration video shows the ATV61 W814857810111A01 in operation, highlighting its control features and interface functionality.
Key Features and Benefits
Advanced Motor Control
The ATV61 W814857810111A01 features flux vector control without sensor technology, providing precise motor control with speed ranges up to 1:100 in open loop mode. This ensures smooth operation and accurate speed regulation for various industrial applications.
Energy Efficiency
Designed with energy savings in mind, this variable speed drive optimizes motor performance while reducing power consumption. The adjustable switching frequency (1-16 kHz) allows for optimal performance based on application requirements.
Robust Industrial Design
With IP20 protection rating and reinforced construction, the ATV61 W814857810111A01 is built to withstand harsh industrial environments. The unit features comprehensive protection mechanisms including overload protection and short-circuit protection.
User-Friendly Interface
The drive includes an LCD keypad with plain text display and navigation buttons, featuring a "Simply Start" menu for immediate operation. This intuitive interface simplifies setup and operation for technicians and operators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | Altivar 61 |
| Model Number | ATV61 W814857810111A01 |
| Power Rating | Variable based on configuration (typically 0.75kW to 75kW) |
| Voltage Range | 200-240V single phase or 380-480V three phase |
| Speed Range | 1:100 in open loop mode |
| Overload Capacity | 110% continuous, 120% for 60 seconds |
| Switching Frequency | 1-16 kHz adjustable |
| Control Method | Flux vector control without sensor |
| Protection Rating | IP20 |
| Communication Protocols | Standard industrial protocols supported |
Industrial Applications
The ATV61 W814857810111A01 is suitable for a wide range of industrial applications including:
- Pump and fan control systems
- Conveyor systems and material handling
- HVAC systems and building automation
- Industrial machinery and production lines
- Water and wastewater treatment systems
- Food processing equipment
- Packaging machinery
For industrial facilities seeking cost-effective solutions, consider our used ATV61 W814857810111A01 which offers professional performance at a reduced investment.
Frequently Asked Questions
The ATV61 W814857810111A01 offers advanced flux vector control technology that provides superior motor control precision and energy efficiency compared to standard V/Hz drives, making it ideal for applications requiring precise speed and torque control.
Yes, the ATV61 W814857810111A01 is designed to work with both single-phase and three-phase motors, with specific models available for different voltage ranges (200-240V single phase or 380-480V three phase).
The drive supports standard industrial communication protocols including Modbus, CANopen, and other fieldbus options, allowing for easy integration into existing automation systems.
Yes, comprehensive technical support is available for the ATV61 W814857810111A01, including installation guidance, configuration assistance, and troubleshooting support.
With proper installation and maintenance, the ATV61 W814857810111A01 typically has a service life of 10-15 years in industrial environments, depending on operating conditions and load factors.
Purchase Information
The ATV61 W814857810111A01 is available through authorized distributors and industrial automation suppliers. For those looking for a cost-effective solution, we offer a used ATV61 W814857810111A01 that has been professionally tested and certified for reliable operation.
Key benefits of choosing our used unit include:
- Significant cost savings compared to new units
- Professional testing and certification
- Shipping available worldwide
- Technical support and warranty options
- Compatibility with existing Altivar 61 systems
External References and Industry Standards
The Schneider Electric Altivar 61 series complies with international standards including:
- IEC 61800 standards for adjustable speed electrical power drive systems
- CE marking for European market compliance
- UL certification for North American markets
- EMC Directive 2014/30/EU for electromagnetic compatibility
- Low Voltage Directive 2014/35/EU
For detailed technical documentation and specifications, refer to Schneider Electric's official product documentation and technical manuals.
