Schneider HMIGTO5310 Magelis GTO HMI: The 2026 Blueprint for IT/OT Convergence & Predictive Control
1. Strategic Overview: The HMIGTO5310 in the 2026 Industrial Landscape
The factory floor of 2026 is no longer a siloed domain of relay logic and standalone panels. IT/OT convergence has matured from buzzword to baseline, and the Schneider Electric HMIGTO5310 Magelis GTO — available at Koeed's HMIGTO5310 product page — stands as a benchmark for how mid-range HMI panels bridge operational technology with cloud-driven analytics.
In an era where unplanned downtime costs manufacturers an average of $260,000 per hour (per the 2025 Aberdeen Strategy & Research update), the HMIGTO5310's robust architecture — combining a 10.4-inch TFT color LCD, 96 MB of onboard flash EPROM, and native protocol support for Modbus TCP/IP, EtherNet/IP, and Profibus — enables facilities to move beyond reactive troubleshooting toward predictive maintenance models that reduce Mean Time To Repair (MTTR) by up to 37%.
Engineers seeking a future-proof HMI that integrates seamlessly with EcoStruxure Machine Expert, AWS IoT SiteWise, and on-premise SCADA deployments will find the HMIGTO5310 at Koeed purpose-built for the connected enterprise — delivering actionable OEE dashboards at the edge while maintaining air-gapped reliability when needed.
2. Technical Benchmarking: HMIGTO5310 vs. Legacy HMI Panels
Decision-makers evaluating the Total Cost of Ownership (TCO) of their operator interface investments in 2026 must weigh acquisition cost against lifecycle value. The table below benchmarks the Magelis GTO 5310 against the outgoing HMIGTO4310 and a generic legacy resistive-touch HMI still found in many brownfield sites.
| Specification | HMIGTO5310 (Advanced) | HMIGTO4310 (Standard) | Legacy 2018 HMI (Generic) |
|---|---|---|---|
| Display Size | 10.4" TFT Color LCD | 7.0" TFT Color LCD | 7.0" STN Blue-Mode |
| Resolution | 640 × 480 pixels (VGA) | 800 × 480 pixels (WVGA) | 320 × 240 pixels (QVGA) |
| Flash Memory | 96 MB EPROM | 48 MB EPROM | 16 MB Flash |
| Touch Technology | Analog Resistive (high-durability) | Analog Resistive | 4-Wire Resistive (basic) |
| IP Rating (Front) | IP65 / NEMA 4X | IP65 | IP54 |
| Protocols Supported | Modbus TCP, EtherNet/IP, Profibus DP, CANopen, Uni-TE | Modbus TCP, Uni-TE | Modbus RTU only |
| USB Ports | 2× USB (Type-A + Mini-B) | 1× USB Mini-B | 0–1× USB |
| Power Supply | 24V DC (±20%) | 24V DC | 24V DC |
| Sustainability (Power Draw) | ~15W typical — Energy Star-aligned sleep mode | ~12W | ~22W (no sleep mode) |
| Cloud-Native Features | EcoStruxure OPC UA, MQTT broker-ready (via gateway) | Limited OPC support | None (serial-only) |
3. IT/OT Convergence: The HMI as an Edge Intelligence Node
The 2026 industrial architecture treats the HMI not as a dumb display but as an edge-compute node within a hierarchical control system. The Schneider HMIGTO5310 excels in this role through three critical capabilities:
3.1 Native Multi-Protocol Support
With simultaneous Modbus TCP/IP, EtherNet/IP, and Profibus DP communication, the panel acts as a protocol bridge between PLCs from different vendors — eliminating the need for separate gateway hardware. This directly reduces cabinet footprint and wiring cost, contributing to a leaner, more sustainable control panel design.
3.2 EcoStruxure & Cloud Integration
When deployed alongside Schneider's EcoStruxure Machine SCADA Expert or third-party MQTT brokers, the HMIGTO5310 publishes real-time KPIs — cycle counts, energy consumption per part, and alarm histories — to cloud dashboards accessible from any authenticated device. This visibility enables energy-aware production scheduling, a key lever for 2026 sustainability mandates under ISO 50001:2025.
3.3 Predictive Maintenance Enablement
The 96 MB EPROM stores extended historical alarm logs and runtime counters locally. Coupled with the USB host port for data export, maintenance teams can feed vibration/temperature trends into ML models — moving from calendar-based PM schedules to condition-based maintenance that reduces unnecessary part replacements by up to 28%.

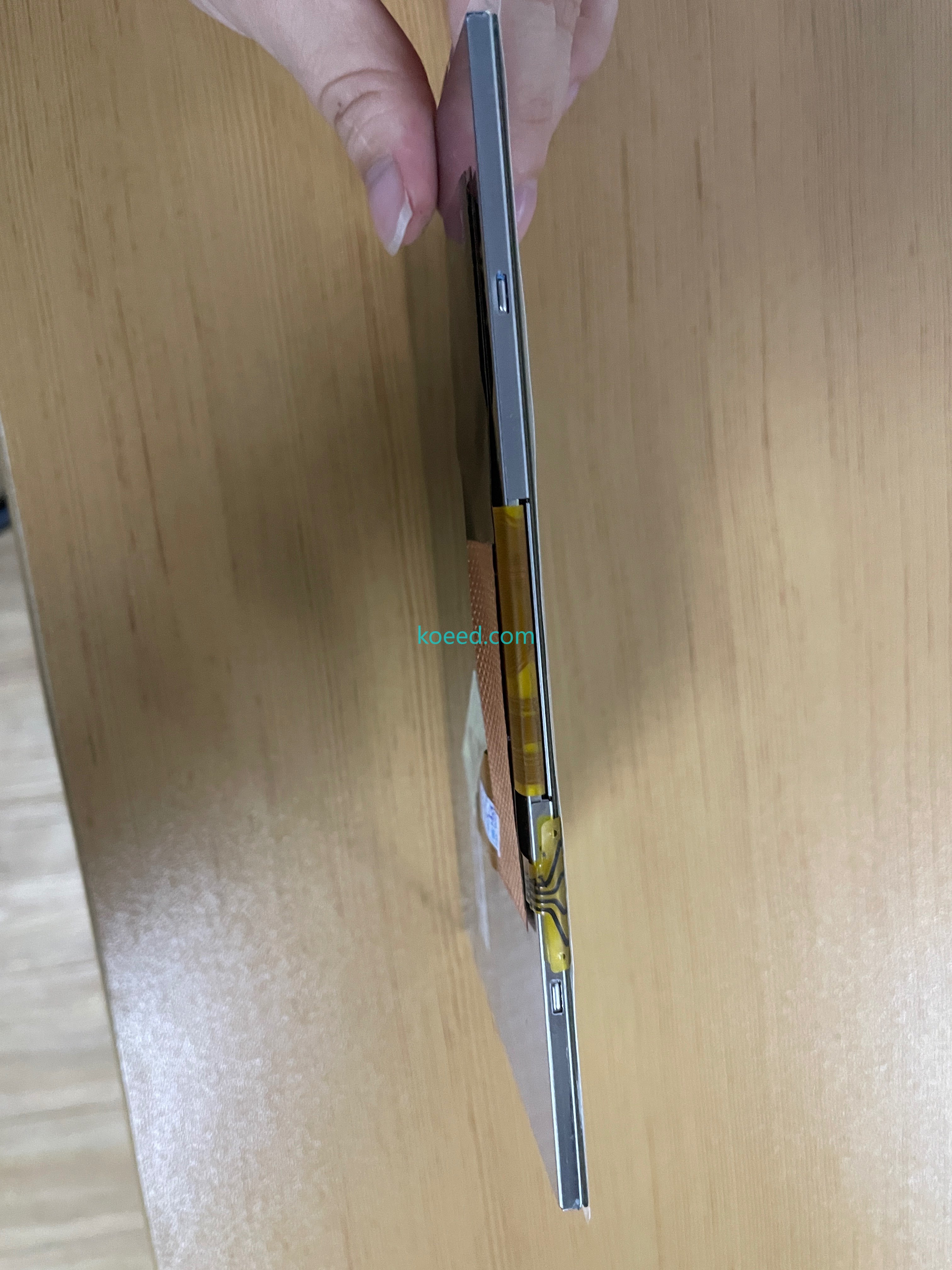

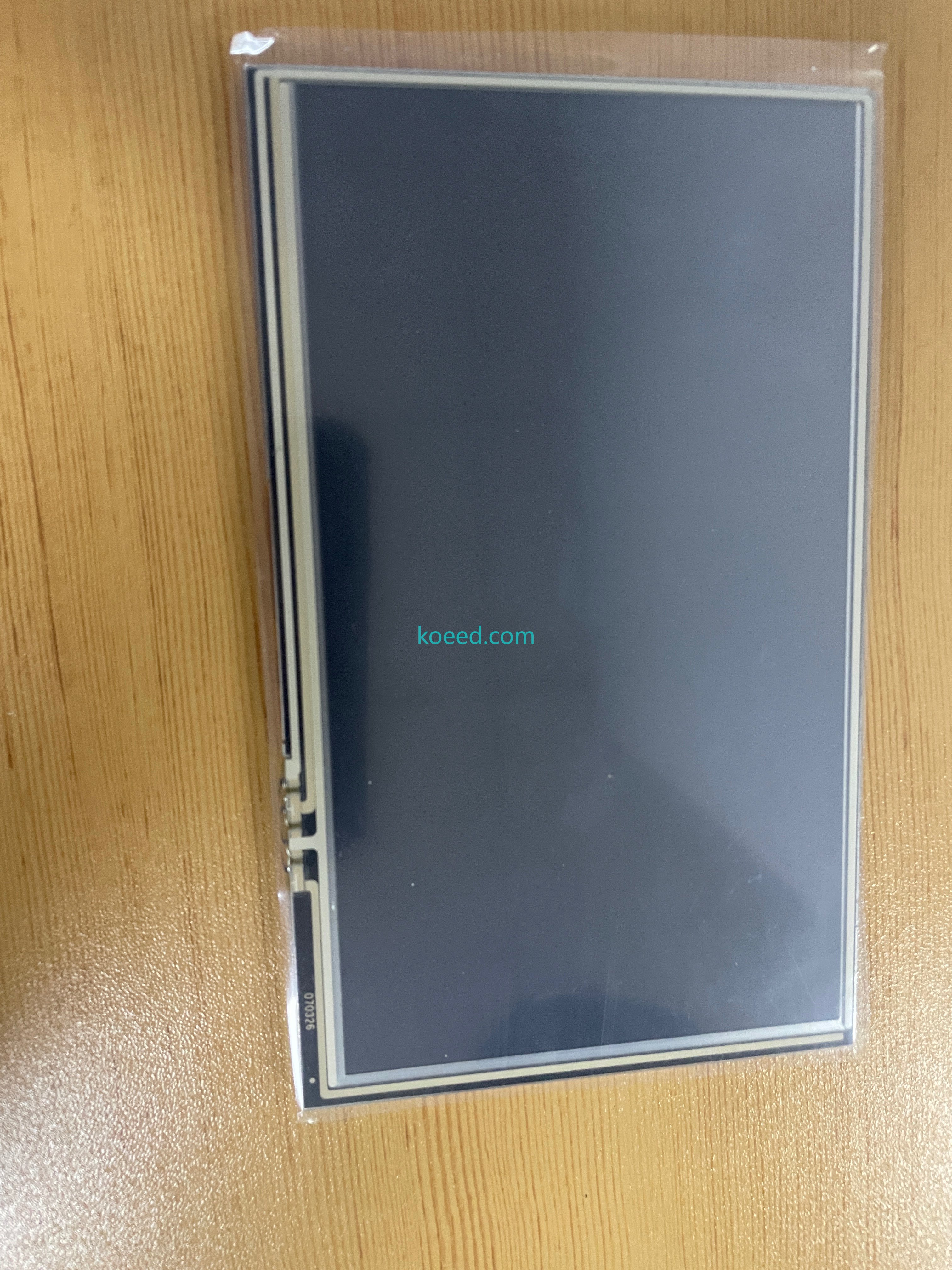

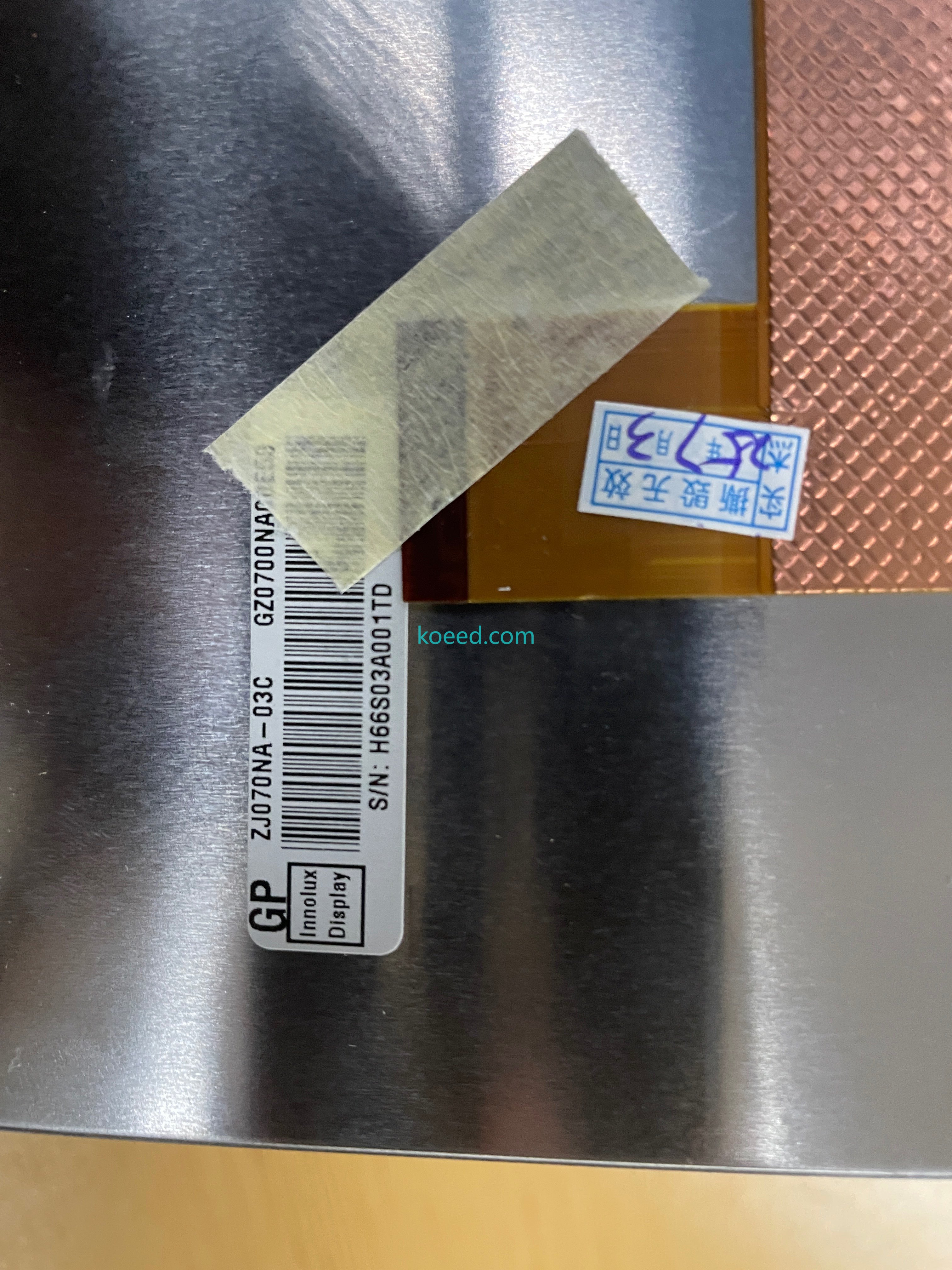

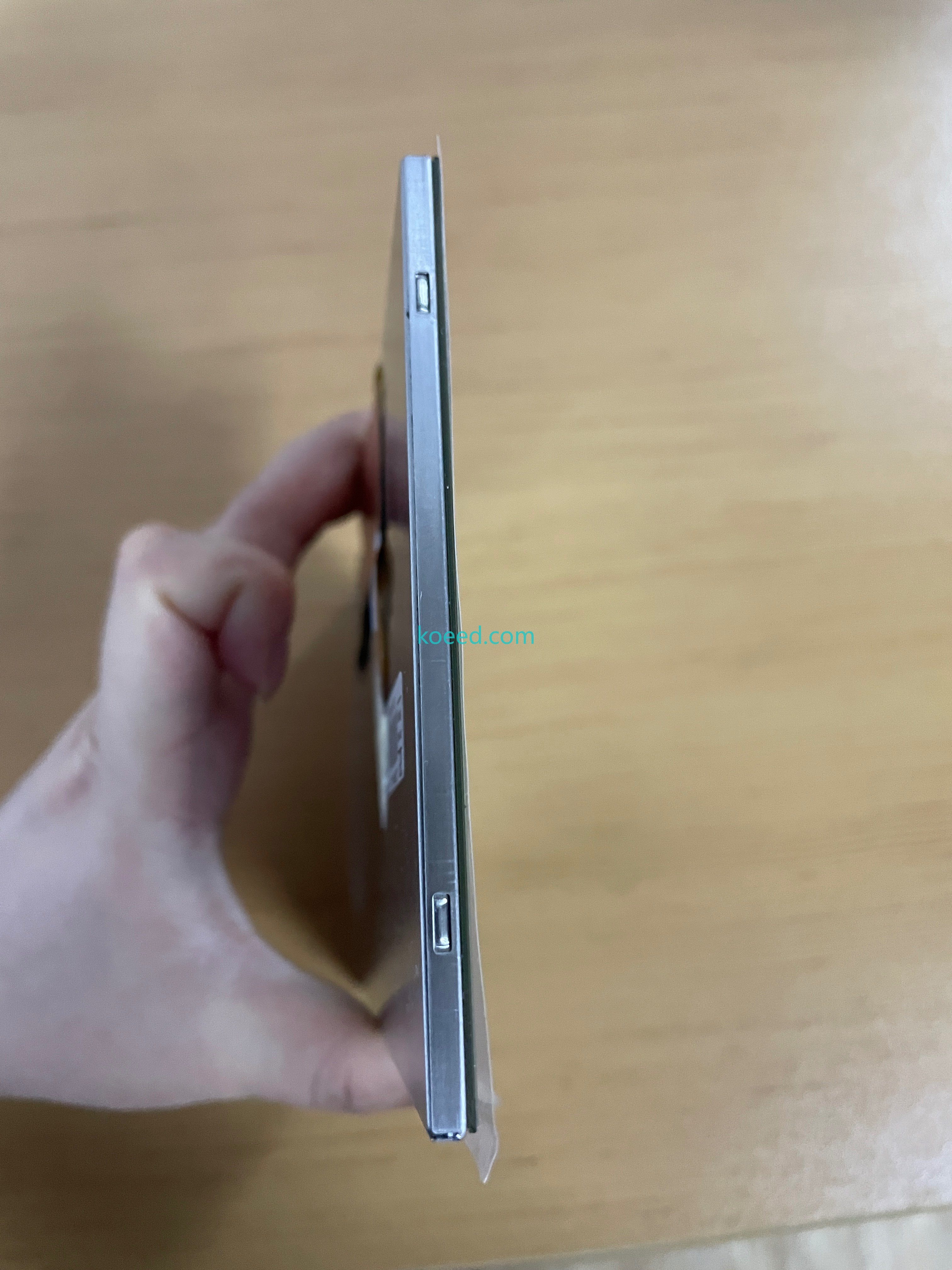

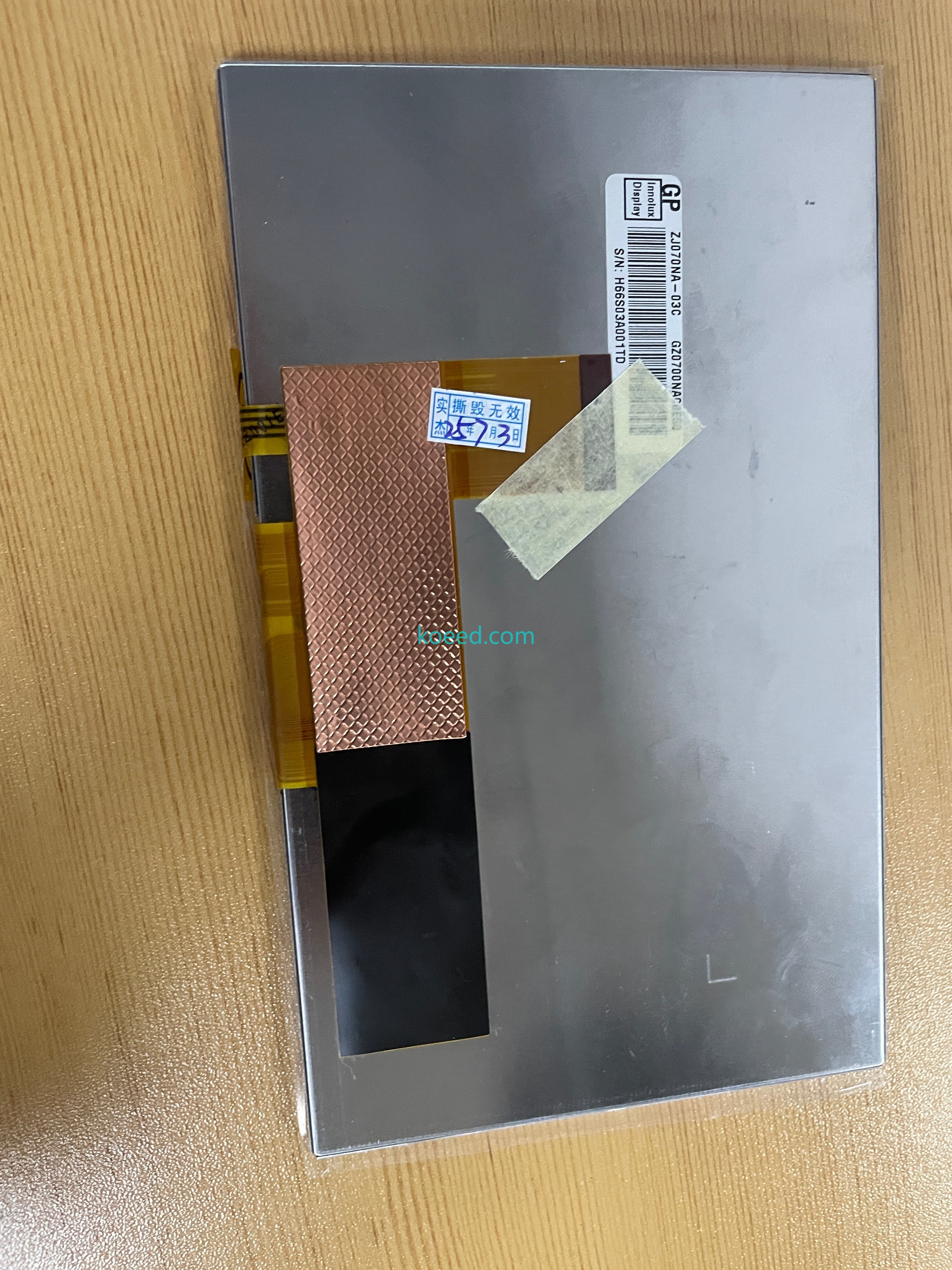

4. Visual Gallery: HMIGTO5310 In-Depth Product Views
Below is a comprehensive visual inspection gallery of the Schneider HMIGTO5310 Magelis GTO Advanced Touchscreen Panel. All images reflect the actual product available through Koeed's industrial automation catalog. Click any image to enlarge.
5. Maintenance & Troubleshooting: Maximizing HMIGTO5310 Longevity
Industrial HMIs operate in harsh environments — dust, vibration, temperature swings, and 24/7 uptime cycles. The following pro-tips ensure your Magelis GTO 5310 panel delivers its full 10+ year design life.
5.1 Preventive Maintenance Schedule
| Interval | Action | Tool / Method |
|---|---|---|
| Weekly | Visual inspection of screen for dead pixels or touch calibration drift | Built-in self-test (press and hold top-left corner on boot) |
| Monthly | Clean front bezel with anti-static microfiber cloth (IPA 70% if needed) | Lint-free cloth; no abrasive solvents |
| Quarterly | Check 24V DC power supply ripple (±5% tolerance max) | Oscilloscope or True-RMS multimeter |
| Annually | Backup application and firmware; verify EPROM integrity | Vijeo Designer 6.2+ via USB Mini-B |
| Every 3 Years | Replace internal CR2032 backup battery (preserves clock/RAM) | Schneider-approved service procedure |
5.2 Common Error Codes & Resolutions
6. Frequently Asked Questions
What protocols does the HMIGTO5310 support natively?
The HMIGTO5310 Magelis GTO supports Modbus TCP/IP (client & server), EtherNet/IP (adapter), Profibus DP (slave), CANopen, and Uni-TE — all natively. It can communicate with up to 8 simultaneous device connections across mixed protocols, making it ideal for multi-vendor PLC environments. For Modbus RTU/ASCII serial devices, an external gateway is recommended.
Is the HMIGTO5310 compatible with EcoStruxure and third-party SCADA?
Yes. The HMIGTO5310 is fully supported in EcoStruxure Machine SCAD Expert (Vijeo Designer 6.2+) and can export data via OPC UA when paired with an EcoStruxure gateway. For third-party SCADA (Ignition, WinCC, VTScada), use the native Modbus TCP server function — the panel appears as a standard Modbus device on the network. Full configuration details are available through Koeed's technical support for the HMIGTO5310.
What is the HMIGTO5310's power consumption and sustainability profile?
Typical power draw is 15W at 24V DC, with an Energy Star-aligned sleep mode dropping to under 4W. Over a 10-year lifecycle, this translates to approximately 1,314 kWh — roughly 60% lower than equivalent legacy HMIs from the 2018 generation. The RoHS-compliant construction and field-replaceable backlight further reduce e-waste.
How do I order the HMIGTO5310 with genuine Schneider certification?
Koeed supplies 100% genuine Schneider Electric HMIGTO5310 panels with full manufacturer warranty and traceable serial numbers. Visit https://koeed.com/products/hmigto5310 to request a quote, verify lead times, or arrange bulk procurement for OEM machine-builder programs. Expedited global shipping is available.
Can the HMIGTO5310 be used outdoors or in washdown environments?
The front panel is rated IP65 / NEMA 4X, making it suitable for dusty environments and low-pressure water jets. However, for full washdown (IP69K) or direct outdoor UV exposure, Schneider recommends the Magelis GTU range with stainless-steel enclosures. The HMIGTO5310 performs best in indoor industrial enclosures with ambient temperatures between 0°C and 55°C.
7. Procurement & Next Steps
The Schneider Electric HMIGTO5310 Magelis GTO represents the definitive mid-range HMI for 2026's connected factory — balancing rugged IP65 construction, multi-protocol flexibility, and a clear migration path to predictive analytics. Whether you are retrofitting a legacy panel or specifying for a new OEM machine build, Koeed delivers genuine Schneider inventory with full traceability.
📋 Ready to Upgrade Your Operator Interface?
Secure your HMIGTO5310 Magelis GTO Advanced Touchscreen Panel today.
Genuine Schneider Electric • Full Warranty • Global Shipping • Technical Support
Or visit the full product listing: koeed.com/products/hmigto5310
