DMF682N Industrial LCD Panel: 2026 Guide to 256×128 HMI Display Lifecycle Extension & IT/OT Integration
In the rapidly evolving landscape of industrial automation, the OPTREX DMF682N / DMF682NF 5.3-inch monochrome LCD panel remains a cornerstone component for thousands of legacy HMI systems, PLC operator interfaces, and embedded control terminals still operational across global manufacturing floors in 2026. As IT/OT convergence accelerates and sustainability mandates tighten, sourcing a reliable, drop-in replacement display — such as the used DMF682N panel available at Koeed — has become the most cost-effective strategy for extending equipment lifecycles without costly full-system retrofits.
1. Strategic Role of the DMF682N in the 2026 Industrial Ecosystem
The OPTREX DMF682N — also cross-referenced as DMF682NF and closely related to the DMF-682A variant — is an STN (Super-Twisted Nematic) monochrome LCD module offering a 256 × 128 pixel resolution across a 5.3-inch diagonal viewable area. Originally designed for embedded industrial control applications, this display module has proven its durability across decades of service in CNC machines, injection molding controllers, textile machinery interfaces, and distributed PLC operator panels.
By 2026, the industrial world has fully embraced the "repair-over-replace" philosophy driven by both ESG compliance frameworks and pragmatic TCO analysis. The DMF682N replacement panel at Koeed.com sits at the intersection of this trend — enabling maintenance teams to restore HMI visibility in hours rather than weeks, while avoiding the staggering costs and downtime of full controller migrations.
2. Technical Specifications & Benchmarking
Understanding the precise technical parameters of the DMF682N is critical for integration engineers evaluating compatibility with existing driver boards and backplane connectors. The table below provides a comprehensive benchmark comparing the DMF682N against its closest industrial contemporaries.
2.1 DMF682N vs. Legacy & Modern Alternatives
| Parameter | DMF682N / DMF682NF | DMF-682A (Alternate Variant) | Typical 2026 Color TFT HMI |
|---|---|---|---|
| Display Type | STN Monochrome LCD | STN Monochrome LCD | TFT Color LCD |
| Resolution | 256 × 128 pixels | 256 × 128 pixels | 800 × 480 (typical) |
| Diagonal Size | 5.3 inch | 5.3 inch | 5.0–7.0 inch |
| Backlight | CCFL / LED (model-dependent) | CCFL | LED |
| Interface Protocol | Parallel CMOS | Parallel CMOS | LVDS / RGB / MIPI |
| Operating Temp. Range | 0°C to +50°C (standard) / -20°C to +70°C (extended variants) | 0°C to +50°C | -20°C to +70°C |
| Controller Chipset | External (e.g., SED1335 / RA8835) | External | Integrated (on-glass) |
| Supply Voltage | 5.0V DC (logic) / Varies (backlight) | 5.0V DC | 3.3V DC |
| Availability (2026) | Secondary Market — Certified Used | Limited NOS (New Old Stock) | Readily Available (New) |
| Typical Unit Cost (2026) | $45–$120 (used, graded) | $180–$300 (NOS) | $150–$500+ (plus integration) |
2.2 Interface & Pinout Considerations
The DMF682N utilizes a standard parallel CMOS interface, typically driven by an external LCD controller such as the Epson SED1335 or RAiO RA8835. For 2026 integration engineers, this means the panel can be interfaced with modern microcontrollers (ESP32, STM32, Raspberry Pi Pico) via a simple parallel-to-serial bridge if needed for retrofit monitoring applications — a common pattern in edge-computing OT upgrades where legacy HMI data is captured and forwarded to cloud-based SCADA dashboards.
3. Visual Inspection Gallery — DMF682N Unit Analysis

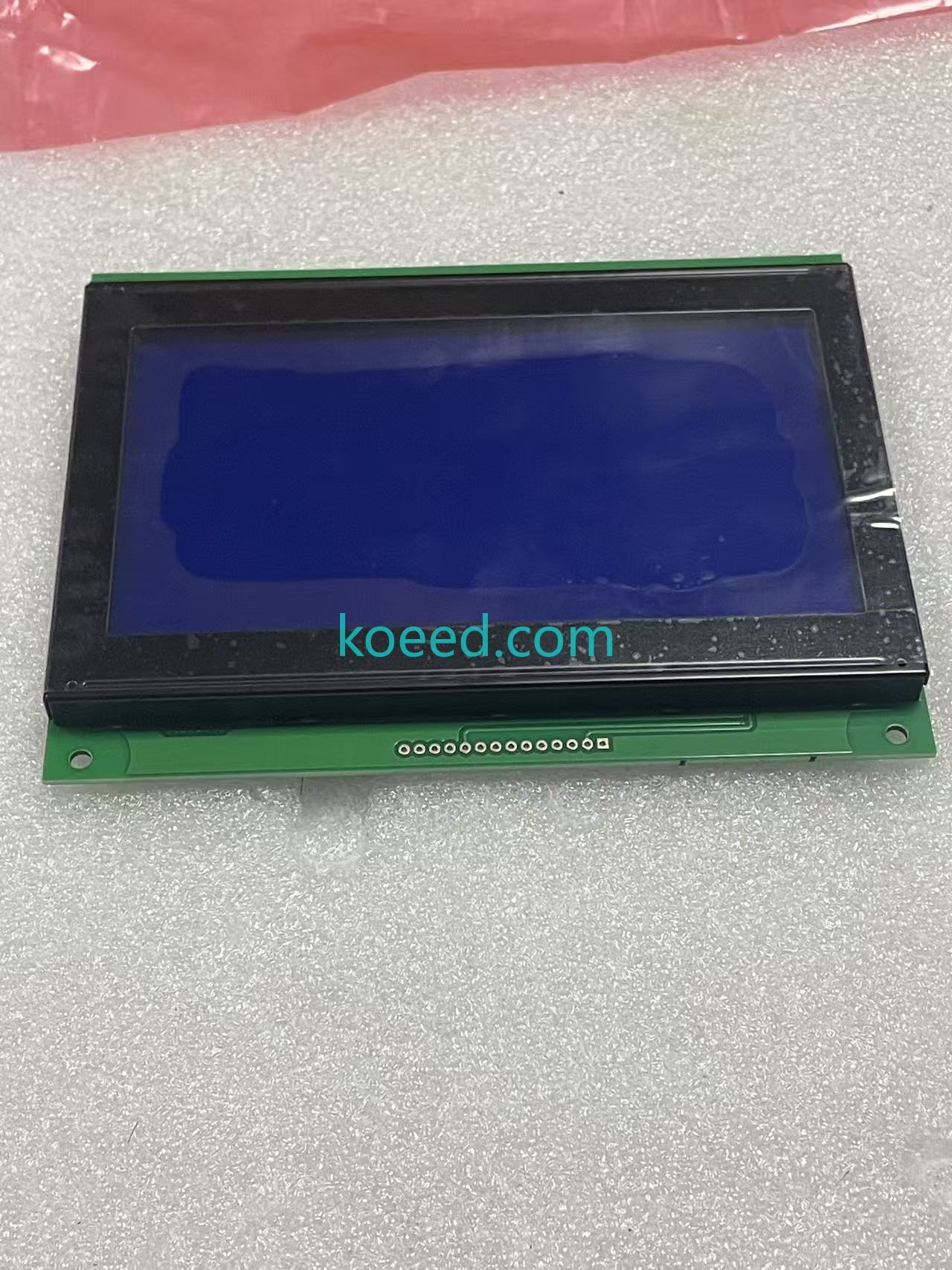

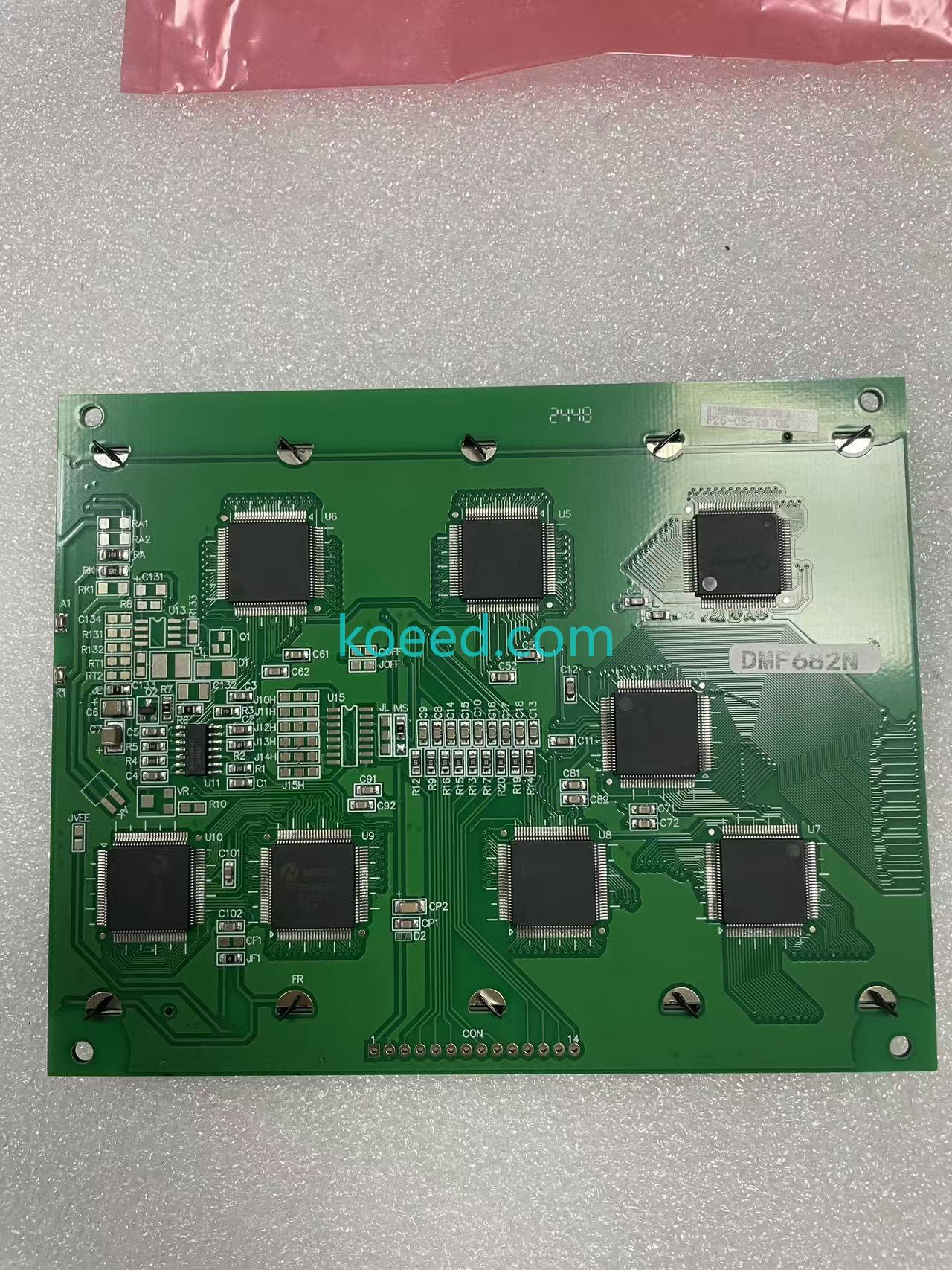

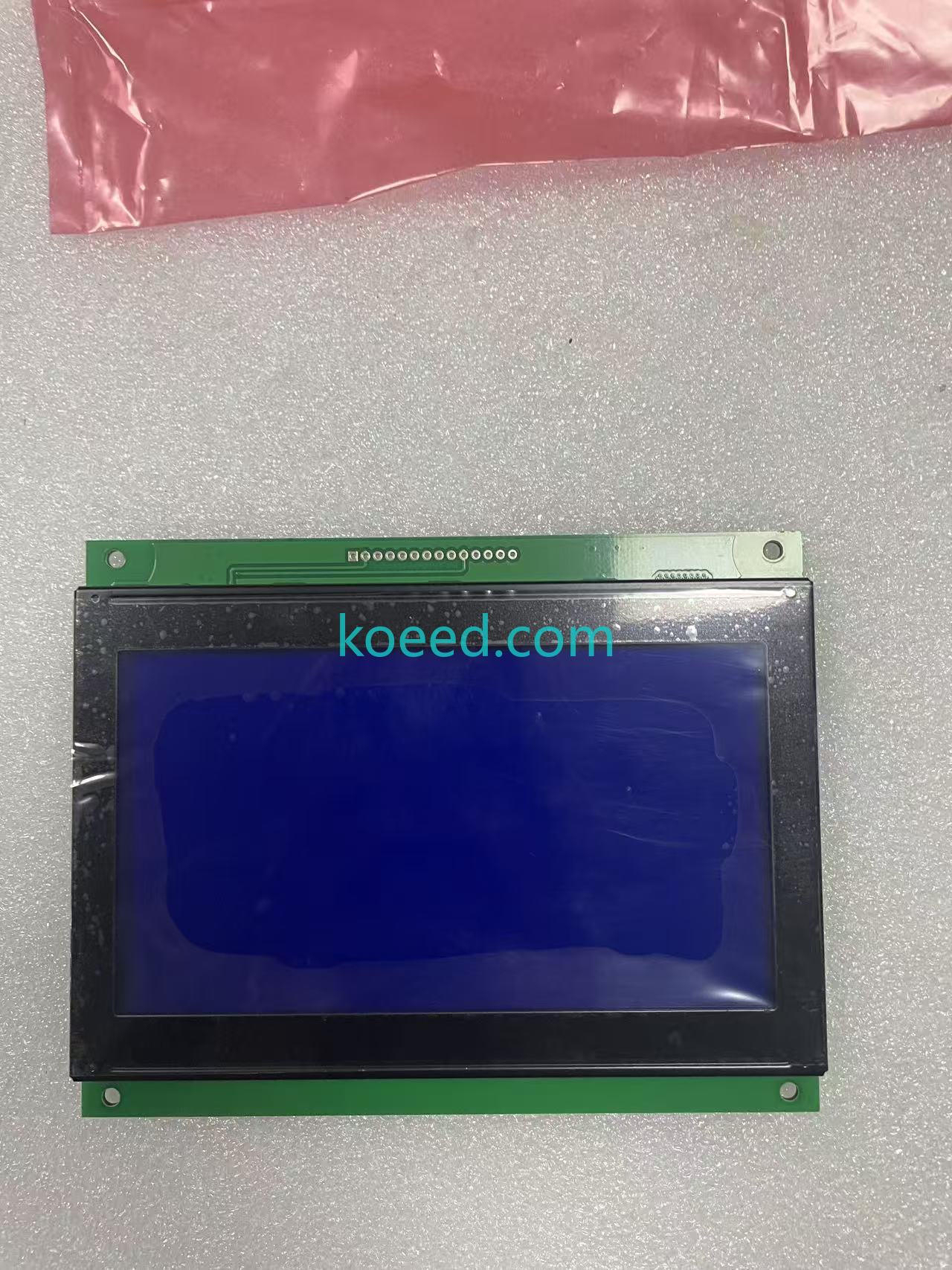

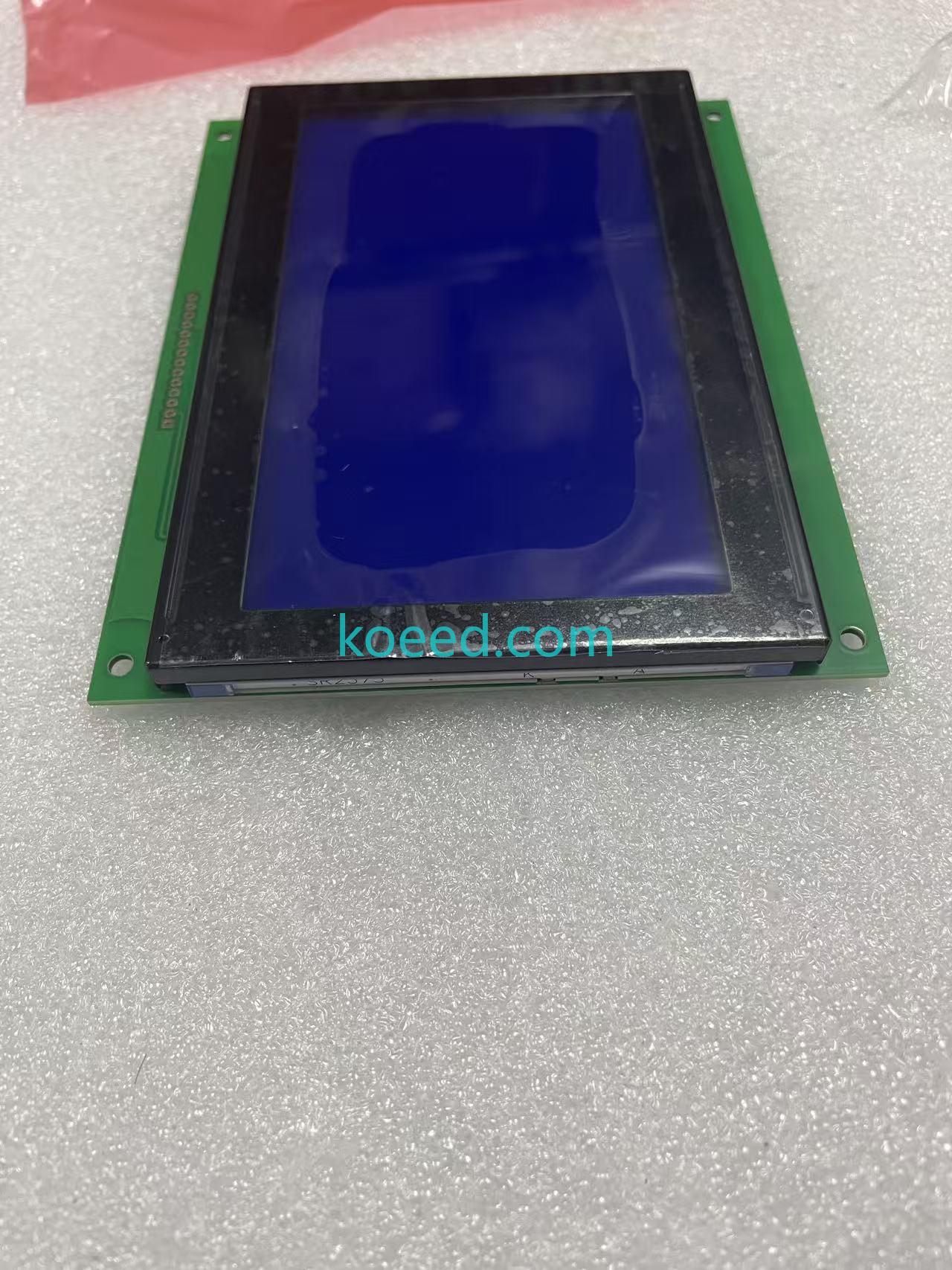

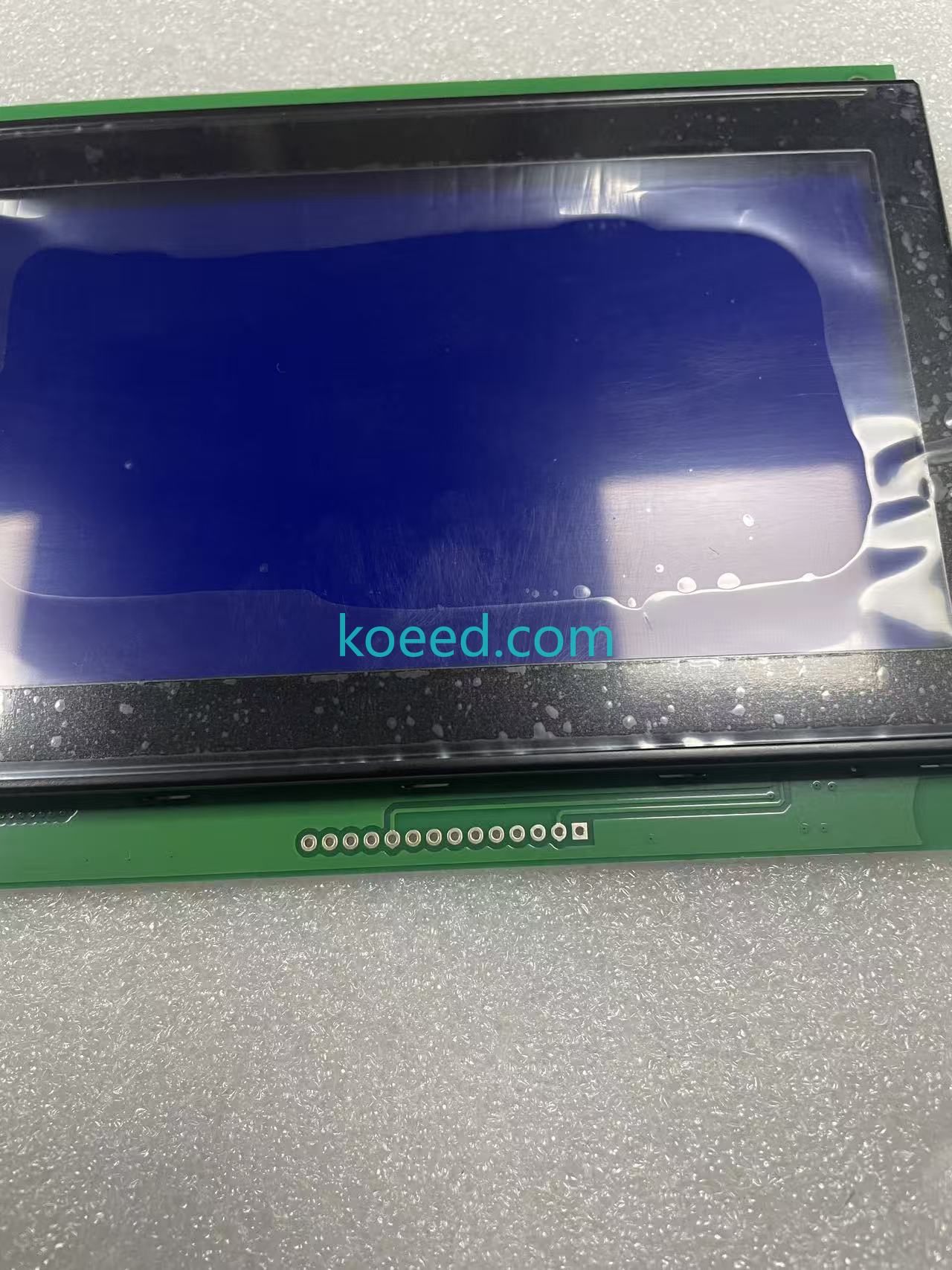

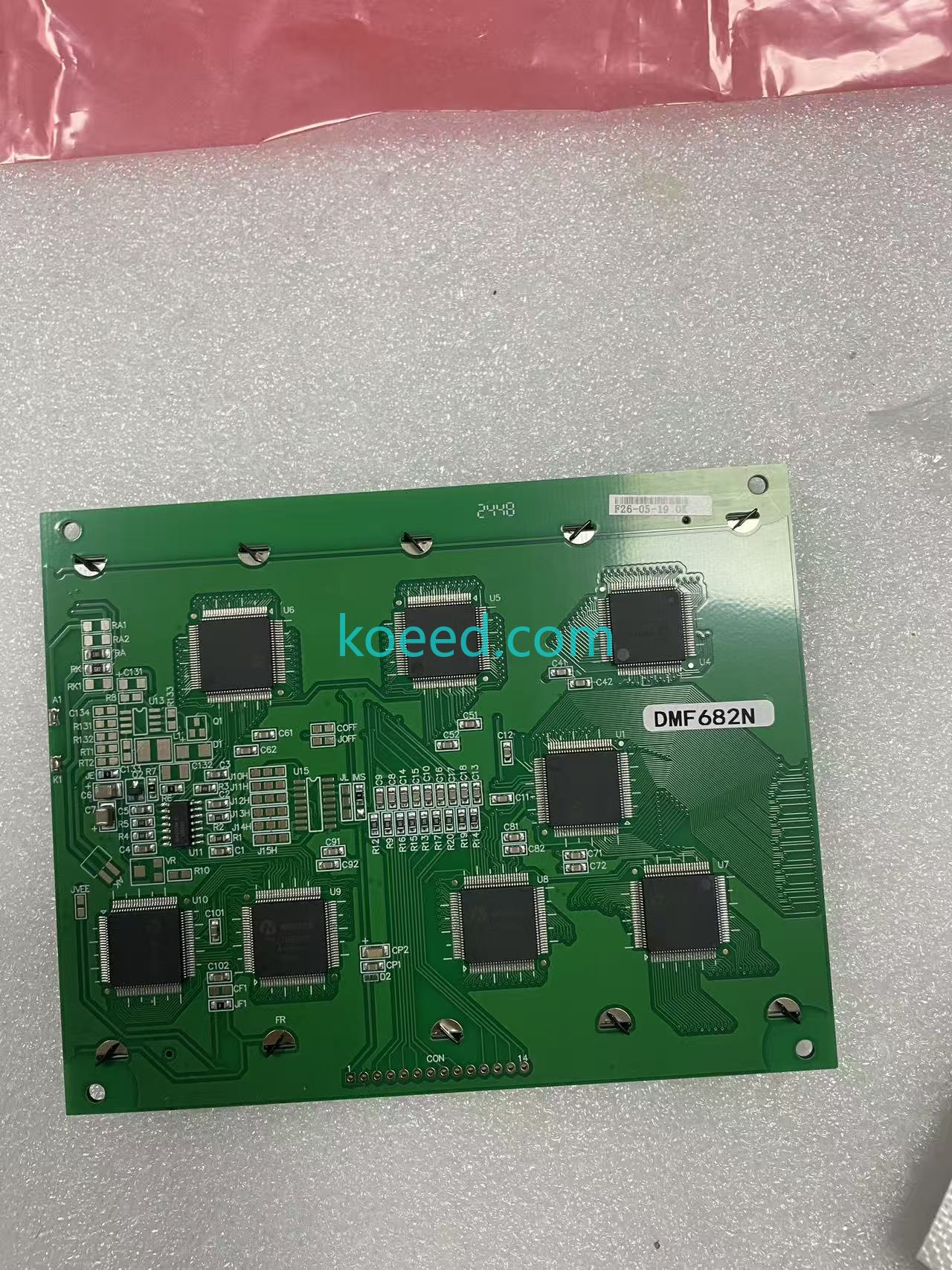

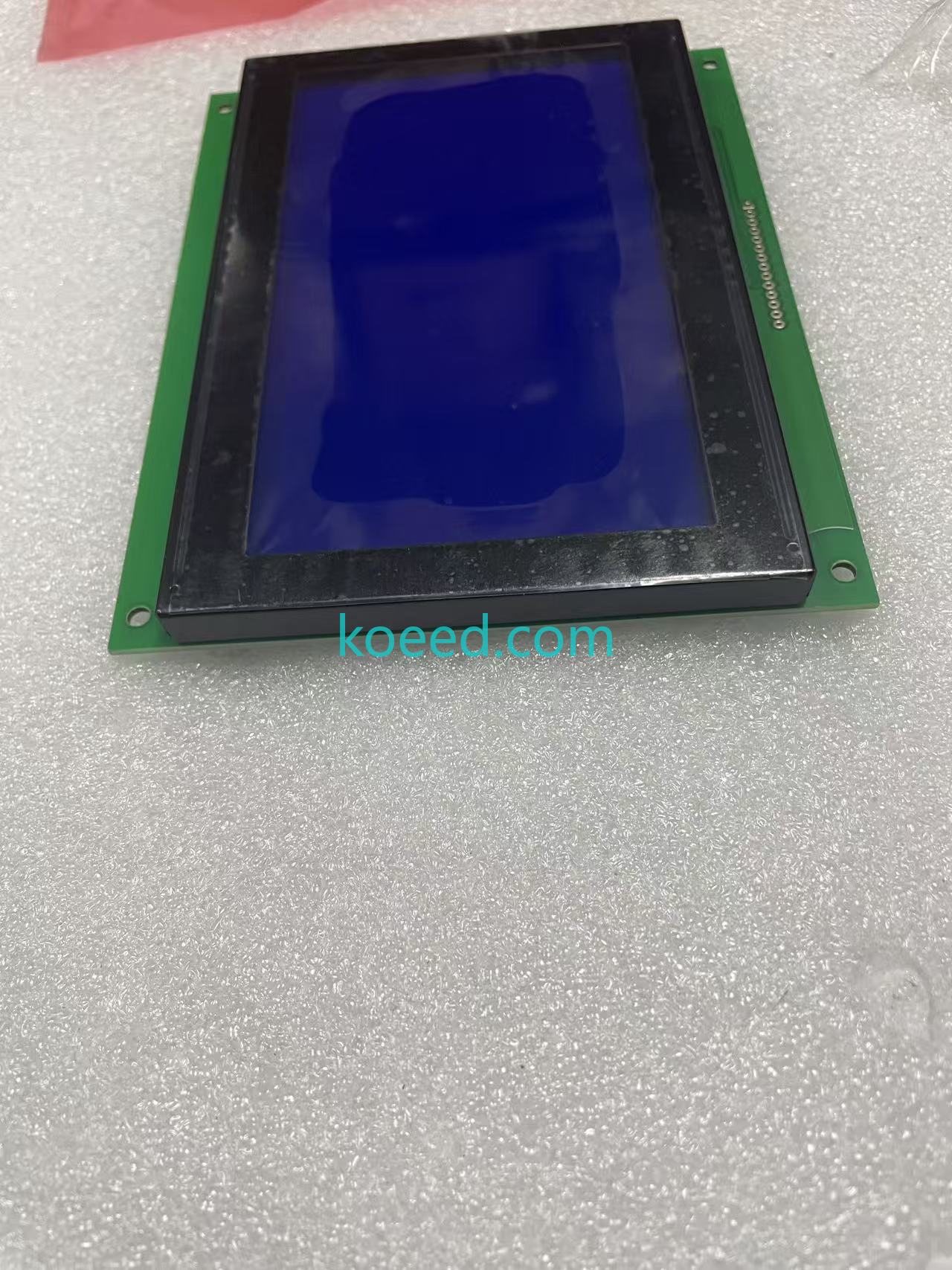

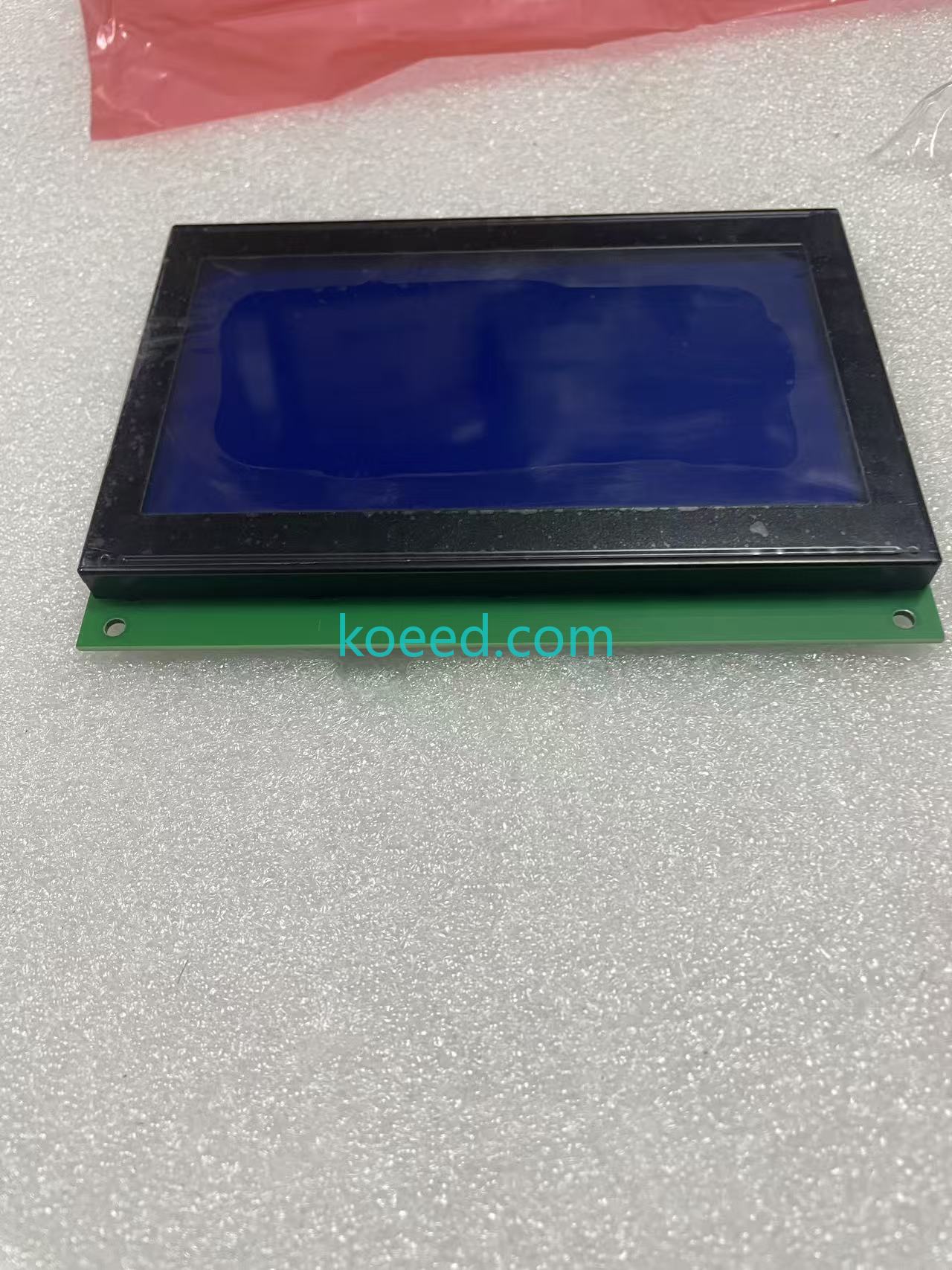

The following gallery presents a detailed visual walkthrough of the DMF682N / DMF682NF LCD panel available at Koeed. Each image highlights critical inspection points — connector integrity, polarizer condition, backlight uniformity, and PCB trace quality — that professional procurement teams should evaluate before deployment.
4. IT/OT Convergence: Integrating DMF682N-Based HMIs into the 2026 Digital Thread
One of the most compelling narratives in 2026 industrial automation is the ability to bridge legacy display-based operator terminals with modern IIoT platforms — without replacing the core controller. The DMF682N, being a drop-in visual output device, sits at a unique architectural layer: it presents data that can be optically captured or electrically tapped for upstream analytics.
4.1 Edge Data Extraction Patterns
Forward-thinking maintenance teams are deploying compact AI-enabled cameras (such as the Cortex-M85-based vision modules released in late 2025) to optically read legacy DMF682N displays and stream the interpreted readings — temperature setpoints, cycle counts, alarm codes — into MQTT brokers for aggregation in platforms like Ignition, Node-RED, or AWS IoT SiteWise. This approach achieves IT/OT convergence without altering the validated control loop, preserving both safety certifications and uptime guarantees.
4.2 Parallel Bus Monitoring
For electrically inclined integration engineers, the DMF682N's parallel CMOS data bus can be passively monitored using a high-impedance logic analyzer (e.g., Saleae Logic Pro 2025 edition or equivalent) to decode display data non-invasively. This technique has gained traction in pharmaceutical and food & beverage manufacturing, where validated equipment cannot be modified but must still contribute to digital batch records.
5. Predictive Maintenance & Lifecycle Extension Strategies
The DMF682N, being an STN LCD with finite backlight service life, benefits enormously from a structured predictive maintenance approach. In 2026, this goes far beyond simple visual inspection.
5.1 Backlight Degradation Monitoring
The CCFL or LED backlight in the DMF682N typically exhibits a half-life of approximately 25,000–50,000 hours depending on operating temperature and drive current. Maintenance teams are now using low-cost lux meters and spectral analyzers to trend backlight luminance on a quarterly cadence. When luminance drops below 60% of the nominal specification, a preemptive replacement — sourcing a graded used DMF682N from Koeed — eliminates unplanned downtime.
5.2 Common Failure Modes & Troubleshooting
Symptom 1: Display completely blank (backlight ON)
→ Check 5V logic supply at pin header. Verify contrast adjustment potentiometer (-5V to -15V typical for VLCD). Confirm controller reset line is not held low.
Symptom 2: Horizontal or vertical lines missing
→ Indicates failed column/row driver IC on the panel flex. This is a non-repairable failure. Replace the DMF682N module immediately.
Symptom 3: Dim or flickering display
→ CCFL aging or inverter degradation. If equipped with LED backlight, check current-limiting resistor. For CCFL models, consider an LED retrofit kit.
Symptom 4: Ghosting / slow response
→ Operating temperature too low (<0°C). Install panel heater or relocate enclosure. Alternatively, verify VLCD bias voltage is within spec.
5.3 Cleaning & Handling Protocols
The DMF682N's polarizer film is sensitive to isopropyl alcohol concentrations above 70% and abrasive wipes. In 2026 cleanroom and food-grade environments, operators are advised to use anti-static, alcohol-free LCD cleaning solutions with microfiber cloths. Always power down and discharge any residual capacitance before handling the FPC ribbon cable — ESD damage to the driver IC remains the #1 cause of latent failures in field-deployed units.
6. Sustainability & Total Cost of Ownership (TCO) Analysis
Procuring a used, tested DMF682N from a reputable supplier like Koeed is not merely a cost-saving measure — it is a quantifiable sustainability action that directly contributes to Scope 3 emissions reduction targets under the 2026 ISO 14090 framework.
6.1 Comparative TCO Scenario (5-Year Window)
| Cost Factor | Replace DMF682N (Used) | Full HMI Retrofit (New TFT) |
|---|---|---|
| Hardware Acquisition | $65–$120 | $800–$3,500 |
| Integration Engineering (Labor) | 1–3 hours (drop-in) | 40–120 hours (re-programming) |
| Production Downtime | <1 shift | 2–7 days |
| Software Revalidation | Not required | Required (PLC code change) |
| Spare Parts Holding Cost (per year) | ~$10 (shelf storage) | ~$80 (diversified spares) |
| Embedded Carbon (kg CO₂e) | ~2 kg (reuse) | ~35 kg (new manufacturing) |
| 5-Year TCO Estimate | ~$250–$500 | ~$5,000–$18,000 |
The TCO advantage is overwhelming. For brownfield facilities managing dozens or even hundreds of legacy HMI terminals, the cumulative savings from sourcing DMF682N replacement panels can reach six figures annually — funds that can be redirected toward strategic digital transformation initiatives.
7. Frequently Asked Questions — DMF682N
Q: Is the DMF682NF fully interchangeable with the DMF682N?
Yes. The DMF682NF is a minor variant of the DMF682N, typically differing only in backlight type (F = fluorescent/CCFL designation in some OPTREX naming conventions). Mechanically, electrically, and optically, they are drop-in compatible. Always verify the backlight connector pinout with your specific unit — Koeed's DMF682N listing covers both variants.
Q: Can I retrofit an LED backlight into a CCFL-based DMF682N?
Absolutely. This is a popular 2026 retrofit. Third-party LED strip kits with integrated constant-current drivers are available. The conversion eliminates the CCFL inverter (a common failure point), reduces power consumption by ~40%, and extends backlight service life to 70,000+ hours. Ensure the LED color temperature matches the original CCFL (~5000K–6500K) to maintain display contrast.
Q: What controller IC is compatible with the DMF682N for new designs?
The RA8835 (RAiO) and SED1335 (Epson) are the de-facto standard controllers. For modern MCU integration, the RA8835 is preferred due to its 3.3V/5V tolerant I/O. Sample driver libraries exist for STM32 HAL and ESP-IDF frameworks as of 2025. If you are prototyping a new embedded system around this panel, securing tested DMF682N units from Koeed ensures a reliable development baseline.
Q: How can I verify the display is functioning before deployment?
Every panel sourced through Koeed undergoes a powered-on pixel test. For in-house verification, connect the panel to a known-good controller board, apply 5V logic power, set the appropriate VLCD contrast voltage, and run a full-screen checkerboard pattern. Inspect for dead pixels, line defects, and backlight uniformity. The visual gallery above demonstrates the inspection quality you can expect.
Q: What is the expected remaining service life of a used DMF682N?
A properly graded used DMF682N with moderate operating history typically retains 70–85% of its original backlight life and 95%+ pixel integrity. In 2026, reputable secondary-market suppliers such as Koeed grade panels on a 4-tier scale based on cosmetic condition, backlight hours (estimated), and pixel-map results, ensuring procurement teams receive fit-for-purpose components.
8. Procurement Strategy for 2026 Maintenance Teams
As global supply chains continue their post-pandemic recalibration through 2026, the availability of legacy industrial display components remains uneven. The OPTREX DMF682N series, discontinued from primary manufacturing, now exists exclusively in the secondary and NOS markets. Forward-looking maintenance managers are adopting a strategic buffer-stock approach: maintaining one operational spare and one cold-standby unit per production line.
When evaluating suppliers for DMF682N / DMF682NF LCD panels, prioritize those offering:
- Powered-on pixel-map verification — not just visual inspection
- Clear grading standards with photographic evidence of the exact unit
- Return windows that accommodate your receiving inspection process
- Bulk pricing for multi-unit orders to support your spares program
- Global logistics capability with appropriate ESD-safe packaging
Secure Your DMF682N Replacement Today
Keep your legacy HMI systems operational through 2026 and beyond. All Koeed DMF682N panels are powered-on tested, visually graded, and ready for immediate deployment.
Need technical compatibility confirmation? Our engineering support team can verify your specific controller board revision before shipping. View the full product listing →
