Record filed as FSZ22A14W: delivery record
On this page

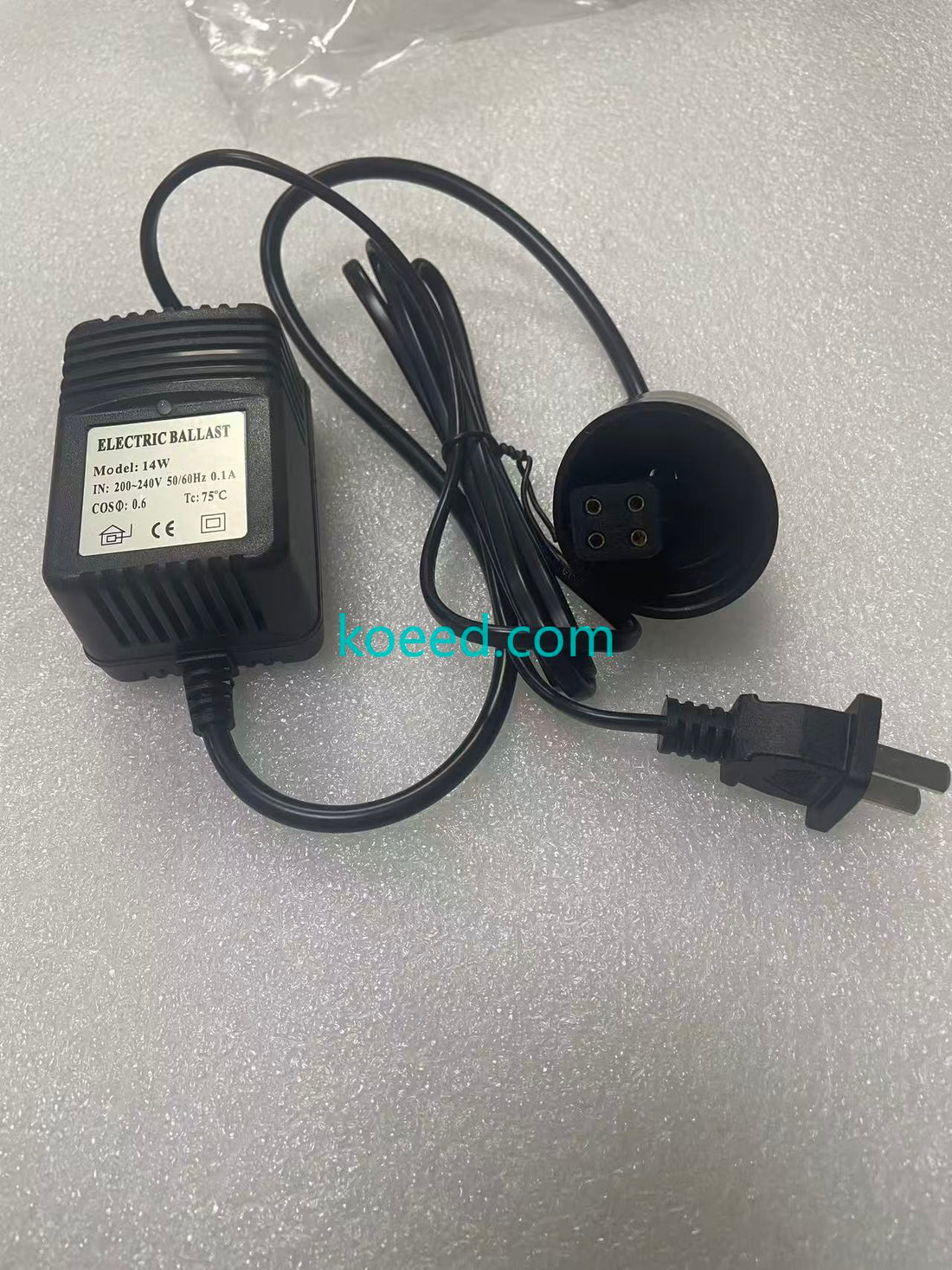

The item filed under FSZ22A14W is an electric ballast assembly. The first photograph shows a label reading ELECTRIC BALLAST, Model: 14W, with an attached mains plug and four-contact round lamp holder. It is not the industrial PLC described in the article title.
Identification and delivery details
The label states IN: 200-240 V, 50/60 Hz, 0.1 A, COS φ: 0.6 and Tc: 75°C. The 14 W model designation is kept separate from the input-current marking. Tc is reproduced as a labelled temperature parameter, not presented as a 75°C ambient operating limit.
The April 2, 2026 note records one new piece and mentions 220 V and 14 W. Its weight field is 0.5 kg, without a stated basis. Warranty duration and a manufacturer name are not supplied. The photograph does not show a lamp or a powered ignition test.
| Item | Evidence |
|---|---|
| Physical identity | ELECTRIC BALLAST; Model: 14W |
| Record reference / discrepancy | FSZ22A14W; PLC title inconsistent with photographed ballast |
| Input marking | 200-240 V; 50/60 Hz; 0.1 A |
| Other label values | COS φ: 0.6; Tc: 75°C, as marked |
| Connections shown | Mains plug and round four-contact lamp holder |
| Delivery / condition | One new piece; April 2, 2026 |
| Warranty / weight | Warranty not stated; record weight 0.5 kg, basis unspecified |
Swipe or scroll horizontally to read the full table.
Only the first photograph was reviewed because it clearly identifies the ballast and its label. All four photographs and the unique clip are preserved. No PLC functions, programming protocol, lamp type or measured output are claimed.
Matching this part
Confirm the exact lamp specification and four-contact holder arrangement before replacement. Match the ballast rating and connector geometry with the installed lamp assembly; the record reference alone does not define compatibility.
Verify supply requirements and installation conditions using the ballast and lamp documentation. Request a current functional check if ignition operation is required. The reviewed label does not define output voltage or an ultraviolet-disinfection performance rating.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
The DPS-500AB-32 A power-supply record covers a different power-conversion assembly. Send the required lamp and holder details through Contact us.
Request this part
Provide FSZ22A14W as the record reference with the installed ballast label, lamp specification and quantity. Confirm holder fit, current functional evidence and applicable warranty terms.
