SC-N2S: delivery record

The SC-N2S record describes three new FUJI contactors on 24 November 2025, with a one-year warranty, Japanese manufacture and a recorded weight of 1 kg. The photographed coil is marked 100–110 V at 50 Hz and 110–120 V at 60 Hz. Those frequency-specific markings conflict with the article title’s DC 110 V description.

Identification and delivery details

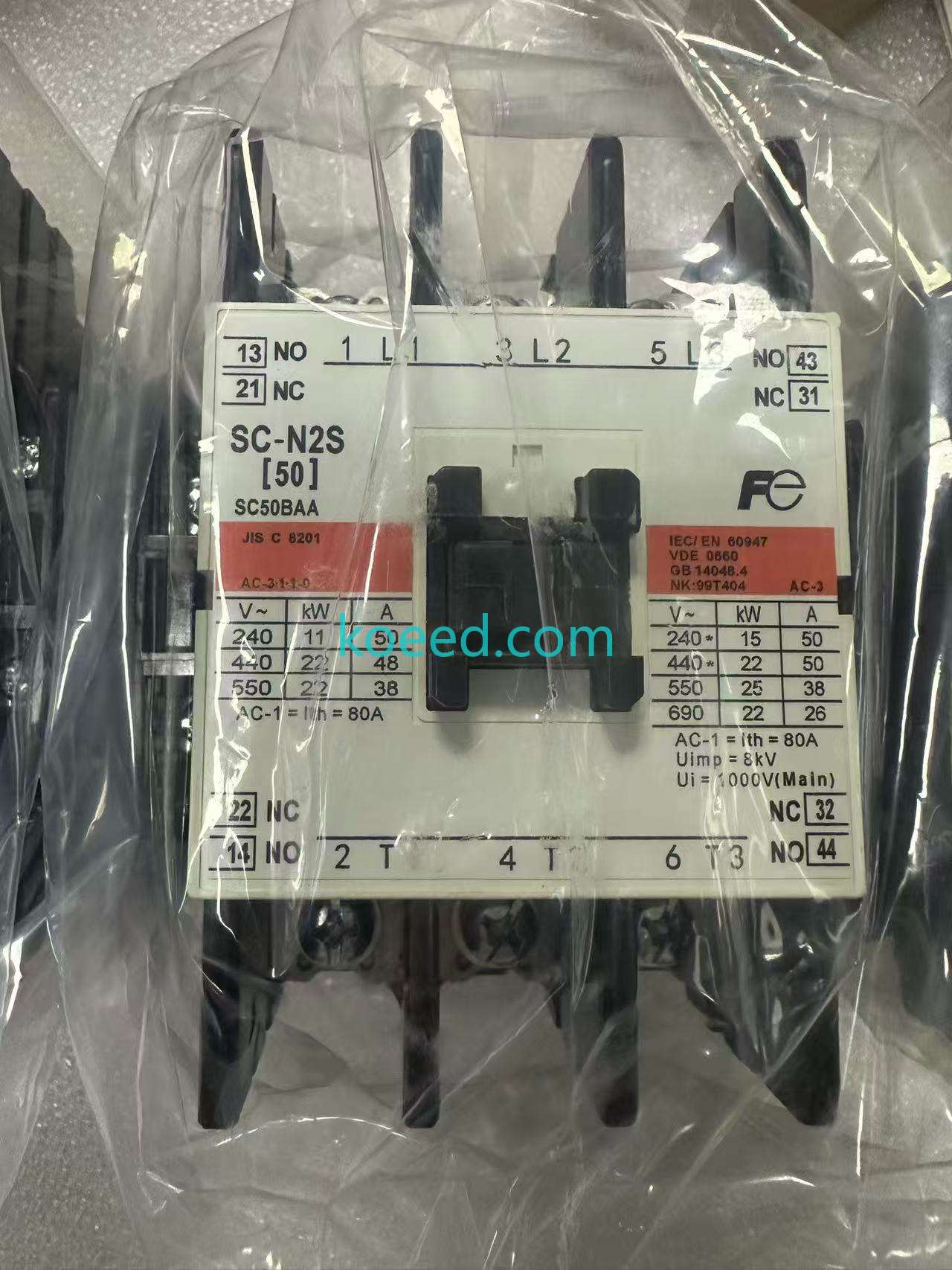

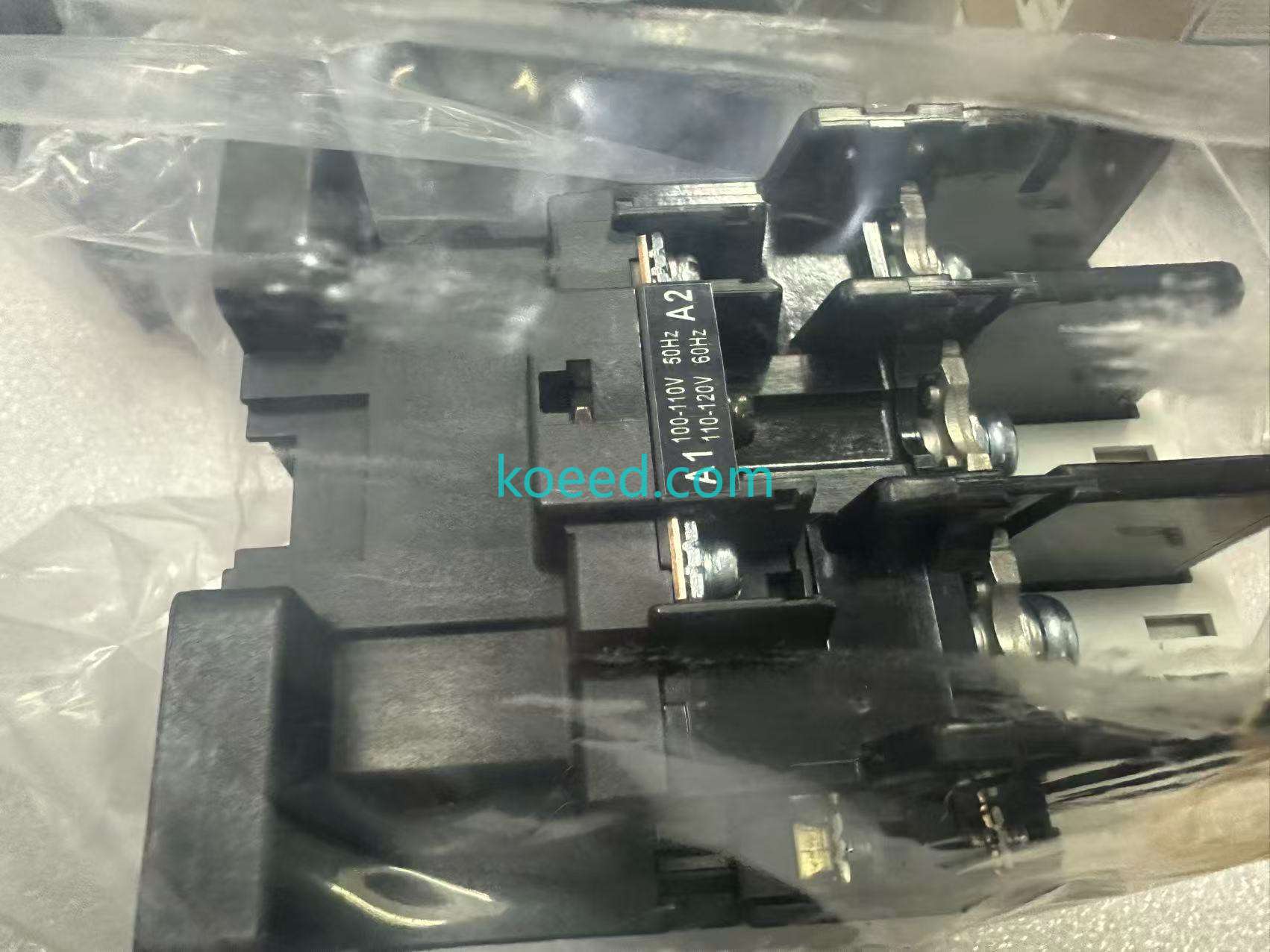

The first photograph looks down onto the bagged assembly and exposes the coil label between the terminals. Both voltage and frequency lines are readable. The second photograph was reviewed to establish the model behind that coil: the front reads SC-N2S [50] and SC50BAA, with an FE mark and separate contact-rating tables.

The right-hand AC-3 table lists 240 V / 15 kW / 50 A, 440 V / 22 kW / 50 A, 550 V / 25 kW / 38 A and 690 V / 22 kW / 26 A. The separate left table shows 240 V / 11 kW, 440 V / 22 kW and 550 V / 22 kW. These are printed rows under different headings; they are not one interchangeable universal rating.

The face also states AC-1 Ith = 80 A, Uimp = 8 kV and Ui = 1000 V (Main). The 80 A thermal-current marking is distinct from the AC-3 rows. This record transcribes the photographed plate rather than claiming that any load or insulation test has been performed.

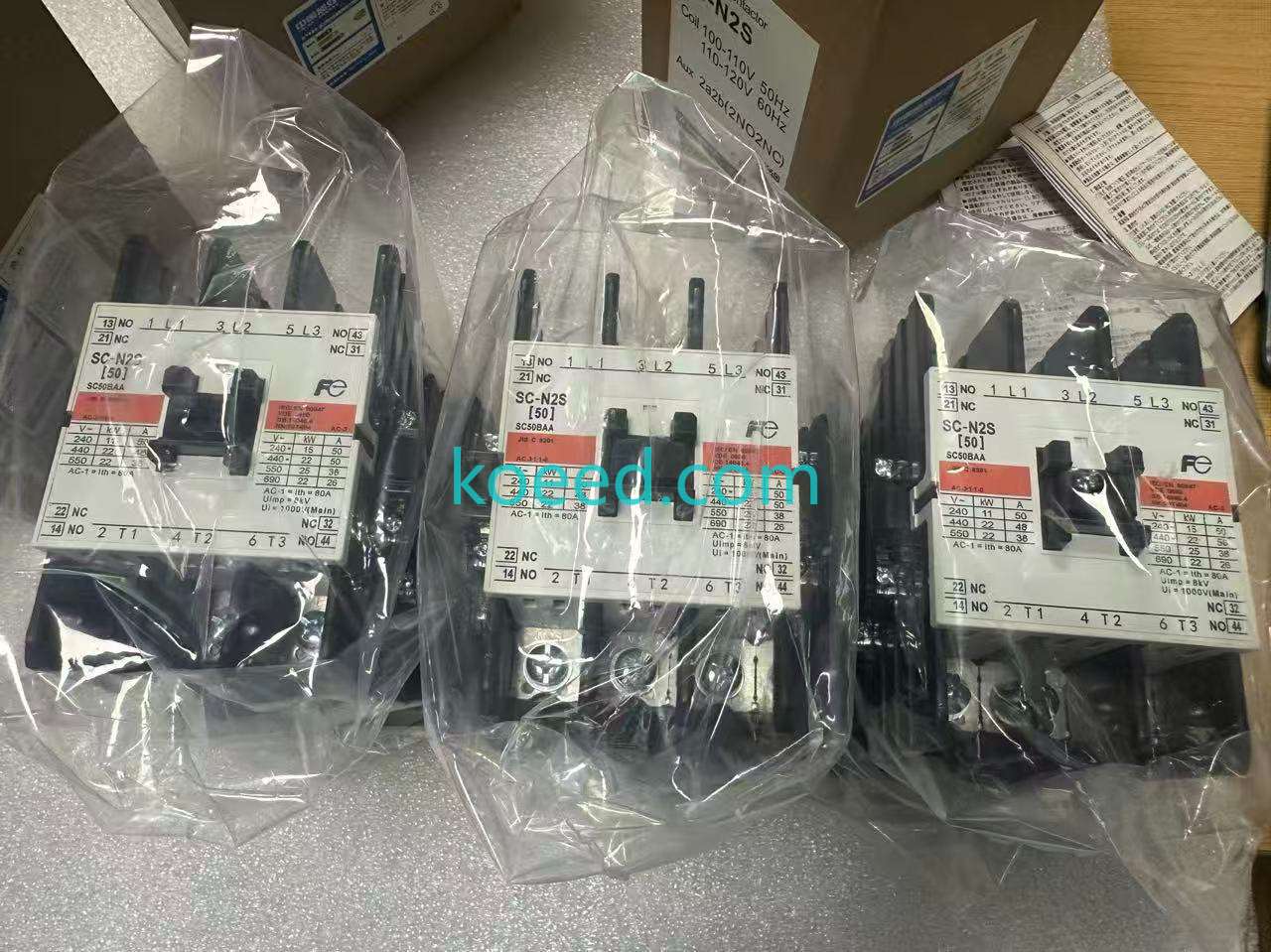

The source explicitly gives three pieces and describes them as new. The weight’s unit or group basis is unstated. Japan and the one-year warranty remain historical source terms, and the reviewed views do not independently authenticate manufacture or establish a current warranty offer. Plastic bags are visible; no box contents or sealed retail package were verified.

Swipe or scroll horizontally to read the full table.

Nine photographs and one MP4 video are retained from the complete SC-N2S source list. Photograph 1 was reviewed for its coil label; photograph 2 was needed to resolve the full front model and distinguish its printed rating tables. The remaining seven photographs have neutral captions. The video was downloaded and hashed but not viewed.

Matching this part

No catalogue product is attached. The queried DC 110 V offers do not match the photographed frequency-specific coil, and SC-N2S/G offers introduce a different suffix. The remaining base-model offers do not establish SC-N2S [50] / SC50BAA with both visible coil lines. A similarly named contactor is insufficient for a complete identity match.

A quotation should identify the full front code and coil markings on the actual unit, together with its current condition, packing and origin evidence. The historical three-piece note does not establish current stock, and a printed rating table does not establish the suitability of a particular installation.

Photos and recorded media

Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.

Related records and products

The SC-N1 source record also separates a catalogue voltage from what its reviewed photographs establish. Supply the complete SC-N2S [50] / SC50BAA and coil-label photographs when you contact KOEED or request a documented quotation.
