LWL9B: delivery record

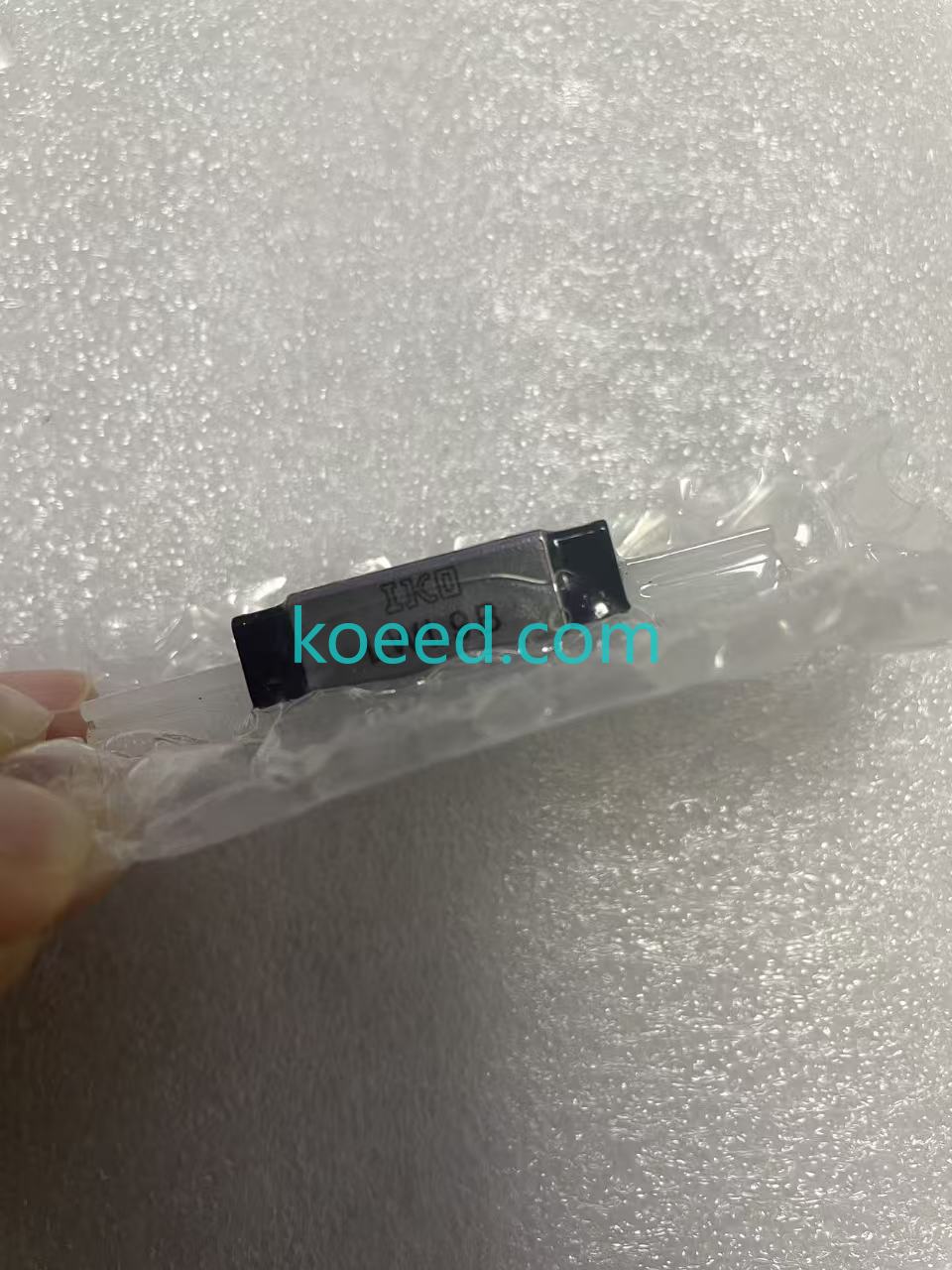

Eight linear guide blocks filed as IKO LWL9B were recorded on 28 January 2026 as new with packaging and a one-year supplier warranty. The first reviewed photograph shows IKO branding on a bagged metal block. The second shows eight individually wrapped blocks with IKO LINEAR WAY cartons, consistent with the recorded quantity.

Identification and delivery details

The first view is partly obscured by the bag and watermark, so the complete LWL9B model marking is not confidently readable. The second shows the grouped supply and packaging marked Made in Japan. That is packaging text; the reviewed material does not independently authenticate the blocks or establish the full variant on each unit.

The supplier gives a weight of 0.5 kg without a defined weighing scope. No dimensional inspection or running test is recorded. The archived description's micron-level precision and performance claims are not supported by these static views. The photos establish the packaged physical supply, without a verified rail pairing, preload or accuracy class.

Swipe or scroll horizontally to read the full table.

Evidence: supplier note and photographs 1 and 2. The second was reviewed to check identification and the grouped supply because the first model marking was obscured. Seven later photographs and one clip remain as neutral source media; their contents were not visually reviewed.

Matching this part

Request a readable complete marking for the offered LWL9B variant and compare it with the installed guide. Check the matching rail profile, block dimensions, mounting pattern and required accuracy/preload using the exact product documentation. A similar exterior or IKO carton does not establish interchangeability.

Clarify whether the supply consists of blocks only and what additional items are included. Request an appropriate dimensional and running check with the intended rail, then agree the one-year warranty terms. The record does not provide a measured load capacity, positioning accuracy or remaining service-life result.

Photos and recorded media

Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
