The D4BL-2CRA pictured here is an Omron SAFETY DOOR LOCK SWITCH, not the safety relay named in the retained article title. The record combines a two-unit entry dated 12 March 2026 and a separate three-unit entry dated 31 March 2026. Both describe original refurbished units with packaging and a one-year warranty. The photo groups show two and three boxed switches; they are kept as dated deliveries rather than presented as current stock.

Identification and delivery details

Readable body labels identify D4BL-2CRA, lot 18325ZA and MADE IN JAPAN. The cream metal housing has a red operating head, a black LOCK/UNLOCK manual-release cover, conduit openings and four mounting holes. Keys, coiled retaining straps and instruction sheets are photographed beside the switches. Cover edges and labels show marks, consistent with the recorded refurbished condition; branded boxes do not turn that condition into factory-new status.

The label separates the electromagnet circuit, 24 V DC, 100% ED, 300 mA, from the AC-15 contact rating of 3 A at 250 V AC. Its diagram identifies E1/E2 and contact terminals, and the case carries IP67, NEMA A300 and Type 6P/13 markings. These are printed product markings, not evidence that this delivered switch or an installed machine has passed a safety-system validation. The old description's Category 4/SIL 3 relay claims are not established by these photographs.

Photographed markings and delivery record
Item	Evidence
Photographed identity	Omron D4BL-2CRA safety door lock switch / guard-lock safety-door switch
Electromagnet rating	24 V DC, 300 mA, 100% ED, as printed
Contact rating	AC-15, 3 A at 250 V AC; separate from coil current
Visible terminal diagram	E1/E2 electromagnet; switch contact numbers shown on label
Case markings	IP67; NEMA A300; Type 6P and 13; condition and installation require verification
Construction	Metal housing, red operating head, manual-release cover and conduit openings
Lot and country	18325ZA; MADE IN JAPAN on body; same lot on photographed boxes
Dated quantities	12 March: two units; 31 March: three units; separate recorded deliveries
Condition and warranty	Original refurbished with packaging, as recorded; one-year warranty for both entries
Weight conflict	Earlier text says 0.5 kg; later text and record field say 1 kg; neither is a photographed weighing

Swipe or scroll horizontally to read the full table.

All twenty photos were reviewed. Model, coil and contact ratings come from readable body labels. The two dated entries and weight discrepancy are disclosed separately. Packaging and security stickers are visible without an independent provenance check or machine safety certification.

Matching this part

Provide the complete switch model, operating-key type, head orientation, guard geometry and wiring requirements. Confirm the required locking/release behavior from the exact unit instructions. A retaining strap or release key in a photograph does not prove that every required actuator accessory is included.

Ask for condition details, contact continuity, locking/release operation and agreed acceptance evidence for the refurbished units. Have the complete guard circuit assessed for its intended application; a printed contact rating does not establish the installed system's safety category.

Photos and recorded media

Two switches inside opened boxes, with cream housings, red heads and coiled key-retaining straps.

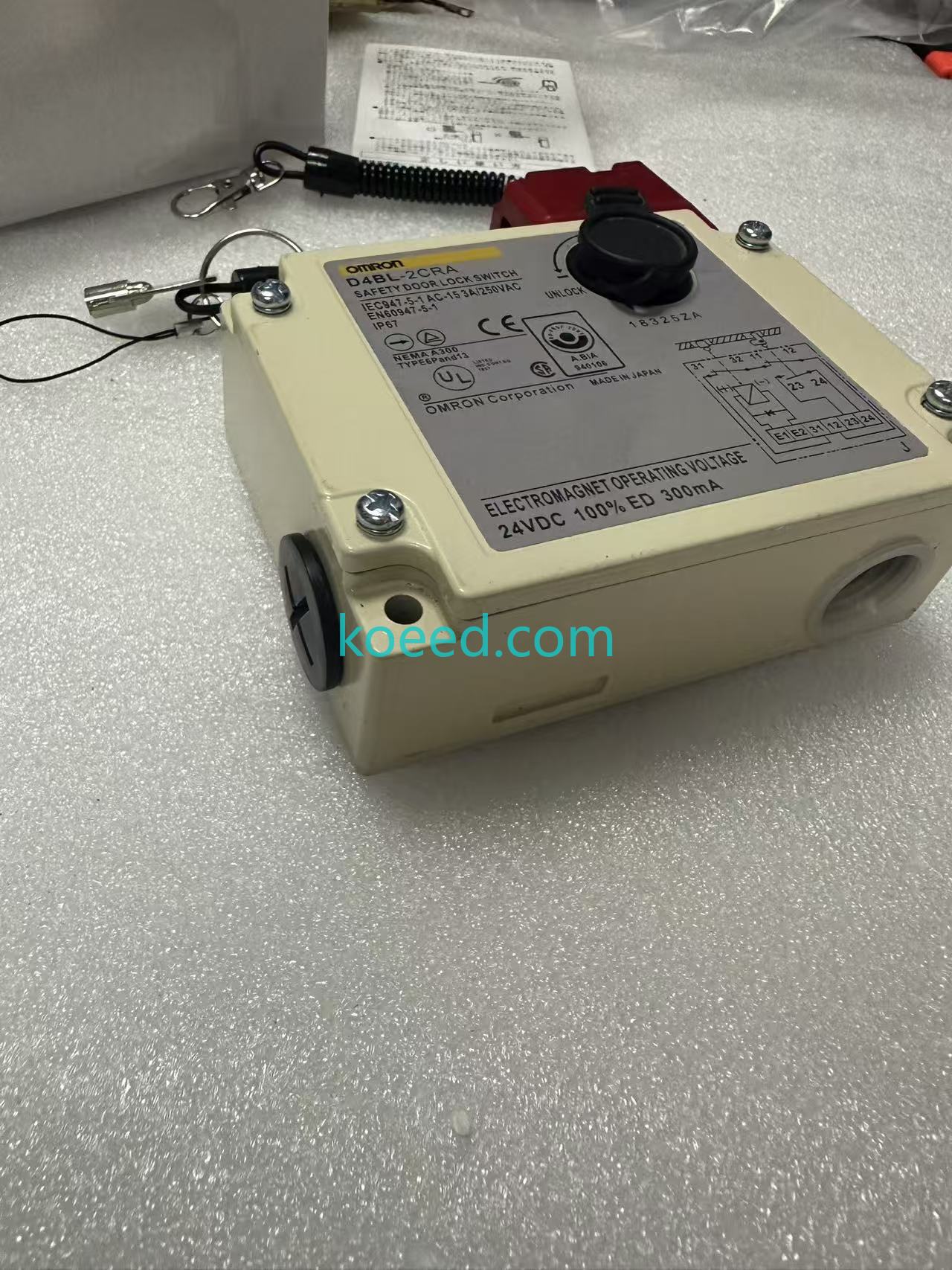

Oblique label view separating 24 V DC electromagnet voltage and 300 mA current from the switch markings.

Red operating head and LOCK/UNLOCK cover on the metal housing.

Upright switch label and keys with a coiled retaining strap.

Two box labels identifying D4BL-2CRA guard-lock safety-door switches, lot 18325ZA and Qty 1.

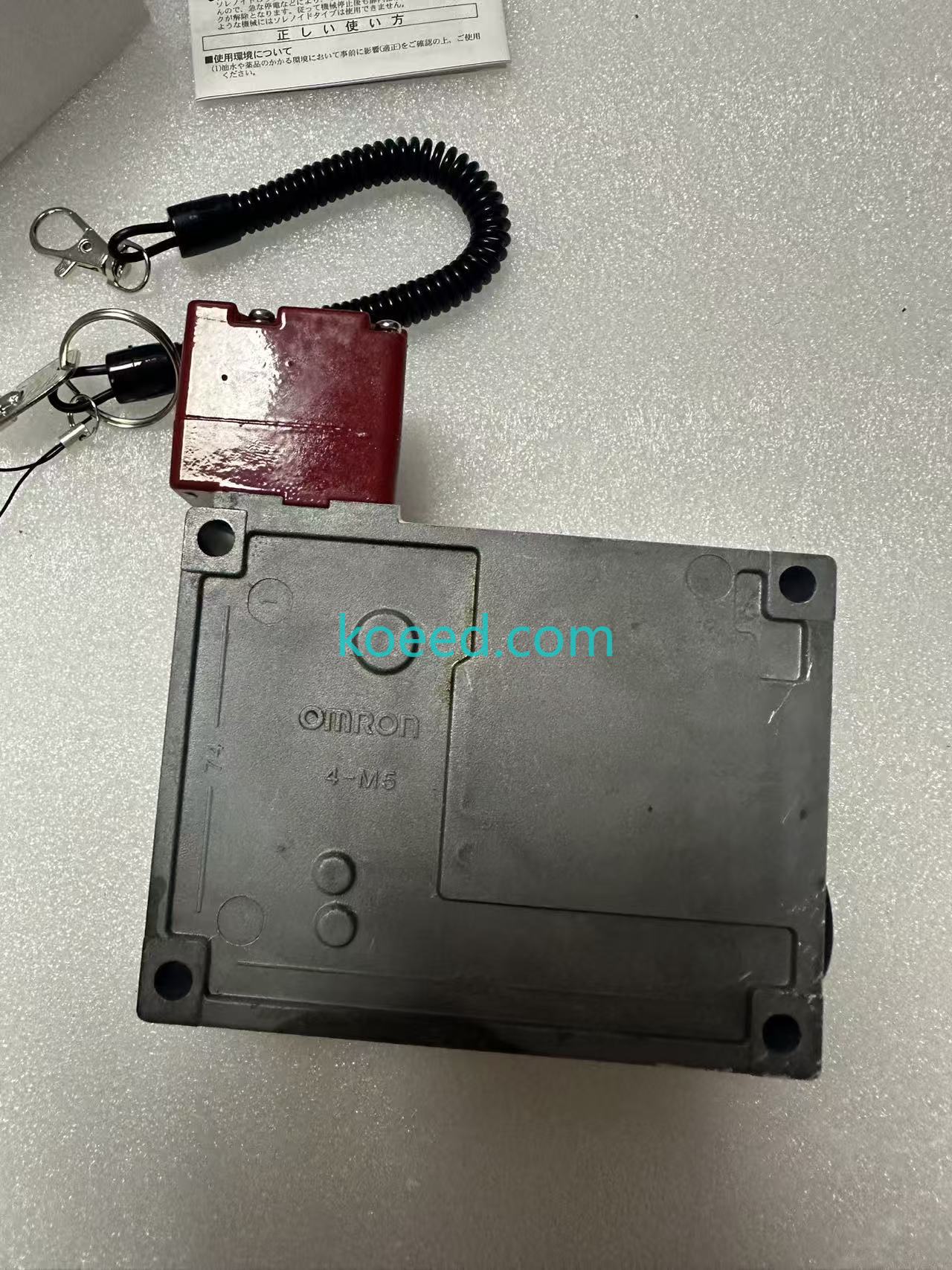

Metal underside with four mounting holes, embossed Omron mark and 4-M5 marking.

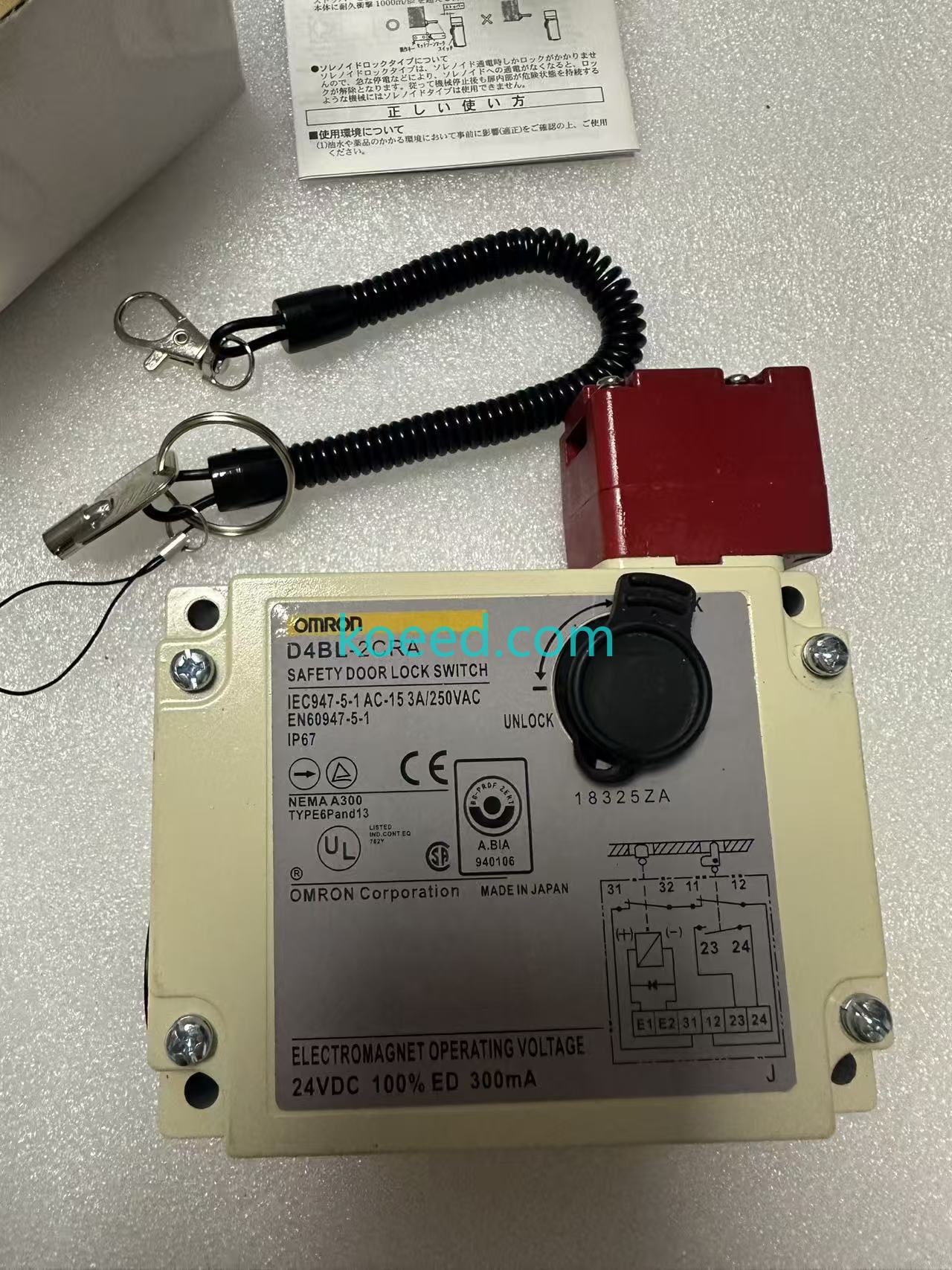

Readable body label showing D4BL-2CRA, AC-15 3 A/250 V AC and 24 V DC 300 mA electromagnet rating.

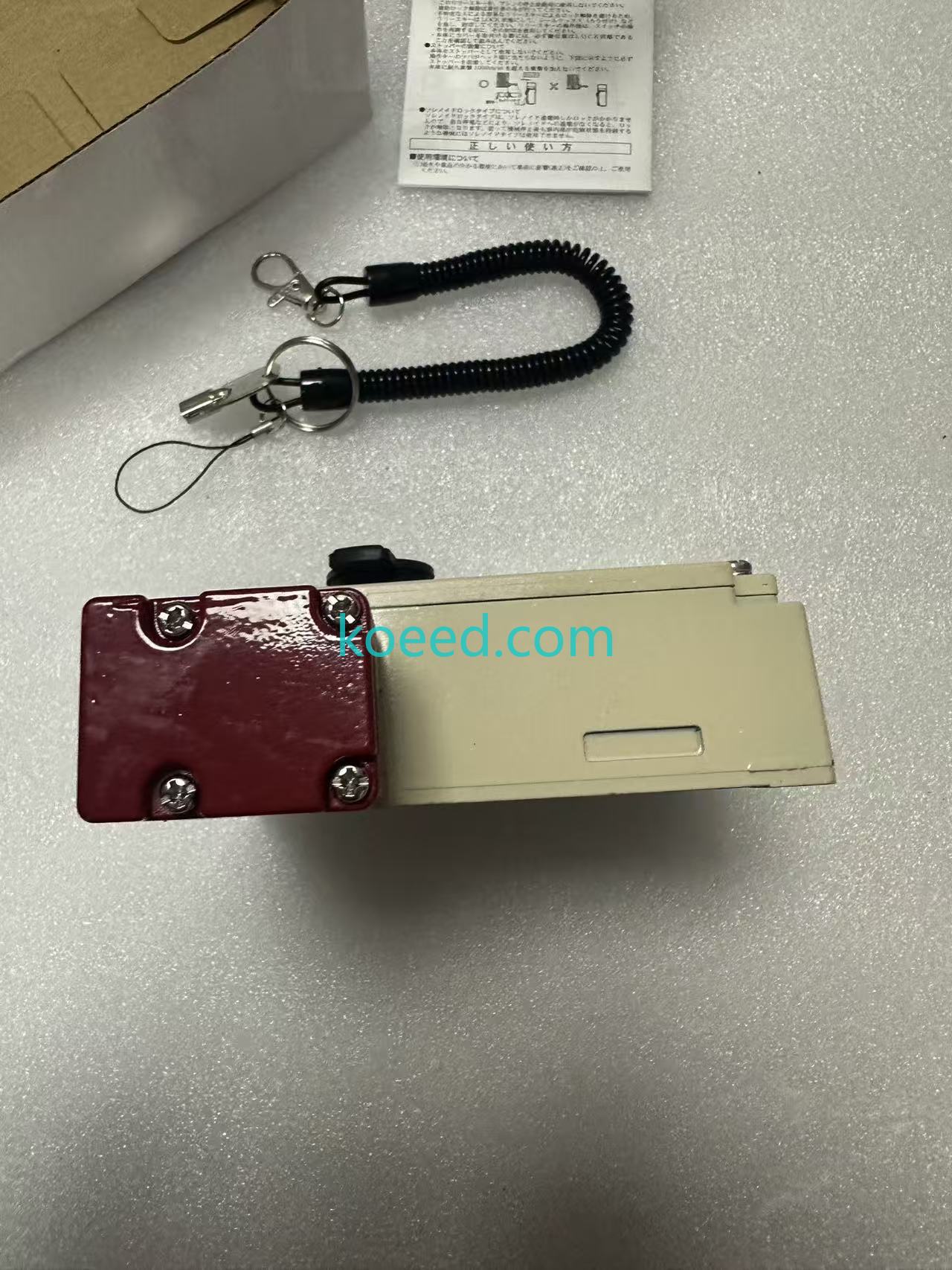

Side view of the red head and cream housing, with visible surface marks.

Two bagged switches in opened cartons with instruction sheets.

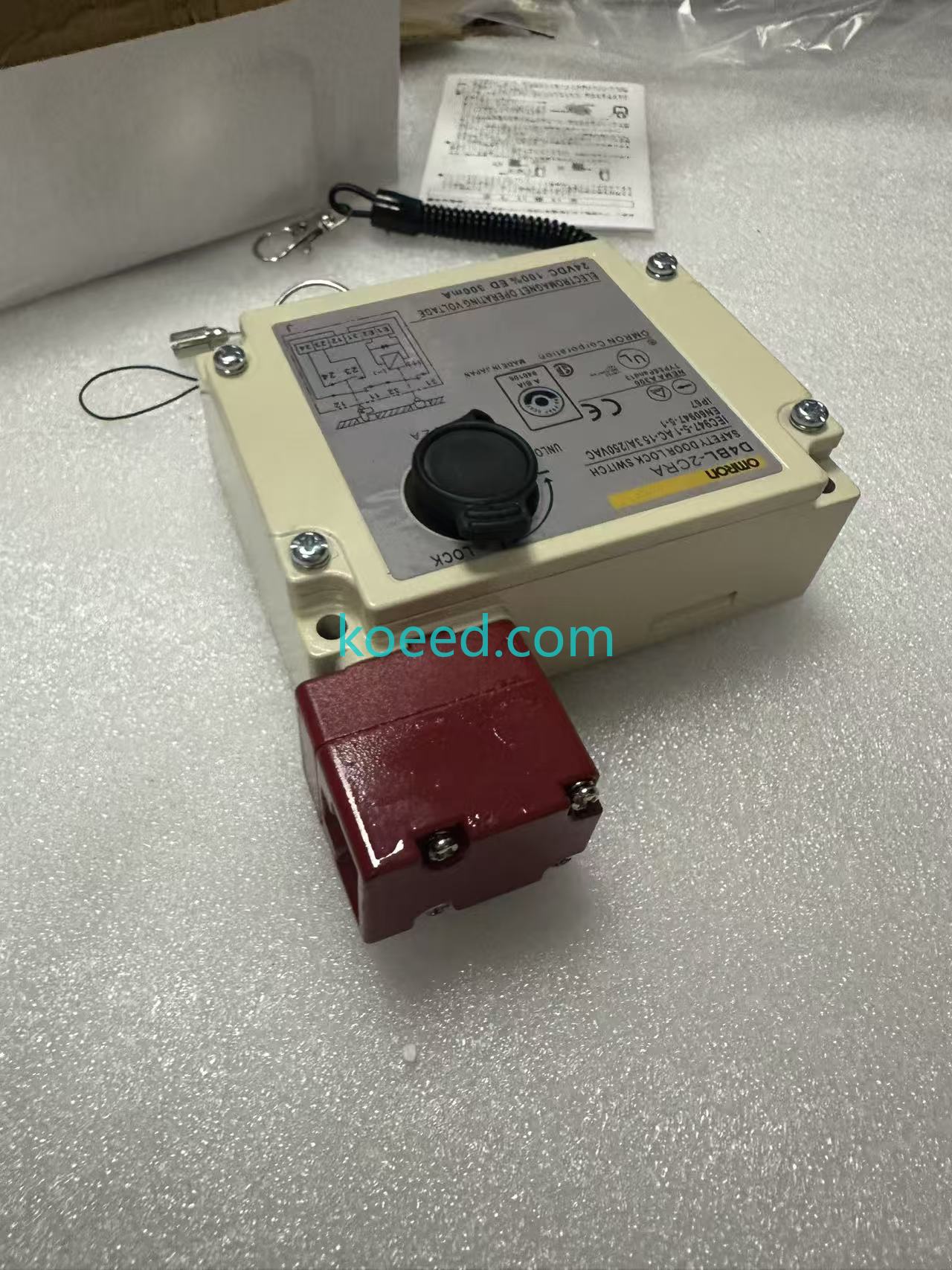

Another oblique view of the switch cover, manual-release cap and conduit openings.

Single unpacked switch beside its box, instructions and retaining strap.

Upright full switch face with key accessories and manual-release cover.

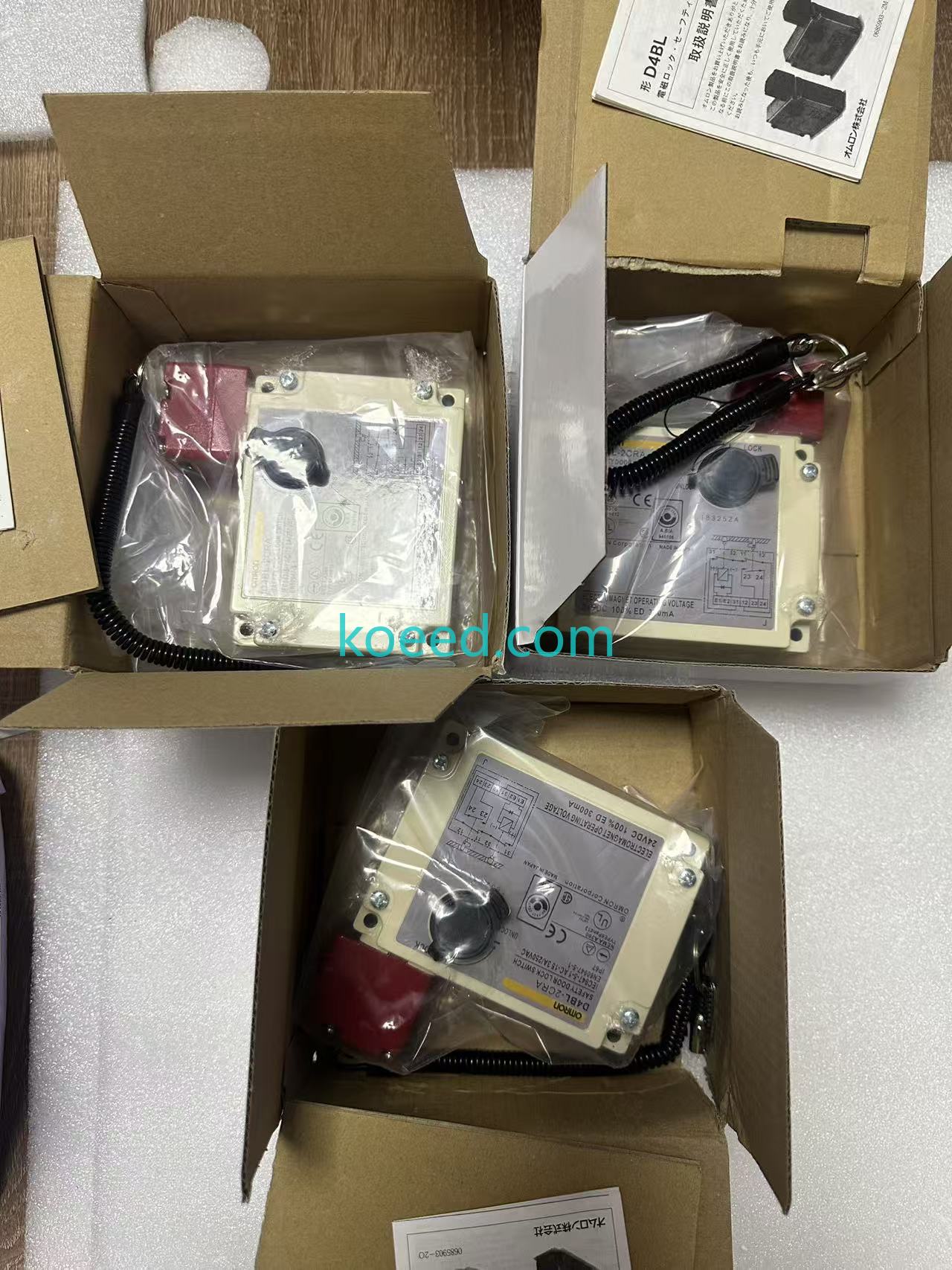

Three switches inside separate opened boxes, with instruction leaflets and retaining straps.

Side housing and red-head view beside a coiled strap.

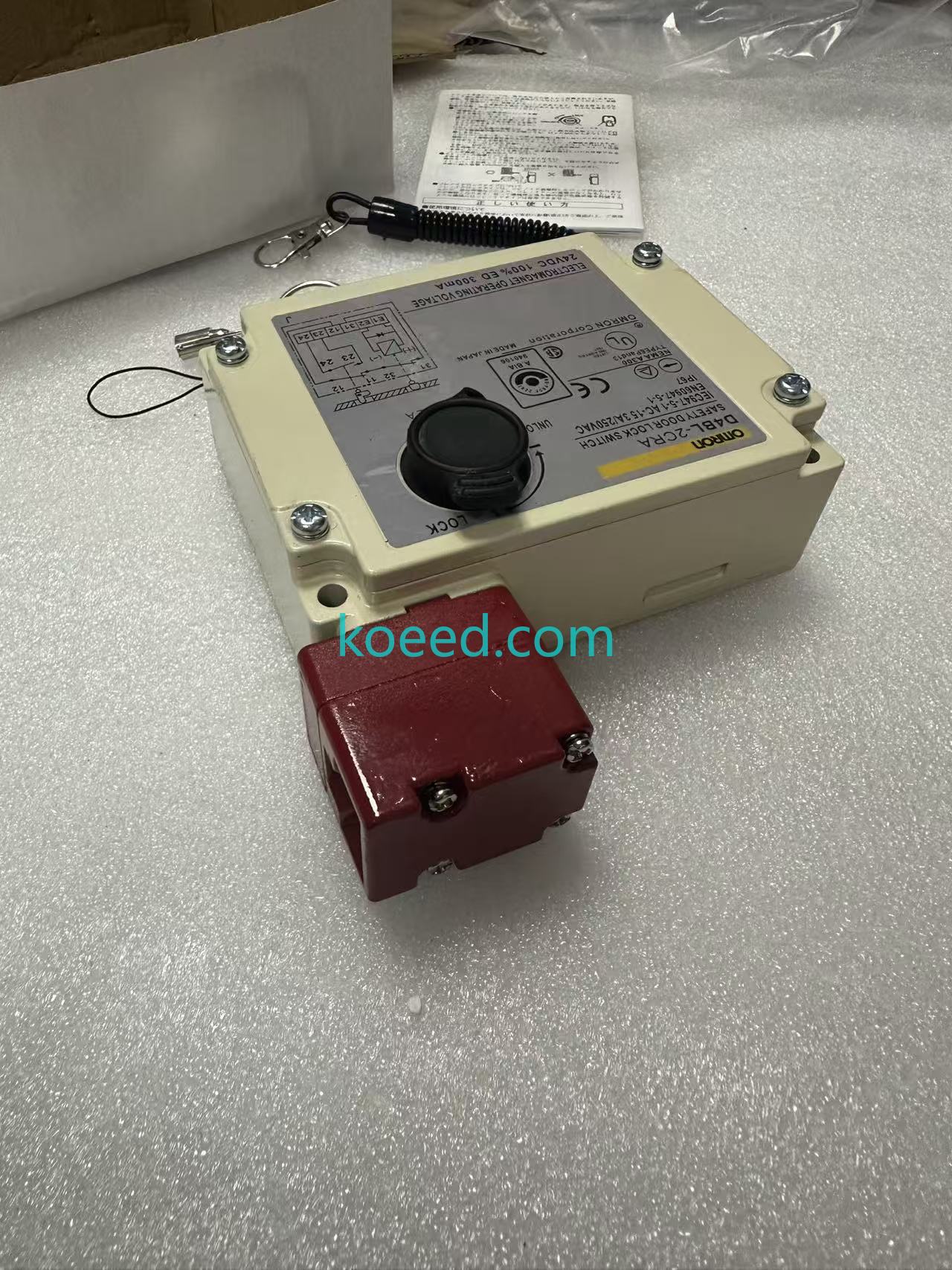

Oblique cover and red-head view, showing the labelled release direction.
