PNOZ ML2P 773602: delivery record

16. srpen 2026

Historical parts record: Photos and notes below belong to this record. Confirm the offered unit’s full model, condition and available test evidence before ordering.

The reviewed front of this Pilz module carries PNOZ ml2p and 773602 markings. It shows labelled CAN and supply terminals and READY, FAULT and TR indicator positions. The record preserves five photographs of the item; it does not provide a commissioned-system test.

Identification and delivery details

The yellow front and green housing are wrapped in clear film. The upper connector is marked X1 with CAN+, CAN-, VCC, GND and Shield labels; the lower X2 area carries repeated 24V and 0V markings. These are observed terminal legends, not a complete wiring instruction.

The second view shows the green vented side and a mounting feature. It does not reveal a readable side rating label or revision. The first two photographs support the front identity without verifying every configuration or firmware detail.

The source declares German manufacture and an upload date of 1 July; the stored record was created on 2 July 2025. These dates are not a production date. The note does not explicitly state condition, a warranty term or quantity independently of its financial shorthand.

The zero weight field supplies no usable shipping weight. Clear wrapping alone does not establish new or unused condition. Current availability and package contents require separate confirmation.

The exact Pilz 773602 PNOZ ml2p SafeLink PDP catalogue entry has been checked for an active product identity and storefront address. Its new wording is a catalogue declaration and does not retrospectively certify the historical photographed item's condition.

For replacement work, confirm the exact module, revision, base-unit compatibility and intended network arrangement from the machine documentation. The record does not demonstrate a performance level, SIL rating, operational safety function or completed validation for an assembled machine.

Photographed markings and delivery record
Item	Evidence
Reviewed manufacturer / type	Pilz / PNOZ ml2p
Reviewed identifier	773602
Front terminal legends	X1: CAN+, CAN-, VCC, GND, Shield; X2: 24V and 0V
Indicators	READY, FAULT, TR legends visible; operation untested
Revision / firmware	Not verified
Source origin	Germany; declaration
Condition / quantity / warranty	Not explicitly stated in source
Weight / record date	No usable weight; record created 2 July 2025

Swipe or scroll horizontally to read the full table.

Front markings identify the photographed module. German origin remains a source declaration, while condition, revision and machine-level safety performance are unresolved.

Matching this part

Supply readable rating and revision labels and the relevant base-unit and connected-device identifiers. Confirm this exact 773602 variant against the machine documentation.

Agree offered-unit condition, package contents, current quantity and warranty. Request appropriate module testing and machine-specific validation evidence rather than treating a photograph as an operating result.

Photos and recorded media

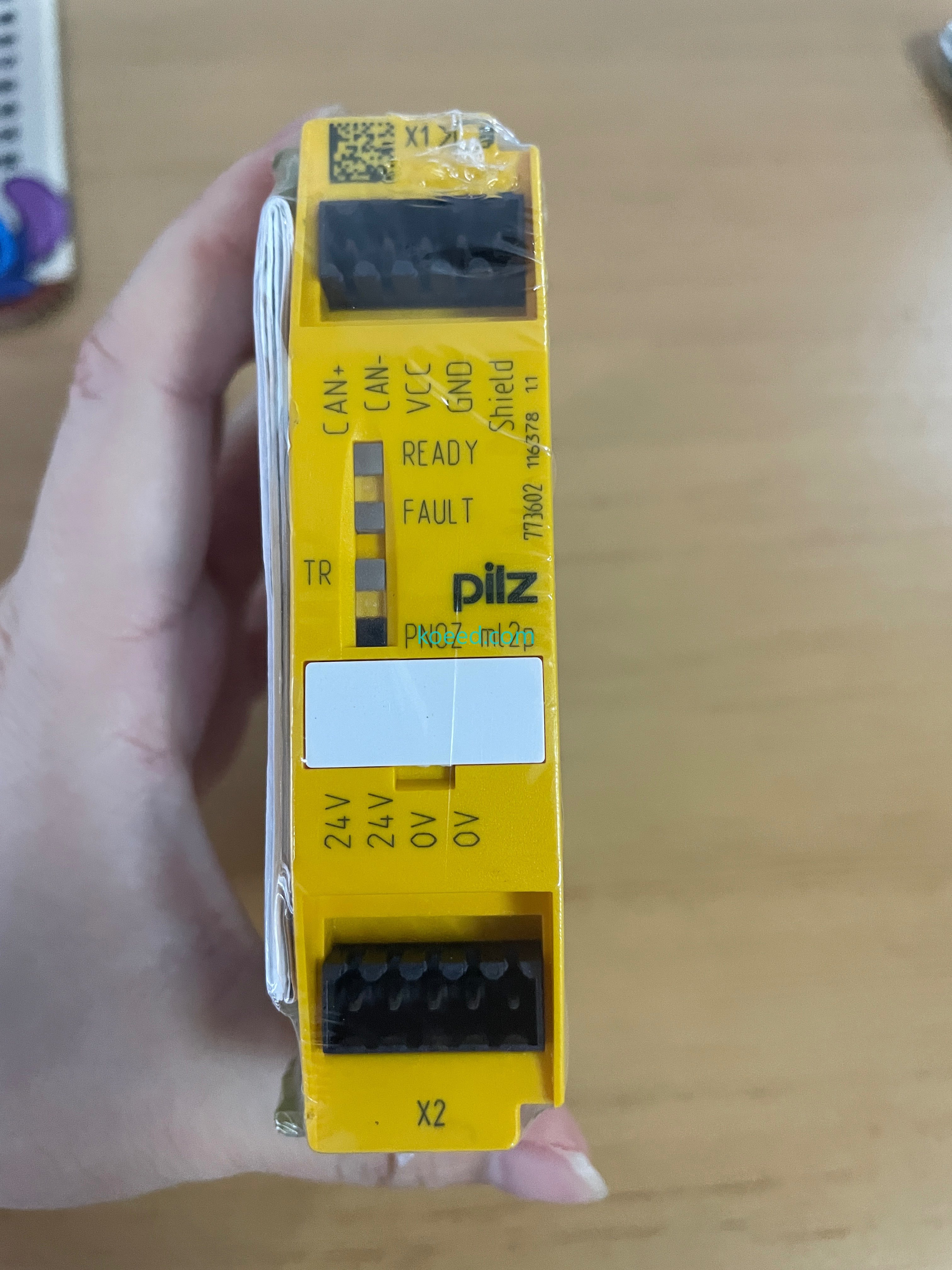

Wrapped Pilz front marked PNOZ ml2p and 773602, with CAN/supply terminal legends and READY, FAULT and TR indicator positions.

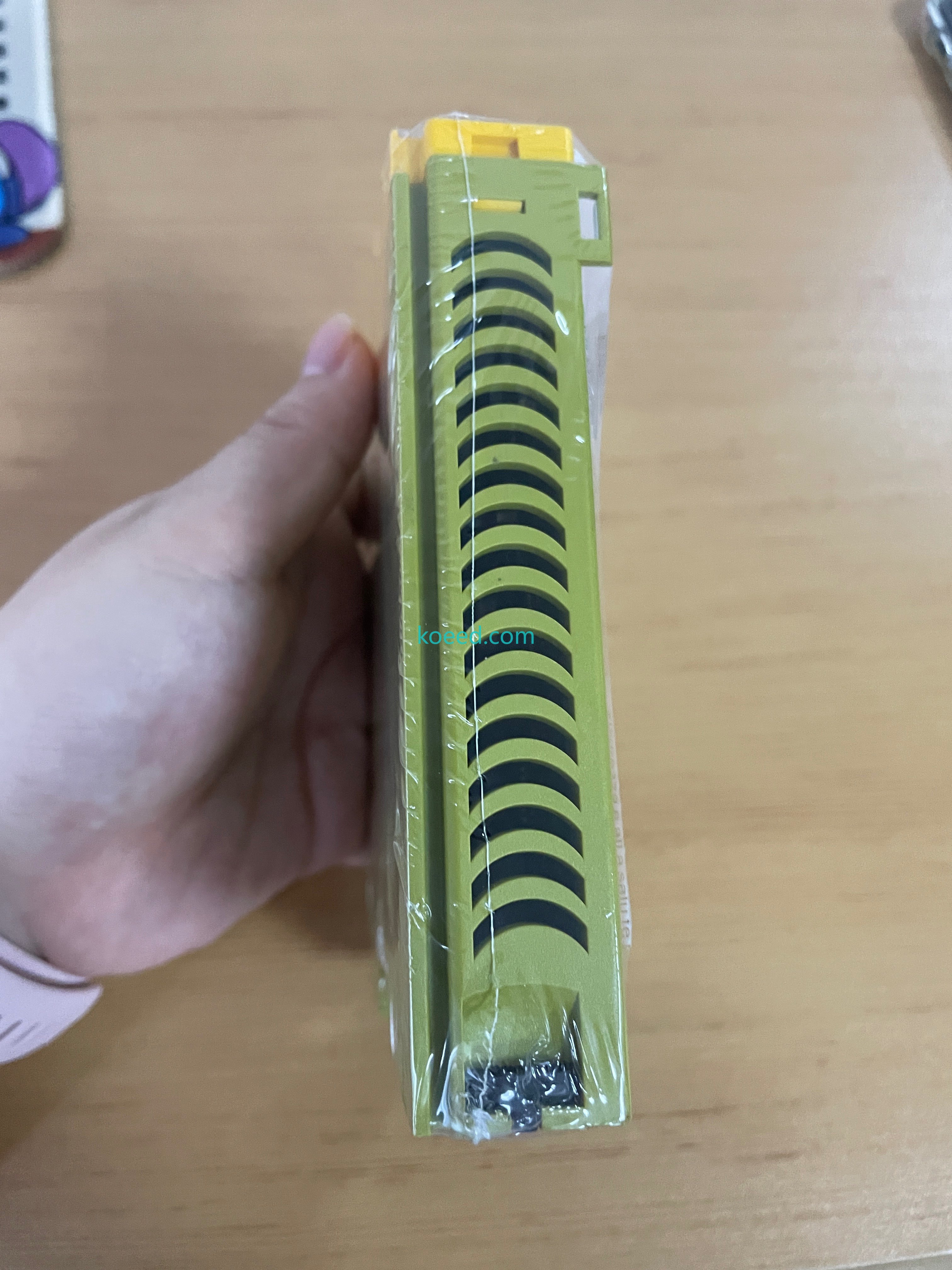

Green vented side of the wrapped module with mounting feature; no readable rating or revision label is shown.

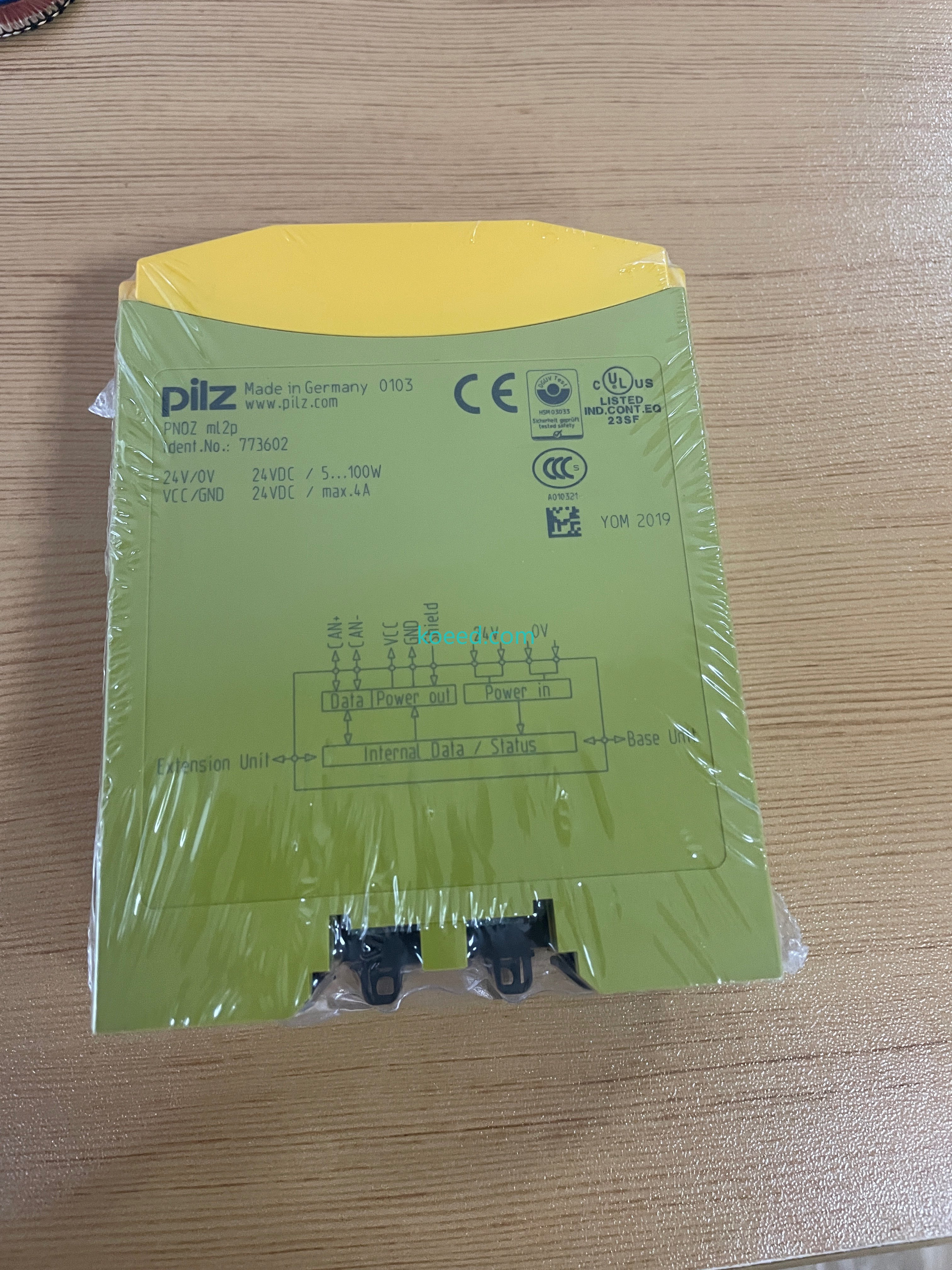

Source-record photograph 3 filed under PNOZ ML2P 773602.

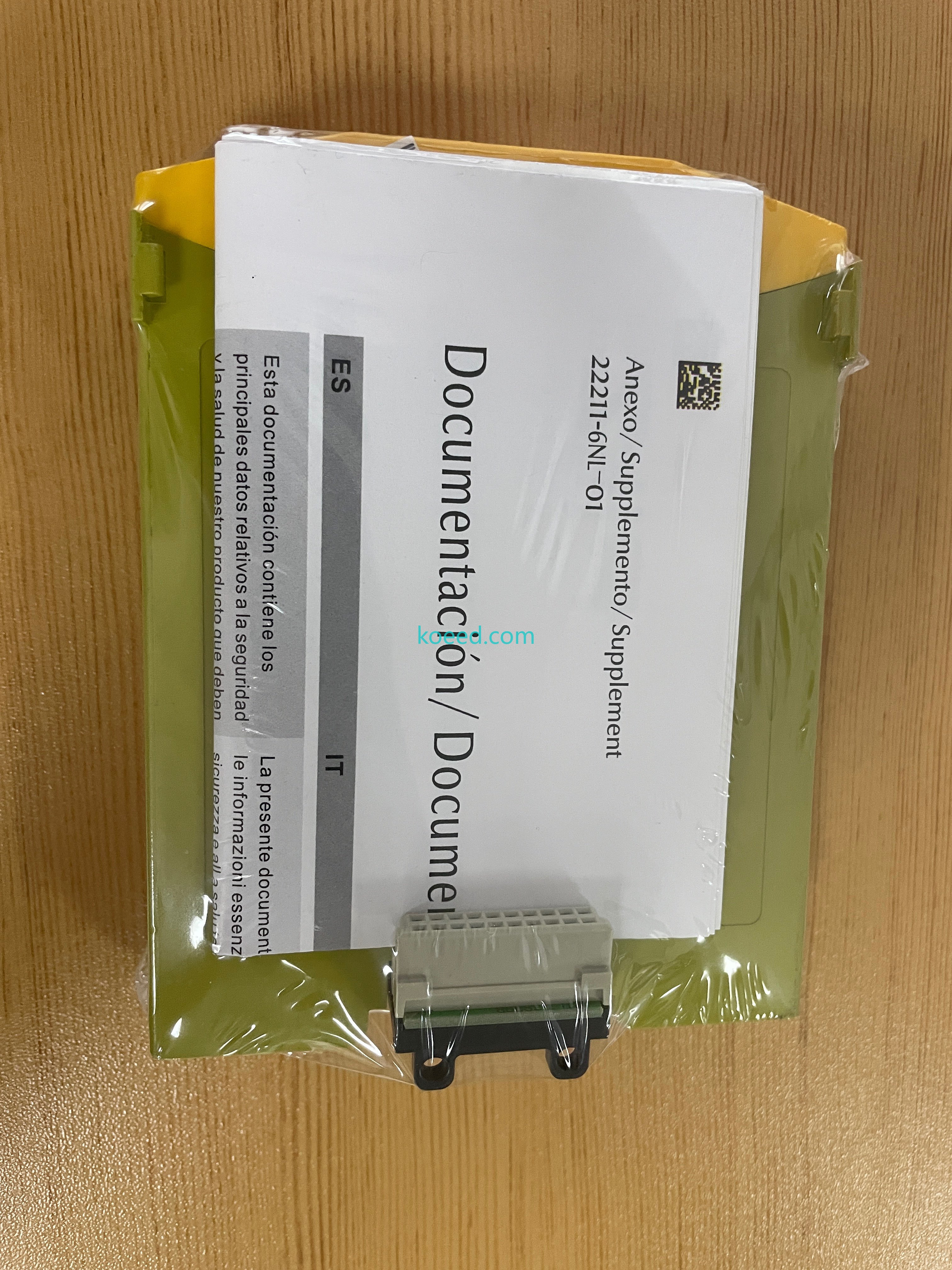

Source-record photograph 4 filed under PNOZ ML2P 773602.

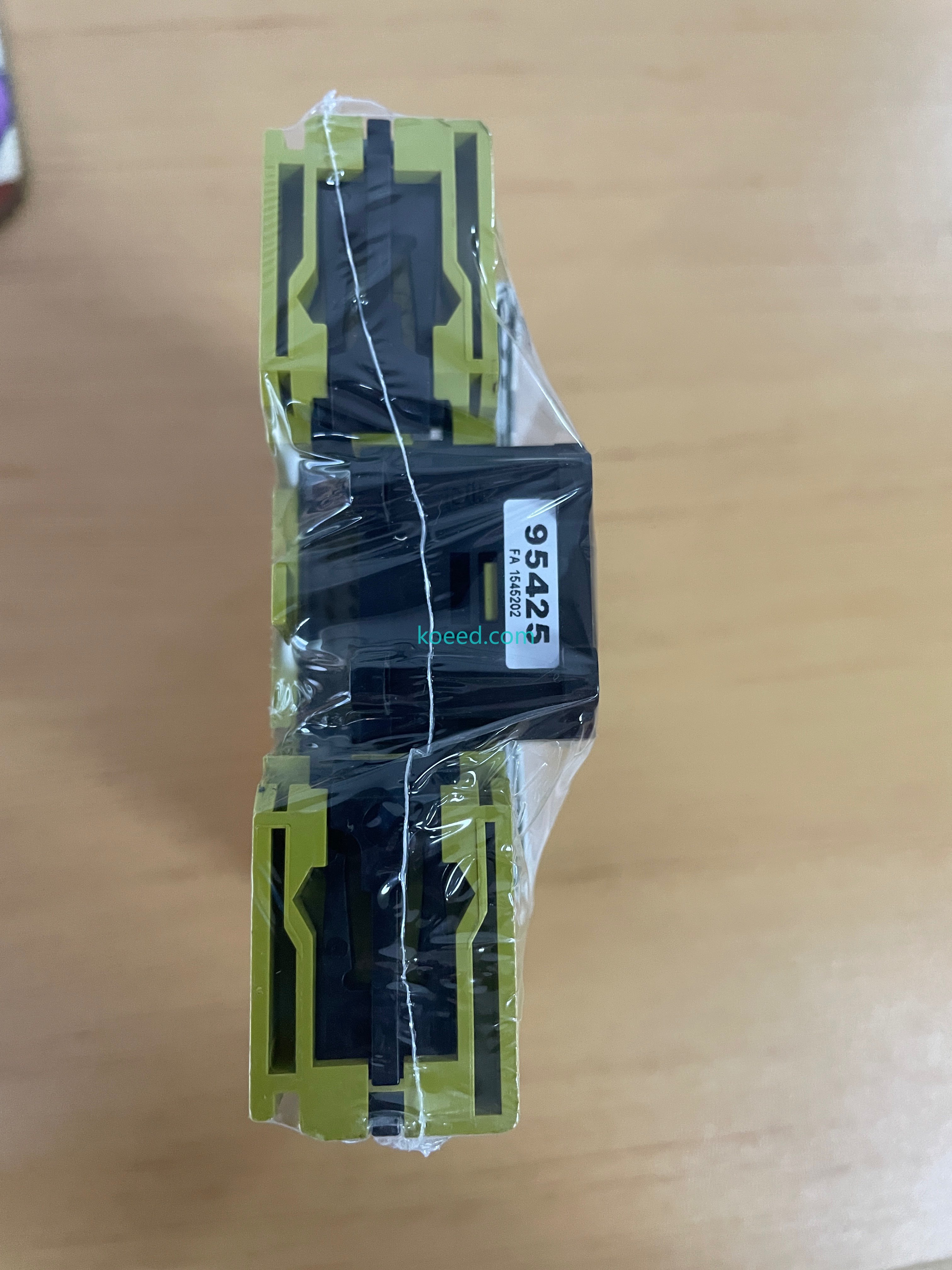

Source-record photograph 5 filed under PNOZ ML2P 773602.

View the 1PC Pilz 773602 PNOZ Module - SafeLink PDP safely connects and controls industrial processes catalogue listing. Confirm the exact configuration and condition; a catalogue entry does not identify this delivered unit. Discuss the full module and base-unit identifiers through the contact page.
