872C-D8NP18-E2 Allen-Bradley Inductive Proximity Sensor: 2026 Technical Guide, ROI & IT/OT Integration
1. Strategic Overview: Why the 872C-D8NP18-E2 Matters in 2026
In the 2026 industrial automation landscape, proximity sensors are no longer commodity transducers — they are data acquisition nodes feeding real-time telemetry into MES, SCADA, and cloud ERP platforms. The 872C-D8NP18-E2, part of Rockwell Automation's Bulletin 872C series, exemplifies this evolution. Designed for general-purpose metal object detection, this sensor excels in CNC machining centers, automated assembly lines, robotic end-of-arm tooling, and conveyor positioning systems where microsecond-level response and long-term reliability are non-negotiable.
Key Market Positioning (2026)
With global smart manufacturing projected to exceed $650 billion by 2026, inductive sensors like the 872C-D8NP18-E2 have become foundational to predictive maintenance frameworks. Facilities deploying IO-Link master gateways are retrofitting these 3-wire DC sensors with inline IO-Link converters, unlocking diagnostics data — switching cycle counters, voltage sag logs, and temperature drift histograms — previously trapped at the edge.
The 872C-D8NP18-E2's unshielded 8mm sensing range provides superior detection distance compared to shielded equivalents, enabling flexible mounting in applications where the target approach is lateral rather than axial. Its PNP (sourcing) output configuration integrates seamlessly with Rockwell's ControlLogix and CompactLogix PLC families, as well as third-party controllers prevalent in Asian and European automation ecosystems.
2. Technical Specifications & Benchmarking
Below is a comprehensive specification breakdown of the 872C-D8NP18-E2, contextualized against legacy sensor generations and competing solutions in the 2026 market.
| Parameter | 872C-D8NP18-E2 Specification | Legacy Equivalent (871C Series) | 2026 Industry Benchmark |
|---|---|---|---|
| Sensing Distance | 8 mm (unshielded) | 5 mm (shielded) | 6–10 mm (18mm barrel) |
| Output Type | PNP, Normally Open (NO) | NPN, NO | PNP dominant / IO-Link ready |
| Supply Voltage | 10–30V DC | 10–30V DC | 10–36V DC (wide-range) |
| Switching Frequency | 1,500 Hz | 800 Hz | 1,000–2,000 Hz |
| Housing Material | Nickel-Plated Brass | Stainless Steel (304) | Ni-Brass / 316L SS |
| Ingress Protection | IP67 | IP65 | IP67–IP69K |
| Connection | 2m PVC Cable (5-conductor) | M12 Quick-Disconnect | Cable or M12 QD |
| Temperature Range | -25°C to +70°C | -10°C to +60°C | -30°C to +80°C |
| Diameter / Length | 18mm / 63mm | 18mm / 55mm | 18mm / 50–75mm |
| Status Indication | 360° Visible LED | Single-point LED | 360° multi-color LED |
| Short-Circuit Protection | Yes (built-in) | No | Standard |
ROI Snapshot: 872C-D8NP18-E2 vs. Legacy Retrofits
Based on 2026 field data from mid-volume automotive tier-1 suppliers, upgrading from legacy 871C shielded sensors to the 872C-D8NP18-E2 yields an average 23% reduction in false-trigger events, translating to approximately $4,200/year in avoided downtime per production cell. The extended sensing range eliminates precision fixturing requirements, reducing mechanical design costs by an estimated 12–18% per new station deployment.
3. IT/OT Convergence & Smart Factory Integration
In 2026, the 872C-D8NP18-E2 plays a pivotal role in unified namespace architectures. When paired with an IO-Link converter (e.g., Rockwell's 1732E ArmorBlock or Balluff BNI series), this sensor transforms from a binary switch into an intelligent data node.
3.1 Data Pipeline Architecture
Edge Layer: 872C-D8NP18-E2 → IO-Link Master → PLC (CompactLogix 5380 / Siemens S7-1500)
OT Layer: PLC → FactoryTalk / WinCC SCADA → Historian (OSIsoft PI)
IT Layer: Historian → MQTT Broker → Azure IoT Hub / AWS IoT Core → ERP (SAP S/4HANA)
3.2 Predictive Maintenance Metrics
Through IO-Link augmentation, the following diagnostic parameters become available, enabling AI-driven predictive maintenance models:
- Cycle Counter: Track actuation counts to forecast end-of-life before failure.
- Voltage Drift Monitor: Detect power supply degradation before undervoltage lockout.
- Temperature Histogram: Identify thermal anomalies correlated with mechanical misalignment.
- Oscillation Detection: Flag unstable switching patterns indicative of target chatter or EMI interference.
3.3 Sustainability & Energy Impact
The 872C-D8NP18-E2's low current consumption (typical <15mA at 24V DC) contributes to leaner control panel thermal profiles. Across a 200-sensor deployment, aggregate energy draw is under 72W — a fraction of legacy photoelectric or capacitive alternatives. Combined with the sensor's RoHS-compliant nickel-plated brass housing (fully recyclable), this supports corporate ESG reporting and Scope 2 emissions reduction targets in 2026 manufacturing operations.

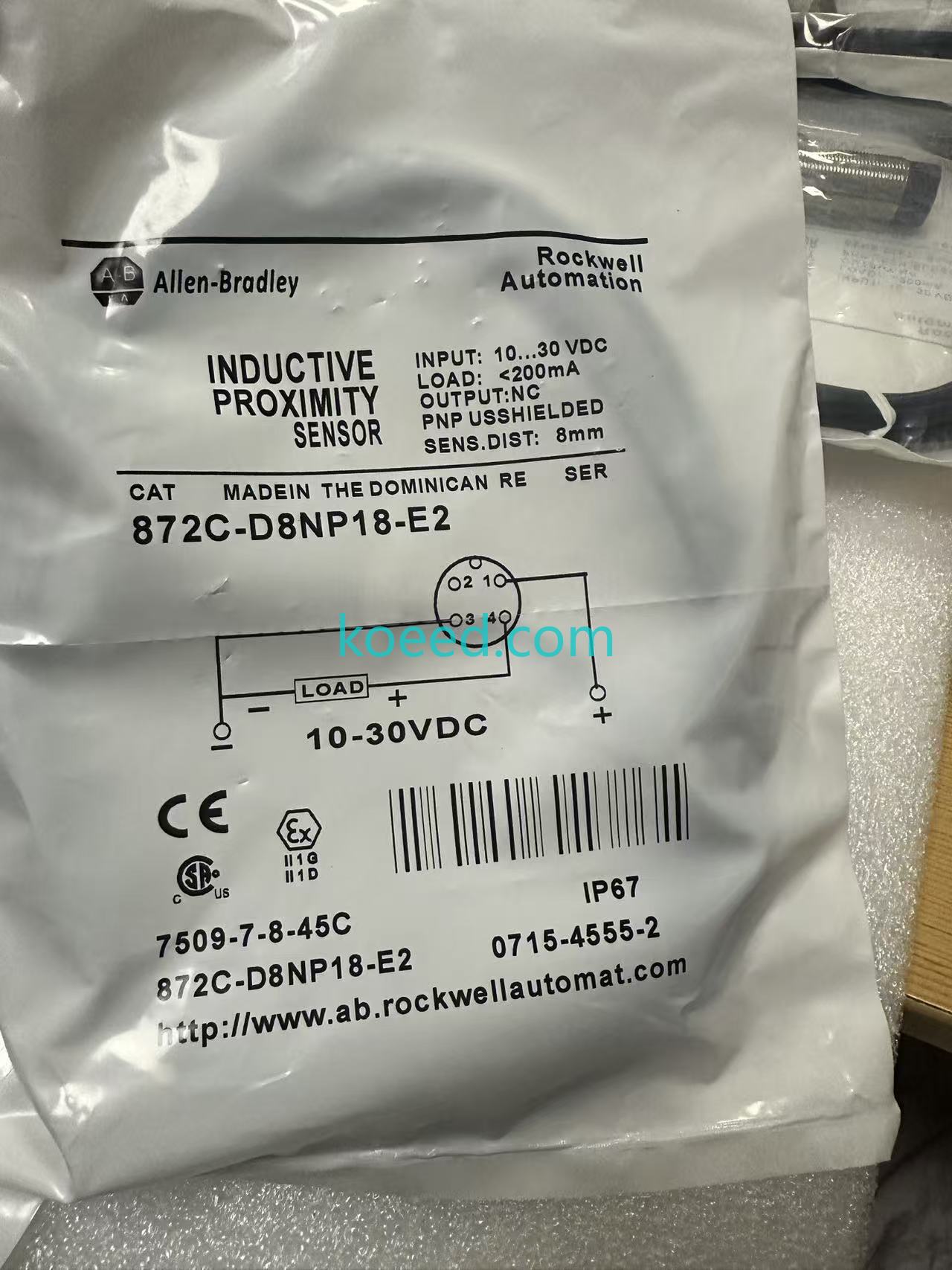

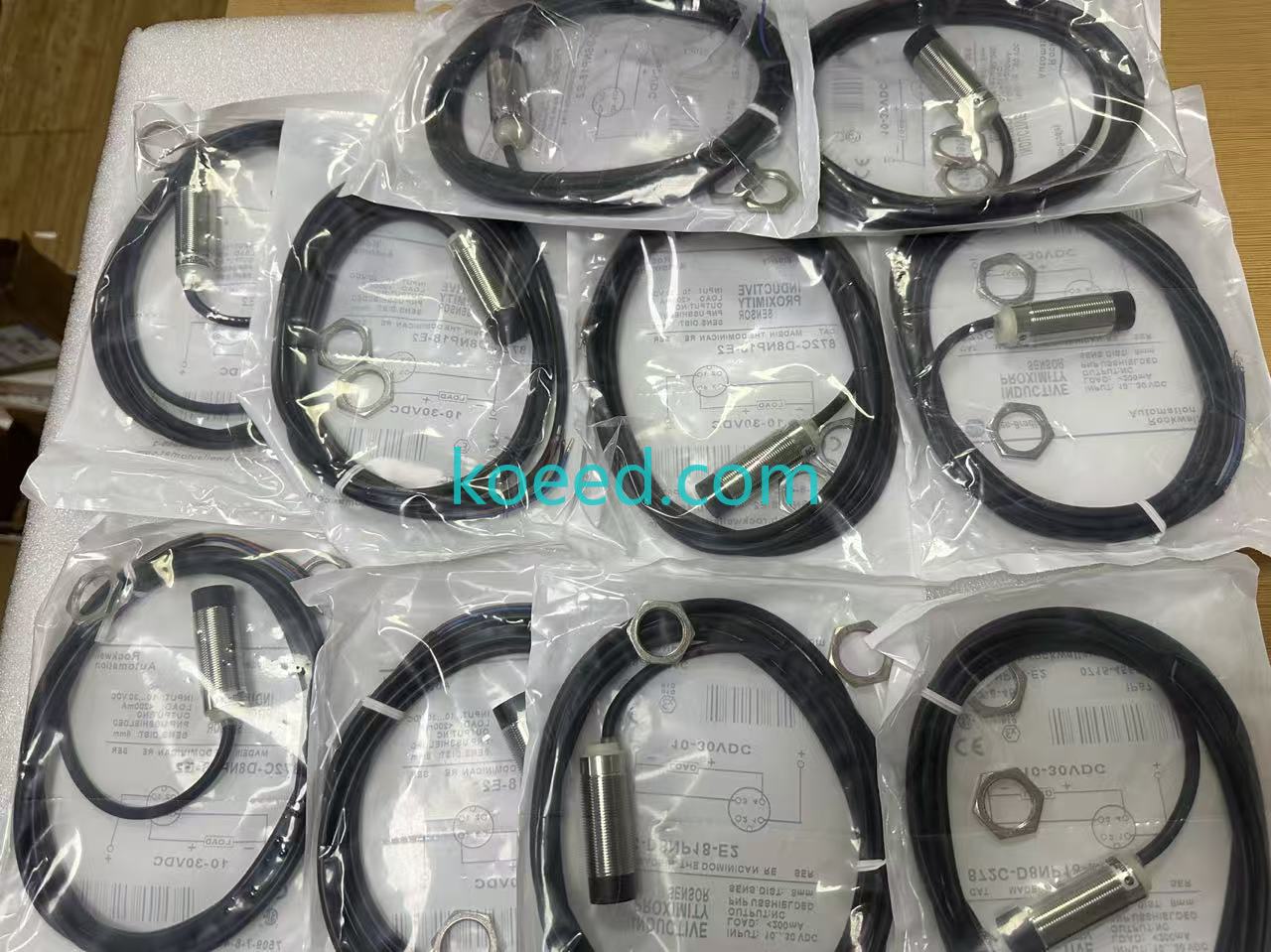

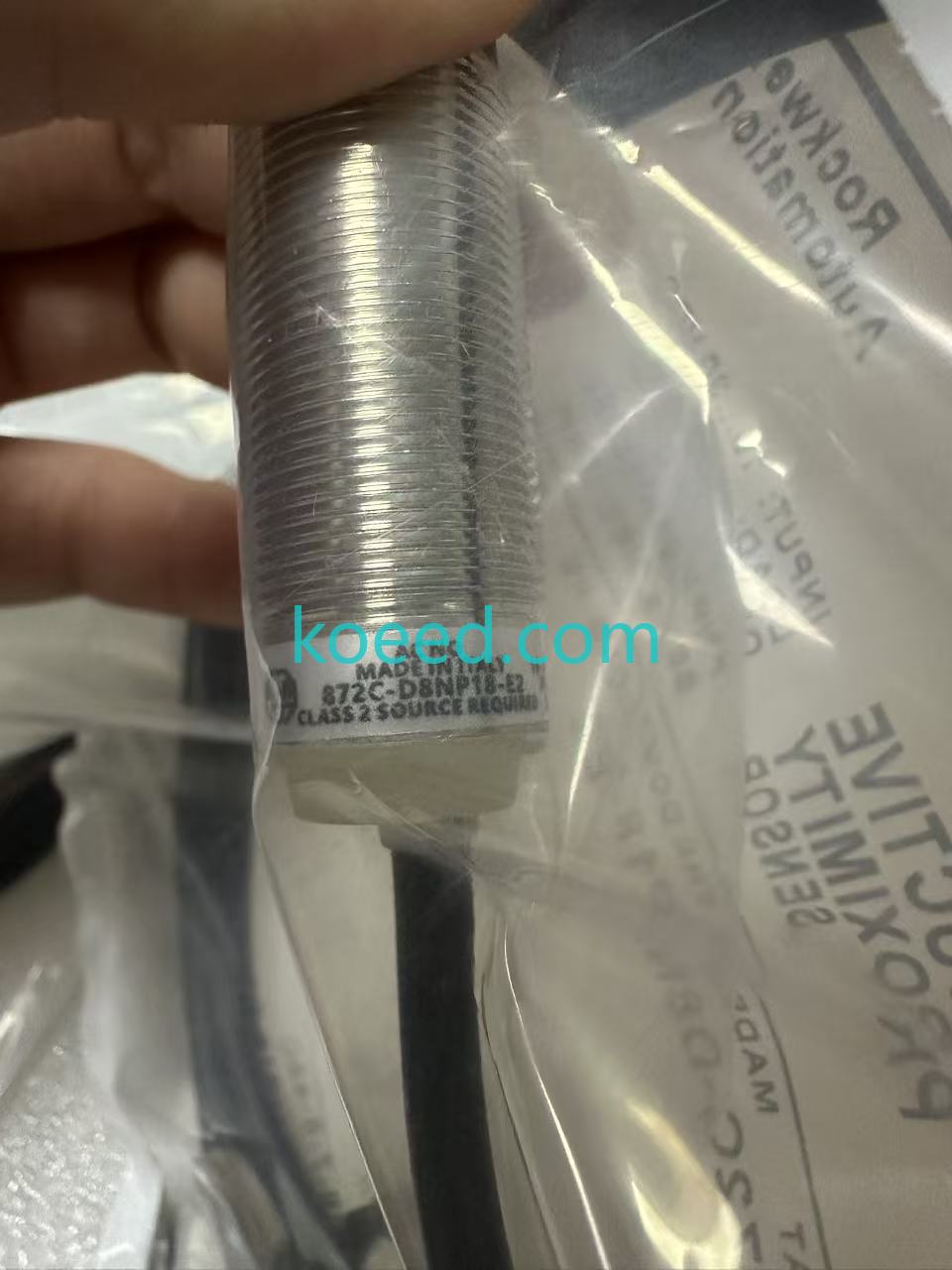

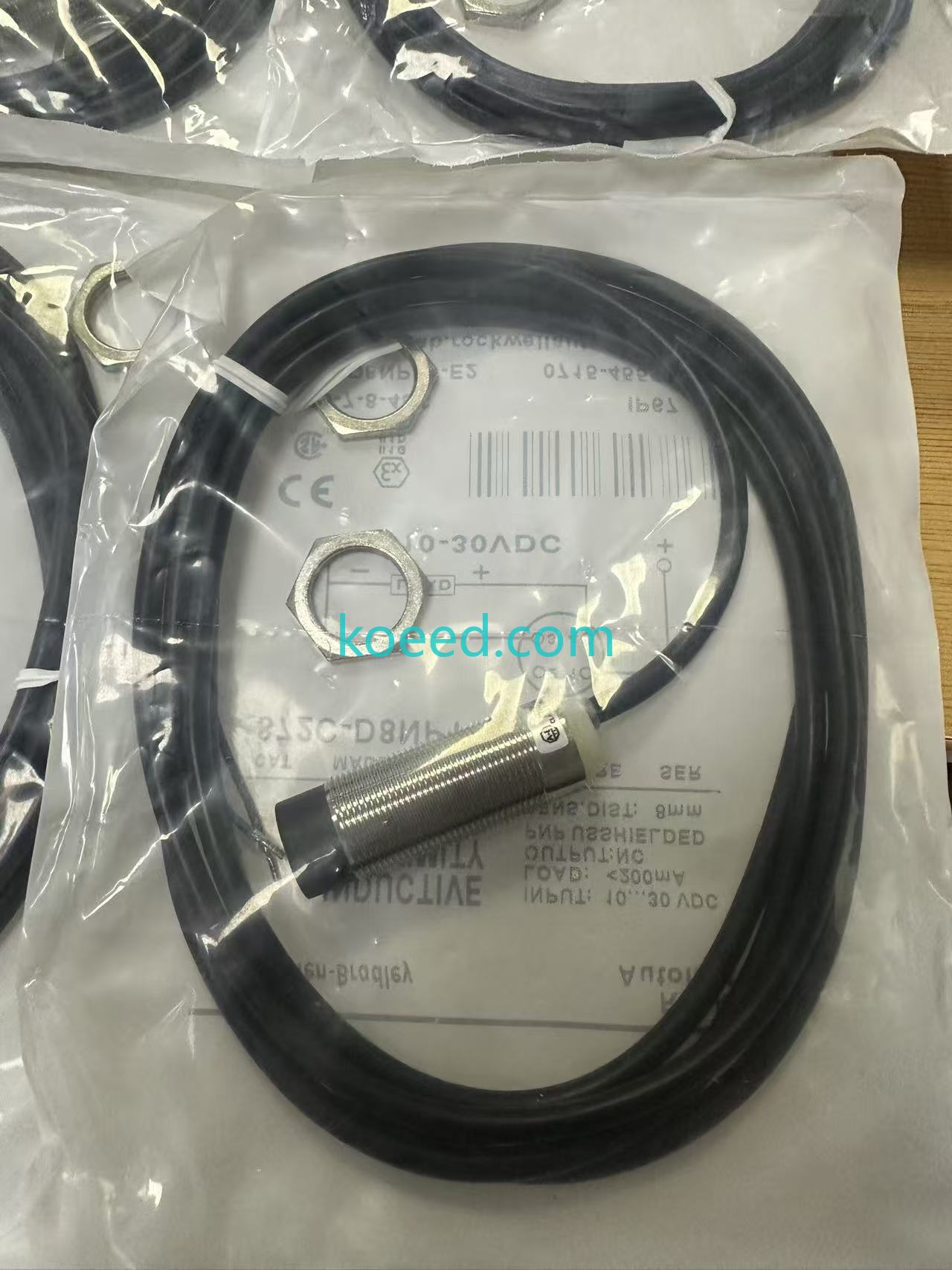

4. Product Visual Gallery
Examine the 872C-D8NP18-E2 from every angle. Click any image to enlarge.
5. Installation & Integration Guidelines
5.1 Mechanical Mounting
The 872C-D8NP18-E2 ships with two nickel-plated brass mounting nuts for through-hole installation. The unshielded design requires careful attention to flush vs. non-flush mounting:
5.2 Wiring Configuration

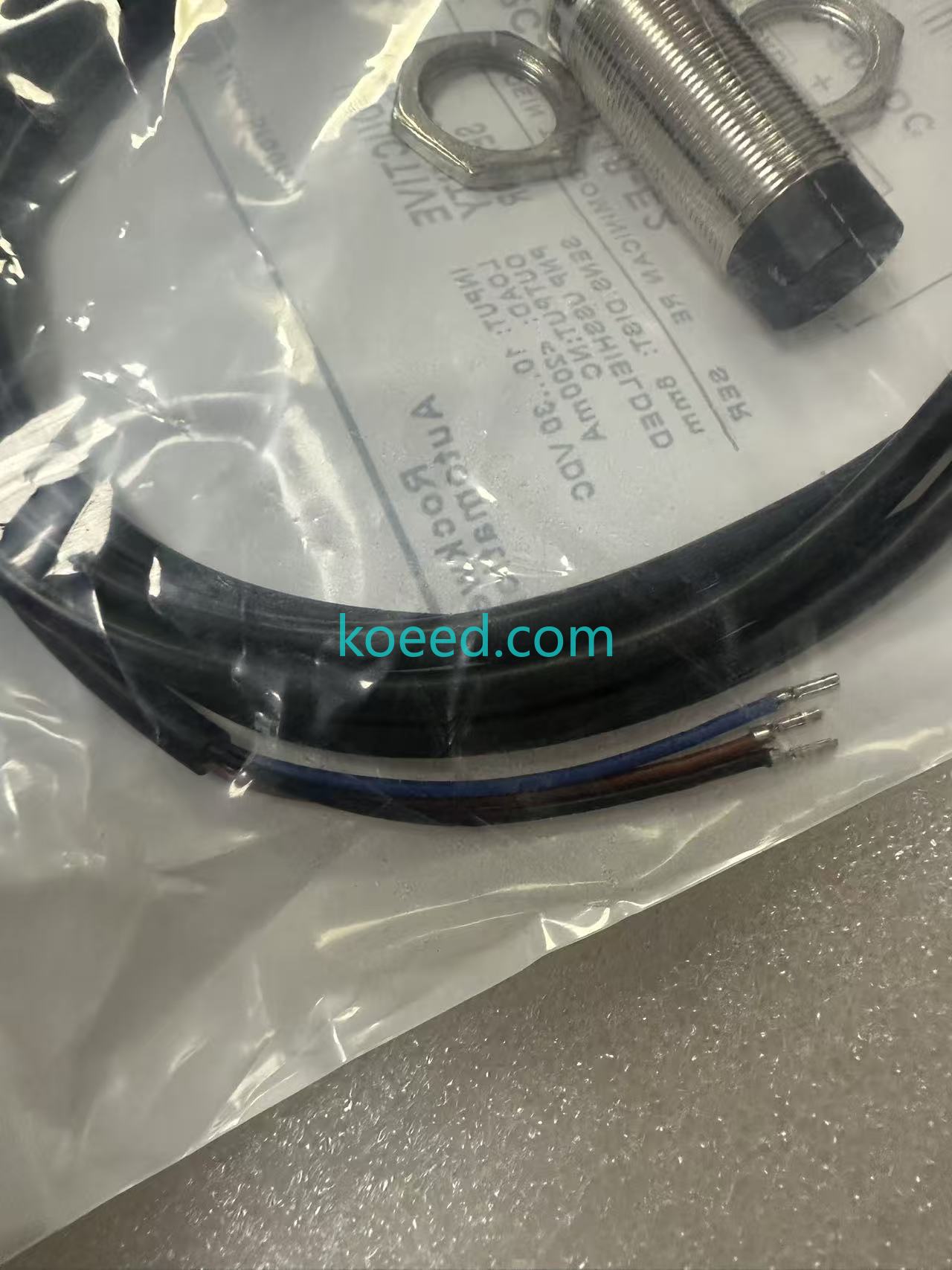

The 5-conductor PVC cable provides the following termination:
| Wire Color | Function | Terminal |
|---|---|---|
| Brown (BN) | +VDC (10–30V) | Power Supply Positive |
| Blue (BU) | 0V (GND) | Power Supply Negative |
| Black (BK) | PNP Output (NO) | PLC Input Card (Sinking) |
| White (WH) | Auxiliary / NC | Optional secondary output |
| Gray (GY) | Shield Drain | Earth Ground |
5.3 Target Material Considerations
The 872C-D8NP18-E2 detects all ferrous and non-ferrous metals, but correction factors apply:
- Mild Steel (FE360): 1.0× (100% — nominal 8mm)
- Stainless Steel (304): ~0.75× (approx. 6mm effective)
- Aluminum: ~0.40× (approx. 3.2mm effective)
- Brass/Copper: ~0.30× (approx. 2.4mm effective)
6. Maintenance & Troubleshooting (2026 Best Practices)
6.1 Preventive Maintenance Schedule
In clean manufacturing environments (ISO Class 7+), the 872C-D8NP18-E2 requires minimal intervention. However, for harsh-duty applications (machining, foundry, weld cells), adopt this 2026-aligned schedule:
| Interval | Action | Tooling |
|---|---|---|
| Weekly | Visual inspection of LED indicator; verify no physical damage to cable jacket | None |
| Monthly | Clean sensing face with isopropyl alcohol (99%); check mounting nut torque (max 25 N·m) | Lint-free cloth, torque wrench |
| Quarterly | Verify switching distance against baseline using calibrated steel target; log deviation in CMMS | Feeler gauge set, digital caliper |
| Annually | Full electrical test: supply current draw, leakage current, voltage drop across output; replace if >15% drift | Digital multimeter, PLC trending data |
6.2 Common Fault Conditions & Resolutions
Fault 1: LED Does Not Illuminate When Target Is Present
Likely Causes: (a) Supply voltage below 10V DC threshold; (b) Target outside 8mm sensing range; (c) Target material correction factor reducing effective range; (d) Cable break in brown or blue conductor.
Resolution: Verify 24V DC at power supply; measure target distance with feeler gauge; confirm target is mild steel (or apply correction factor); continuity-test all conductors with multimeter.
Fault 2: Output Stays HIGH (Always Energized)
Likely Causes: (a) Short-circuit on black (output) wire to +VDC; (b) Sensor damaged by overvoltage event; (c) Metal chip lodged on sensing face in unshielded configuration.
Resolution: Disconnect output wire and test sensor in isolation; inspect sensing face for debris — in machining environments, accumulated ferrous swarf is the #1 cause of phantom activation in unshielded sensors. Clean thoroughly and consider adding an air purge shield.
Fault 3: Intermittent Output / LED Flicker
Likely Causes: (a) Loose mounting or vibration-induced false targets; (b) EMI coupling from nearby VFD or servo drives; (c) Water ingress into cable entry due to improper strain relief.
Resolution: Tighten mounting nuts to 25 N·m; re-route sensor cable away from high-power lines; inspect cable gland and apply IP67-rated cable tie if needed. For weld-cell applications, upgrade to weld-field immune sensor variants if available.
7. Ordering Information & 2026 Availability
The Allen-Bradley 872C-D8NP18-E2 is available through Rockwell Automation's global distributor network. For B2B procurement, reference the following:
- Part Number: 872C-D8NP18-E2
- UPC: 00813568012233
- EAN: 4053344398043
- Country of Origin: Mexico / Dominican Republic (per lot)
- Lead Time (2026): Typically 2–4 weeks, subject to semiconductor supply chain status.
