NMRV050: delivery record
On this page
This NMRV050 record combines notes dated 6 and 26 February 2026 for a worm-gear assembly and shaft-related supply. The notes write the ratio as 1:40 and 40:1 respectively. The reviewed photographs show blue reducer housings, protected bores and separate keyed shafts, useful evidence for clarifying which components a replacement order must include.
Identification and delivery details

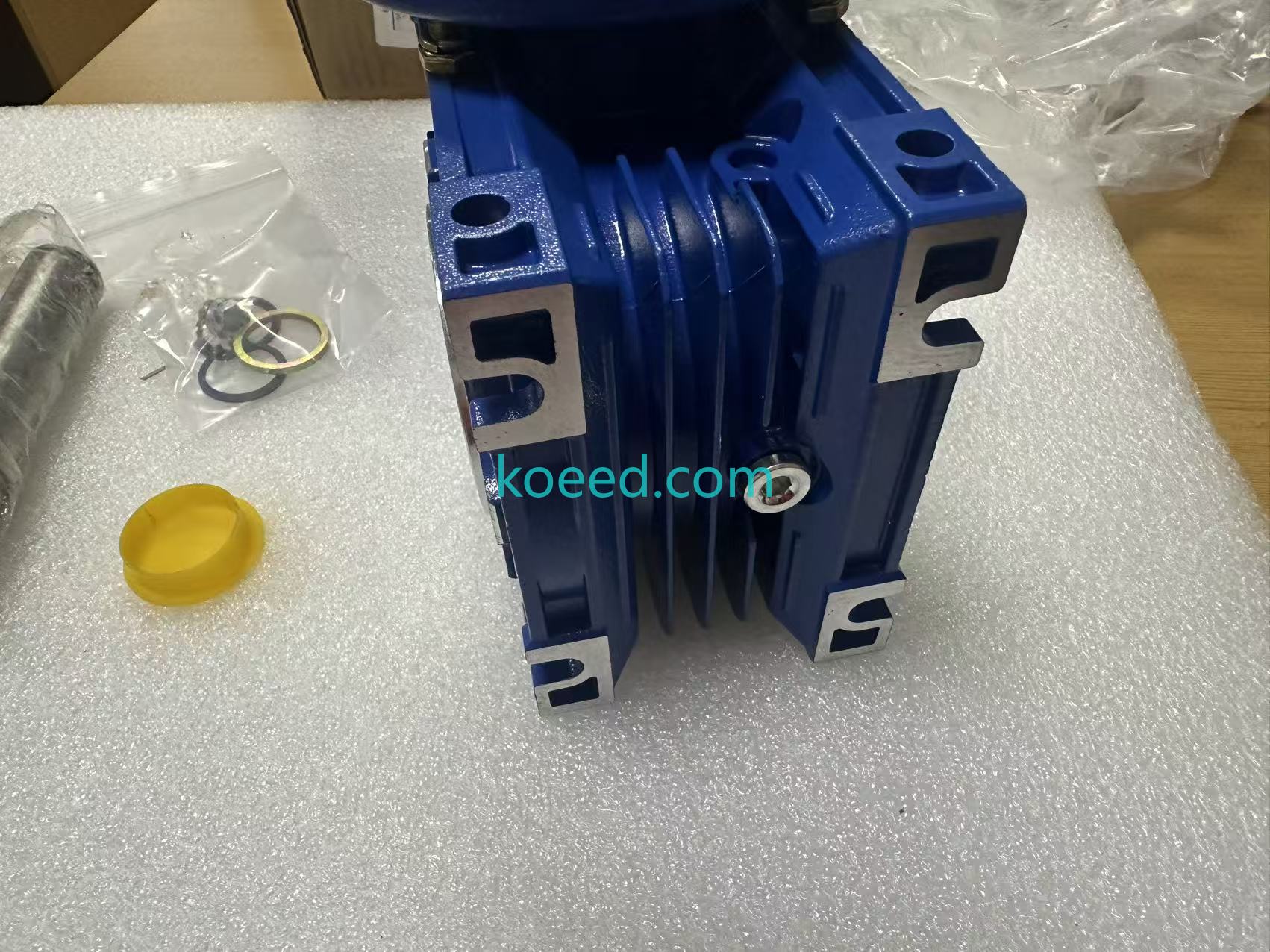

Photograph 1 shows a blue ribbed housing with machined mounting faces, threaded holes and a black seal around a yellow bore protector. A side identification plate is present at an angle, but its maker and complete configuration are not reliably readable in this view.
Photograph 2 shows two wrapped blue housings alongside two keyed metal shafts and bagged retaining hardware. That is a count of visible components in one source photograph. It does not establish the contents of each dated transaction or guarantee the same shaft accessories with a future reducer.
The two source notes associate NMRV050 with a forty-to-one ratio, using opposite written orientations. A readable ratio plate should resolve how the designation is stated on the offered unit. The photographs do not independently verify tooth ratio or rotational direction.
The structured record gives a weight of 4 kg. The later note specifically refers to a shaft supply, so the media collection should not be interpreted as repeated complete-reducer deliveries. No clearly stated condition grade, warranty duration or maker identity is available in the retained tag.
Twenty-two photographs and two clips are kept, restoring the second clip omitted from the former body. Only photographs 1 and 2 were reviewed. They show the physical supply presentation, without establishing backlash, output torque, lubrication state or a loaded running test.
| Item | Evidence |
|---|---|
| Recorded family | NMRV050 worm gear |
| Ratio text | 1:40 in 6 February note; 40:1 in 26 February note |
| Recorded weight | 4 kg; component basis unspecified |
| Visible parts | Blue housings, bore protectors, separate keyed shafts and hardware |
| Supply scope | Merged reducer/shaft-related notes; each delivery content unresolved |
| Technical evidence | No reliable readable maker plate or measured performance in reviewed views |
Swipe or scroll horizontally to read the full table.
The source's shaft-related notes and opposite ratio notation are kept visible. The title's precision and integration language does not establish the measured performance of these components.
Matching this part
Specify ratio, input flange, shaft diameter, output-bore arrangement and the required mounting position. Ask for a straight-on identification plate and dimensional drawing. NMRV050 alone cannot determine whether an 80B14 input or a particular bore size matches the installed assembly.
List shafts, keys, retaining hardware and reducer body separately in the requested supply. Send the installed unit's labels and connection dimensions, and ask for confirmation of condition and the inspection required for the actual offered configuration.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
Contact KOEED with the required NMRV050 ratio and shaft configuration so the supply scope can be checked.
Request this part
Send NMRV050, the required forty-to-one ratio, flange and shaft dimensions, and a list of accessories. Ask for the offered unit's readable plate and confirmed assembly contents.
