IFM IG0012 Inductive Proximity Switch: Comprehensive Guide for Industrial Automation
IFM IG0012 Inductive Proximity Switch
Professional Grade Industrial Automation Sensor for PLC Systems
Product Overview
The IFM IG0012 is a high-performance inductive proximity switch designed for industrial automation applications. This robust sensor features a combined AC/DC output stage and operates across a wide voltage range, making it ideal for integration with various PLC systems and industrial controllers. With its durable metal housing and reliable performance, the IG0012 is engineered to withstand harsh industrial environments while providing accurate object detection.
For those looking to purchase this professional-grade sensor, you can find the IFM IG0012 proximity switch available at Koeed.com. This reliable supplier offers genuine IFM products with comprehensive technical support.

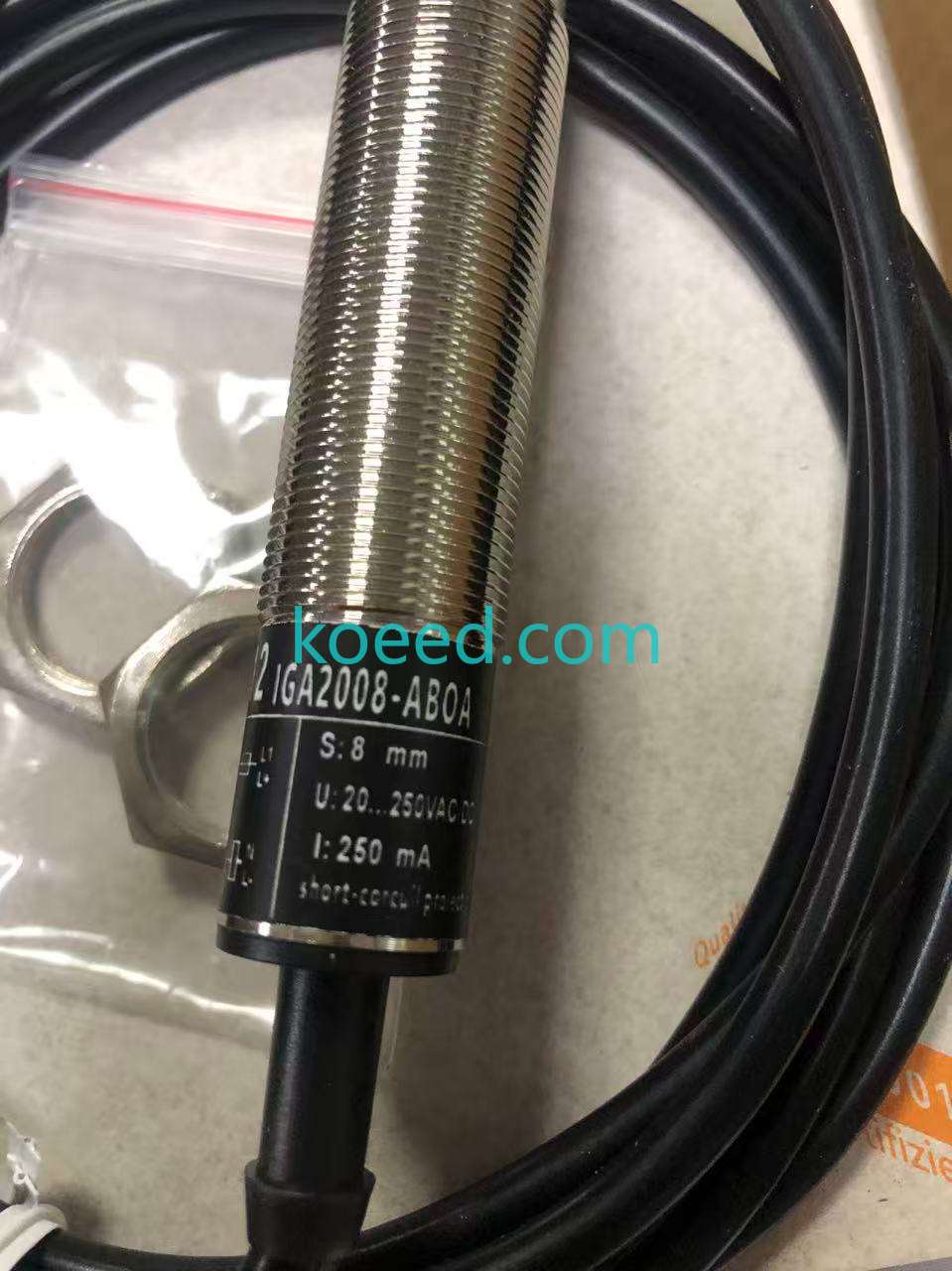

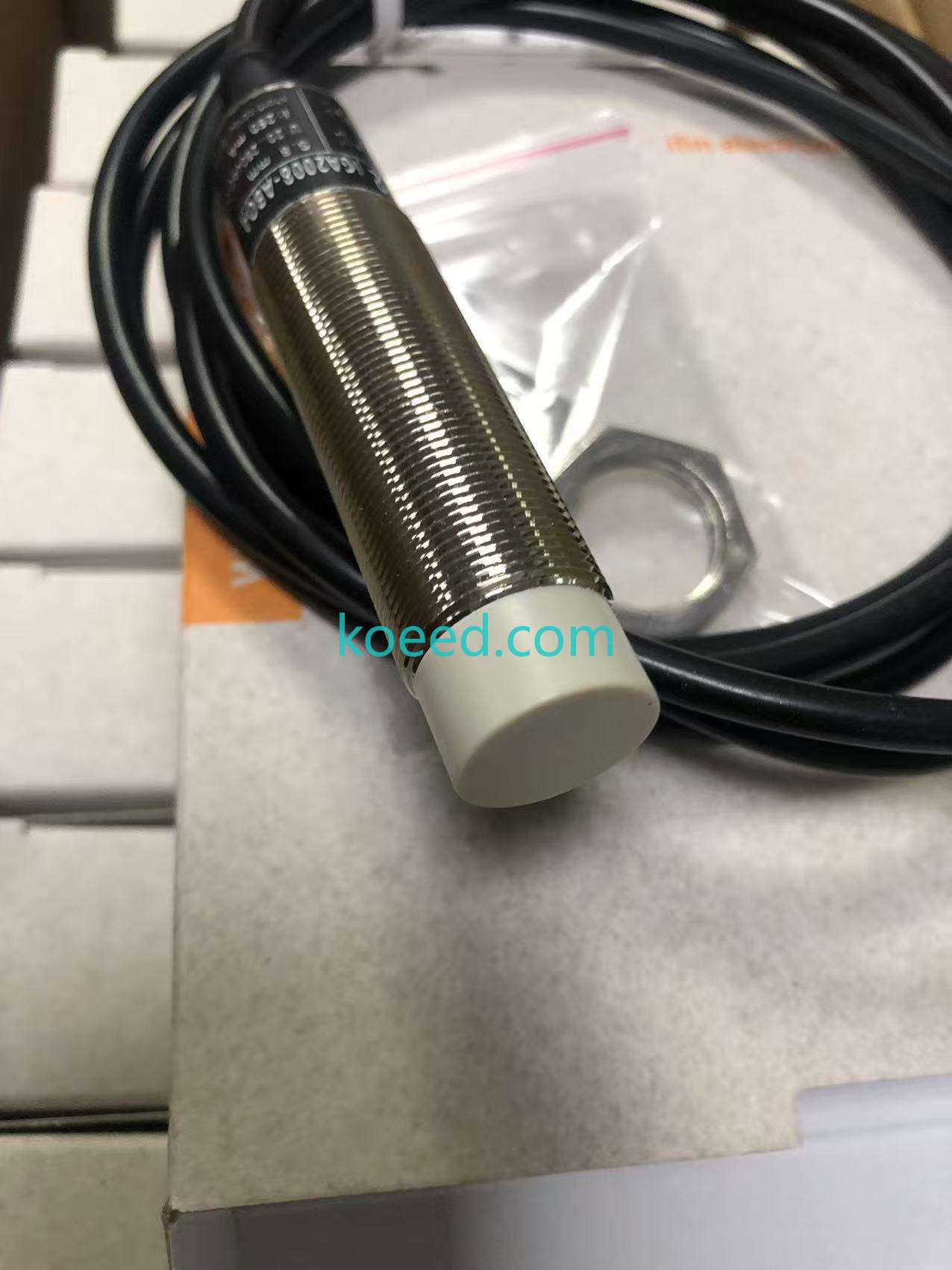

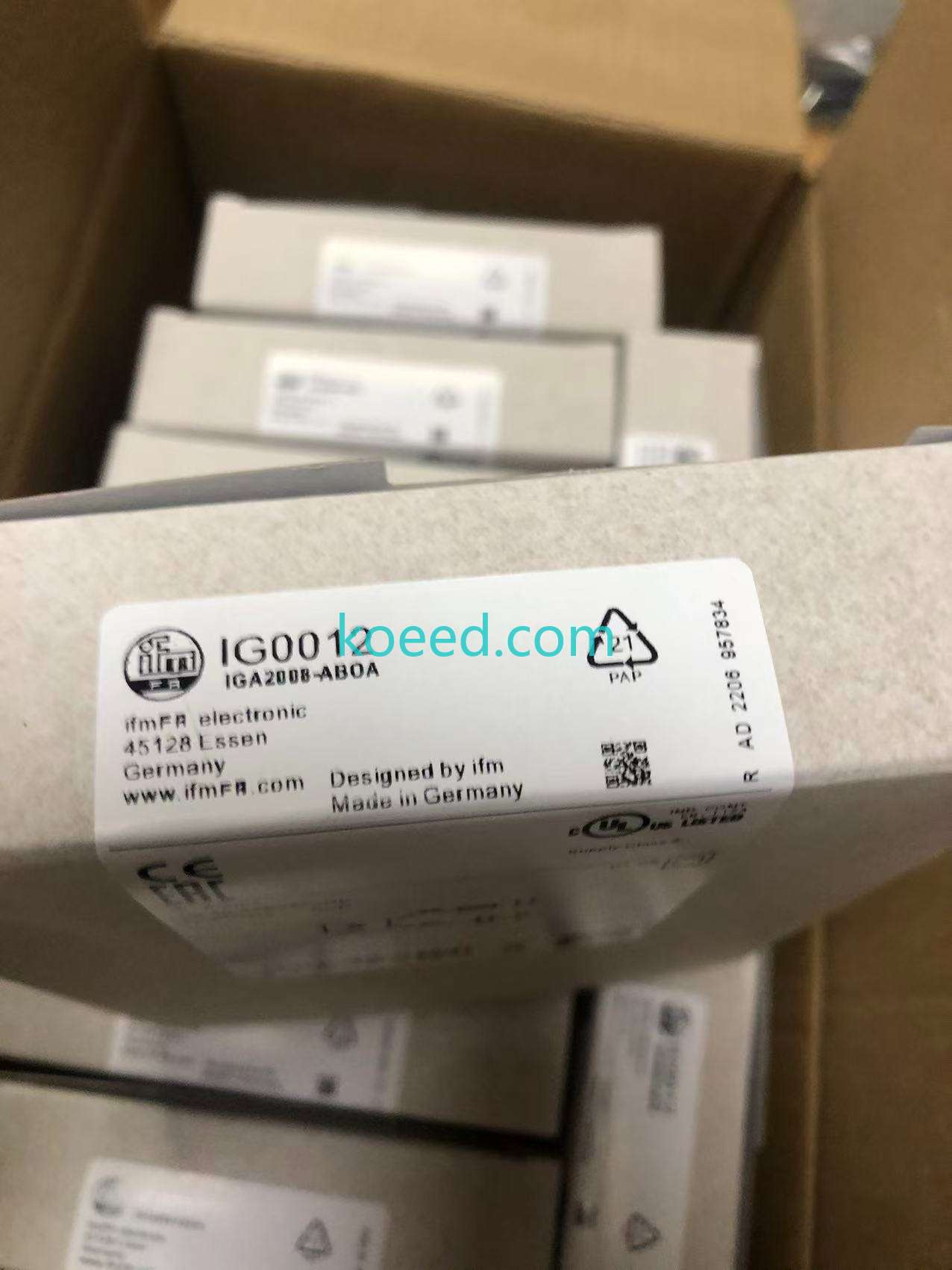

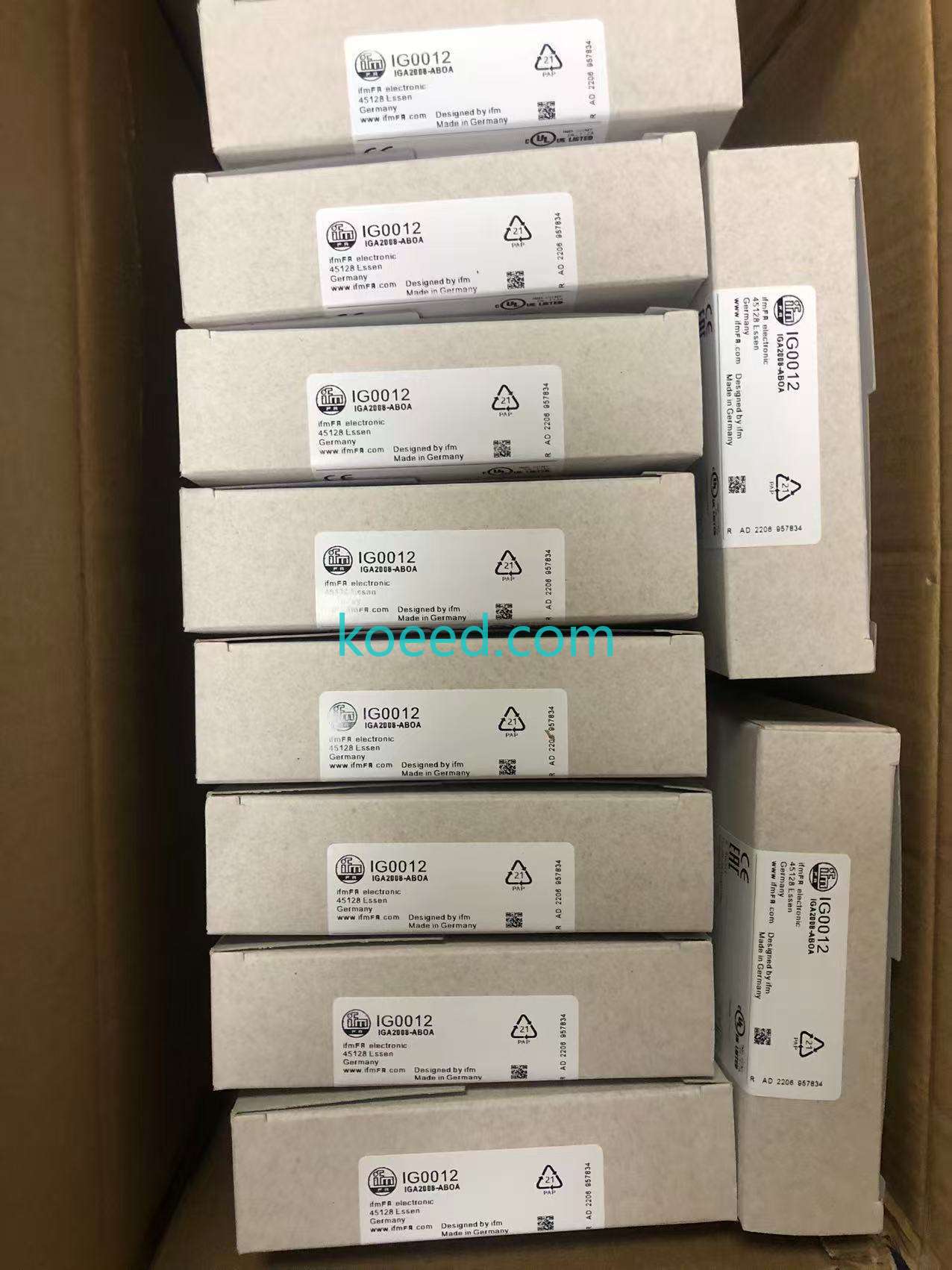

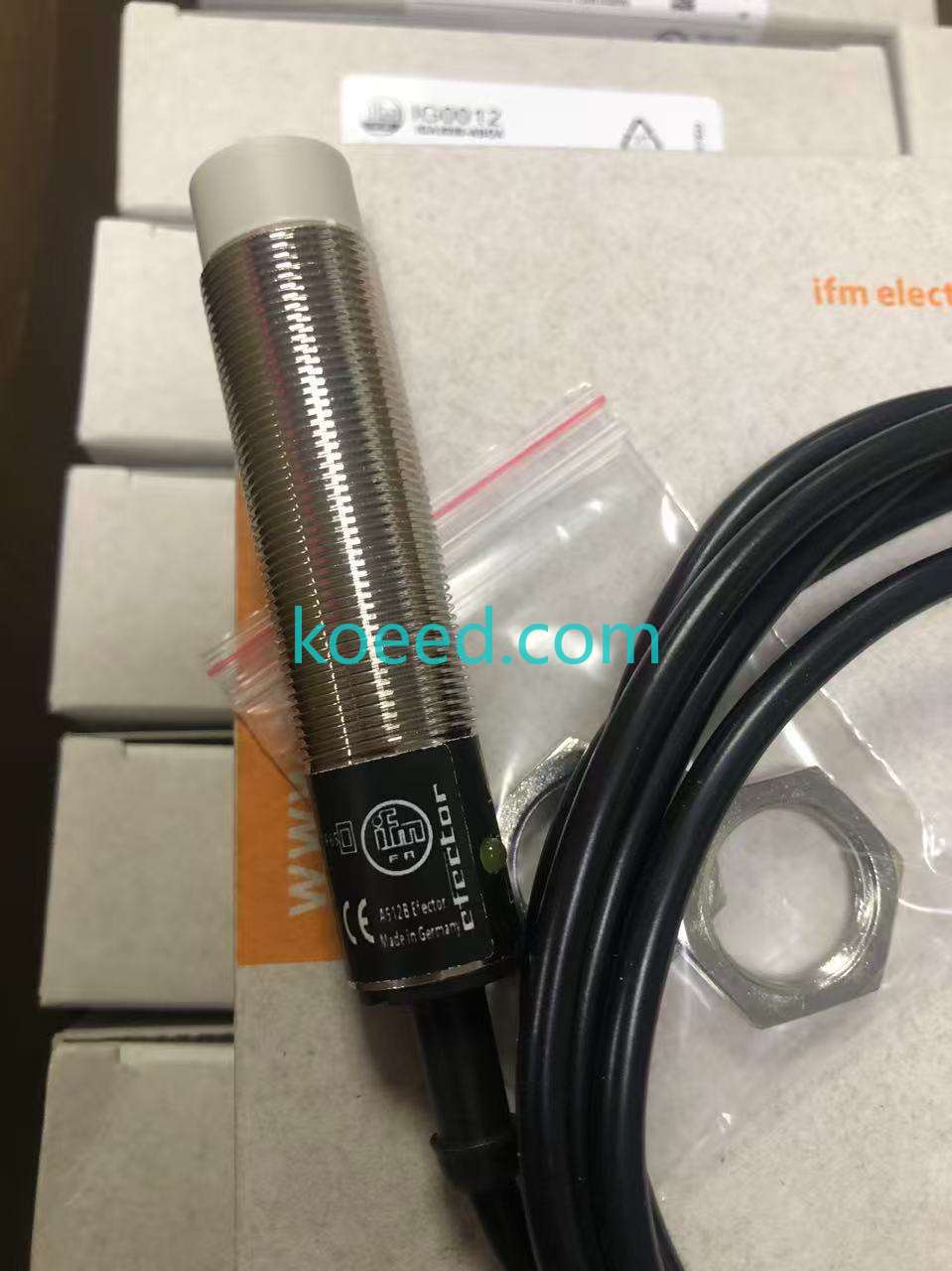

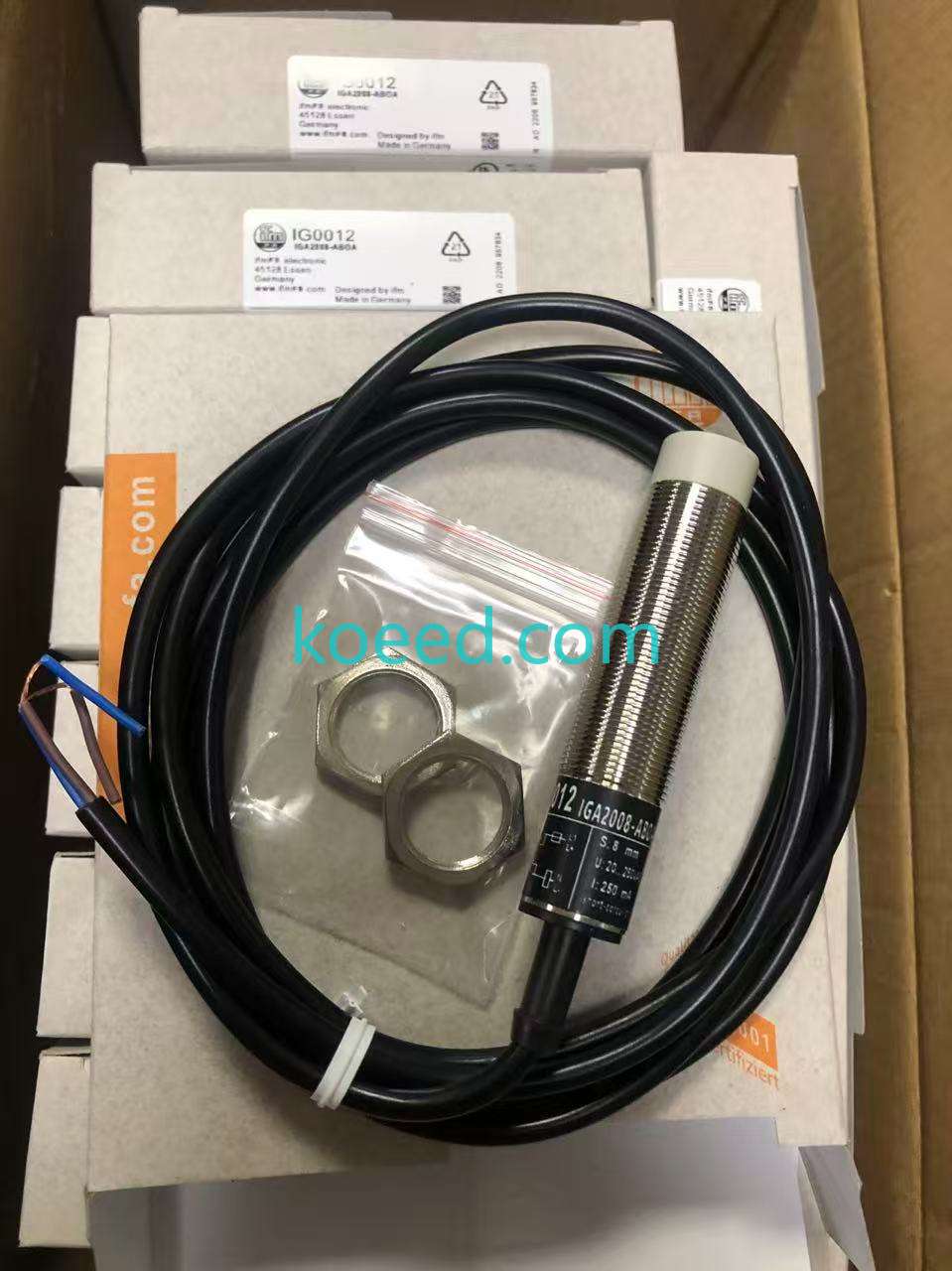

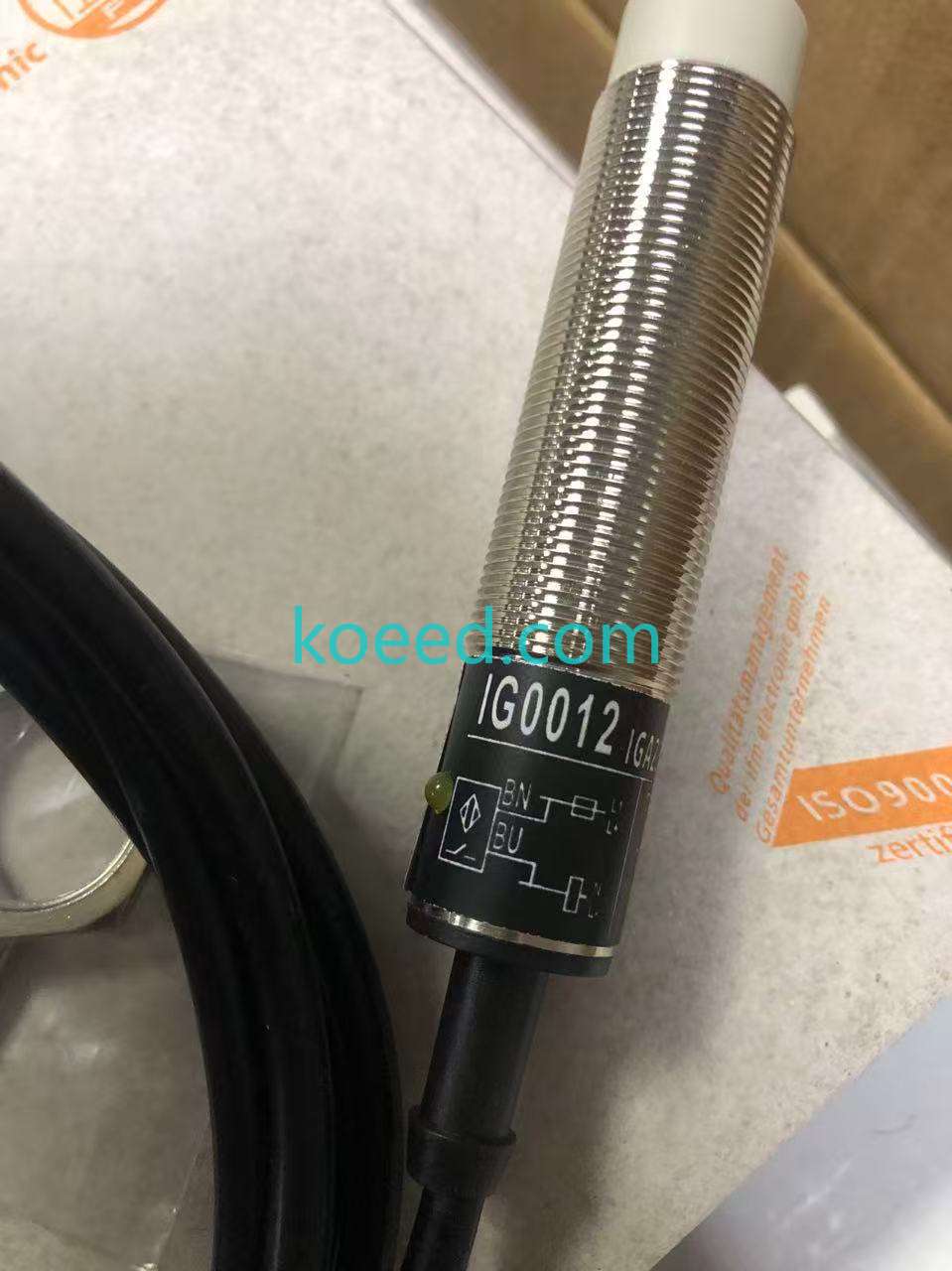

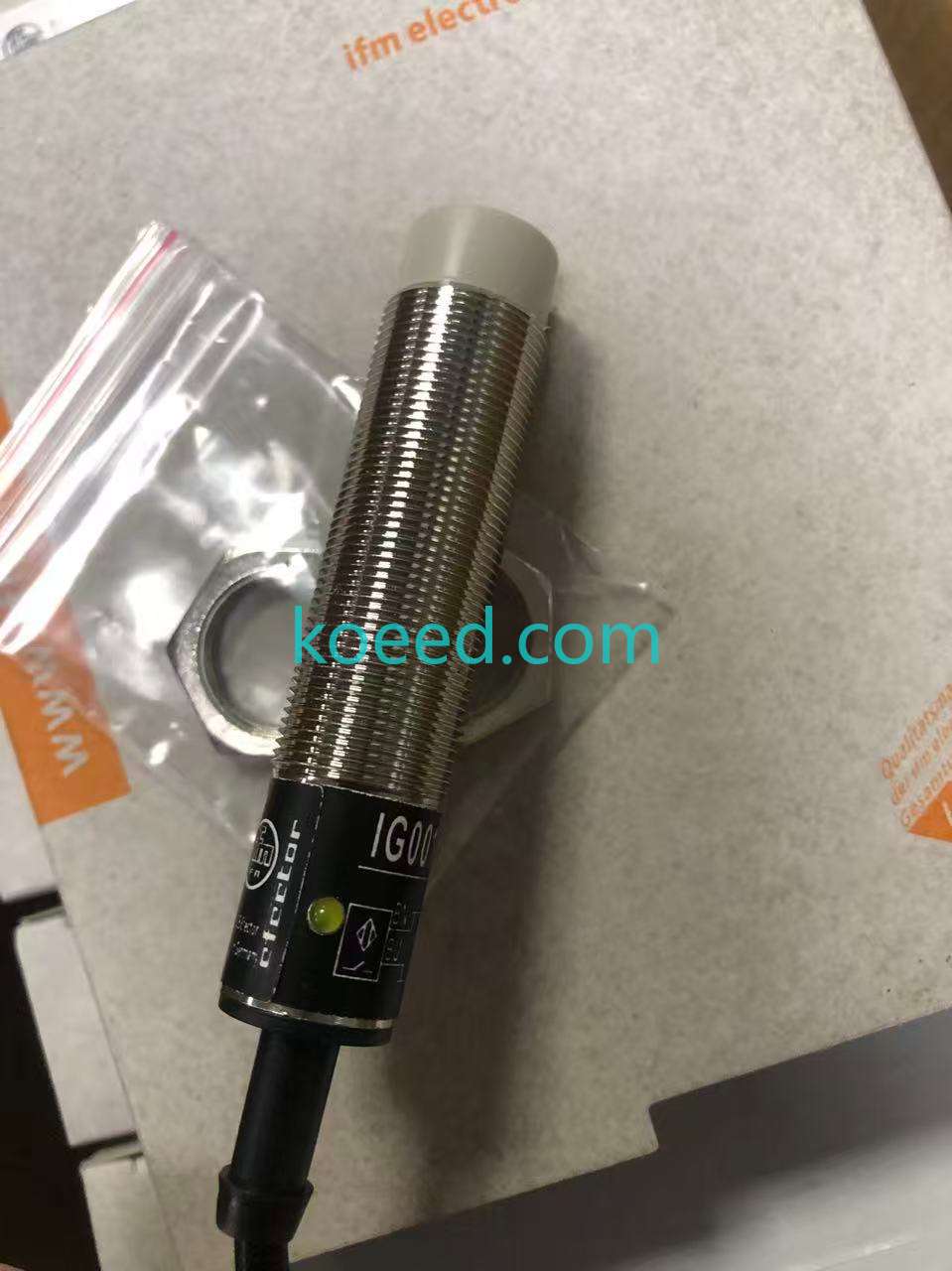

Product Images
Product Demonstration Video
Watch the IFM IG0012 in action - demonstrating its reliable object detection capabilities in industrial settings.
Key Features & Benefits
- Combined AC/DC Output Stage: Versatile operation with both alternating and direct current systems
- Large Operating Voltage Range: 20-250V AC/DC for flexible integration
- Two-Wire Technology: Simplified installation and reduced wiring complexity
- Wide Operating Temperature Range: -25°C to +70°C for harsh environments
- Robust Metal Housing: Durable construction for industrial applications
- PNP Output with Normally Open (NO) Function: Standard industrial interface
- High Switching Frequency: 25 Hz AC / 70 Hz DC for responsive operation
For industrial automation professionals seeking reliable components, the IFM IG0012 available at Koeed.com offers genuine quality and performance.
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Product Code | IG0012 | IFM Inductive Sensor |
| Operating Voltage | 20-250V AC/DC | Wide range for flexible applications |
| Output Type | PNP | Positive switching output |
| Switching Function | Normally Open (NO) | Standard industrial configuration |
| Body Material | PBT Plastic / Metal Housing | Durable industrial construction |
| Current Rating | 10mA | Low power consumption |
| Switching Frequency | 25 Hz AC / 70 Hz DC | High-speed operation |
| Operating Temperature | -25°C to +70°C | Wide temperature range |
| Voltage Drop | 6V DC / 6.5V AC | Low voltage loss |
| Minimum Load Current | 5mA | Compatible with low-power systems |
Industrial Applications
The IFM IG0012 inductive proximity switch finds extensive use in various industrial automation scenarios:
PLC Integration
Seamless integration with Programmable Logic Controllers (PLCs) from major manufacturers including Siemens, Allen-Bradley, Mitsubishi, and Omron. The sensor's PNP output and wide voltage range make it compatible with most industrial control systems.
Material Handling Systems
Position detection in conveyor systems, automated storage and retrieval systems (AS/RS), and packaging machinery. The robust construction ensures reliable operation in dusty or vibration-prone environments.
Machine Safety
Safety interlock systems, door monitoring, and equipment guarding applications. The normally open configuration provides fail-safe operation for critical safety circuits.
Automotive Manufacturing
Part presence detection in assembly lines, robotic cell monitoring, and quality control stations. The sensor's high switching frequency supports fast production cycles.
For reliable supply of this essential industrial component, consider purchasing from Koeed.com's IFM IG0012 product page.
Frequently Asked Questions
The IFM IG0012 has a sensing range of approximately 10mm for non-flush mounting applications. The exact sensing distance may vary based on the target material and mounting conditions.
Yes, one of the key features of the IG0012 is its combined AC/DC output stage, allowing it to operate with both alternating current (20-250V AC) and direct current (20-250V DC) power sources.
The IG0012 features a PNP (sourcing) output with normally open (NO) switching function. This is the standard configuration for most industrial automation applications.
Absolutely. The IG0012 features a robust metal housing and operates within a wide temperature range of -25°C to +70°C, making it suitable for demanding industrial applications including manufacturing plants, automotive facilities, and material handling systems.
The IG0012 uses standard two-wire technology for simplified installation. Connect the brown wire to positive voltage (L+ for DC or L for AC) and the blue wire to negative/neutral. The black wire provides the PNP output signal to your PLC input module.
You can purchase authentic IFM IG0012 proximity switches from authorized distributors like Koeed.com, which offers genuine products with proper documentation and technical support.
Trust & Quality Metrics
External References & Citations
- IFM Official Product Page: https://www.ifm.com/us/en/product/IG0012
- MISUMI Technical Specifications: https://th.misumi-ec.com/en/vona2/detail/221303877711/
- Industrial Automation Parts: https://www.industrialautomationparts.com/products/ifm-ig0012-inductive-sensor-1
- Jotrin Electronics Data Sheet: https://www.jotrin.com/product/parts/IG0012
Ready to Integrate IFM IG0012 into Your System?
For industrial automation professionals seeking reliable, high-performance proximity sensors, the IFM IG0012 offers exceptional value and proven reliability. Its wide operating range, robust construction, and industry-standard interface make it an ideal choice for diverse industrial applications.
Purchase IFM IG0012 Proximity SwitchGenuine IFM product • Industrial grade quality • Comprehensive technical support
