SMC AS1000-M5 In-Line Speed Controller: 2026 Technical Guide, Specs, TCO & Sourcing

Detail

A precision needle-type flow control valve for meter-in and meter-out actuator speed regulation. Compact M5 x 0.8 porting, multi-turn locking-needle adjustment, resin body, oil-free compatible, and still the most cost-efficient way to tune pneumatic motion at the point of use. Available as a verified 10-piece industrial pack from the

The SMC AS1000-M5 sits at the smallest end of the SMC AS Series standard in-line speed controller family, and it is precisely at this scale that modern machine performance is won or lost. Pneumatic actuators remain the dominant motion source on packaging lines, pick-and-place units, dispensing heads, labelling stations and semiconductor handling equipment. Every one of those axes is tuned by a speed controller, and the AS1000-M5 is the reference component for M5-port micro-cylinders and compact grippers.

Because these units are consumable-scale items, procurement teams often treat them as low-priority line items. That is a strategic error: a mis-set or degraded speed controller on a high-cycle indexer will generate shock loading, shorten bumper and seal life, and create scrap. Multiplied across a 24/7 line, the total cost of ownership impact of a small component can reach four figures per year. Bulk-pack sourcing, such as the

, keeps a qualified spare on the shelf so that drift is corrected in minutes rather than on the next import lead time.

The AS1000-M5 is a purely mechanical, passive device, and that is a feature rather than a limitation. In a modern IT/OT architecture it acts as the deterministic final control element while digital intelligence is layered around it using SMC PSE/ISE/ZSE pressure and flow sensing products, including PFM flow meters and ISE/ZSE electronic switches. The mechanical needle sets the baseline motion profile; the sensor stack streams cycle-level data to an edge gateway over EtherNet/IP, PROFINET or OPC UA and up to MES/ERP, where engineers can detect speed drift as a leading indicator of seal wear.

one hour of unplanned line stop on a mid-size FMCG line commonly costs far more than a years supply of speed controllers. Stocked spares convert failures into sub-ten-minute interventions.

correct deceleration reduces end-of-stroke impact energy, protecting cylinder cushions, rod bearings and shock absorbers that cost many times the valve.

Photos and video

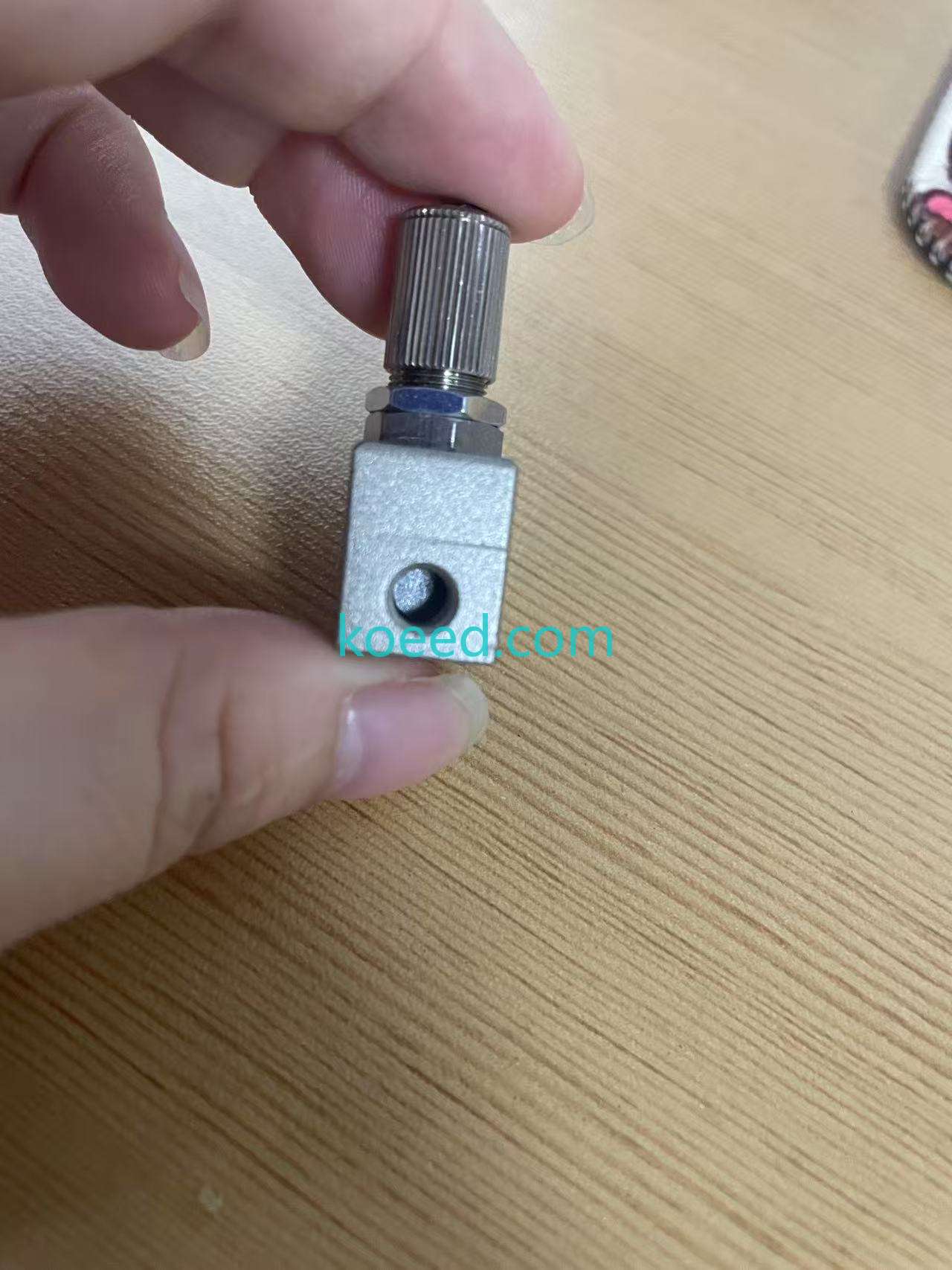

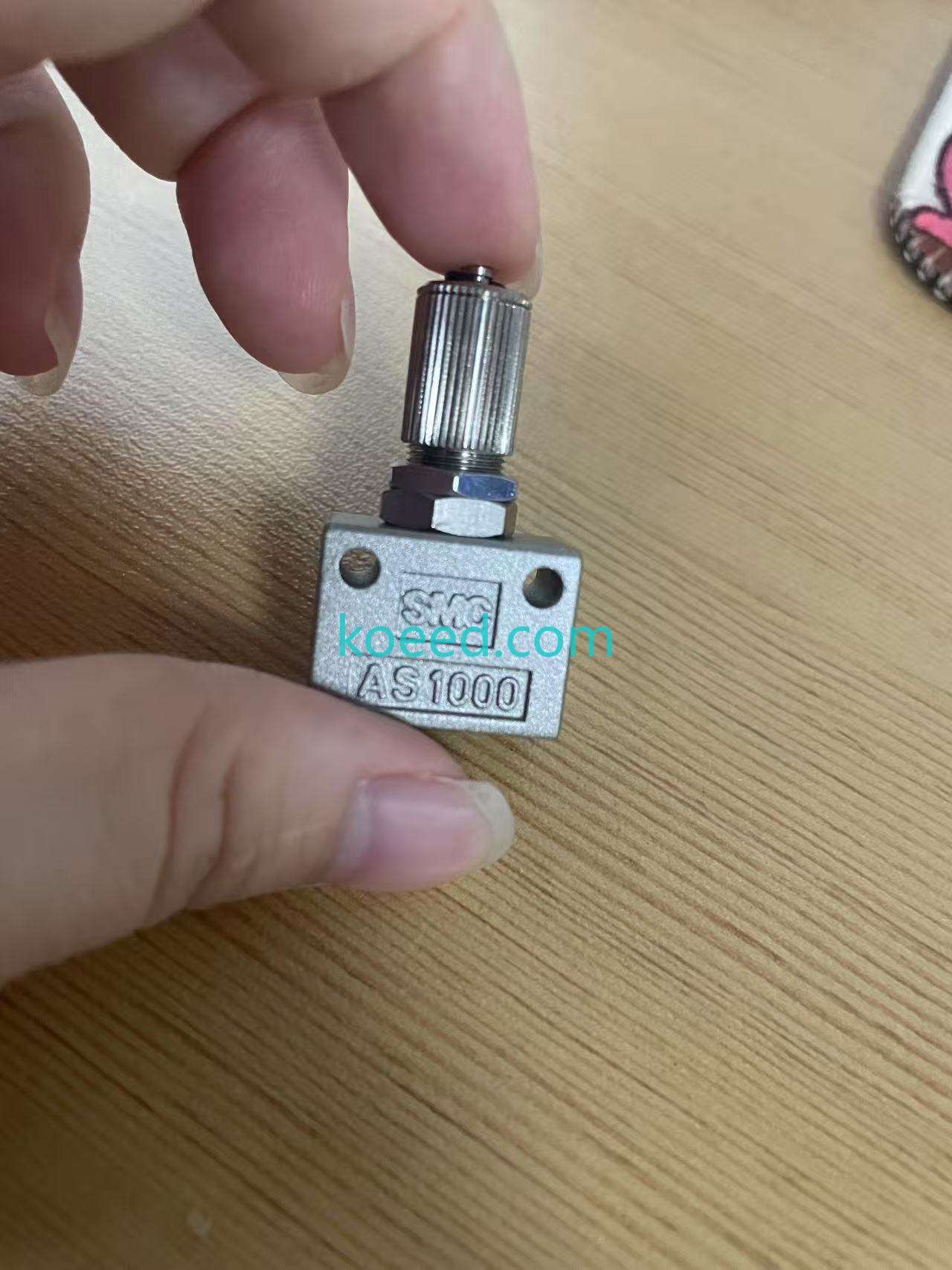

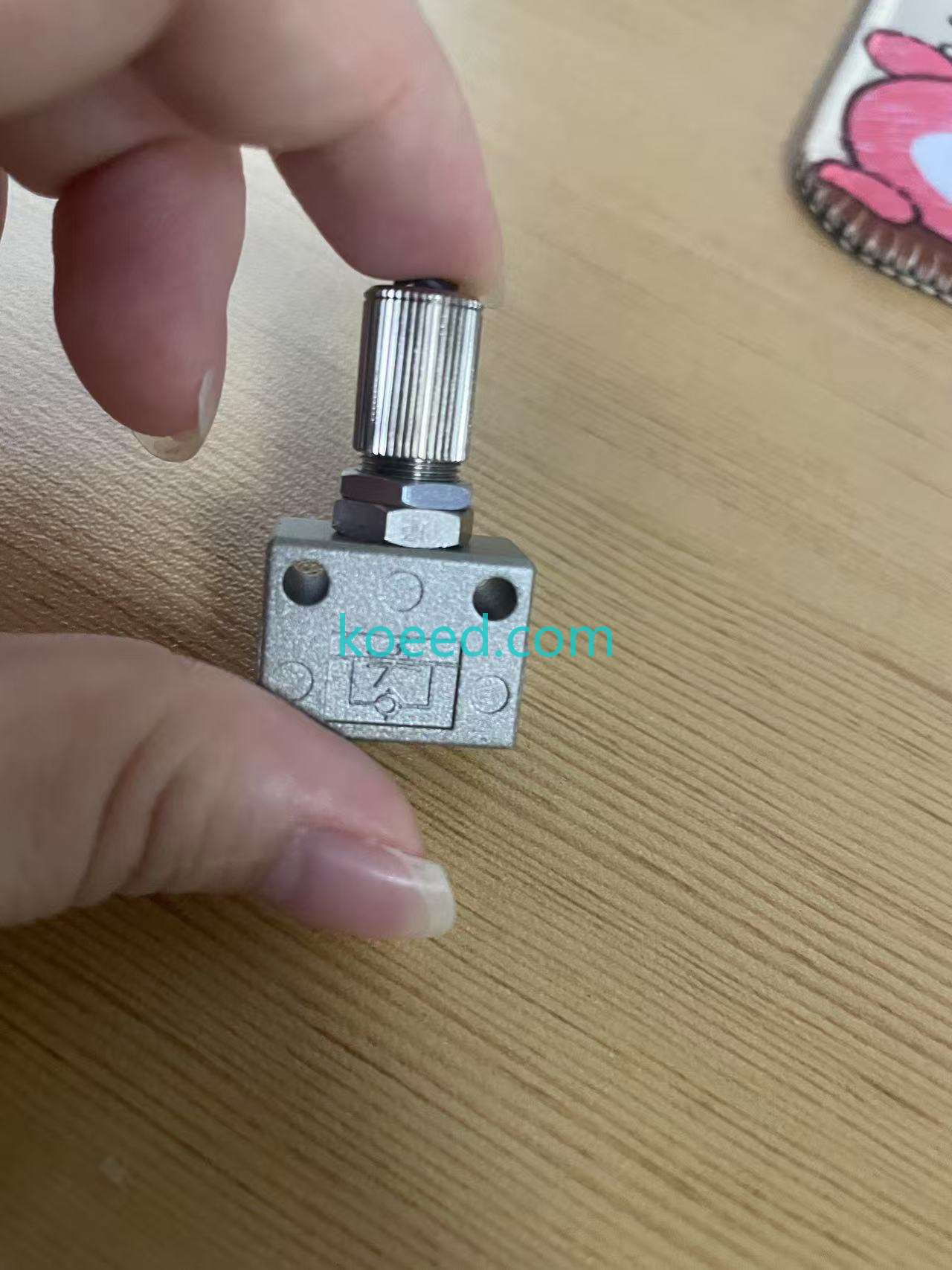

All images below are original warehouse photos of the exact units covered by this record, taken before dispatch. Click any photo to view it full size.
