TRANE KIT12559 X19051660020 Liquid Level Sensor Connecting Cable - Complete Technical Guide
On this page
The KIT12559 / X19051660020 record concerns two connecting-cable units with version E noted on January 23, 2026. The second photograph shows a cable in TRANE-labelled packaging marked KIT12559, QTY 1 and Made in China. The bag quantity describes that package; the supply note's two-unit quantity refers to the dated record.
Identification and delivery details

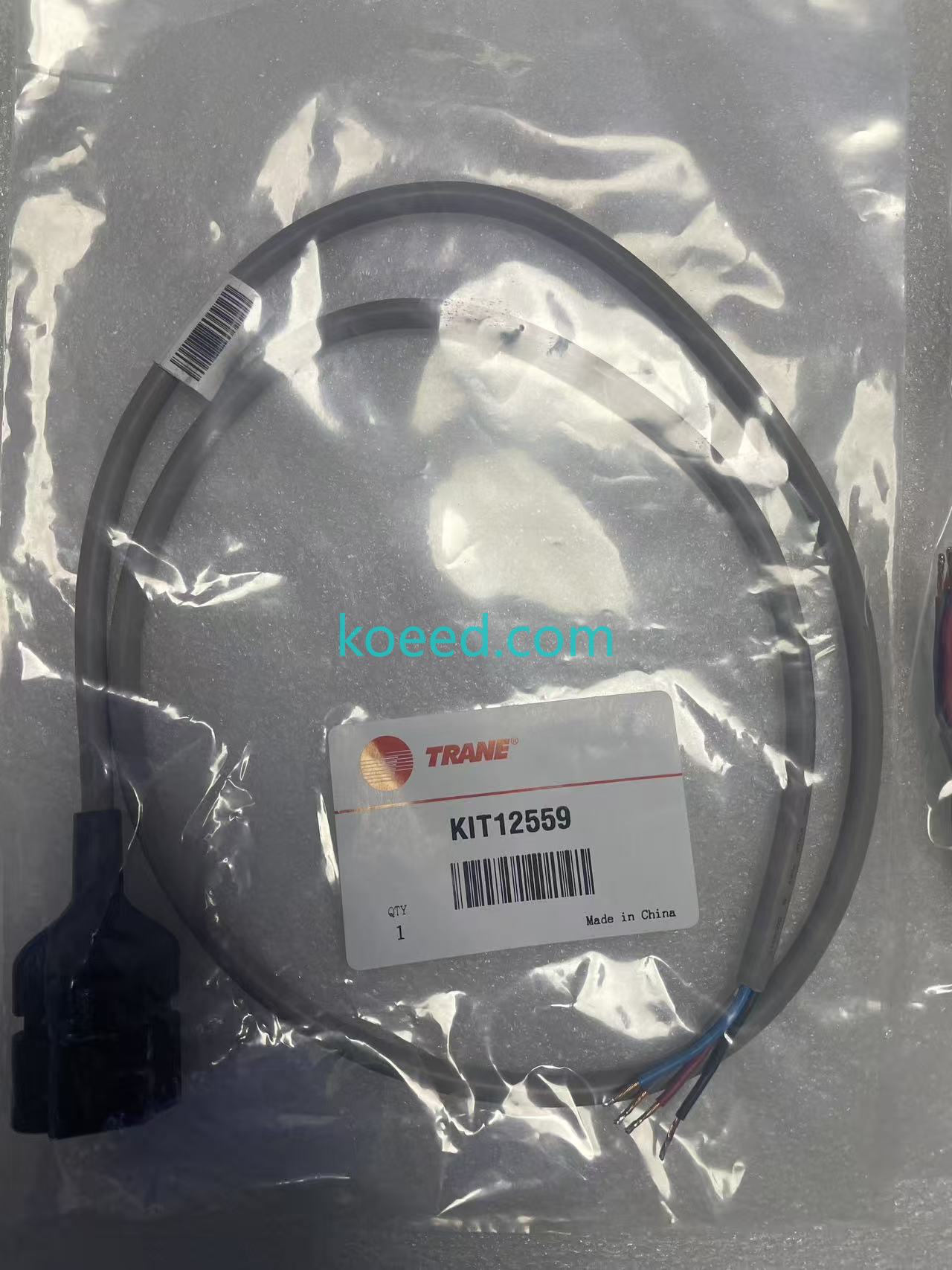

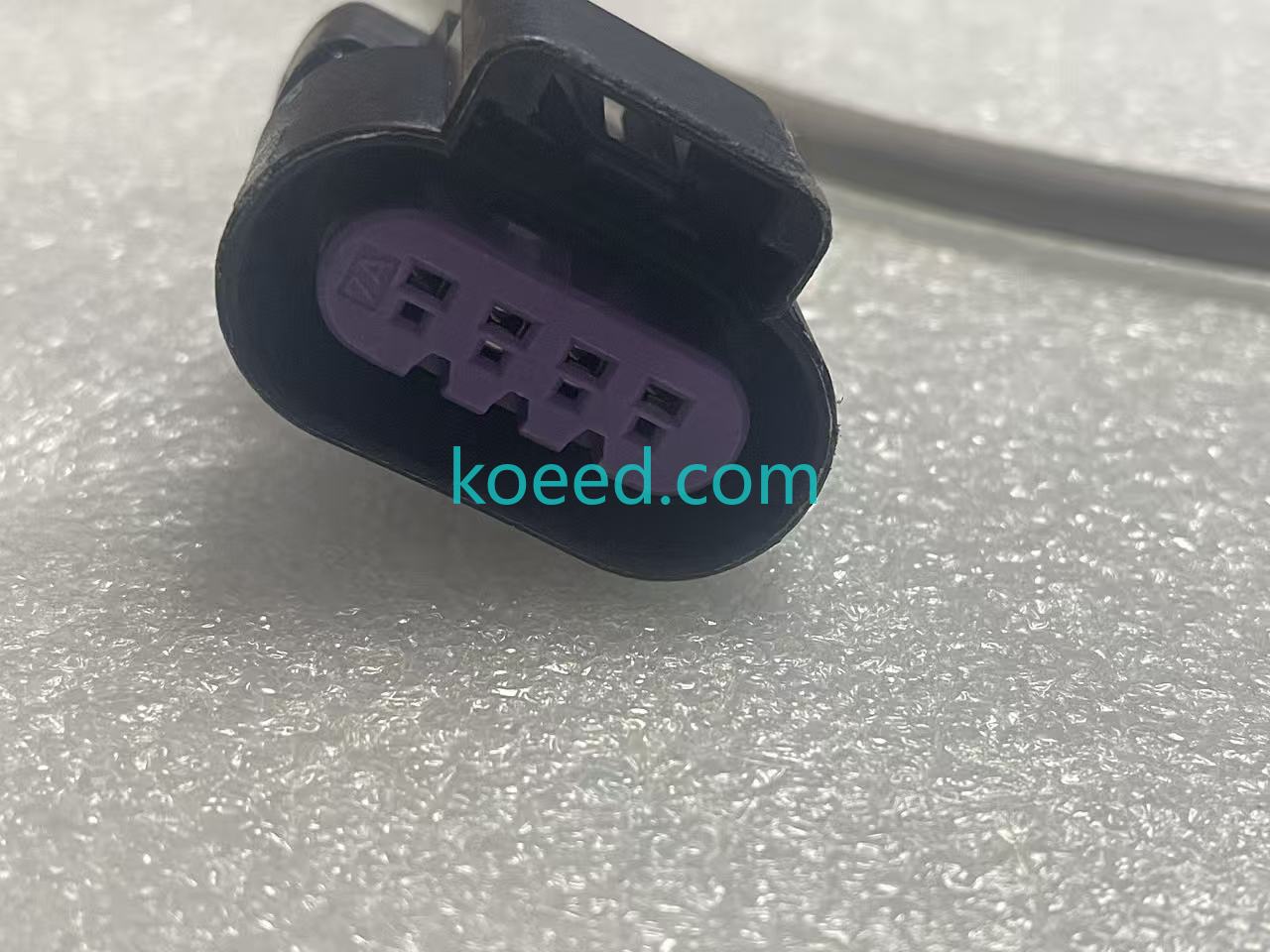

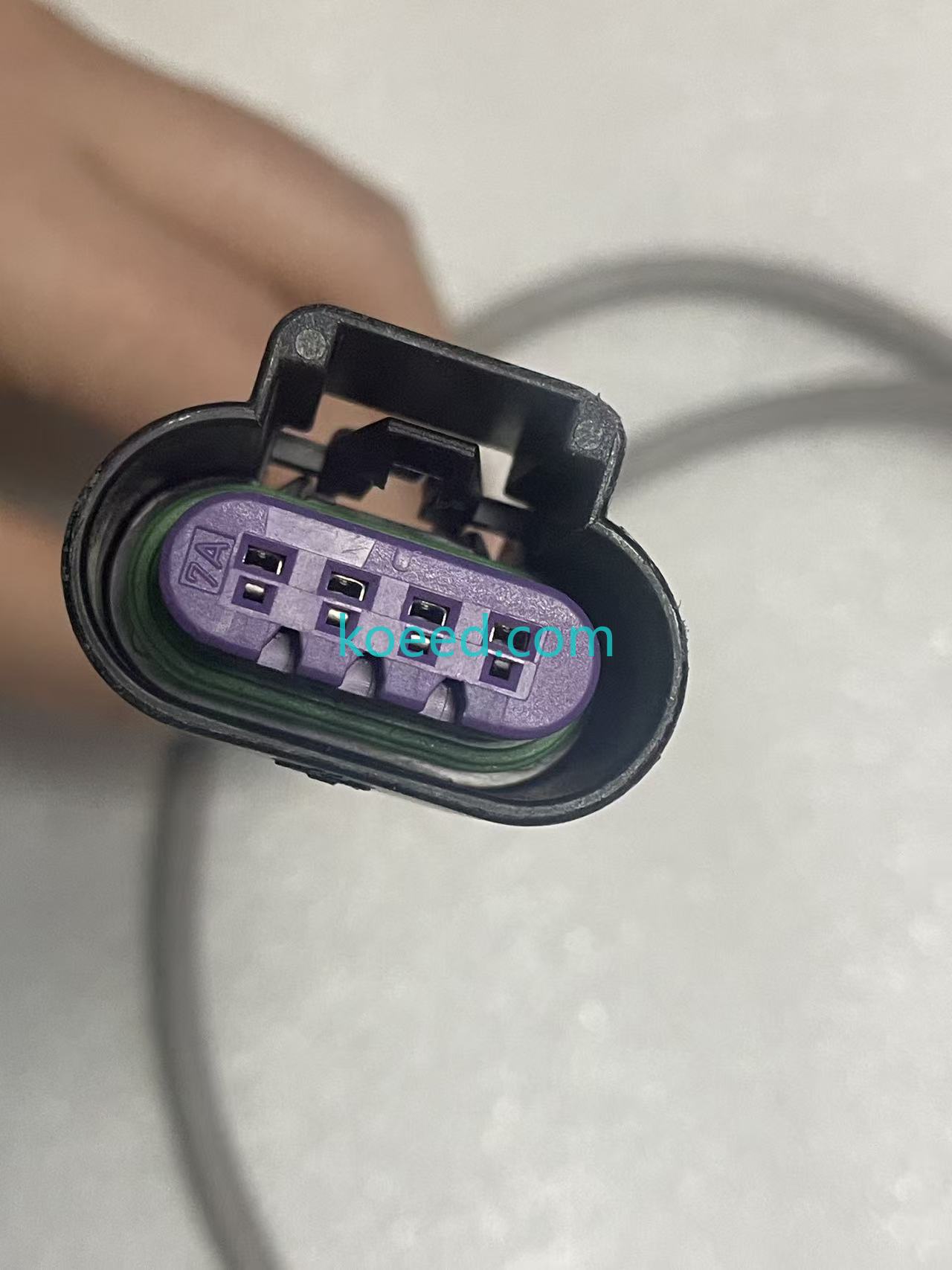

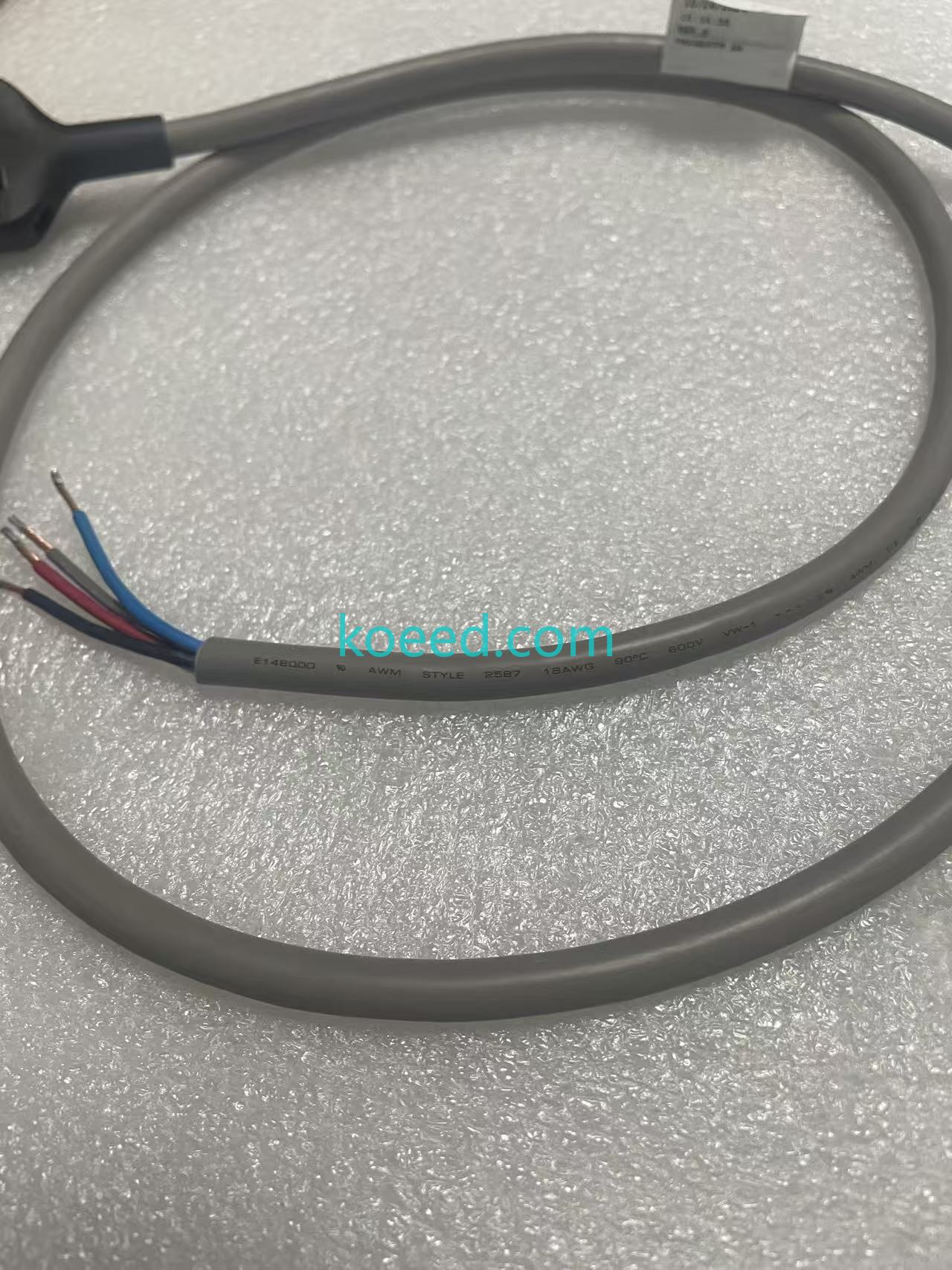

The first photograph is a close view of a black connector with a purple insert and four visible contact openings. The second shows a cable loop in a bag, that connector at one end and exposed coloured conductors at the other. No continuity measurement or connector pin assignment is established by those views.
KIT12559 is readable on the packaging. X19051660020 and version E come from the supply note, because those identifiers are not legible in the two reviewed photographs. The article associates the cable with a liquid-level sensor; exact sensor and equipment fit remain subject to the full installed-part comparison.
The note describes Chinese manufacture, which agrees with the bag's Made in China wording. Neither that origin nor a TRANE logo supplies independent proof of OEM authenticity. Condition and warranty duration are not explicitly stated. The weight field is 0.5 kg without a net or packed basis.
| Item | Evidence |
|---|---|
| Readable package code | KIT12559 |
| Additional source identity | X19051660020; version E |
| Package brand / origin wording | TRANE; Made in China |
| Connector evidence | Black shell, purple insert and four visible contact openings |

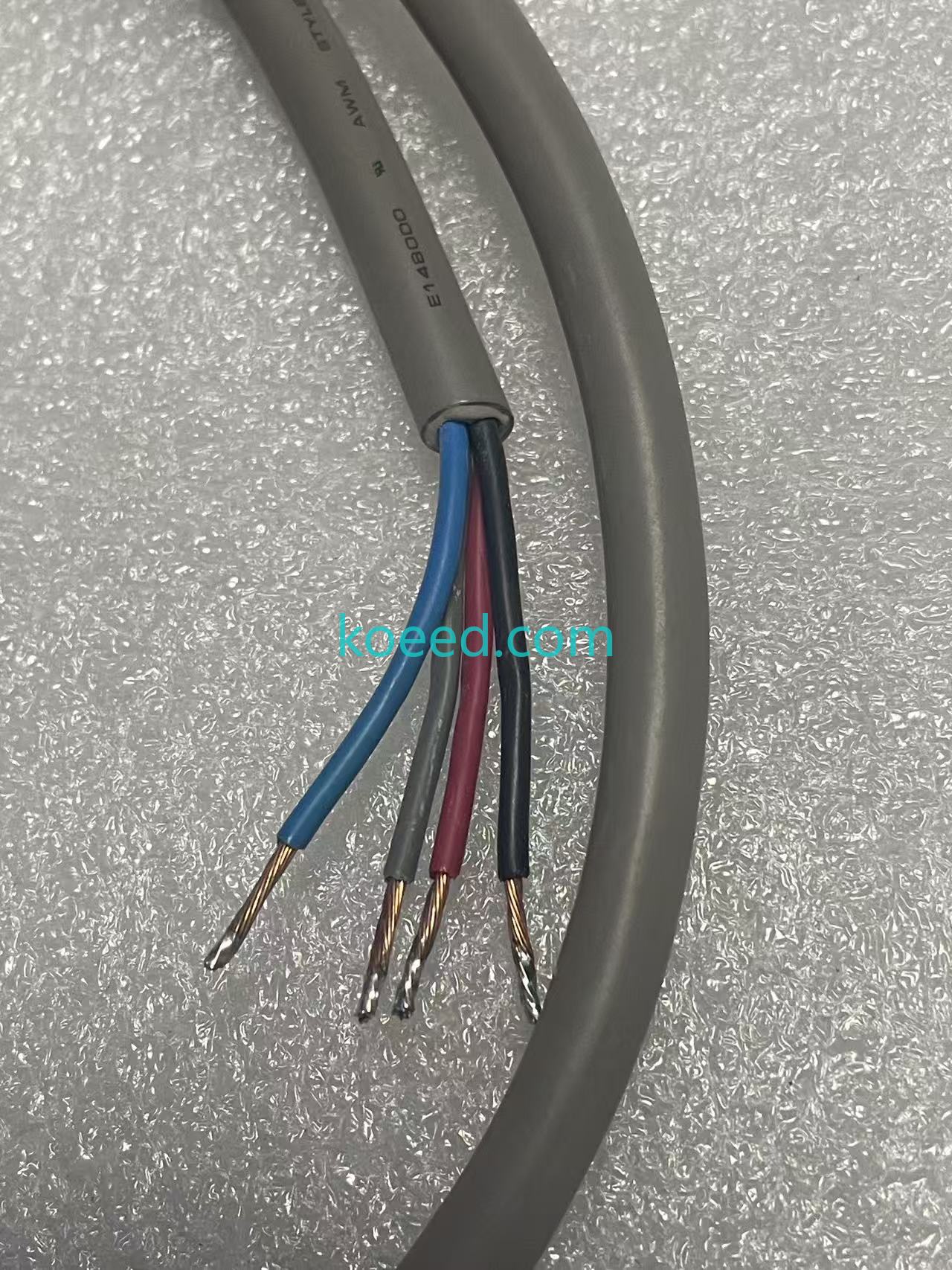

| Cable evidence | Connector at one end; exposed coloured conductors at other end |

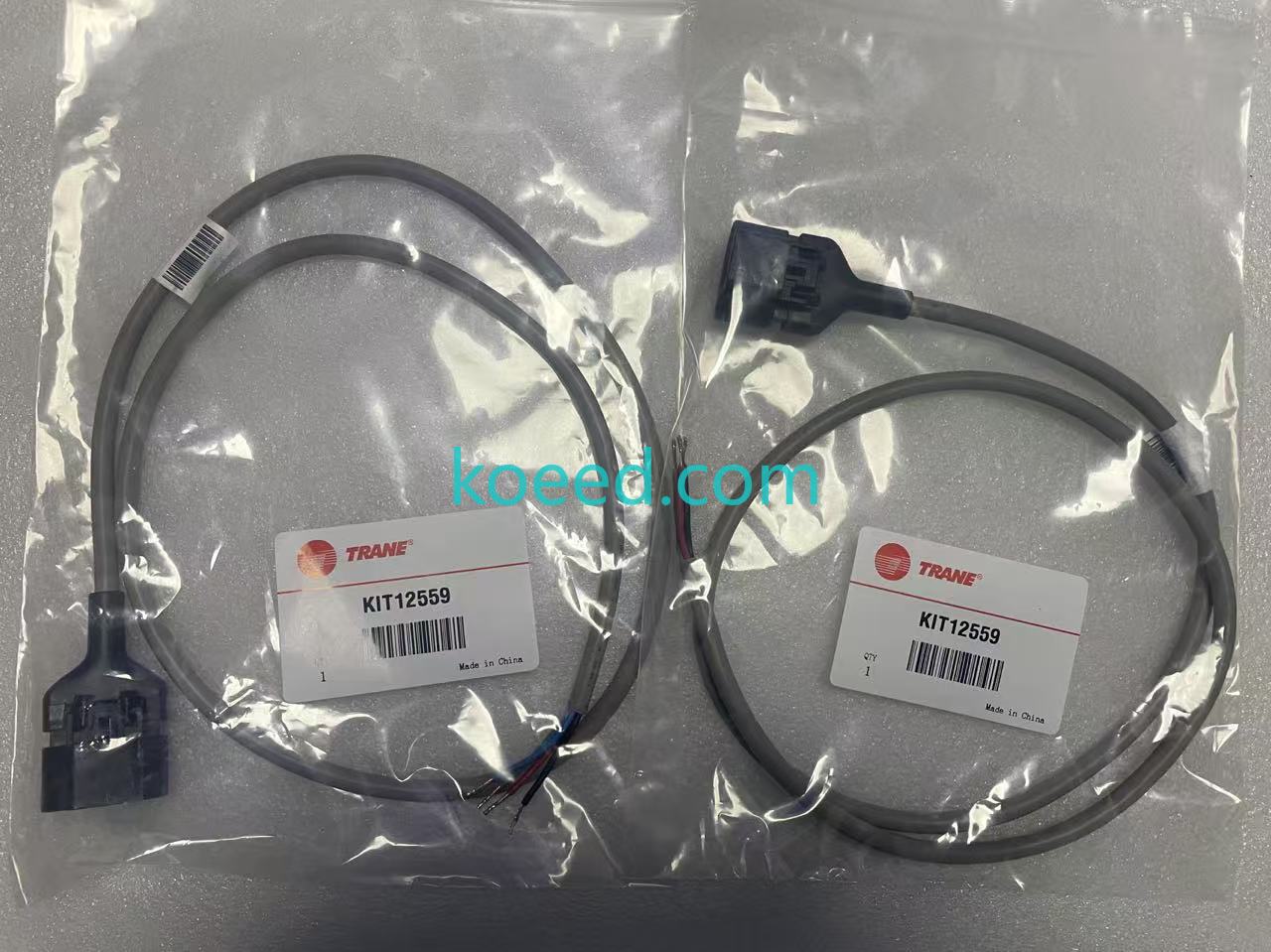

| Quantity distinction | Source supply two units; photographed bag QTY 1 |
| Source date | January 23, 2026 |
| Weight / supply terms | 0.5 kg basis unspecified; condition and warranty not stated |
Swipe or scroll horizontally to read the full table.
Photographs 1 and 2 were reviewed; the first connector close-up lacked part identification, so the second packaging view was needed. Six other photographs and one video are retained as unreviewed source media. Package markings, source identifiers and supply terms remain separately attributed.
Matching this part
Compare KIT12559, X19051660020 and the required revision with the installed part. Send connector-face and cable-end photographs, equipment model and sensor identity so the actual mating arrangement can be checked.
Obtain the applicable wiring assignment and confirm cable length and termination requirements before installation. Agree present condition, warranty and supplied quantity; do not infer the electrical pin order from the four visible openings.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
The KB5004 sensor record concerns different sensing hardware and is not evidence of cable compatibility. Send the installed cable details through Contact us.
Request this part
Request KIT12559 / X19051660020 version E with quantity and equipment details. Confirm mating connector, wiring, cable length, present condition and warranty.
