This record documents one replacement rotor motor filed for DCD780/785 drills. The photographs show a wound armature assembly and a DeWalt Service carton labelled N595065, SA MOTOR BLK 18V(SERVICE). The source calls the item new and states Czech manufacture; the carton prints Made in: CZ. These observations identify the recorded part and packaging, but do not establish compatibility with every tool revision or authenticate the supply chain.
Identification and delivery details

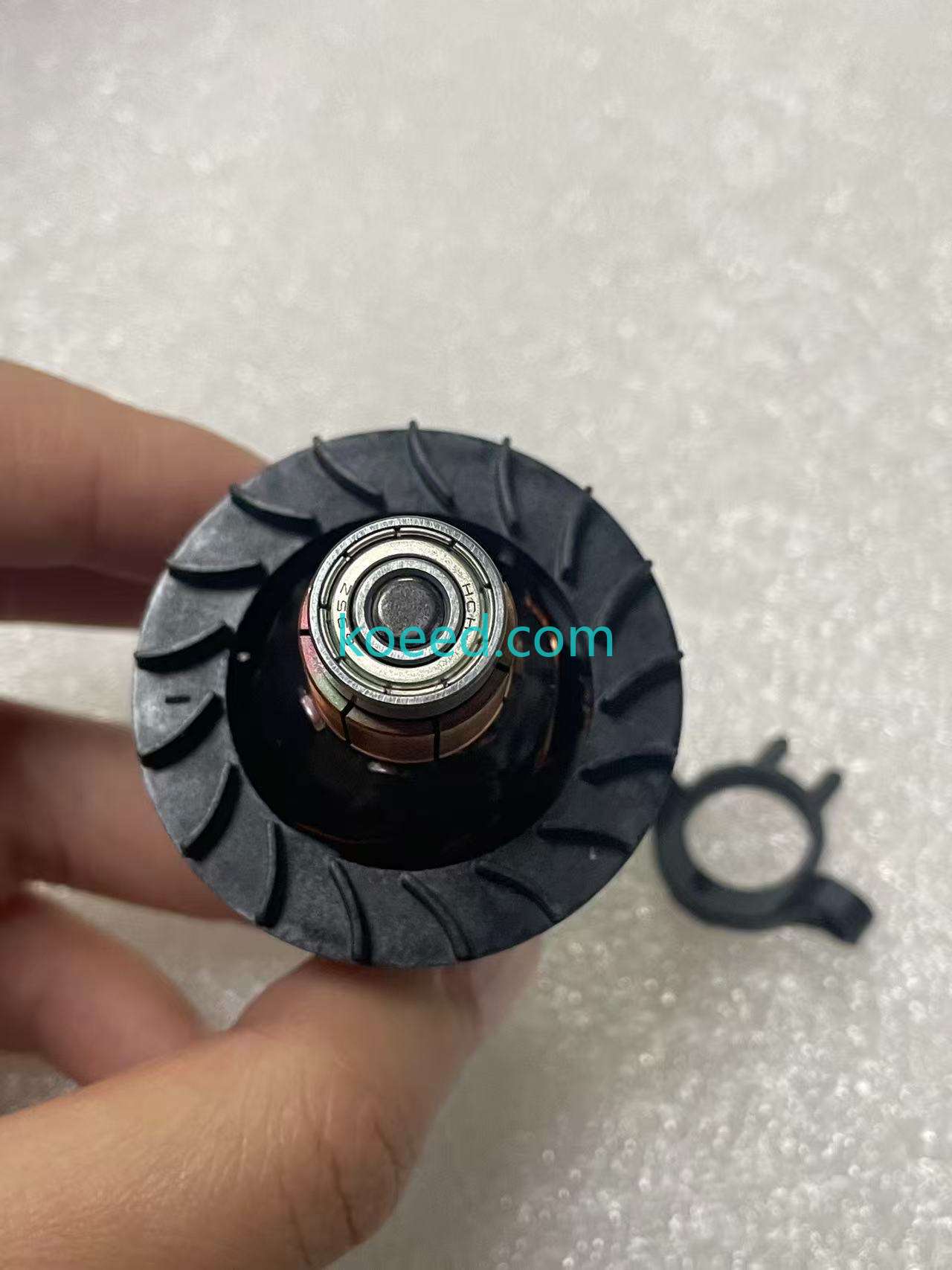

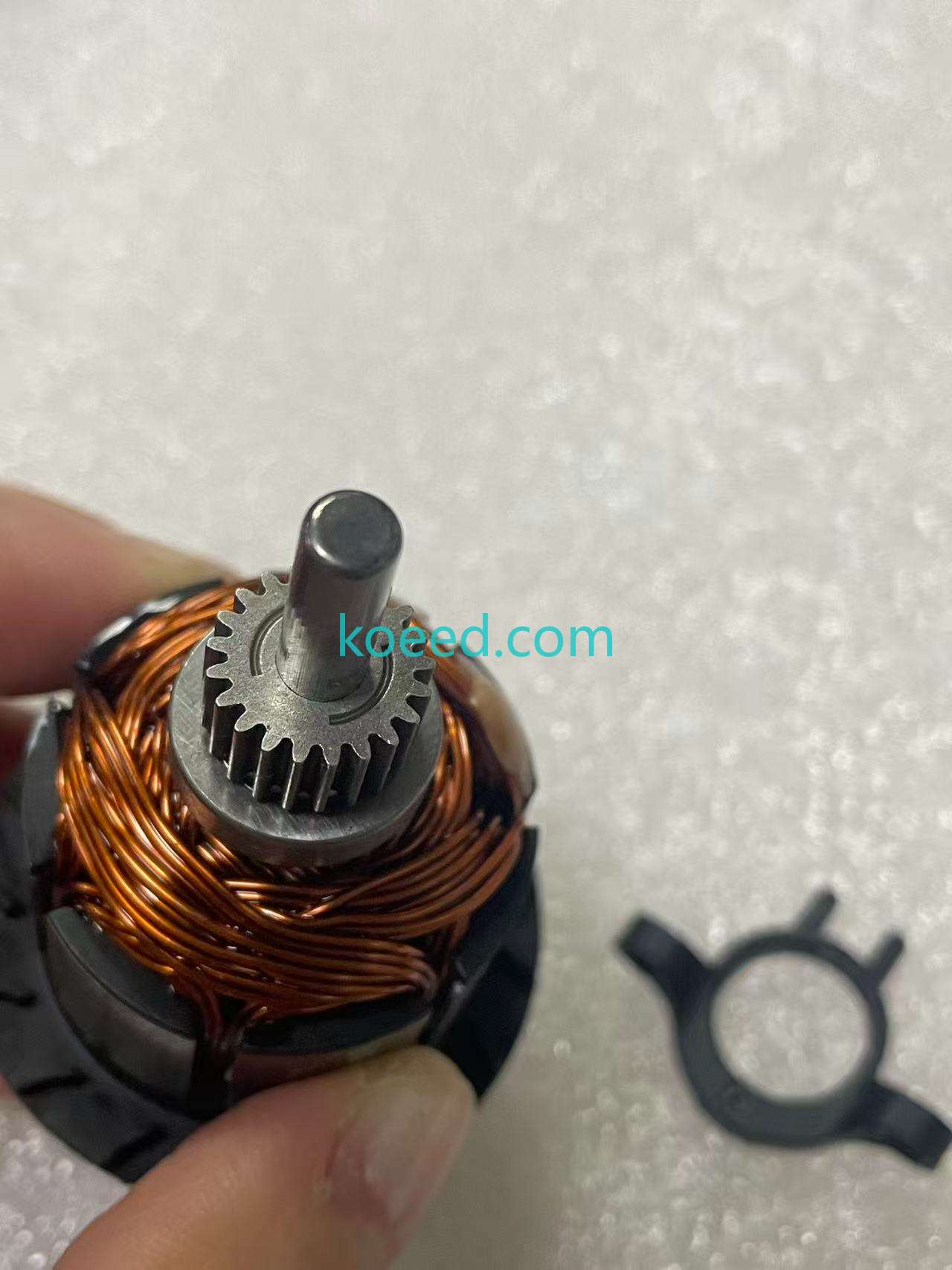

The loose assembly has a laminated core, copper windings, a segmented commutator, bearings and a shaft with a pinion. A separate black ring-shaped piece is beside it. It is a motor component rather than a complete drill, battery pack or assembled drive unit. The record lists one item; the carton quantity of one is a packaging statement, not an additional delivery.

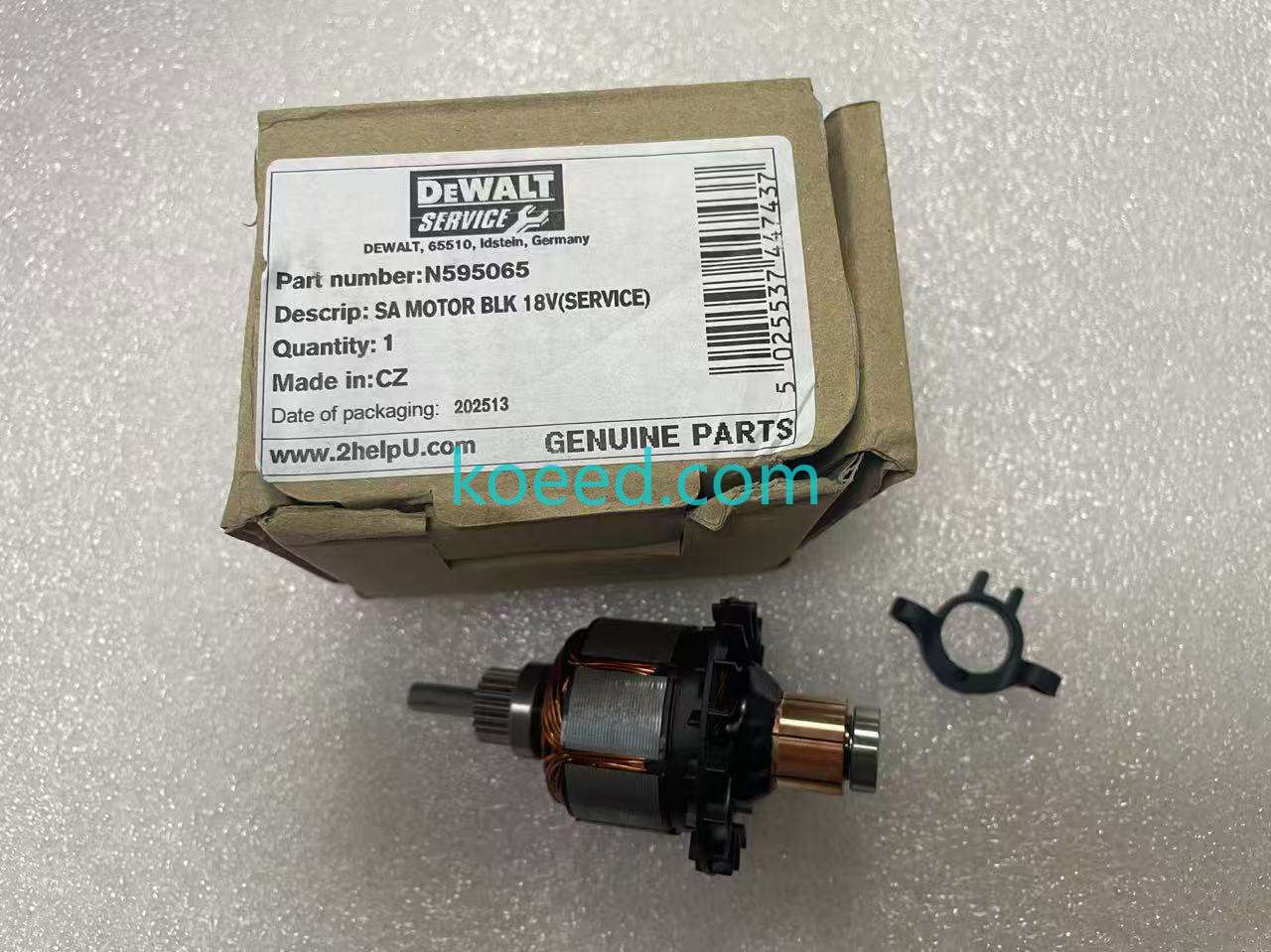

The carton part number N595065 and its 18V service description are the clearest identification details in the reviewed photographs. DCD780/785 is the source application wording; the full tool type and revision are not visible on the part. A buyer should compare the removed part, its service number, shaft geometry and tool type before confirming the replacement. The photos provide no electrical or run-test result.
The label includes DeWalt Service branding, an Idstein, Germany address and Made in: CZ. The address is separate from the printed country of manufacture. Its Date of packaging field reads 202513; that code is retained as printed and is not converted into a manufacturing date. The supplier note gives a weight of 0.5 kg and a record date of 13 November 2025. It does not state warranty terms.
| Item | Evidence |
|---|---|
| Source designation | Replacement rotor motor for DCD780/785 |
| Visible packaging identification | DeWalt Service; part number N595065 |
| Printed service description | SA MOTOR BLK 18V(SERVICE) |
| Recorded quantity | One item; carton also prints Quantity: 1 |
| Recorded condition | New, according to the supplier note |
| Origin evidence | Supplier states Czech manufacture; carton prints Made in: CZ |
| Weight | 0.5 kg in the source note; scope of weighing is not specified |
| Packaging code | Date of packaging: 202513, printed code only |
| Warranty | Not stated in the source record |
| Record date | 13 November 2025 |
| Unverified details | Tool revision coverage, part authentication and functional test results |
Swipe or scroll horizontally to read the full table.
The supplier record and its first two photographs support the statements above. The remaining five photographs are retained with neutral source captions; the source video is retained without a viewing claim. A replacement application name and a branded carton do not by themselves confirm an authorized OEM supply.
Matching this part
The matching catalogue entry uses the same replacement designation DCD780/785 and describes one new rotor motor. It is linked as the recorded replacement item, without treating its KOEED vendor field as a motor-manufacturer identity.
For an RFQ, provide the full tool model and type, the old service part number and clear shaft and bearing measurements. Request confirmation of the supplied assembly and warranty rather than relying on the application shorthand alone.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
View the new 1PC replace For DCD780/785 electric tool impact drill rotor motor catalogue listing. Confirm the exact configuration and condition; a catalogue entry does not identify this delivered unit. Use Contact KOEED to confirm the service part identification and request a quotation for the required tool type.
Request this part
Send the tool type and service part number with your replacement request.
