DIL00M-10 Mueller Contactor: Complete Technical Guide for Industrial Automation

11 Ιανουάριος 2026

Historical parts record: Photos and notes below belong to this record. Confirm the offered unit’s full model, condition and available test evidence before ordering.

What is the Moeller DIL00M-10?

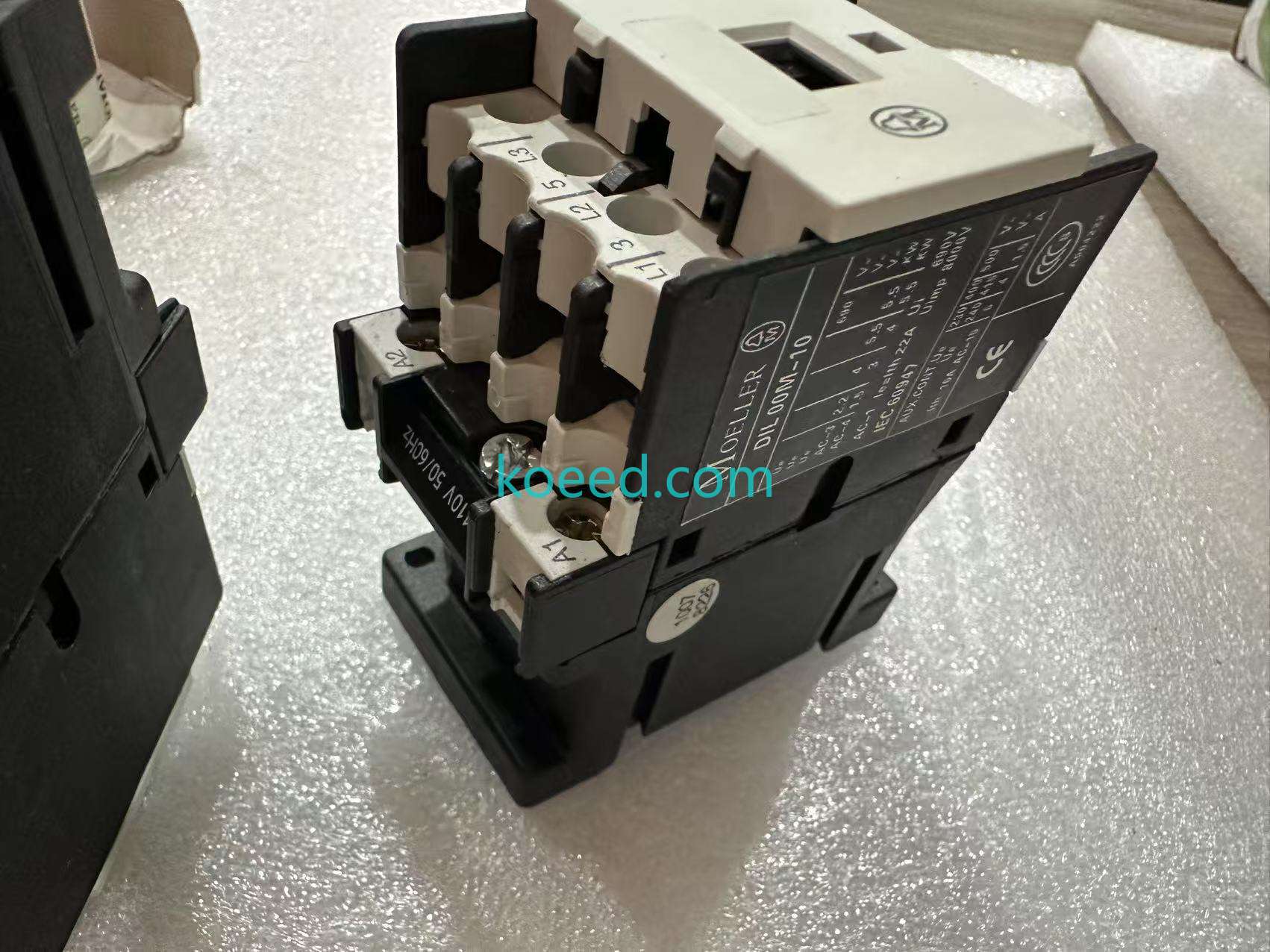

The DIL00M-10 is Moeller's compact three-pole power contactor in the DIL00 frame — the small breaker-style contactor that switches motors up to 4 kW (AC-3) at 230 V and carries 22 A thermal (AC-1) at a 690 V rated insulation voltage. This build carries a 110 V 50/60 Hz coil on terminals A1/A2, one normally-open auxiliary contact (13/14, 16 A thermal AC-15), and the standard main terminal set L1/L2/L3 to T1/T2/T3 on a 35 mm DIN-rail or M4-screw mounting. The nameplate reads MOELLER with the round M mark, IEC 60947, CE and the CCC approval A004222 — and the factory boxes say where it was made: by Moeller's Chinese works, 金钟默勒电器（苏州）有限公司 in Suzhou New District, the manufacturing arm of Klöckner-Moeller in China. Three units, new in factory boxes, 1-year warranty as recorded at intake. All 10 photos and 1 video below show these exact contactors.

3 min readContent reviewed 7 October 2026

Part details

DIL00M-10, as printed on the nameplate and box
Field	Value
Model	Moeller DIL00M-10
Type	Three-pole power contactor (Leistungsschütz), 1 NO auxiliary

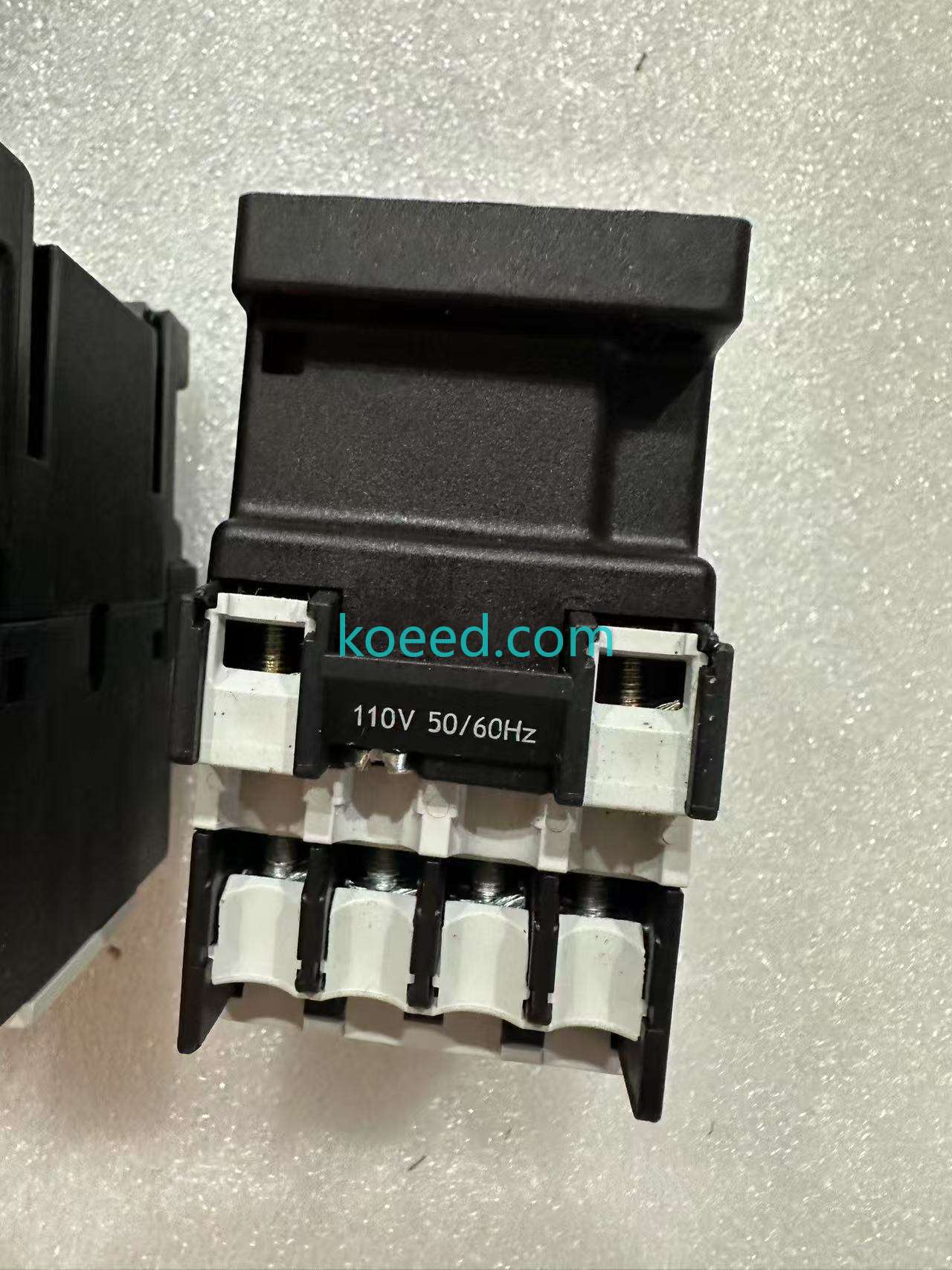

Coil	110 V, 50/60 Hz (A1/A2)
Ratings	Ue 690 V~, Ui 690 V, Uimp 8000 V; Ith 22 A (AC-1)
Motor duty	AC-3 up to 4 kW; AC-4 up to 3 kW (230 V class, per nameplate table)
Auxiliary contact	1 NO (13/14); Ue 230/400/500 V, Ith 16 A, AC-15 6 A (230 V)
Standard	IEC 60947
Approvals	CE, CCC (A004222)

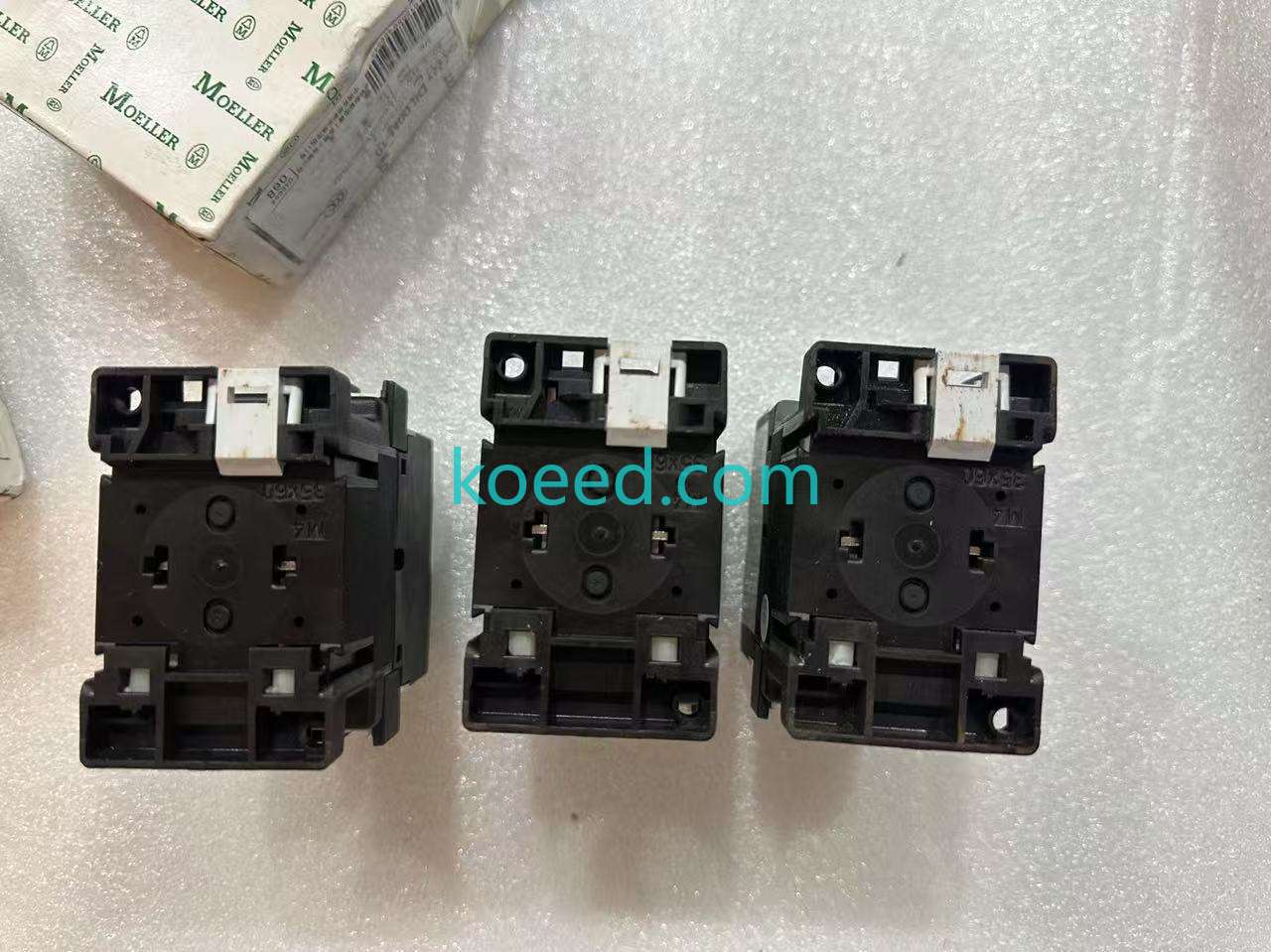

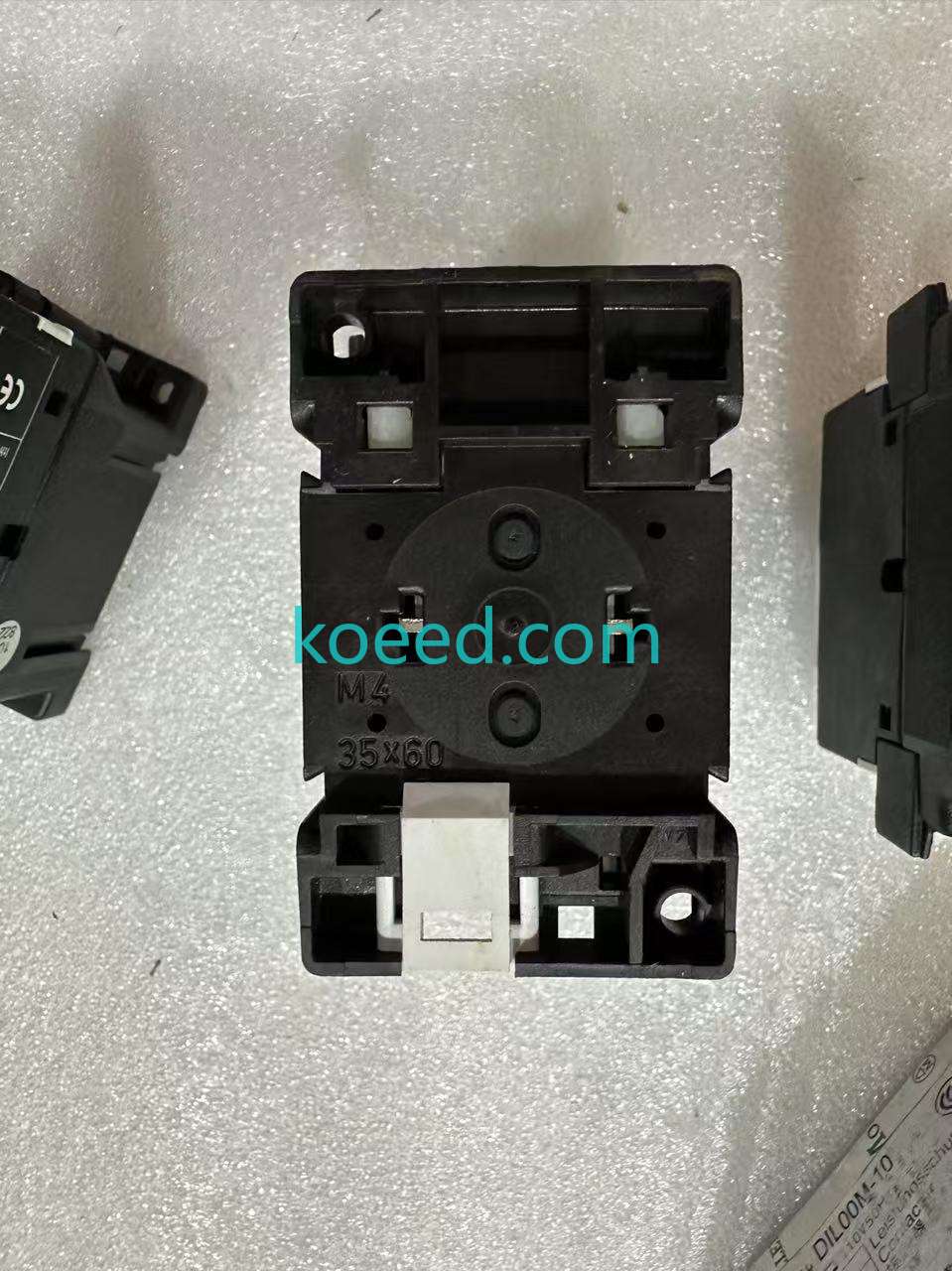

Mounting	35 mm DIN rail or M4 screw, 35 × 60 footprint (base marking)

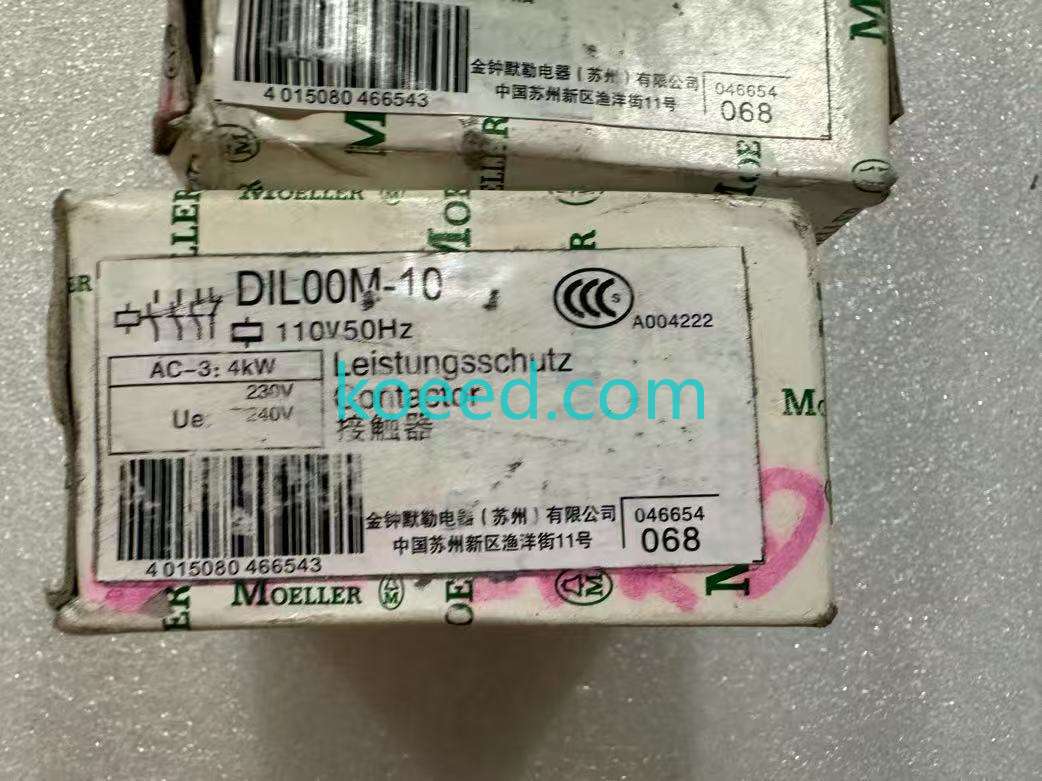

Maker	Moeller — 金钟默勒电器（苏州）有限公司, Suzhou New District, China (box label)

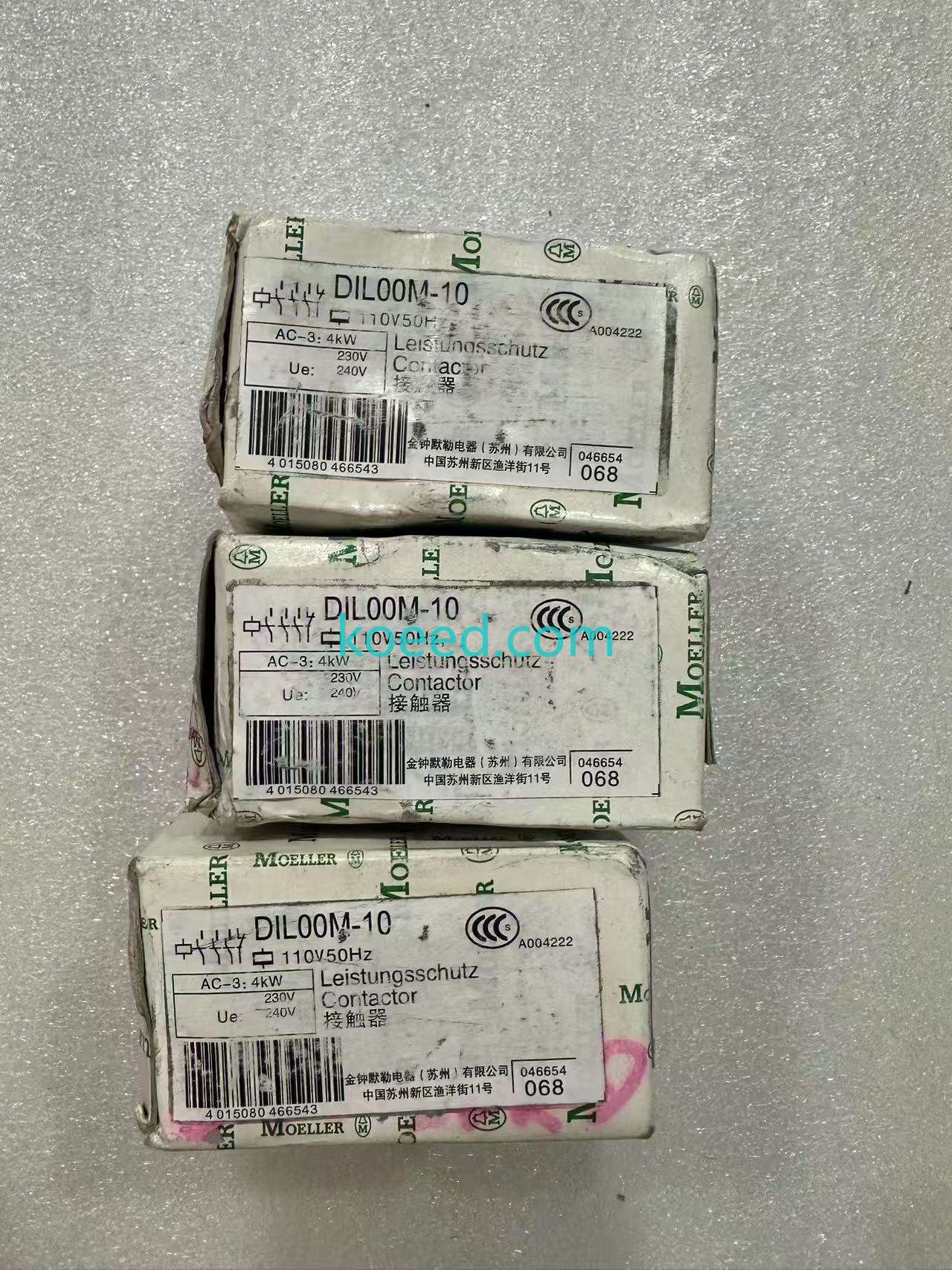

Quantity	3 units, new in factory boxes; batch 046654/068; 1-year warranty as recorded at intake
Shipping weight	1.12 kg per unit as recorded

Scroll sideways to see the full table.

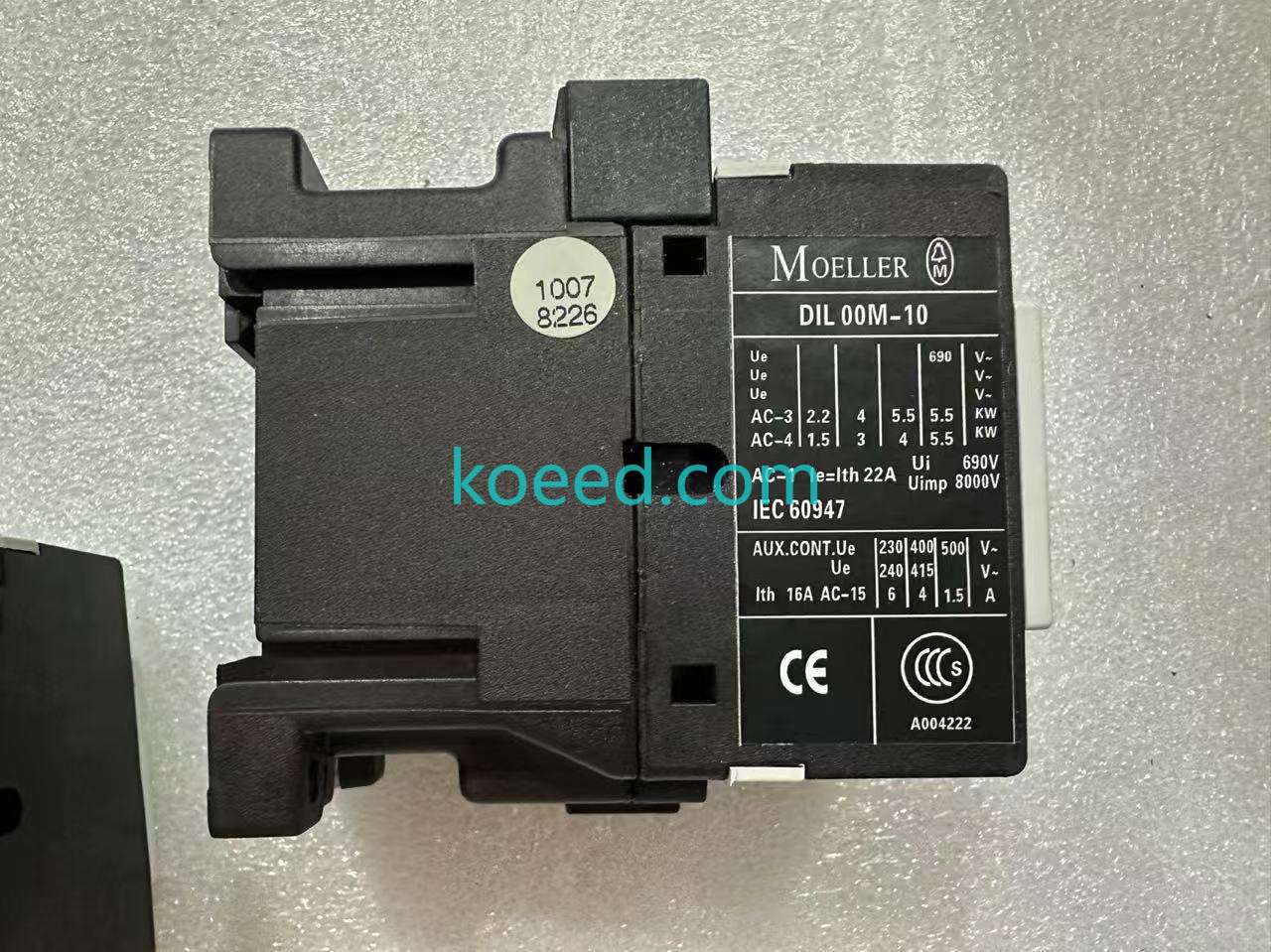

Values are read from the contactor nameplate, the coil marking and the factory box labels in the photo set.

The small contactor that runs the small motors
