SDT-S-112LMR: delivery record

12 Σεπτέμβριος 2026

Historical parts record: Photos and notes below belong to this record. Confirm the offered unit’s full model, condition and available test evidence before ordering.

The SDT-S-112LMR entry created on 7 July 2025 states 12 VDC. Its first photograph shows two black relay bodies, and the second shows four projecting pins on one body. The manual note does not establish a delivery quantity, condition grade, package size or warranty.

Identification and delivery details

The first photograph shows two rectangular components beside a hand. One face carries a TE mark and several rating and approval markings, including a readable 5 A / 250 V line. The small, low-contrast printing does not support a dependable complete model and coil-label transcription for both components.

The second photograph was needed to seek further identification. It shows an unlabelled casing face and four pins projecting from the lower edge. It establishes the visible pin count for that pictured body, not a pin assignment, contact arrangement or tested switching function.

The complete SDT-S-112LMR code and 12 VDC value are retained as source statements. The photographed contact-voltage line is separate from that source coil voltage. No universal 5 A load capability is inferred without the exact rating context, and the marks are not treated as independently verified certifications.

The two-body arrangement is an observation, not an explicit delivery count. The financial notation does not supply quantity, and the recorded zero weight is unusable as weight evidence. No origin, current grade, boxed quantity, warranty or accessory completeness is established in the manual note.

No coil power, isolation result, contact material, endurance measurement or functional test is documented. The earlier summary’s 250 mW, 4 kV and AgSnO2 claims are not carried forward as verified specifications.

Photographed markings and delivery record
Item	Evidence
Source model / date	SDT-S-112LMR; 7 July 2025
Source voltage	12 VDC
First photographed arrangement	Two relay bodies; delivery quantity not established
Visible face mark	TE on one pictured face; complete identity unresolved
Visible rating text	5 A / 250 V line; exact rating context not fully resolved
Second photographed feature	Four projecting pins on one body
Pin assignment / contact arrangement	Not established
Condition / origin / warranty	Not stated in the manual note
Verified package quantity	Not established
Usable weight	Not established; recorded zero is not usable evidence
Functional evidence	No energized coil or switching result established

Swipe or scroll horizontally to read the full table.

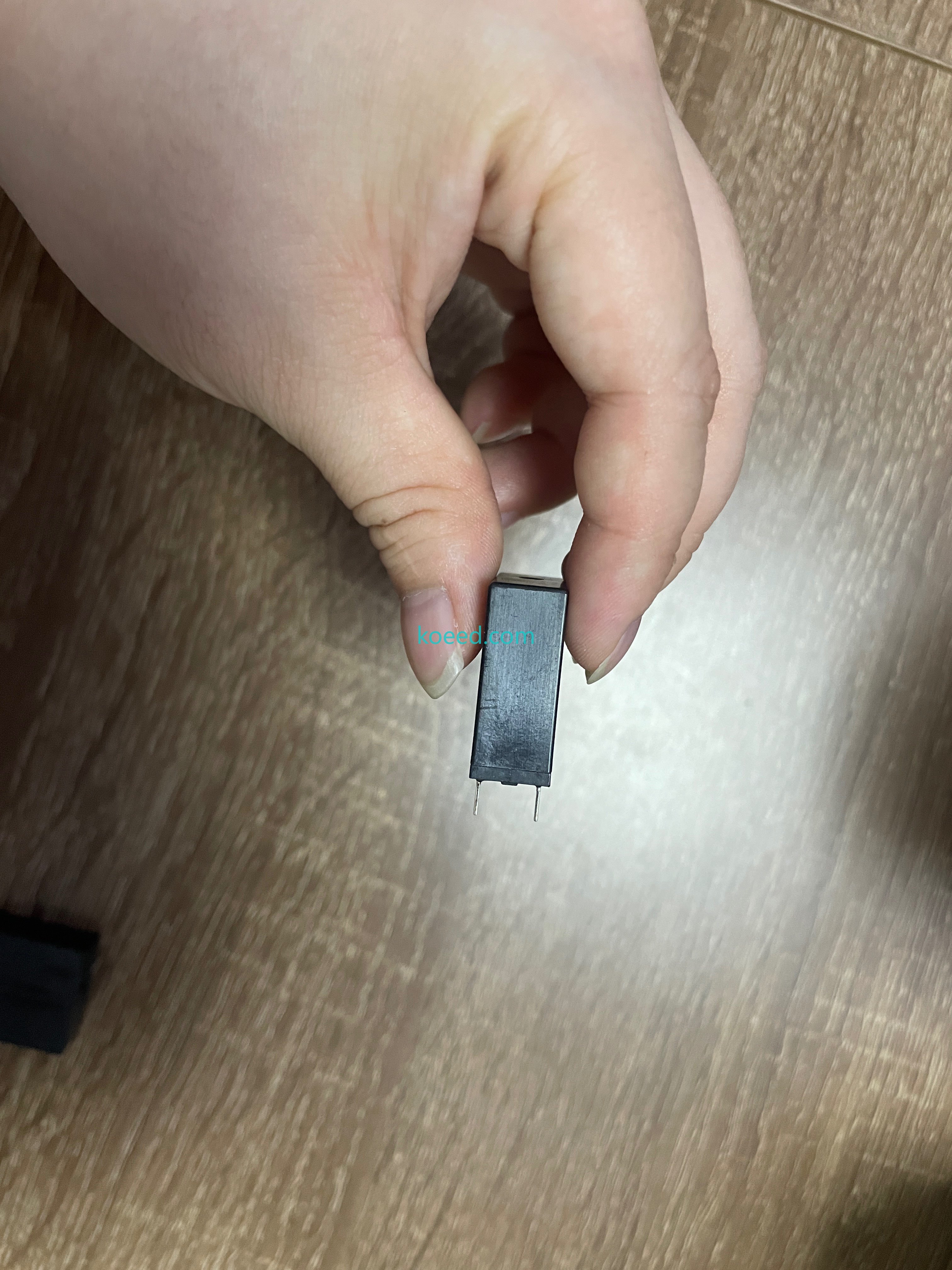

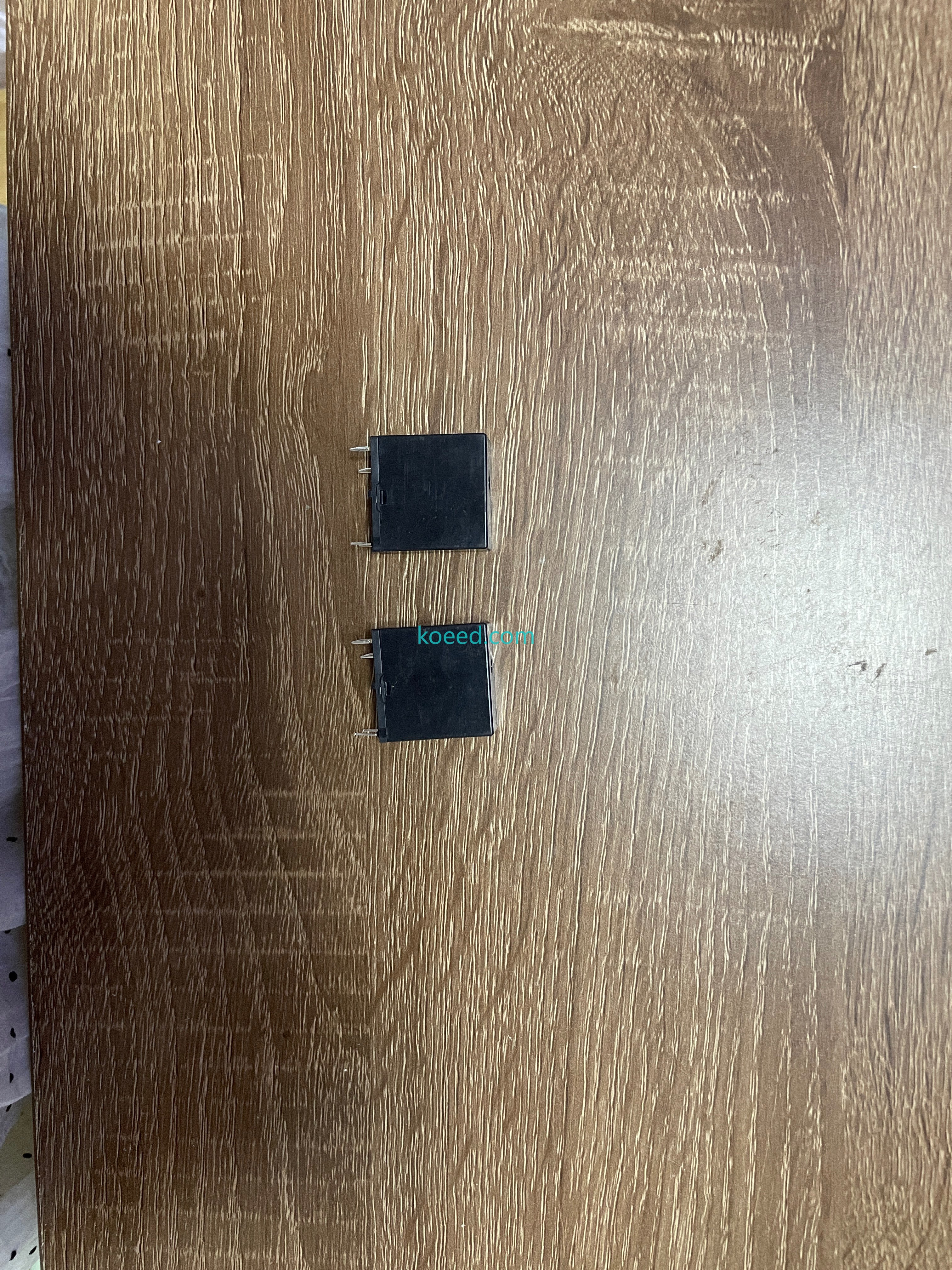

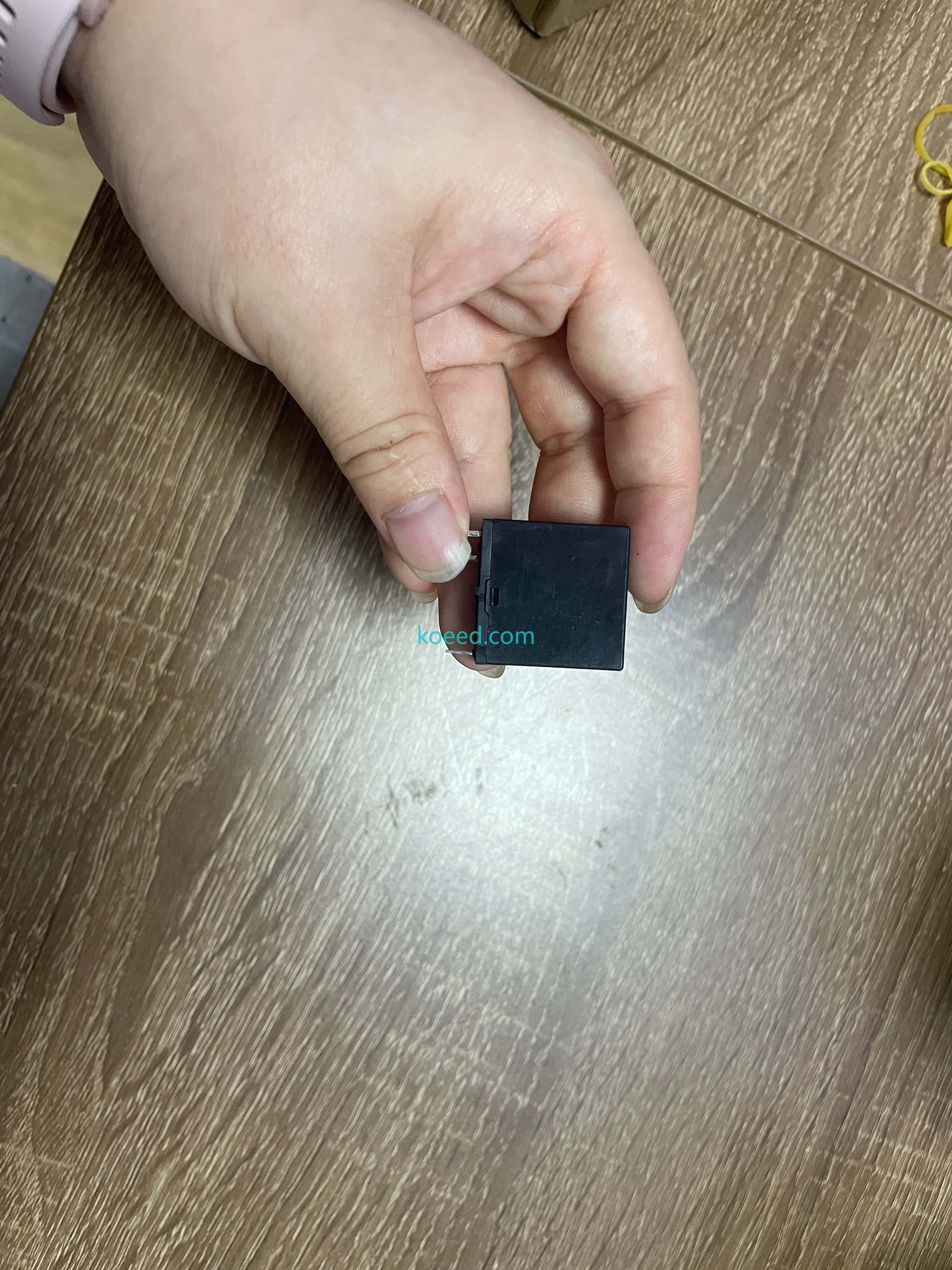

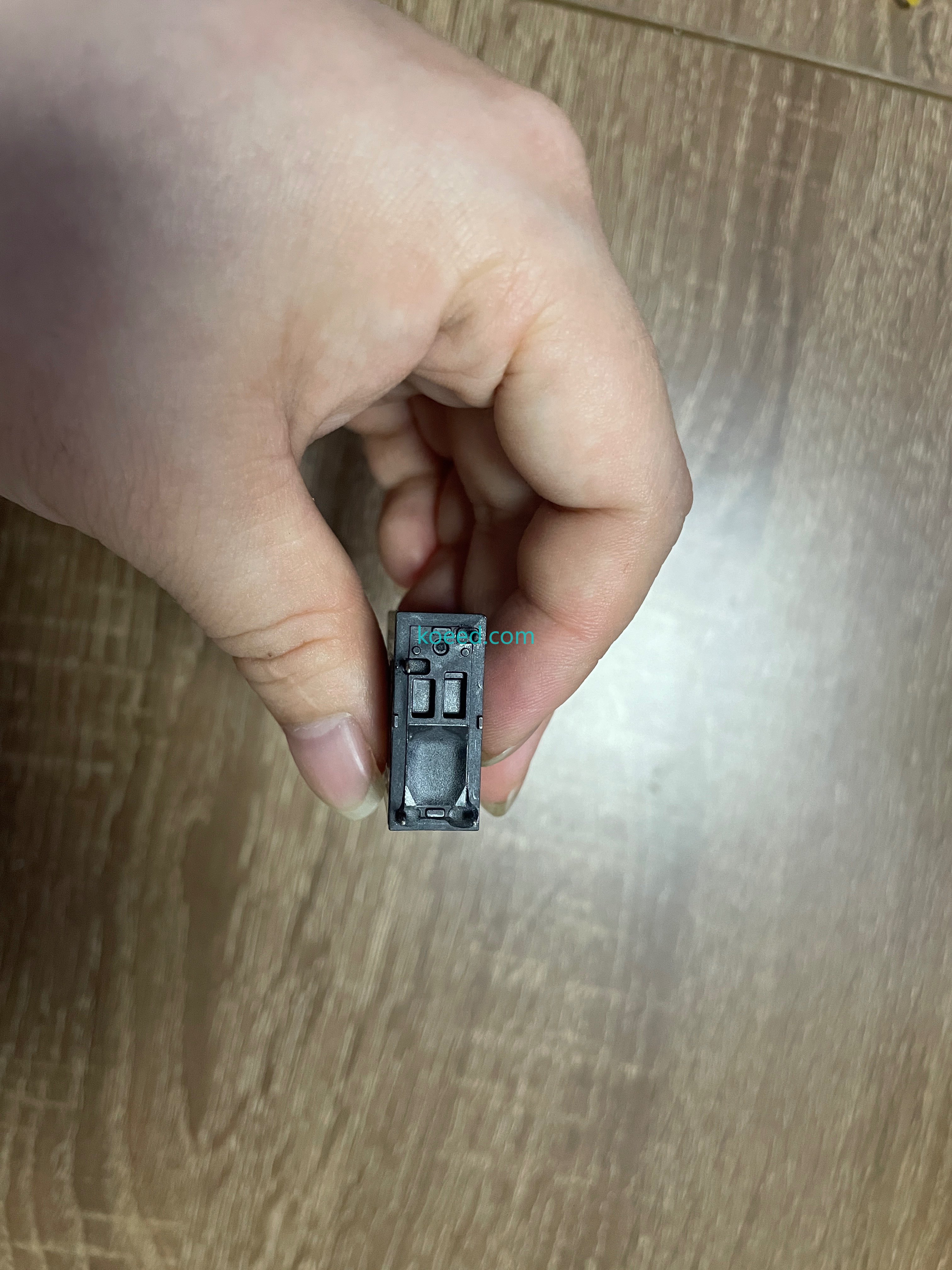

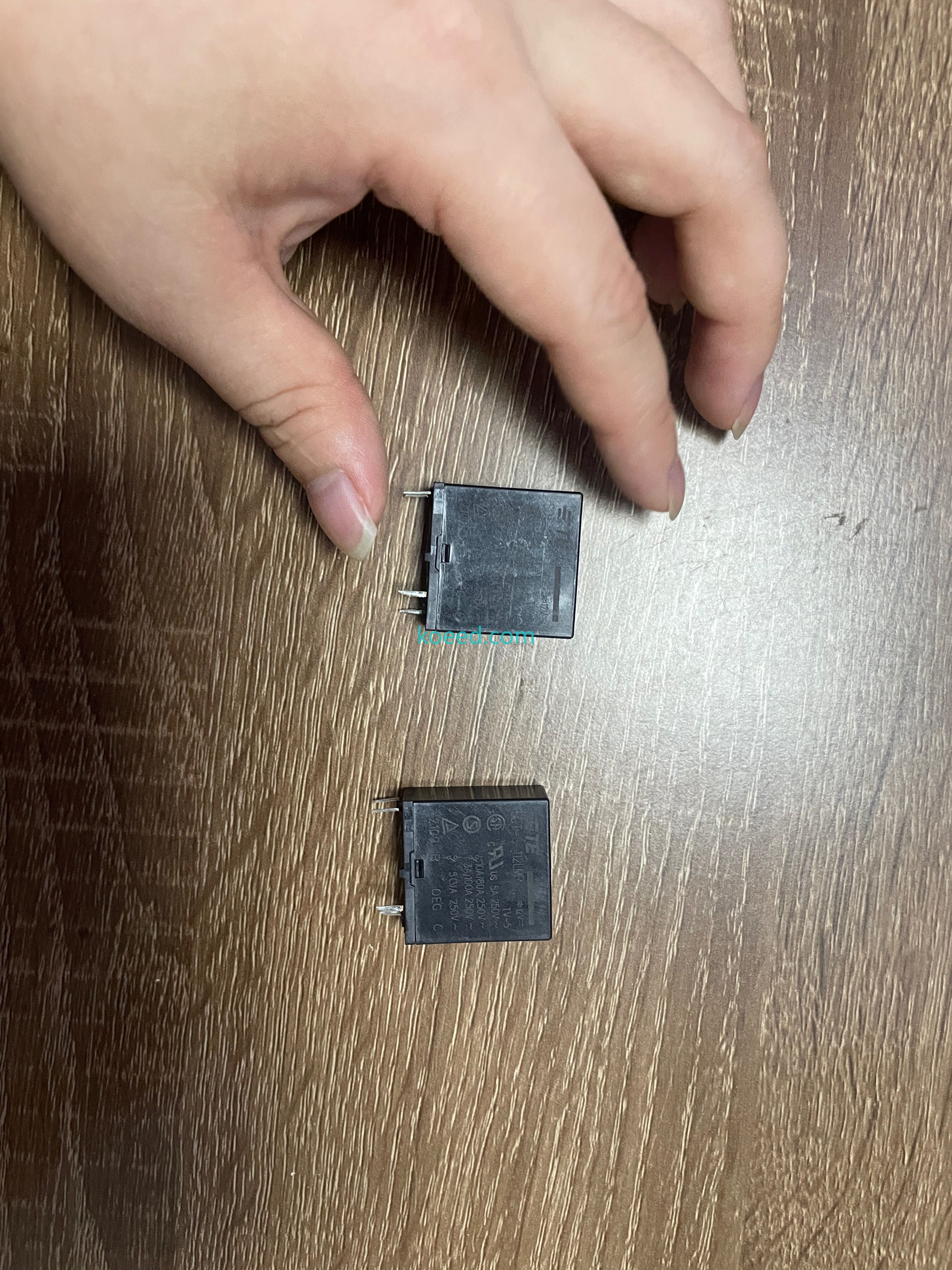

All seven unique JPEG photographs and the MOV video are retained with filename mapping and byte/SHA checks. Photograph 1 was reviewed for the component faces; photograph 2 was needed to seek identity but adds only the casing and pin view. The other five photographs carry neutral captions. The video was downloaded and hashed but not viewed.

Matching this part

No product is attached. The queried TYCO offers specify five-piece and ten-piece packages. This source establishes neither those package quantities nor a complete independently readable manufacturer and model label. Neither the financial notation nor two photographed bodies can complete that packaging match.

A quotation should identify the actual complete relay, coil voltage, required contact configuration and package quantity, together with condition and acceptance evidence. Confirm origin, packing and warranty separately. The historical entry does not establish current stock or verified switching performance.
