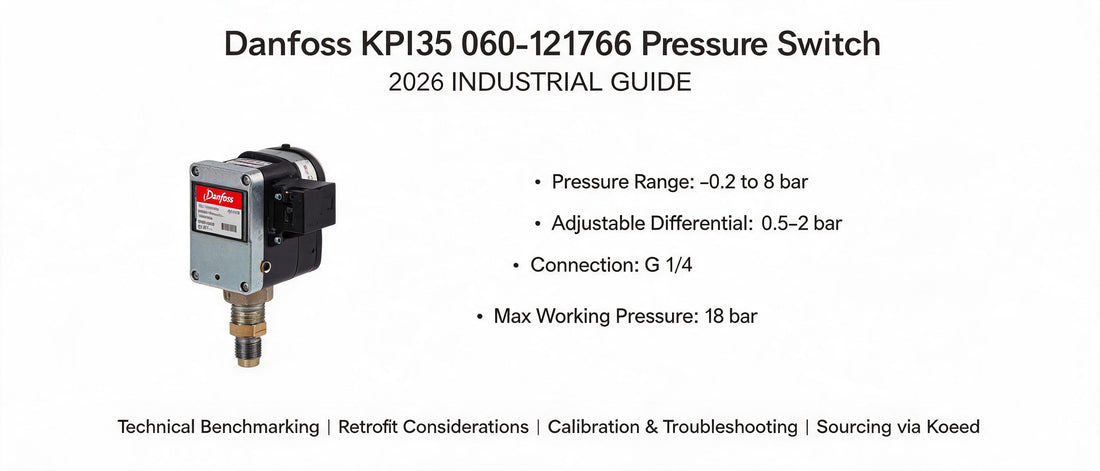

Danfoss KPI35 060-121766: The Pressure Switch That Still Holds the Line in 2026
While the industry races toward IO-Link diagnostics and cloud-connected asset management, thousands of refrigeration racks, compressor banks, water booster sets and hydraulic power units still depend on one brutally simple device: a mechanical pressure switch that never needs firmware. The Danfoss KPI35 (order code 060-121766) is that device — a -0.2 to 8 bar regulation range, 0.5-2 bar adjustable differential, G 1/4 connection workhorse with an 18 bar maximum working pressure.
This guide is written for maintenance engineers, system integrators and procurement leads who need to evaluate, retrofit, calibrate and source this exact unit in 2026.
1. Strategic Overview: Why a Mechanical Switch Still Wins the 2026 Argument
The global pressure switch market is on a trajectory toward US$3.5 billion by 2030, and the dominant growth narrative is electronic, digital and IoT-integrated sensing. Yet in real plant floors — especially in refrigeration, marine, food processing and legacy pump rooms — the installed base of electromechanical switches remains enormous.
The KPI35 060-121766 plays three distinct strategic roles in a 2026 facility:
- Deterministic safety layer. It is a hard-wired, fail-safe step in the control ladder — it operates whether or not the network, the HMI, or the SCADA historian is online.
- Retrofit continuity. Because the unit drops into an existing G 1/4 pressure tapping with the same wiring topology, a replacement is a same-day, hot-loop-compatible activity.
- Cost-efficient redundancy. Many 2026 designs pair one electronic transmitter for trend and analytics with one mechanical switch for the trip layer.
2. Technical Benchmarking: Inside the 060-121766
2.1 Core Specification Sheet
| Parameter | Specification |
|---|---|
| Product family | Danfoss KPI 35 electromechanical pressure switch |
| Regulation range (Pe) | -0.2 to 8 bar |
| Differential (hysteresis) | 0.5 to 2 bar, field adjustable |
| Reset function | Automatic |
| Contact system | SPDT changeover |
| Pressure connection | G 1/4 A (ISO 228-1) |
| Max. working pressure | 18 bar |
| Max. test pressure | 18 bar |
| Enclosure rating | IP30 (upgradeable to IP44 with accessory cover) |
| Media compatibility | Air, gases and liquids — non-aggressive, non-combustible |
| Media temperature | approx. -40 to +100 C |
| Ambient temperature | approx. -40 to +65 C |
| Mounting | Direct line mounting on the pressure port |
| Conformity | CE marked; regional approval variants available |
2.2 Legacy vs. Modern: Choosing the Right Layer in 2026
| Decision Criterion | KPI35 060-121766 | Electronic / IO-Link Sensor |
|---|---|---|
| Signal output | Volt-free SPDT contact | 4-20 mA / 0-10 V / IO-Link |
| Set-point resolution | Mechanical scale + screw adjustment | 0.1% FS typical, software configurable |
| Diagnostics | None (state only: open / closed) | Full: drift, health index, temperature, error codes |
| Ownership behaviour during network outage | Keeps protecting the machine | Depends on receiving controller and fail-safe setup |
| Installation effort | Wiring plus a gauge; immediately operational | Configuration, addressing, commissioning records |
| Typical 2026 street price | Far lower entry cost (approx. EUR 130-240 depending on channel) | 2-5x higher unit cost plus commissioning labour |
| Best-fit role | Trip / interlock / unattended start-stop duty | Trend monitoring, predictive maintenance, energy accounting |
Architect's pro-tip: Do not force a binary choice. The highest-ROI 2026 pattern is a hybrid loop — an electronic transmitter feeding the analytics and ERP/CMMS layer, plus a mechanical switch such as the KPI35 060-121766 guarding the trip. You get data without putting the safety function on the network's critical path.
3. Visual Gallery: Every Angle of the 060-121766
4. Calibration and Troubleshooting Playbook
Use a certified reference gauge and a stable pressure source. Set the upper set point by turning the range screw, then set the differential screw. Verify the switch point with rising and falling pressure. Typical issues: contact chatter (widen differential), drift (check mounting torque and diaphragm), leakage (replace gasket or fitting), and false trips (verify media temperature and ambient conditions).
No-error-code fault mapping: Because the KPI35 has no digital diagnostics, fault isolation is electrical and mechanical. Check continuity across C-NO and C-NC at the expected trip points. If the contact does not change state, inspect the diaphragm, the set-point spring, and the wiring terminals.
5. Retrofit and TCO Model
A retrofit replacement typically takes 1-2 hours for a competent technician. No firmware, no addressing, no network configuration. The TCO advantage is strongest in facilities with many small pressure loops: the KPI35 keeps the trip function independent from the control network and avoids recurring configuration and cybersecurity overhead.
