HGP-3A-F11R Hydraulic Gear Pump: Complete Technical Guide for Industrial Automation
HGP-3A-F11R Hydraulic Gear Pump
High-performance hydraulic gear pump designed for industrial automation and machinery applications
Product Overview
The HGP-3A-F11R is a premium hydraulic gear pump from the HYDROMAX HGP-3A series, engineered for demanding industrial applications. This pump features high-strength aluminum alloy construction and delivers reliable performance in hydraulic systems requiring consistent fluid transfer. As a key component in industrial automation, the HGP-3A-F11R ensures smooth operation of machinery across various sectors including manufacturing, construction, and material handling.
For detailed specifications and purchasing information, visit the official product page: https://koeed.com/products/new-one-hydromax-hgp-3a-f11r-hydraulic-oil-pump-gear-pump-hgp-3af11r

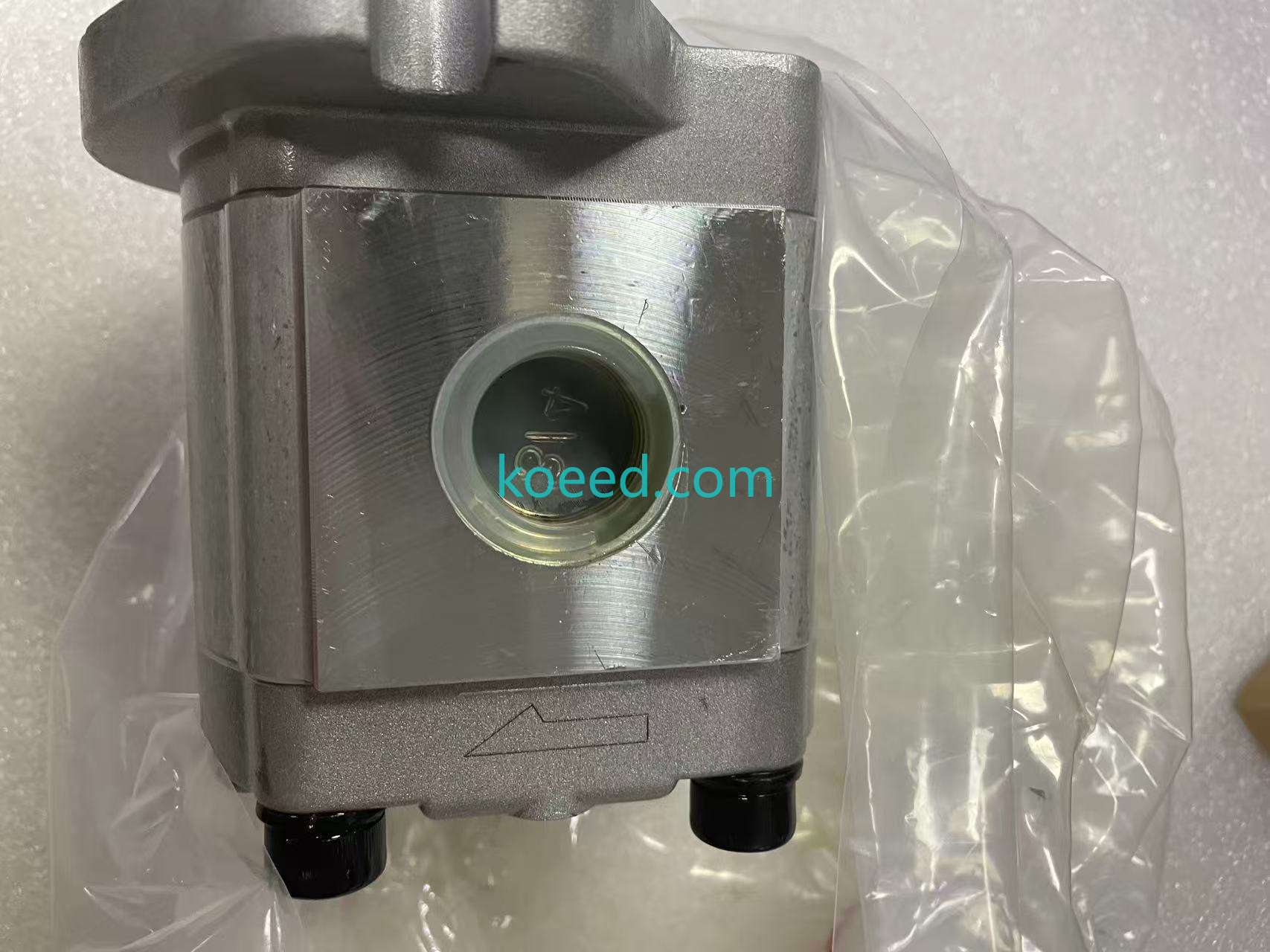

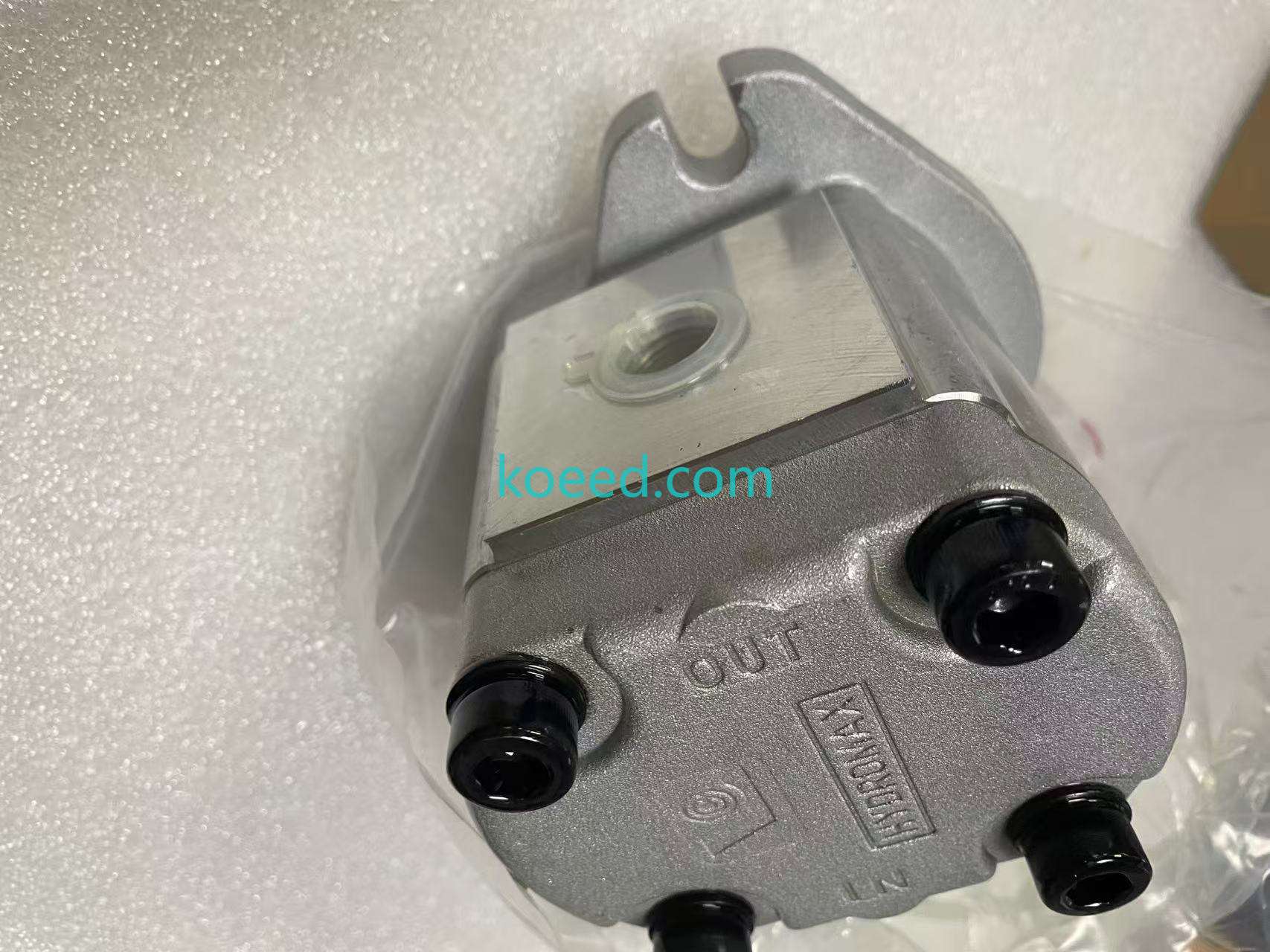

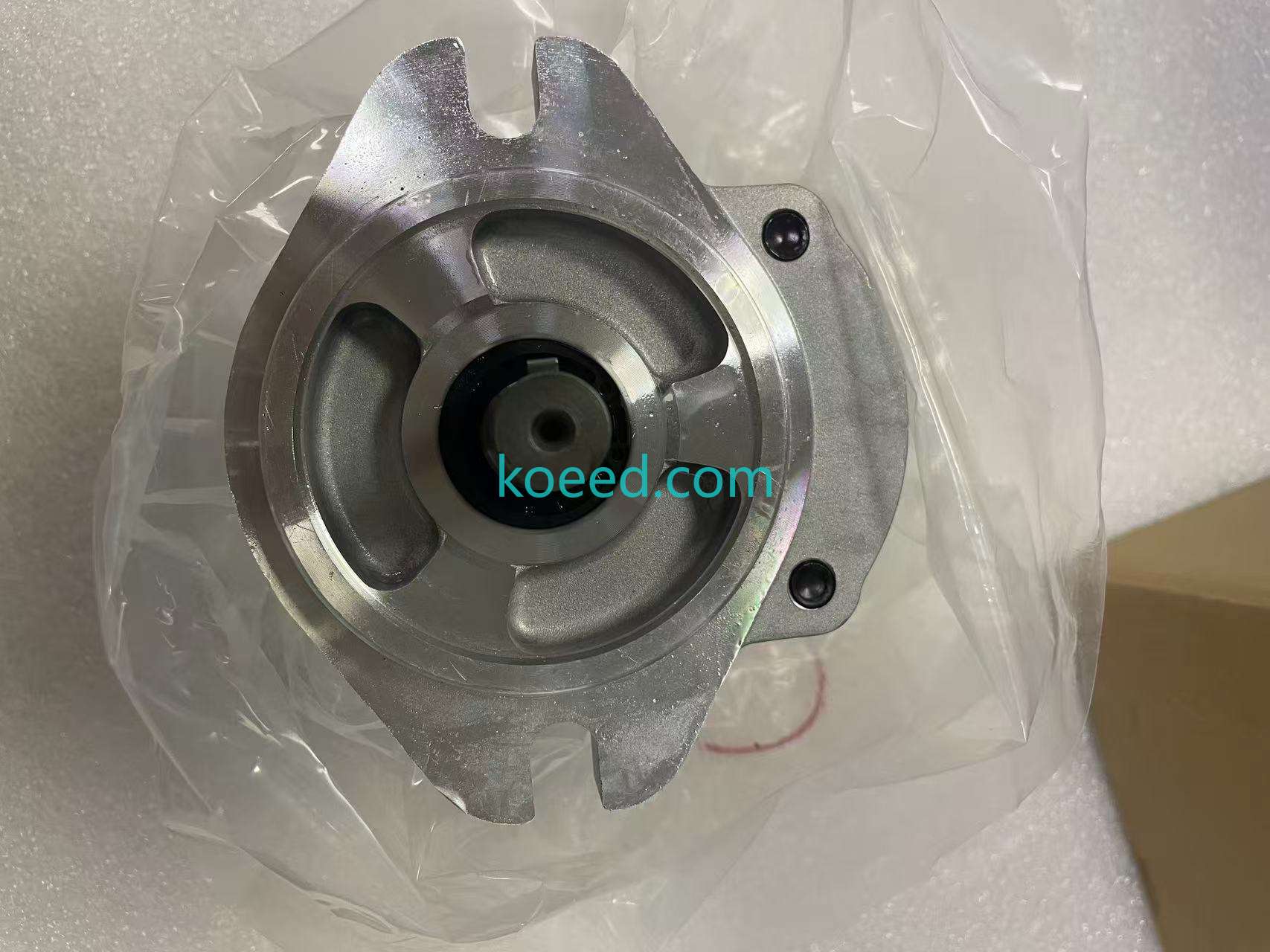

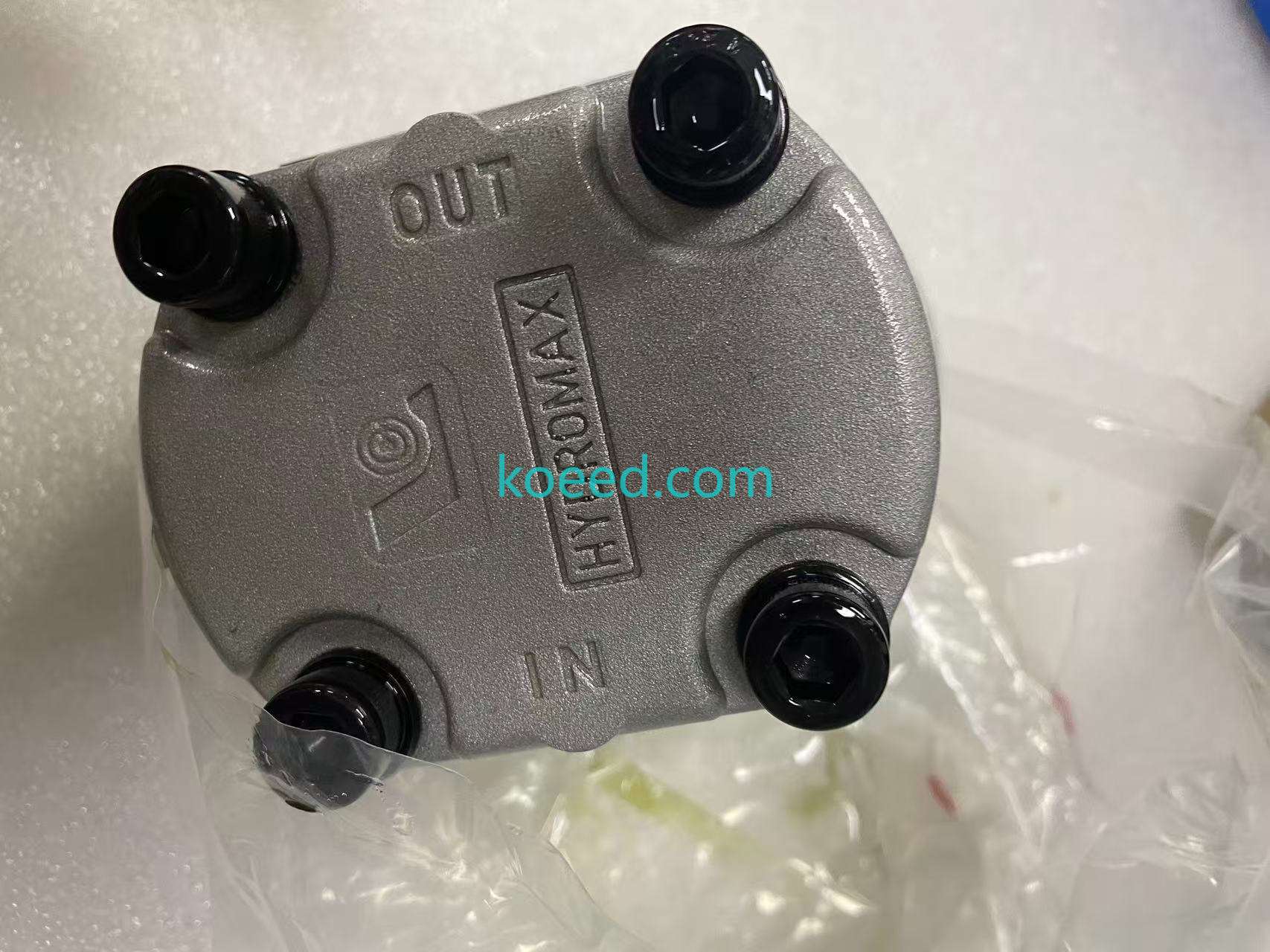

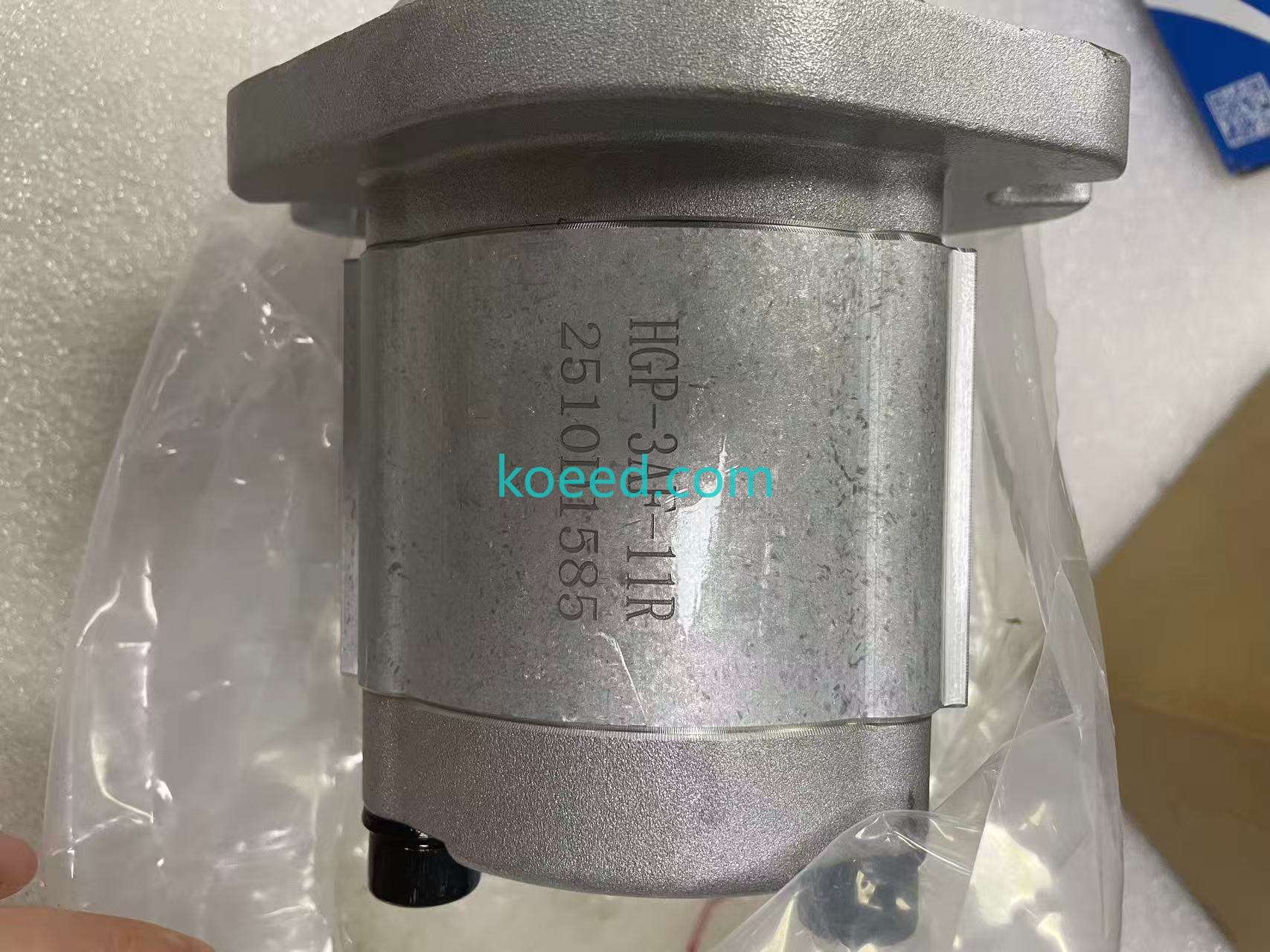

Product Images
Product Video Demonstration
Technical Specifications
| Parameter | Specification | Unit |
|---|---|---|
| Model | HGP-3A-F11R | - |
| Series | HGP-3A | - |
| Maximum Pressure | 210 | bar |
| Peak Pressure | 250 | bar |
| Maximum Speed | 1800-4000 | rpm |
| Minimum Speed | 700 | rpm |
| Flow Rate | 10-30 | L/min |
| Delivery Capacity | 11 | cm³/rev |
| Rotation Direction | Clockwise (R) | - |
| Mounting Type | F Flange Type | - |
| Material | High-strength Aluminum Alloy | - |
| Inlet Port | 3/4" | - |
| Outlet Port | 1/2" | - |
| Weight | Approximately 2.23 | kg |
Key Features & Benefits
- High-Strength Construction: Aluminum alloy casing provides excellent durability while maintaining light weight
- Alloy Steel Hard Surface Gears: Ensures smooth transmission and extended service life
- Explosion-Proof Design: High-strength cast aluminum alloy pump body with anti-crack features
- Wide Speed Range: Operates efficiently from 700 to 4000 rpm for versatile applications
- High Pressure Capability: Maximum working pressure of 210 bar with peak pressure of 250 bar
- Consistent Flow Rate: Delivers reliable 10-30 L/min flow for steady hydraulic system performance
- Compact Design: Space-efficient footprint suitable for various machinery installations
Applications in Industrial Automation
The HGP-3A-F11R hydraulic gear pump is specifically designed for integration with PLC-controlled industrial automation systems. Its reliable performance makes it ideal for:
- Manufacturing Machinery: Injection molding machines, CNC equipment, and assembly lines
- Material Handling Systems: Conveyor systems, lifting equipment, and automated storage systems
- Construction Equipment: Excavators, loaders, and hydraulic power units
- Agricultural Machinery: Tractors, harvesters, and irrigation systems
- Industrial Presses: Hydraulic presses and forming machines
- Mobile Equipment: Forklifts, aerial work platforms, and utility vehicles
For integration with your PLC systems and automation projects, explore the complete product details at: https://koeed.com/products/new-one-hydromax-hgp-3a-f11r-hydraulic-oil-pump-gear-pump-hgp-3af11r
Frequently Asked Questions (FAQ)
What is the maximum operating pressure for the HGP-3A-F11R?
The HGP-3A-F11R has a maximum working pressure of 210 bar (approximately 3045 psi) with a peak pressure capability of 250 bar (approximately 3625 psi).
What type of hydraulic fluid is compatible with this pump?
The pump is compatible with standard hydraulic oils with viscosity ranges from 15 to 100 cSt at operating temperature. Always consult the manufacturer's recommendations for specific fluid requirements.
What is the rotation direction indicated by "R" in the model number?
The "R" in HGP-3A-F11R indicates clockwise rotation when viewed from the shaft end. For counterclockwise rotation, models are designated with "L".
Can this pump be used with variable frequency drives (VFDs)?
Yes, the HGP-3A-F11R can operate with VFDs within its specified speed range of 700-4000 rpm. However, proper filtration and system design are essential for optimal performance.
What maintenance intervals are recommended for this gear pump?
Regular maintenance includes checking for leaks, monitoring fluid cleanliness, and inspecting mounting bolts. The pump should be inspected every 1000 operating hours or as recommended by your system requirements.
Quality & Reliability Metrics
- Industry Standards: Manufactured to meet international hydraulic equipment standards
- Material Certification: High-strength aluminum alloy with documented material properties
- Performance Testing: Each unit undergoes rigorous pressure and flow testing before shipment
- Warranty Coverage: Standard manufacturer warranty with technical support availability
- Global Availability: Supported by international distribution and service networks
Installation & Integration Guidelines
For optimal performance when integrating the HGP-3A-F11R into your PLC-controlled automation systems:
- Proper Alignment: Ensure precise alignment between pump and drive motor to prevent premature wear
- Filtration System: Install appropriate filtration (typically 10 micron) to protect pump components
- Mounting Surface: Use a flat, rigid mounting surface to minimize vibration and stress
- Electrical Integration: Connect to PLC systems using appropriate sensors for pressure, flow, and temperature monitoring
- Priming: Ensure proper priming before initial operation to prevent dry running
- System Commissioning: Follow manufacturer's startup procedures and monitor performance parameters
For complete technical documentation and integration support, visit the product page: https://koeed.com/products/new-one-hydromax-hgp-3a-f11r-hydraulic-oil-pump-gear-pump-hgp-3af11r
Comparison with Similar Models
| Model | Delivery Capacity (cm³/rev) | Max Pressure (bar) | Flow Rate (L/min) | Primary Application |
|---|---|---|---|---|
| HGP-3A-F11R | 11 | 210 | 10-30 | General industrial automation |
| HGP-3A-F8R | 8 | 210 | 8-22 | Light-duty applications |
| HGP-3A-F14R | 14 | 210 | 12-35 | Medium-duty systems |
| HGP-3A-F23R | 23 | 210 | 20-55 | High-flow requirements |
Conclusion
The HGP-3A-F11R hydraulic gear pump represents an excellent choice for industrial automation applications requiring reliable hydraulic power. With its robust aluminum alloy construction, high-pressure capability, and consistent performance, this pump delivers the durability and efficiency needed for modern manufacturing and automation systems.
Whether you're upgrading existing equipment or designing new automation solutions, the HGP-3A-F11R offers the technical specifications and reliability to meet demanding industrial requirements. For purchasing, technical specifications, and integration support, visit the official product page at https://koeed.com/products/new-one-hydromax-hgp-3a-f11r-hydraulic-oil-pump-gear-pump-hgp-3af11r.
