Autonics TCN4S-22R: delivery record
On this page

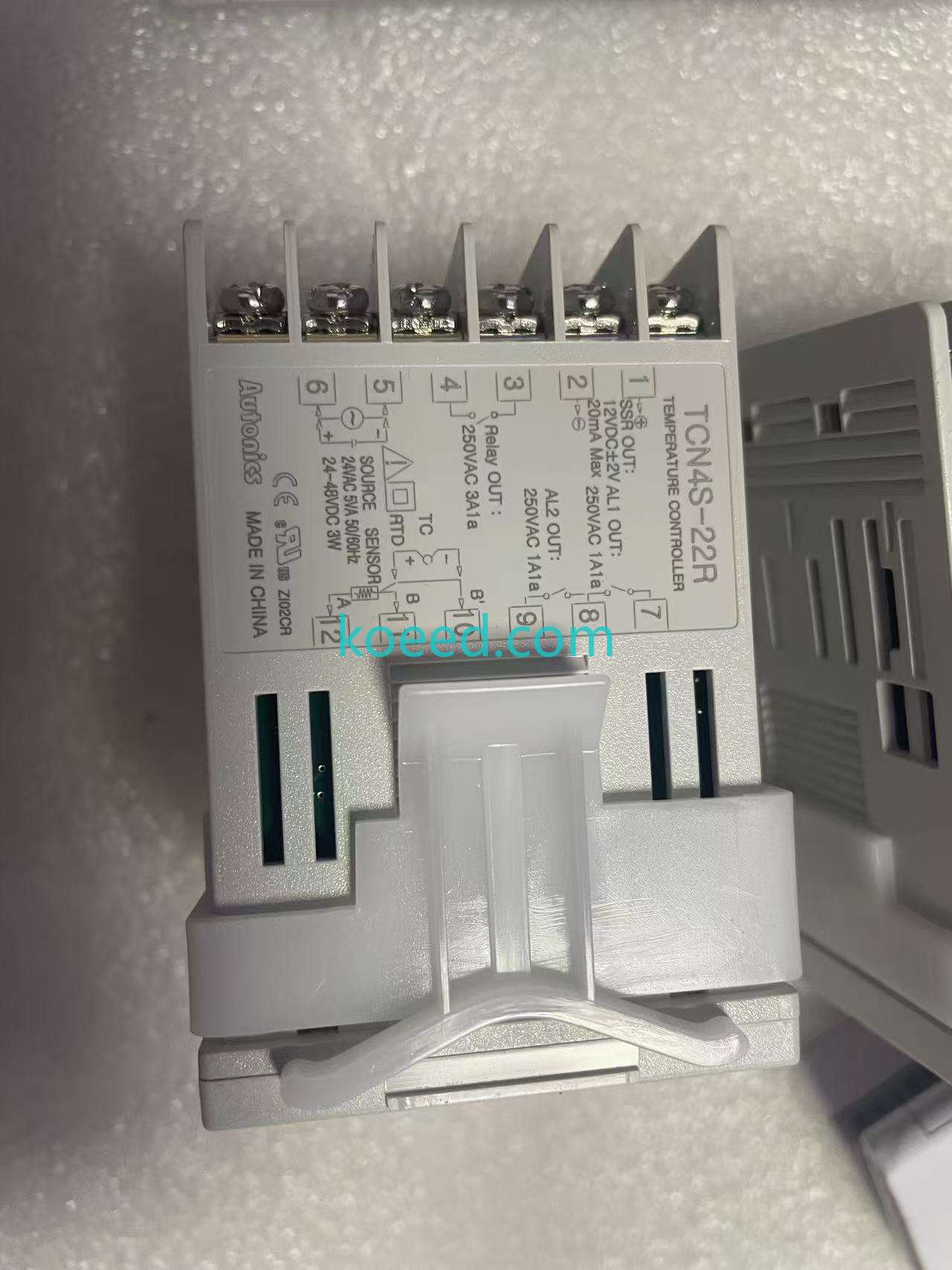

The source identifier TCN4S22R corresponds to a photographed Autonics label reading TCN4S-22R Temperature Controller. The side label includes a wiring diagram and supply wording for 24 V AC and 24–48 V DC. The source describes the historical item as new original.
Record details
- Record identifier
- TCN4S22R
- Media
- 9 photographs; 1 recorded clips
- Source condition
- Described as new original in the source; not independently authenticated.
Keep the printed model punctuation
The hyphen in the visible TCN4S-22R marking helps preserve the exact designation when enquiring. The printed diagram records terminal functions; it is not evidence of a powered test or a wiring instruction for a particular installation. The label alone does not authenticate the supply.
Confirm the required controller configuration
Send the installed controller’s complete side label and the required sensor and output arrangement. Ask for readable markings and exact documentation for the actual offered TCN4S-22R. Compare the supply requirements and terminal arrangement using those documents.
Confirm panel fit and the equipment’s input and output requirements before accepting a visually similar controller. If powered evidence or accessories are required, list them in the enquiry. Current condition, quantity and lead time need confirmation for the exact configuration being quoted.
Before requesting this part
- Use the printed TCN4S-22R designation.
- Compare supply, input and output documentation.
- Confirm panel fit, offered condition and required accessories.
Photos and recorded media
The first available source photograph was reviewed. Other photographs and clips are retained with neutral captions; clips were not reviewed. Historical media do not establish test results, authenticity or present stock.
Request this part
Send the complete model, required quantity and a photograph of the installed part or label. Ask for the offered unit's condition, matching details and current lead time.
