K2D250-AH06-06 Filter Fan: Comprehensive Guide for PLC Cabinet Cooling Solutions
On this page
The K2D250-AH06-06 record covers one filter-fan assembly supplied on December 3, 2025. The reviewed views show a grey louvred face, black fan housing and a gasket around the mounting frame. The complete motor type and rating plate are not visible in these two views.
Identification and delivery details
The supply note identifies ebm-papst, German manufacture and new, original condition with a one-year warranty. It also lists 400 V, 93/140 W and 0.17/0.21 A. These are source-note entries rather than ratings read from the permitted photographs; the associated frequency and connection conditions are not stated there.

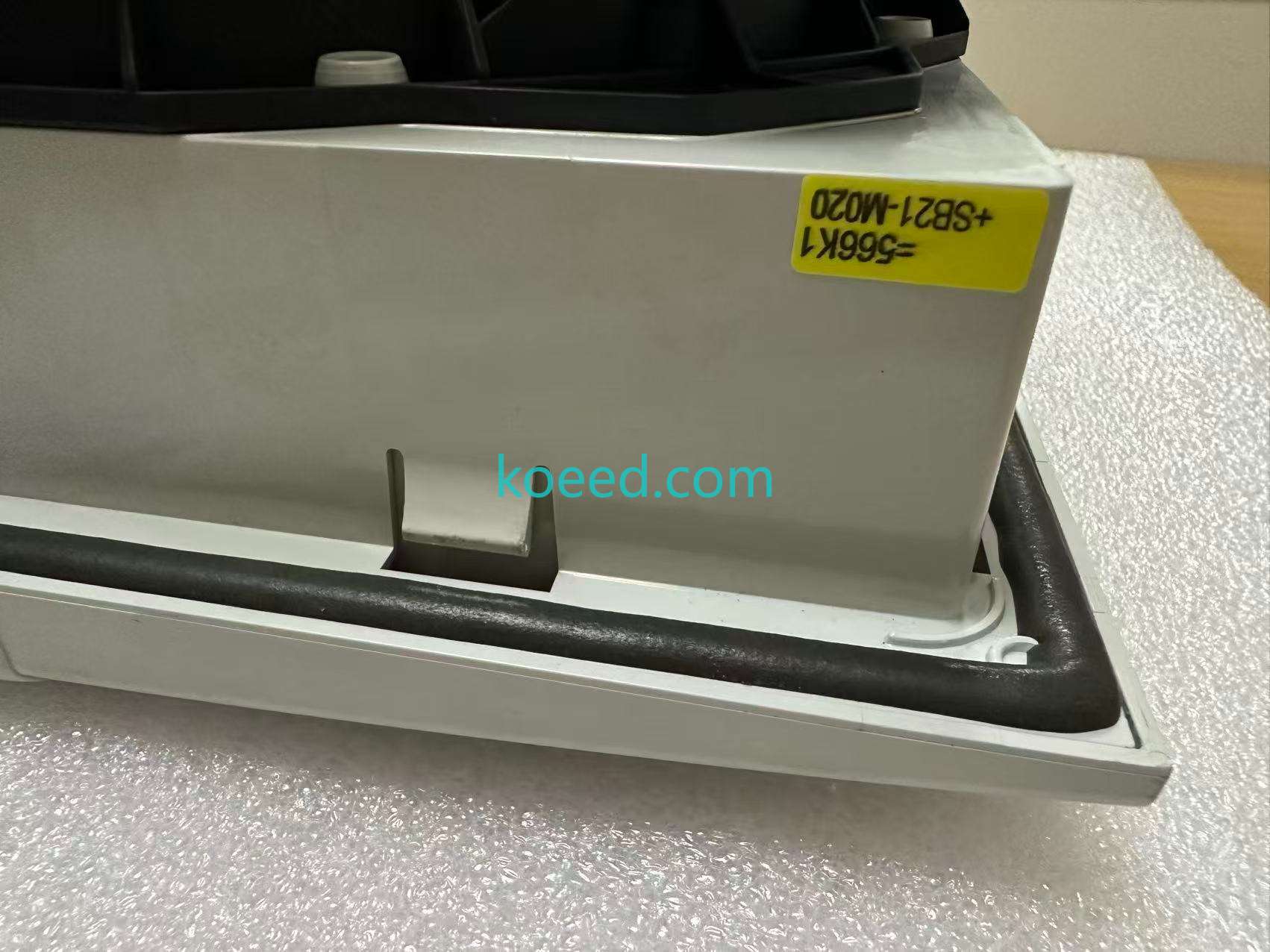

The second view shows a yellow equipment sticker and the mounting gasket, but no readable K2D250-AH06-06 nameplate. The 5 kg weight entry has no net or packed basis. The photographs do not establish airflow, filter grade or the protection level of the assembled cabinet installation.
| Item | Evidence |
|---|---|
| Recorded model | K2D250-AH06-06 |
| Source maker / origin | ebm-papst; Germany |
| Source voltage | 400 V; connection conditions require confirmation |
| Source power / current entries | 93/140 W; 0.17/0.21 A; operating pairing not stated |
| Reviewed construction | Louvred grille, black fan housing and frame gasket |
| Delivery / condition | December 3, 2025; one unit; new and original in note |
| Warranty | One year in supply note |
| Weight entry | 5 kg; basis unspecified |
Swipe or scroll horizontally to read the full table.
Photographs 1 and 2 were reviewed; thirteen further photographs and the video are retained without individual visual review. The electrical figures are attributed to the supply note. No measured airflow or full motor nameplate is established in the reviewed views.
Matching this part
Request the fan motor nameplate and the complete assembly reference. Compare cabinet cut-out, frame depth and gasket placement with the existing installation; the motor code alone may not identify every filter and frame component in the assembly.
Confirm supply phases, frequency and wiring from the actual offered unit. For cooling selection, obtain the airflow data under the intended filter and cabinet resistance, and confirm whether the current offer includes the filter material as well as the fan assembly.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
The K2E180-AS77-05 fan record is a separate electrical and mechanical version. Send cabinet and motor identification through Contact us.
Request this part
Request K2D250-AH06-06 with cabinet dimensions, supply details and quantity. Ask for the actual nameplate, included filter components and confirmation of current condition and warranty.
