SJ3.5-N: delivery record

The SJ3.5-N entry uploaded on 3 July 2025 names Pepperl+Fuchs and gives an Indonesia origin statement, written indonesis in the source. It explicitly uses the piece unit for one sensor but does not specify a condition grade or warranty. The reviewed green slot sensor carries a matching SJ3,5-N marking; the source weight value 0.5 has no explicit unit.

Identification and delivery details

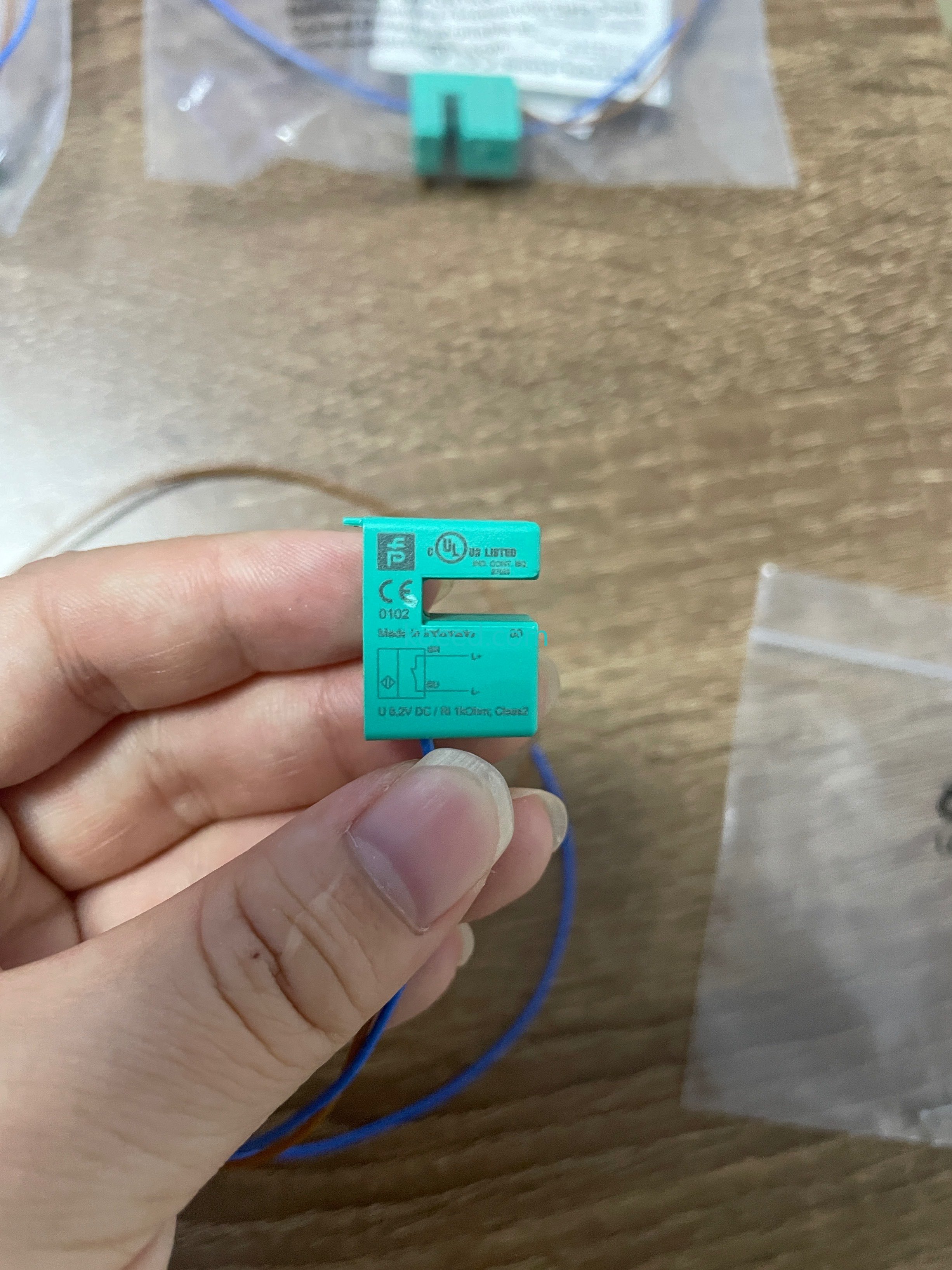

Photograph 1 shows the green slotted housing, Pepperl+Fuchs logo, Made in Indonesia wording and U 8.2V DC / Ri 1kOhm; Class2 markings. The label diagram and approval marks are recorded as physical markings, not an independently validated circuit, certification or functional test.

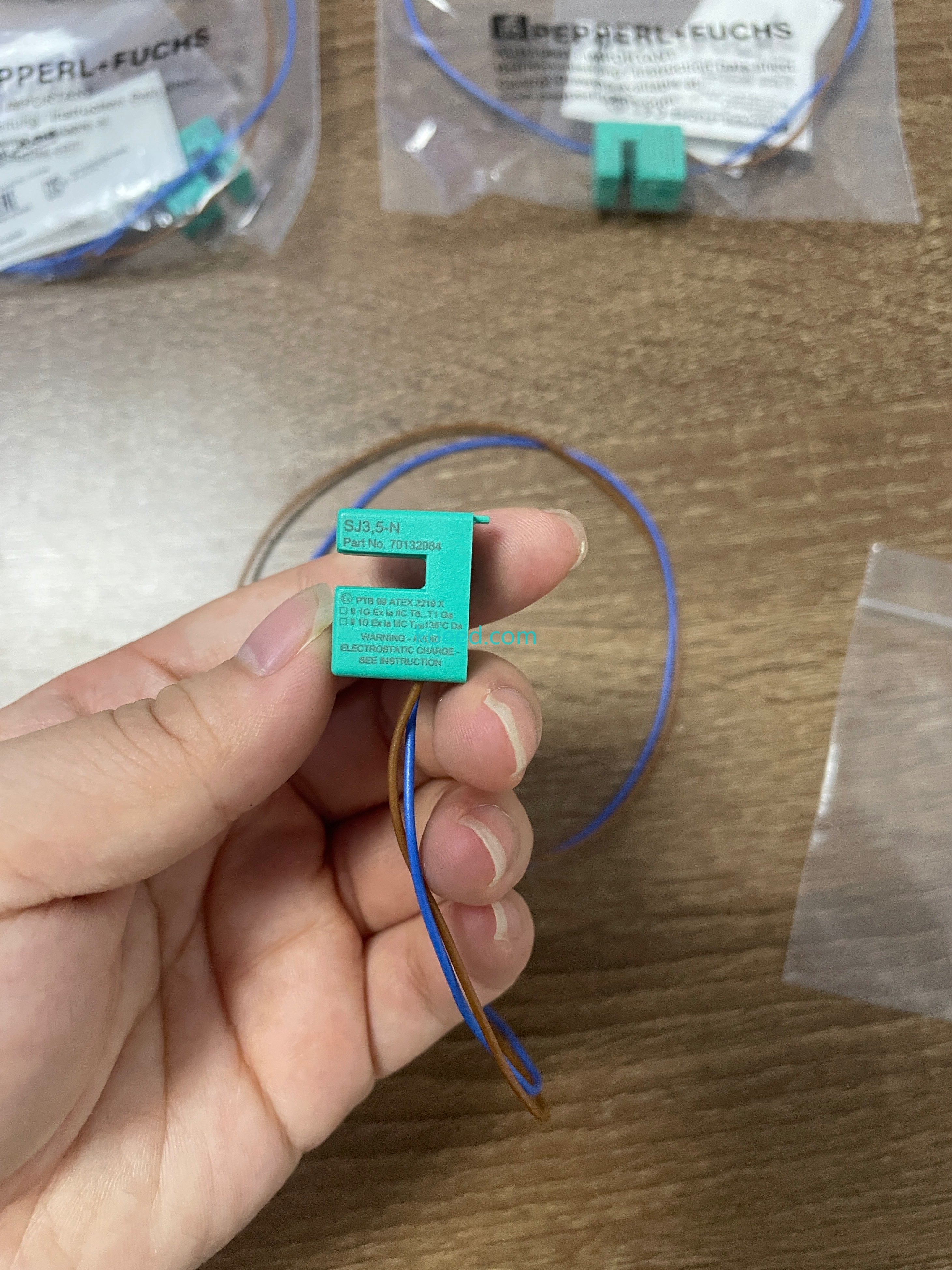

Photograph 2 was reviewed to confirm the complete model. It reads SJ3,5-N and Part No. 70132884, with electrostatic-charge warning text and other approval wording. The decimal-comma model agrees with the source’s SJ3.5-N notation. The part number is kept separate from a revision or manufacturing-date claim.

Brown and blue leads are visible, with bagged sensors in the background. The foreground sensor and background packages do not establish additional historical supply beyond the explicit one-unit note. No complete package contents, cable length or slot-width measurement is shown.

The note provides no new, used, refurbished or tested grade and no warranty period. Visible bagging and an apparently clean housing do not fill those gaps. The 0.5 value remains unitless rather than being silently stated as kilograms or per-sensor weight.

No 3000 Hz switching result, measured slot opening, interface acceptance or installed application is documented. The label warning and approval markings do not establish hazardous-area suitability for an intended installation. Exact unit documentation and acceptance evidence are needed before a replacement decision.

Swipe or scroll horizontally to read the full table.

All four unique source photographs were downloaded and checked for bytes and SHA; the source contains no video. Only photographs 1 and 2 were reviewed. The remaining two have neutral source captions. Background bagged items are not added to the explicit one-unit historical supply.

Matching this part

No product link is selected. The queried new-grade entries add a condition absent from the manual note, the SJ3,5-N-BU listing adds an unsupported suffix, and the remaining entries do not establish the complete required grade and packing.

Request current full sensor and packing labels, exact unit documentation and recorded switching acceptance results. Confirm condition, actual cable and mounting details, current quantity, weight unit and basis, and written warranty; verify any required application approval separately.
