BPM150S24F06 Universal Power Adapter: Complete Guide for Medical Monitor Power Supply

22 november 2025

Historical parts record: Photos and notes below belong to this record. Confirm the offered unit’s full model, condition and available test evidence before ordering.

What is the BPM150S24F06 power adapter?

A medical-grade 24 V / 6.25 A (150 W) external power supply, sold as the power pack for NDS medical monitors. The label reads For MEDICAL — MODEL(型号): BPM150S24F06 — INPUT(输入): 100-240V~ 50-60Hz — OUTPUT(输出): 24V⎓6.25A, with CCC S&E, CE, cULus, FCC marks and MADE IN CHINA, and our intake recorded it new across several boxed units (the record books one line as Fuji; the shop listings name BridgePower — the model number on the label is the part that matches your device). Each unit is a long black brick with an IEC 60320 C14 inlet, a metal XLR-3 style locking DC output on a ferrite-filtered lead, and a power LED window. The AC cord ships with different wall plugs in this stock — US NEMA 5-15P, EU CEE 7/7 and Chinese GB three-blade — all three-wire, all ending in a C13 that plugs into the brick. The 23 photos below and two warehouse videos cover the label, both connectors and every plug variant as received.

3 min readContent reviewed 7 October 2026

Part details

BPM150S24F06, per label, connectors and record
Field	Value
Model	BPM150S24F06 — printed on the silver label
Class	External power supply, "For MEDICAL" line; used as the NDS medical monitor power pack

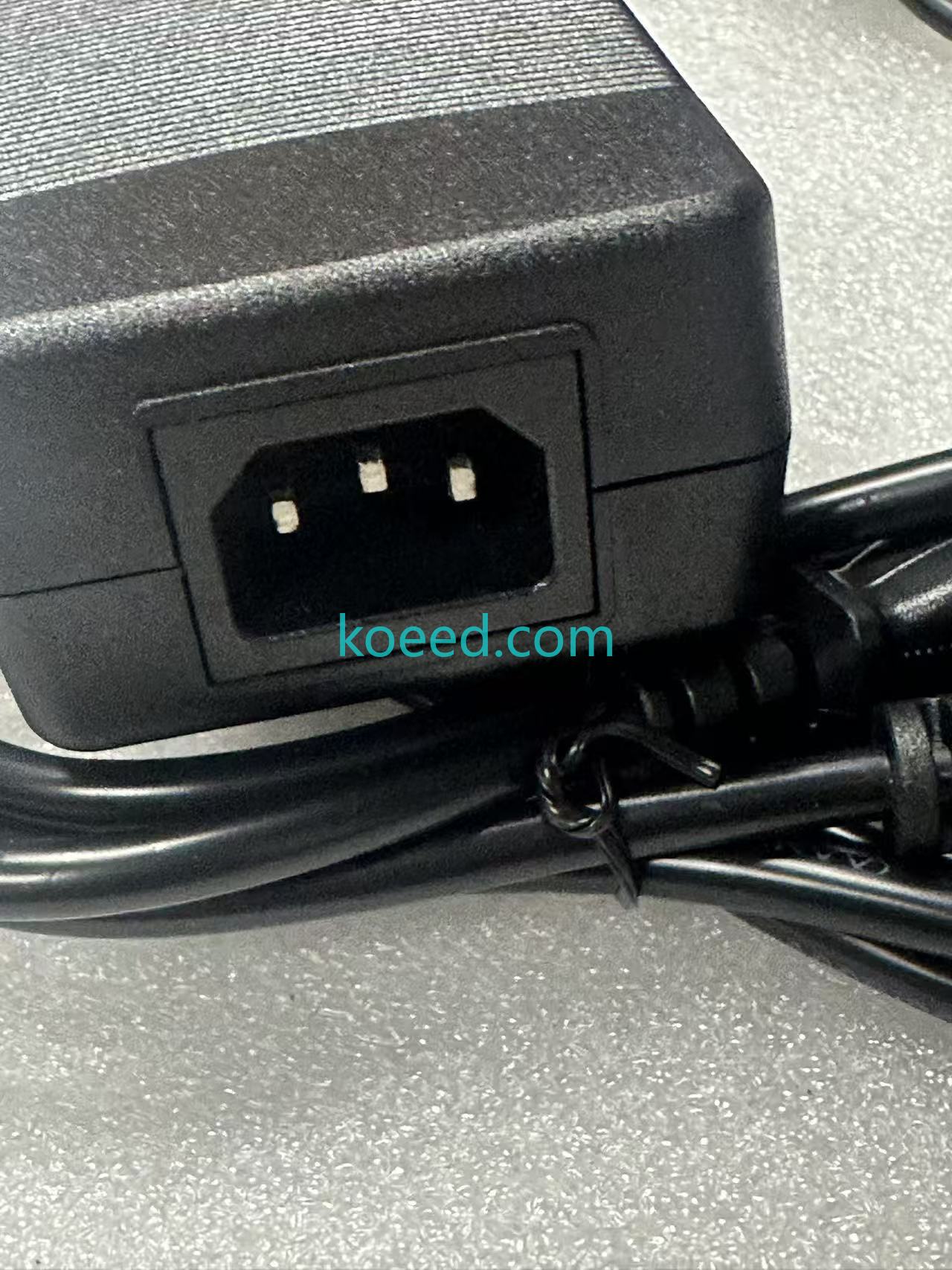

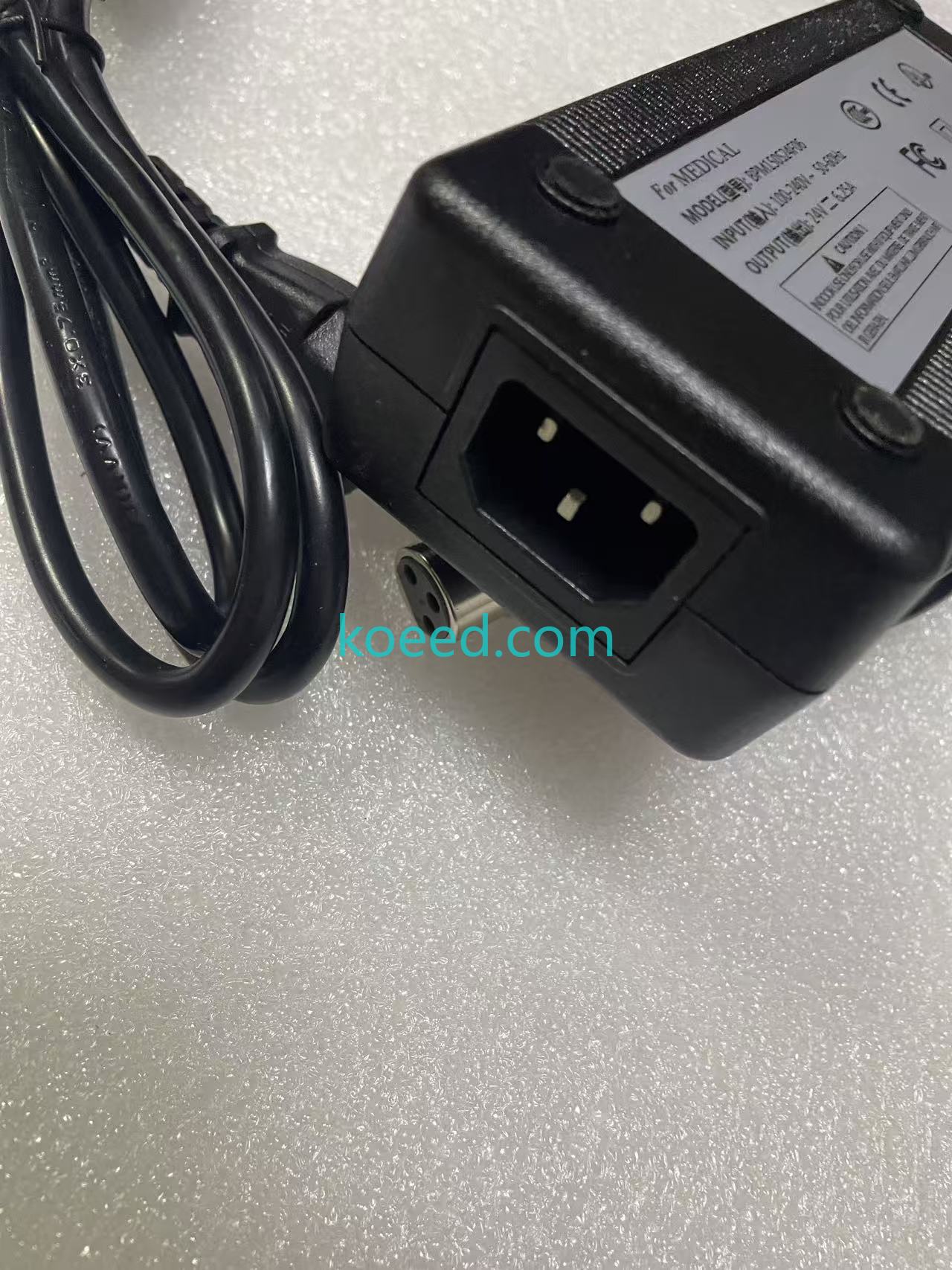

Input	100–240 V AC, 50–60 Hz (full-range; C14 inlet)
Output	24 V DC, 6.25 A (150 W), on an XLR-3 style locking connector
AC cord	Three-wire C13 lead; wall plugs vary by unit in this stock: US NEMA 5-15P, EU CEE 7/7, or Chinese GB three-blade (Type I)

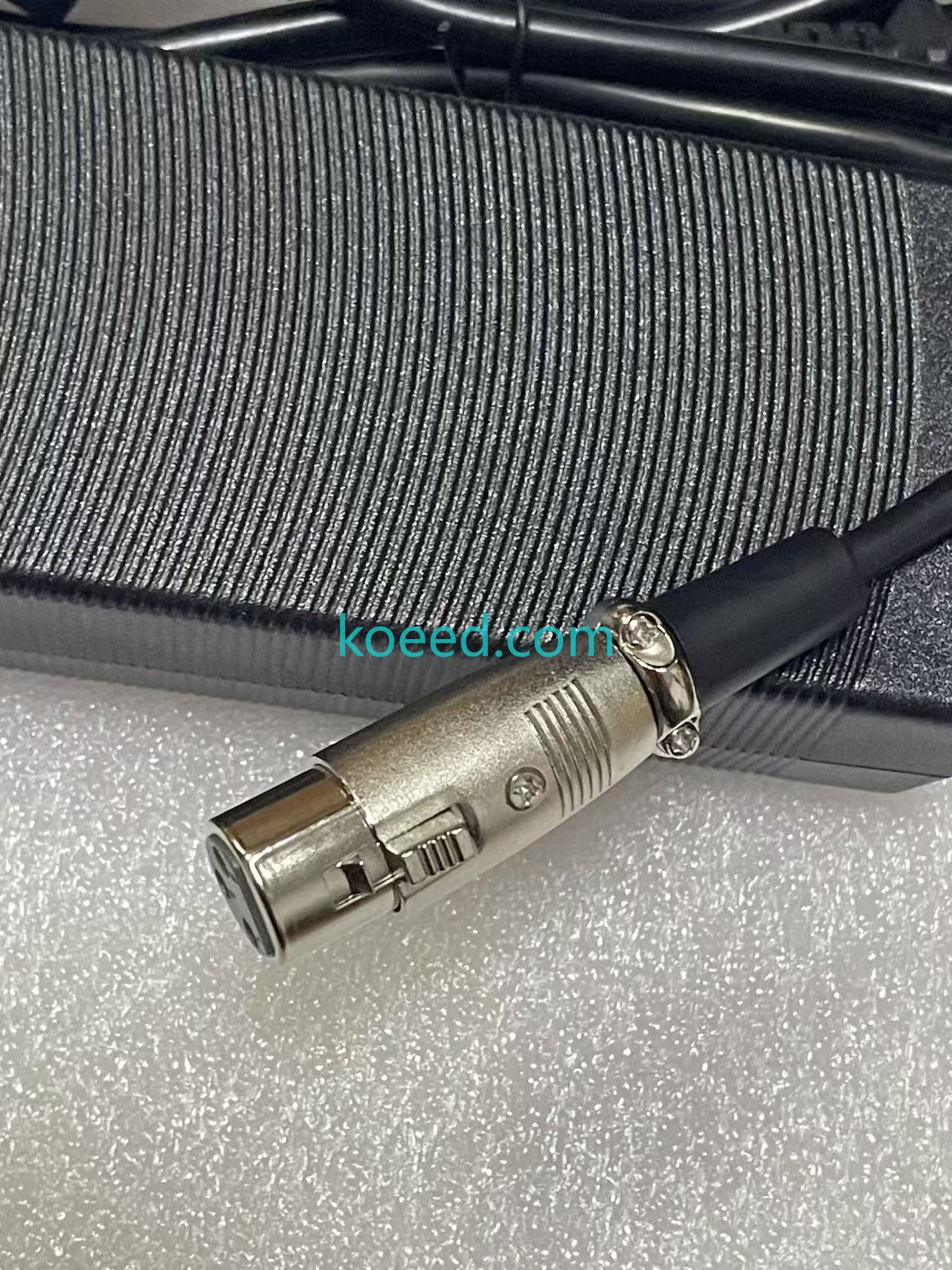

DC lead	Figured 3C 3×0.75 mm² 300V cable with an inline ferrite ring, metal-shell XLR-3 female-style plug with latch
Indicator	Power LED window on the housing
Certifications	CCC S&E, CE, cULus, FCC; Class II enclosure symbol; indoor-use symbol
Label caution	"INDOOR USE ONLY. FOR USE WITH IT EQUIPMENT ONLY." (EN/FR/DE)
Origin	Made in China
Condition / quantity	Brand new, boxed; several units recorded across intake lines from Nov 2025 to May 2026
Weight	About 0.5 kg per unit
Intake recorded	From 19 November 2025

Scroll sideways to see the full table.

Three plug styles, one brick

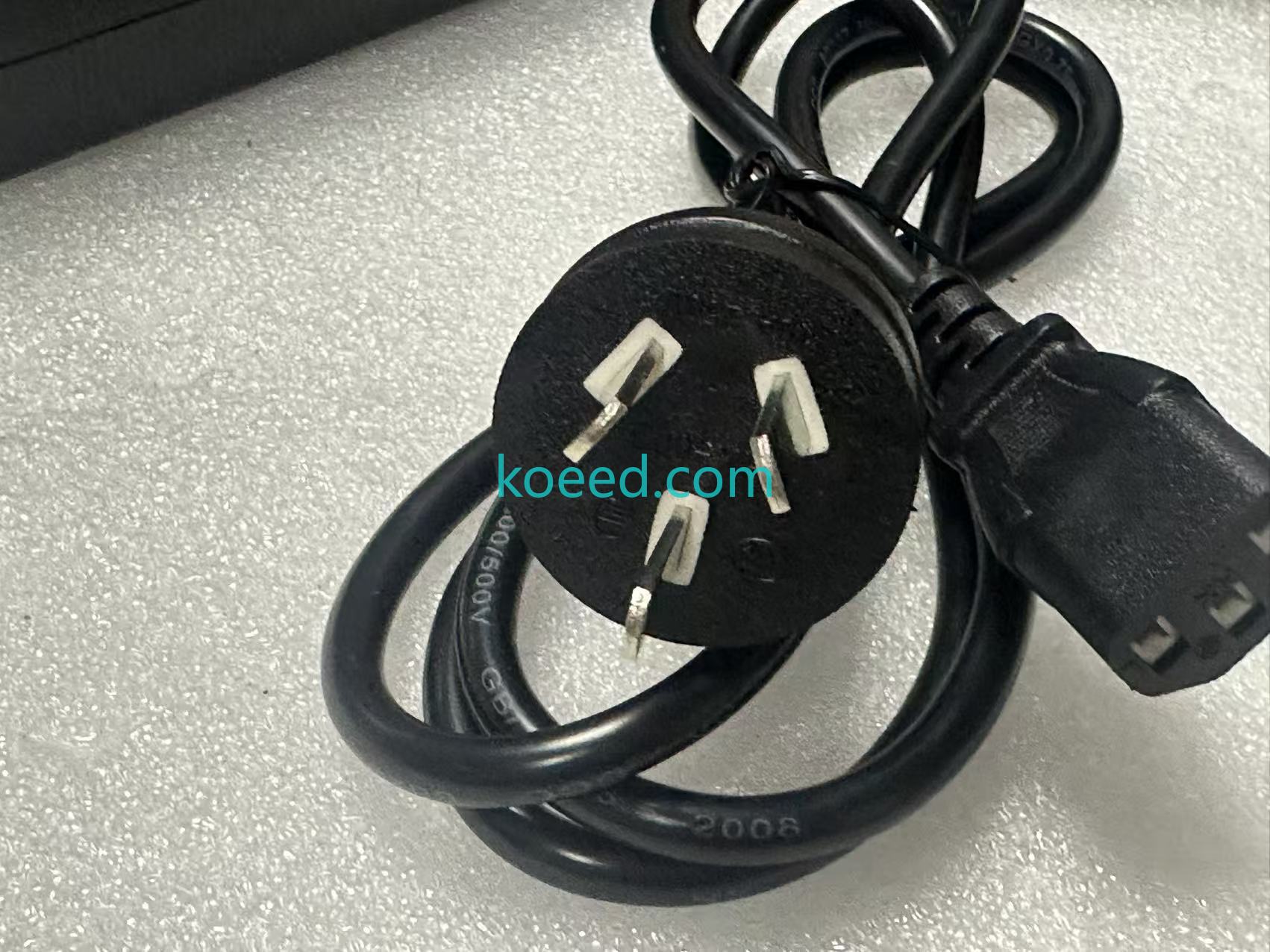

Because this stock accumulated across intake lines, the AC cords in the photos carry three different wall plugs, and it is worth knowing which you will get. All three are three-wire cords ending in the same IEC C13 connector, so any of them runs the brick identically at 100–240 V. The US-style cord is a NEMA 5-15P with grounded blades on 18 AWG / 3C wire; the European one is a CEE 7/7 hybrid (Schuko shell with the French socket hole); the third is the Chinese GB three-blade Type I, which also fits Australian-style outlets. If your NDS monitor install needs a specific plug, say so in the RFQ and we will pick the matching unit from the shelf — the adapters themselves are identical. On the DC side, the XLR-3 style plug latches into the monitor's inlet the way a microphone cable does, so a brush against the cable cannot drop a display mid-procedure; press the latch tab to release it.

Reading the label cautions honestly

Two lines on the label matter to buyers. First, the caution block says indoor use only and, in UL wording, use with IT equipment — this is the 150 W class of external power brick that ships with medical displays and IT-rated gear, and the cautions are the standard ones for that class, not a contradiction of the "For MEDICAL" heading above them; the cULus mark is what your compliance file needs from the supply itself. Second, the output is a fixed regulated 24 V at 6.25 A — there is no trim pot, no sense line and no negotiation, so the replacement must be like-for-like at 24 V / 150 W class. The ferrite ring on the DC lead is part of the conducted-emissions design; keep it in place when you swap units. All units photographed here are new, with crisp labels and unmated connectors.

Photos

All images below are original warehouse photos of the exact adapters covered by this record, taken before dispatch. Click any photo to view it full size.
