MY6812: delivery record

13. juli 2026

Historical parts record: Photos and notes below belong to this record. Confirm the offered unit’s full model, condition and available test evidence before ordering.

The photographed MY6812 is a DC motor marked 24VDC and 150W. The retained title calls it a stepper motor driver, but the reviewed image shows a cylindrical motor with a shaft pulley and two leads, not an electronic driver module.

Identification and delivery details

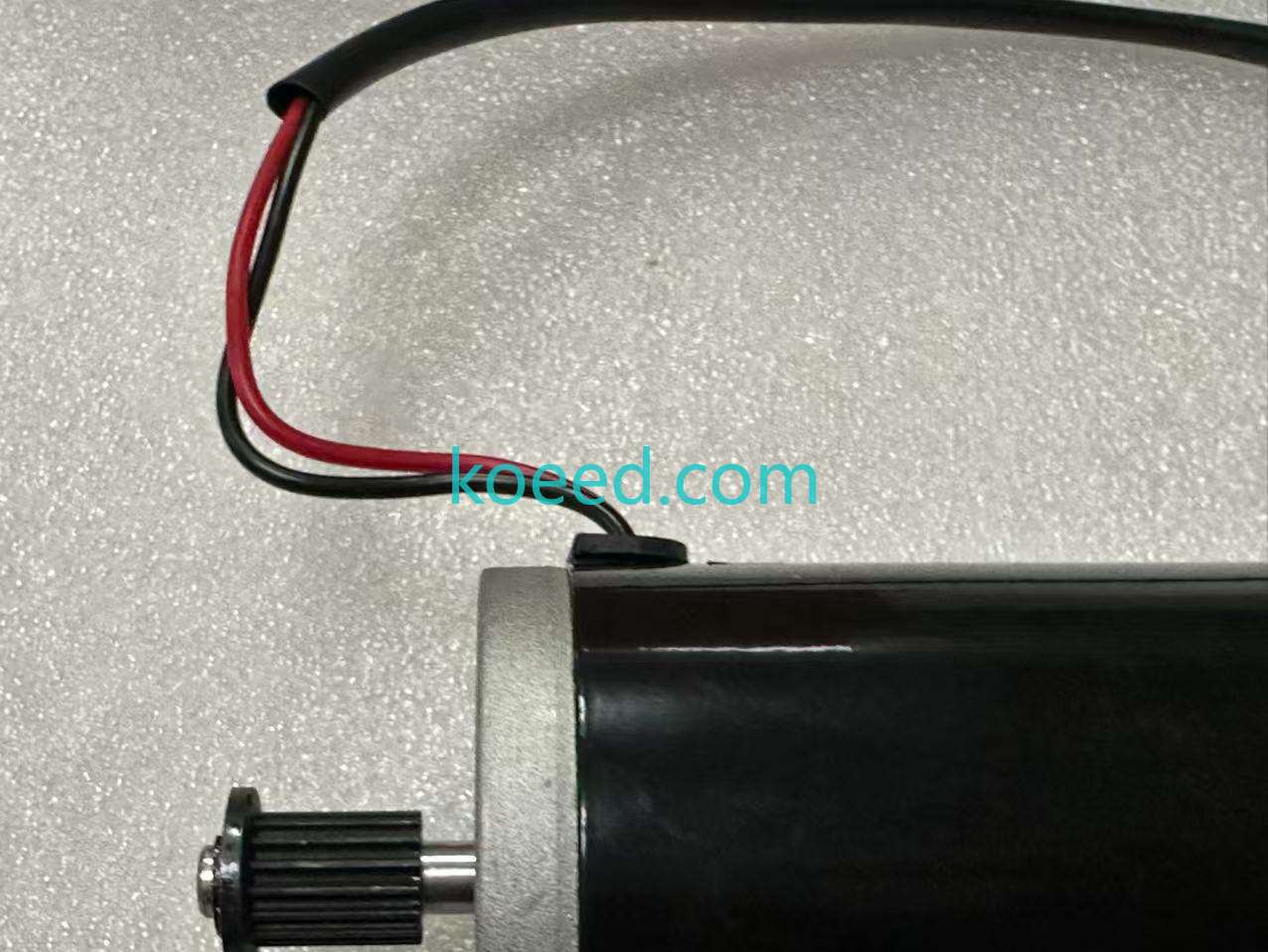

The first photo provides a readable MY6812 label, a black cylindrical body, metal end sections and a small toothed pulley at the shaft end. Red and black leads are visible. No manufacturer name, rated speed or torque value is readable in that view.

The source note combines two dated entries. December 22, 2025 records one new 24 V, 150 W item with a 2 kg weight note. December 25 records one new 12 VDC, 150 W item with a 1.5 kg note. These are separate variant references; the reviewed first photo confirms the 24 V label only.

The record supplies no measured speed, torque, current draw or load-test result. It also contains no documented stepper interface, microstepping setting or network feature. Such details cannot be recovered from the older title or promotional description.

Photographed markings and delivery record
Item	Evidence
Visible model	MY6812
Supported category	DC motor
Reviewed label	24 VDC; 150 W
Visible shaft attachment	Small toothed pulley
Visible leads	Red and black
December 22, 2025 entry	One new 24 V, 150 W item; 2 kg note
December 25, 2025 entry	One new 12 VDC, 150 W item; 1.5 kg note
Manufacturer, speed and torque	Not established
Origin and warranty	Not stated in the source note

Swipe or scroll horizontally to read the full table.

The source record contains thirteen JPEGs and two MP4 files; the earlier body displayed only one video. All fifteen files were downloaded and checked for byte size and SHA-256. Only photo 1 was reviewed because its model and voltage label was readable. Other media retains neutral source captions.

Matching this part

Specify 24 VDC or 12 VDC explicitly and request the label for the offered unit. A shared MY6812 model reference does not resolve the voltage difference in these two historical entries.

Compare the shaft, pulley profile, mounting arrangement, lead termination and motor envelope with the intended replacement. Request the motor's performance data if speed or torque is part of the selection requirement.
