Record filed for Tektronix TDS3000 / TDS3000B displays: identity discrepancy

This record is filed as a replacement LCD panel for Tektronix TDS3000 and TDS3000B oscilloscopes, including TDS3054B and TDS3032B references. The first two source photographs show an ABB drive, not an LCD panel. That mismatch prevents the photographs from confirming the display identity or compatibility stated in the title.

Identification and delivery details

The October 30, 2025 supply note records one item described as new and original, with a one-year warranty. Those are supplier statements attached to the LCD record. They do not establish that the photographed ABB unit was supplied as a display, and the shared media must not create an additional drive shipment.

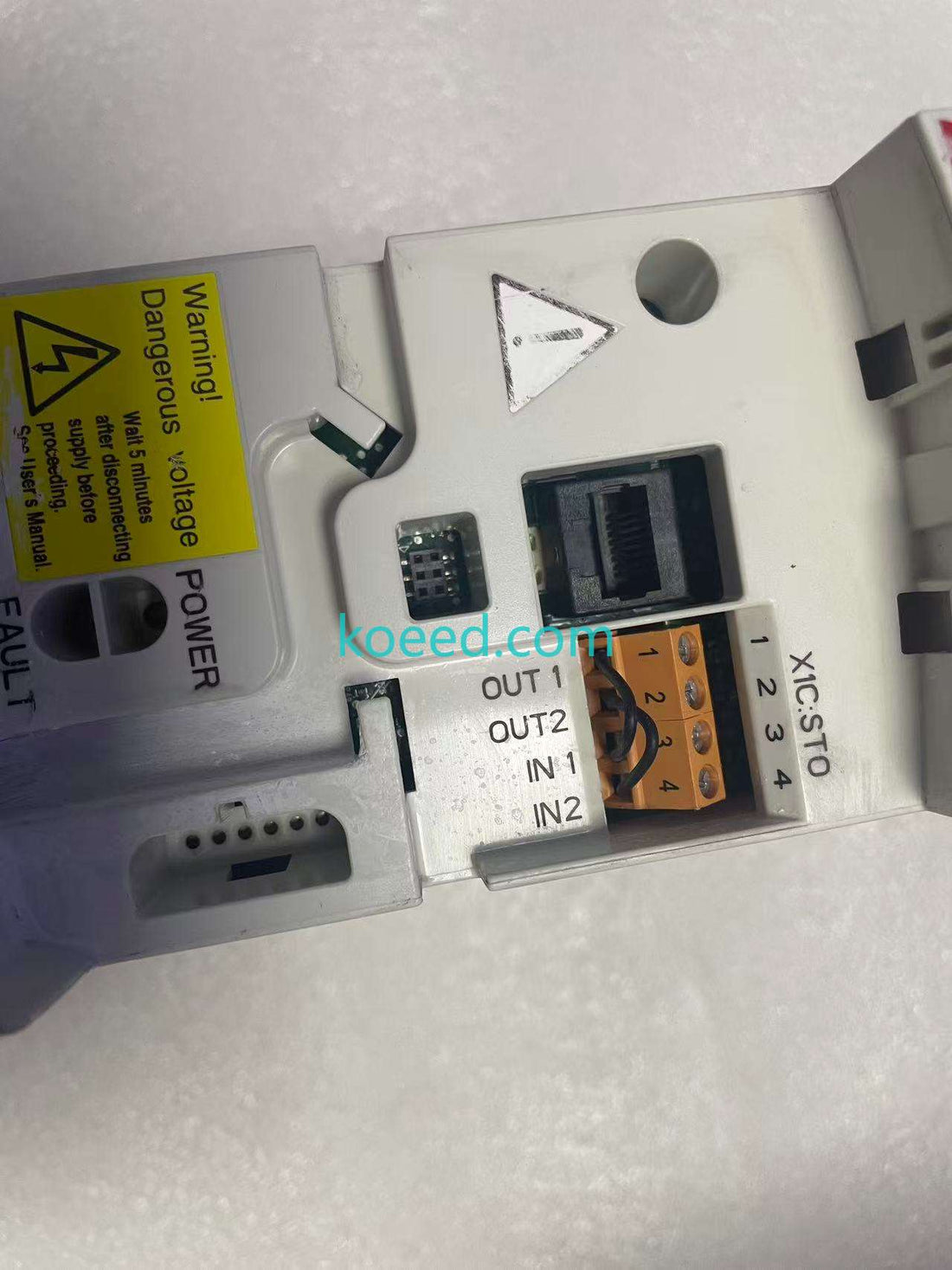

Photograph 1 shows a drive connection area marked X1C:STO, with OUT1, OUT2, IN1 and IN2 terminals. Photograph 2 gives the physical identity as ABB ACS355-03E-04A1-4. Its label includes 1.5 kW (2 HP), three-phase 380–480 V input, 6.9 A input current and 4.1 A output current.

These drive markings describe the object in the photograph; they are not specifications for the Tektronix screen named in the record. The same eleven filenames occur in an ABB record. The old article's actual LCD-named media directory and exact record match are preserved, but the image content exposes a provenance conflict.

The source weight field is 1 kg without a weighing basis. No reviewed photograph establishes the proposed panel's manufacturer code, screen size, electrical interface, backlight connection or operating condition. A display replacement decision needs that evidence before compatibility can be accepted.

Swipe or scroll horizontally to read the full table.

Source photographs 1 and 2 were reviewed. Both show ABB drive hardware. Eight further photographs and one video were downloaded and retained under the LCD record without individual visual review; their captions identify only their source position. No panel inspection or successful display test is claimed.

Matching this part

Ask for photographs of the actual LCD front, rear label and connectors alongside the oscilloscope's exact model and hardware revision. Compare the removed display's part code, mounting points, cable pinout and backlight arrangement with the proposed replacement.

Resolve the media mismatch before ordering. Require a display-specific condition and functional test record, warranty terms and included accessory list. A drive nameplate and a list of oscilloscope models cannot establish interchangeability.

Photos and recorded media

Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.

Related records and products

The LG LB064V02-TD01 display record concerns a different panel and is not a substitute. Send actual replacement-panel photographs through Contact us.
