LX76-234 Mazak RIX ROCKY Rotary Joint: 2026 Guide to CNC Spindle Coolant Optimization & ROI
Strategic Overview: The LX76-234 in the 2026 CNC Landscape
In 2026, CNC machining facilities face mounting pressure to balance throughput with sustainability. The LX76-234 RIX ROCKY Rotary Joint (cross-referenced as Mazak part number H24RK000751) has emerged as a critical precision component for MAZAK CNC spindle systems. Designed by RIX, a renowned Japanese manufacturer of rotary joints, the LX76-234 enables reliable high-pressure coolant and lubricant transfer through rotating spindle assemblies — a function that directly impacts tool life, surface finish quality, and overall equipment effectiveness (OEE).
With IT/OT convergence accelerating across the industry, modern rotary joints like the LX76-234 are no longer viewed as isolated mechanical components. In 2026's smart factories, they serve as data-generating nodes within predictive maintenance ecosystems. By monitoring coolant flow rates, pressure differentials, and seal integrity via integrated IoT sensors, maintenance teams can now forecast rotary joint degradation weeks before catastrophic failure — shifting from reactive repairs to condition-based interventions.
Product Identification & Cross-Reference
| Attribute | Specification |
|---|---|
| RIX Model Number | LX76-234 |
| Mazak Part Number | H24RK000751 |
| Product Type | Rotary Joint / Rotary Union |
| Series | RIX ROCKY Series |
| Primary Application | MAZAK CNC Spindle Coolant Delivery |
| Fluid Media | Water-based coolant, cutting oil, air |
| Brand Origin | Japan (RIX Corporation) |
Technical Benchmarking: LX76-234 vs. Legacy Rotary Joints
For engineers evaluating an upgrade from older-generation rotary unions or considering alternative aftermarket options, the following benchmarking table highlights the LX76-234's competitive advantages in a 2026 operational context:
| Performance Metric | LX76-234 (RIX ROCKY) | Legacy Generic Rotary Joints |
|---|---|---|
| Seal Technology | Multi-lip labyrinth seal — extended life at high RPM | Single-lip or carbon-faced — prone to premature leakage |
| Max Operating Pressure | Up to 70 bar (high-pressure coolant compatible) | Typically 30–50 bar |
| RPM Rating | Optimized for MAZAK spindle speeds (up to 15,000 RPM) | Often derated beyond 10,000 RPM |
| MTBF (Mean Time Between Failures) | 12,000–15,000 hours (with proper maintenance) | 6,000–9,000 hours |
| IoT Readiness | Sensor-mountable for flow & vibration monitoring | No sensor integration potential |
| Energy Efficiency Impact | Low-friction design reduces spindle motor load by ~3–5% | Higher parasitic drag |
| Sustainability Rating | Leak-proof design minimizes coolant waste | Higher leakage rates → increased fluid consumption |
Visual Gallery: LX76-234 Component Inspection

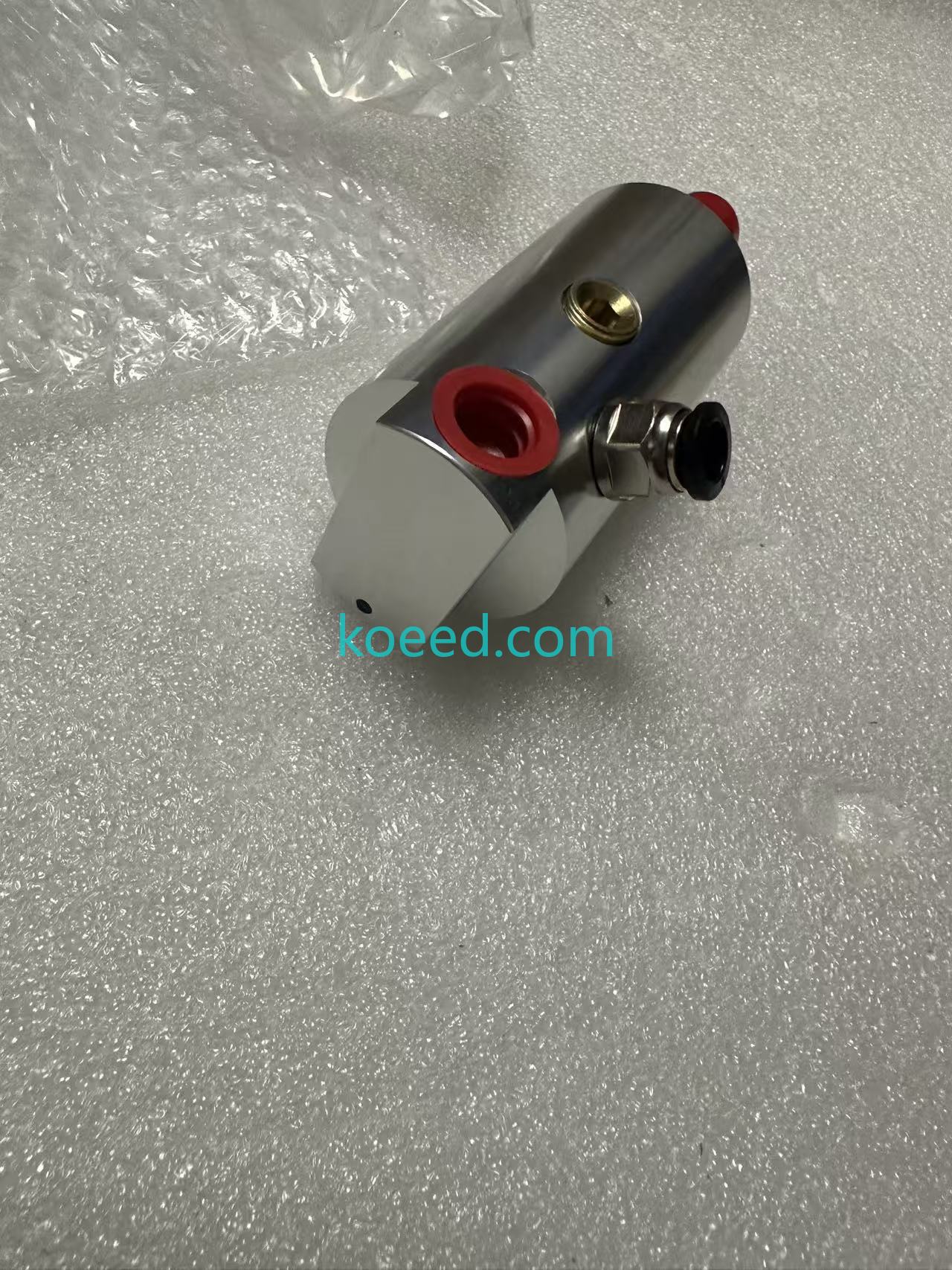

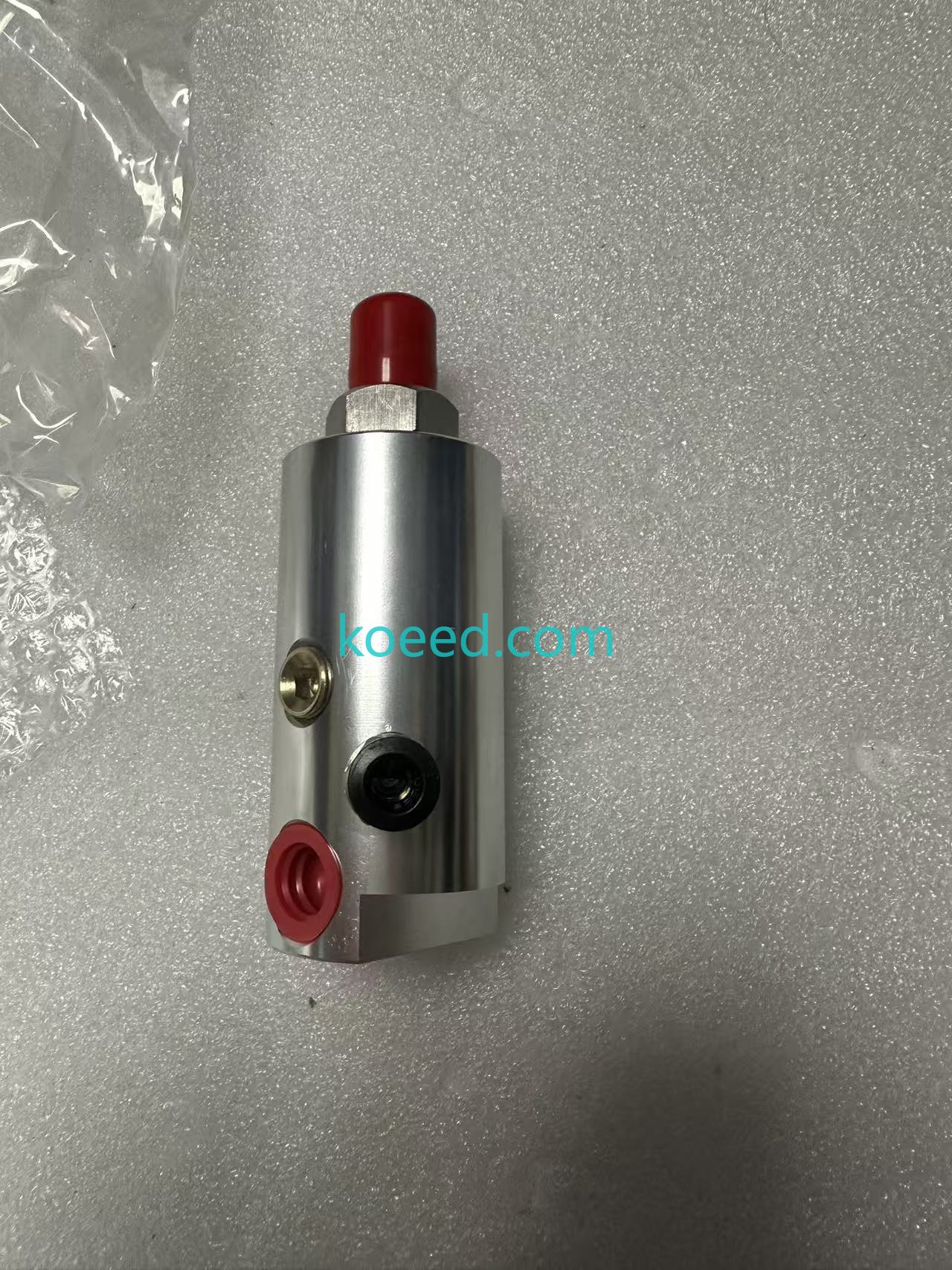

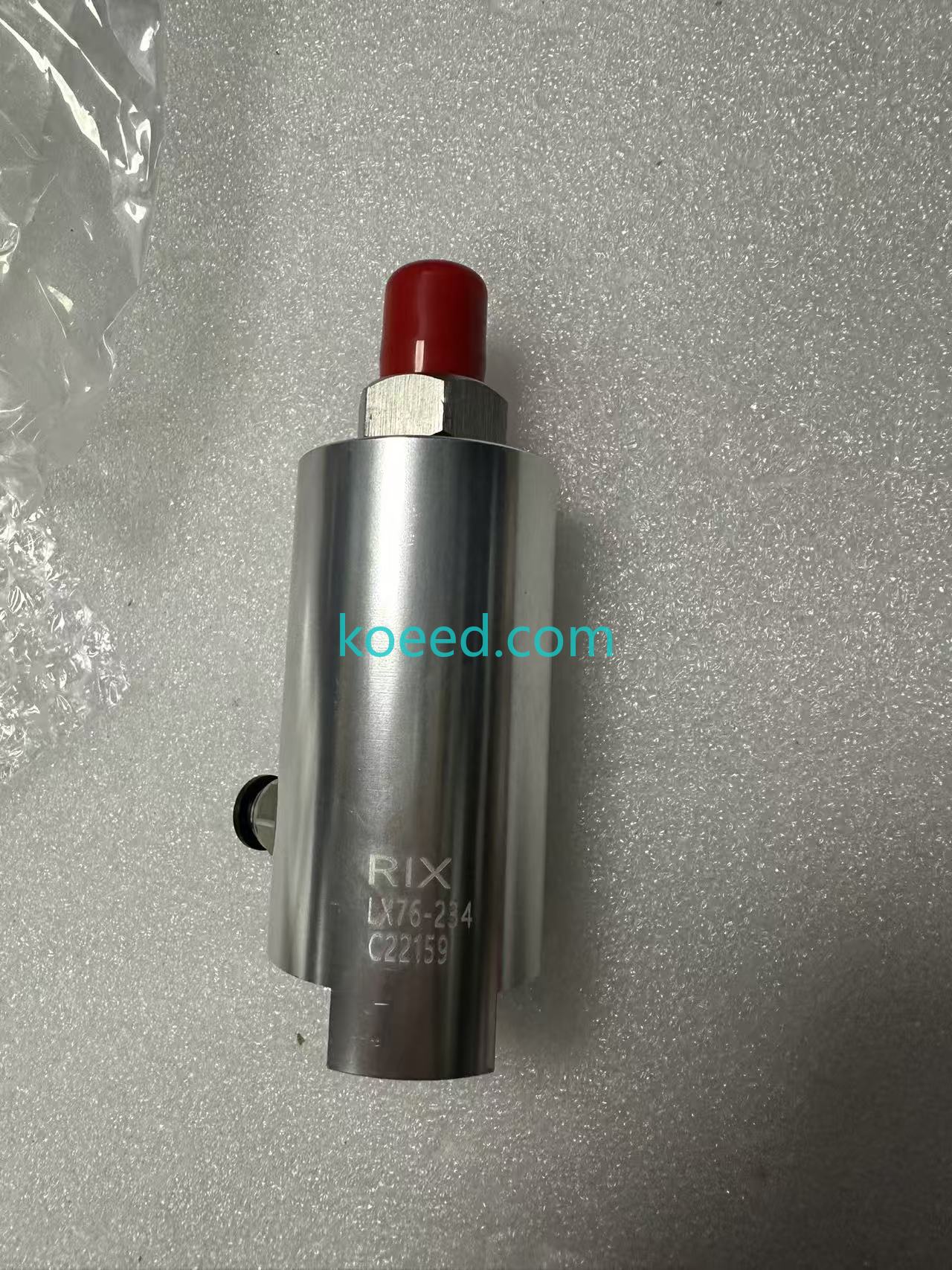

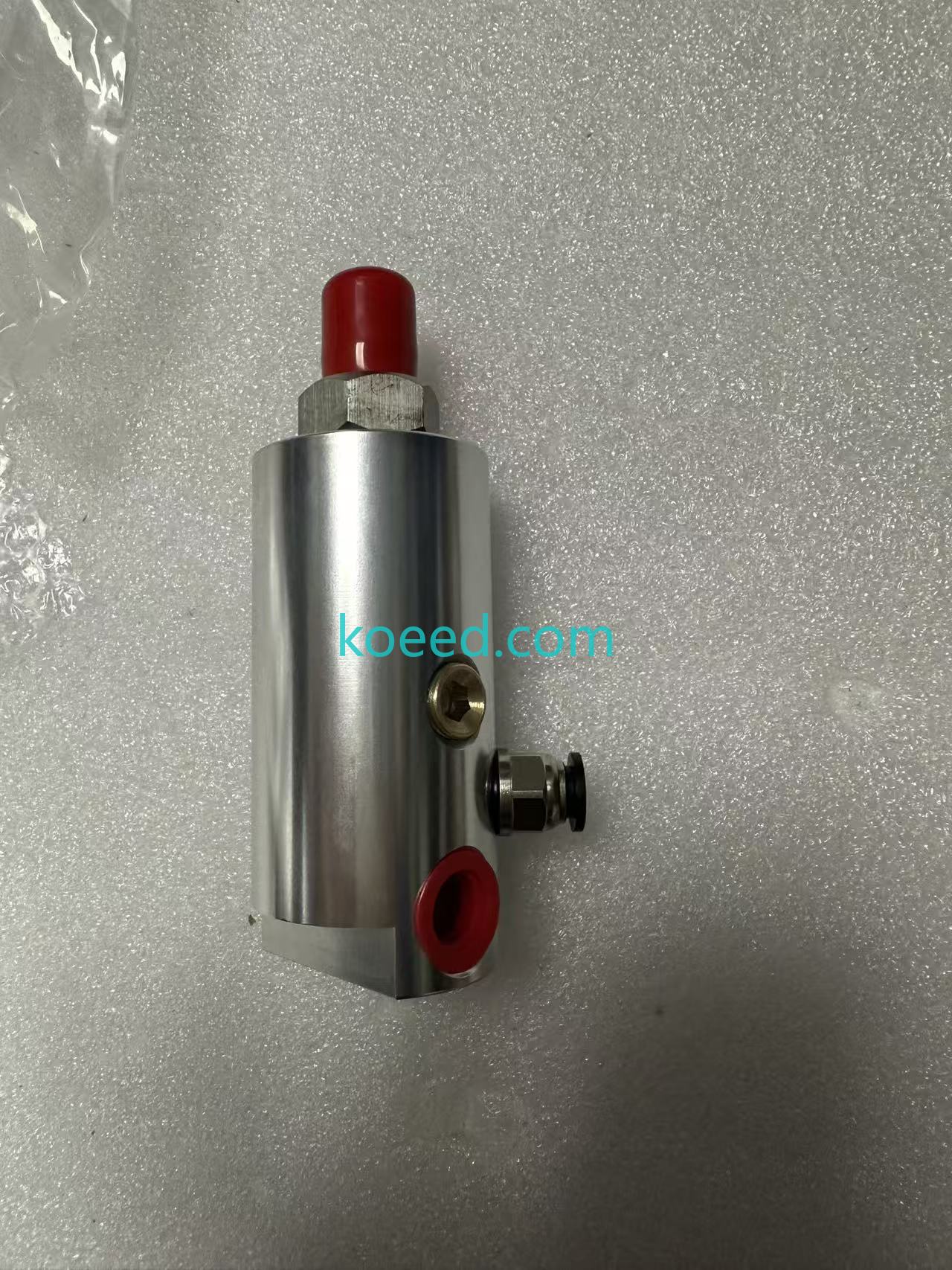

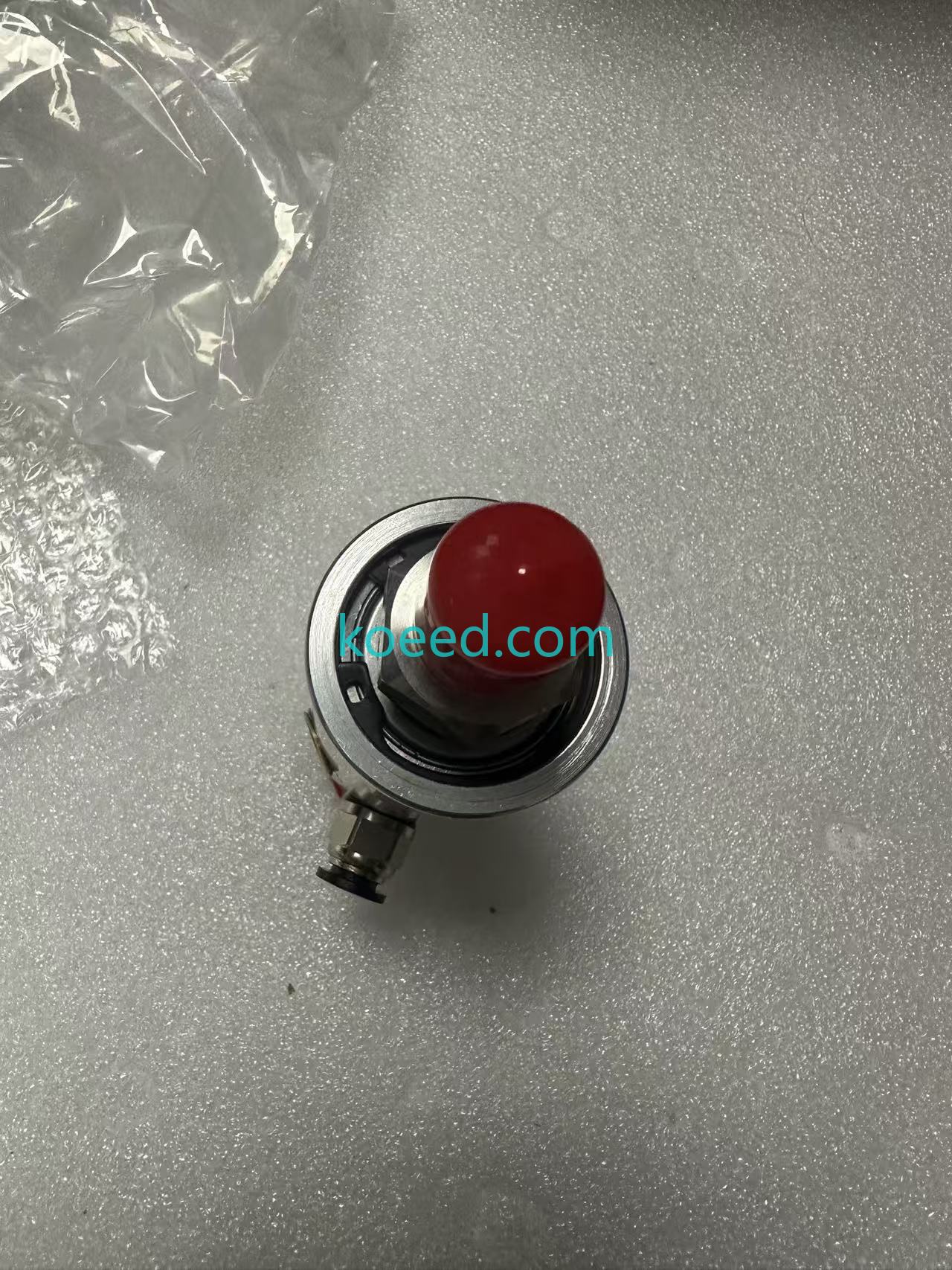

Below is a detailed visual reference of the LX76-234 RIX ROCKY Rotary Joint. Click any image to expand. These photographs reveal the precision-machined housing, port orientation, and sealing surfaces critical for proper installation.
IT/OT Convergence: Integrating the LX76-234 into Your 2026 Smart Factory
The true value of the LX76-234 in 2026 extends beyond its mechanical precision. When instrumented with affordable IIoT sensor packages, the rotary joint becomes a real-time asset health monitor feeding data into your MES (Manufacturing Execution System) or cloud-based CMMS:
Key Monitoring Parameters
- Coolant Flow Rate (L/min): A downward trend signals internal seal wear or blockage.
- Vibration Signature (mm/s RMS): Bearing degradation manifests as characteristic frequency spikes.
- Temperature Delta (ΔT): Abnormal friction generates heat — an early-warning indicator detectable via thermal imaging or embedded thermocouples.
- Acoustic Emissions: Ultrasonic sensors can detect microscopic cavitation or seal flutter before human-audible noise occurs.
Data can be streamed via OPC UA or MQTT protocols directly into platforms such as Mitsubishi Electric's MELIPC edge-computing nodes, Siemens MindSphere, or open-source stacks like Node-RED + InfluxDB — enabling automated work-order generation when thresholds are breached.
Predictive Maintenance Strategy: Extending LX76-234 Service Life
In 2026, predictive maintenance (PdM) is no longer aspirational — it is table stakes for competitive CNC operations. Here is a structured, interval-based maintenance protocol tailored to the LX76-234:
| Interval | Action | Tooling / Technique |
|---|---|---|
| Daily | Visual inspection for external leakage; check coolant pressure gauge | Standard inspection checklist; flashlight |
| Weekly | Verify vibration signature against baseline; log data to CMMS | Handheld vibration analyzer or permanently mounted accelerometer |
| Monthly | Inspect rotary union housing bolts for correct torque; clean external surfaces | Torque wrench; non-abrasive solvent |
| Quarterly | Perform coolant analysis for particulate contamination; flush lines if needed | Fluid sampling kit; particle counter |
| Annually | Preventive seal replacement; full rotary joint rebuild or exchange | OEM RIX seal kit; qualified technician |
Common Troubleshooting Scenarios
Symptom: Coolant leakage from the rotary joint housing
Probable Causes: Worn internal seals, incorrect installation torque on mounting bolts, or excessive system pressure beyond the 70 bar rating.
Resolution: (1) Verify system pressure does not exceed rated maximum. (2) Inspect mounting bolts for correct torque per MAZAK service manual. (3) If leakage persists, replace the internal seal kit with genuine RIX components. Do not attempt to tighten the rotary joint beyond specification — this exacerbates seal damage.
Symptom: Abnormal vibration or noise during spindle operation
Probable Causes: Bearing wear within the rotary joint, misalignment between the rotary union and spindle shaft, or cavitation due to restricted coolant flow.
Resolution: (1) Perform a vibration analysis to isolate the frequency signature. (2) Check radial and axial alignment using a dial indicator. (3) Inspect coolant supply lines for kinks or blockages. (4) If bearing failure is confirmed, replace the unit — continued operation risks spindle damage.
Symptom: Reduced coolant flow at the tool tip
Probable Causes: Partial internal blockage within the rotary joint passages, collapsed internal hose, or degraded seal fragments obstructing the flow path.
Resolution: (1) Measure pressure at the rotary joint inlet and outlet to identify the restriction point. (2) Flush the system with clean coolant. (3) If blockage persists, disassemble and inspect internal passages. Replace the rotary joint if internal damage is evident.
Sustainability & Energy Efficiency in 2026
Sustainability mandates in 2026 — including the EU's updated Machinery Regulation and tightening ISO 50001 energy management standards — are reshaping how manufacturers evaluate every component. The LX76-234 contributes to your facility's sustainability KPIs in three measurable ways:
- Coolant Conservation: Near-zero external leakage reduces coolant consumption by up to 18% annually compared to worn or lower-grade rotary joints, directly lowering your hazardous waste disposal burden.
- Energy Reduction: The precision bearing and low-friction seal design reduces parasitic drag on the spindle motor. Across a fleet of 10 MAZAK machines, this can translate to approximately 4,200 kWh/year in energy savings — equivalent to ~2.1 metric tons of CO₂ reduction (based on 2026 average grid mix).
- Extended Spindle Life: By preventing coolant ingress into spindle bearings — a failure mode that often results in complete spindle replacement — the LX76-234 reduces the embodied carbon footprint associated with manufacturing and transporting new spindle assemblies.
Frequently Asked Questions
Is the LX76-234 compatible with all MAZAK CNC models?
The LX76-234 (H24RK000751) is designed for MAZAK CNC machining centers that utilize RIX ROCKY-series rotary joints. It is commonly found on MAZAK 5-axis and multi-tasking machines. Always verify compatibility against your specific machine model's BOM (Bill of Materials) or consult with our technical team before ordering.
What is the typical lead time for LX76-234 in 2026?
As of 2026, Koeed maintains strategic inventory of the LX76-234 to support urgent MRO requirements. Standard lead times range from 3–7 business days for stock items. For bulk orders, please use the Request for Quote button below for a customized delivery schedule.
Can the LX76-234 be rebuilt, or is it a consumable item?
The LX76-234 is designed as a serviceable component. RIX offers genuine seal and bearing rebuild kits. However, for mission-critical spindles, many maintenance managers in 2026 opt for a full unit exchange to minimize mean time to repair (MTTR) and eliminate variables associated with in-house rebuilding. Koeed supplies both complete units and OEM seal kits.
Does Koeed provide technical support for installation?
Yes. Koeed offers remote technical support via WhatsApp video call for installation guidance. For on-site commissioning, please inquire through our RFQ channel. We also provide access to OEM installation documentation and torque specifications.
TCO Analysis: Why the LX76-234 Delivers 2026 ROI
When procurement teams evaluate the LX76-234 against lower-cost aftermarket alternatives, the Total Cost of Ownership (TCO) analysis consistently favors the OEM-spec RIX unit. Below is a simplified 3-year TCO comparison for a single MAZAK spindle:
| Cost Factor | LX76-234 (OEM RIX) | Generic Aftermarket |
|---|---|---|
| Initial Purchase Price | Baseline (higher) | 30–40% lower |
| Expected Service Life | 3–4 years | 1–1.5 years |
| Unscheduled Downtime (annual avg.) | ~4 hours | ~18 hours |
| Coolant Waste (annual) | Minimal | ~120 liters |
| Risk of Spindle Damage | Very low | Moderate to high |
| 3-Year TCO Estimate | Lower total cost | 2.3× higher when downtime & risk are priced in |
Ready to Optimize Your MAZAK Spindle Performance?
Koeed is your trusted partner for genuine LX76-234 RIX ROCKY Rotary Joints. Get competitive pricing, verified OEM stock, and expert technical support.
