M12-8sf & M12-8sm Industrial Connectors: The 2026 Standard for IT/OT Converged Automation Networks
1. Strategic Overview: Why M12-8sf & M12-8sm Define 2026 Connectivity
In the 2026 industrial automation landscape, where IT/OT convergence is no longer aspirational but operational, the integrity of your physical layer determines the success of your digital transformation. The M12-8sf (female socket) and M12-8sm (male socket) 8-pin circular connectors from Koeed are engineered precisely for this reality — serving as the critical bridge between field-level devices and enterprise-grade data architectures.
With the global industrial connector market surging past USD 2.26 billion in 2025 and projected to reach USD 3.22 billion by 2033 (CAGR 4.5%), M12-form-factor connectors remain the backbone of smart manufacturing. These 8-pin variants are purpose-built for high-density signal transmission in compact footprints, supporting key protocols including PROFINET, EtherNet/IP, EtherCAT, and IO-Link — the lingua franca of the 2026 connected factory.
Koeed's M12-8sf/M12-8sm pair embodies the three pillars of next-gen automation connectivity: rugged reliability (IP67-rated sealing), data fidelity (shielded 8-pin architecture), and predictive maintenance readiness (gold-plated contacts enabling condition-monitoring feedback loops). Whether you are deploying distributed I/O modules, vision systems, or smart sensors at the edge, these connectors ensure signal integrity from PLC to endpoint.
2. Technical Benchmarking: M12-8sf vs M12-8sm — The Complementary Pair
Understanding the distinction between these two variants is critical for procurement engineers and system integrators. Below is a structured comparison that highlights how the female (8sf) and male (8sm) connectors work in tandem across your automation topology.
| Parameter | M12-8sf (Female Socket) | M12-8sm (Male Socket) |
|---|---|---|
| Pin Configuration | 8-Pin Female (Socket) | 8-Pin Male (Plug) |
| Primary Application | Panel-mount / Device-side receptacles | Cable-mount / Field-wireable plugs |
| Protocol Support (2026) | PROFINET, EtherNet/IP, EtherCAT, IO-Link, CANopen | PROFINET, EtherNet/IP, EtherCAT, IO-Link, CANopen |
| Ingress Protection | IP67 (mated condition) | IP67 (mated condition) |
| Contact Material | Gold-plated copper alloy | Gold-plated copper alloy |
| Operating Temperature | -25°C to +85°C | -25°C to +85°C |
| Vibration Resistance | IEC 60068-2-6 compliant | IEC 60068-2-6 compliant |
| Mating Cycles | ≥ 500 cycles | ≥ 500 cycles |
| Typical Use Case (2026) | Smart sensor hubs, edge gateway panels, robot end-effector interfaces | Fieldbus trunk cables, drag-chain actuators, AGV/AMR harnesses |
3. The 2026 IT/OT Convergence Angle: Beyond Simple Connectivity
The modern factory floor is no longer a silo of isolated machinery. With over 65% of global factories now integrating automation systems requiring high-performance connectivity, the M12-8sf/M12-8sm connectors have evolved from passive components to active enablers of digital twin accuracy.
3.1 Edge Computing & Real-Time Data Pipelines
As edge computing displaces centralized cloud processing for time-critical automation tasks, the latency introduced by unreliable connectors becomes a TCO multiplier. Koeed's shielded 8-pin design ensures that high-frequency data packets traveling from your sensors to edge gateways arrive uncorrupted, enabling sub-millisecond response times essential for closed-loop motion control and real-time quality inspection systems.
3.2 Predictive Maintenance Integration
In 2026, connectors are no longer "fit and forget" components. The gold-plated contacts in Koeed's M12 series allow for contact resistance trending — when paired with intelligent I/O modules that monitor line impedance, maintenance teams can schedule connector replacements before intermittent faults cascade into production stoppages. This shifts maintenance strategy from reactive to predictive, directly reducing unplanned downtime by an estimated 18–25% in high-load environments.
3.3 Sustainability & Energy Efficiency
Poor connectivity generates resistive losses that compound across hundreds of nodes in large-scale installations. The precision-engineered contact geometry in the M12-8sf/M12-8sm minimizes contact resistance, contributing to measurable reductions in overall system power draw. For 24/7 continuous-process industries, this translates into a tangible Scope 2 emissions reduction — aligning with corporate ESG mandates that dominate 2026 boardroom priorities.

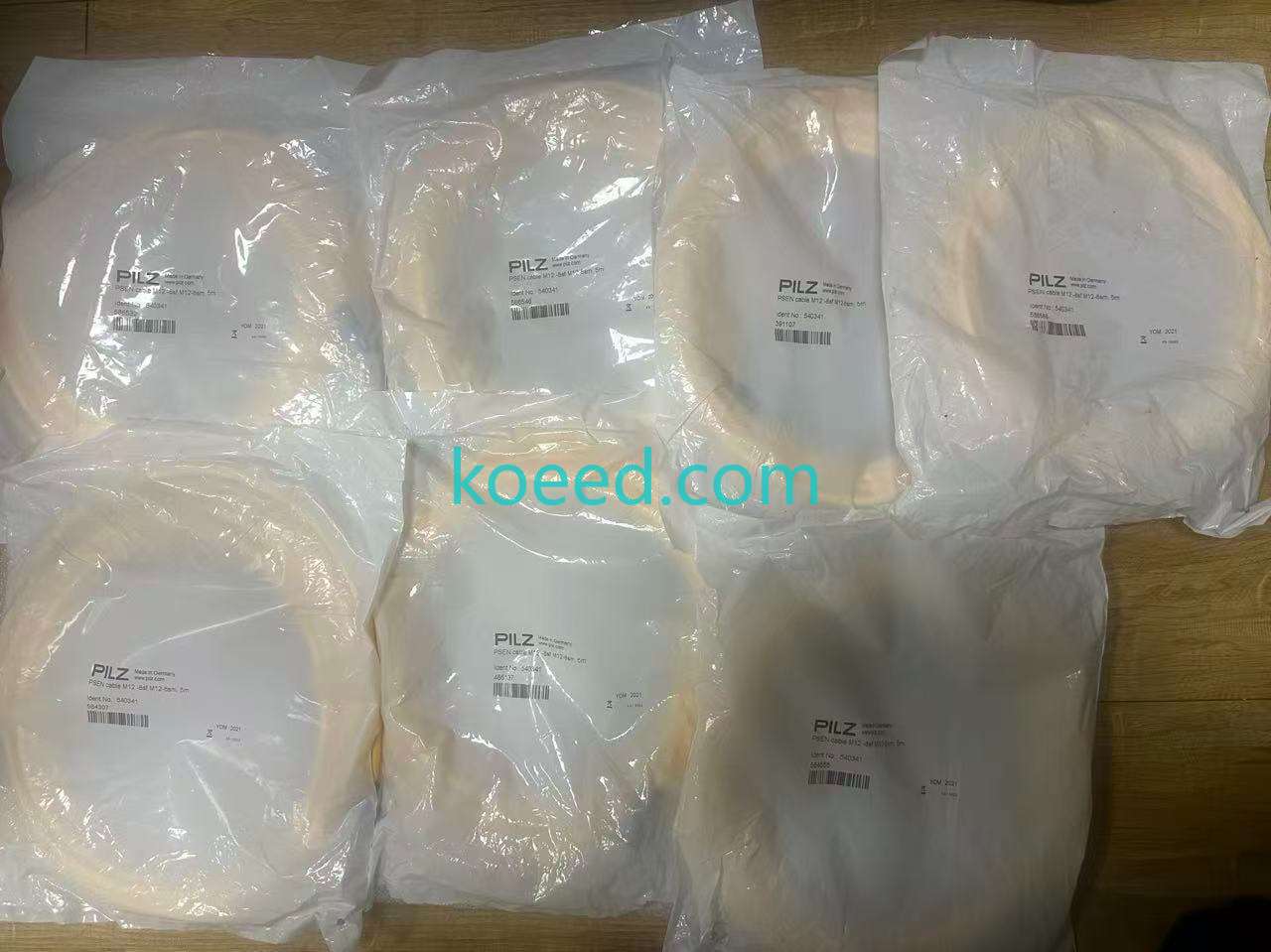

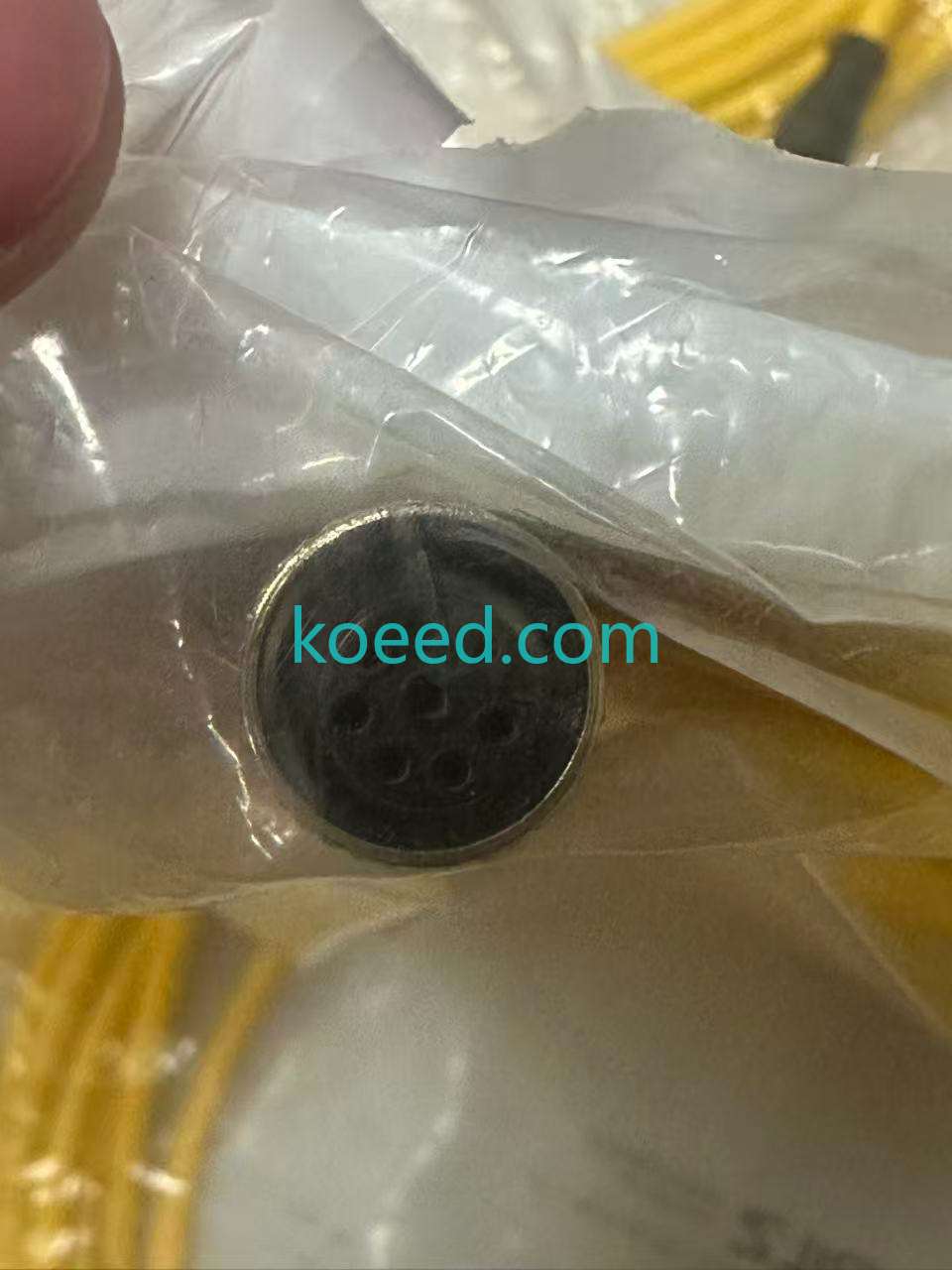

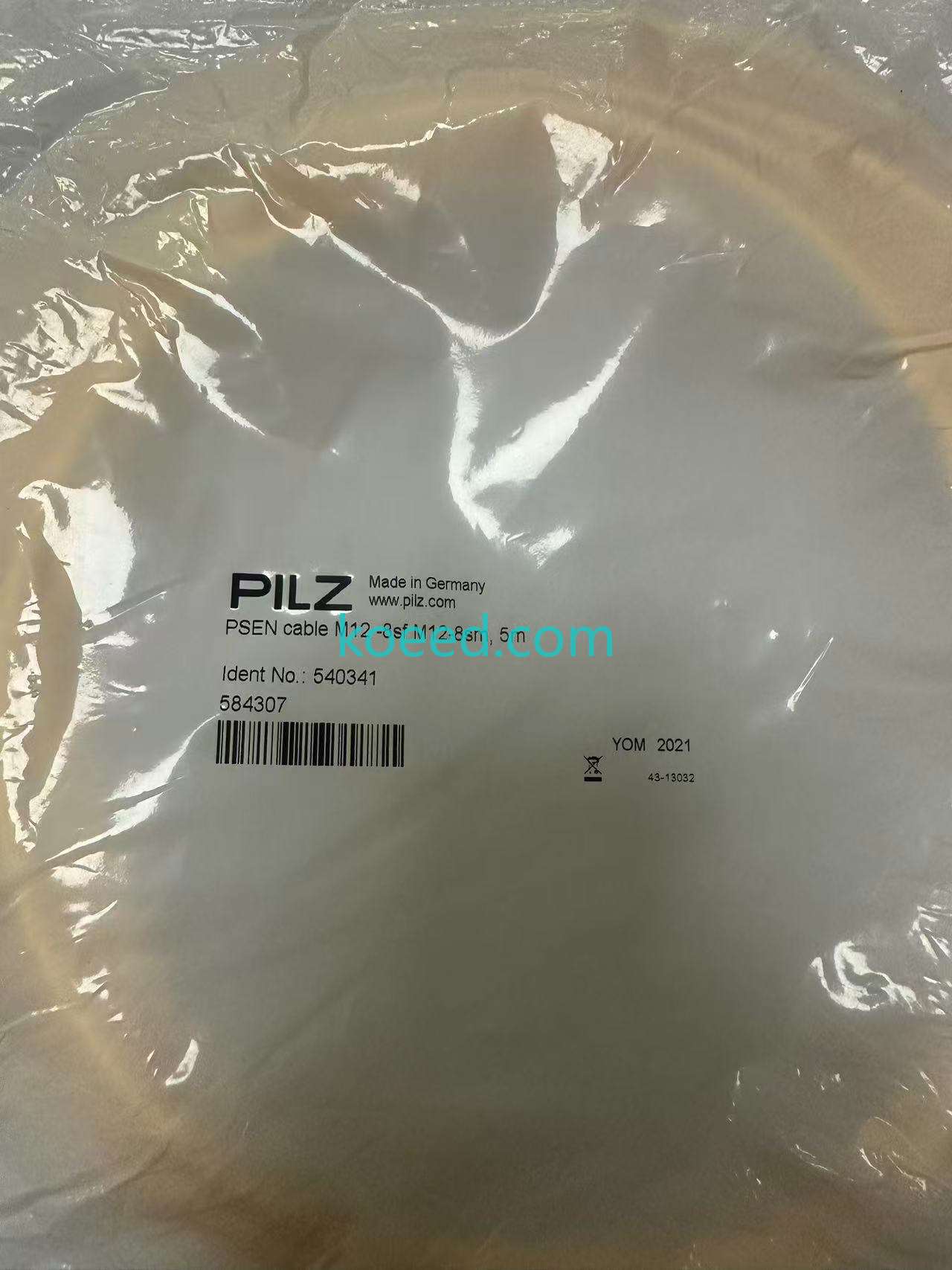

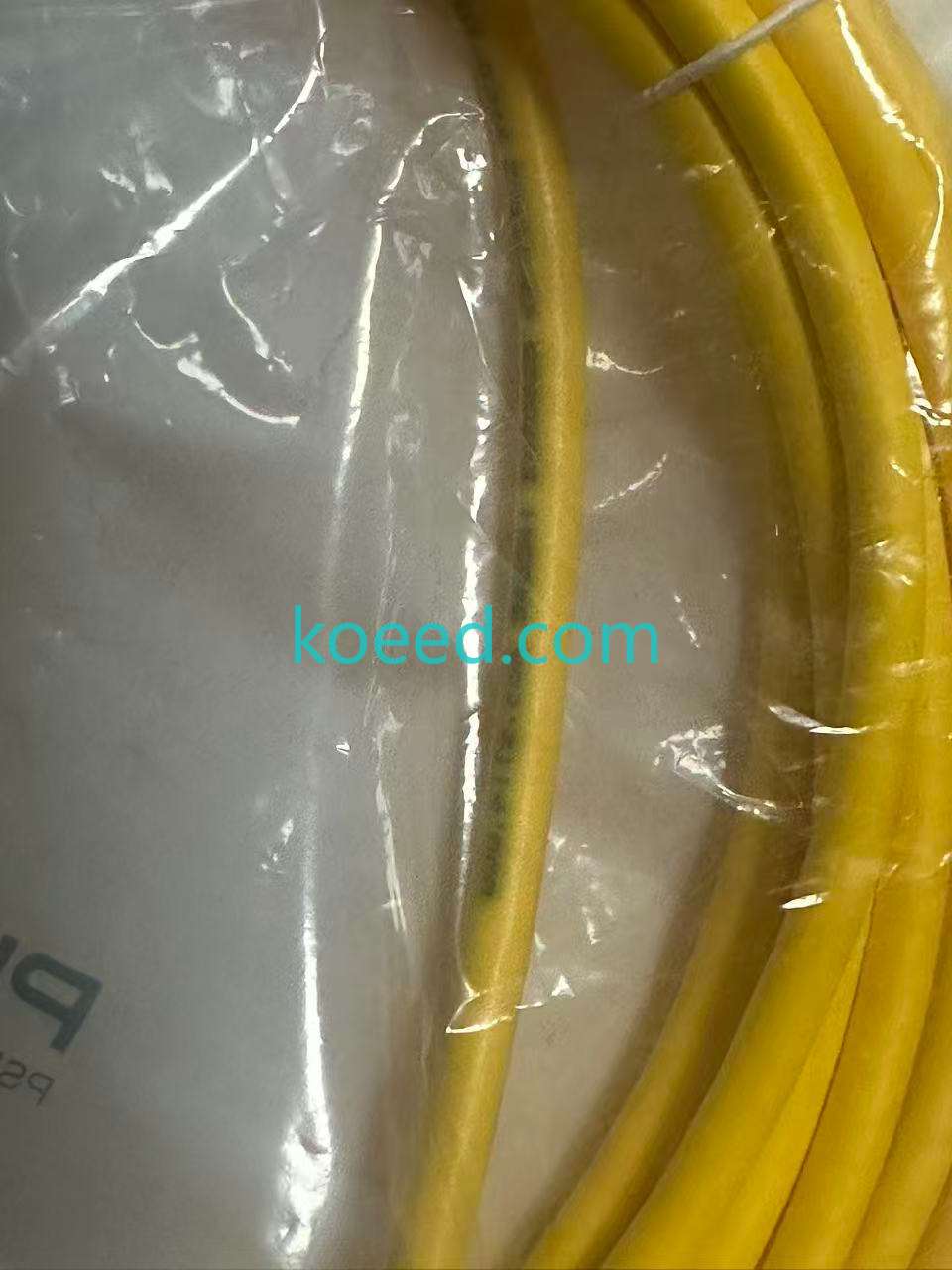

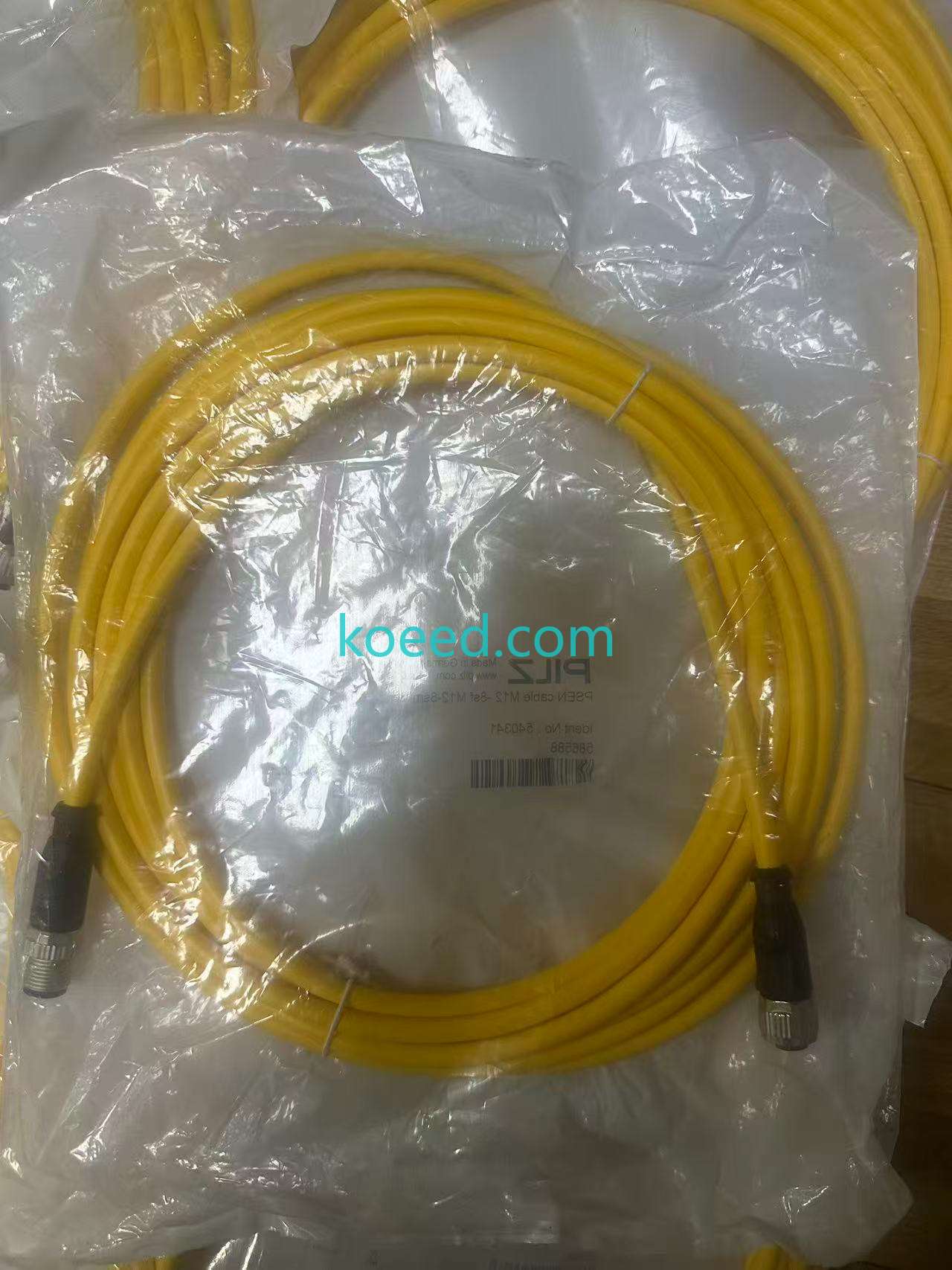

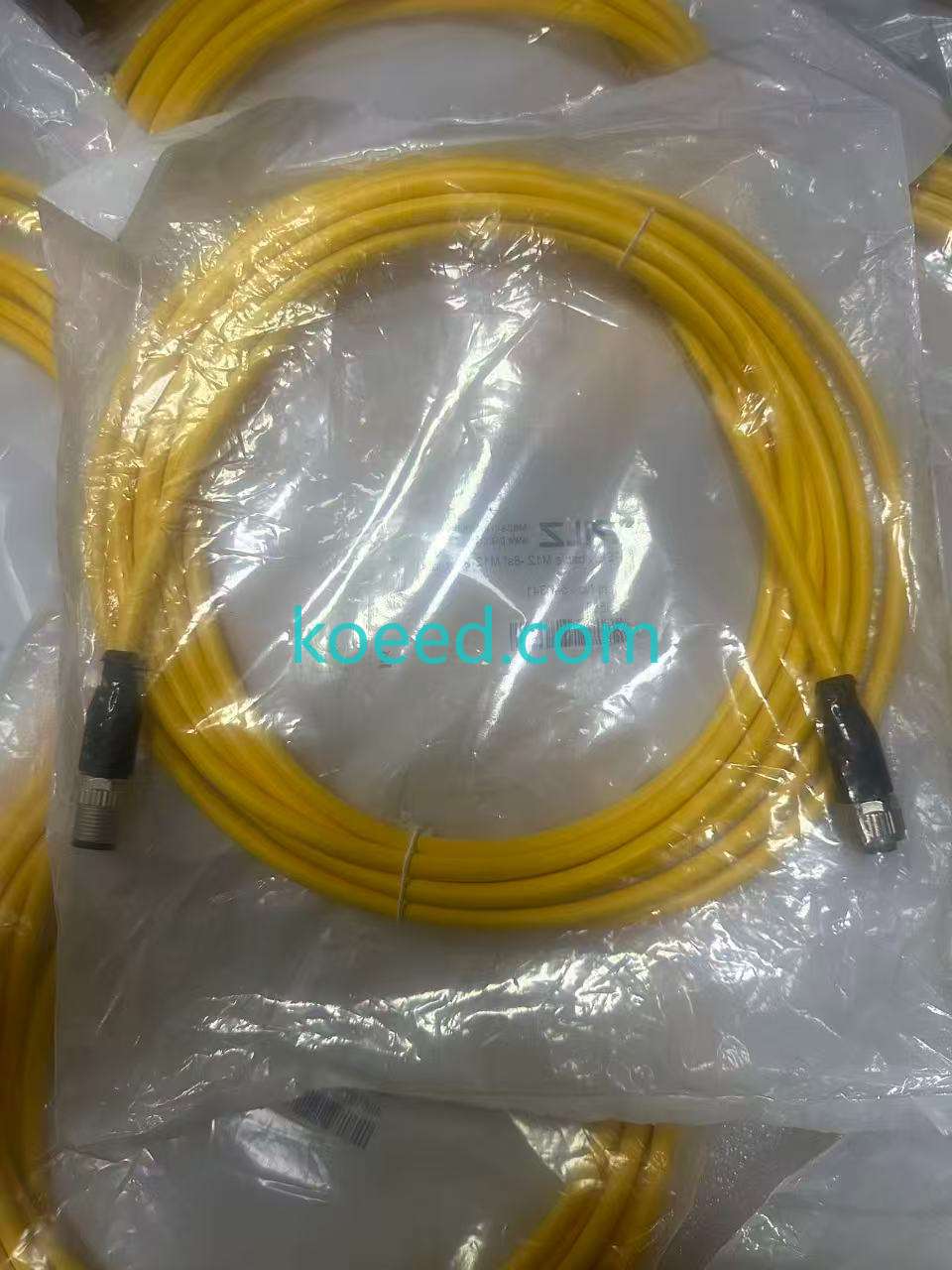

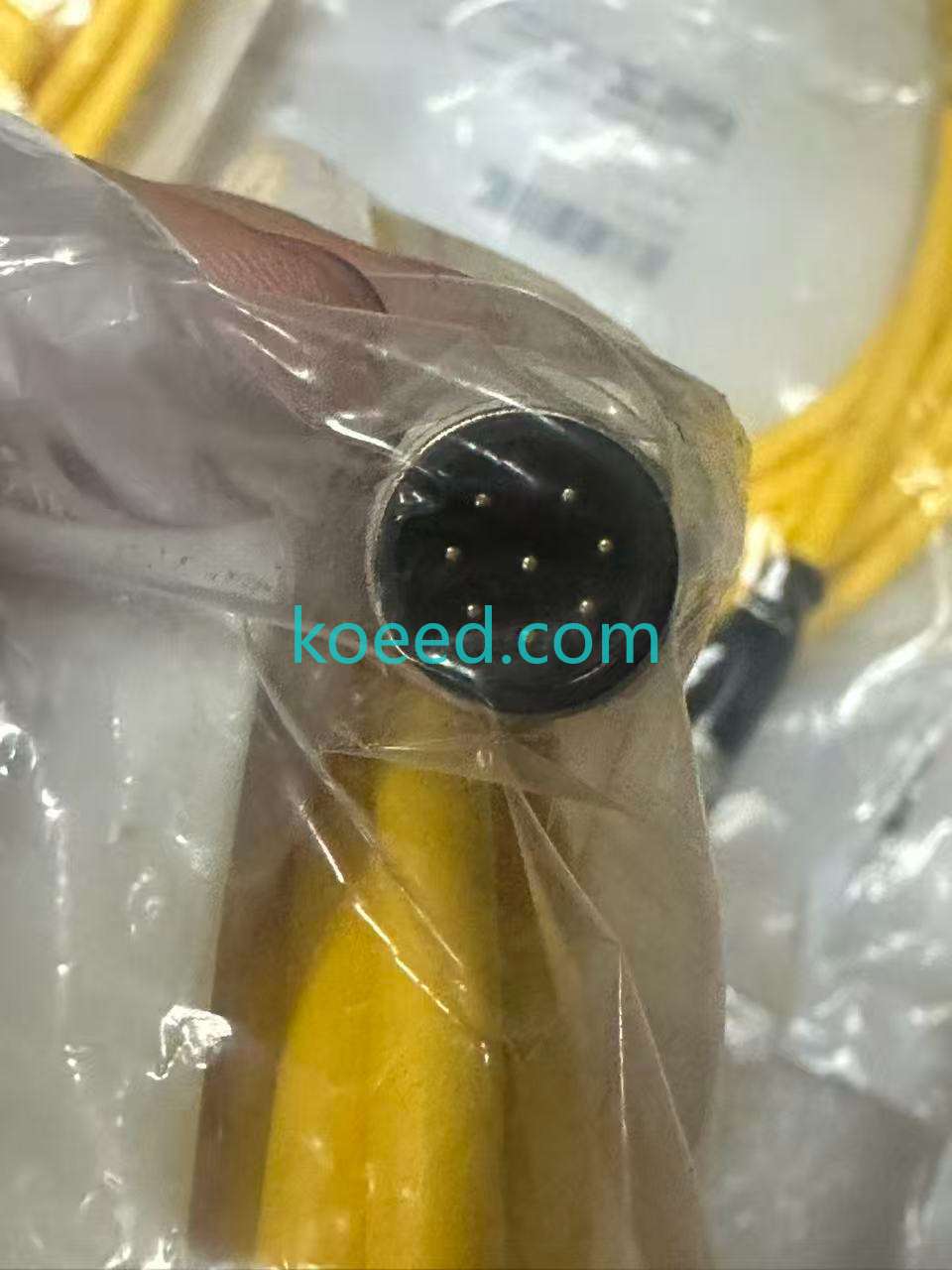

4. Visual Gallery: M12-8sf & M12-8sm Product Showcase

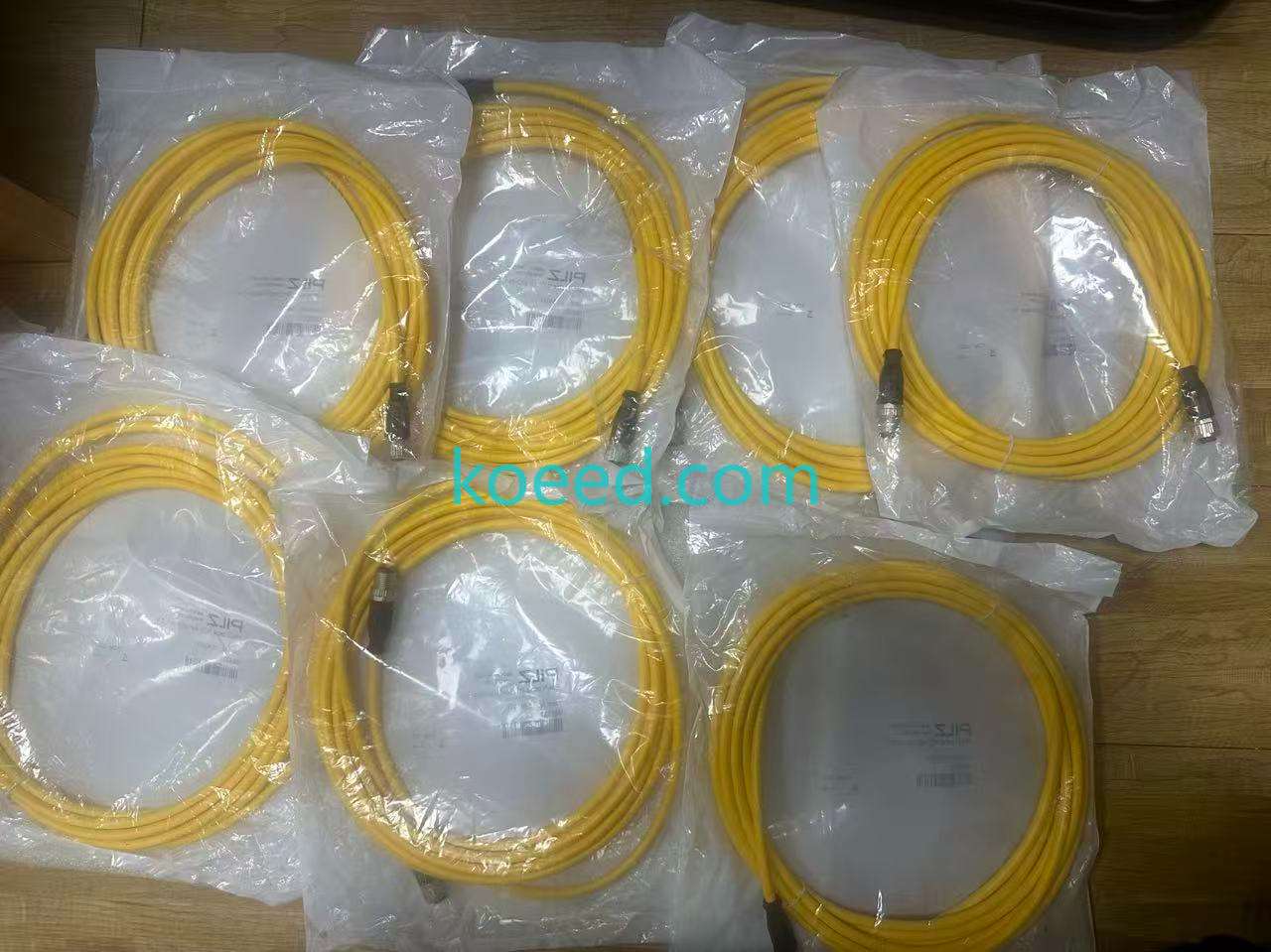

Explore the comprehensive gallery below showcasing Koeed's M12 8-pin connector series from every angle — including housing details, contact arrangements, and integration examples.
4.1 Product Demonstration Video
Watch the M12-8sf and M12-8sm connectors in action — covering mating procedures, installation best practices, and real-world deployment.
5. Maintenance, Troubleshooting & Pro Tips
Maximizing the service life and performance of your M12 connector infrastructure requires adherence to field-proven best practices. Below, Koeed's engineering team shares essential guidance for 2026-condition deployments.
5.1 Preventive Maintenance Checklist
5.2 Common Fault Symptoms & Resolutions
| Symptom | Likely Cause | Resolution |
|---|---|---|
| Intermittent PROFINET link loss | Oxidized contacts or loose coupling nut | Clean with isopropyl alcohol (≥99%); torque coupling nut to 0.6 N·m |
| Elevated bit error rate on EtherCAT | Shield discontinuity or bent pin | Verify 360° shield termination; inspect pins under magnification; replace if deformed |
| IP67 seal failure (moisture ingress) | Degraded O-ring or cross-threaded coupling | Replace O-ring (EPDM/FKM); visually confirm straight-thread engagement before torque application |
| Signal attenuation >3 dB | Corroded gold plating or contaminated dielectric | Replace connector pair; review environmental sealing strategy |
| Connector overheating (>60°C surface temp) | Overcurrent beyond 4A per pin rating | Verify load per pin; redistribute or upgrade to higher-current M12 variant |
5.3 2026 Predictive Maintenance Integration
Modern IO-Link masters and Ethernet switches deployed in 2026 can now monitor link quality metrics at the physical layer. By baseline-recording the insertion loss and return loss of each M12-connected segment during commissioning, deviations exceeding 1.5 dB trigger automated work orders — eliminating guesswork and enabling condition-based connector replacement.
6. ROI Analysis: Total Cost of Ownership (TCO) in 2026 Terms
When evaluating connector procurement, purchase price tells only 15% of the story. The table below models TCO for a mid-scale automation installation with 200 M12 connector nodes over a 5-year lifecycle.
| Cost Factor | Budget M12 Connector | Koeed M12-8sf/M12-8sm |
|---|---|---|
| Initial procurement (200 units) | $1,200 | $1,700 |
| Replacement rate (5 years) | ~35% (vibration failures) | ~8% (predictive swaps only) |
| Unplanned downtime (hours/yr) | 12 hours | 2.5 hours |
| Downtime cost (@ $5,000/hr) | $300,000 | $62,500 |
| Maintenance labor (5-year total) | $18,500 | $6,200 |
| 5-Year TCO | ~$319,700 | ~$70,400 |
Model assumes 24/5 operation in moderate industrial environment. Downtime cost varies by vertical — semiconductor and automotive sectors may exceed $10,000/hour.
7. Frequently Asked Questions
Are the M12-8sf and M12-8sm compatible with all major industrial Ethernet protocols in 2026?
Yes. The 8-pin configuration with shielded design fully supports PROFINET (100 Mbps), EtherNet/IP, EtherCAT, SERCOS III, and POWERLINK. The connectors are also backward-compatible with 10 Mbps legacy fieldbuses when proper termination is observed. For single-pair Ethernet (SPE) deployments emerging in 2026, a different pin-count variant may be required — consult Koeed's engineering team for migration guidance.
What is the recommended torque for M12 coupling nuts?
Koeed recommends 0.6 N·m ± 0.1 N·m for hand-tight applications. For tool-assisted mating in high-vibration environments (e.g., stamping presses, crushers), torque up to 0.8 N·m using a calibrated torque wrench with an M12-specific socket adapter. Never exceed 1.0 N·m, as over-torquing can deform the O-ring groove and compromise the IP67 seal.
Can these connectors support PoE (Power over Ethernet) applications?
The M12-8sf/M12-8sm 8-pin configuration supports PoE Type 1 (802.3af, 15.4W) and PoE Type 2 (802.3at, 30W) when wired in Mode A or Mode B configurations, provided the per-pin current rating of 4A maximum is respected. For PoE Type 3 (802.3bt, 60W+) or Type 4 (100W), consider Koeed's specialized M12 power connectors with enhanced contact ratings.
How do I integrate connector health monitoring into my existing CMMS/SCADA?
In 2026, leading IO-Link masters (Siemens, IFM, Balluff) expose port diagnostics including link quality and CRC error counters via OPC UA. Map these tags to your CMMS (e.g., SAP PM, IBM Maximo) with threshold-based triggers. Koeed can provide a commissioning baseline template that establishes acceptable signal integrity parameters for your specific topology.
What is the lead time for bulk orders of M12-8sf/M12-8sm?
Koeed maintains strategic inventory for rapid fulfillment. Standard quantities (1–500 units) typically ship within 3–5 business days. For project-scale orders exceeding 1,000 units, lead times range from 2–4 weeks with partial shipments available. Contact our sales team via the channels below for a real-time availability check against your BOM.
8. Final CTA: Secure Your 2026-Ready Connectivity Stack
Ready to Upgrade Your Automation Infrastructure?
Partner with Koeed for M12-8sf/M12-8sm connectors that deliver industrial-grade reliability, predictive maintenance readiness, and measurable ROI. Our engineering team is standing by to support your technical evaluation, provide CAD models, and prepare a tailored quotation.
