M201UN02 V.6 20.1" UXGA LCD Panel: The 2026 Industrial HMI Retrofit Standard | Koeed
2026 Industry Insight: As global manufacturing doubles down on extending the service life of legacy HMI infrastructure, the AUO M201UN02 V.6 20.1-inch UXGA LCD panel has emerged as the gold-standard drop-in replacement for aging industrial displays. With IT/OT convergence mandates accelerating across ISO 55000-aligned asset management frameworks, this panel delivers the rare combination of proven reliability, native LVDS compatibility, and a 1600×1200 resolution that matches the exact UXGA format required by legacy CNC, SCADA, and DCS operator stations without costly signal conversion.
1. Strategic Positioning: Why the M201UN02 V.6 Matters in 2026
The industrial display aftermarket in 2026 is shaped by two conflicting forces: obsolescence pressure from OEMs pushing full-system upgrades and budgetary pragmatism driving maintenance teams toward precision retrofits. The M201UN02 V.6 sits at the intersection of these forces — a panel manufactured by AU Optronics (AUO) that continues to be the preferred choice for replacing failed displays in machine tools, pharmaceutical processing lines, power generation HMIs, and semiconductor fabrication equipment.
What sets this panel apart in the 2026 ecosystem is its backward compatibility with first-generation UXGA controllers while offering sufficient color depth and contrast for modern SCADA visualization requirements. The panel's a-Si TFT-LCD architecture remains the most field-proven active matrix technology for 24/7 industrial duty cycles, with a mean time between failure (MTBF) routinely exceeding 50,000 hours under rated conditions.
2. Technical Specifications & Competitive Benchmarking
For systems integrators and maintenance engineers evaluating the M201UN02 V.6 against alternative 20.1-inch panels, the following side-by-side comparison highlights where this model excels — and where upgrade pathways exist.
| Parameter | M201UN02 V.6 (AUO) | Legacy M201UN02 V.2 | Generic 20.1\" Industrial LCD |
|---|---|---|---|
| Diagonal Size | 20.1\" | 20.1\" | 20.1\" |
| Resolution | 1600×1200 (UXGA) | 1600×1200 (UXGA) | Varies (often 1280×1024) |
| Color Depth | 16.7M (8-bit RGB) | 16.7M (8-bit) | 16.2M (6-bit + FRC) |
| Signal Interface | 2-Channel LVDS | 2-Channel LVDS | Single LVDS / VGA |
| Backlight | 6× CCFL (upgradable to LED) | 6× CCFL | CCFL or basic LED |
| Brightness | 300 cd/m² (typical) | 300 cd/m² | 250–280 cd/m² |
| Contrast Ratio | 800:1 | 600:1 | 500:1–700:1 |
| Viewing Angle (H/V) | 160°/140° | 150°/130° | 140°/120° |
| Response Time | 16ms (Tr+Tf) | 25ms | 20–30ms |
| 2026 Retrofit Viability | ★★★★★ — Active supply chain | ★★☆☆☆ — Discontinued | ★☆☆☆☆ — Pinout mismatch risk |
3. Visual Gallery — M201UN02 V.6 Detailed Inspection

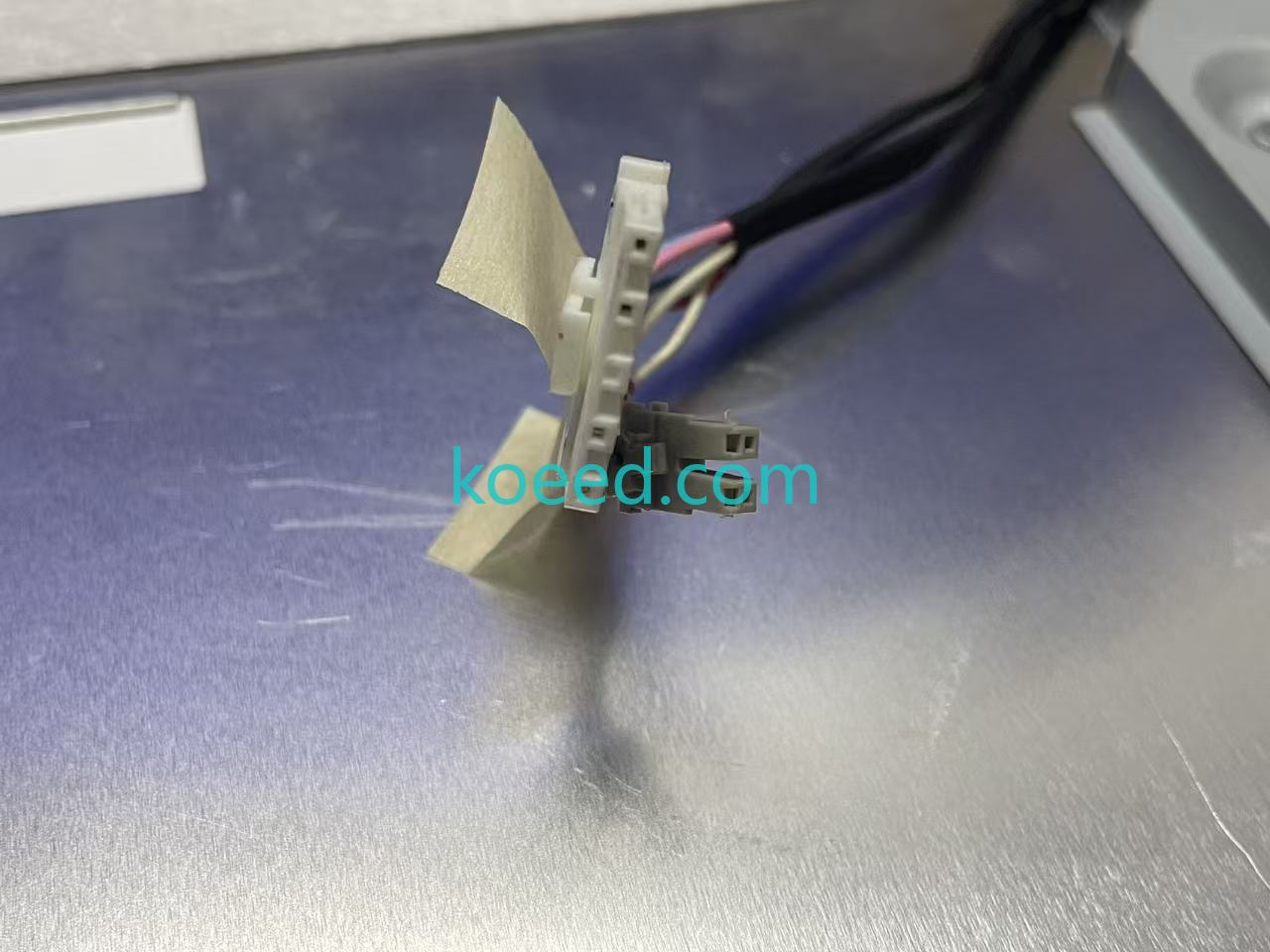

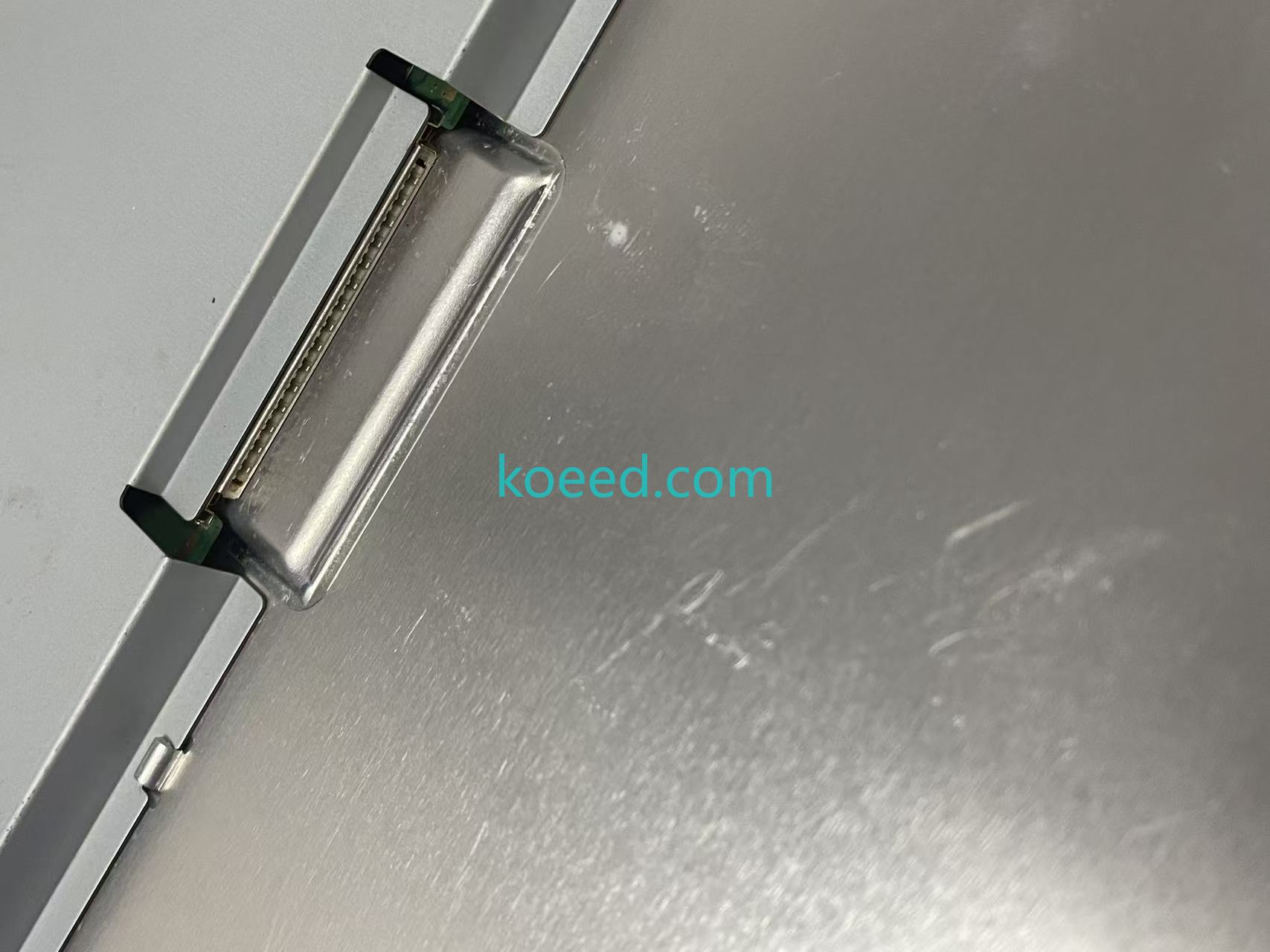

Below is the complete visual documentation of the M201UN02 V.6 panel, covering front display, rear PCB layout, connector positioning, backlight assembly, and operational test footage. Click any image to expand.
▲ Operational Test Footage — M201UN02 V.6 powered on with full UXGA test pattern validation.
4. IT/OT Convergence & System Integration in 2026
The 2026 industrial automation landscape demands that every hardware component — even a display panel — contributes to the broader IT/OT convergence strategy. While the M201UN02 V.6 itself is a passive display device, its role in the data-to-operator pipeline is critical:
4.1 SCADA & DCS Visualization Readiness
Modern SCADA platforms — including Ignition 8.3, WinCC OA 4.0, and FactoryTalk Optix — now output high-density HMIs that demand genuine 1600×1200 pixel fidelity. The M201UN02 V.6's true 8-bit color depth ensures that alarm state color coding (ISA-101 compliant) renders with unambiguous clarity. Unlike panels that use 6-bit + FRC dithering, the M201UN02 V.6 reproduces solid color blocks without shimmer, reducing operator eye strain during 12-hour shifts.
4.2 Edge Computing & Remote Monitoring
When paired with an Advantech or Beckhoff industrial PC driving the LVDS interface, this panel becomes the visual endpoint of edge-computed analytics. Predictive maintenance dashboards, OEE scoreboards, and real-time energy consumption overlays are rendered natively at UXGA — no scaling artifacts, no interpolation blur. This is particularly valuable in pharmaceutical and food processing environments where FDA 21 CFR Part 11 mandates clear, auditable on-screen data representation.
4.3 ERP/MES Integration via Display Gateways
In 2026, many facilities route MES work instructions and ERP production schedules directly to operator stations. The 4:3 aspect ratio of the 1600×1200 M201UN02 V.6 matches the legacy layout of most industrial HMI frames, meaning zero GUI redesign is needed when swapping a failed panel — a critical consideration when validated manufacturing systems cannot undergo software re-qualification.
5. Predictive Maintenance & Troubleshooting Guide
In the spirit of 2026's shift from reactive repair to predictive maintenance, here are the key failure signatures and preemptive actions for the M201UN02 V.6:
5.1 Common Failure Modes & Resolution
| Symptom | Likely Cause | 2026 Recommended Action |
|---|---|---|
| Screen dim / pinkish hue | CCFL aging (>45,000 hrs) | Install LED conversion kit; retire CCFL inverter |
| Flickering at power-on | Inverter capacitor degradation | Replace inverter board; test with known-good CCFL load |
| Horizontal/vertical lines | LVDS ribbon cable fatigue | Reseat cable; inspect for micro-fractures; replace if needed |
| No backlight (audio present) | Blown inverter fuse / open lamp | Check inverter fuse continuity; test CCFL lamps individually |
| Intermittent image loss | LVDS connector oxidation | Clean contacts with isopropyl alcohol; apply dielectric grease |
| Color shift in one corner | Magnetic interference / aging polarizer | Relocate magnetic sources; evaluate panel replacement if severe |
5.2 Longevity Best Practices
- Thermal Management: Maintain enclosure ambient below 45°C. Every 10°C above this threshold roughly halves CCFL lifespan.
- Power Conditioning: Use a DIN-rail DC power supply with <1% ripple on the inverter input. Ripple-induced flicker accelerates lamp electrode erosion.
- Duty Cycling: Where process allows, configure the host PC to invoke DPMS screen blanking during idle periods exceeding 30 minutes.
- Annual Inspection: Check all LVDS connector seating and look for early signs of capacitor bulging on the inverter PCB.
6. ROI & Total Cost of Ownership Analysis
From a 2026 procurement standpoint, the M201UN02 V.6 offers one of the most compelling TCO profiles in the industrial display aftermarket:
| Cost Factor | M201UN02 V.6 Retrofit | OEM Full HMI Replacement |
|---|---|---|
| Hardware Acquisition | $190–$250 per panel | $2,500–$8,000+ per unit |
| Installation Labor | 0.5–1.5 hours (in-house) | 4–16 hours (vendor-assisted) |
| Software Re-validation | None required | Often mandatory (FDA/GxP) |
| Production Downtime | < 2 hours typical | 1–5 shifts possible |
| 3-Year TCO (single unit) | ~$350–$500 | ~$5,000–$15,000 |
| Spare Parts Inventory | Standardized, multi-vendor | Single-source OEM lock-in |
For a facility with 20 operator stations, the delta is significant: retrofitting all 20 with M201UN02 V.6 panels (including LED conversions) demands a one-time outlay of roughly $8,000–$12,000, versus a minimum of $100,000 for OEM replacement displays with associated re-validation and downtime costs. Moreover, the ability to stock a single panel type across multiple machine brands drastically simplifies maintenance spares strategy — a key KPI for world-class Maintenance, Repair, and Operations (MRO) programs in 2026.
7. How to Source & Verify Authentic M201UN02 V.6 Panels
With the surge in demand, the aftermarket has seen an influx of counterfeit and re-marked panels. Protect your retrofit by following these verification steps:
- Check the Label: Authentic AUO panels will have a clearly printed model number "M201UN02 V.6" with a barcode and serial number that can be cross-referenced against the Koeed database.
- LVDS Connector Pin Count: The V.6 uses a 30-pin LVDS connector. Older revisions or clones may use a 20-pin connector — a red flag.
- Inspect the Backlight Wiring: Genuine panels have 6 CCFL lamp connectors, each clearly labeled. Replicas may show sloppy soldering or missing lamp channels.
- Request Burn-In Test Footage: At Koeed, every M201UN02 V.6 is powered on for a minimum 4-hour burn-in before shipping. Ask for a test video with your order number visible.
- Source from ISO-Certified Distributors: Koeed is ISO 9001:2015 certified and provides a 12-month warranty on all genuine M201UN02 V.6 panels.
