This N9IOA-01 4TP-1B703 entry records one circuit board in new-looking condition, dated 17 November 2025. The first two photographs show a populated green board with rows of discrete components and a long multiposition connector. The full board identifier is not readable in those views.
Identification and delivery details

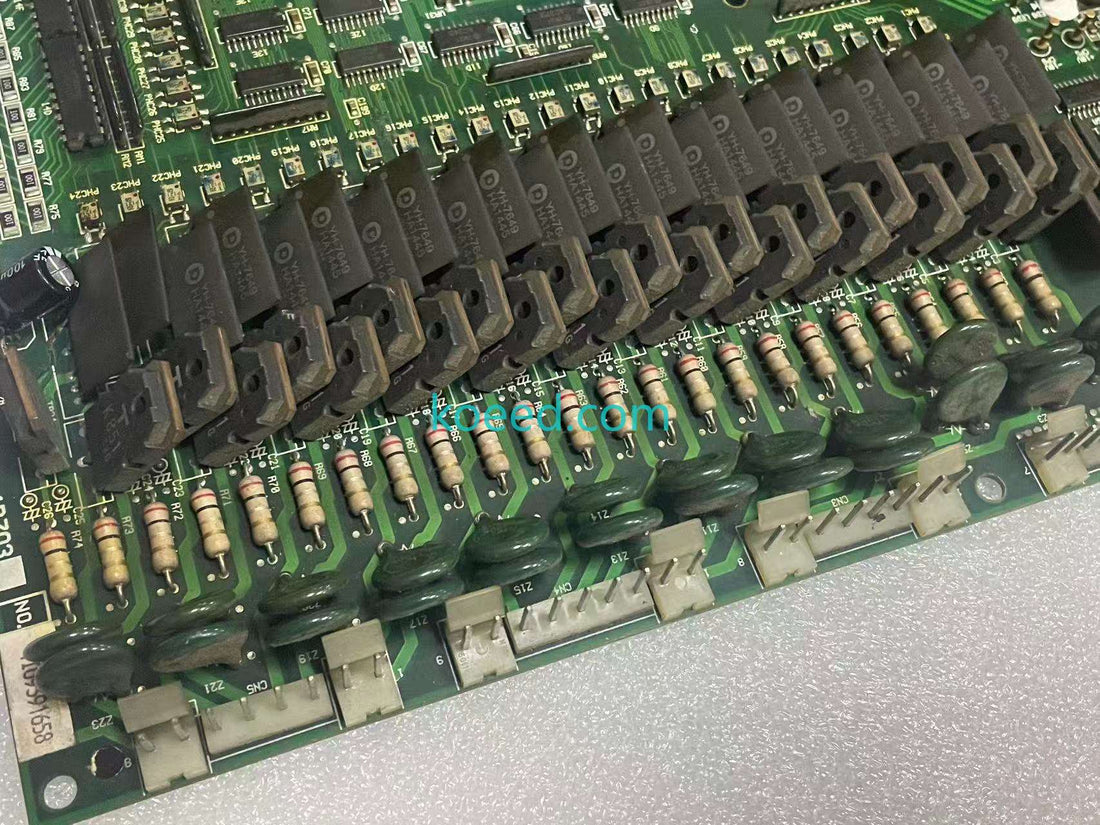

Photograph 1 is a component-side close-up. Black tabbed packages sit alongside resistors, green disc components and white connectors. Component markings identify individual parts rather than the complete board, so they are not used to assign an electrical rating to N9IOA-01.

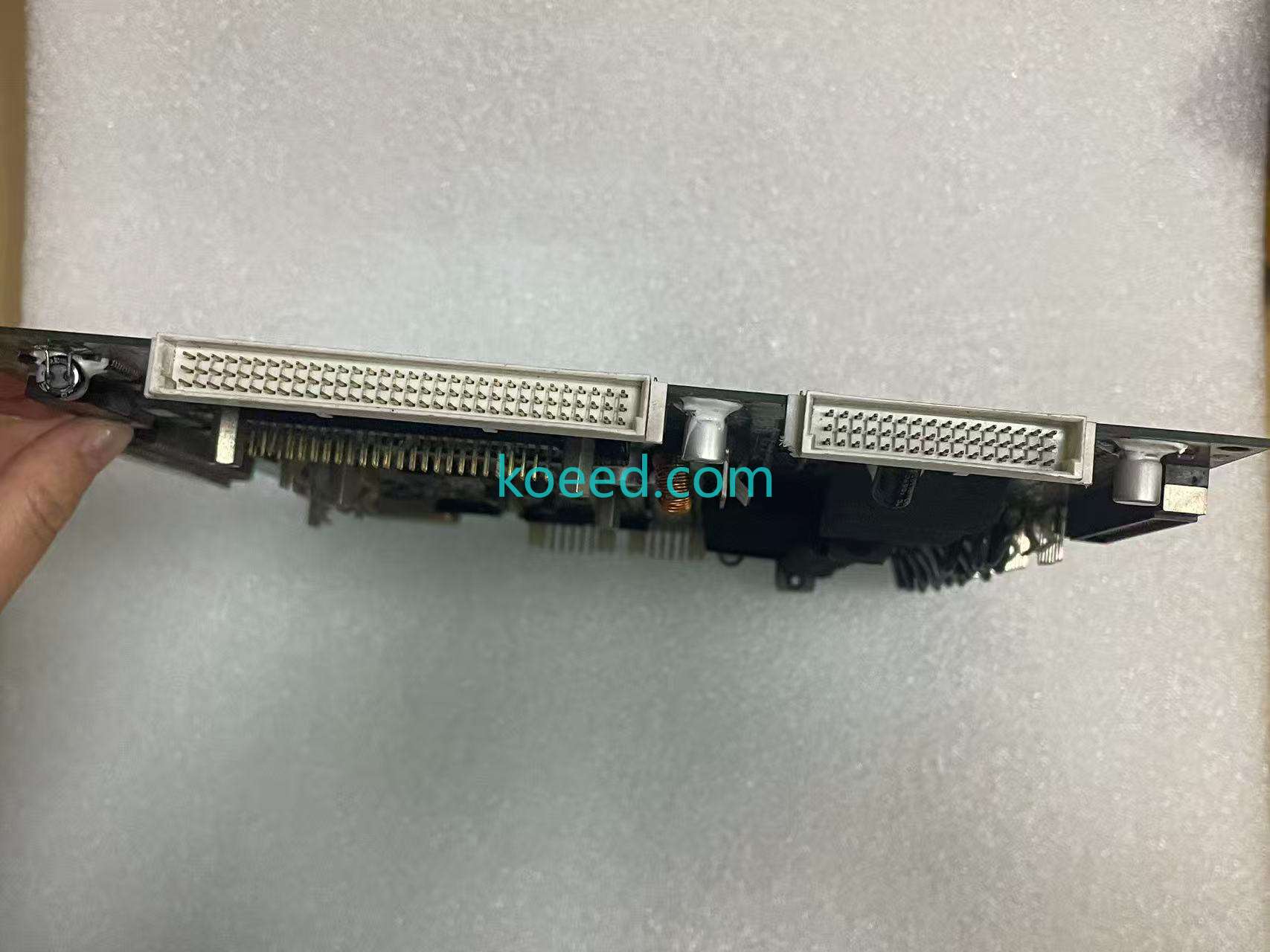

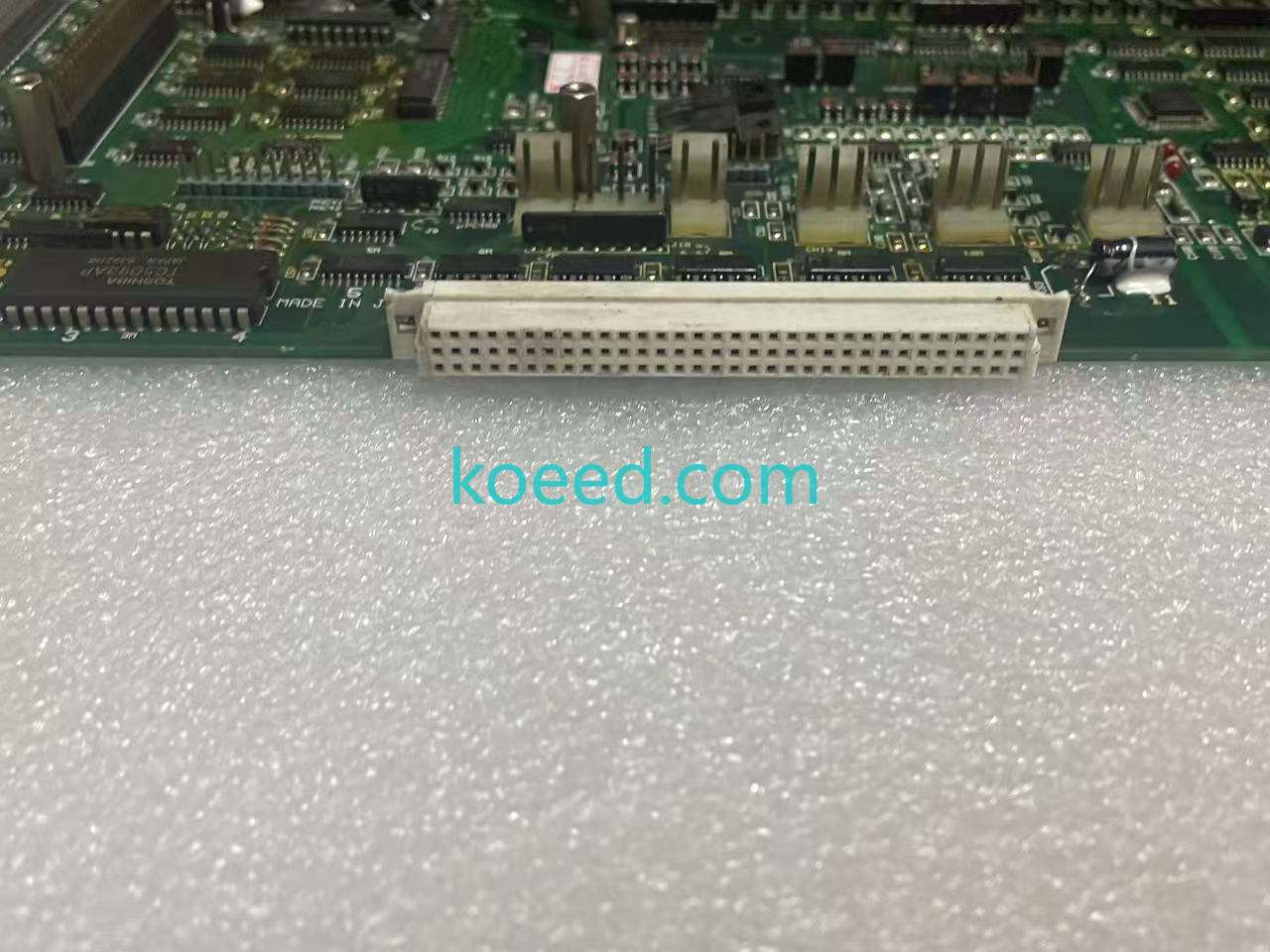

Photograph 2 shows the long white connector on the board edge. Its multiple rows of contact positions and nearby pins provide a useful mechanical comparison, but the image supplies no wiring diagram. Connector appearance cannot establish channel count, analogue ranges or a PLC backplane protocol.
The supplier note states Japan manufacture and one item with an appearance described as new. It does not establish unused status or give a warranty. A 3kg weight field has no stated unit-versus-package basis. The separate catalogue listing offers a 90-day warranty; that offer should be confirmed for a new enquiry rather than applied retrospectively to this record.
The retained title describes an analogue I/O module. The source identifier and reviewed board views do not independently verify that function. No analogue resolution, isolation rating, predictive-maintenance capability or factory-network support is presented as a measured specification.
| Item | Evidence |
|---|---|
| Source identifier | N9IOA-01 4TP-1B703 |
| Visible form | Populated green circuit board; tabbed components and white connectors |
| Reviewed edge connection | Long multiposition white connector; pinout unverified |
| Recorded quantity / appearance | One item / new-looking, supplier statement |
| Recorded origin | Japan, source statement; not established by the reviewed views |
| Date / weight field | 17 November 2025 / 3kg, basis unspecified |
| Function / warranty evidence | Analogue I/O wording in retained title; source warranty absent |
Swipe or scroll horizontally to read the full table.
Photographs 1 and 2 were reviewed after all 16 unique images and one video completed GET download and byte/SHA-256 checks. The remaining photographs retain neutral source captions. The video supplies archived media, without a performance claim.
Matching this part
Request clear photographs of the complete N9IOA-01 and 4TP-1B703 identifiers, including revision labels. Compare board dimensions, mounting locations and both connector faces with the installed board.
Obtain the equipment maker's wiring and configuration information before replacement. Confirm functional testing and warranty terms with the supplier; neither the photographed component layout nor the catalogue title establishes signal ranges or interchangeability.
Photos and recorded media
Recorded inspection clip. The clip is retained as delivery evidence; no performance measurement is inferred from it.
Related records and products
View the 1PCS N9IOA-01 4TP-1B703 90days warranty catalogue listing. Confirm the exact configuration and condition; a catalogue entry does not identify this delivered unit. Contact Koeed with both board identifiers and the installed equipment reference.
Request this part
Request N9IOA-01 4TP-1B703 with the required revision, connector photographs and supplier testing terms.
