Siemens SIMATIC KTP600 Basic Color PN HMI Panel: Complete Technical Guide for 6AV6 647-0AD11-3AX0
Siemens SIMATIC KTP600 Basic Color PN HMI Panel
Part Number: 6AV6 647-0AD11-3AX0
Professional-grade Human-Machine Interface for industrial automation applications
Product Demonstration Video
Watch the KTP600 Basic Color PN in operation and learn about its key features
Product Overview

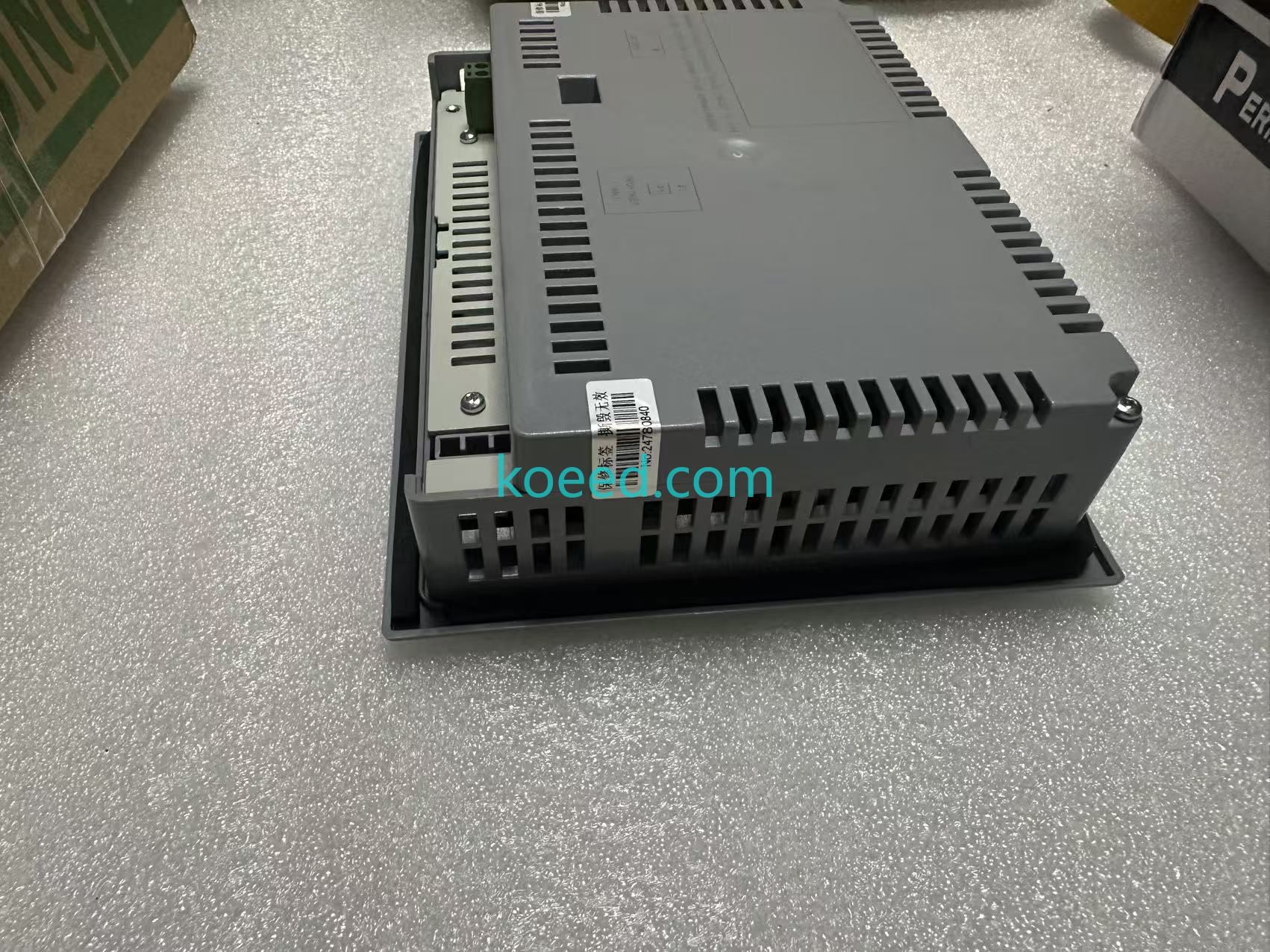

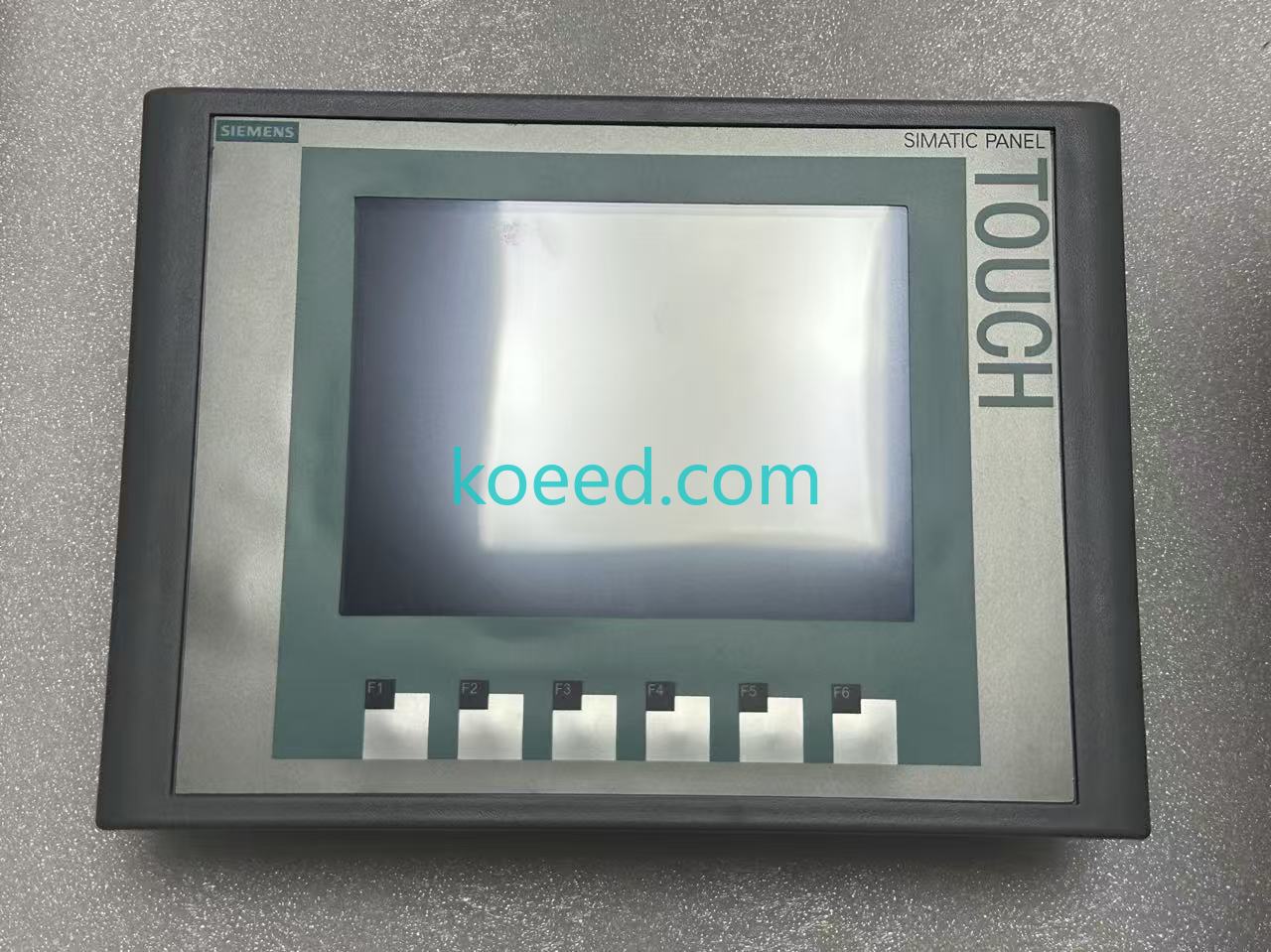

The Siemens 6AV6 647-0AD11-3AX0 is a SIMATIC KTP600 Basic Color PN operator interface panel, designed as a cost-effective yet powerful HMI solution for industrial automation applications. This basic panel combines key and touch operation with a 5.7-inch color TFT display, making it ideal for machine-level visualization and control.
Key Features
- Dual Operation Mode: Both keypad and touchscreen input for maximum flexibility
- High-Quality Display: 5.7-inch TFT LCD with 256 colors for clear visualization
- Industrial Networking: Integrated PROFINET interface for seamless connectivity
- Robust Construction: Designed for harsh industrial environments
- Easy Configuration: Compatible with Siemens TIA Portal software suite
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | SIMATIC HMI KTP600 Basic Color PN |
| Display Type | TFT Color Display |
| Screen Diagonal | 5.7 inches (145 mm) |
| Display Resolution | 320 x 240 pixels |
| Number of Colors | 256 colors |
| Display Dimensions | 115.2 mm (W) x 86.4 mm (H) |
| Backlight Lifetime | 50,000 hours (at 25°C) |
| Function Keys | 6 physical function keys |
| Input Methods | Touchscreen + Physical Keypad |
| Communication Interface | PROFINET |

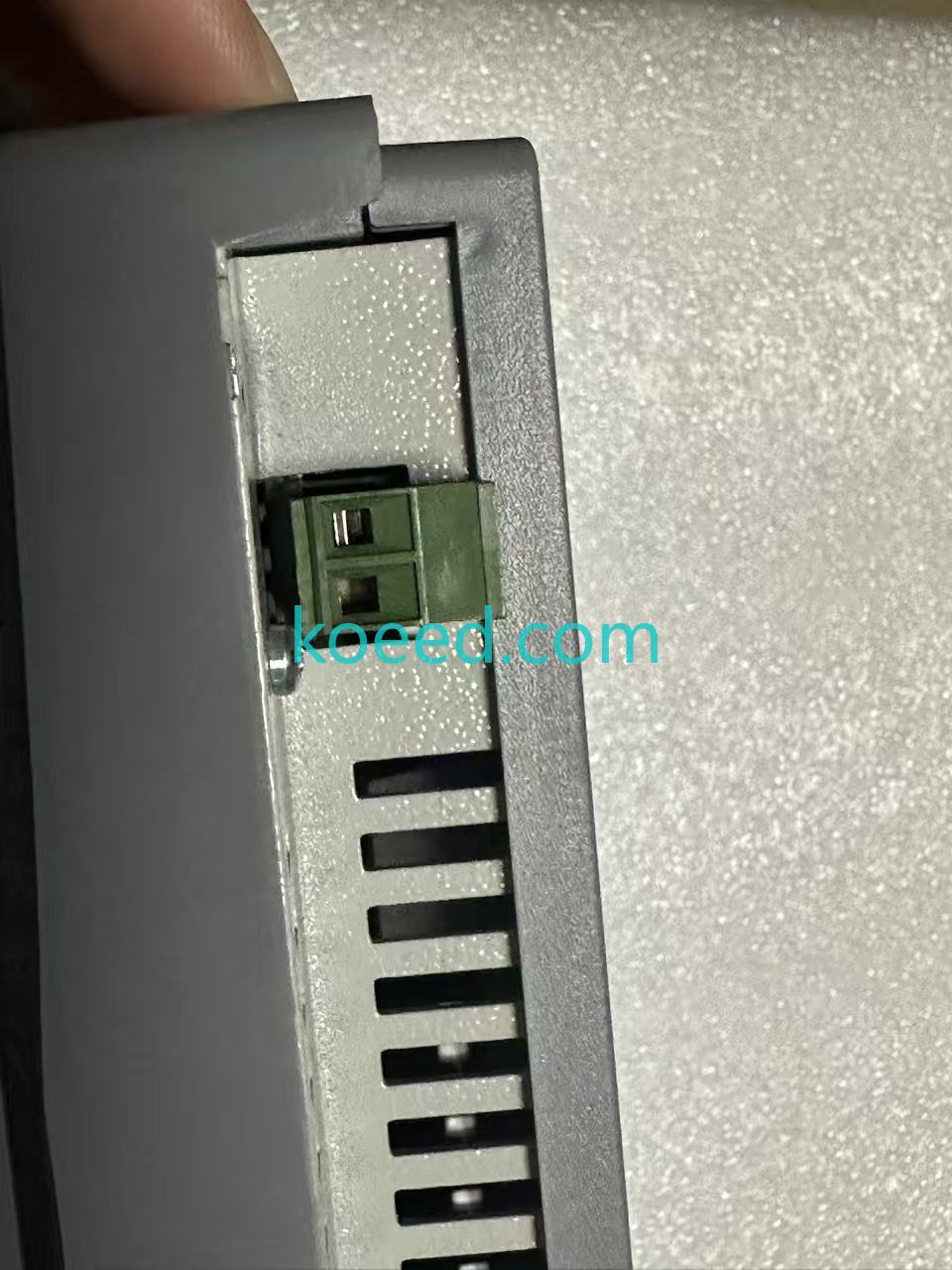

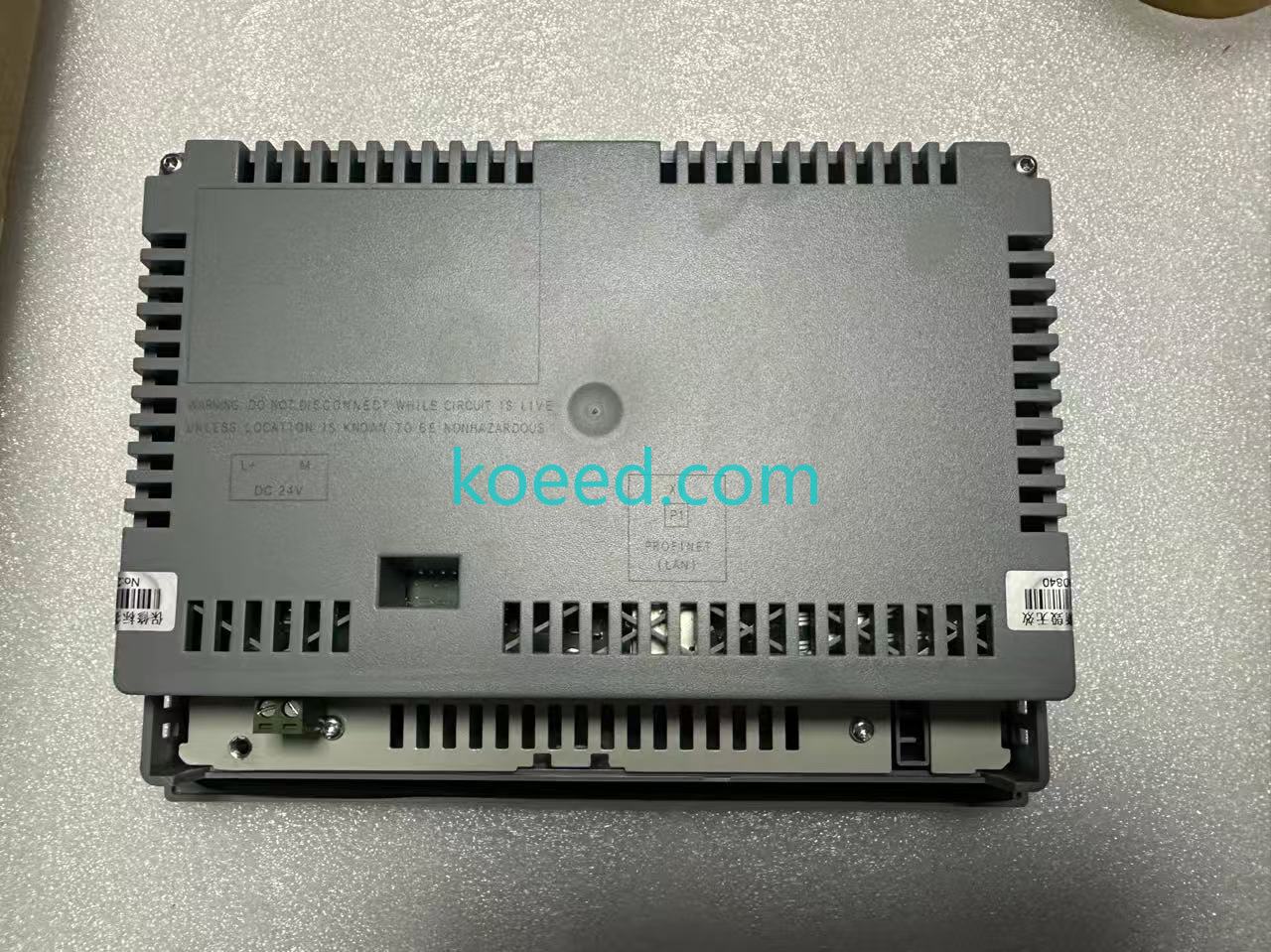

| Supply Voltage | 24 V DC (19.2 - 28.8 V range) |
| Current Consumption | 0.35 A (typical) |
| Power Consumption | 8.4 W (typical) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | 10% to 90% (non-condensing) |
| Mounting Options | Portrait or Landscape format |
| Protection Class | IP65 front (when properly installed) |
Functional Description
Display and Visualization
The KTP600 Basic Color PN features a 5.7-inch TFT display with 256 colors, providing excellent readability even in challenging lighting conditions. The 320 x 240 pixel resolution ensures sharp text and graphics display for process visualization, alarm management, and data logging.
Input Capabilities
This HMI panel offers dual input methods: six physical function keys for quick access to frequently used functions, combined with a resistive touchscreen for intuitive navigation. The on-screen keyboard supports both numeric and alphanumeric input, making data entry straightforward.
Communication and Integration

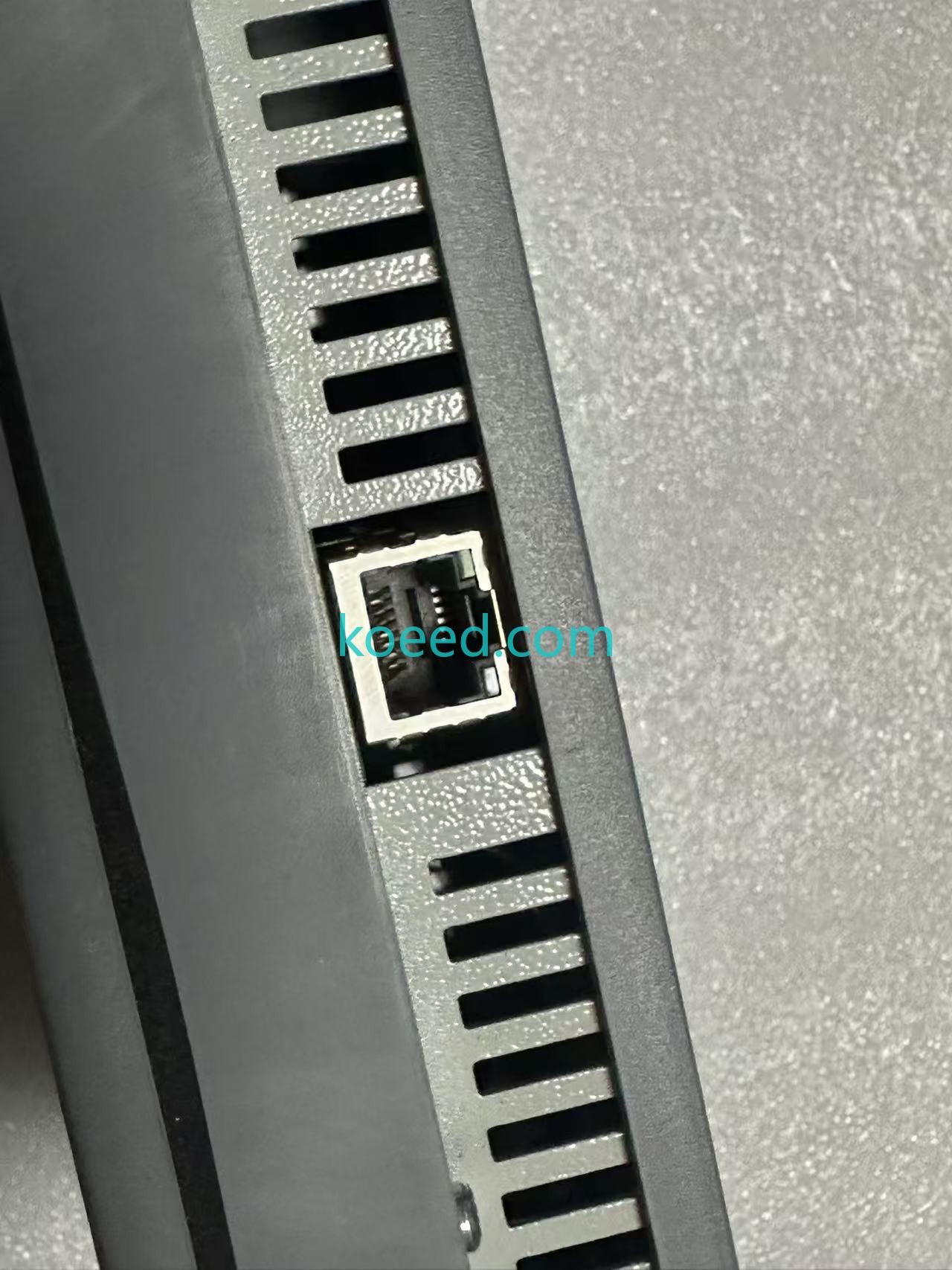

Equipped with a PROFINET interface, the KTP600 seamlessly integrates into industrial networks, enabling real-time communication with Siemens PLCs and other automation components. This makes it ideal for use in manufacturing, process control, and building automation systems.
Configuration Software
The panel is configured using Siemens engineering software including:
- WinCC flexible 2008 SP2 Compact
- WinCC Basic V10.5 and higher
- STEP 7 Basic V10.5 and higher
- TIA Portal (Totally Integrated Automation Portal)

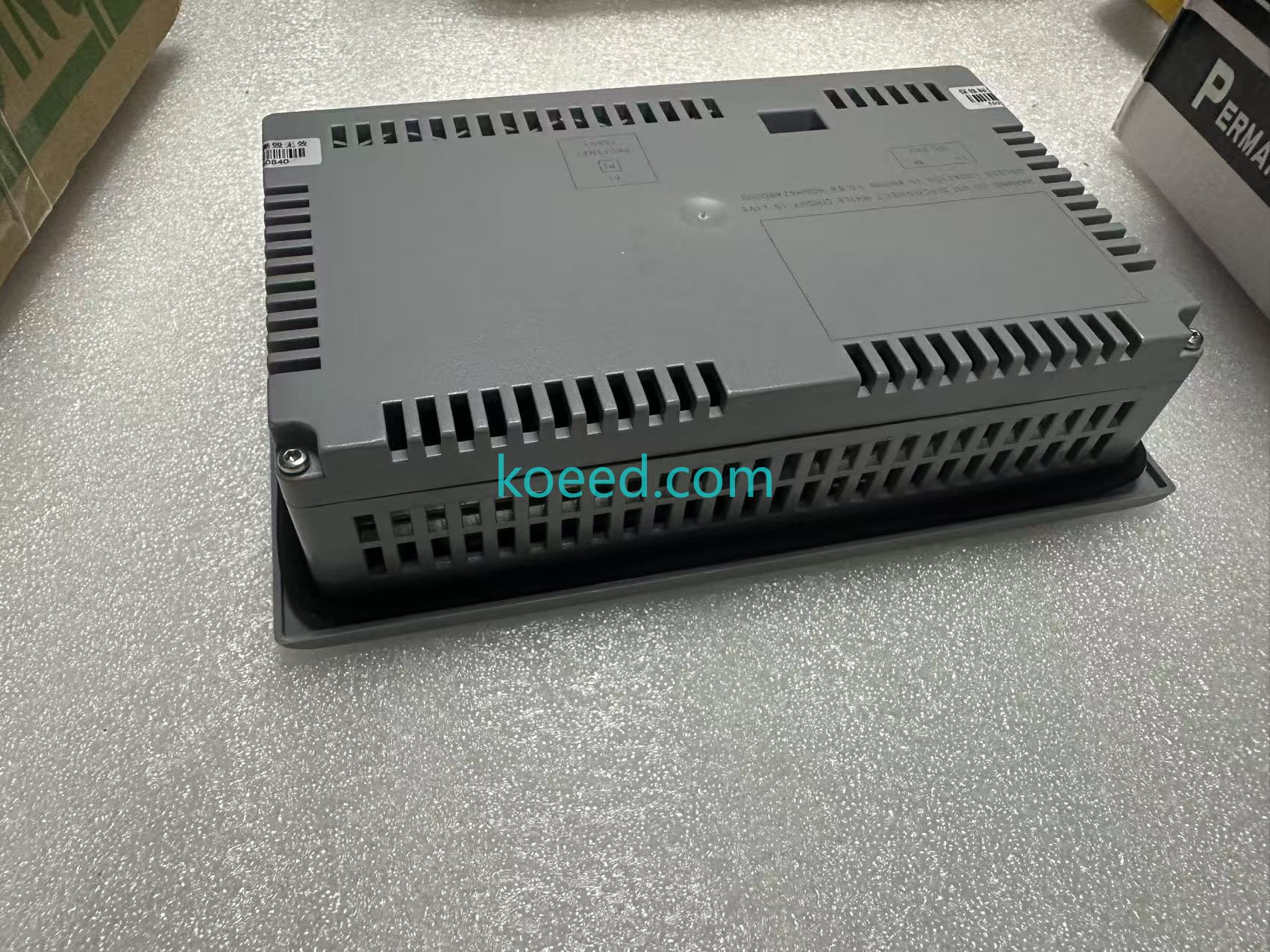

Installation and Mounting

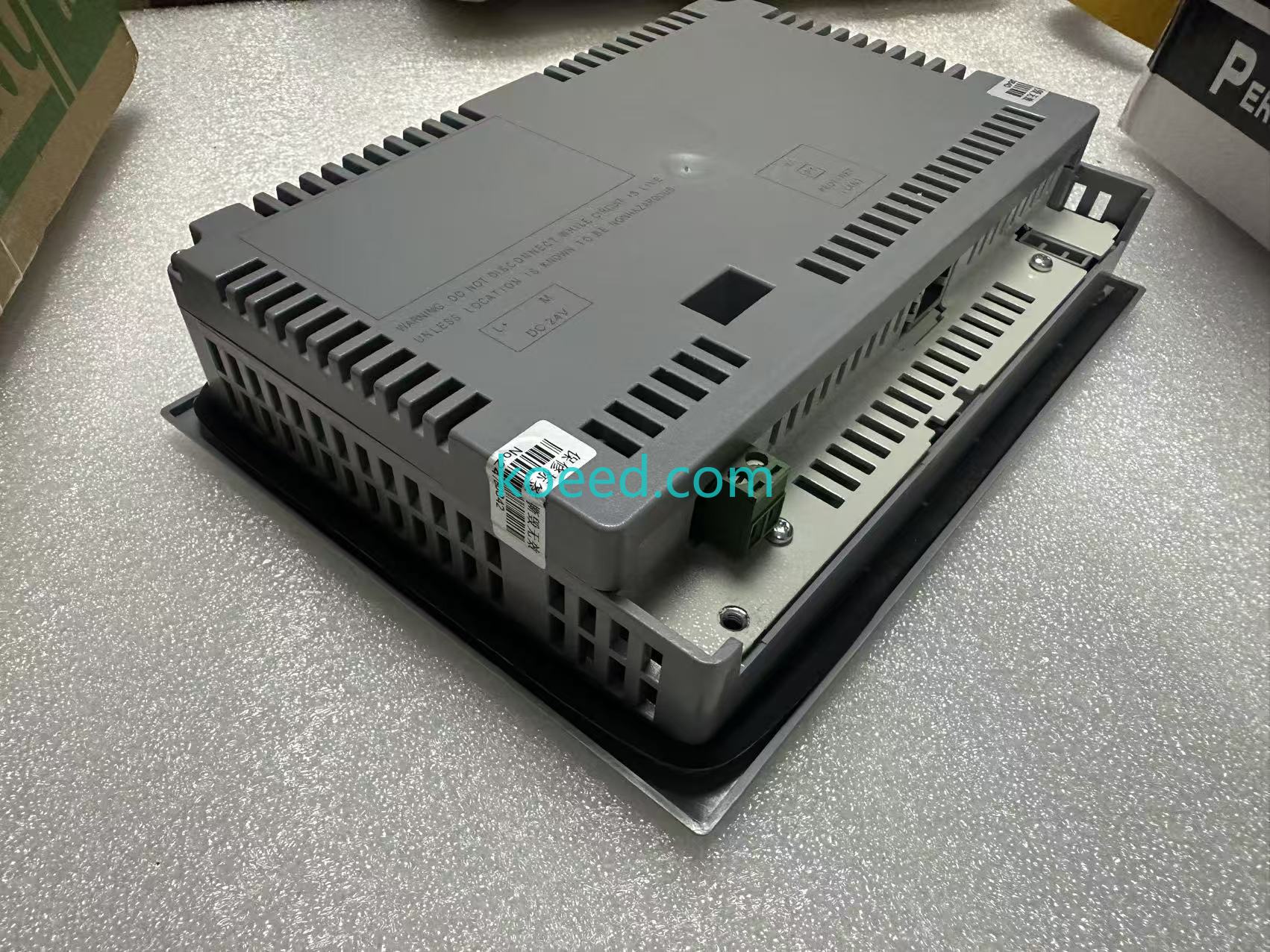

The KTP600 Basic Color PN offers flexible mounting options:
- Mounting Position: Vertical mounting recommended
- Orientation: Supports both portrait and landscape formats
- Maximum Inclination: 35° without external ventilation
- Panel Cutout: Standard panel cutout dimensions for easy integration
- Protection: IP65 rating on front panel when properly installed
The panel is designed for direct mounting in control cabinets or machine panels, with secure mounting brackets included for reliable installation in industrial environments.
Frequently Asked Questions (FAQ)
The PN version features a PROFINET interface, while the DP version includes an MPI/PROFIBUS DP interface. Choose based on your network requirements.
While optimized for Siemens automation systems, the KTP600 can communicate with other devices through standard industrial protocols, though configuration may require additional setup.
You need Siemens TIA Portal with WinCC Basic or WinCC flexible software. The specific version depends on your project requirements and compatibility.
The KTP600 uses a resistive touchscreen, which works with gloves and styluses, making it ideal for industrial environments.
The backlight has an MTBF (Mean Time Between Failures) of 50,000 hours at 25°C, equivalent to approximately 5.7 years of continuous operation.
Yes, firmware updates are available through Siemens support and can be applied using the appropriate engineering software.
Comparison with Similar Products
| Feature | KTP600 Basic Color PN | KTP400 Basic Mono PN | KTP1000 Basic Color PN |
|---|---|---|---|
| Display Size | 5.7" | 4.3" | 10.1" |
| Display Type | Color TFT | Monochrome | Color TFT |
| Resolution | 320 x 240 | 480 x 272 | 800 x 480 |
| Colors | 256 | Monochrome | 65,536 |
| Function Keys | 6 | 4 | 8 |
| Touchscreen | Yes | Yes | Yes |
| Interface | PROFINET | PROFINET | PROFINET |
External References and Trust Metrics
Manufacturer Documentation: Siemens AG provides comprehensive technical documentation, datasheets, and application notes for the 6AV6 647-0AD11-3AX0 through their official support portal.
Industry Recognition: Siemens HMI panels are widely recognized in the automation industry for their reliability, with the KTP600 series being deployed in thousands of industrial applications worldwide.
Certifications: The product complies with international standards including CE, UL, and cULus certifications, ensuring safety and quality compliance.
Technical Support: Siemens offers global technical support, training programs, and a comprehensive spare parts network for maintenance and repair services.
Maintenance and Support
For optimal performance and longevity:
- Regular Cleaning: Clean the display surface with a soft, lint-free cloth and approved cleaning solutions
- Environmental Protection: Ensure proper sealing when installed to maintain IP65 protection
- Power Supply: Use a stable 24V DC power source within specified voltage ranges
- Software Updates: Regularly check for firmware updates through Siemens support
- Backup Configuration: Always backup HMI configurations before maintenance or updates
The 6AV6 647-0AD11-3AX0 is supported by Siemens' global service network, with repair services available to minimize downtime in critical applications.
Conclusion
The Siemens SIMATIC KTP600 Basic Color PN (6AV6 647-0AD11-3AX0) represents an excellent balance of functionality, reliability, and cost-effectiveness for industrial HMI applications. With its combination of touch and key operation, clear color display, and PROFINET connectivity, it provides a robust solution for machine-level visualization and control in various industrial sectors.
Whether you're upgrading existing equipment or implementing new automation systems, the KTP600 offers the Siemens quality and reliability that industrial users have come to trust, backed by comprehensive software support and global service availability.
