Turck BI10-M30-AP6X-H1141 Inductive Proximity Sensor
Professional-grade industrial proximity sensor designed for reliable metal detection in PLC automation systems
Product Overview
The Turck BI10-M30-AP6X-H1141 is a high-performance inductive proximity sensor engineered for industrial automation applications. This M30 threaded barrel sensor provides non-contact detection of metallic objects with exceptional reliability and precision, making it an ideal choice for PLC-based control systems.
Key Features & Benefits

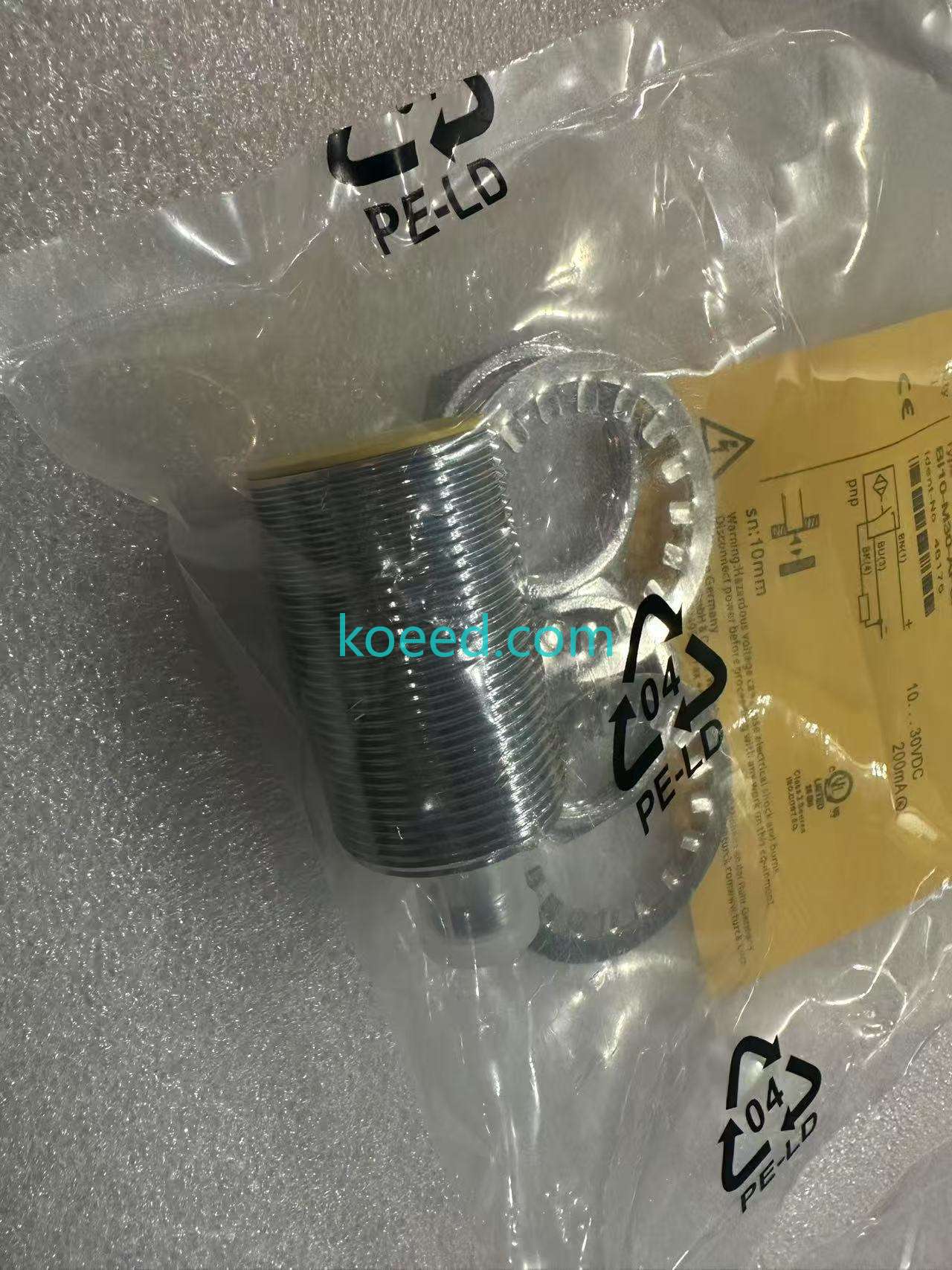

Robust Construction
Chrome-plated brass housing with IP67 protection rating ensures durability in harsh industrial environments
High Performance
10mm sensing range with PNP output and 200mA maximum current capacity for reliable operation
Easy Integration
M12 eurofast® connector for quick installation and maintenance in PLC systems
Wide Voltage Range
10-30VDC operating voltage with short-circuit and overload protection

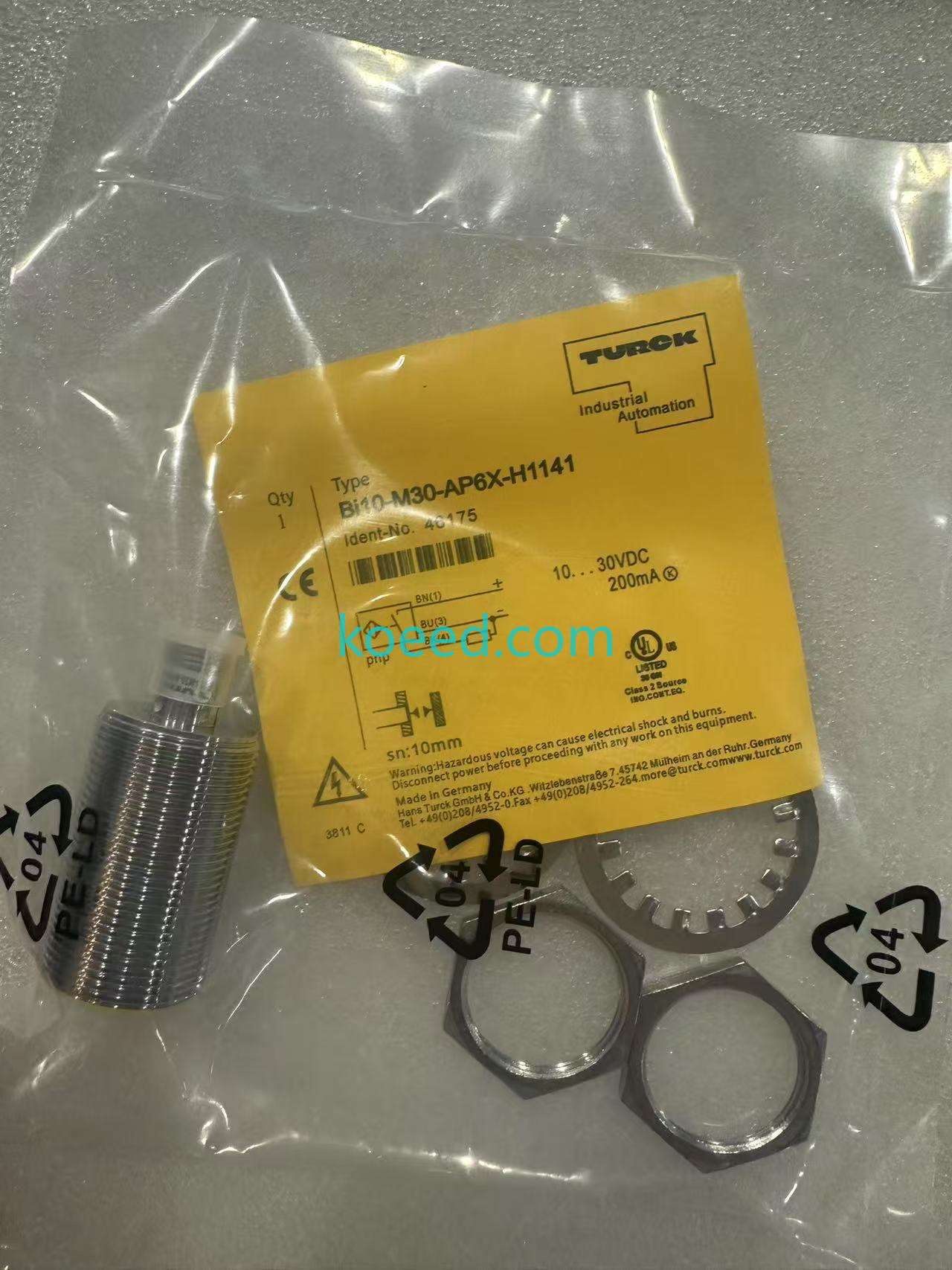

Technical Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | Inductive Proximity Sensor |
| Housing Style | Barrel - Metal |
| Housing Diameter | 30 mm (M30 × 1.5 threaded) |
| Housing Material | Chrome Plated Brass |
| Sensing Range | 10 mm |
| Output Function | Normally Open - PNP |
| Operating Voltage | 10-30 VDC |
| Maximum Current | 200 mA |
| No-load Current | 15 mA |
| Connection Type | M12 eurofast® Connector |
| Degree of Protection | IP67 |
| Operating Temperature | -25°C to +70°C |
| Dimensions | 62 mm length |
Industrial Applications
- Position detection in automated assembly lines
- Object presence verification in material handling systems
- End-of-travel detection in robotics and CNC machines
- Part counting and sorting applications
- Machine safety interlocking systems
- Packaging and palletizing equipment
- Conveyor system monitoring
- Automotive manufacturing processes
PLC Integration & Wiring
Wiring Configuration for PNP Sensors
The BI10-M30-AP6X-H1141 features a 3-wire PNP configuration, making it compatible with most modern PLC systems:
| Wire Color | Function | PLC Connection |
|---|---|---|
| Brown | Power (+V) | 24VDC Power Supply |
| Blue | Ground (0V) | Common (GND) |
| Black | Signal Output | PLC Digital Input |
Important: For PNP sensors, the PLC input must be configured as sinking input. The sensor outputs +24V when activated, which the sinking input pulls to ground through an internal resistor.
Installation Guidelines

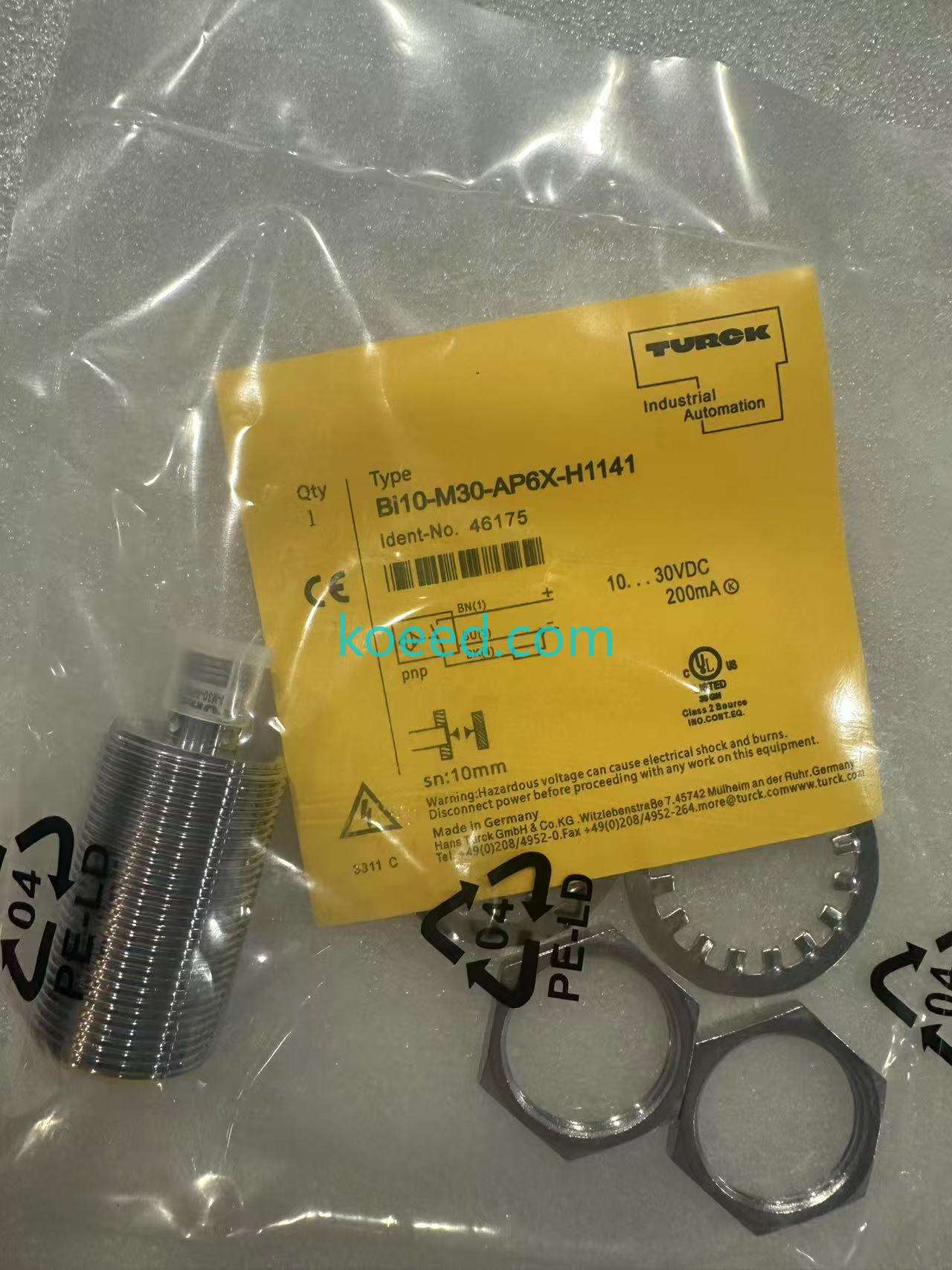

Mounting Considerations
- Ensure proper clearance around the sensor for optimal performance
- Use appropriate mounting hardware for M30 threaded installation
- Maintain recommended sensing distances from target objects
- Consider environmental factors such as temperature and vibration
Environmental Protection
The IP67 rating ensures protection against dust ingress and temporary immersion in water, making this sensor suitable for washdown applications and harsh industrial environments.
Frequently Asked Questions (FAQ)
What is the difference between PNP and NPN sensors?
PNP sensors (like the BI10-M30-AP6X-H1141) switch the positive voltage to the load, while NPN sensors switch the negative voltage. PNP is more common in European and North American markets, while NPN is often used in Asian markets.
Can this sensor detect non-metallic objects?
No, inductive proximity sensors only detect metallic objects. For non-metallic object detection, consider capacitive proximity sensors.
What is the maximum switching frequency?
While specific switching frequency isn't provided in the datasheet, typical inductive sensors of this type can achieve switching frequencies up to 1kHz, making them suitable for high-speed applications.
Is this sensor embeddable?
Yes, the BI10-M30-AP6X-H1141 is designed as an embeddable sensor, allowing it to be mounted flush with metal surfaces without affecting its sensing capabilities.
What is the typical lifespan of this sensor?
Inductive proximity sensors typically have a lifespan of millions of operations when used within their specified operating conditions, making them virtually maintenance-free.
Industry Standards & Certifications
The Turck BI10-M30-AP6X-H1141 complies with international standards for industrial sensors and is manufactured under strict quality control processes. Turck sensors are known for their reliability and are widely used in critical automation applications worldwide.
Trust Metrics: Turck is a globally recognized manufacturer with over 50 years of experience in industrial automation. Their products are used in automotive, food processing, packaging, and material handling industries worldwide.
Conclusion
The Turck BI10-M30-AP6X-H1141 inductive proximity sensor represents a reliable, high-performance solution for industrial automation applications requiring precise metal object detection. With its robust construction, wide operating voltage range, and easy integration with PLC systems, this sensor provides excellent value for automation engineers and system integrators.
For detailed technical specifications and application support, consult the official Turck datasheets and technical documentation available through authorized distributors.
