Turck BI20R-W30-DAP6X-H1141 Inductive Ring Sensor
A comprehensive technical overview of the high-performance inductive ring sensor designed for industrial automation applications.
Product Overview

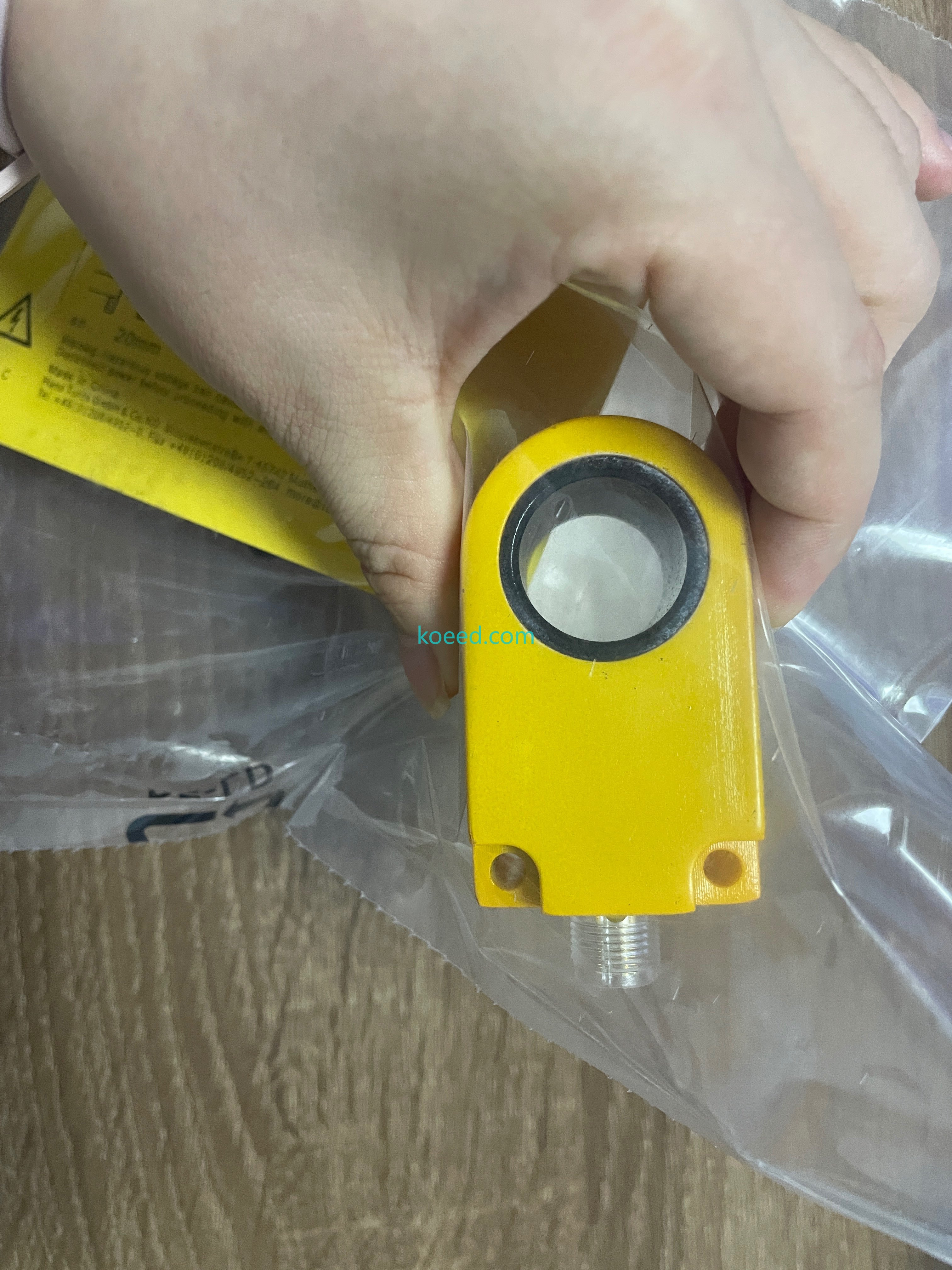

The Turck BI20R-W30-DAP6X-H1141 is a precision inductive ring sensor engineered for reliable metal detection in demanding industrial environments. This compact sensor features a 20mm ring diameter and dynamic PNP output, making it ideal for applications requiring precise detection of small metal components.
Technical operation and configuration

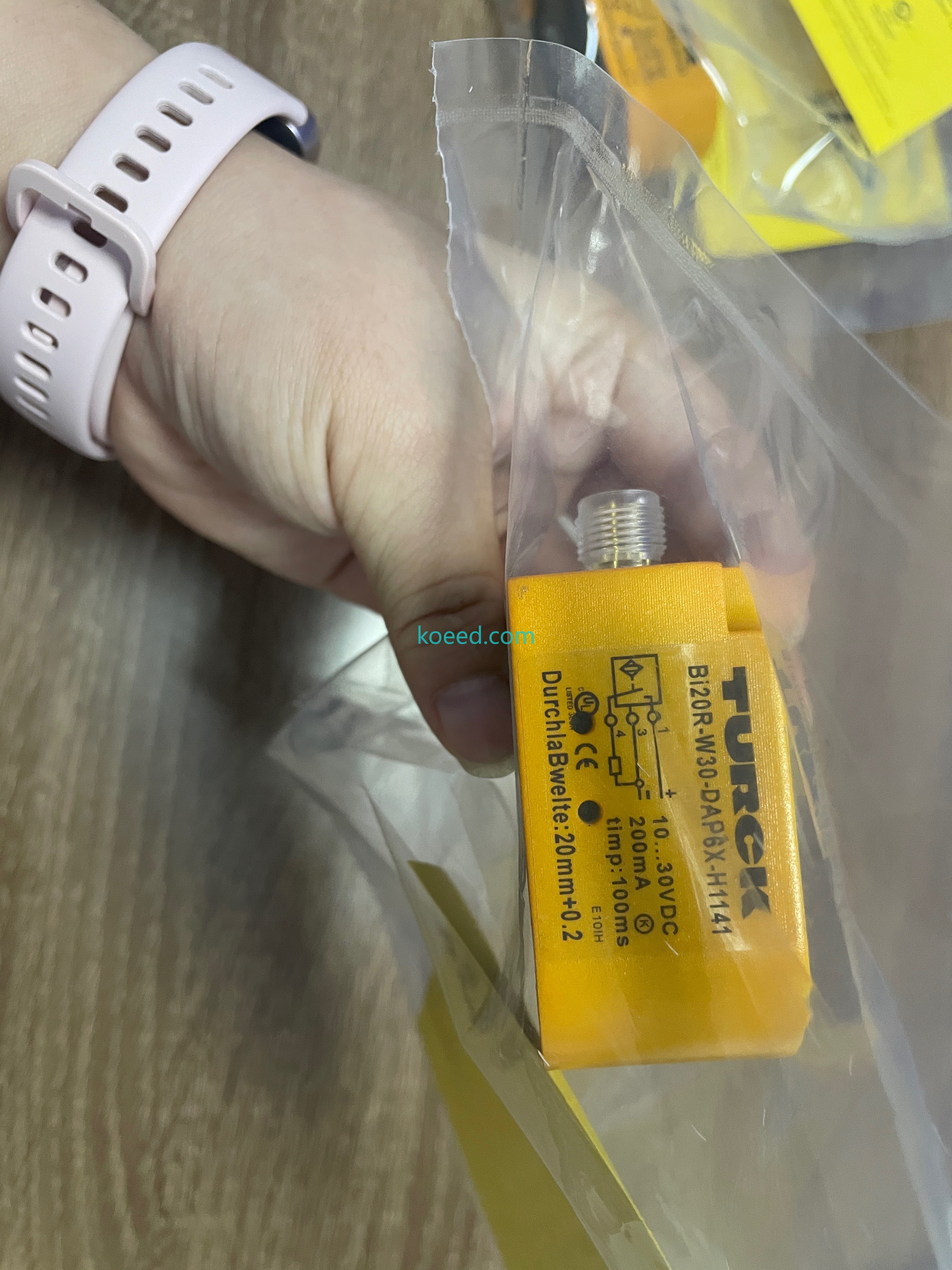

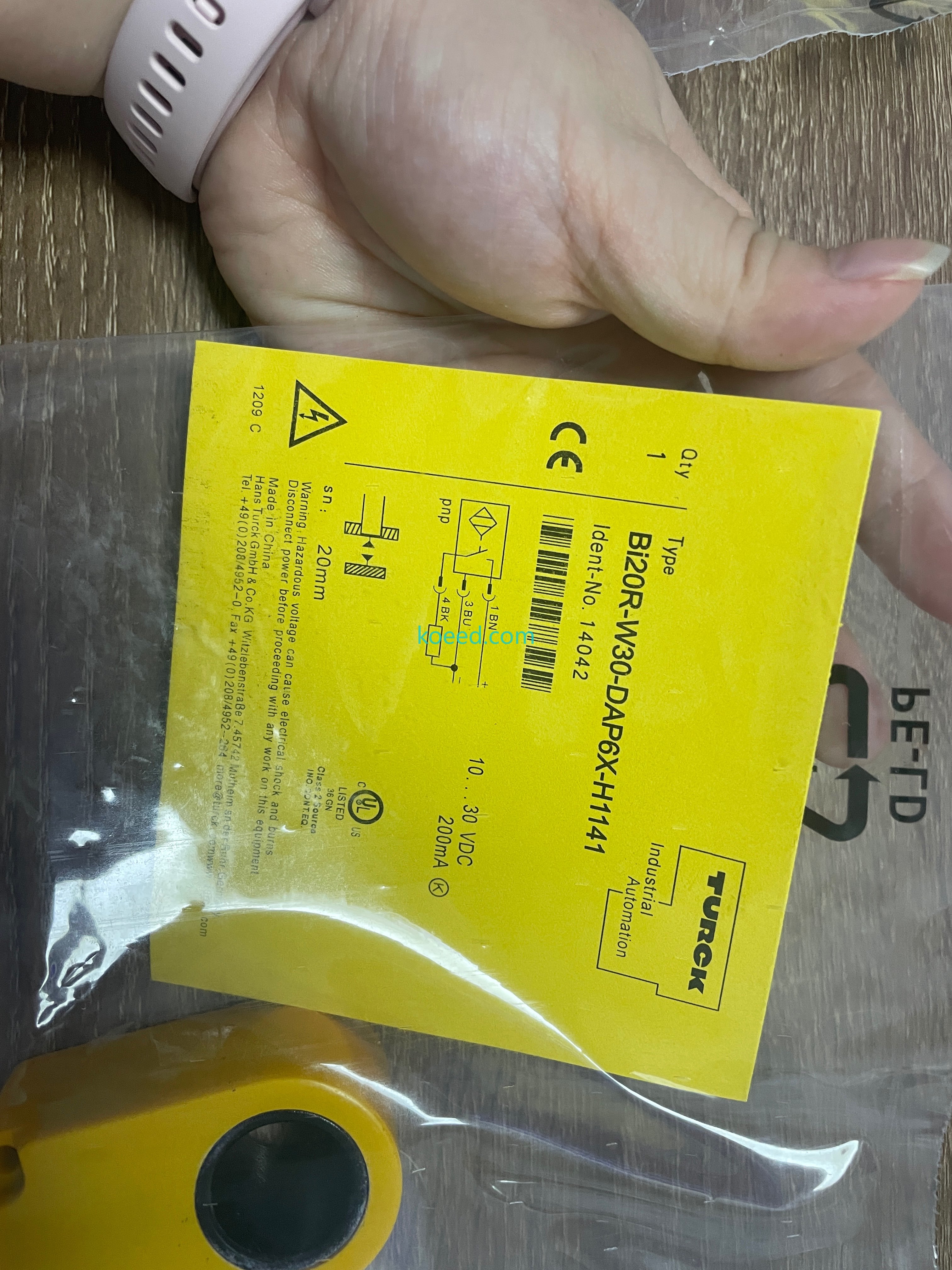

Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Inductive Ring Sensor |
| Model Number | BI20R-W30-DAP6X-H1141 |
| Sensing Range | 20 mm |
| Inside Ring Diameter | 20.1 mm |
| Housing Dimensions | 60 x 35 x 30 mm (W30) |
| Housing Material | Plastic, PA12-GF30 |
| Electrical Connection | M12 × 1 Connector |
| Output Function | Dynamic Output, Normally Open - PNP |
| Protection Class | IP67 |
| Weight | 75 g |
| Coil Body Material | Plastic, POM |
Key Features & Benefits
- Contactless Detection: Wear-free operation through high-frequency electromagnetic AC field
- Compact Design: Small footprint ideal for space-constrained applications
- Robust Construction: IP67 protection rating for harsh industrial environments
- Easy Integration: Standard M12 connector for quick installation
- Dynamic Output: PNP configuration with normally open contact
- Precision Sensing: Reliable detection of small metal objects from 2mm minimum size
Industrial Applications
The BI20R-W30-DAP6X-H1141 inductive ring sensor is specifically designed for various industrial automation applications:
- Feed Process Monitoring: Jam control in material handling systems
- Small Parts Detection: Monitoring screws, bolts, nails, and other small metal components
- Wire Breakage Detection: Continuous monitoring of wire feed processes
- Packaging Industry: Metal detection in packaging lines
- Food & Beverage: Applications in breweries, dairies, and frozen food processing
- Assembly Lines: Component presence verification
Frequently Asked Questions (FAQ)
The sensor uses a high-frequency electromagnetic AC field that interacts with metal objects passing through the ring. When a metal object enters the detection field, it causes changes in the electromagnetic field that are detected and converted into an electrical signal.
The sensor can reliably detect small metal parts from a minimum size of 2mm, making it suitable for applications involving screws, nails, and other small components.
IP67 protection means the sensor is dust-tight (6) and can withstand immersion in water up to 1 meter for 30 minutes (7), making it suitable for harsh industrial environments.
Dynamic output (as used in this model) provides switching output when metal objects pass through the ring, while static output maintains a constant state. Dynamic output is ideal for counting or detecting moving objects.
Common applications include automotive manufacturing, packaging machinery, food processing, material handling systems, and assembly lines where reliable metal detection is required.
External References & Trust Metrics
- Official Turck Product Page - Manufacturer specifications
- Technical Datasheet - Complete technical documentation
- Galco Industrial Electronics - Authorized distributor information
- TSI Solutions - Industrial automation supplier
Trust Metrics: Turck is a globally recognized manufacturer with over 50 years of experience in industrial automation. The company holds ISO 9001 certification and maintains a global network of authorized distributors and service centers.

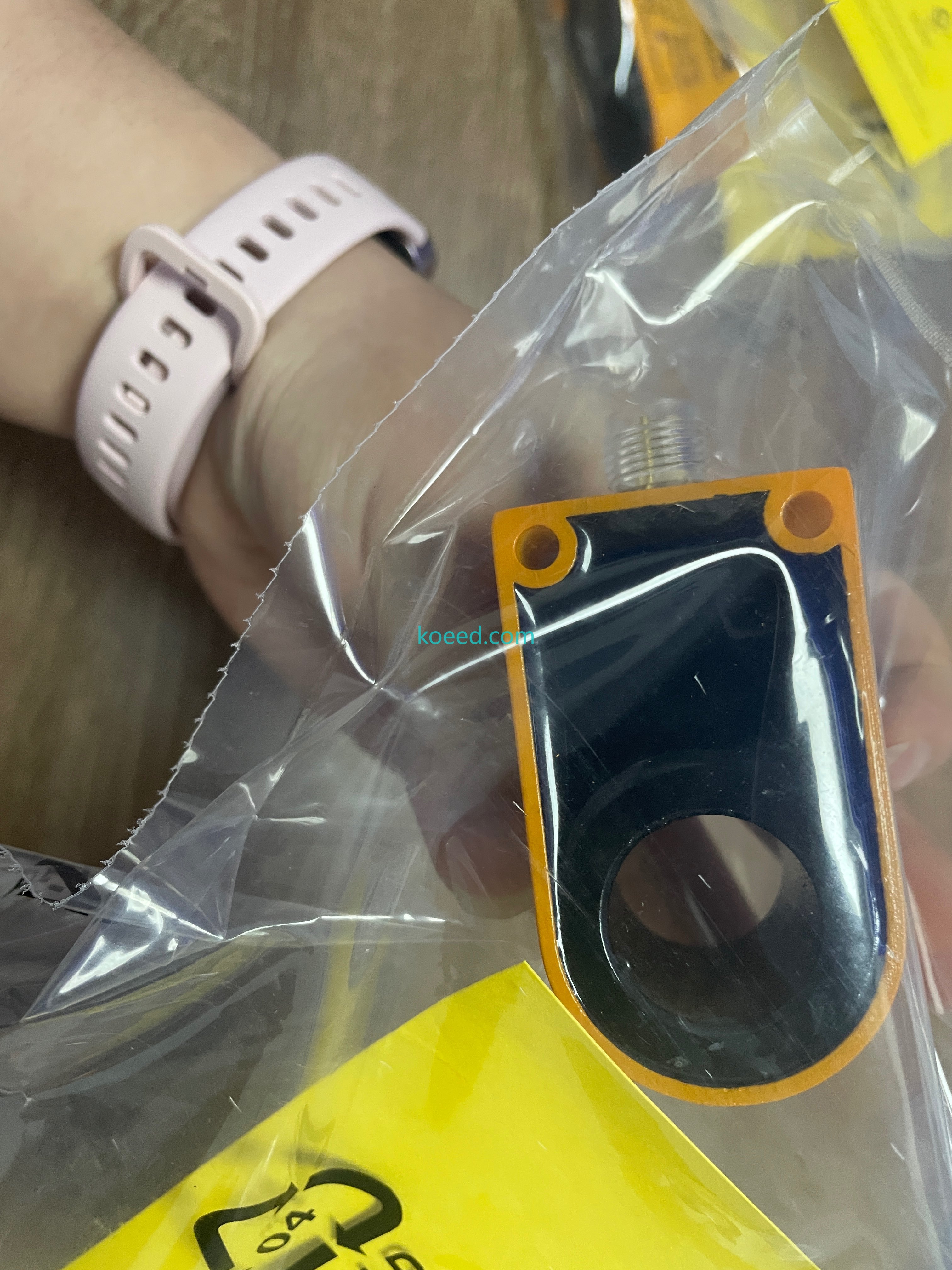

Installation & Integration

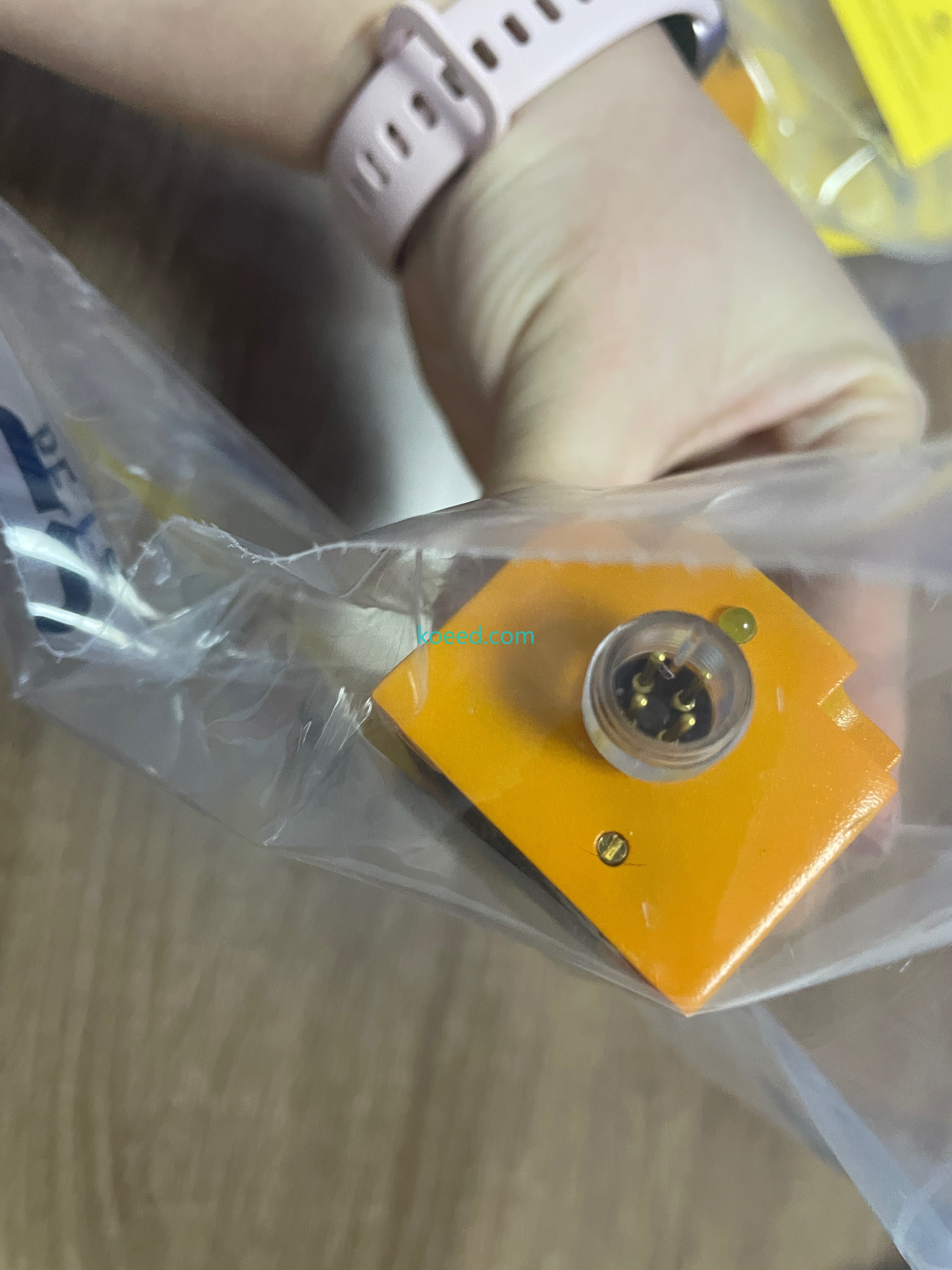

The BI20R-W30-DAP6X-H1141 features a standard M12 connector for easy integration into existing control systems. The compact W30 housing design allows for flexible mounting options in various industrial applications. The sensor's plastic housing material (PA12-GF30) provides excellent chemical resistance and mechanical stability.
Compatibility: Compatible with standard PLC systems and industrial controllers supporting PNP input signals. The dynamic output configuration makes it suitable for high-speed counting and detection applications.
