FANUC A50L-0001-0331 Power Diode Module: Complete Technical Guide
FANUC A50L-0001-0331 Power Diode Module
A comprehensive technical guide to the FANUC A50L-0001-0331 IGBT Intelligent Power Module, designed for high-performance CNC drive systems and industrial automation applications.
Front View

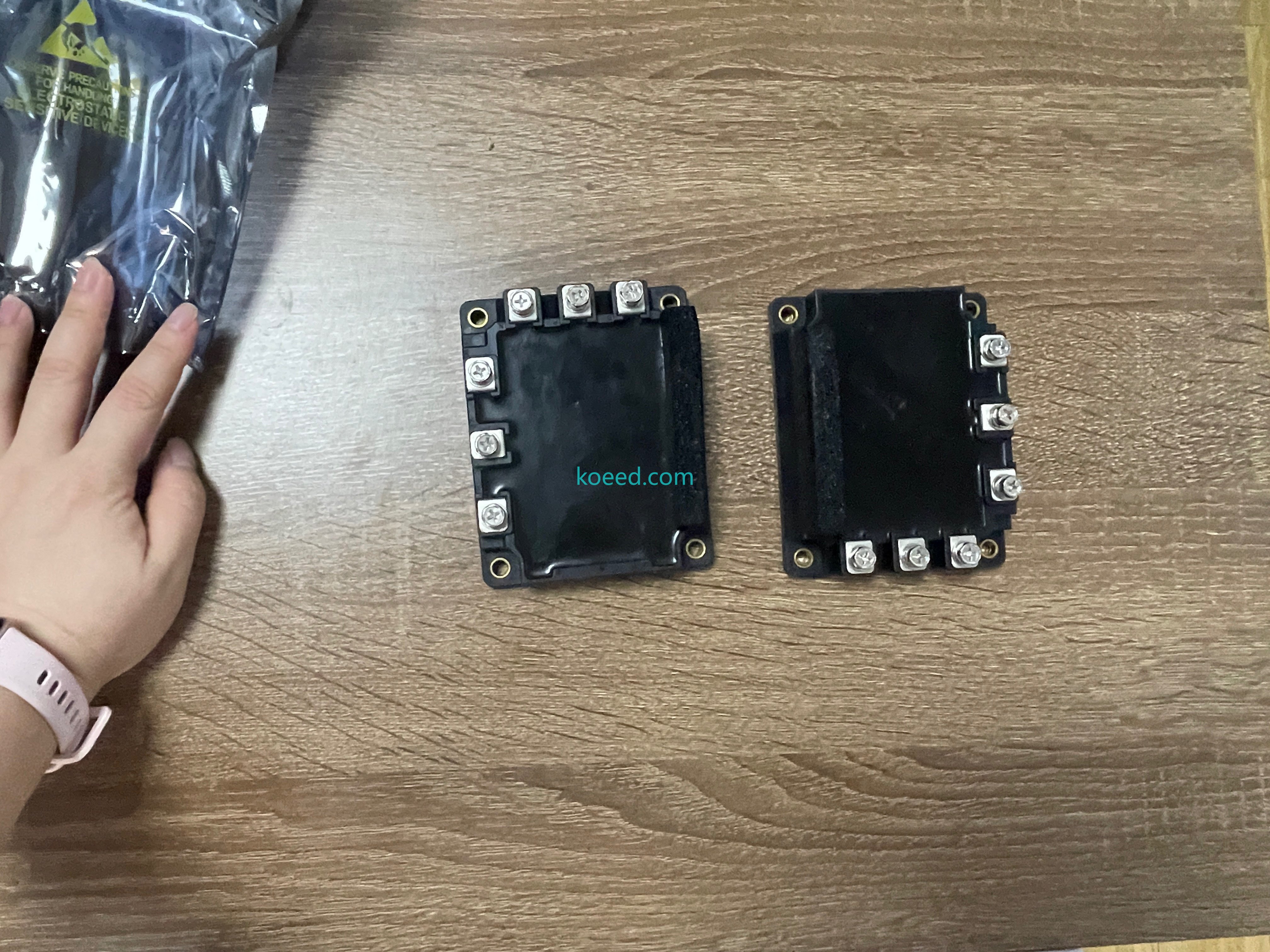

Side View

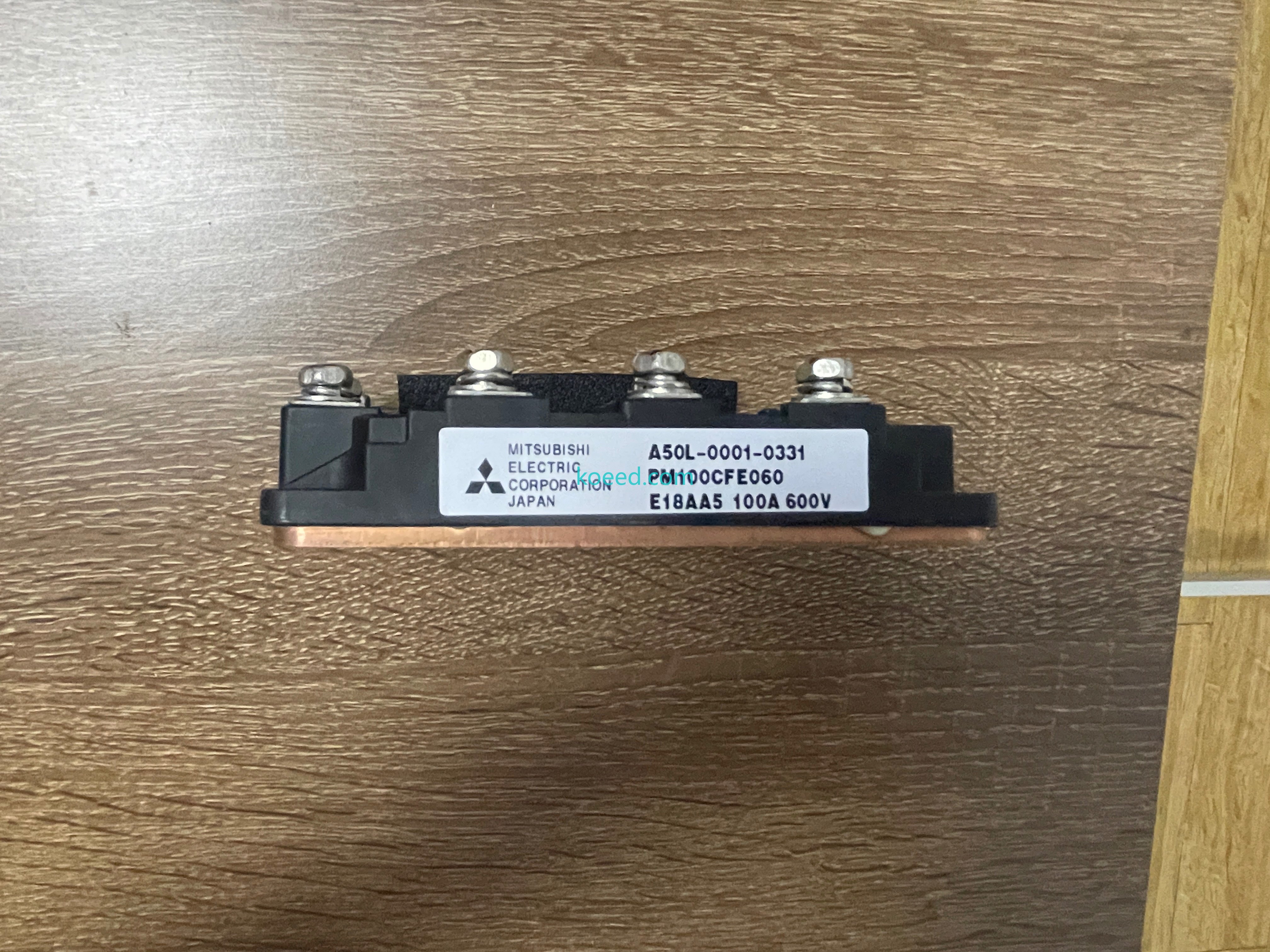

Top View

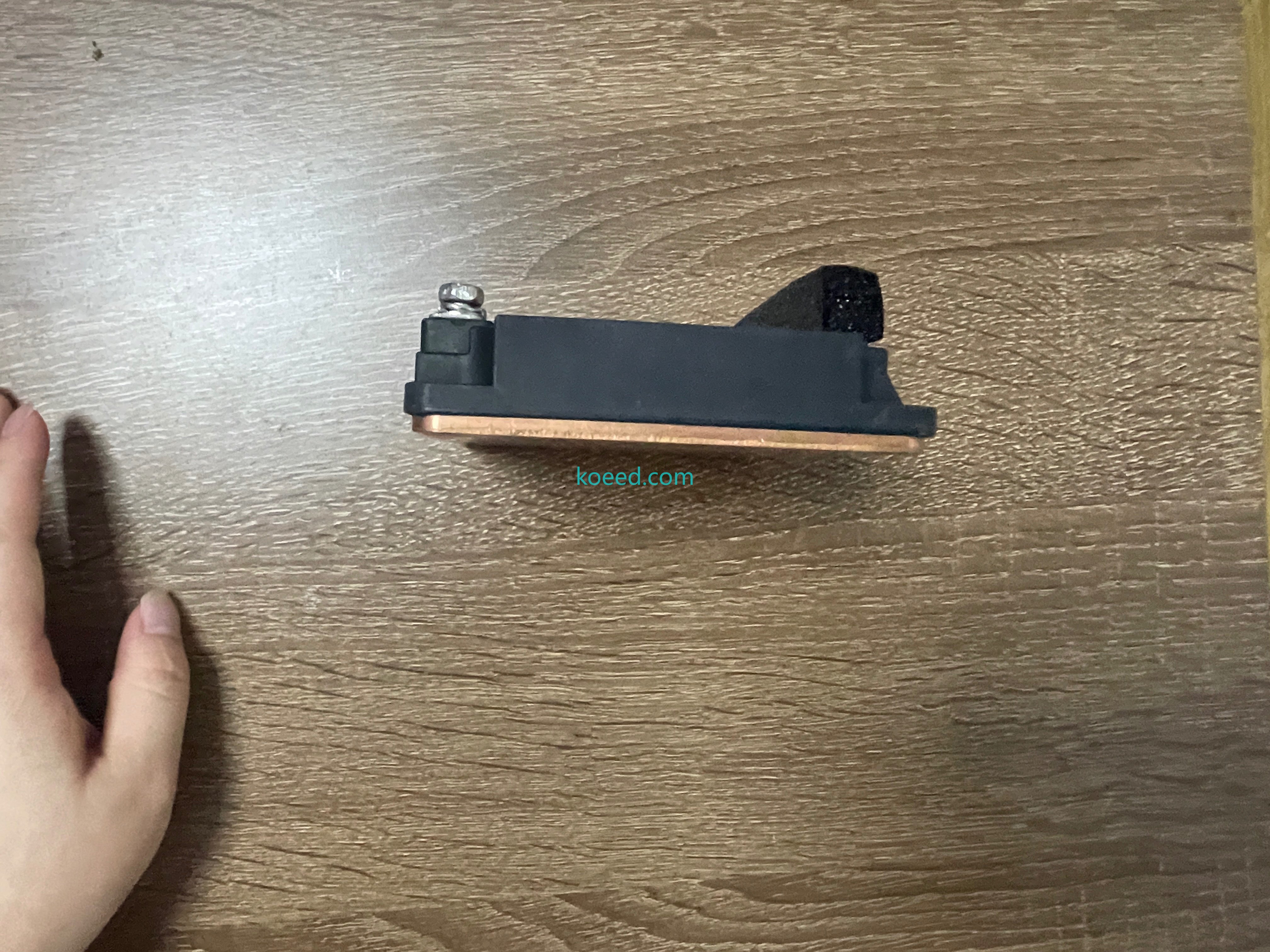

Connection Points
Label Details

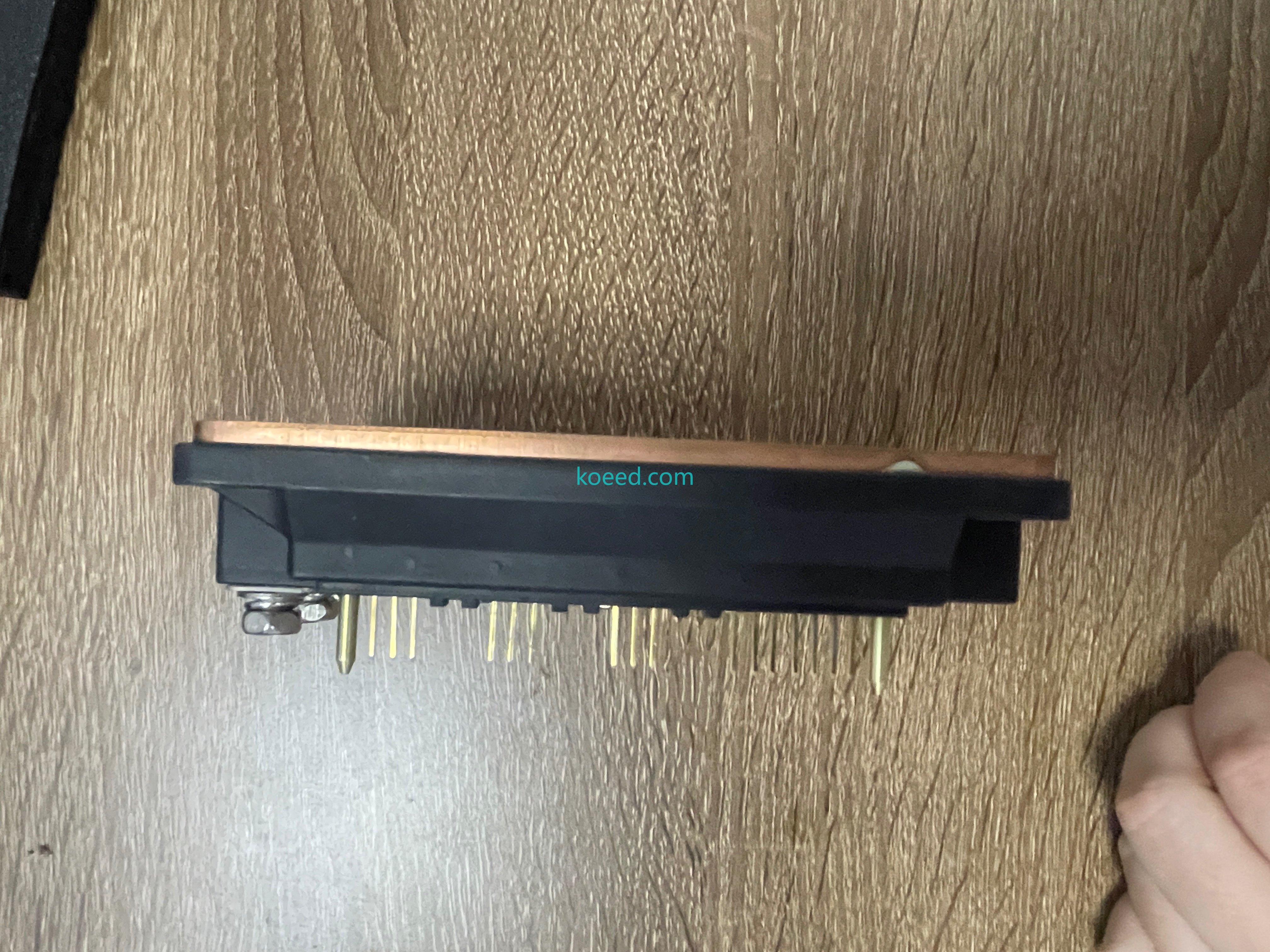

Mounting Points
Product Overview
The FANUC A50L-0001-0331 is a high-performance IGBT (Insulated Gate Bipolar Transistor) Intelligent Power Module specifically designed for FANUC CNC drive systems and industrial automation applications. This power diode module plays a critical role in regulating and rectifying electrical power within FANUC drive systems, ensuring optimal performance and reliability in demanding industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | FANUC |
| Part Number | A50L-0001-0331 |
| Current Rating | 100A |
| Voltage Rating | 600V |
| Module Type | IGBT Intelligent Power Module (IPM) |
| Mounting Type | Chassis Mount |
| Weight | 0.4 kg |
| Alternative Part Numbers | PM100CFE060, 6MBP100RTA060 |
Key Features and Benefits
- High Power Efficiency: Optimized for AC applications with equal forward and reverse breakdown voltage capabilities
- Intelligent Power Management: Built-in protection circuits and monitoring capabilities
- Robust Construction: Designed for durability in industrial environments
- Thermal Management: Advanced heat dissipation design for reliable operation
- Compatibility: Direct replacement for multiple FANUC drive systems
- Fast Switching: High-speed operation suitable for modern CNC applications
Applications
The FANUC A50L-0001-0331 module is specifically designed for use in:
- FANUC CNC spindle drives
- Industrial motor control systems
- Power conversion applications
- AC drive systems
- Industrial automation equipment
- Power supply regulation systems
Industry Recognition & Trust Metrics
The FANUC A50L-0001-0331 has established itself as a reliable component in the industrial automation sector with:
- Proven reliability in demanding industrial environments
- Wide adoption across multiple FANUC CNC systems
- Consistent performance in high-power applications
- Industry-standard compatibility and replacement options
- Documented success in spindle drive applications
Frequently Asked Questions
The A50L-0001-0331 serves as an IGBT Intelligent Power Module that regulates and rectifies electrical power in FANUC drive systems, providing efficient power conversion and control for CNC spindle drives and other industrial applications.
This module is also known as PM100CFE060 and 6MBP100RTA060, making it interchangeable with these equivalent parts in compatible FANUC systems.
When replacing the A50L-0001-0331, ensure the replacement has the same 100A current rating, 600V voltage rating, and compatible mounting configuration. Always verify compatibility with your specific FANUC system model.
This module is ideal for FANUC CNC spindle drives, industrial motor control systems, power conversion applications, and any industrial automation equipment requiring reliable 100A/600V power regulation.
Regular inspection for thermal stress, proper mounting torque, and clean electrical connections are essential. Ensure adequate cooling and monitor for any signs of degradation in high-usage applications.
External References and Technical Documentation
For additional technical information and specifications, refer to:
- FANUC official technical documentation
- IGBT IPM datasheets from Fuji Electric (manufacturer)
- CNC drive system integration guides
- Industrial power module application notes
Installation and Compatibility
The A50L-0001-0331 module is designed for chassis mounting and is compatible with various FANUC drive systems. When installing, ensure proper thermal management and follow manufacturer-recommended torque specifications for mounting hardware. The module's intelligent power management features provide built-in protection against overcurrent, overvoltage, and thermal overload conditions.
Performance and Reliability
With its 100A current rating and 600V voltage capability, the A50L-0001-0331 delivers reliable performance in demanding industrial applications. The IGBT technology ensures efficient switching with minimal power loss, while the intelligent power module design incorporates protection circuits that enhance system reliability and reduce maintenance requirements.
