Siemens A5E02630232 IGD5/R2 Trigger Board - High-Performance Drive Control Solution
Siemens A5E02630232 IGD5/R2 Trigger Board
Advanced Drive Control Solution for Industrial Automation Systems
Product Overview
The Siemens A5E02630232 is a high-performance IGD5/R2 trigger board designed specifically for SINAMICS S120 drive systems. This advanced control module provides precise triggering and drive control capabilities for industrial automation applications requiring superior performance and reliability.

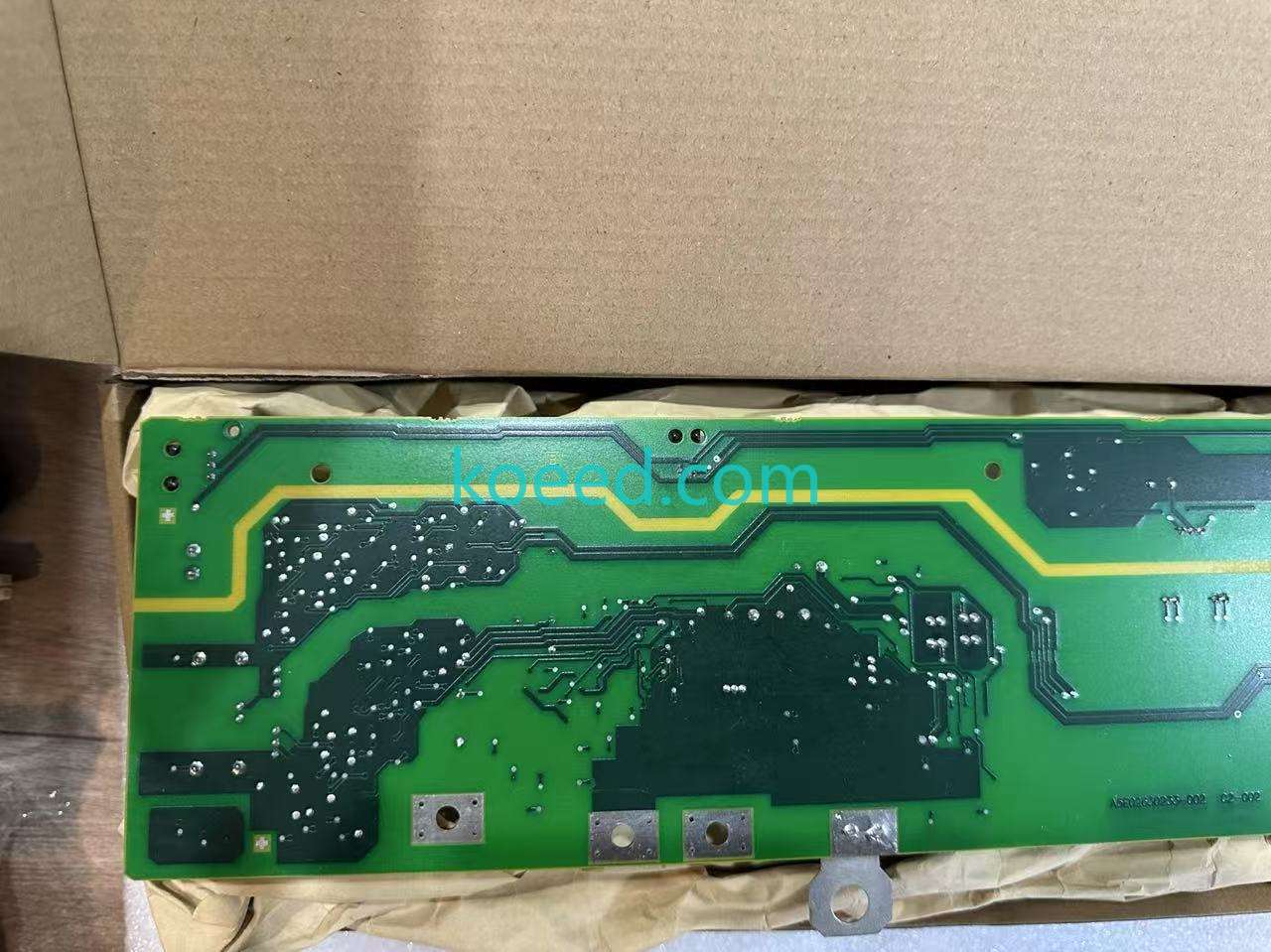

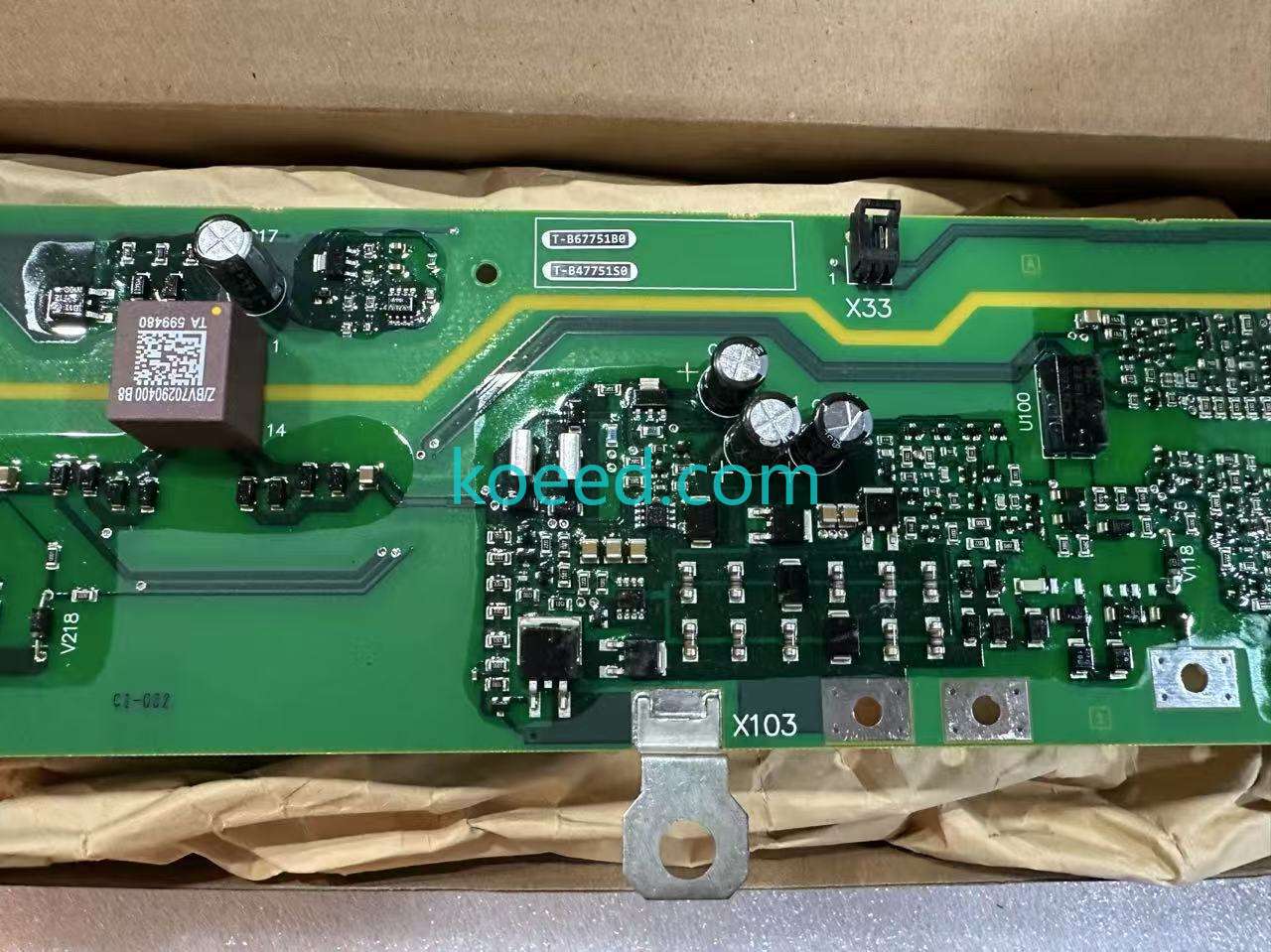

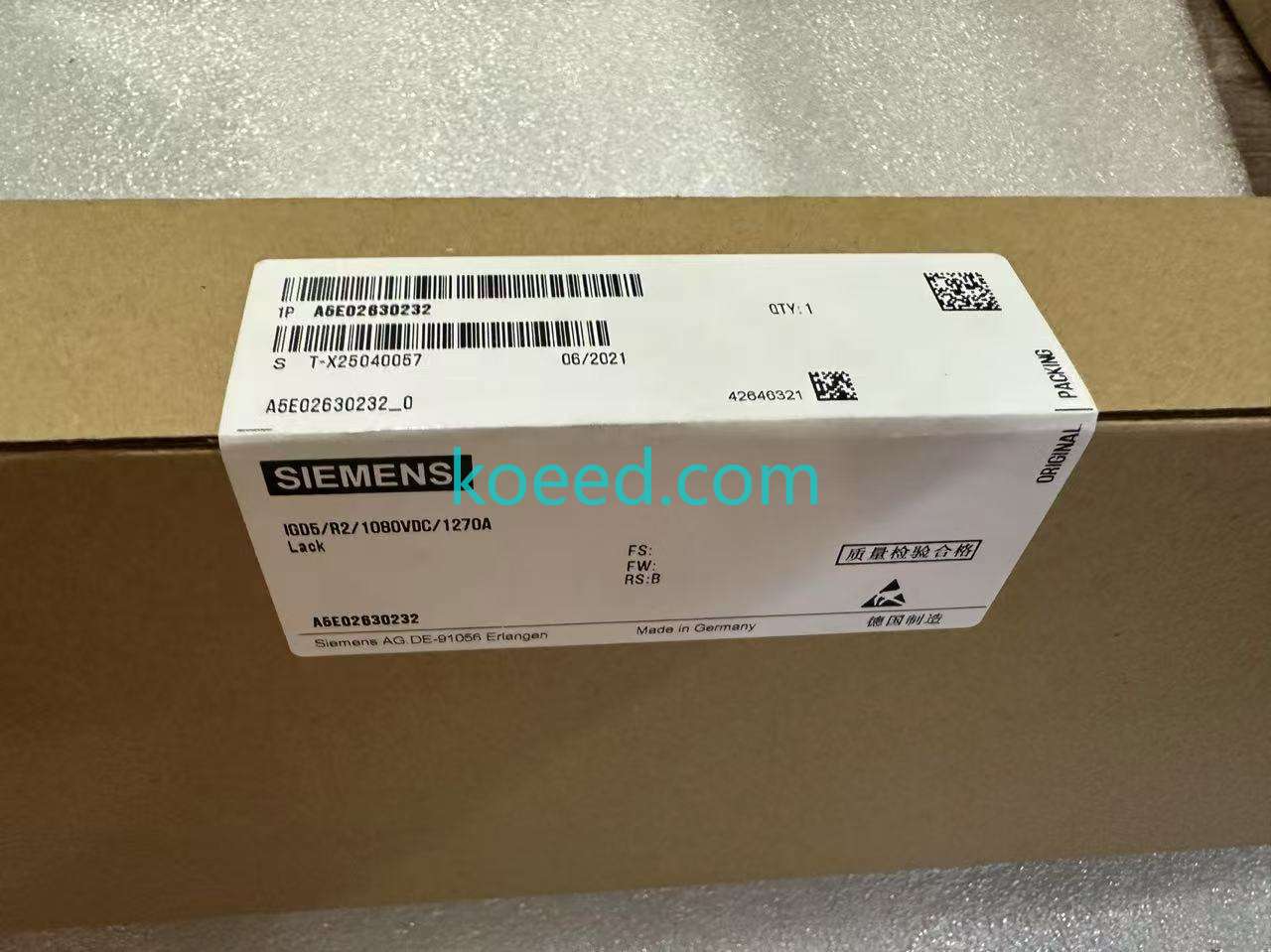

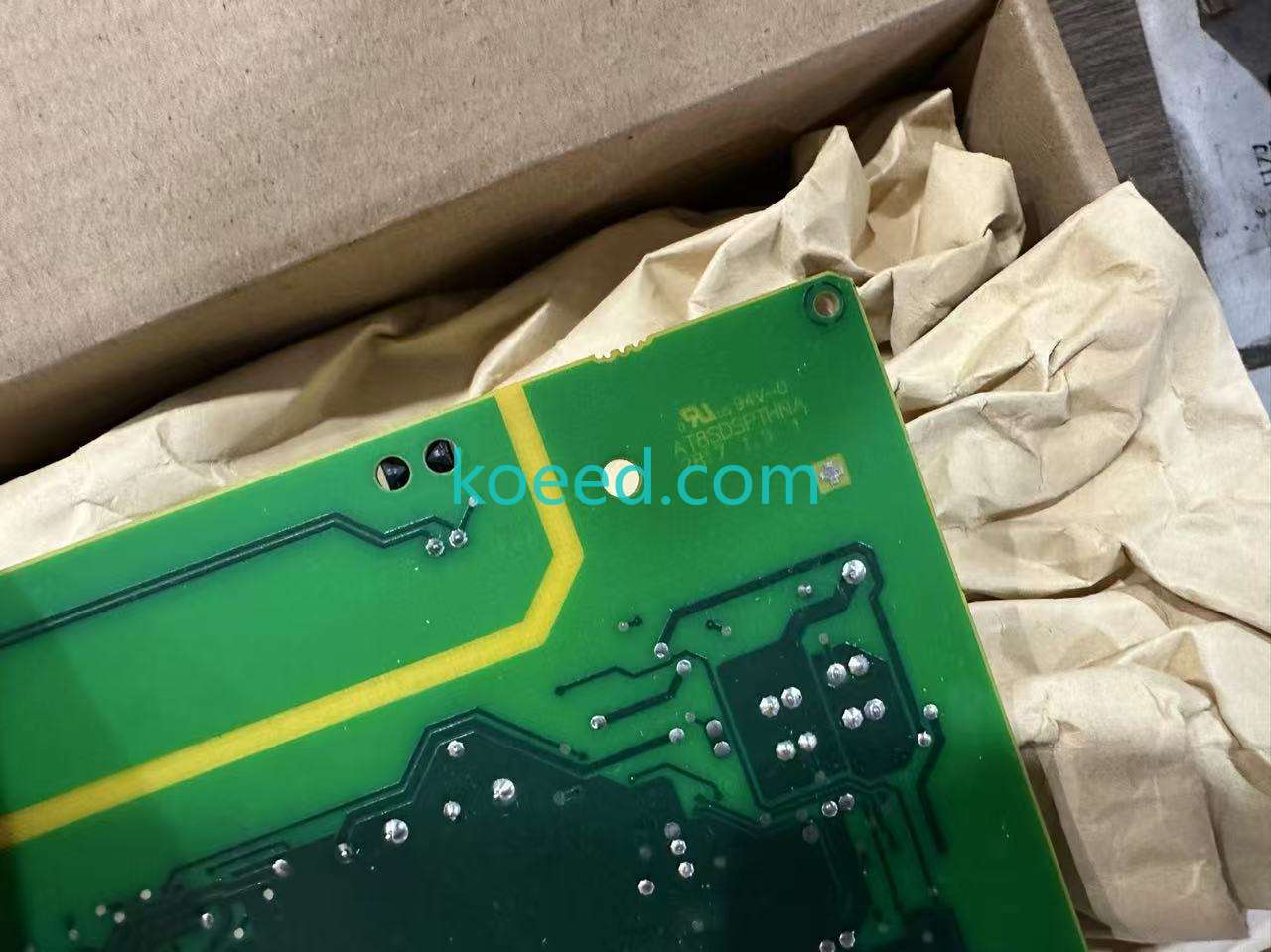

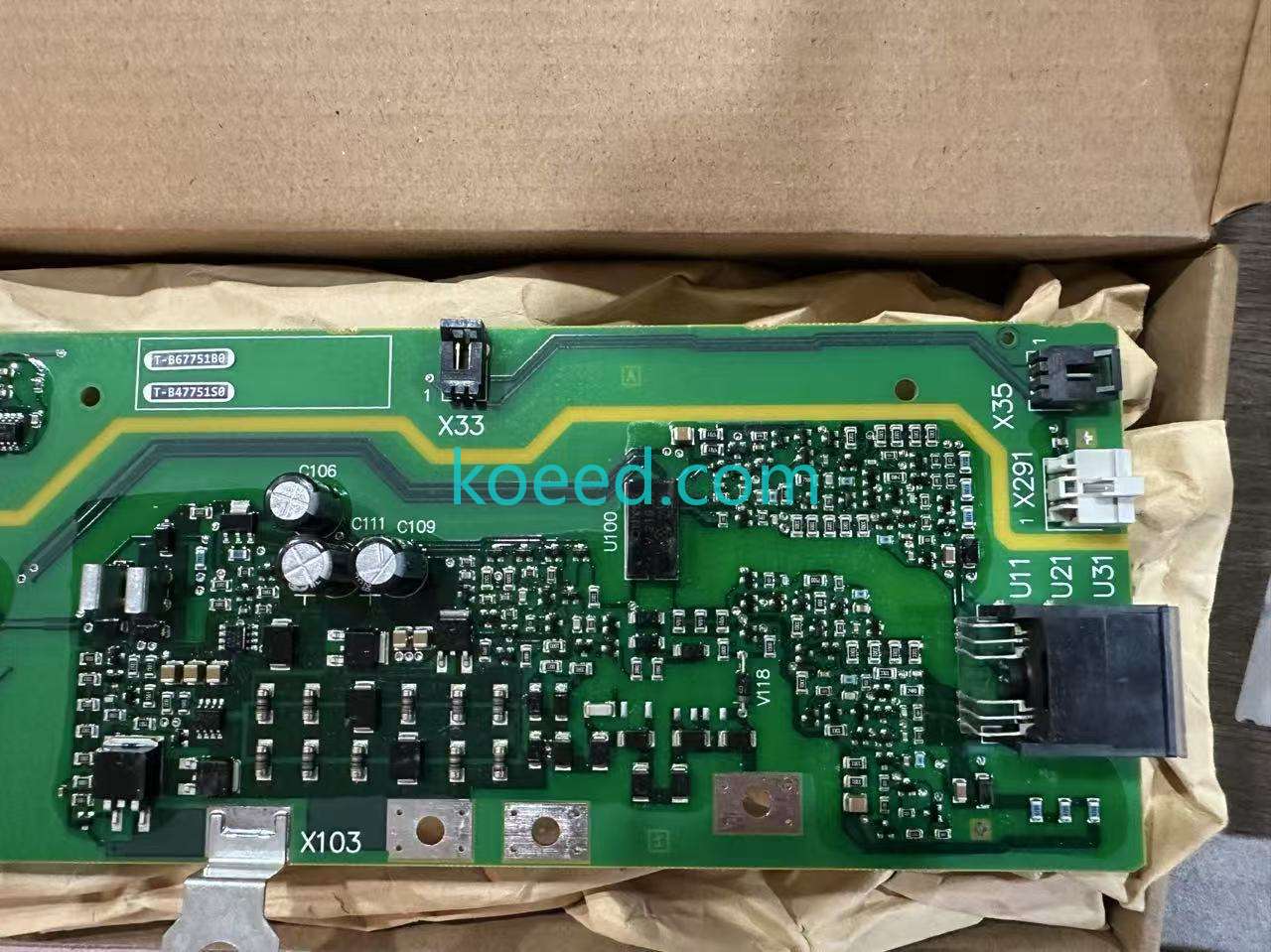

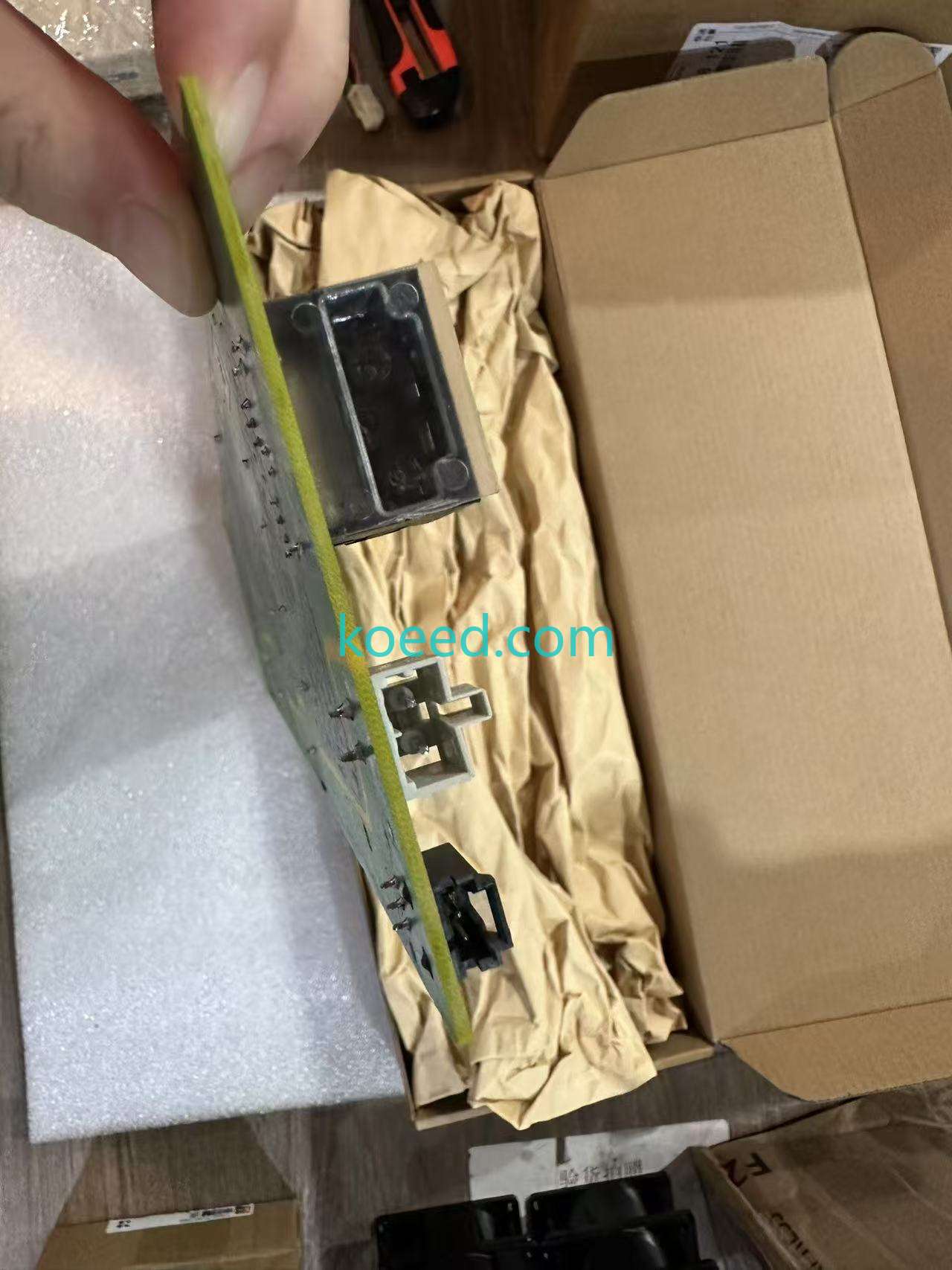

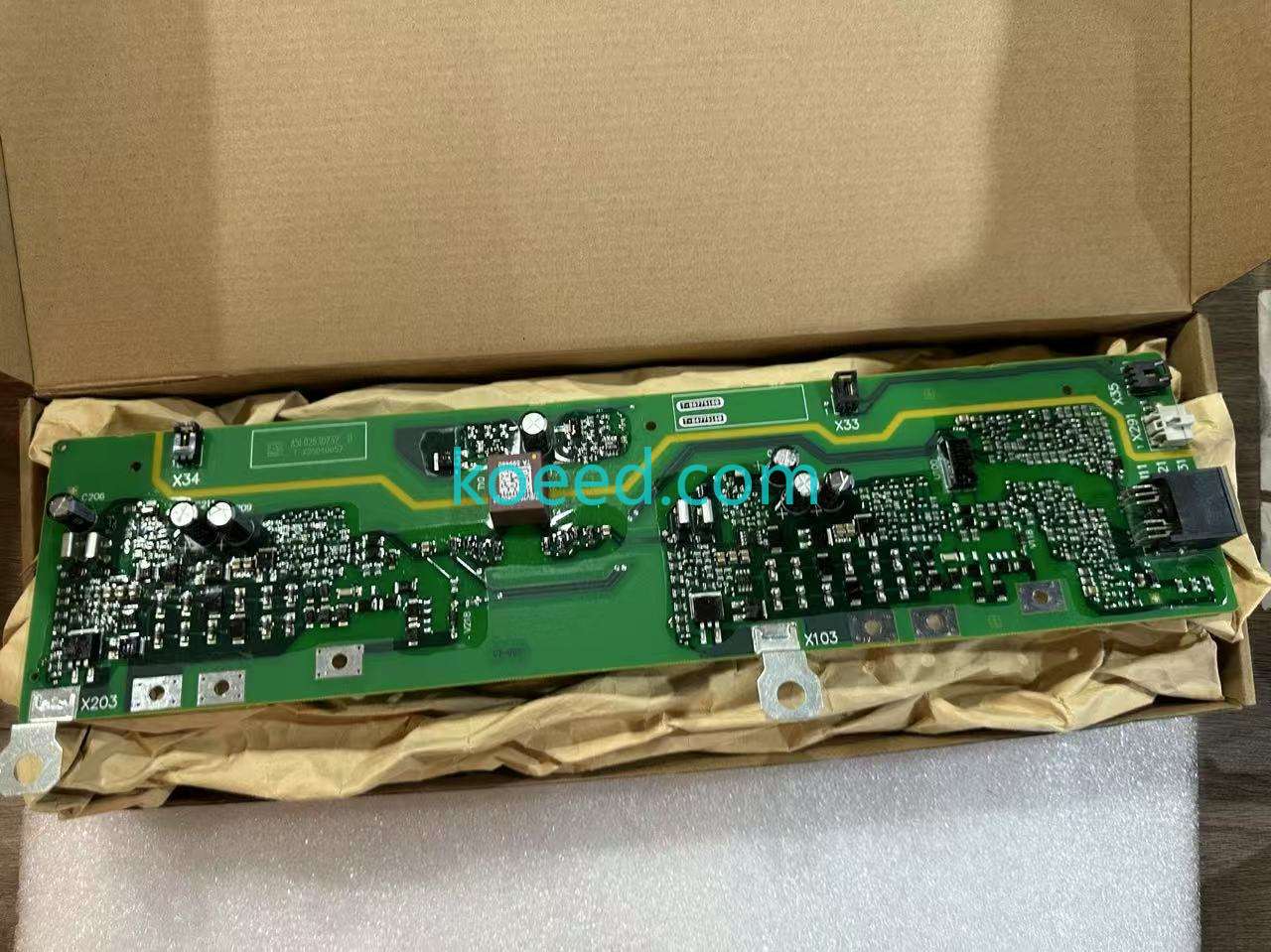

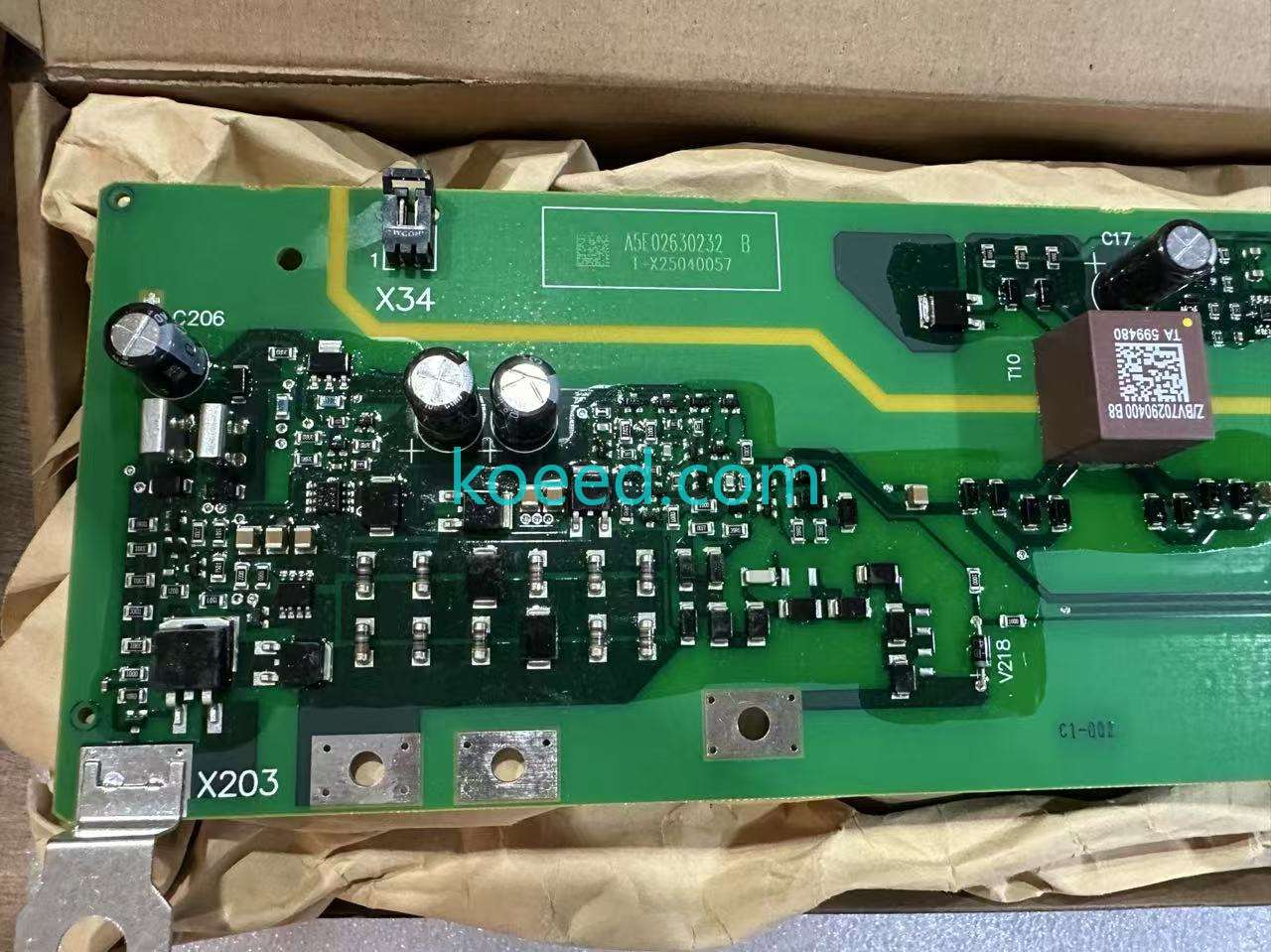

Product Images and Documentation
Product Demonstration Video
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | A5E02630232 |
| Board Type | IGD5/R2 Trigger Board |
| Voltage Rating | 1080 VDC |
| Current Rating | 1270 A |
| Compatible Drive Series | SINAMICS S120 |
| Application | Inverter Drive Control |
| Country of Origin | Germany |
| Manufacturer Part Number | NMA:A5E02630232 |
Key Features and Benefits
- High-Precision Control: Advanced triggering capabilities for precise motor control
- Robust Performance: Designed for demanding industrial environments with 1080VDC/1270A capacity
- SINAMICS S120 Integration: Seamless compatibility with Siemens S120 drive systems
- Reliability: German engineering quality with proven industrial performance
- Thermal Management: Advanced cooling and thermal protection features
- Easy Integration: Plug-and-play compatibility with existing Siemens drive systems
Industrial Applications
Manufacturing Automation
Precision control for CNC machines, robotic systems, and automated production lines requiring high-performance drive control.
Material Handling
Conveyor systems, cranes, and lifting equipment requiring reliable motor control and positioning accuracy.
Process Industries
Chemical processing, food and beverage, and pharmaceutical applications demanding precise speed and torque control.
Energy Systems
Power generation, wind turbines, and energy management systems requiring robust drive control solutions.
Frequently Asked Questions
The A5E02630232 serves as an IGD (Intelligent Gate Driver) trigger board that provides precise control signals for IGBT modules in SINAMICS S120 drive systems, ensuring accurate motor control and protection.
This trigger board is specifically designed for Siemens SINAMICS S120 modular drive systems, providing seamless integration and optimal performance.
The board is rated for 1080 VDC voltage and 1270 A current, making it suitable for high-power industrial applications.
Yes, the A5E02630232 is an original Siemens component manufactured in Germany, ensuring quality and reliability.
This board is widely used in manufacturing automation, material handling, process industries, and energy systems requiring high-performance drive control.
Quality and Reliability Assurance
- German Engineering: Manufactured in Germany with Siemens' renowned quality standards
- Industrial Certification: Complies with international industrial standards and safety requirements
- Proven Performance: Extensive testing and validation for industrial applications
- Technical Support: Backed by Siemens global technical support network
- Documentation: Comprehensive technical documentation and installation guides available
External References and Technical Support
For detailed technical specifications, installation guides, and support documentation, please refer to:
- Siemens Industry Online Support Portal
- SINAMICS S120 Technical Documentation
- Siemens Drive Systems Application Notes
- Authorized Siemens Service Partners
