What is the CDC2000A-MAIN_1 board?

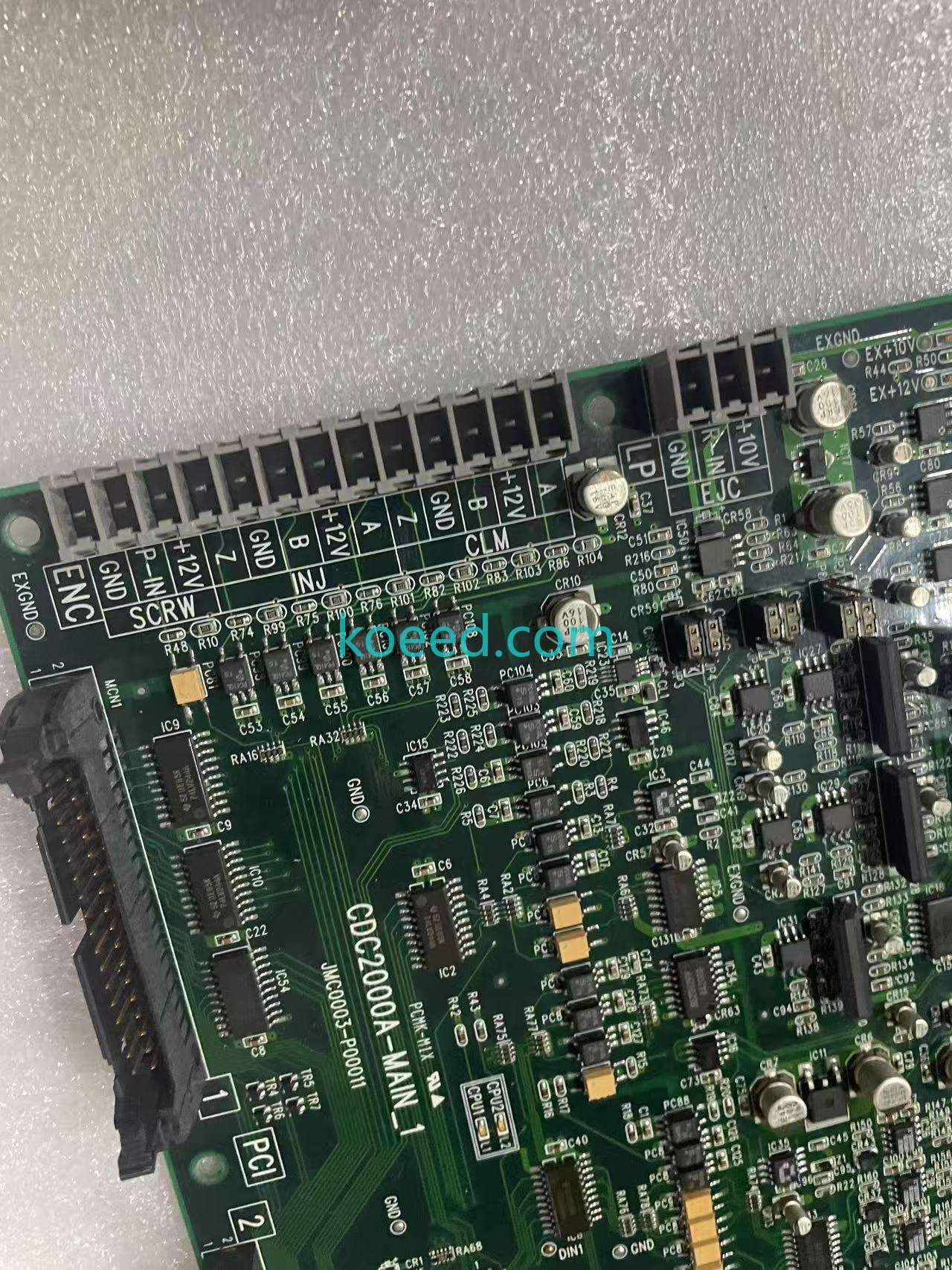

The CDC2000A-MAIN_1 is the main control board of the CDC2000A-series machine controller, made by ORB Group of Japan (board marking CDC2000A-MAIN_1, JMC0003-P00011, PCMK-M1X, www.orb.co.jp, Made in Japan). The terminal legends on the board tell its job: X/Y/Z axis encoder inputs, ±10 V analog outputs, TC/MOLD and TEMP IN thermocouple inputs, OILP/OILT oil signals and TO/MOLD outputs, so the board carries machine control and monitoring in one package. This unit is a used board recorded as 89% new at intake, cleaned and inspected, with a three-month warranty. It passed through the Koeed warehouse on 26 March 2025; all sixteen photos and the two videos below were taken here before it was packed for delivery.
Part details

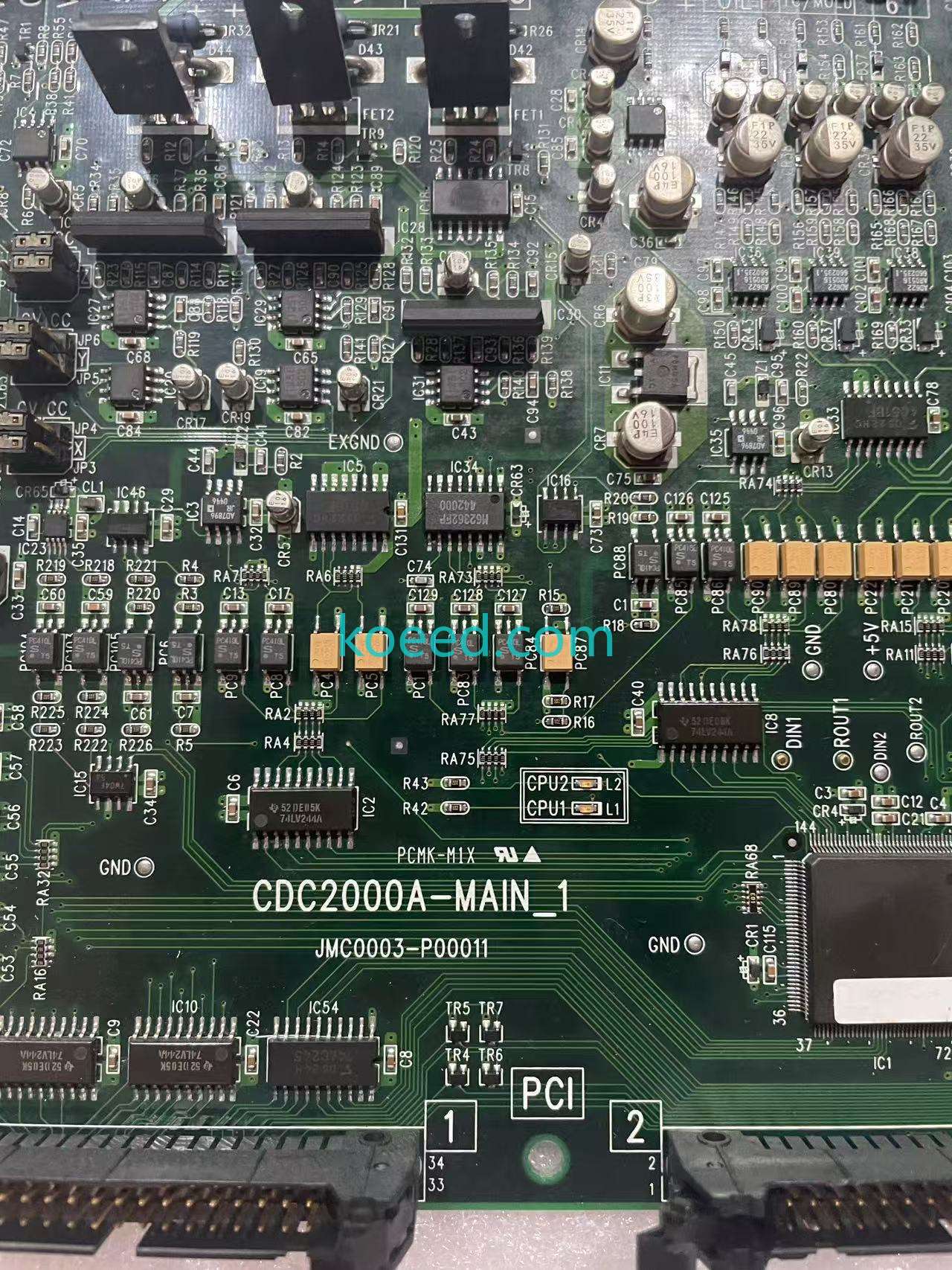

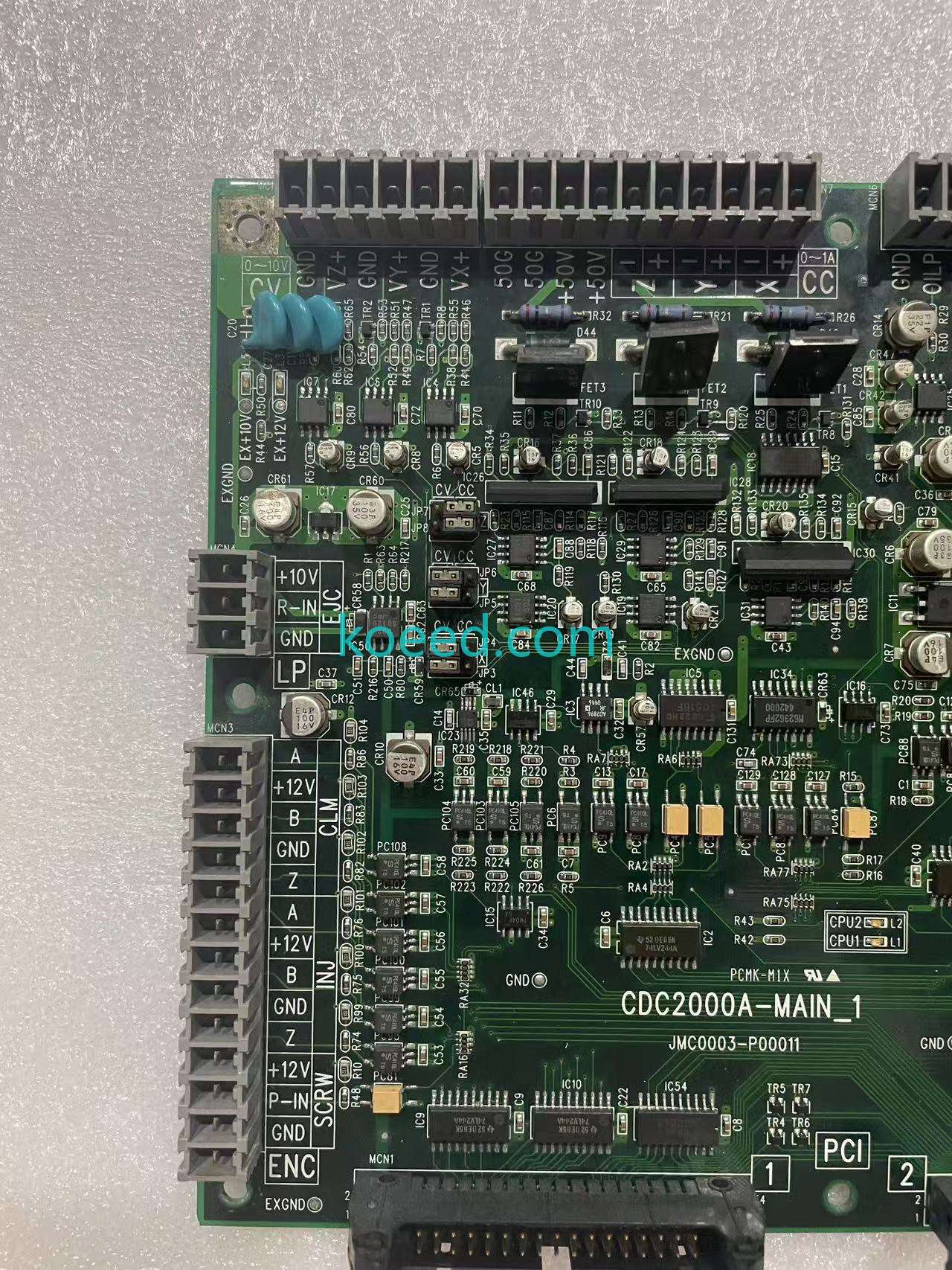

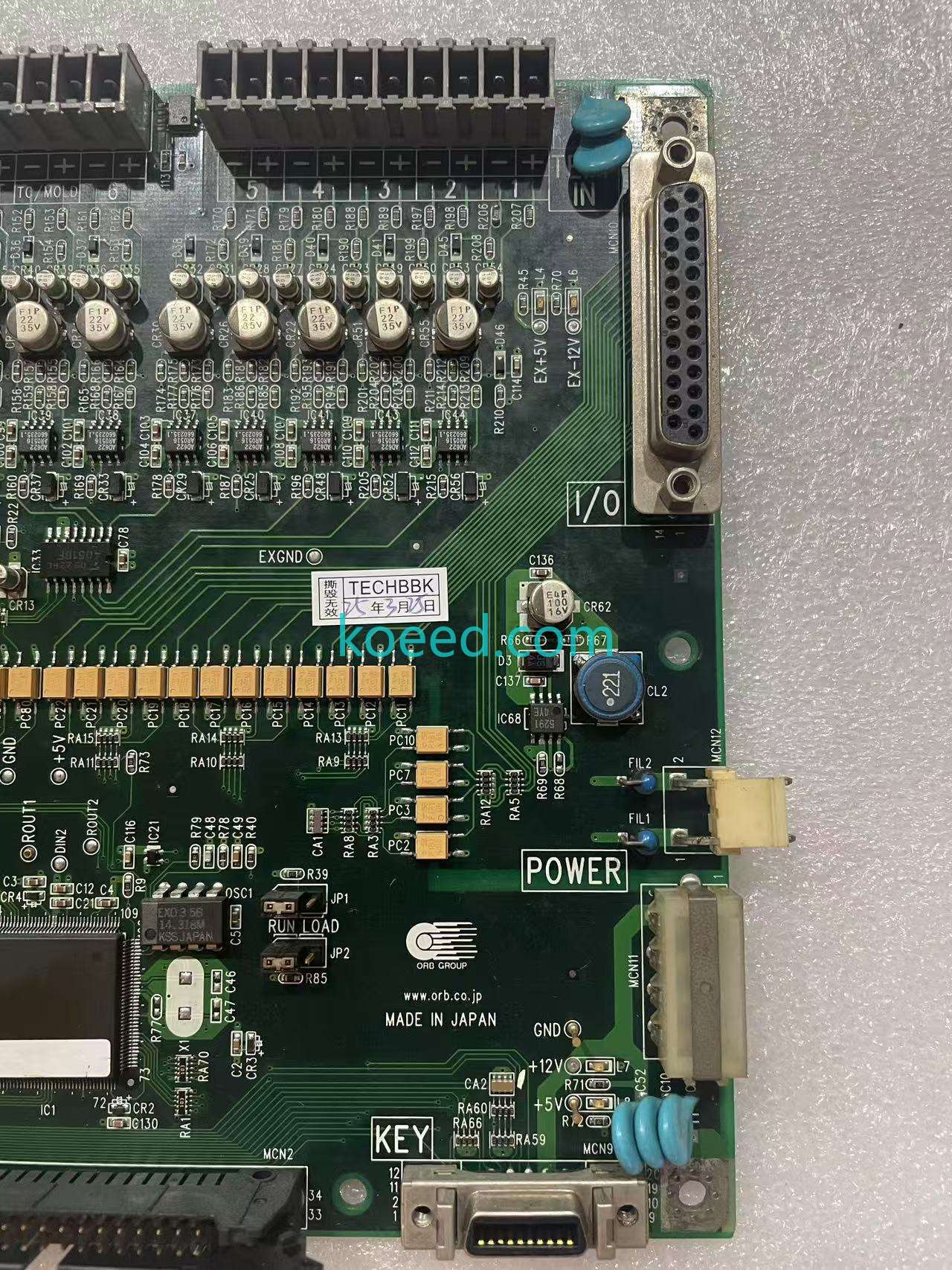

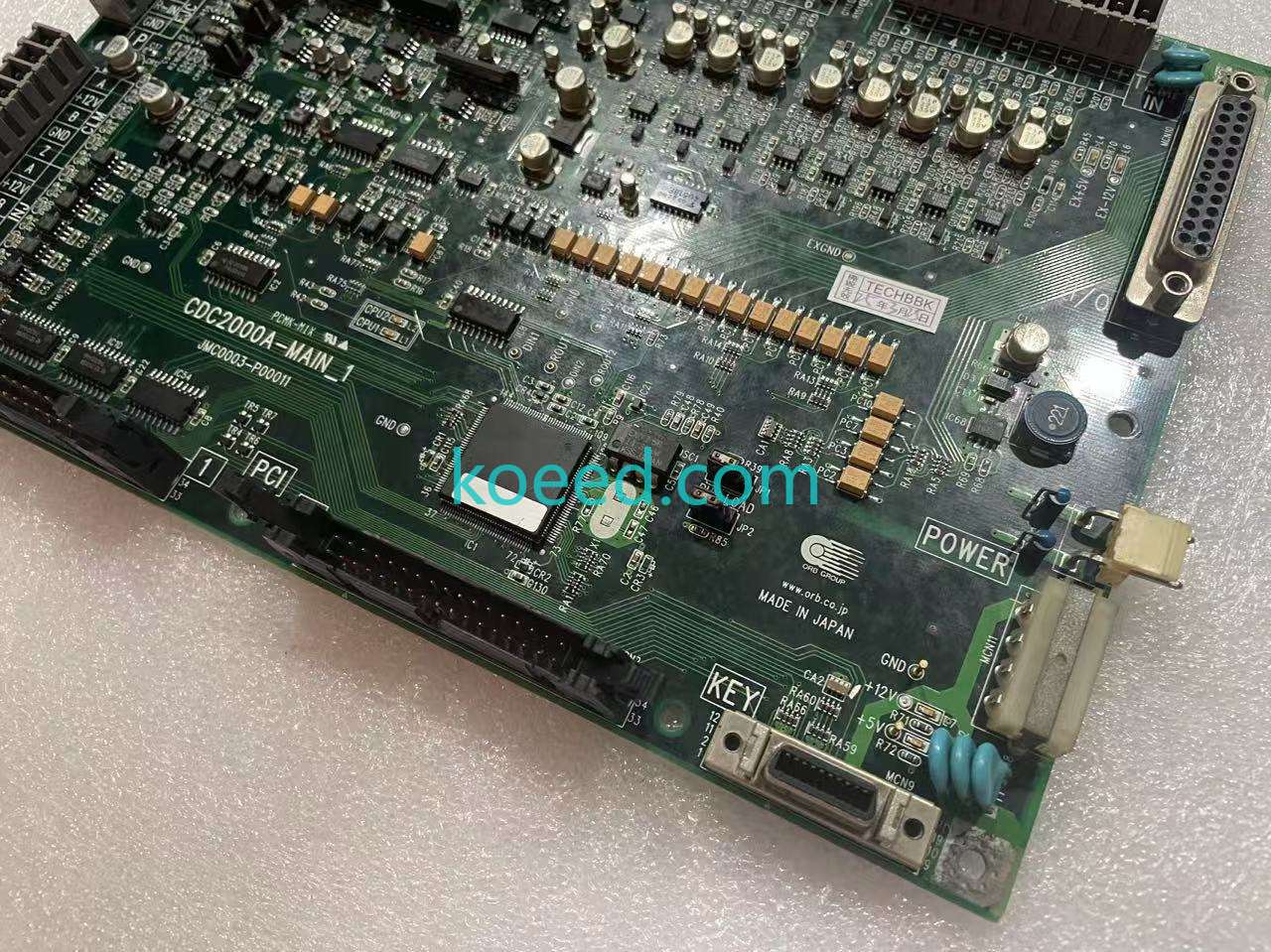

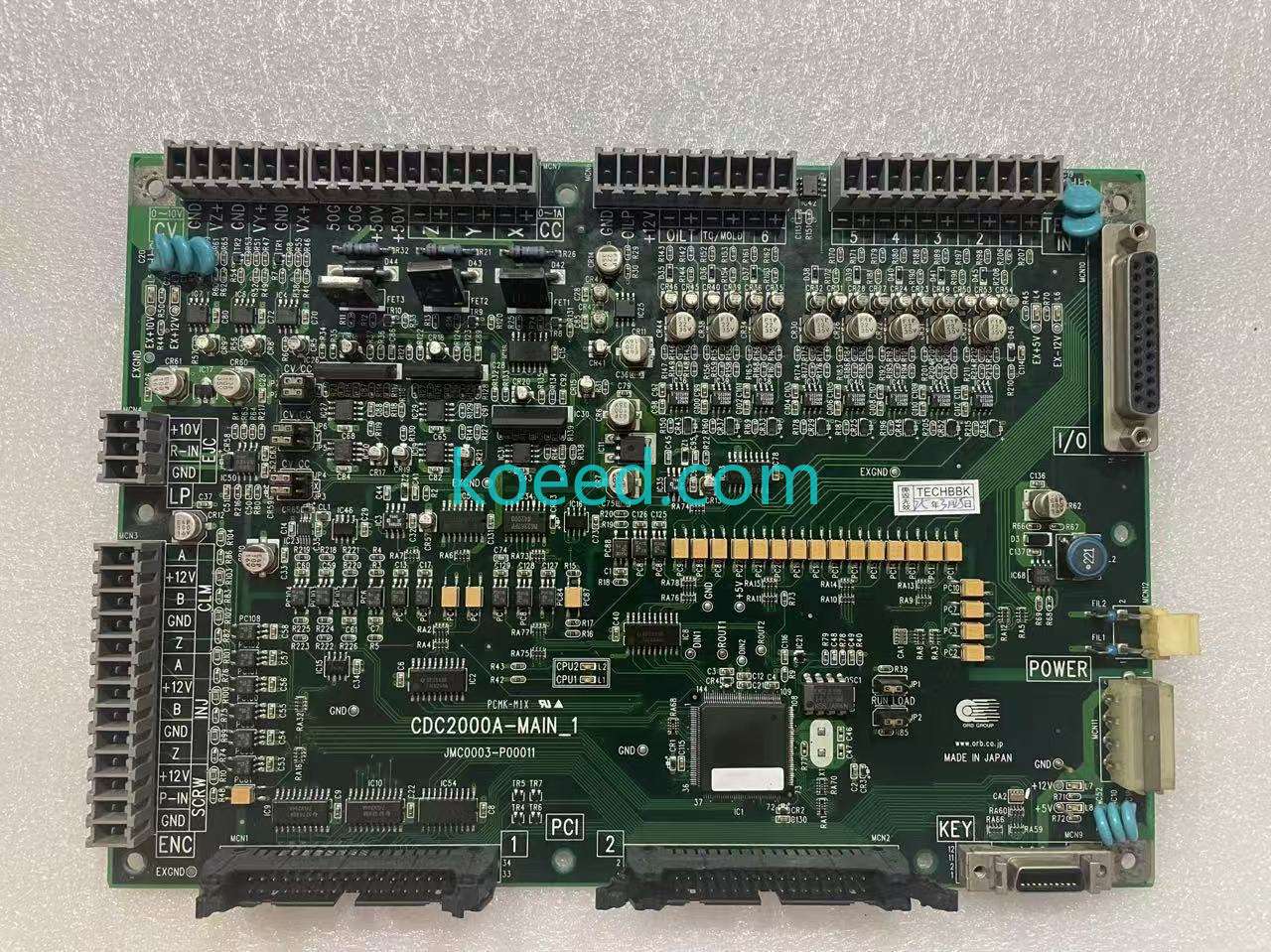

The silk screen identifies the board exactly: CDC2000A-MAIN_1 over JMC0003-P00011 with the PCMK-M1X drawing code. On the edge you find the PCI-style edge connectors (marked PCI 1 and 2) for the backplane, the KEY connector (DB15) and a DB25 I/O port, plus a POWER input block. Two CPU LEDs (CPU1/CPU2) sit mid-board beside the ORB Group logo and inspection sticker. Used condition is visible in places, mostly near the power section, consistent with the 89% new grading.
| Field | Value |
|---|---|
| Board marking | CDC2000A-MAIN_1, JMC0003-P00011, PCMK-M1X |
| Maker | ORB Group, Japan (www.orb.co.jp), Made in Japan |
| Type | Main control board of the CDC2000A-series controller |
| Onboard I/O blocks | ENC / SCRW / INJ / CLM encoder inputs (A/B/Z, +12 V); CV and CC analog blocks, ±10 V, 0-1 A; X/Y/Z 50G inputs; OILP/OILT, OILT/TC-MOLD/TEMP IN signals; TO/MOLD 1-7 outputs |
| Connectors | PCI edge 1/2, KEY DB15, DB25 I/O, POWER block, IN port |
| Indicators | CPU1/CPU2 LEDs |
| Condition | Used, recorded 89% new at intake; 3-month warranty |
| Origin | Made in Japan |
| Intake recorded | 26 March 2025 |
Fitment notes
Boards of this type slot into the controller backplane through the PCI-edge connectors, so the first check is physical: same edge keying and the same MAIN_1 revision on the failed board. After replacement, the machine will need its parameters re-entered or restored from the controller's backup, since process data lives outside the board. Match the terminal usage (encoder channels, thermocouple inputs, output banks) against your machine's wiring diagram before power-up, and power the board through the POWER block with the correct DC rails only.
