T92S7D22-12: delivery record
On this page

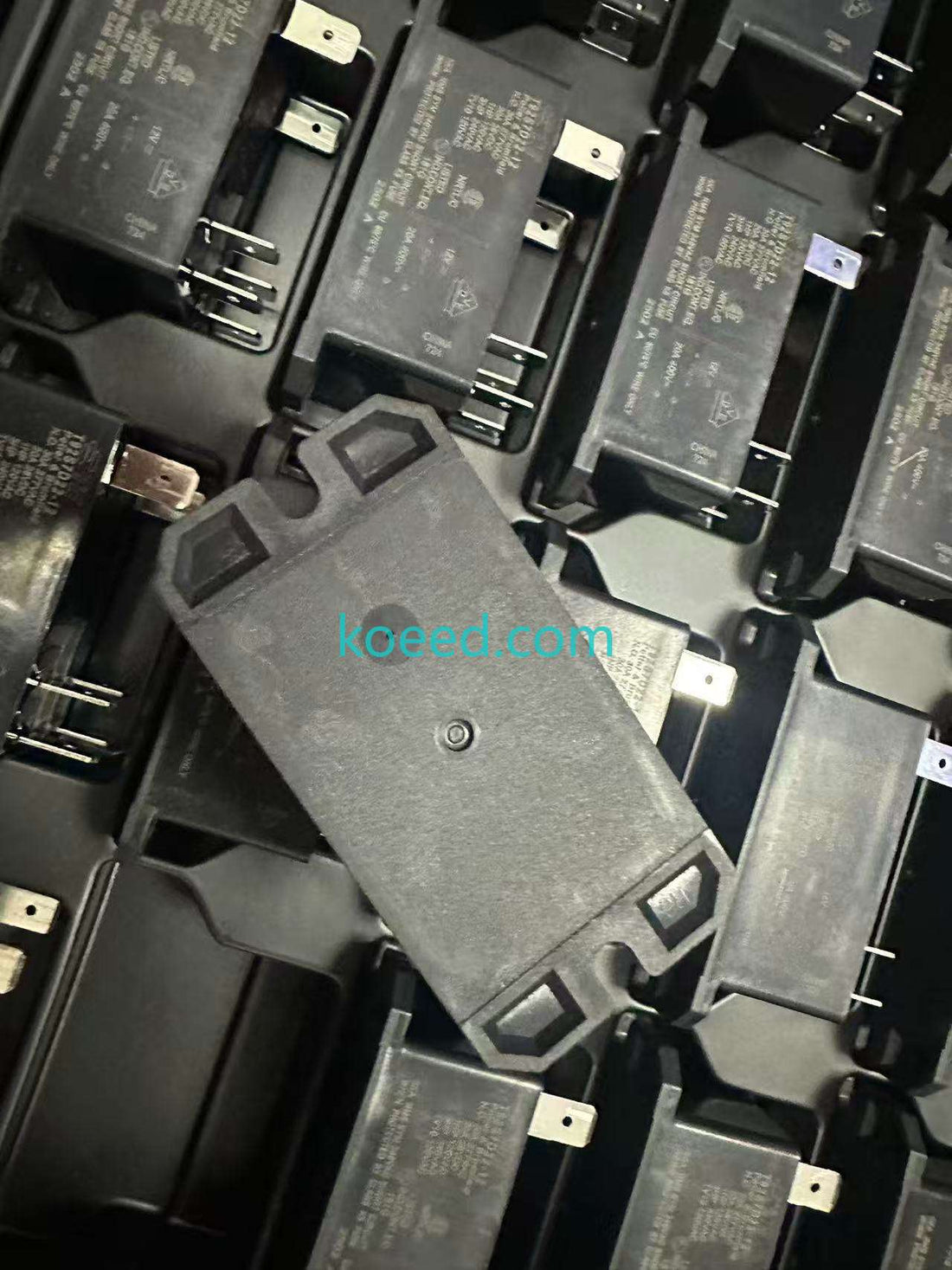

Black relay bodies with mounting brackets and blade terminals appear in the T92S7D22-12 photograph. The full model and rating label is not readable on the foremost underside. The source describes the historical items as new original, which remains a source declaration rather than an authentication result.
Record details
- Record identifier
- T92S7D22-12
- Media
- 8 photographs; 1 recorded clips
- Source condition
- Described as new original in the source; not independently authenticated.
Mechanical features available for comparison
The brackets, body shape and blade arrangement give useful reference points for an installed relay. The view does not show an energised test or confirm contact operation. It also does not establish a present stock quantity from the number of bodies photographed.
Check the complete electrical requirement
Send T92S7D22-12 in full, with the installed relay’s readable label and circuit diagram. Ask for confirmation of coil supply, contact arrangement and switching ratings from the actual offered unit’s documentation.
Compare the mounting bracket and terminal positions as well as the electrical configuration. A relay with a similar enclosure may still differ in its coil or contacts. Request the offered condition and available test evidence, and agree the required quantity and lead time after the exact configuration has been identified.
Before requesting this part
- Provide the complete model and installed label.
- Confirm coil, contact arrangement and switching ratings.
- Compare mounting and request offered-unit evidence.
Photos and recorded media
The first available source photograph was reviewed. Other photographs and clips are retained with neutral captions; clips were not reviewed. Historical media do not establish test results, authenticity or present stock.
Request this part
Send the complete model, required quantity and a photograph of the installed part or label. Ask for the offered unit's condition, matching details and current lead time.
