IFRM 04P15A1/KS35DPL: High-Precision Inductive Proximity Sensor for Industrial Automation
IFRM 04P15A1/KS35DPL: Precision Inductive Proximity Sensor
Compact, high-performance sensor for industrial automation and PLC applications
Product Overview
The IFRM 04P15A1/KS35DPL is a compact, high-precision inductive proximity sensor manufactured by Baumer, designed specifically for reliable and accurate position detection in industrial automation environments. This sensor is particularly well-suited for integration with PLC systems, offering exceptional performance in space-constrained applications.
This sensor features a miniature cylindrical design (Ø4x25mm) with flush mounting capability, making it ideal for applications where space is limited but precision is critical. The IFRM 04P15A1/KS35DPL operates on a 10-30VDC power supply and provides PNP normally open output configuration with M8 flylead connection.

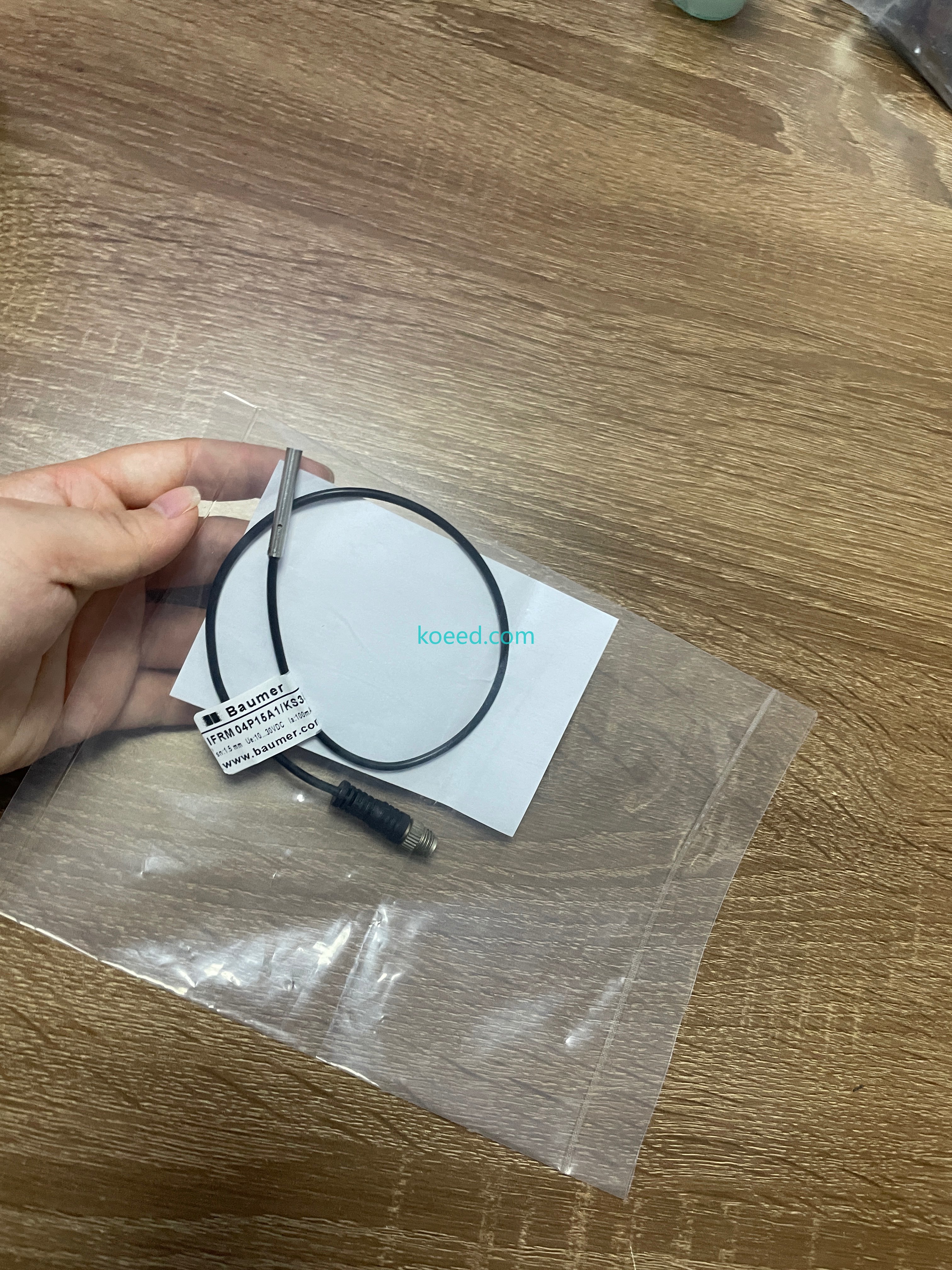

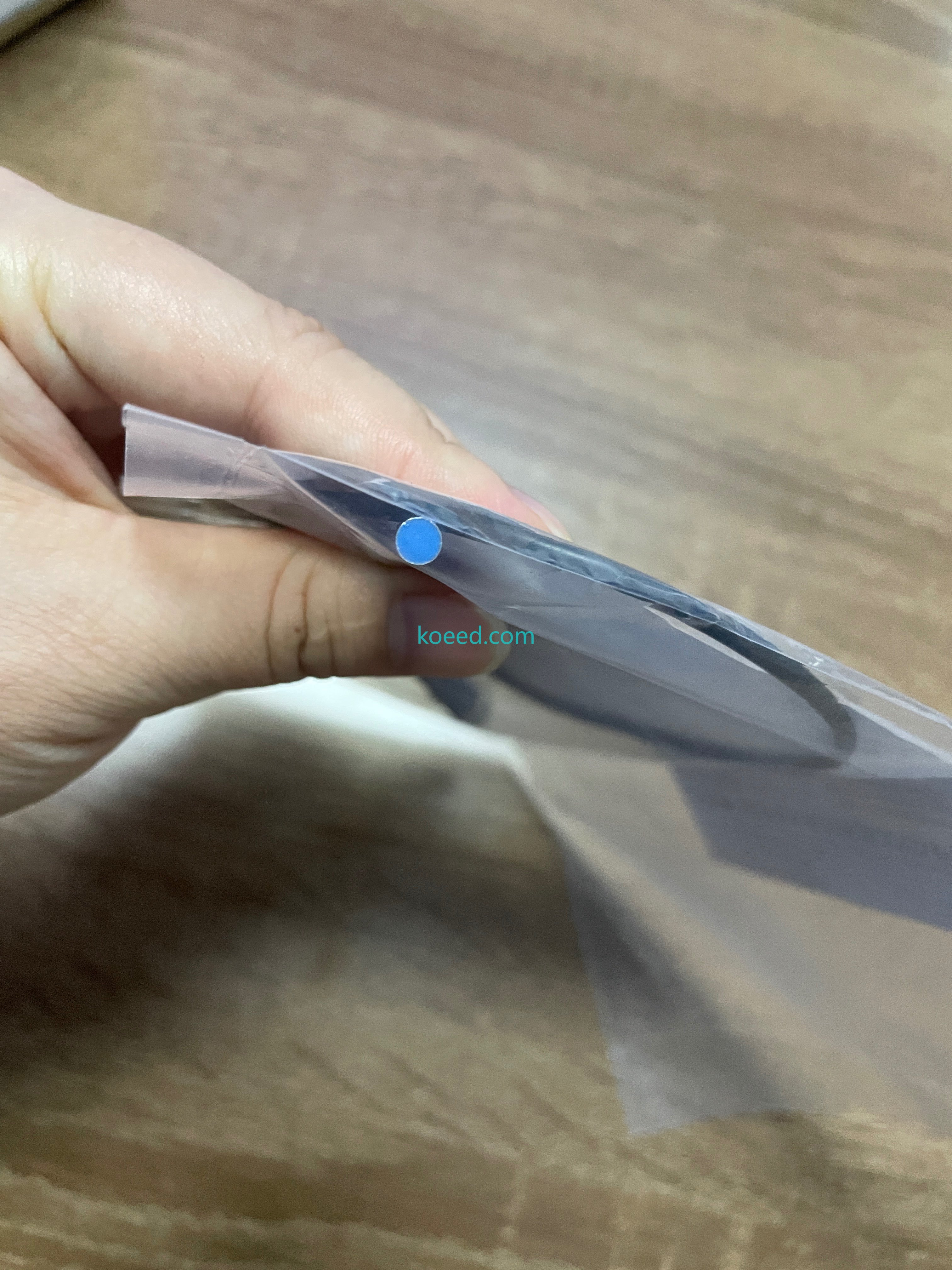

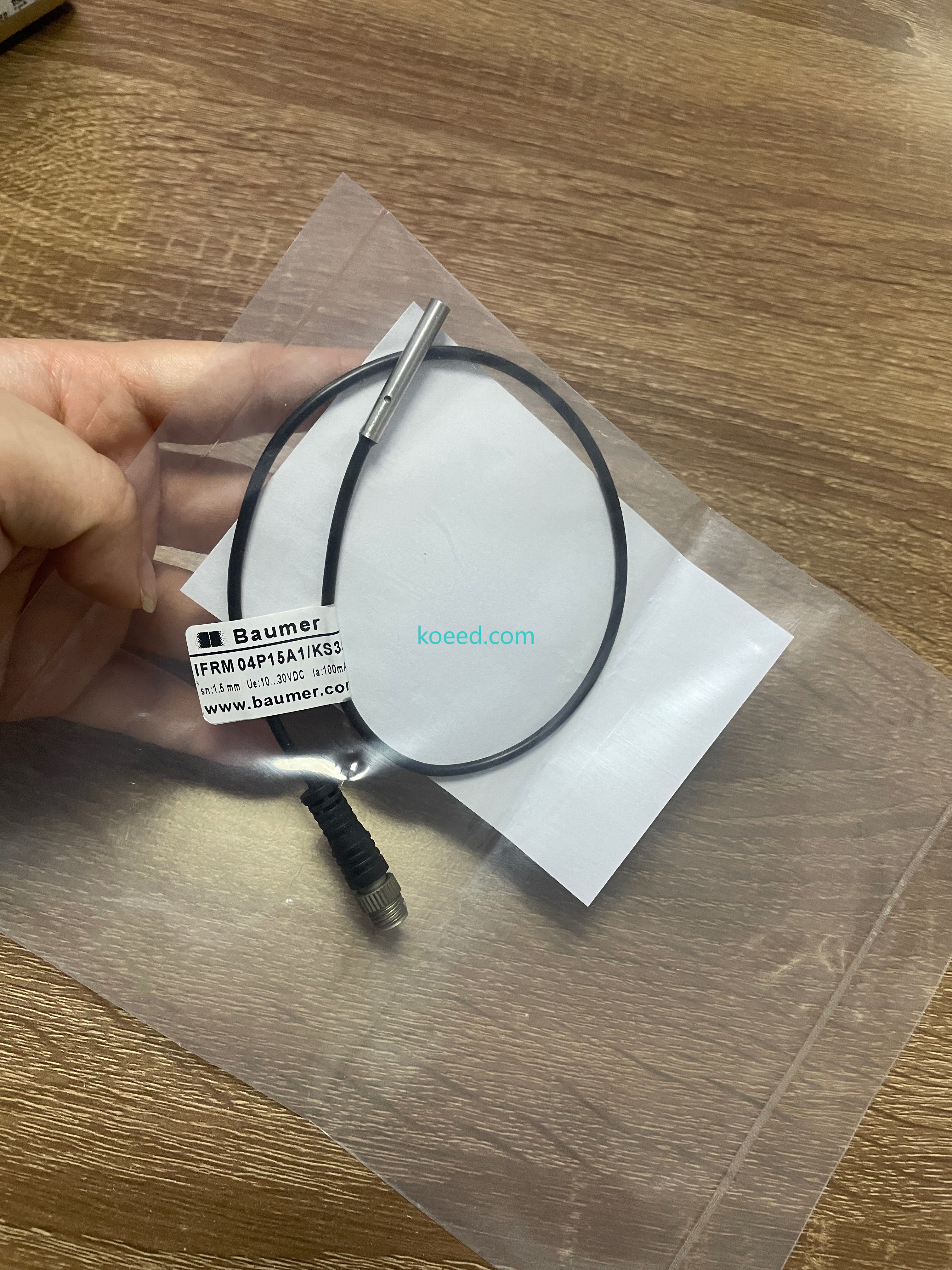

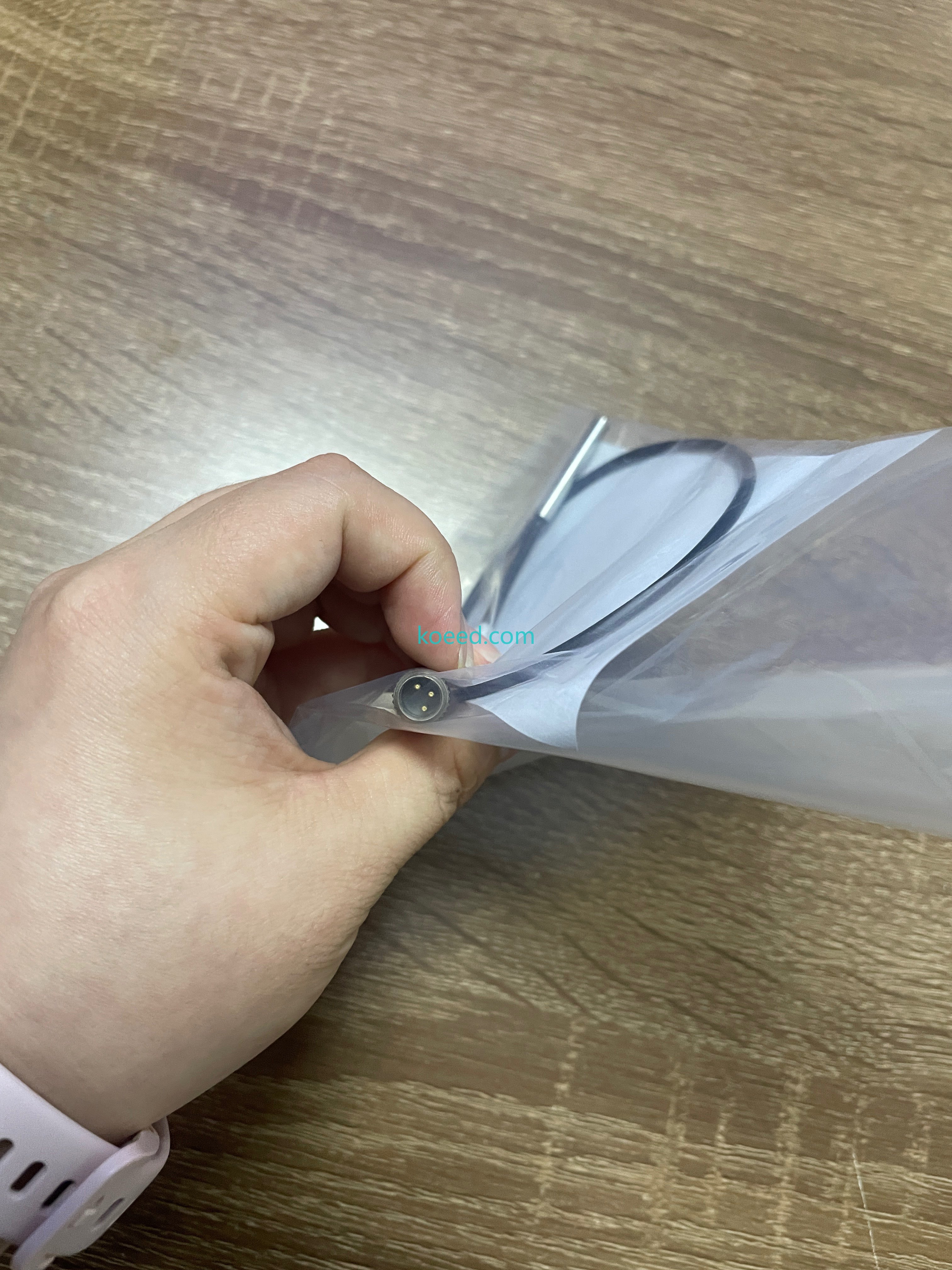

Product Images
Product Demonstration Video
For a complete demonstration of the IFRM 04P15A1/KS35DPL sensor in action, please refer to our demonstration video:
Technical Specifications
| Parameter | Specification | Description |
|---|---|---|
| Nominal Sensing Distance | 1 mm | Standard detection range for metallic objects |
| Hysteresis | 2-20% of Sr | Ensures stable switching without chatter |
| Switching Frequency | 5 kHz | High-speed detection capability |
| Voltage Supply Range | 10-30 VDC | Wide operating voltage for flexibility |
| Output Configuration | PNP NO | Positive switching, normally open |
| Connection Type | M8 Flylead | Standard industrial connector |
| Protection Rating | IP67 | Dust-tight and protected against temporary immersion |
| Dimensions | Ø4 x 25 mm | Compact cylindrical design |
| Mounting Type | Flush | Can be mounted flush with metal surfaces |
| Output Indicator | LED red | Visual status indication |
Key Features and Benefits
Compact Design for Space-Constrained Applications
The miniature Ø4mm diameter makes the IFRM 04P15A1/KS35DPL ideal for applications where space is limited but precision detection is required. Its 25mm length provides optimal sensing performance while maintaining a small footprint.
High-Precision Detection
With a nominal sensing distance of 1mm and hysteresis between 2-20% of Sr, this sensor provides accurate and reliable detection of metallic objects, ensuring stable operation without false triggering.
Industrial Durability
The IP67 protection rating ensures the sensor is dust-tight and protected against temporary immersion in water, making it suitable for harsh industrial environments. The robust construction withstands vibration and mechanical stress.
Easy Integration with PLC Systems
The PNP output configuration and M8 flylead connection make the IFRM 04P15A1/KS35DPL compatible with most PLC input modules. The 10-30VDC operating voltage range provides flexibility for various industrial power systems.
Application Areas
- Machine Tooling: Position detection of tool holders and workpieces
- Packaging Machinery: Detection of metallic components in packaging lines
- Automotive Manufacturing: Precision positioning in assembly processes
- Material Handling: Detection of metal parts on conveyors
- Robotics: End effector position sensing
- Electronic Assembly: Component presence verification
- Printing Equipment: Paper and metal detection
For your specific application requirements, consider the IFRM 04P15A1/KS35DPL sensor as a reliable solution for precise metallic object detection.
Comparison with Similar Sensors
| Feature | IFRM 04P15A1/KS35DPL | Standard Miniature Sensors | Advantage |
|---|---|---|---|
| Sensing Distance | 1 mm | 0.8-1.5 mm | Optimal balance for precision applications |
| Switching Frequency | 5 kHz | 1-3 kHz | Higher speed for fast-moving applications |
| Protection Rating | IP67 | IP65-IP67 | Superior protection against water immersion |
| Voltage Range | 10-30 VDC | 10-30 VDC | Standard industrial compatibility |
| Connection | M8 Flylead | Various | Industry-standard connector |
Frequently Asked Questions (FAQ)
Trust Metrics and Industry Recognition
Highest level of protection against dust and water immersion
High-speed detection capability for fast applications
Precision detection for accurate positioning
Wide operating range for system compatibility
External References and Citations
Industry Standards and Compliance
The IFRM 04P15A1/KS35DPL sensor complies with relevant industrial standards for electromagnetic compatibility (EMC) and electrical safety. According to Baumer's official specifications, this sensor meets CE requirements and is designed for reliable operation in industrial environments.
Reference Sources:
- Baumer USA Official Product Page: IFRM 04P15A1/KS35PL specifications
- Industrial Automation Standards: IEC 60947-5-2 for proximity sensors
- IP Code Standards: IEC 60529 for ingress protection ratings
- PLC Integration Guidelines: Industry-standard wiring practices
Purchase and Availability
The IFRM 04P15A1/KS35DPL sensor is available for purchase through authorized distributors. This high-quality Baumer sensor comes with manufacturer warranty and technical support for industrial applications.
Key Purchase Considerations:
- Verify application requirements match sensor specifications
- Consider environmental conditions (temperature, humidity, chemicals)
- Ensure proper mounting and wiring accessories are available
- Check compatibility with existing PLC systems
- Review maintenance and replacement requirements
For immediate purchase or technical consultation regarding the IFRM 04P15A1/KS35DPL sensor, visit our product page for detailed specifications and ordering information.
